USER MANUAL KF310 LG

Ora inizio sett.: 1AM, 2AM, 3AM, 4AM, 5AM, 6AM, 7AM, 8AM, 9AM, 10AM, 11AM, 12PM

1. When this crossed-out wheeled bin symbol is attached to a product it means the

product is covered by the European Directive 2002/96/CE.

2. All electrical and electronic products should be disposed of separately from the

municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative

consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact

your city office, waste disposal service or the shop where you purchased the product.2 Table of Contents Table of Contents For Your Safety 6 Guidelines for Safe and Efficient Use 7 KF310 Features 12 Parts of the phone Getting Started 16 Installing the USIM card and battery Charging the Battery 18 Disconnecting the charger 19 How to use a microSD memory card General Functions 21 Making and answering calls Answering a call 22 Entering text 23 Overview of Menu Functions 25 Entertainment 27 Live TV Music Recently playedAll tracksArtists Albums Genres 27Playlists Shuffle tracks My games & Apps Address book 28 Add new Search Speed dials Groups Service dial numbers Own number

My videos My games & apps

Voicemail Service message Info. service Orange World 44 Home Enter address Bookmarks RSS reader Saved pages History Settings Profiles4 Table of Contents Table of Contents Appearance settings

Calling 55 Make video call Call history All calls Dialled calls Received calls Missed calls Call durations Data volume Call costs Call divert

Call waiting Common setting

Table of Contents Camera 60 Camera Video camera

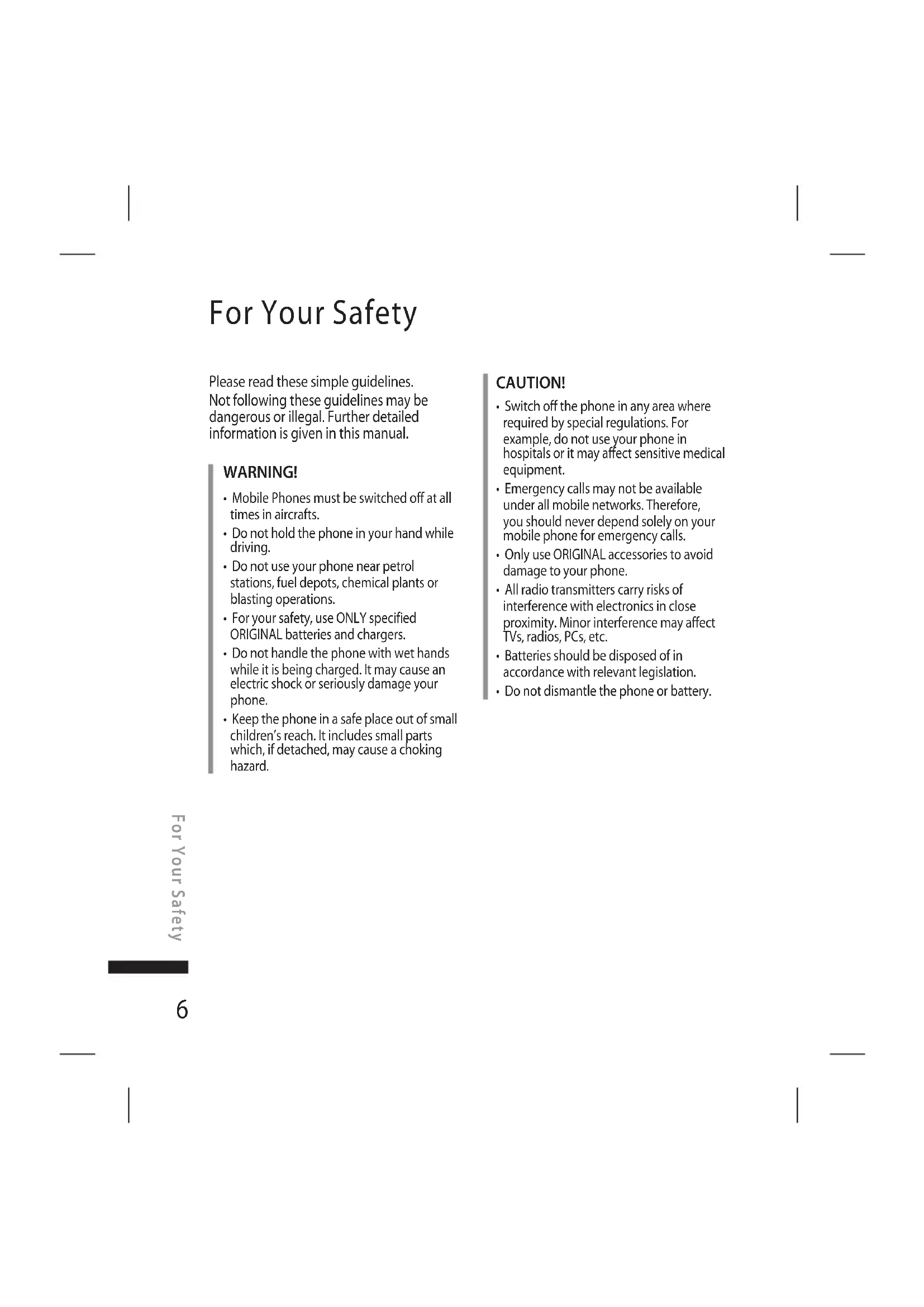

Accessories 68 Technical data 696 For Your Safety For Your Safety Please read these simple guidelines. Not following these guidelines may be dangerous or illegal. Further detailed information is given in this manual. WARNING!

• Mobile Phones must be switched off at all times in aircrafts.• Do not hold the phone in your hand while driving.• Do not use your phone near petrol stations, fuel depots, chemical plants or blasting operations.• For your safety, use ONLY specified ORIGINAL batteries and chargers.• Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or seriously damage your phone.• Keep the phone in a safe place out of small children’s reach. It includes small parts which, if detached, may cause a choking hazard. CAUTION!
• Switch off the phone in any area where required by special regulations. For example, do not use your phone in hospitals or it may affect sensitive medical equipment.• Emergency calls may not be available under all mobile networks. Therefore, you should never depend solely on your mobile phone for emergency calls.• Only use ORIGINAL accessories to avoid damage to your phone.• All radio transmitters carry risks of interference with electronics in close proximity. Minor interference may affect TVs, radios, PCs, etc.• Batteries should be disposed of in accordance with relevant legislation.• Do not dismantle the phone or battery.7 Guidelines for Safe and Efficient Use Guidelines for Safe and Efficient Use Please read these simple guidelines. Not following these guidelines may be dangerous or illegal. Further detailed information is given in this manual. Certification information (SAR) This Device Meets International Guidelines For Exposure To Radio Waves Your mobile device is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio frequency (RF) recommended by international guidelines (ICNIRP). These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for mobile devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit stated in the international guidelines is 2.0 W/kg*. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station, the lower the power output of the device. Before a phone model is available for sale to the public, compliance with the European R&TTE directive must be shown. This directive includes as one essential requirement the protection of the health and the safety for the user and any other person. The highest SAR value for this device when tested for use at the ear is

This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 1.5 cm away from the body. When a carry case, belt clip or holder is used for body-worn operation, it should not contain metal and should position the product at least 1.5 cm away from your body. In order to transmit data files or messages, this device requires a quality connection to the network. In some cases, transmission of data files or messages may be delayed until such a connection is available. Ensure8 Guidelines for Safe and Efficient Use Guidelines for Safe and Efficient Use the above separation distance instructions are followed until the transmission is completed. The highest SAR value for this device when tested for use at the body is

• The SAR limit for mobile devices used by the public is 2.0 watts/kilogram (W/kg) averaged over ten grams of body tissue. The guidelines incorporate a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAR values may vary depending on national reporting requirements and the network band. For SAR information in other regions please look under product information at www. lgmobile.com. Product care and maintenance WARNING! Only use batteries, chargers and accessories approved for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone, and may be dangerous.

Do not disassemble this unit. Take it to a qualified service technician when repair work is required.

Keep away from electrical appliances such as a TV's, radios or personal computers.

The unit should be kept away from heat sources such as radiators or cookers.

Never place your phone in a microwave oven as it will cause the battery to explode.

Do not subject this unit to mechanical vibration or shock.

The coating of the phone may be damaged if covered with wrap or vinyl wrapper.

Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean your phone. There is a risk of this causing a fire.

Do not subject this unit to excessive smoke or dust.

Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips.

Do not tap the screen with a sharp object as it may damage the phone.

Do not expose the phone to liquid or moisture.

Use accessories, such as earphones and headsets, with caution. Ensure that cables are tucked away safely and do not touch the antenna unnecessarily.

Please remove the data cable before powering on the handset.9 Efficient phone operation To enjoy optimum performance with minimum power consumption please.

Do not hold the antenna when the phone is in use. If you hold it, it can affect call quality, it may also cause the phone to operate at a higher power level than needed and shorten talk and standby times. Electronic devices All mobile phones may get interference, which could affect performance.

Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over pacemakers (i.e. in your breast pocket.)

Some hearing aids might be disturbed by mobile phones.

Minor interference may affect TVs, radios, PCs, etc. Road safety Check the laws and regulations on the use of mobile phones in the areas when you drive.

Do not use a hand-held phone while driving.

Give full attention to driving.

Pull off the road and park before making or answering a call if driving conditions so require.

RF energy may affect some electronic systems in your motor vehicle such as a car stereo or safety equipment.

If your vehicle is equipped with an air bag, do not obstruct it with installed or portable wireless equipment. It can cause serious injury due to improper performance. If you are listening to music whilst outside and about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is particularly imperative when attempting to cross the street. Guidelines for Safe and Efficient Use10 Avoid damage to your hearing Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We therefore recommend that you do not turn on or off the handset close to your ear. We also recommend that music and call volumes are set to a reasonable level. Blasting area Do not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules. Potentially explosive atmospheres

Do not use the phone at a refueling point. Don't use near fuel or chemicals.

Do not transport or store flammable gas, liquid, or explosives in the compartment of your vehicle, which contains your mobile phone and accessories. In aircraft Wireless devices can cause interference in aircraft.

Turn off your mobile phone before boarding any aircraft.

Do not use it on the ground without crew permission. Children Keep the phone in a safe place out of small children's reach. It includes small parts which if detached may cause a choking hazard. Emergency calls Emergency calls may not be available under all mobile networks. Therefore, you should never depend solely on your mobile phone for emergency calls. Check with your local service provider. Guidelines for Safe and Efficient Use Guidelines for Safe and Efficient Use11 Battery information and care

You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery's performance.

Use only LG batteries and chargers. LG chargers are designed to maximize the battery life.

Do not disassemble or short-circuit the battery pack.

Keep the metal contacts of the battery pack clean.

Replace the battery when it no longer provides acceptable performance. The battery pack may be recharged hundreds of times until it needs replacing.

Recharge the battery if it has not been used for a long time to maximize usability.

Do not expose the battery charger to direct sunlight or use it in high humidity, such as the bathroom.

Do not leave the battery in hot or cold places, this may deteriorate the battery performance.

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the manufacturer’s instructions.

For use only with battery LG Electronics, KF310.

If you need to replace the battery, take it to the nearest authorized LG Electronics service point or dealer for assistance.

Always unplug the charger from the wall socket after the phone is fully charged to save unnecessary power consumption of the charger. Guidelines for Safe and Efficient Use12 Parts of the phone Open view KF310 Features KF310 Features EarpieceOK (Con rm) keyNavigation keys In standby mode: Write Text message Profiles popup In menu: Navigates menus.Send keyMultitasking keyVGA cameraLCD screen Top: Icons showing signal strength, battery level and various other functions Bottom: Soft key indicationsCall End keyCamera Hot key Go to Camera previewAlpha numeric keys In standby mode: Input numbers to dial.Hold down: for international calls. to dial voice mail centre to dial video mail centre

for speed dials. In editing mode: Enter numbers & characters.Clear key13 KF310 Features Clear key You can delete a letter or go back to previous menu. Left soft key/ Right soft key Performs the function indicated at the bottom of the display. Send key

Dials a phone number and answers a call.

In standby mode: Shows a history of calls made, received, and missed. OK (Con rm) key Call End key

You can go back to standby mode by pressing this key when activating the menu.14 KF310 Features KF310 Features Right side view Left side view Headset/Charger/ Cable connector Side keys Handstrap Hole microSD card slot15 KF310 Features Rear view Battery cover Battery External camera lens USIM card socket16 Getting Started Getting Started Installing the USIM card and battery 1. Installing the USIM card.Your USIM card contains your phone number, service details and contacts and must be inserted into your handset. If your USIM card is removed then your handset becomes unusable (except for emergency calls) until a valid one is inserted. Always disconnect the charger and other accessories from your handset before inserting and removing your USIM card. Slide the USIM card into the USIM card holder. Make sure that the USIM card is properly inserted and the gold contact area on the card is facing downwards. To remove the USIM card, press down lightly and pull it in the reverse direction.To insert the USIM cardTo remove the USIM card Note

The metal contact of the USIM card can easily be damaged by scratches. Pay special attention to the USIM card while handling. Follow the instructions supplied with the USIM card. After removing the battery, insert USIM card.17 Getting Started

2. Installing the battery.

Slide the battery upwards until it snaps back into place.

3. To remove the battery.

Turn the power off. (If the power is left on, there is a chance you could lose the stored telephone numbers and messages.) Press and hold down the battery release button and slide the battery down.18 Getting Started Getting Started Charging the Battery Before connecting the travel adapter to the phone you must first install the battery.

1. With the arrow facing you as shown in

the diagram push the plug on the battery adapter into the socket on the right side of the phone until it clicks into place.

2. Connect the other end of the travel

adapter to the mains socket. Note

Only use the charger included in the box.

3. The moving bars on the battery icon will

stop after charging is complete.

4. Ensure the battery is fully charged before

using the phone for the first time. CAUTION!

• Do not force the connector as this may damage the phone and/or the travel adapter.• If you use the battery pack charger when abroad, use an attachment plug adaptor for the proper configuration.• Do not remove your battery or the USIM card while charging. WARNING!
• Unplug the power cord and charger during lightning storms to avoid electric shock or fire.• Make sure that no sharp-edged items such as animal teeth or nails, come into contact with the battery. This may cause a fire.19 Getting Started Disconnecting the charger Disconnect the travel adapter from the phone as shown in the diagram below. How to use a microSD memory card <MicroSD memory card> <How to insert a microSD memory card>

1. Turn the phone off. Inserting or removing

the microSD when the phone is on may damage the files stored in the memory card.

2. Lift the plastic cover which protects the

3. Insert the memory card into the slot. The

gold contacts must be kept on the back of the microSD. Don’t push the microSD too much. If it doesn't go into the slot easily, you may be trying to insert it in the wrong way or there could be a foreign object in the slot.

4. Once inserted, push the memory card

until you hear a Click, meaning that the microSD has been correctly engaged.

5. Close the plastic slot protection.20

6. To remove the memory card, turn the

phone off, open the slot protection and push the microSD to unlock it. Carefully extract the memory card. Attention:

Avoid using the Flash Memory Card when the battery is low.

When writing to the card, wait for the operation to complete before removing the card.

The card is designed to fit easily into the system one way only.

Do not bend the card or force it into the slot.

Do not insert any memory cards other than those made by microSD.

If the microSD has been formatted using FAT32, format the microSD using FAT16 again. For more information on the microSD, please refer to the memory card instruction manual. Memory card formatting Before you start to use the memory card you have to format it. After you insert the memory card, select Menu

the left soft key. This operation should only be done when you insert the memory card for the first time. During formatting various folders will be created for different data types. Turning the handset on/off Turning your handset on Ensure that your USIM card is in your handset and the battery is charged. Press and hold

until the power comes on. Enter the USIM PIN code that was supplied with your USIM card if the PIN code request is set to On. After a few seconds you will be registered on the network. Turning your handset o Press and hold

until the power goes off. There may be a few seconds delay while the handset powers down. Do not turn the handset on again during this time. Emergency call function When you do not have network coverage, or if your phone has no SIM in it, you can still make emergency calls by pressing the right soft key or by dialling an emergency number. Getting Started Getting Started21 Making and answering calls Making a voice call

1. Enter the number including the full area code.

To delete a digit press key.To delete all digits press and hold

to make the call.3. Press to finish the call, or close the handset. Note

To activate the speakerphone during a call, activate the touch keys and press

Making a call from the call logs

1. In standby mode, press

and the latest incoming, outgoing and missed phone numbers will be displayed.2. Select the desired number by using

to call the number. Making a video call You can make a video call in a 3G covered service area. If the called user has a 3G video phone in a 3G covered service area, the call will be established. You can also answer a video call for video incoming call. To make/answer a video call, do the following.1. Input the phone number using the keypad, or select the phone number from the calls made/received lists. To correct mistakes, press briefly to delete the last number, or press and hold to delete all numbers.2. If you do not want to use the speakerphone, ensure you have the headset plugged in.3. To start the video function, press the left soft key [Options] and select Make video call. You will be notified that you will need to close other applications to make the video call. General Functions General Functions22 Note

The video call may take some time to connect. Please be patient. The connection time will also depend on how quickly the other party answers the call. While the video call is connecting, you will see your own image; after the other party has answered, their image will be displayed on the screen.4. Adjust the camera position if necessary.5. Press to finish the call, or close the handset. Making a voice/video call from Contacts It is easy to call anyone whose number you have stored in your Contacts.1. Press to access the contacts list.2. Scroll to the contact to make a call.3. Press to make a voice call. Press the left soft key and select Make video call to make a video call.4. Press to finish the call. Making international calls

for the international prefix. The ‘+’ character prefixes the international access code.2. Enter the country code, area code, and the phone number.3. Press

Answering a call When you receive a call, the phone rings and the flashing phone icon appears on the screen. If the caller can be identified, the caller’s phone number (or name if stored in your Contacts) is displayed.1. Open the slider to answer an incoming call. Note

To reject an incoming call, press

or the right soft key twice.

If you set Answer mode as Press send key (Menu 8.0.4), you can answer the call by pressing after opening the slider. If the answer mode is set to Press any key, any key will answer a call except for

2. End the call by closing the handset or pressing

General Functions General Functions23 General Functions Shortcut to activate vibrate mode You can activate the vibrate only mode by pressing and holding down

after opening the phone. Signal strength You can check the strength of your signal by the signal indicator on the LCD screen of your phone. Signal strength can vary, particularly inside buildings. Moving close to a window may improve reception. Entering text You can enter alphanumeric characters using the keypad. For example, storing names in Contacts, writing a message, creating a personal greeting or scheduling events in the calendar all require entering text. Changing the text input mode

1. When you are in a field that allows

characters to be entered, you will notice the text input mode indicator in the upper right corner of the LCD screen.

2. If T9 is on, you can change the mode to

T9Abc, T9ABC, 123, T9abc by pressing

. When T9 is off, the mode will be changed to Abc, ABC, 123, abc. Using the T9 Mode The T9 predictive text input mode allows you to enter words easily with a minimum number of key presses. As you press each key, the handset begins to display the characters that it thinks you are typing based on a built-in dictionary. As new letters are added, the word changes to reflect the most likely candidate from the dictionary. Using the ABC Mode Use

1. Press the key labelled with the required

Once for the first letter.

Twice for the second letter.

once. To delete letters, press

Using the 123 (Number) mode The 123 mode enables you to enter numbers in a message(a telephone number, for example). Press the keys corresponding to the required digits before manually switching back to the appropriate text entry mode. Using the symbol mode The symbol mode enables you to enter various symbols or special characters. To enter a symbol, select Options

Symbols. Use the navigation and numeric keys to select the desired symbol and press

General Functions General Functions25 You can launch a menu by pressing

in the idle screen. Move to the desired item and press

to go into the sub menu. From the main menu you can also go into a submenu by directly pressing the corresponding numeric key as follows. The main menu consists of the following top menus and sub menus. Overview of Menu Functions Overview of Menu Functions

2.5 Service dial numbers

2.7 My business card

#. More #.1 Quick menu #.2 Calculator #.3 Stopwatch #.4 Converter #.5 World time #.6 STK #.7 Voice recorder27 Entertainment [Menu 1] Entertainment Live TV Menu 1.1You can access Mobile TV which is serviced by Orange by selecting this menu. Music Menu 1.2 Recently played (Menu 1.2.1)You can replay the music which you recently listened to in “My music “. All tracks (Menu 1.2.2)You can view all the music files stored in the phone/external memory. Artists (Menu 1.2.3)You can view and play music sorted by Artists. Albums (Menu 1.2.4)You can view and play music sorted by Albums. Genres (Menu 1.2.5)You can view and play music sorted by Genres. Playlists (Menu 1.2.6)You can create your own playlists by choosing tracks from the All tracks menu list. Shu e tracks (Menu 1.2.7)If you want to play the music continuously and randomly, select this option. My games & Apps Menu 1.3You can easily download games and other applications in this menu. It may have two folders, no folders at all, or Games and Applications. The default folder can be dependent on the operator/country. Each folder has an embedded link for downloading games or applications. Please note that additional costs may be incurred when using online services. You can create a folder using the left soft key [Options].28 Address book [Menu 2] Address book Add new Menu 2.1You can register a new contact address. You can enter the name, different phone numbers and Email addresses of a new contact. You can also assign the contact to groups, include an image or avatar, assign a specific ringtone and even enter a memo for the contact. Other available fields include Home page URL, Home address, Company name, Job title and company address. You can enter and manage contact addresses depending on the memory usage. Search Menu 2.2Performs the contact address search function. The search operation is performed based on a first name as a default. The current search method and results found are displayed in the Search window. You can make a phone call or send a message to the selected phone number. A Contacts search can be performed based on the phone number or group information. Note

In Settings menu, the search operation can be performed based on the last name. Speed dials Menu 2.3Using this menu you can manage speed dials. Speed dials are configured between

. You can register speed dials for a specific contact address up to 5 different numbers, and a contact address may have multiple speed dials. Groups Menu 2.4Using this menu you can manage group information (both stored in the Handset and the USIM). Service dial numbers Menu 2.5You can view the list of Service Dialling Numbers (SDN) assigned by your service provider (if supported by the USIM card). Such numbers include emergency, directory enquiries and voice mail numbers. After selecting a service number, press

to dial the service.29 Own number Menu 2.6 Allows you to display your phone number in the USIM card. You can save own numbers being used in the USIM card. My business card Menu 2.7 You can create your own business card by pressing the left soft key Add. After entering the name, number, Email and image, you can use it as a business card when sending the message. Settings Menu 2.8 Contact list settings (Menu 2.8.1)

View contacts from: Select which contact information shall be displayed (from handset memory, from USIM card or both). All is the default setting.

Name display: You can set the display order by name.

Show picture: Select whether to display picture or not. Copy (Menu 2.8.2) You can copy contacts from the phone memory to the USIM or from the USIM to the phone memory. You can copy all or selected entries at a time. Move (Menu 2.8.3) You can move contacts from the phone memory to the USIM or from the USIM to the phone memory. You can move all or selected items at a time. Send all contacts via Bluetooth (Menu 2.8.4) You can send all phonebook data in handset to other handset by using Bluetooth. Backup contacts (Menu 2.8.5) You can save all phonebook data in handset to external memory card the form of vcard. Restore contacts (Menu 2.8.6) You can restore all phonebook data in external memory card to phone memory the form of vcard. Address book30 Address book Clear contacts (Menu 2.8.7) Clears all contact information. You can delete all contacts saved in the mobile phone memory as well as on the USIM card. Memory info. (Menu 2.8.8) You can check the status of contacts memory in this menu. Address book31 Downloads Menu 3.1 You can save the contents downloaded from network in this folder. My images Menu 3.2 The Pictures folder consists of embedded links for downloading pictures through the Internet and Default images. Pictures taken using the camera are stored in the Pictures folder and you can create new folders to manage them. When a file is selected, the following options will be displayed by pressing the left soft key [Options].

Send: You can send the selected image via Message, Email or Bluetooth.

Use as - Wallpaper: You can set an image as the home screen theme. - Contacts image: You can set the image of selected entry in contacts. When incoming a call, the image saved in contact is displayed. - Start up: You can set the image when switching on the phone. - Shut down: You can set the image when switching off the phone.

Full screen view: You can view the image in full screen.

Landscape view: You can view the image in wide view mode.

Delete: Deletes the selected image.

Files - Rename: You can rename the image. - Edit: Enables the image to be edited. - File info. : show the information on the selected image file.

Slide show: You can view the images as a slide show. Media Album Media Album [Menu 3]32 Media Album Media Album My sounds Menu 3.3 The Sounds folder consists of embedded links for downloading ringtones and music as well as folders containing the Default sounds and Voice recordings. Here you can manage, send or set sounds as ringtones. When a file existed in the Default sound folder is selected, the following options will be displayed by pressing the left soft key [Options].

Use as - Voice ringtone: You can set the sound file as a ringtone when incoming a voice call. - Video ringtone: You can set the sound file as a ringtone when incoming a video call. - Message tone: You can set the sound file as a ringtone when receiving a message. - Start-up: You can set the sound file as a ringtone when handset starts up. - Shut down: You can set the sound file as a ringtone when handset shut down.

File info.: Shows the information on the selected sound file.

Sort by: You can sort the files by date, type or name.

Memory manager: You can view the memory status (handset or external memory card). My videos Menu 3.4 Here you can manage or send downloaded or captured videos clips. If you press

, you can activate the video file. The following are available using the left soft key [Options] in the Video list.

Send: You can send the video via Message, Email or Bluetooth.

Use as: You can set the video file as voice ringtone or video ringtone.

Move: Moves the file into handset memory or external memory.

Copy: Copies the file in handset memory or external memory.

Delete: Deletes the selected video.

Mark/Unmark: Using the Mark function, you can send, delete, move and copy multiple files.

File - Rename: You can rename the video. - File info.: Shows information on the selected video file.33 Media Album

Create new folder: You can create a new folder.

Sort by: You can sort files by name, date, or file type.

List view/Grid view: You can view the images as a List view or Grid view.

Memory manager: Displays the memory status (handset or external memory card). You can view a video using the video player. Video files are displayed in the list as thumbnails. You can select a desired video by using the

. Select a desired video and select Play to view the recorded video. When viewing video clips in the Media Player, the following options are available:

Landscape view: You can view the video in wide view mode. Note You can also view the video in wide view mode by pressing

Mute/Unmute: Switch the sound on/off.

Capture: You can save what is on the paused screen as an image file (only possible in Pause mode).

File info.: You can check information on files being played.

Send: You can send the video via Message, Email or Bluetooth.

Delete: Deletes the selected video.

Use as: You can set the video file as voice ringtone or video ringtone. This menu is dependent upon the contents.34 My games & apps Menu 3.5 You can easily download games and connect Messenger in this menu. It may have two folders, no folders at all, or Games and Messenger. The default folder can be dependent on the operator/country. Each folder has an embedded link for downloading games or connecting Messenger. Please note that additional cost may be incurred when using online services. You can create a folder using the left soft key [Options]. SVG contents Menu 3.6 The SVG contents' folder contains all of your default and downloaded SVG files. When a file is selected, the following options will be displayed by pressing the left soft key [Options].

Play/Pause: Pause or resume playback.

Send: Send the file as a message or via Bluetooth.

Go to list: Return to your list of SVG files.

Landscape view: View your SVG in landscape view mode. (this only appears if you select Options without pausing).

Mute/Unmute: Switch the sound on/off.

Delete: Delete a SVG file. Others Menu 3.7 Other files except pictures, sounds, videos, games & applications are stored in this folder. My memory card Menu 3.8 If you purchase an optional external microSD memory card, you can manage more content. Refer to the section how to use a microSD memory card on page 19 and 20 to learn how to insert and remove the memory card. You can manage content as you do on your phone. Media Album Media Album35 You can easily connect embedded link to download various contents. After downloading content, the content is saved in this folder. Downloads Downloads [Menu 4]36 Create new message Menu 5.1 Message (Menu 5.1.1)You can write and edit a message containing a combination of text, image, video and audio.1. Enter your message in the Message field.Option menus in Message field Insert: You can perform the following actions:1. Image: You can insert an image. (Existing image/Take picture)2. Video: You can insert a video clip. (One video clip per slide)3. Sound: You can insert a sound file. (One sound per slide)4. Symbols: You can insert symbols. After entering the corresponding number keys, press

. The selected template is inserted into the Message window.6. Emoticon: You can insert an emoticon on writing a message.7. Name & Number: After searching the name and the number in phonebook, you can insert the entry.8. New slide: Select this to add a new slide.9. Subject: Select this to insert a subject. Save to drafts: Select this to save the message to drafts. Input method: Select the desired dictionary mode. Writing language: You can select the language for writing a message. Add to dictionary: You can add a word to the dictionary.2. Press the right soft key [Back] to exit the menu or go to previous menu after setting submenus.3. Press the center key [Send] to insert recipients address. After filling at least one recipient fields, press the confirmation key [Send] to send the message. The message will auto matically be saved in the Sent Items folder. If the message has notbeen sent, it will remain in the Outbox with a failed status. Email (Menu 5.1.2)To send/receive an Email, you should set up the Email account.1. Enter the Email addresses of the recipients in the To, Cc, Bcc fields. You can search the Contacts by pressing

Enter the reference Email address to forward the Email in Cc(Carbon copy) field.

Enter a hidden reference Email address to forward the Email without forwarding information in Bcc(Blind Carbon Copy) field.

Only valid Email addresses are allowed for the recipient (To), reference address (Cc) and hidden reference address (BCC) fields. When an Email address has been specified, another field where you can specify another address appears. You can specify up to 20 recipients for the To and Cc address fields and 10 recipients for the BCC address field.

2. Move the cursor to the Subject field and

3. You can enter the message contents by

moving the cursor to the Message field.

4. Use the following functions by using the

Insert: Select this menu to insert special characters, templates, and contacts. It is also possible to attach multimedia files (pictures, videos and sounds).

Search contacts: Select this menu to insert Email addresses saved in Contacts. (Only shown in Option menu when cursor is located in To/Cc/Bcc fields.)

Recently used: You can use the latest Email address you sent.

Save to drafts: Select this menu to save the message in Drafts.

View attachment: Shows the attached files. (This item is only available when some files have been attached.)

Remove: Deletes the attachment file. (This item is only available when the files are already attached.)

Add to dictionary: You can add a new word to the dictionary.

Writing language: You can change the writing language.

Set mail priority: You can configure the priority of the Email you wish to send.

5. When you have finished writing an Email,

1. You can view received messages. Select a

to view the message.

2. You can view the previous or next

(Notification), select Retrieve in the message notification view screen. The file is then transmitted, and you can view the file when the transmission is complete. Note Not supported for multimedia message (Notification) and WAP push messages. Mailbox Menu 5.3

1. Select an Email account and then press

to view the received Email list.

2. In Email list, you can use the following

functions by using the left soft key [Options].

Reply: Creates a reply to the selected Email.

Forward: Forwards the selected Email message to others.

Copy to (IMAP only): Copies the selected email.

Search: Searches for the Email you want to find.

Delete: Deletes the Email.

Delete from server (POP3 only): Deletes the message or Email from server.

Message synchronisation (IMAP only): Synchronises Email to retrieve Email server.

Mark/Unmark: Use mark/unmark option for multiple deletion.

Set as read/unread: You can set the selected Email to read or unread.39 Messaging

Sort by: You can sort Email according to the conditions.

Expunge (IMAP only): Removes the selected Email data.

Message information: Brief information on the message including size, type, date, time and filenames. Drafts Menu 5.4 You can view saved messages. Select a message and then press to edit the message. Outbox Menu 5.5 The Outbox is a temporary storage place for messages waiting to be sent. Failed messages are also placed in Outbox. For example, Emails will be placed in Outbox if the Email account is not correctly configured.

1. Select a message.

2. You can use the following functions by

Call: You can make a voice call or a video call.

Cancel sending: You can stop sending/ waiting status.

Message information: Message information: You can check the message type, date, time, size and where it’s saved. [For a failed message]

Resend: Resends the selected message.

Save to drafts: You can send the message to drafts.

Call: You can make a voice call or a video call.

Delete: Deletes the current message.

Message information: You can check the message type, date and time.40 Messaging Messaging Sent items Menu 5.6Shows the messages you sent (Message/Email). My folders Menu 5.7You can move messages existed in Inbox or Sent messages into My folders, and then you can move those messages existed in My folders into the original message box. Templates Menu 5.8 Text templates (Menu 5.8.1)You can add, edit, and delete frequently used useful phrases using the left soft key [Options]. Note Depending on your service provider, useful phrases are saved as a default. Multimedia templates (Menu 5.8.2)You can create, edit and view available templates when creating multimedia messages. Five types of template (Birthday, Greeting, Holiday, Thanks, Sorry) are saved by default. Emoticons Menu 5.9You can add, edit and delete emoticons. You can then add these to messages you write. Press to view the emoticon.41 Messaging Settings Menu 5.0 Text message (Menu 5.0.1) You can configure text message related options.

you can verify whether your message has been sent successfully.

Email Usually, the type of message is set to Text. You can convert your text into alternative formats. Contact your service provider for the availability of this function.

Auto: Message with single byte character is normally encoded in Default alphabet(GSM7). Message with double- byte character is automatically encoded in unicode(UCS2).

Default alphabet: Message with even double byte character is encoded in single byte. Please note that double byte characters with accent may be converted into single byte character without accent.

Unicode: Message is encoded in double byte. Please note that you may be charged double.

1. Retrieval mode: You can set the

retrieval mode using Home network and Roaming network respectively. If you select Automatic, you will receive multimedia messages automatically. If you select Manual, you will only receive a notification message in the inbox and then you can decide whether to download multimedia messages or not.

2. Delivery report: Allows you to

determine whether to request a delivery confirmation mail to a recipient, and whether to allow sending a delivery confirmation mail to a sender.42 Messaging Messaging

Allow report: Determines whether to allow sending a delivery confirmation mail for a delivery confirmation mail request.

3. Read reply: Allows you to determine

whether to request a read confirmation mail to a recipient, and whether to allow sending a read confirmation mail to a sender.

Request reply: Determines whether to request a read confirmation mail for a Multimedia message.

Allow reply: Determines whether to allow sending a read confirmation mail for a read confirmation mail request.

4. Priority: You can select the priority level

of the messages (Low, Normal and High).

5. Validity period: Allows you to configure

the term of validity for a message when transmitting a multimedia message. The message would be saved in the multimedia message server only for the configured term.

6. Slide duration: Allows you to configure

the duration of each page when writing a message.

7. Creation mode: Allows to select the

contents type supported by MMS. (Restricted, Warning and Free)

8. Delivery time: Configures the delivery

time of message to the recipient. The Multimedia message centre will deliver the message after the delivery time.

9. Multi. msg centre: Allows you to

configure network information such as the MMSC and the Internet profile gateway, to send a multimedia message. Email (Menu 5.0.3) You can configure settings for receiving and transmitting emails.

1. Email accounts: You can create or

configure an Email account including the Email server and user ID.

2. Allow reply Email: Determines whether

to allow sending a read confirmation mail for a read confirmation mail request.

Determines whether to include the original message when you forward the message or reply to it.

6. Include attachment: Determines

whether to include the attachment file when you forward the message.

7. Auto retrieval in Roaming: Retrieves

Email account automatically when you move in roaming area.

8. New email notification: Receives the

notification information when arriving new Email.

9. Signature: You can configure a text

signature to be attached to the end of an Email. The configured signature text is automatically or manually attached to the end of the Email when it is sent.

0. Priority: You can select the priority level

of Emails (Low, Normal and High). Videomail (Menu 5.0.4) You can send or receive the mail with a video file. Voicemail (Menu 5.0.5) You can send or receive the mail with a voice file. Service message (Menu 5.0.6) You can configure the option settings such as Push(SI/SL) messages.

Service message: If you set On, all service messages will be received.

Service security: You can manipulate the overall receipt options related to Push(SI/SL) messages. Info. service (Menu 5.0.7)

Cell broadcast: You can set the reception status.

Channels: You can add or modify the channels.

Languages: You can select the language you want by pressing

. Then, the info service message will be shown in the language that you have selected.44 Orange World [Menu 6] Orange World Home Menu 6.1You can launch the web browser and access the homepage of the activated profile on Browser settings. Enter address Menu 6.2You can manually enter a URL address and access the associated web page. To enter a symbol, press the left soft key [Options] and select 4.Insert Symbol from Options menu. To switch input mode, press the left soft key [Options] and select 6. Input method. Bookmarks Menu 6.3You can store frequently accessed or favourite URLs/Pages. Send, Add new, NewFolder, Move, Edit, Mark/Unmark or Delete operations can be performed on Bookmarks. Several preconfigured URLs are stored as bookmarks. RSS reader Menu 6.4RSS reader provide news updates from websites registered in phone You read these files in Rss reader, which collects news from registered wabsites registered in your phone and provides it to you in a simple form. Saved pages Menu 6.5The phone can save the page on display as an offline file. Up to 20 pages can be saved. History Menu 6.6You can view the list of the pages you've already connected. Settings Menu 6.7You can change the settings for browser connectivity and display. Pro les (Menu 6.7.1)Select the appropriate profile by pressing . This will activate the profile to initiate the browser launch.45 Orange World Appearance settings (Menu 6.7.2) You can set the browser default character, the scroll speed, Show image, and Java script by using this menu. Cache (Menu 6.7.3) Enabling Cache allows you to store accessed pages to your phone. Once a page has been stored in the Cache it will greatly enhance the page loading speed on subsequent browsing of the same page. Cookies (Menu 6.7.4) Enabling Cookie allows you to store cookies sent from the server. Disabling this function will prevent cookies from being stored on your phone. Security (Menu 6.7.5) Certi cates list Certificates can be viewed from the list. Session clear Secure (WTLS/TLS) session data can be cleared using this option. Reset settings (Menu 6.7.6) Select this to reset your phone to its default browser configuration.46 Settings Settings [Menu 7] Profiles Menu 7.1You can select ringtone or vibration for an incoming call and configure the sound and volume of the ringtone, key tone, and sound effect, according to a profile. The profiles provided include [Normal], [Silent], [Outdoor], [Flight mode], [Customised 1], [Customised 2], and [Customised 3].Select a profile, and press to activate the profile. After pressing the left soft key [Options], select the Edit menu for the [Normal], [Silent], [Outdoor], [Customised 1], [Customised 2] and [Customised 3] profile to change the configuration. A different list of options is available for each profile that has been selected for editing. Phone Menu 7.2 Auto key lock (Menu 7.2.1)If you activate this function, the keypad will be locked automatically after predefined delay time when the slide is closed. Language (Menu 7.2.2)Select the display language. You can select Automatic language option to change display language to the USIM card supported language. Power save (Menu.7.2.3)Decide whether to activate the power save mode or not. Handset info. (Menu 7.2.4)This functions shows the USIM card telephone number, model name and software version of the mobile phone. Screen Menu 7.3This menu allows you to personalise the display options of the screens and of the menus entire graphic interface. Screen theme (Menu 7.3.1)You can set the screen theme to be displayed on the main screen. Menu style (Menu 7.3.2)You can select the desired menu style from Grid style and One by one style. Font (Menu 7.3.3)You can set the font style, dialling font size, and dialling font colour using

Settings Backlight (Menu 7.3.4)You can set the backlight duration and the brightness on the Home screen and the duration on the Keypad individually. Handset theme (Menu7.3.5)Select the desired handset theme from"White and Black." Greeting message (Menu 7.3.6)You can insert the message when switching on the phone. Date & Time Menu 7.4Although the current time is automatically configured when the phone is registered to the network, users can configure the time and date directly using this menu. The time configured by the user is valid only while the phone is turned on. Connectivity Menu 7.5 Bluetooth (Menu 7.5.1) Bluetooth connection Your phone has built-in Bluetooth wireless technology which makes it possible for you to connect your phone wirelessly to other Bluetooth devices such as a handsfree, PC, PDA or other phones. Note We recommend that your phone and the Bluetooth device you are communicating with be within a range of 10 meters. The connection may be improved if there are no solid objects between your phone and the other Bluetooth device.1. Getting started• Menu 7 .Settings

1. Turn on/offTo use the Bluetooth function, you must first set Turn on.2. Configuring Bluetooth settings• Menu

Settings Settings - My device visibility: Set [My handset’ s visibility] to [Show to all] so that other devices can detect your phone when they are searching for a Bluetooth device. If you select [Hidden], other devices will not be able to detect your phone when they are searching for a Bluetooth device. - My device name: You can name or rename your phone as it will appear on other devices. Your phone's name will be shown on other devices only when [My handset’s visibility] is set to [Show to all]. - Supported services: You can view the list of devices sich as hedsets and handsfree kits supported by this Bluetooth enabled phone. - My address: You can check the address of Bluetooth. Note When user uses Bluetooth Device in the handset, the security of the handset is at risk. Therefore, we recommend that Bluetooth visibility be set to Hidden after configuration or device pairing. For incoming files via Bluetooth regardless of paired devices, you can choose to accept or reject the connection, after checking the sender details.

3. Search and pair new device

<Searching new device> You can search new device as following menu.

1. To search for a Bluetooth device to pair,

press Add new device.

2. Screen shows Searching for devices.

Bluetooth devices within a range of 10m will be found.

3. If Bluetooth devices are found, these

devices are listed on the screen. If no Bluetooth device is found, you will be asked if you want to search again.

4. Pairing procedure

. A window will appear on the screen asking you to enter your password. - After creating a password (of 1 to 16 digits), the user of the other device must enter the password for pairing. The user of the other device must know the password in advance for authentication.49 Settings <Deleting devices>

1. Select a device to delete from the Paired

2. You can delete a device by pressing the

Delete key or by selecting Options

Delete. To delete all paired devices, select Options

Delete All. <Transmitting data using Bluetooth>

1. To transmit data from your phone to

another Bluetooth device, first select the application where the target data is saved. For example, to send data in the My Files to another device, select Menu

Select data to transmit

1) Paired device found is displayed. If the

desired device does not exist in the list, select [Refresh].

2) Select the device to which you want to

transmit data from the devices on the screen and press

3) If the other party selects [Yes] for

[Connection request], the data is transmitted. Synchronisation (Menu 7.5.2) If Sync service is supported by your network operator, this service function synchronizes the data in a phone and the data on a server such as Contacts, Calendar, To do, and Memo via a wireless network. USB connection mode (Menu 7.5.3) You can activate USB connecton mode of your phone for serveral usages. If you use a Mass storage function like a USB memory card, select Mass storage in this menu. Mass storage is available only for external memory card. If you use a Data service such as a PC suite application, select Data service in this menu. If you use Music sync with Windows Media Player, select Music sync in this menu. Music sync is available for only music contents. If external memory is not inserted in your phone, you only use `internal memory when connecting phone to PC. However, if your phone contain external memory, you can use both external memory and iternal memory.If you want to synchronise with external memory, you can use 'External memory' as Primary storage. If you want to synchronise with internal memory, you can use 'Internal memory' as Primary storage.50 Network (Menu 7.5.4) Select Network Select between Automatic and Manual.

Automatic: Automatically searches for the network and registers the handset to the network. This is recommended for best service and quality.

Manual: All the currently 2G(GSM) and 3G(UMTS) available networks are shown and you can select one of them for registration. If the registration of the network has failed, the network lists are listed again and you can select any other one for registration. Note When your handset lose the network in manual mode, the popup message to select the available network will be shown in the Idle screen. Network mode You can set a type of network to search for when networks are searched in the Select network menu.

Automatic: Searches all the networks connectable.

UMTS: Searches only networks supporting 3G.

GSM 900/1800: Searches only networks supporting GSM 900/1800 band.

GSM 1900: Searches only networks supporting GSM 1900 band. Preferred lists If the network is searching automatically, you can add a preferable network to be connected to. Internet pro les (Menu.7.5.5) This menu show the Internet profile list. You can create new Internet profiles, delete or edit them by using the Option Menu. However , you cannot delete or edit default configuration depending on country variant. Settings Settings51 Access points (Menu 7.5.6) This menu shows the access point list. You can create new profiles, delete or edit them by using the Option Menu. However, you cannot delete or edit default configurations depending on country variant. Packet Data Conn. (Menu 7.5.7) If you select 'When available' menu, the phone is automatically registered to a GPRS network when you switch the phone on. But you select "When needed", the GPRS connection is established when you connect a WAP or application service and closed when you end the WAP or applicaion connection. Streaming settings (Menu 7.5.8) If you want to set different network setting to play streaming content, you can set different network settings. Java settings (Menu 7.5.9) pro le You can see the profile list and add the profile for Java application. Certi cates list You can see the Certificates list for Java application. Settings52 Security Menu 7.6 PIN code request When this is set to On, you are requested to enter your PIN each time you switch the phone on. Note

Press the right soft key in the PIN code entry window to return to the previous step. 3 incorrect PIN code entries would invalidate the PIN code. And you have to enter the PUK (PIN Unblock Key) code to configure the PIN code again. The maximum number of times you may enter the PUK code is 10. (Note: If you enter an incorrect PUK code 10 times, the USIM card will be blocked and must be replaced.) If the PIN code request cannot be disabled by operator settings, you will not be able to choose this menu item. Handset lock You can lock your phone. The following 4 lock functions are available. When switching on: Locks the handset whenever the handset is switched on. If USIM changed: Locks the handset when the phone's USIM card has been changed. Immediate: Locks the handset immediately. None: Deactivates the lock function. You are requested to enter the security code to confirm the selection.

To unlock the handset, you need to enter the security code. Change codes You can change the PIN, PIN2, and the mobile phone password. PIN code PIN is the abbreviation for Personal Identification Number, and is used to restrict use by an unauthorized user. Settings Settings53 Note Three incorrect PIN code entries in the PIN code entry window would invalidate the PIN code. In this case, you have to enter the PUK (PIN Unblock Key) code to configure the PIN code again. The maximum number of times you may enter the PUK code is 10. (Note: If you enter an incorrect PUK code10 times, the USIM card will be blocked and must be replaced.) PIN2 code PIN2 is the abbreviation for Personal Identification Number 2, and is used to restrict use by unauthorised users as with the PIN. The PIN2 code change procedure is the same as the one for the PIN code. 3 incorrect PIN2 code entries would invalidate the PIN2 code. In this case, you have to enter the PUK2 code in order to use the PIN2 code again. The maximum number of times you may try to enter the PUK2 code is 10, like PUK1. 10 incorrect PUK2 code entries would invalidate the PIN2 code. Security code The security code is used to change the mobile phone password. The maximum number of attempts to enter the security code is not limited as it is with PIN and PIN2. Memory manager Menu 7.7 Handset common memory This function shows the status of the user memory of the mobile phone. Since this function scans the overall file system for statistics, a few seconds are required. Handset reserved memory This function shows the status of the User reserved memory. The usual contents are Text msg, Contacts, Calendar, To do, Memo, Alarms, Call history, and Bookmarks. And it gives a clear illustration of the actual amount compared with the total amount for each item. USIM memory This function shows the status of the USIM card user memory. Settings54 External memory This function shows the status of the External card user memory. This function displays the In-use and free memory usage statistics. Primary storage setting You can select the storage to download the file: Handset memory or External memory. Reset settings Menu 7.8 Select this to reset your phone to its default configuration. You are requested to enter the security code. Settings Settings55 Make video call Menu 8.1You can make a video phone call in this menu. For details, refer to page 21 to 22. Call history Menu 8.2 All calls (Menu 8.2.1)Allows you to view the missed, received, and dialled call records. You can make a call, or send a message to the number you have selected from the records. You can also save the number in Contacts. Dialled calls (Menu 8.2.2)Allows you to view dialled call records, make a call, send a message, and save the number in Contacts. Received calls (Menu 8.2.3)Allows you to view received call records, make a call, send a message, and save the number in Contacts. Missed calls (Menu 8.2.4)Allows you to view missed call records, make a call, send a message, and save the number in Contacts. Call durations Menu 8.3You can view call time by types. Press the left soft key [Options] to choose either partial initialisation or entire initialisation. Initialization will require your Security code. Data volume Menu 8.4Allows you to check the sent, received and all data volume transferred. Press the left soft key to choose entire initialization , or selected volume type initialization.Initialisation will require your Security code. Call costs Menu 8.51. This function displays the call costs of the Last call and All calls.2. Press the left soft key [Options] to choose either partial Initialization or entire Initialization. Initialization will require the PIN2 code.3. You can select either Units or Currency in Set call cost. According to your setting, the call cost is displayed during a call (If USIM and Network support Advice Of Charge(AOC)). Calling Calling [Menu 8]56

4. In the Set limit configuration, select On to

configure the cost limit. When a cost limit is configured, and the call costs reach the limit, making a call will not be allowed. Call divert Menu 8.6 Call divert menus for voice and video calls are provided.

1. When the number list is not exsisted

Converts to an editor for entering a divert number. You can input the number to divert a call directly or search it in phonebook. If you press

[Divert], the phone will send the request to service provider after entering the number. While waiting for the result from the network, a Requesting message and animation appears.

2. When the number list is exsisted

Displays To other number menu including of the number list. While waiting for the result from the network, a Requesting message and animation appears.

After activating All voice calls menu, selecting the Options menu at the bottom of the menus displays the Deactivate, Deactivate all, View status and clear list menus. The View status menu shows the settings on the network. If you select this menu, Requesting. message and animation appear. Then the network settings are displayed when the information is received from the network. If you select the Deactivate menu, the call divert numbers registered in the network are deleted after user confirmation. Clear list menu will delete all divert number list. Call barring Menu 8.7 Call barring menus for Voice and Video calls are provided. The menu consists of Voice calls, Video calls and Deactivate all. The Voice calls and Video calls menus have the following submenus. The Call barring menu consists of All outgoing, Outgoing international, Outgoing international calls except home country, All incoming and Incoming when abroad submenus. Calling Calling57 Calling The All outgoing menu bars dialling all outgoing calls, the Outgoing international menu bars dialling outgoing international calls, and the Outgoing international calls except home country menu bars dialling outgoing international calls except for the Home PLMN country. All incoming rejects all incoming calls and the Incoming when abroad menu rejects incoming calls when roaming. Voice and Video calls

1. If you want to activate barring service,

press ok Oand then input the barring password . The Phone will request the network to activate barring service and receive the result of the operation. After receive the result from the network, the result is displayed

2. When the Options menu is selected,

it activates the Outgoing calls menu. Select the Options menu from the soft menus on the lowest menu. Then Deactivate, Deactivate all, View status and Change password menus appear. The Deactivate menu deactivates the barring service after the user's Barring password is entered. The Deactivate all menu deactivates all barring services configured in the network after the user's Barring password has been entered. The View status menu enables users to view the current network configuration. Selecting View status menu displays the Requesting message with animation and the result of the operation when the network answers. Change password menu enables users to change the current barring password. Deactivate all You can select to deactivate all or not. Fixed dial numbers Menu 8.8

Turn on/ Turn off - On: Select whether to activate FDN or not. PIN2 authentication is required. - OFF: Select whether to activate FDN or not. PIN2 authentication is required.

FDN list: Displays the current FDN list. You can edit, add, or delete fixed dial numbers. PIN2 authentication is requried to edit,add, or delete the list. And the configuration information is saved on the USIM. The information saved on the USIM is used when FDN restricts outgoing calls. Call waiting Menu 8.9 Activates waiting service. Selecting this item, displays requesting message and animation. When the network answers, the result of the operation is displayed.58 Common setting Menu 8.0 Call reject You can set whether to reject incoming calls.

1. Select On in Reject menu to activate call

reject. The Reject list menu appears.

2. Set the desired call reject option in the

Set by network: Configures with the default settings determined by the service provider.

On: Configures to send my phone number when making an outgoing call.

Off: Configures not to send my phone number when making an outgoing call. Auto redial Allows you to set the auto redial function when a call attempt has failed. Answer mode Allows you to set the answering method. You can choose between Press send key, Slide up and Press any key. Minute minder Determines whether to sound a 1 minute tone every 1 minute when you are on the phone. BT answer mode

Hands-free: You can answer a call using the Bluetooth headset, when the Bluetooth is connected.

on the handset to answer a call, you can talk on the handset. If you press the Bluetooth headset key to answer a call, you can talk using the Bluetooth headset. This is the initial answer mode selection. And while talking, you can switch from handset to headset or from headset to handset. Save new number In this menu, you can save the phone number when ending a call if the phone number is not saved in a phonebook. Slide close setting when the slide is down, you can set the call is ended or not. Calling Calling59 Video call setting Menu 8.* You can set the screen display when making /receiving a video call.

Use private image: Determine whether to show the private image or not.

Select private image: Select the still image to be displayed.

Mirror: Select to activate the mirror effect or not. - On: Displays the image flipped side to side. - Off: Displays the image as it is. Calling60 Camera Menu 9.1 This application enables you to take a still picture. You can take a picture in the size you want, and use it for the address book photo, home screen and other more general purposes. Once taken, the picture can be sent by Message, Email or Bluetooth

1. Press the left soft key to access Options

and set the desired environment as follows.

Move between the options menus with

Select the desired value with

and confirm the selection with

Menu DescriptionGo to The Pictures folder is launched and displays existing pictures as thumbnails. You can view pictures by pressing . You can also send the selected picture to another party via Message, Email, or Bluetooth.Size 1600x1200, 1280x960, 640x480,320X240, Wallpaper, 176x144, ContactQuality Super fine, Fine, StandardMenu DescriptionBurst shot One, Three, Six, Nine(Note: Available Burst shot depends on the size.)Brightness From –2.0 to 2.0 at 0.5 intervals. The higher the level, the brighter the screen.White balanceYou can adjust the tone of the background photo according to the weather. Auto, Daylight, Cloudy, Illuminate, IndoorsNight mode You can take better pictures at night by selecting On.Frame Shot You can apply one of 10 frame effects when taking a picture. (available only in case of Wallpaper size)Timer You can delay the camera shutter time. None, 3 secs, 5secs, 10secs. ” is shown when the timer is activated.Effect None, Black & White, Negative, SepiaSound Select the desired shutter Sound.Memory Select the desired memory, either Handset or External.Mirror You can activate the mirror effect by selecting On. Camera [Menu 9] Camera61 Menu DescriptionSwap cam You can switch the camera to activate either the Internal or the External camera.Preview screenSelect the desired Preview method, either Full image, Full screen.

2. After finishing all the settings, press the

right soft key [Close].

3. Focus the camera on what you want to

to save the picture. It is saved in the Pictures folder of My Files. Note

Press the right soft key [Back] to go back to the preview mode without saving the picture. Video camera Menu 9.2 This application enables you to record a video clip. You can play and watch a saved video file in this menu. Once recorded, a video clip can be sent by Message, Email or Bluetooth.

1. Press the left soft key to access Options

and set the desired environment as follows.

Move between the options menus with

Select the desired value with

and confirm the selection with

Menu DescriptionGo to The Videos folder is launched and displays existing videos as thumbnails.You can view videos by pressing . You can also send the selected video to another party via Message, Email or Bluetooth.Size 176x144, 128x96Quality Super fine, Fine, StandardBrightness From –2.0 to 2.0 at 0.5 intervals. The higher the level, the brighter the screen. Camera62 Camera Camera Menu DescriptionWhite balanceYou can adjust the tone of the background video according to the weather. Auto, Daylight, Cloudy, Illuminate, IndoorsNight mode You can take better shots at night by selecting On.Effect None, Black & White, Negative, SepiaDuration Select the desired recording time. MMS, 30secs, 1min, 2mins, 5mins, 60 mins.Memory Select the desired memory, either Handset or External.Mirror You can activate the mirror effect by selecting On.Voice Decide whether to record the sound or not.Swap cam You can switch the camera to activate either Internal or External.

2. After finishing all the settings, press the

right soft key [Close].

3. Focus the camera on what to record and

to start recording. And press

You can pause the recording by pressing the left soft key [Pause].

to save the video clip. It is saved in the Videos folder of My Files. Note

Press the right soft key [Back] to go back to the preview mode without saving the video clip.63 Organiser Calendar Menu *.1 Schedule inquiry and search

1. Reference by Months

You can refer to your schedule by months. The cursor is on the current date, and the registered date is marked. The schedule saved for the date where the cursor is located is represented by a grey box. Pressing the shortcut key

moves to the previous year and pressing

move to the next year and pressing

moves to today. Pressing

moves to the previous month, and

moves to the next month. Pressing

moves to the weekly calendar. You can move the date using

2. Detailed reference

You can refer to a detailed schedule, that is the whole contents of the schedule configured by the user. Delete all schedules You can delete all saved schedule contents using this function. Set up and release holiday You can set up or release user holidays. Press the left soft key [Options] and select Set holiday. The selected date will be displayed in red. To release the holiday, press the left soft key [Options] and select Clear holiday. Schedule noti cation If the user has configured the alarm setting, the specified alarm sound will ring. If the notification time is before the schedule start time, you can set up the alarm again. To do Menu *.2 You can view, edit and add tasks to do. Tasks are displayed in time order. Tasks that have been completed or not completed are displayed in different ways. Memo Menu *.3 Using the memo management function, you can view and manage saved memo contents, and add new memo. Organiser [Menu *]64 Organiser Organiser Secret memo Menu *.4 You can write the private memo to protect your privacy. You enter the security code to use this menu. Date finder Menu *.5 You can register the names and dates such as birthdays. You can check how many days remain before an event occurs or how many days have passed since an event. Settings Menu *.6 Calendar (Menu *.6.1) You can set the configurations to view the calendar.

Default view: You can set the default value to view a calendar; Month view, Week view

Week start time: 1AM, 2AM, 3AM, 4AM, 5AM, 6AM, 7AM, 8AM, 9AM, 10AM, 11AM, 12PM

Week starts on: You can set the default day to start a week; Sunday, Monday Send all schedules& to do via Bluetooth (Menu *.6.2) You can send all data of calendar or to do saved in phone to other phones by using Bluetooth. Backup calendar & To do (Menu *.6.3) You can create the backup files of the calendar or to do list saved in the phone when you insert an external memory. Restore calendar & To do (Menu *.6.4) You can reset the backup files of calendar or tasks when you insert an external memory. Memory info. (Menu *.6.5) You can view the information of available memory regarding Calendar, Tasks, Memo and Secret memo. Clear all (Menu *.6.6) You can initialize entire setting informations. Initialization will require your security code.65 Alarms [Menu 0] Alarms If you set the alarm, the appears on the indicator bar. The specified alarm sounds at the scheduled time. Press

to stop the alarm, and the alarm is released. Press the right soft key [Snooze] and choose the snooze interval. The alarm sound stops and resumes after the selected Snooze duration. You can configure up to 5 alarms. Note

The alarm will go on even when the phone is switched off.66 More [Menu #] More Quick menu Menu #.1You can specify functions to save in the Quick menu. If you save the functions frequently used in the Quick menu, you can quickly start the functions simply by pressing key. Calculator Menu #.2The calculator module allows you to perform basic arithmetic functions such as addition, subtraction, multiplication, and division as well as some scientific functions. (sin, cos, tan, log, ln, exp, sqrt, deg, rad)1. Press the left soft key [Options].2. Select the appropriate function.You can enter numbers by using the number keys, and the operators by using

. You can enter a decimal point by pressing

Whenever you press , characters are sequentially deleted in reverse order.Whenever you hold down, all the characters are deleted in reverse order in one go. Stopwatch Menu #.3This menu allows you to record the elapsed time of an event. Converter Menu #.4Using this menu, users can convert Currency, Surface, Length, Weight, Temperature, Volume and Velocity. World time Menu #.5The World time function provides time information on major cities worldwide. STK Menu #.6 (USIM service) Depending on whether you have SAT support services or not (i.e. USIM Application Toolkit) on the USIM card, this menu (Menu #.6) may be different.If the USIM card supports SAT services, this menu will be the operator-specific service name stored on the USIM card, for instance “Special”. Please refer in that case to the information provided with your USIM card for further information on how to use the related options.67 More Voice recorder Menu #.7

1. Press the left soft key [Option] to

display the option pop up menu before recording.

Duration: You can set the recording duration to MMS msg. size, 30 secs, or 1 min No limit.

Quality: You can select a recording quality from Super fine, Fine, and Normal.

Memory in use: Choose whether to save your photos to the Handset memory or to the External memory

Go to my sounds: Opens the Voice recordings folder in Sounds.

starts recording. When a recording is started, the recording time appears on the LCD. To cancel the recording, press the Back.

4. When you finish the recording,

to exit. The recorded file is automatically saved in the Voice recordings folder in Media Album. If you press

again, you can start recording new voice.

5. Press the left soft key to select the various

options after the voice recording.

Play: You can play the voice.

Send: To send the recorded file. Select one from Message, Email and Bluetooth using

File: You can change the name of file and view the information.

Delete: Select this menu to delete a recorded file.

Use as: You can set the recorded file as the Voice Ringtone, Video Ringtone.

Go to my sounds: Opens the Voice recordings folder in My Files.

7. Press the right soft key to close the sub-

menu popup window.68 Accessories Accessories Travel Adapter This charger allows you to charge the battery while away from home or your office. Standard Battery Stereo headset Note

Always use genuine LG accessories. Failure to do so may invalidate your warranty. Accessories may vary in different regions: please check with our regional service company or agent for further information. There are various accessories for your mobile phone. You can select these options according to your personal communication requirements. L69 Technical data Technical data General Product name: KF310 System: GSM900/DCS1800/PCS 1900, WCDMA 2100 Net weight: 67.5g (Without battery) Ambient temperatures Max: +55°C (Normal) / +45°C (Charging) Min: -10°CMemoMemoMemoMemoMemoMemoMemoMemo
