USER MANUAL GB220 LG

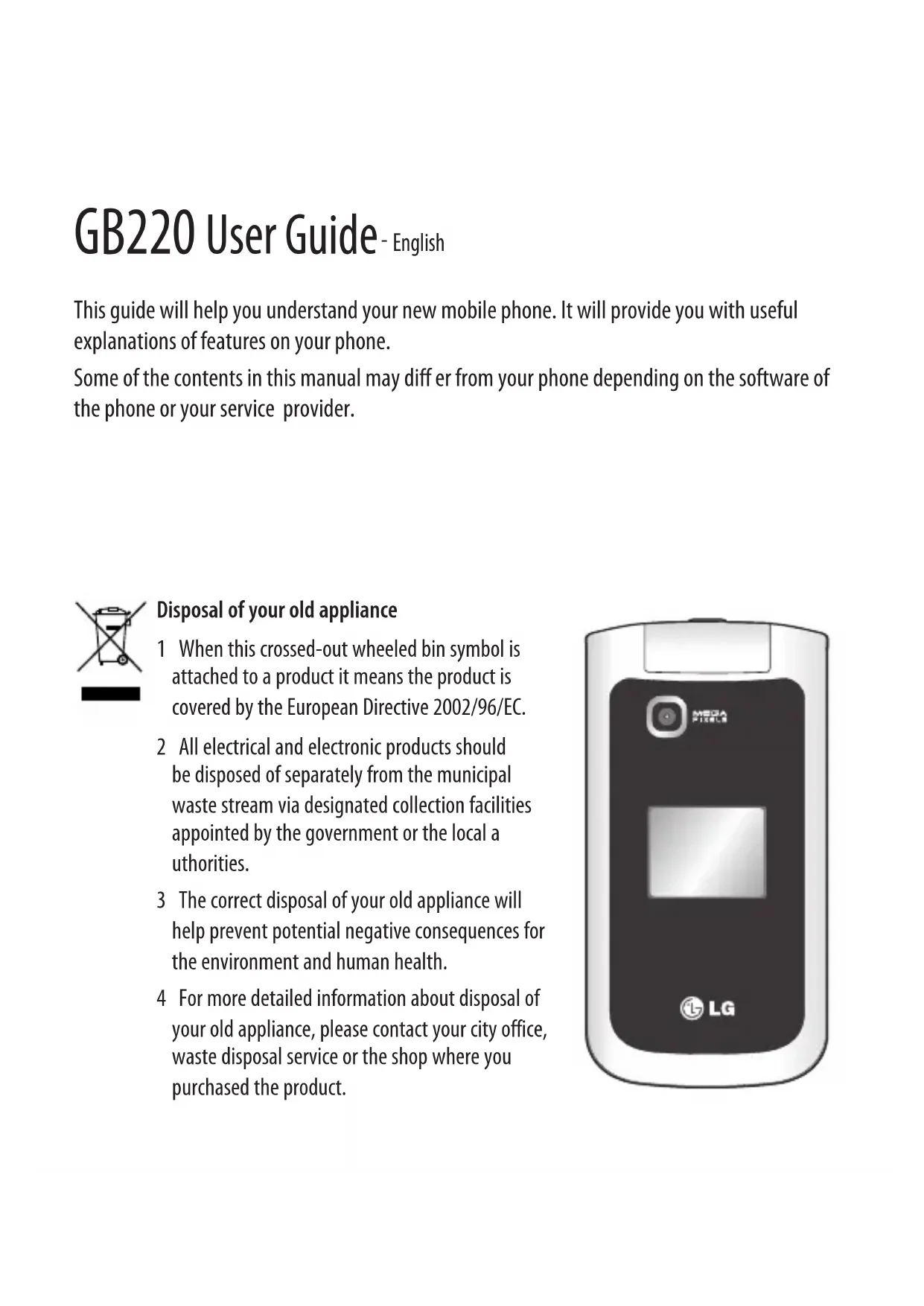

English This guide will help you understand your new mobile phone. It will provide you with useful explanations of features on your phone. Some of the contents in this manual may di er from your phone depending on the software of the phone or your service provider. Disposal of your old appliance 1 When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2 All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local a uthorities. 3 The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 4 For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.2 Volum

Hand Mem Getting to know your phone Call key Dials a phone number and answers incoming calls. End/Power key Ends or rejects a call. Turns the phone on/o . Returns to the standby screen when you use the menu. Main screen Goes to Go to menu Goes to Radio Goes to Music Opens the music player Goes to Camera mode Goes to Names Navigation keys

• In standby mode: up- Go to, Down - Names, left-Pro les, Right -Messaging.

• In menu: Navigates between menus.3 Volume key / Side keys

2) In standby mode (closed): Short

press - The sub LCD backlight on. Long press ( Down key only) -Go to Self Camera mode and you can take a photo.

3) During a call : Earpiece volume

4) During playing MP3 music: Audio

volume Installing a memory card Lift the memory card cover and insert a micro SD card with the golden contact area facing downwards. Close the memory card cover so that it clicks shut. To remove the memory card, gently push it as shown in the diagram. Note: A memory card is an optional accessory. Formatting the memory card Press Menu and Select Settings. Choose Memory manager, select External memory and press Format. The GB220 will support up to a 2GB memory card.

WARNING: When you format your memory

card, all the content will be wiped. If you do not want to lose the data on your memory card, back it up first. Charger, cable slot, Handsfree connector Memory card slot s the

use4 Installing the SIM Card and Charging the Battery Installing the SIM Card When you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, any optional services available and many others. Important! › The plug-in SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling, inserting or removing the card. Keep all SIM cards out of the reach of small children. Illustrations 1 Open battery cover 2 Remove the battery 3 Insert your SIM 4 Insert the battery 5 Close the battery cover 6 Charge your battery

WARNING: Do not remove the battery when the phone is switched on, as this may damage the

Calls Making a call 1 Key in the number using the keypad. To delete a digit press CLR. 2 Press OK to initiate the call. 3 To end the call, press

TIP! To enter + when making an international call, press and hold 0. Making a call from your contacts 1 Select Names from Contacts. 2 Using the keypad, enter the rst letter of the contact you want to call. For example, for Office, Press 6 three times to select the rst character, “O” 3 Select Call or press to initiate the call. Answering and rejecting a call When your phone rings, press Accept or press to answer the call. You can control the volume by pressing the side keys. Press or select Reject to reject the incoming call.

TIP! You can change the settings on your phone to answer your calls in different ways. Press Menu, select Settings, and choose Call. Select Answer mode and choose from Press send key, Open flip and Press any key. Speed dialling You can assign a speed dial number to a contact you call frequently. Viewing your Call history You can check the record of missed, received, and dialled calls only if the network supports the Calling Line Identi cation (CLI) within the service area. Changing the call settings You can set the menu relevant to a call. Press Menu, select Settings and choose Call.

• Call divert - Choose whether to divert your calls.

• Call barring – Select when you would like calls to be barred.

• Fixed dial number – Choose a list of numbers that can be called from your phone. You’ll need your PUK2 code from your operator. Only numbers included in the xed dial list can be called from your phone.7

• Call waiting - Be alerted when you have a call waiting. (Depends on your network provider.)

• Call reject - Set the rejected call list.

• Answer mode - Choose whether to answer the phone using any key or send key only.

• Free call timer - Choose whether it shows or not.

• Minute minder - Select On to hear a tone every minute during a call.

• BT answer mode - Set Hands-free or Handset.

• Save new number - Choose Yes or No. hone

elect key, ved, ports n the Press t your d like

our Contacts Searching for a contact 1 Select Names from Contacts. 2 Using the keypad enter the rst letter of the contact you want to call. 3 To scroll through the contacts use the up and down arrows. Adding a new contact 1 Press Contacts and choose Names. Then press Options-Add new contact. 2 Enter all the information you have in the elds provided and select Options-Done. Adding a contact to a group You can save your contacts into groups, for example, keeping your work colleagues and family separate. There are a number of groups including Family, Friends, Colleague, VIP, Group1, Group2 and Group3 already set up on the phone. Messaging Your GB220 includes functions to send text messages and multimedia messages and Email, as well as the network’s service messages.8 Sending a message 1 Press Menu, select Messaging, and choose Create message - Message. 2 A new message editor will open. The message editor combines Text message and Multimedia messages into one intuitive and easy to switch between editor. The default setting of the message editor is text messages. 3 Enter your message. 4 Choose Options-Insert to add an Image, Video clip, Sound clip, Schedule, Business card, Note, Text field, To do, or a Text template. 5 Press Options - Send key. Setting up your email You can stay in touch on the move using email on your GB220. It’s quick and simple to set up a POP3 or IMAP4 email account. 1 Press Menu, select Messaging, and choose Message Settings. 2 Select Email then Email accounts. 3 Press Add then set the Email account. Sending an email using your new account To send/receive an email, you should set up an email account. 1 Select Menu, select Messaging and choose Create message. 2 Choose Email and a new email will open. 3 Write a subject. 4 Enter your message. 5 Press options, select Insert to add an Image, Video Clip, Sound Clip, Business card, Schedule or a Note. 6 Press Send to and enter the recipient’s address or press Options and select Insert-Contact. to open your contacts list. 7 Press Send and your email will be sent. Entering text You can enter alphanumeric characters using the phone’s keypad. The following text input methods are available in the phone: T9 predictive mode, ABC manual mode and 123 mode. Note: Some fields may allow only one text input mode (e.g. telephone number in address book fields). T9 pr T9 pre to rec the ke the nu you w recog entere ABC m This m pressi letter the le 123 m Type n numb remai holdin Mess Press struct selfex

ress T9 predictive mode T9 predictive mode uses a built-in dictionary to recognise words you’re writing based on the key sequences you press. Simply press the number key associated with the letter you want to enter, and the dictionary will recognise the word once all the letters are entered. ABC manual mode This mode allows you to enter letters by pressing the key labeled with the required letter once, twice, three or four times until the letter is displayed. 123 mode Type numbers using one keystroke per number. You can also add numbers while remaining in letter modes by pressing and holding the desired key. Message folders Press Menu, select Messaging. The folder structure used on your GB220 is fairly selfexplanatory.

• Create message - Allows you to create new messages.

• Inbox - All the messages you receive are placed into your Inbox.

• My mailbox - Contains all your email messages.

• Drafts - If you don’t have time to nish writing a message, you can save what you have done so far here.

• Outbox - This is a temporary storage folder while messages are being sent.

• Sent items - All the messages you send are placed into your Sent folder.

• Saved items - A list of useful messages, already written for a quick reply.

• Emoticons - Liven up your messages using emoticons. Music Your GB220 has a built-in Music player so you can play all your favourite music. Playing a song 1 Press Menu and select Media, then choose Music. 2 Choose All tracks then select the song you want to play. 3 Select to pause the song. 4 Select to skip to the next song. 5 Select to skip to the previous song.10 6 Select Back to stop the music and return to the Music player menu. Creating a playlist You can create your own playlists by choosing a selection of songs from the All songs folder. 1 Press Menu and select Media. 2 Choose Music, then select playlist. 3 Press Add enter the playlist name and press Save. 4 The All tracks folder will show. Select all of the songs that you would like to include in your playlist by scrolling to them and selecting

5 Select Done to store the playlist. Camera Taking a quick photo 1 Select Menu Select Media to open the view nder. 2 Holding the phone and, point the lens towards the subject of the photo. 3 Position the phone so you can see the subject of your photo. 4 Press Centre key to take a photo. Video camera Shooting a quick video 1 In standby screen, select Menu and select Media. 2 Choose Video. 3 Point the camera lens towards the subject of the video. 4 Press to start recording. 5 Rec will appear in the bottom left corner of the view nder and a timer will show the length of your video. 6 Select stop to stop recording. FM radio Using the FM radio Your LG GB220 has an FM radio feature so you can tune into your favourite stations and listen on the move. Listening to the radio 1 Press Menu and select Media, then choose FM radio. 2 Select the channel number of the station you would like to listen to. Reco 1 Pre

pre don in G 3 Wh and

Note: recept to the So, we Hands Radio Voic Use yo memo11 elect bject ner of the

and hoose ion Recording the Radio 1 Press center key during listening to the FM Radio. 2 The recording time is displayed on your phone. If you want to stop the recording, press the Centre key. If recording is done, the recorded contents will be saved in Gallery as mp3 le. 3 When the recording is done, select Option and then choose from Play, Delete, Sound edit File or Send via. Note: If you stay in an area with bad radio reception, you may find difficulty in listening to the Radio. So, we recommend you insert Ear-mic into Handsfree connector in order to listen to the Radio and keep the good radio reception. Voice recorder Use your Voice recorder to record voice memos or other sounds. Gallery You can store any Media files into your phone’s memory so that you have easy access to all of your images, sounds, videos, others and games. You can also save your les to a memory card. The advantage of using a memory card is that you can free up space on your phone’s memory. All your multimedia les will be saved in Gallery. Press Menu then select Gallery to open a list of folders. My images Images contains a folder of default images on your phone, images downloaded by you, and images taken on your phone’s camera. My sounds The Sounds folder contains the Default sounds, your voice recordings, and sound les downloaded by you. From here you can manage, send, or set sounds as ringtones. My videos The Videos folder shows the list of downloaded videos and videos you have recorded on your phone.12 Others From the Others menu, you can view the les that are not saved in the Images, Sounds or Videos folder. Games and Apps Your GB220 comes with preloaded games to keep you amused when you have time to spare. If you choose to download any additional games or applications they will be saved into this folder. My memory card If you’ve inserted a memory card, it will be displayed as a folder within My stu . Organiser Using the calendar When you enter this menu, a calendar appears. A square cursor is located on the current date. You can move the cursor to another date using the navigation keys. Adding an item to your to do list You can view, edit and add tasks to do. Adding a memo You can register your own memos here. Setting your alarm You can set up to 5 alarm clocks to go o at a speci ed time. Using your calculator The calculator provides the basic arithmetic functions: addition, subtraction, multiplication and division. Using the stopwatch This option allows you to use the function of a stopwatch. Converting a unit This converts many measurements into a unit you want. Adding a city to your world time You can add a required city to the list of world clock. You can also check the current time of Greenwich Mean Time (GMT) and major cities around the world. Go to It helps you to go the directly you search for. You can set the item as Go to. SIM s This fe servic (i.e. S menu name Web Acces You ca the ho settin addre 1 Pre 2 To sel

Pho LG M web For m Please path: count softw13 at a on, n of a unit world e of cities for. SIM services This feature depends on SIM and the network services. In case the SIM card supports SAT (i.e. SIM Application Toolkit) services, this menu will be the operator speci c service name stored on the SIM card. Web Accessing the Web You can launch the wap browser and access the homepage of the activated pro le on Web settings. You can also manually enter an URL address and access the associated wap page. 1 Press Menu and select Web. 2 To access the Web homepage directly, select Home. Alternately, select Go to address and type in your desired URL. Phone Software update LG Mobile Phone Software upgrade in web site For more information and using this function, Please visit LGmobile.com site path: http://www.lgmobile.com - select country – Products menu - Manual & software menu This Feature allows you to upgrade your software to the latest version and conveniently on the internet without needing to visit our service center. As the mobile phone software upgrade requires the user's full attention for the duration of the upgrade process, please be sure to check any instructions and notes that appear at each step before proceeding. Please note that removing the USB data communication cable or battery during the upgrade may seriously damage you mobile phone. As the manufacturer takes no responsibility for loss of data during the upgrade process, you are advised to note down any important information in advance for safekeeping. Connectivity Changing your connectivity settings Your connectivity settings have already been set up by your network operator, so you can enjoy your new phone from switch on. If you want to change any settings, use this menu. You can con gure the network setting and data access pro les in this menu.

• Bluetooth - Setup your GB220 for Bluetooth® use. You can adapt your14 visibility to other devices or search through devices your phone is paired with.

• USB connection - Choose Data service and synchronise your GB220 using the LG PC Suite software to copy les from your phone. If you have a memory card inserted, select Mass storage to use your phone in the same way as you would use a USB stick. Connect to your computer and drag and drop les to the GB220 removable device folder. Note: To use the USB mass storage function, you will need to insert an external memory card in your phone. Changing your Bluetooth settings 1 Press Menu and select Settings - Connectivity. Choose Bluetooth. 2 Choose Settings. Make changes to your :

• My phone’s visibility - Choose whether to Show or Hide your device to others.

• My phone's name - Enter a name for your LG GB220.

• Supported services - Shows what it supports.

• My address - View your Bluetooth address. Pairing with another Bluetooth device By pairing your GB220 and another device, you can set up a passcode protected connection. This means your pairing is more secure. 1 Check your Bluetooth is On and Visible. You can change your visibility in the Bluetooth settings menu, by selecting My visibility, then Show. 2 Select Active device from the Bluetooth menu and choose New. 3 Your GB220 will search for devices. When the search is completed Add and Refresh will appear on screen. 4 Choose the device you want to pair with, select Add and enter the passcode then choose OK key. 5 Your phone will then connect to the other device, on which you should enter the same passcode. 6 Your passcode protected Bluetooth connection is now ready. Installing LG PC Suite on your computer 1 Go to www.lgmobile.com and choose Europe rst and then your country. 2 Choose Products menu, select Manual & Software and click Go to Manual & S/W

can Using Use th On or conne Flight15 ice ce, more

download section. Click Yes andLG PC Suite installer will then appear. (Windows XP, Windows Media Player and more). 3 Select the language you would like the installer to run in and click OK. 4 Follow the instructions on screen to complete the LG PC Suite Installer wizard. 5 Once installation is complete, the LG PC Suite icon will appear on your desktop. Settings Changing your date & time You can set functions relating to the date and time. Changing the Pro les You can personalise each pro le setting. 1 Choose the pro le you want and select Personalize. 2 For the Silent and Vibrate only pro les, you can activate only. Using ight mode Use this function to switch the ight mode On or O . You will not be able to make calls, connect to the internet, send messages when Flight mode is switched On. Changing your display settings You can change the settings for the phone display. Changing your shortcuts settings You can change the shortcuts of 4 navigation keys. Changing your security settings Change your security settings to keep your GB220 and the important information it holds protected.

• PIN code request - Choose a PIN code to be requested when you turn your phone on.

• Handset lock - Choose a security code to lock your phone When switching on, If SIM changed, Immediate or None.

• Change codes - Change your Security code, PIN2 code, or ATMT code. Resetting your phone Use Restore factory settings to reset all the settings to their factory de nitions. You need the security code to activate this function.16 Expo Radio Absor This m desig requir These guide desig regard

Int Rad ave Guid Viewing memory status You can use the memory manager to determine how each memory is used and see how much space is available: Common, Reserved, SIM card, and External memory. Please read these simple guidelines. Not following these guidelines may be dangerous or illegal.17 Exposure to radio frequency energy Radio wave exposure and Specific Absorption Rate (SAR) information This mobile phone model GB220 has been designed to comply with applicable safety requirements for exposure to radio waves. These requirements are based on scienti c guidelines that include safety margins designed to assure the safety of all users, regardless of age and health.

• The radio wave exposure guidelines employ a unit of measurement known as the Speci c Absorption Rate, or SAR. Tests for SAR are conducted using standardised methods with the phone transmitting at its highest certi ed power level in all used frequency bands.

• While there may be di erences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves.

• The SAR limit recommended by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) is 2W/kg averaged over 10g of tissue. Guidelines for safe and e cient use

• The highest SAR value for this model phone tested by DASY4 for use close to the ear is 1.14 W/kg(10g) and when worn on the body is 0.757 W/kg(10g).

• SAR data information for residents in countries/regions that have adopted the SAR limit recommended by the Institute of Electrical and Electronics Engineers (IEEE), which is 1.6 W/kg averaged over 1g of tissue. Product care and maintenance WARNING Only use batteries, chargers and accessories approved for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone, and may be dangerous.

• Do not disassemble this unit. Take it to a quali ed service technician when repair work is required.

• Keep away from electrical appliances such as TVs, radios, and personal computers.

• The unit should be kept away from heat sources such as radiators or cookers.

• Do not drop.18 Guidelines for safe and e cient use (Continued)

• Do not subject this unit to mechanical vibration or shock.

• Switch o the phone in any area where you are required by special regulations. For example, do not use your phone in hospitals as it may a ect sensitive medical equipment.

• Do not handle the phone with wet hands while it is being charged. It may cause an electric shock and can seriously damage your phone.

• Do not to charge a handset near ammable material as the handset can become hot and create a re hazard.

• Use a dry cloth to clean the exterior of the unit (do not use solvents such as benzene, thinner or alcohol).

• Do not charge the phone when it is on soft furnishings.

• The phone should be charged in a well ventilated area.

• Do not subject this unit to excessive smoke or dust.

• Do not keep the phone next to credit cards or transport tickets; it can a ect the information on the magnetic strips.

• Do not tap the screen with a sharp object as it may damage the phone.

• Do not expose the phone to liquid or moisture.

• Use the accessories like earphones cautiously. Do not touch the antenna unnecessarily. E cient phone operation Electronics devices

• Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over pacemakers, i.e. in your breast pocket.

• Some hearing aids might be disturbed by mobile phones.

• Minor interference may a ect TVs, radios, PCs, etc. Road safety Check the laws and regulations on the use of mobile phones in the area when you drive.

• Do not use a hand-held phone while driving.

• Give full attention to driving.

dios, se of ve. Guidelines for safe and e cient use (Continued)

• Pull o the road and park before making or answering a call if driving conditions so require.

• RF energy may a ect some electronic systems in your vehicle such as car stereos and safety equipment.

• When your vehicle is equipped with an air bag, do not obstruct with installed or portable wireless equipment. It can cause the air bag to fail or cause serious injury due to improper performance.

• If you are listening to music whilst out and about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is particularly imperative when near roads. Avoid damage to your hearing Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We therefore recommend that you do not turn on or o the handset close to your ear. We also recommend that music and call volumes are set to a reasonable level. Blasting area Do not use the phone where blasting is in progress. Observe restrictions, and follow the rules and regulations. Potentially explosive atmospheres

• Do not use the phone at a refueling point.

• Do not use near fuel or chemicals.

• Do not transport or store ammable gas, liquid, or explosives in the same compartment of your vehicle as your mobile phone and accessories. In aircraft Wireless devices can cause interference in aircraft.

• Turn your mobile phone o before boarding any aircraft.

• Do not use it on the ground without permission from the crew. Children Keep the phone in a safe place out of the reach of small children. It includes small parts which may cause a choking hazard if detached.20 Guidelines for safe and e cient use (Continued) Emergency calls Emergency calls may not be available under all mobile networks. Therefore, you should never depend solely on the phone for emergency calls. Check with your local service provider. Battery information and care

• You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory e ect that could compromise the battery’s performance.

• Use only LG batteries and chargers. LG chargers are designed to maximize the battery life.

• Do not disassemble or short-circuit the battery pack.

• Keep the metal contacts of the battery pack clean.

• Replace the battery when it no longer provides acceptable performance. The battery pack maybe recharged hundreds of times until it needs replacing.

• Recharge the battery if it has not been used for a long time to maximize usability.

• Do not expose the battery charger to direct sunlight or use it in high humidity, such as in the bathroom.

• Do not leave the battery in hot or cold places, this may deteriorate the battery performance.

• There is risk of explosion if the battery is replaced by an incorrect type.

• Dispose o used batteries according to the manufacturer’s instructions. Please recycle when possible. Do not dispose as household waste.

• If you need to replace the battery, take it to the nearest authorized LG Electronics service point or dealer for assistance.

• Always unplug the charger from the wall socket after the phone is fully charged to save unnecessary power consumption of the charger.

• Actual battery life will depend on network con guration, product settings, usage patterns, battery and environmental conditions. Acce There NOT

Accessories There are various accessories for your mobile phone. These are detailed below. Charger Stereo headset NOTE

• Always use genuine LG accessories. Failure to do this may invalidate your warranty.
