USER MANUAL C195 LG

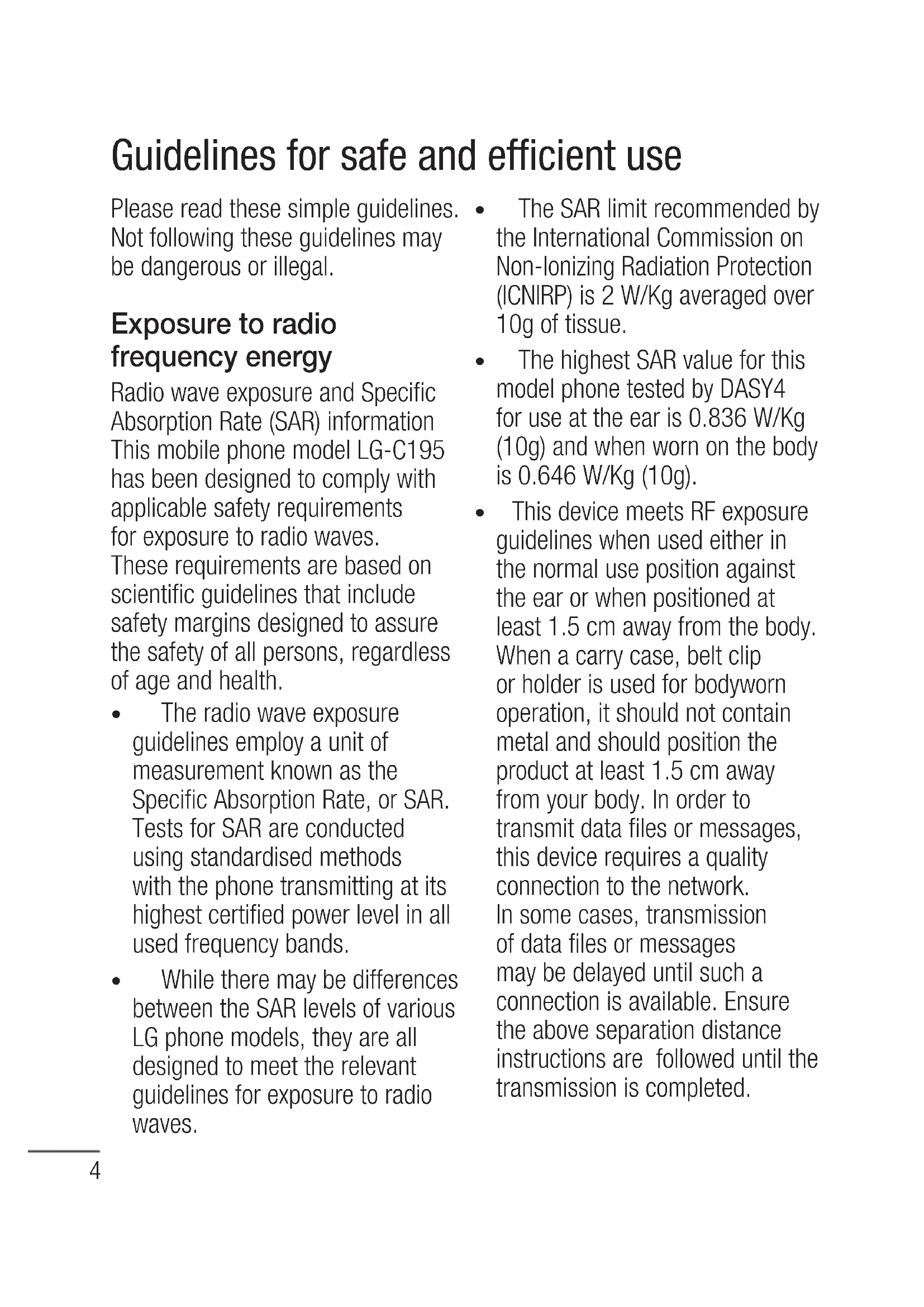

• The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardised methods with the phone transmitting at its highest certified power level in all used frequency bands.

• While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves.

• The SAR limit recommended by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) is 2 W/Kg averaged over 10g of tissue.

• The highest SAR value for this model phone tested by DASY4 for use at the ear is 0.836 W/Kg (10g) and when worn on the body is 0.646 W/Kg (10g).

• This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 1.5 cm away from the body. When a carry case, belt clip or holder is used for bodyworn operation, it should not contain metal and should position the product at least 1.5 cm away from your body. In order to transmit data files or messages, this device requires a quality connection to the network. In some cases, transmission of data files or messages may be delayed until such a connection is available. Ensure the above separation distance instructions are followed until the transmission is completed. Guidelines for safe and efficient use5 Product care and maintenance

batteries, chargers and accessories approved for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone, and may be dangerous.

• Do not disassemble this unit. Take it to a qualified service technician when repair work is required.

• Repairs under warranty, at LG’s option, may include replacement parts or boards that are either new or reconditioned, provided that they have functionality equal to that of the parts being replaced.

• Keep away from electrical appliances such as TVs, radios, and personal computers.

• The unit should be kept away from heat sources such as radiators or cookers.

• Do not subject this unit to mechanical vibration or shock.

• Switch off the phone in any area where you are required by special regulations. For example, do not use your phone in hospitals as it may affect sensitive medical equipment.

• Do not handle the phone with wet hands while it is being charged. It may cause an electric shock and can seriously damage your phone.

• Do not to charge a handset near flammable material as the handset can become hot and create a fire hazard.

• Use a dry cloth to clean the exterior of the unit (do not use solvents such as benzene, thinner or alcohol).

• Do not charge the phone when it is on soft furnishings.

• The phone should be charged in a well ventilated area.

• Do not subject this unit to excessive smoke or dust.

• Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips.

• Do not tap the screen with a sharp object as it may damage the phone.6

• Do not expose the phone to liquid or moisture.

• Use the accessories like earphones cautiously. Do not touch the antenna unnecessarily.

• Your phone is an electronic device that generates heat during normal operation. Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your phone during or immediately after operation. Efficient phone operation Electronics devices All mobile phones may get interference, which could affect performance.

• Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over pacemakers, for example, in your breast pocket.

• Some hearing aids might be disturbed by mobile phones.

• Minor interference may affect TVs, radios, PCs, etc. Road safety Check the laws and regulations on the use of mobile phones in the area when you drive.

• Do not use a hand-held phone while driving.

• Give full attention to driving.

• Use a hands-free kit, if available.

• Pull off the road and park before making or answering a call if driving conditions so require.

• RF energy may affect some electronic systems in your vehicle such as car stereos and safety equipment.

• When your vehicle is equipped with an air bag, do not obstruct with installed or portable wireless equipment. It can cause the air bag to fail or cause serious injury due to improper performance.

• If you are listening to music whilst out and about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is particularly imperative when near roads. Guidelines for safe and efficient use7 Avoid damage to your hearing Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We therefore recommend that you do not turn on or off the handset close to your ear. We also recommend that music and call volumes are set to a reasonable level. Note: Excessive sound pressure from earphones can cause hearing loss. Blasting area Do not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules. Potentially explosive atmospheres

• Do not use the phone at a refueling point.

• Do not use near fuel or chemicals.

• Do not transport or store flammable gas, liquid, or explosives in the same compartment of your vehicle with your mobile phone and accessories. In aircraft Wireless devices can cause interference in aircraft.

• Turn your mobile phone off before boarding any aircraft.

• Do not use it on the aircraft without permission from the crew. Children Keep the phone in a safe place out of the reach of small children. It includes small parts which may cause a choking hazard if detached. Emergency calls Emergency calls may not be available under all mobile networks. Therefore, you should never depend solely on the phone for emergency calls. Check with your local service provider.8 Battery information and care

• You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery’s performance.

• Use only LG batteries and chargers. LG chargers are designed to maximise the battery life.

• Do not disassemble or short- circuit the battery pack.

• Keep the metal contacts of the battery pack clean.

• Replace the battery when it no longer provides acceptable performance. The battery pack maybe recharged hundreds of times until it needs replacing.

• Recharge the battery if it has not been used for a long time to maximise usability.

• Do not expose the battery charger to direct sunlight or use it in high humidity, such as in the bathroom.

• Do not leave the battery in hot or cold places, this may deteriorate the battery performance.

• There is risk of explosion if the battery is replaced by an incorrect type.

• Dispose off used batteries according to the manufacturer’s instructions. Please recycle when possible. Do not dispose as household waste.

• If you need to replace the battery, take it to the nearest authorised LG Electronics service point or dealer for assistance.

• Always unplug the charger from the wall socket after the phone is fully charged to save unnecessary power consumption of the charger.

• Actual battery life will depend on network configuration, product settings, usage patterns, battery and environmental conditions.

• Make sure that no sharp-edged items such as animal’s teeth or nails, come into contact with the battery. This could cause a fire. Guidelines for safe and efficient use9 Getting to Know Your Phone Send key

• Dials a phone number and answers a call.

• In standby mode: Shows the history of calls. SNS Short cut Key Alpha numeric keys

• In standby mode: Input numbers to dial. Hold down below keys. - Insert ‘+’ symbol to make international calls. - Connect voice Mail centre.

• In editing mode: Enter numbers & characters Soft keys (Left soft key / Right soft key)

• These keys perform the function Indicated in the bottom of the display. End key

• Switch on/off (hold down)

• End or reject a call. Confirm key / OK key

• Selects menu options and confirms actions. Lock / Customise key

• Short press to access Customise Key.

• Long press to Lock/ Unlock in any screen. Navigation key

• In standby mode: Press Up Navigation Key: Widget when it was set. (Menu >Settings > Display > Homescreen > Widget settings) Press Down Navigation Key: MP3 player Press Right Navigation Key: Messaging Press Left Navigation Key: My Stuff

• In menu: Scroll up, down, Right & left. Earpiece Main LCD10 Getting to Know Your Phone Charger/USB cable connector Handsfree or Stereo earphone connector Battery pack Micro phone Camera lens Back cover SIM Card holder Memory card holder11 1 Remove the back cover Lift the back cover upwards. 2 Remove the battery Lever the top edge of the battery and remove it carefully from the battery compartment.

WARNING: Do not remove

the battery when the phone is switched on, as this may damage the phone. 3 Install the SIM card Slide the SIM card into the SIM card holder. Make sure that the gold contact area on the card is facing downwards. To remove the SIM card, pull it gently in the reverse direction. 4 Install the battery First insert the bottom of the battery into the bottom edge of the battery compartment. Ensure that the battery contacts align with the terminals on the phone. Press top of the battery until it clips into place. Installing the SIM and battery12 Installing the SIM and battery 5 Insert the back cover 6 Charging your phone Open the cover of the charger socket on the right of your LG-C195. Insert the charger and plug into a mains electricity socket. Your LG-C195 will need to be charged until a message reading “Battery full” appears on screen.13 Memory card Installing a memory card You can expand the memory available on your phone using a memory card. Note: A memory card is an optional accessory. Slide the memory card into the slot until it clicks into place. Make sure that the gold contact area is facing downwards.

memory cannot be exceeded 8GB. Removing a memory card Carefully remove the memory card by gently pulling it outside as shown in the above diagram. Formatting the memory card Your memory card may already be formatted. If your memory card isn’t formatted, you will need to format it before you can begin using it. 1 From the home screen press Menu then select Settings. 2 Choose Device then Memory info and select External memory. 3 Press Format and enter the password, which is set to 0000 as default. Your memory card will be formatted and ready to use. 4 To view the new formatted folders on your LG-C195 press Menu and select My stuff. Press right navigation key two times to choose memory card.

format your memory card, all the content will be wiped. If you do not want to lose the data on your memory card, back it up first.

remove your MicroSD card during the data transfer.14 Making a call 1 Make sure your phone is on. 2 You can use the keypad. To delete a digit press back arrow. 3 Press to begin the call. 4 To end the call, press

TIP! To enter + when making an international call, press and hold 0. Making a call from your Contacts It’s easy to call anyone whose number you have stored in your Phonebook. 1 Press Menu to open the main menu. Select Phonebook. 2 Using the keypad, enter the first letter of the contact you want to call and scroll to the Contacts. 3 Press to begin the call. Answering and rejecting a call When your phone rings, press to answer the call. While your phone is ringing you can press Silent to mute the ringing. This is useful if you have forgotten to change your profile to silent for a meeting. Press or select Reject in order to reject an incoming call. Note: In call when speaker is activated, the speaker icon is displayed with red colour cross, when the speaker is deactivated speaker icon is displayed without red colour cross. Speed dialing You can assign a speed dial number to a contact you call frequently. Calling15 You can install new games and applications on your phone to keep you amused when you have spare time. Games & apps. You can check the record of all, missed, outgoing, incoming logs ,calls and messages only. The number and name (if available) are displayed together with the date and time at which the call was made. You can also view the number of times you have called. All logs: View a complete list of all your dialed, received and missed calls and also send and received messages. Calls Only: View a list of all the numbers you have called, received calls and missed calls. Messages Only: View a list of all the numbers you have sent or received messages. Missed logs: View a list of any calls you have missed. Outgoing logs: View a list of all the numbers you have called. Incoming logs: View a list of all the numbers that have received. Logs Camera 1 Press Menu and select Camera and choose Camera. 2 When the camera has focused on your subject, select the Capture icon on the bottom-centre of the screen and press OK key to take a photo. Video camera 1 Press Menu and select Camera and choose Video camera. The video camera’s viewfinder will appear on screen. 2 Focus the Video camera on what to record. 3 Select the REC on the bottom- centre of the screen and press OK Key to take a video. Rec will appear at the bottom of the viewfinder. Press again to stop recording. Album View the pictures and videos you have taken in your Album. Camera16 You can launch the internet browser and access the homepage of the activated profile on web settings. You can also manually enter URL and access the associated Web page. 1 Press Menu and select Internet to launch your service provider’s homepage. 2 Navigate web pages using the following keys: Navigation - Scroll up or down on a web page. OK Key - Select an item. Back - Return to the previous page. Options - Access a list of browser options. Note: You will incur extra cost by connecting to these services and downloading content. Check data charges with your network provider. Internet Your LG-C195 has SNS that lets you enjoy and manage your social network. You can update your own SN place status and view your friend’s SN updates. Note: SNS feature is a data intensive application. An additional costs may be incurred when connecting and using online services. Check your data charges with your network provider. SNS (Social network services)17 Messaging Your LG-C195 includes functions related to SMS (Short Message Service), MMS (Multimedia Message Service) as well as the network’s service messages. Sending a message 1 Press Menu, select Messaging and choose Write message. 2 A new message editor will open. Message editor combines SMS and MMS in one intuitive mode that is easy to switch between. The default setting of the message editor is SMS mode. 3 Enter your message using the keypad. 4 Select Options and choose Insert to add an Image, Video, Sound, Text template, Multimedia template, Emoticon, Name & Number, Slide, Subject or More (Business card/Schedule/ Memo/Task/My profile). 5 Choose Send to. 6 Choose a contact from the list of contacts or enter the phone number. 7 Select Send.

Sound, Video, Slide, Subject, Business card, Schedule or My profile is added to the message editor, it will be automatically converted to MMS mode and you will be charged accordingly. Entering text You can enter alphanumeric characters using the phone’s keypad. For example, storing names in contacts, writing a message and creating scheduling events in the calendar all require entering text. The following text input methods are available in the phone: Abc and 123 mode. Note: Some fields may allow only one input mode (e.g. telephone number in contact fields). Messaging18 Text input mode using the keypad When you want to enter text, for example when writing a message, the keypad will default to Abc mode. If you are entering a number, for example when making a call, the keypad number keys will default to numbers. To enter the small symbol (such as @) or the number (such as 0) at upper right of the keys, press the Fn Key . Press it once for just the next letter, or twice quickly for all letters. TIP! While viewing the received message, press Options and select Quick reply. This is useful if you need to reply the message during a meeting. TIP! While you see the message, press Options and select Extract. You can extract the information such as number, E-mail address or web address from the selected message. Messaging19 Music MP3 Player Your LG-C195 has a built-in music player so you can play all your favourite music. Note:

• Before using music player, you will need to transfer music file onto your phone.

• Music player supports codec types as follows: MP3, WMA, AAC. Music player does not necessarily support all features and variations of file formats. Playing a song 1 Press Menu and select Music then choose MP3 player. 2 Choose All songs then select the song you want to play. Select

3 Select to pause the song. 4 Select to skip to the next song. 5 Select to skip to the previous song. TIP! To change the volume while listening to music, press Up / Down Navigation Key of your phone. Note: The copyright of music files can be protected in international treaties and national copyright laws. Therefore, it may be necessary to obtain a permission or a license to reproduce or copy music. In some countries national law prohibits private copying of copyrighted material. Before downloading or copying the file, please check the national legislation of the applicable country concerning the use of such material. FM Radio Your LG-C195 supports Wireless FM radio feature so you can tune into your favorite stations and listen on the move. Note: Insert handsfree connector to listen to a FM Radio.20 Listening to the radio 1 Press Menu, select Music and choose FM radio. 2 Select the channel number of the station you would like to listen to. Recording the Radio 1 Press Rec. during listening to the radio. 2 The recording time is displayed on your phone. If you want to stop the recording, press Stop. If recording is done, the recorded contents will be saved in Menu -> My stuff -> Sounds as mp3 file. TIP! To configure your recording settings such as the storage, recording type or pre- recording, press Option and select Recording settings. Music21 E-mail Sending an email using your new account To send/receive an email, you should set up an email account. 1 Press Menu, select E-mail and choose the account you want to use. 2 From Options choose Write e-mail and a new email window will open. 3 Enter address in To field then write a subject line and press down navigation key. 4 Enter your message using the keypad then Press OK Key to send the email. My stuff View the images, sounds, videos and others in your My stuff. Searching for a contact 1 Press Menu and select Phonebook. 2 Using the keypad enter the first letter of the name of the contact you want to call. 3 To scroll through the contacts and their different numbers use the navigation keys. Adding a new contact 1 Press Menu and select Phonebook. 2 Press Options and select New contact. 3 Enter the information you want in the fields provided and press Done. Phonebook22 Quick menu 1 Press Menu and select Tools, then choose Quick menu. 2 Press Add and choose the menu you want to quickly approach. Organiser You can access calendar, tasks, memo and calculate date. Alarm clock You can set up to 5 alarm clocks to go on at a specified time. Calculator This contains the standard functions such as Addition, Subtraction, Multiplication and Division. Voice recorder Use your Voice recorder to record voice memos or other sounds. Stopwatch This option allows you to use the function of a stopwatch. Unit converter This converts many measurement into a unit you want. World clock Allows you to determine the current time in another time zone or country. USIM services This feature depends on SIM and the network services. In case the SIM card supports SAT (i.e. SIM Application Toolkit) services, this menu will be the operator specific service name stored on the SIM card. Tools23 Settings Profiles Choose the profile you want to edit. Flight mode: Flight mode will not allow you to make calls, connect to the internet or send message. Device Date and time: In date and time settings select Auto update On and the phone will automatically update the date and time. Battery status: Choose to switch the factory set power save settings On or Off . Languages: Change the language of your LG-C195 display. Auto key lock: Lock the keypad automatically in standby screen. Security: Change your security to keep your LG-C195 important information to be protected.

• Application lock - To prevent unauthorized use of phone applications, you can enable application lock which requires user to enter a password when accessing applications. Password is the same as the security code (Default password is 0000). Reset device: Use reset device to reset settings only or data & settings. You need the security code to activate this function. The default number is “0000”. Memory info: You can check free space and memory usage of each repository. Display You can adjust settings for the phone display. Call You can set the menu relevant to a call.24 Connectivity Bluetooth: Set up your LG-C195 for Bluetooth use. You can adapt your visibility to other devices or search through devices your phone is paired with. NOTE: Pair LG-C195 with any device supporting BT version above 2.0, then pass code is not asked, since pass code is auto generated. Pair LG-C195 with any device supporting lesser BT versions such as 1.2 etc, then pass code is asked. USB connection mode: You can select the USB connection mode on your phone for several uses. Wi-Fi Wireless Manager allows you to manage Internet connections via Wi-Fi (Wireless LAN) on your device. It allows the phone to connect to local wireless networks or access the Internet wirelessly. NOTE: The LG-C195 supports WEP and WPAPSK/2 encryption, but not EAP or WPS encryption. If your Wi- Fi service provider or network administrator sets encryption for network security, fill in the key in the pop-up window. If encryption is not set, this popup window will not be shown. You can obtain the key from your Wi-Fi service provider or network administrator. Phone Software update LG Mobile Phone Software update from internet For more information on using this function, please visit the http://update.lgmobile.com or http://www.lg.com/common/index. jsp → select country. This feature allows you to update the Software of your phone to the latest version conveniently from the internet without the need to visit a service centre. Settings25 As the mobile phone Software update requires the user’s full attention for the duration of the update process, please make sure to check all instructions and notes that appear at each step before proceeding. Please note that removing the USB data cable or battery during the upgrade may seriously damage your mobile phone. Installing “LG PC Suite IV” PC application “LG PC Suite IV” PC application can be downloaded from the webpage of LG. 1 Go to www.lg.com and select a country of your choice. 2 Go to Support > Mobile Phone Support > Select the Model (LG-C195). 3 Click PC Sync from Download, and click WINDOW PC Sync Download to download “LG PC Suite IV” PC software. Installing On-Screen Phone on your PC Download OSP from www.lg.com > Support > Mobile Phone Support > Select the Model (LG-C195) > OSP. Synchronise your phone with your PC You can synchronise your phone with your PC to make sure all your important details and dates match, but also to backup your files to put your mind at ease. Backing up and restoring your phone’s information 1 Connect the USB cable to your phone and your PC. 2 Select the PC suite from the popup menu in your phone and run PC Suite Program in your PC. 3 Click the “Phone Backup & Restore” in PC suite (Tools > Phone Backup & Restore), and select Backup or Restore. 4 Mark the contents you would like to back up or restore. Select the location you would like to backup information to, or restore information from. Now select Backup or Restore and Click Finish. 5 Your information will be Backed up or Restored.26 Settings Viewing your phone files on your PC 1 Connect the USB cable to your phone and your PC. 2 Select the PC suite from the popup menu in your phone and run PC Suite Program in your PC. 3 Open LG PC Suite icon in your PC which is already installed, after searching the phone it will be connected automatically. TIP! Viewing the contents of your phone on your PC helps you to arrange files, organise documents and remove contents you no longer need.27 Various accessories are available for your mobile phone. These are detailed below. Charger Battery Data cable User Guide Stereo headset NOTE

• Always use genuine LG accessories.

• Failure to do so may invalidate your warranty.

ﻈﻧ27 ﺔﻄﻴﺤﻤﻟﺍ ﺓﺭﺍﺮﺤﻟﺍ ﺕﺎﺟﺭﺩ (ﻦﺤﺷ) ﺔﻳﻮﺌﻣ ﺔﺟﺭﺩ +45 ،(ﻎﻳﺮﻔﺗ) ﺔﻳﻮﺌﻣ ﺔﺟﺭﺩ +50 :ﻰﺼﻗﻷﺍ ﺪﺤﻟﺍ ﺔﻳﻮﺌﻣ ﺕﺎﺟﺭﺩ - 10 :ﻰﻧﺩﻷﺍ ﺪﺤﻟﺍ Doo Haeng Lee / Director GSM 850 / E-GSM 900 / DCS 1800 / PCS 1900 Quad Band Terminal Equipment R&TTE Directive 1999/5/EC 12, March, 2012 EN 301 489-01 V1.8.1 / EN 301 489-07 V1.3.1 / EN 301 489-17 V2.1.1 EN 300 328 V1.7.1 EN 60950-1:2006+A11:2009 EN 50360:2001 / AC:2006 EN62209-1:2006 / EN62209-2:2010 EN 301 511 V9.0.2 The conformity to above standards is verified by the following Notified Body(BABT) BABT, Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD, United Kingdom Notified Body Identification Number : 0168 I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above mentioned standards, regulation and directives LG Electronics Inc. – EU Representative Krijgsman 1, 1186 DM Amstelveen, The Netherlands LG-C195 LG Twin Tower 20,Yeouido-dong, Yeongdeungpo-gu Seoul, Korea 150-721 ﺔﻴﻨﻘﺗ ﺕﺎﻧﺎﻴﺑ26 ﻞﻴﺼﻔﺘﻟﺎﺑ ﺎﻫﺪﺠﺗ .ﻝﻮﻤﺤﻤﻟﺍ ﻚﻔﺗﺎﻬﻟ ﺓﺮﻓﻮﺘﻤﻟﺍ ﺕﺎﻘﺤﻠﻤﻟﺍ ﻦﻣ ﺔﻋﻮﻨﺘﻣ ﺔﻋﻮﻤﺠﻣ ﻙﺎﻨﻫ
