USER MANUAL DW 1 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity. Front cover page (first page)

eGenerated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

AGenerated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

BGenerated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

2. Front panel detergent location

3. Door release button

4. Pilot light (power On/Off)

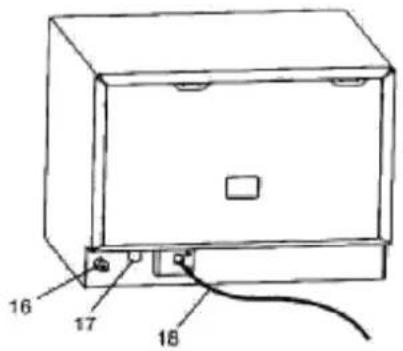

17. Drain hose connection

19. Connecting hose assembly

6. Hete was / ECONO toets

2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

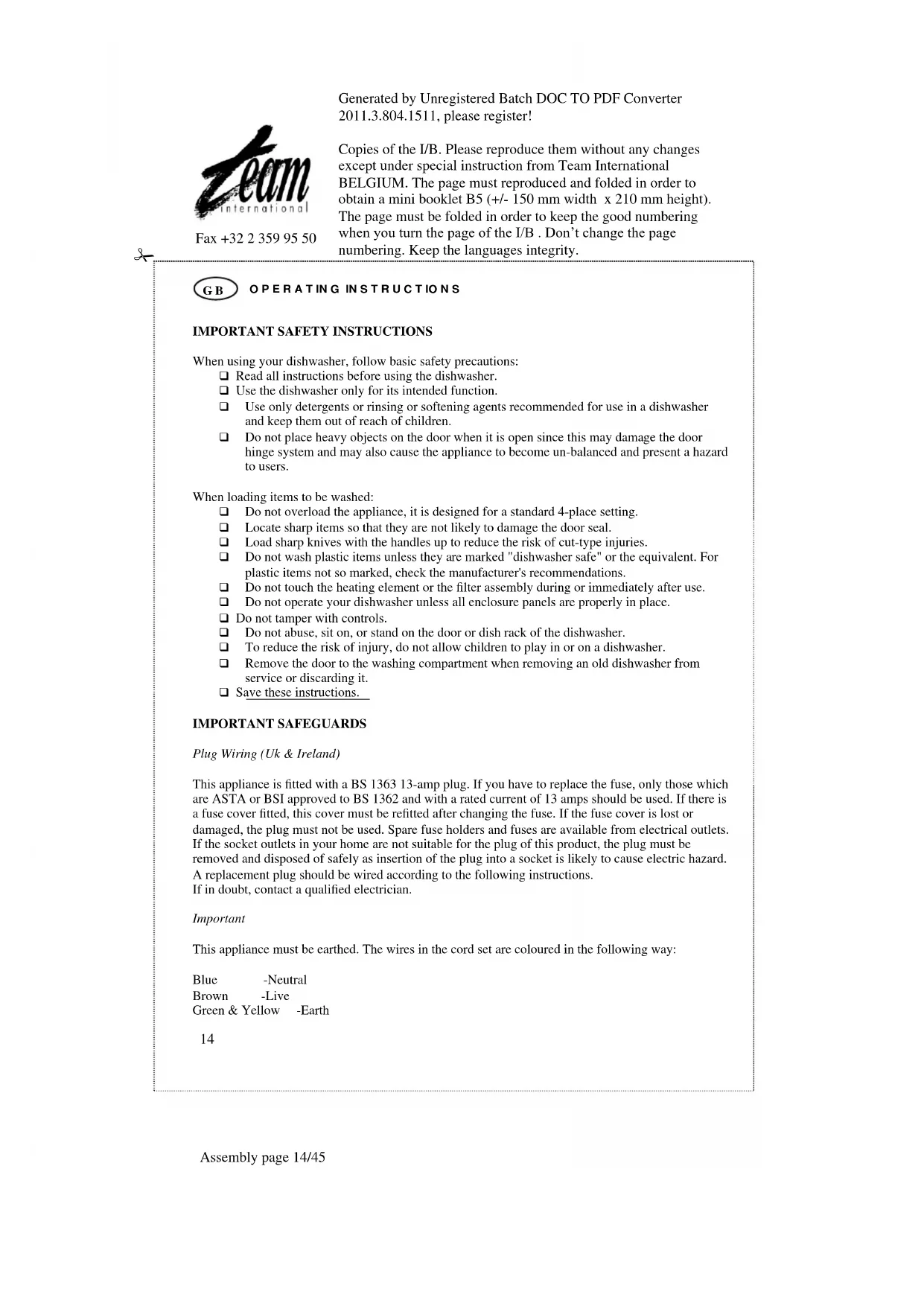

O P E R A T IN G IN S T R U C T IO N S

When using your dishwasher, follow basic safety precautions: Read all instructions before using the dishwasher. Use the dishwasher only for its intended function. Use only detergents or rinsing or softening agents recommended for use in a dishwasher and keep them out of reach of children. Do not place heavy objects on the door when it is open since this may damage the door hinge system and may also cause the appliance to become un-balanced and present a hazard to users. When loading items to be washed: Do not overload the appliance, it is designed for a standard 4-place setting. Locate sharp items so that they are not likely to damage the door seal. Load sharp knives with the handles up to reduce the risk of cut-type injuries. Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations. Do not touch the heating element or the filter assembly during or immediately after use. Do not operate your dishwasher unless all enclosure panels are properly in place. Do not tamper with controls. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. To reduce the risk of injury, do not allow children to play in or on a dishwasher. Remove the door to the washing compartment when removing an old dishwasher from service or discarding it. Save these instructions. IMPORTANT SAFEGUARDS Plug Wiring (Uk & Ireland) This appliance is fitted with a BS 1363 13-amp plug. If you have to replace the fuse, only those which are ASTA or BSI approved to BS 1362 and with a rated current of 13 amps should be used. If there is a fuse cover fitted, this cover must be refitted after changing the fuse. If the fuse cover is lost or damaged, the plug must not be used. Spare fuse holders and fuses are available from electrical outlets. If the socket outlets in your home are not suitable for the plug of this product, the plug must be removed and disposed of safely as insertion of the plug into a socket is likely to cause electric hazard. A replacement plug should be wired according to the following instructions. If in doubt, contact a qualified electrician. Important This appliance must be earthed. The wires in the cord set are coloured in the following way: Blue -Neutral Brown -Live Green & Yellow -EarthGenerated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire that is coloured green & yellow must be connected to the terminal in the plug that is marked with the letter E or by the earth symbol or coloured green or green & yellow. The wire that is coloured blue must be connected to the terminal that is marked with the letter N or coloured black. The wire that is coloured brown must be connected to the terminal that is marked with the letter L or coloured red. We reserve the right to amend specification as part of our policy of continual product improvements. All sizes, weights, dimensions, temperatures, times, consumption figures are approximate only. Illustration shows optional solid door assembly INSTALLATION INSTRUCTIONS (see Page 2-3) WARNING Any hoses used in the installation of the dishwasher must solely be used for this appliance and not shared with other appliances. WATER PRESSURE For best operating results, incoming water pressure should be between 15 and 120 pounds per square inch (psi). Incoming water supply for the dishwasher is controlled by a "pressure switch" system, so if household water pressure is low, dishwasher fill time will be longer. We strongly recommend the appliance be permanently plumbed into the domestic mains water supply. Ensure the two rubber washers held in the lock nuts at both ends of the water inlet hose are flat and free from debris. The water inlet hose for this installation terminates in a ¾” female connector, and the mains supply will therefore be a ¾” male connector. Always ensure there is a mains stopcock close by. The angled end of the hose should be connected to the water inlet connection on the appliance (16). CONNECTING (B AND C) If you wish to install the appliance from an alternate source of water supply, please follow the instructions below: The male end of the tap connector or hose connector fits directly inside the opening of the locking collar of the hose: when the hose snaps onto the connector, release the locking collar. Check for a positive fit. Alternatively, you may like to connect a good quality proprietary brand tap connector or hose connector (not supplied with this appliance) that correctly fits your tap. Ensure the rubber washer is flat and free from debris Connect the angled end with the locknut to the water inlet connection on the appliance (item 16) taking care not to over-tighten the threads. Slowly open the water supply and check for any sign of water leaks at all hose connections.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

The drain hose should be secured at the angled end to the rear of the appliance at the drain hose connection (item 17) and fastened tightly using the screw clip. The open end of the hose should be located within a standpipe or within a sink, but secured since in use the drainage hose can move and unwanted spray may occur.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

The minimum height clearance required to install your dishwasher on a countertop surface with overhead cupboards is 43.8cm. Make sure there is an electrical supply (outlet) within distance of the electrical power supply cord so that the cord is not stretched. Make sure the water supply is well within the distance of the inlet and drain hoses so that the hoses are neither stretched nor kinked. The dishwasher must be installed on a "solid" level surface. If leaks are located, immediately turn off the water and repair the hose connections. IMPORTANT WARNING Once you open the water supply line (even if it was closed immediately thereafter) the water inlet hose will be pressurized (backpressure). If for any reason you have to disconnect the water inlet hose, pay special attention to the likelihood of backpressure spray at the point of disconnection. CAUTION: DO NOT LET CHILDREN DISCONNECT THE DISHWASHER, close supervision of children is always important around appliances.

DISCONNECTING YOUR DISHWASHER

Switch off and disconnect the mains power supply. Switch off and slowly disconnect the water supply at the tap, and remember there may be backpressure within the inlet hose. Disconnect the drain hose taking care to empty the hose into the sink, since it is likely that water will remain inside the hose. If you move the appliance, it is likely that water will remain in the appliance, so if it is moved away from a level orientation, water will come out!

Your dishwasher cleans by spraying a mixture of hot clean water and detergent (under pressure) against the soiled surface of dishes. The water is pumped through a rotating spray arm, drained through a filter removing food and soiled particles and pumped back through the spray arm. Soiled water is pumped out and replaced with clean water at the end of each cycle (the number of times depends on the cycle selected). For best cleaning results, hot water at a temperature of at least 55

C is desirable. To prevent damage to your dishwasher, and to avoid invalidating any warranty you may have, the temperature of the incoming water should not exceed 71

LOOKING AFTER THE DISHWASHER

Keep the hoses free from kinks and the exterior dry. Clean the filter after every wash – grasp the handle of item 12 and lift upwards to release the filter tray and integral basket. These should be rinsed under a tap, any debris disposed of, and replaced ready for the next wash. Your dishwasher is not a "garburator", clean off large particles of food sediments before placing dishes in the dishwasher: this dishwasher is not a waste disposal unit.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

Failure to do so may invalidate any warranty you may have. We strongly recommend that you prepare your dishes as follows; failure to do so may damage the machine and may invalidate any warranty you may have: Scrape of all solid food particles from the dishes. Remove excessive quantities of oil or grease. Empty any liquids from glasses and cups. All dishes should be thoroughly rinsed before being placed inside the dishwasher. NOTE: Dishes with dried-on foods are more difficult to wash and may only come clean in a hot wash cycle.

USING THE RIGHT DETERGENT

Use only detergent specifically made for use in dishwashers, as other types will cause over-sudsing. If your detergent is old and/or lumpy, throw it away: old detergent loses its washing capability, lumpy detergent won't dissolve. HOW MUCH DETERGENT SHOULD YOU USE? That depends if your water is "hard" or "soft": hard water will generally require more detergent than soft water supply. The recessed detergent area located on the inside door panel will hold approximately 7 grams of detergent. USING RINSE-AID You can help prevent unsightly spots on dishes and glassware by using a rinse agent. A rinse agent is specially formulated to rinse away food and detergent residues that can be left behind on your dishes. Used regularly, a rinse agent will automatically provide you with cleaner dishes every time you wash. To fill the rinse agent dispenser, unscrew the dispenser cap located on the inner back wall (item 9). Add the rinse agent slowly into the container until it just reaches the bottom of the filling cap inside the dispenser opening. Replace the cap. The dispenser automatically releases the rinse agent into the final rinse water at the end of the cycle. The dispenser holds approximately 125cc of rinse agent. PRE-RINSE FEATURE The "Pre-Rinse" is a convenience feature that prevents foods from becoming dried/caked on the dish surface. It is not necessary to add detergent to the dishwasher during the Pre-rinse cycle due to the short duration of the pre-rinse cycle.

USING THE HOT WASH FEATURE

Selecting the HOT feature gives you the option of washing/drying dishes at high water temperatures – nominally 68

CAUTION: Water temperatures this high can cause severe burns/scalding. Always exercise extreme care when opening and / or entering the dishwasher during the HOT wash cycle, and when handling clean dishes at the end of the cycle. To activate this feature, use the HOT/ECONO button on the control panel, item 6. Pressing the button IN activates the HOT option, and the indicator light remains illuminated.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

Fax [phone] Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

The ECONO feature enables dishes to be washed at the temperature of the water as it comes from the mains supply/tap; in this way, the appliance‟s heating element is not activated. To activate this feature, use the HOT/ECONO button on the control panel, item 6. Depressing the button OUT activates the ECONO option, and the indicator light is not illuminated. When the ECONO feature is activated, drying time for the dishes will be increased. Leaving the dishwasher door partially open after the program is complete will help since humidity from within can escape. Push the door release button (item 3) and the door pops opens to a pre-set position. OPERATING INSTRUCTIONS

1. Ensure the installation is correctly made in respect of water and electricity supply.

2. Depress the door release button (item 3) to open the door.

3. Ensure the filter is free from debris.

4. Prepare dishes, cutlery, and glasses as above.

5. Place dishes etc on the rack and the cutlery in the basket.

6. Fill the detergent area on inner door panel (approx. 7 grams) so that the detergent is level with

the door skin. Closing the door will sprinkle the detergent inside the appliance, and the detergent will be activated during the washing process.

7. Close the door firmly.

8. Ensure the water and power supplies are ON.

11. The dishwasher stops automatically at the end of the program.

IMPORTANT NOTE At the beginning of each cycle, the dishwasher always starts in the "drain" mode. This is because the drain pump always retains a small amount of water (in the sump) from the previous (last) cycle. This is necessary to keep the pump primed. Therefore, don't be alarmed if you see a small amount of water being pumped out from the drain hose prior to the start of the regular wash cycle.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

PROGRAM DETAILS PRE-RINSE Water Temperature: Supply temperature Program Duration: 6 Minutes Water Consumption: 3.2 litres NORMAL – HOT option Water Temperature: 68

Program Duration: 42 Minutes Water Consumption: 12.8 litres NORMAL – ECONO option Water Temperature: Supply temperature Program Duration: 42 Minutes Water Consumption: 12.8 litres SHORT – HOT option Water Temperature: 68

Program Duration: 28 Minutes Water Consumption: 9.6 litres SHORT – ECONO option Water Temperature: Supply temperature Program Duration: 28 Minutes Water Consumption: 9.6 litres TROUBLE SHOOTING Dishwasher will not start/power light does not come ON Check the power supply is ON Check the water supply is ON and the connections are tight Check the supply inlet hose is not kinked Check the door is shut properly Check the appliance is level Check the program selector is at the correct position Dishes are not clean Uneven loading preventing spray reaching all dishes; filter is clogged; dishes fouling the spray arm preventing it from turning; HOT option not selected; rinse-aid is exhausted. Spots or white deposits on dishes: Incorrect amount of detergent or rinse-aid. Water remains in dishwasherGenerated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

A small amount of water is necessarily retained at the bottom of the appliance, generally around the sump area; drain hose is blocked or kinked; dishwasher is not level; cycle is not finished; filter is blocked.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.
