Getting to know your dishwasher

Water softener

Filling the special salt container

Filling the rinse-aid container

Not suitable for the dishwasher

Arranging crockery, glasses,

etc. in the dishwasher .....

23 Detergents 31

24 Programme overview ..... 34

25....Washing dishes 35

26 Care and maintenance ..... 36

27 Fault finding 38

28 .. Customer Service 40

Important information 41......

29 Installation 42

fr Sommaire

Illustration of a funnel pouring granular material into a conical container (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a laboratory setup with a hand pouring liquid into a reaction vessel (no text or symbols visible)

Hinweis

Diagram of a device with labeled components and directional arrows, no readable text or symbols present

Black-and-white illustration of a multi-tiered kitchen appliance rack with cutlery and utensils (no text or labels)

Interior view of a kitchen appliance with multiple kitchen utensils and a rack (no text or symbols visible)

Besteck

Illustration of a hand placing a vehicle into a wire cage with directional arrows indicating motion (no text or symbols)

de

Illustration of a kitchen utensil assembly with a knife and a bag, showing structural components (no text or symbols)

Etagere \*

Diagram showing a grid pattern with an arrow pointing to a curved structure (no text or symbols)

Diagram of a vehicle parking area with wheels and an arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with pulleys and pipes, no visible text or symbols

Reiniger

Diagram showing a hand pressing down on a device with a numbered arrow indicating process step 2

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a piston and lever mechanism with directional arrows (no text or labels)

Illustration of a hand pressing down on a mechanical component with a circular dial and directional arrow (no text or symbols)

Technical diagram of a mechanical component with concentric rings and directional arrows (no text or symbols)

Sprüharme

Mechanical assembly diagram showing a rotating propeller and base with directional arrows (no text or symbols)

Sprüharme

Fehlersuche

Technical illustration of a mechanical component with two views showing internal structure (no text or symbols)

Achtung

minimal 10 Liter/Minute

Wassertemperatur:

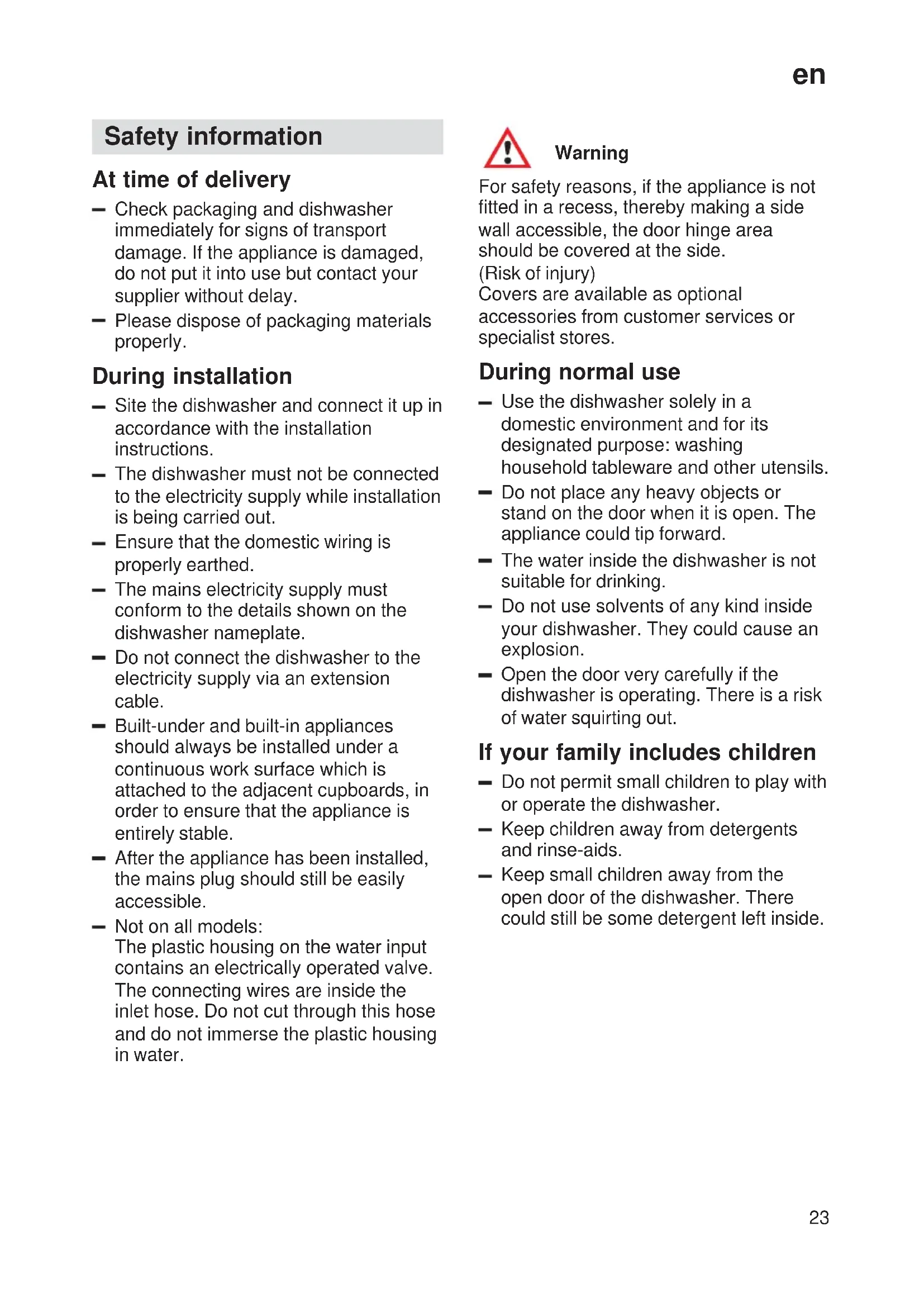

• Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put it into use but contact your supplier without delay.
• Please dispose of packaging materials properly.

During installation

• Site the dishwasher and connect it up in accordance with the installation instructions.
• The dishwasher must not be connected to the electricity supply while installation is being carried out.
• Ensure that the domestic wiring is properly earthed.
• The mains electricity supply must conform to the details shown on the dishwasher nameplate.
• Do not connect the dishwasher to the electricity supply via an extension cable.
• Built-under and built-in appliances should always be installed under a continuous work surface which is attached to the adjacent cupboards, in order to ensure that the appliance is entirely stable.
• After the appliance has been installed, the mains plug should still be easily accessible.
• Not on all models: The plastic housing on the water input contains an electrically operated valve. The connecting wires are inside the inlet hose. Do not cut through this hose and do not immerse the plastic housing in water.

Warning

For safety reasons, if the appliance is not fitted in a recess, thereby making a side wall accessible, the door hinge area should be covered at the side. (Risk of injury) Covers are available as optional accessories from customer services or specialist stores.

During normal use

• Use the dishwasher solely in a domestic environment and for its designated purpose: washing household tableware and other utensils.
• Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward.
• The water inside the dishwasher is not suitable for drinking.
• Do not use solvents of any kind inside your dishwasher. They could cause an explosion.
• Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.

If your family includes children

• Do not permit small children to play with or operate the dishwasher.
• Keep children away from detergents and rinse-aids.
• Keep small children away from the open door of the dishwasher. There could still be some detergent left inside.

en

Child lock \*

* on applicable models

Please refer to the drawings enclosed in the envelope

40 Engaging the child lock (Door handle 2)

41 Opening the door with the child lock engaged

42 Disengaging the child lock

If a fault occurs

• Repairs or other work on the dishwasher should only be carried out by a qualified specialist.
• The dishwasher must be disconnected from the electricity supply before any repairs or other work are started. Pull the mains plug out of the wall socket or switch off at the fuse box. Grasp the plug to remove it from the socket; do not tug on the cable. Turn the water off at the tap.

When disposing of old appliances

• Appliances that have reached the end of their service life should be rendered inoperable in order to exclude the possibility of subsequent accidents. Pull the mains plug out of the wall socket, cut through the connecting cable and disable the door lock.
  — Take the appliance to a designated waste disposal centre.

Warning

Children could get locked in the appliance (risk of suffocation) or get stuck in other positions.

Therefore: Remove the mains plug, cut the mains wire and set aside. Damage the door lock so that the door can no longer be closed.

Getting to know your dishwasher

Illustrations of the control panel and the interior of the dishwasher are shown on the rear fold-out cover of this manual. Fold this page out before you read the manual.

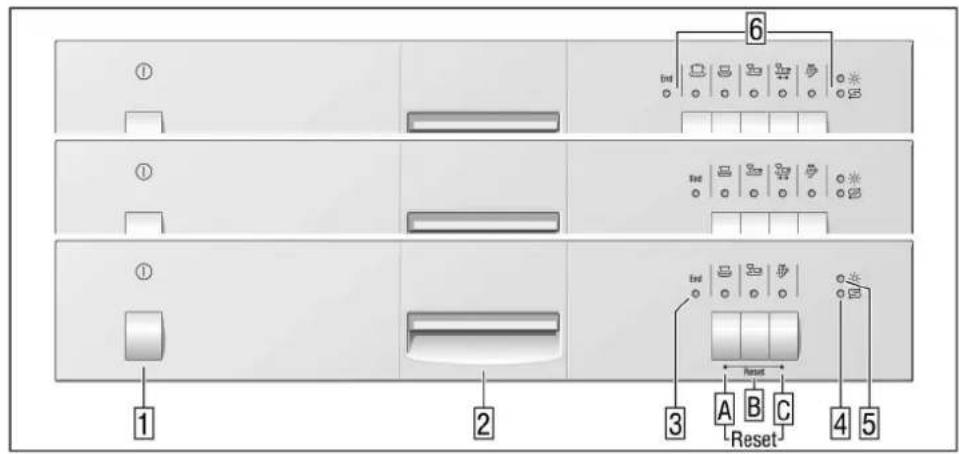

Control panel

1 Main switch
2 Door handle
3 PROGRAMME END indicator
4 LOW SALT indicator *
5 LOW RINSE-AID indicator *
6 Programme buttons

* on applicable models

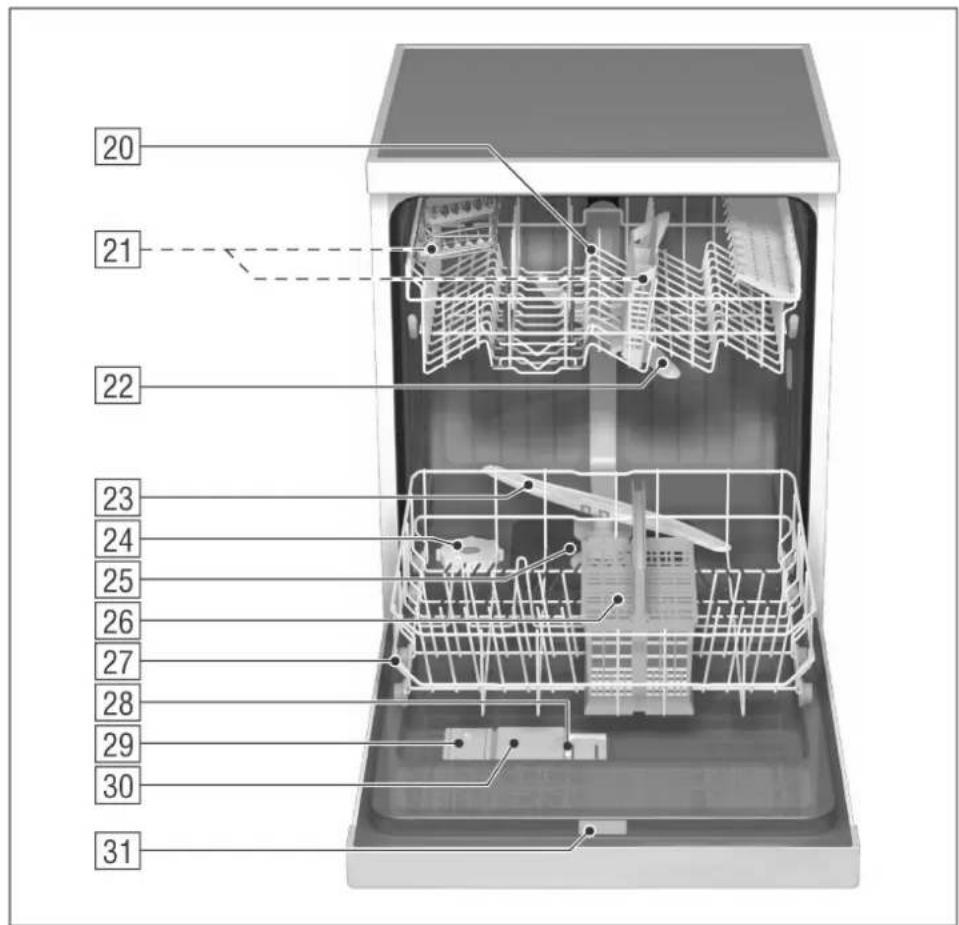

Appliance interior

20 Upper basket with 2-tiered cup rack
21 Additional cutlery basket for the top basket *
22 Upper spray arm
23 Lower spray arm
24 Container for special salt with level indicator *

25 Filters

26 Cutlery basket

27 Lower basket

28 Locking mechanism

29 Container for rinse-aid, with level indicator

30 Detergent compartment

31 Nameplate

* not on all models

You will need to purchase the following before using the dishwasher for the first time:

– special salt for use in dishwashers
- detergent
- rinse-aid

Only use products, which are suitable for dishwashers.

Water softener

In order to rinse dishes and glasses satisfactorily, the dishwasher requires soft water, i.e. containing little or no lime, otherwise water stains will be left behind on crockery and glasses, etc.

If the tap water exceeds a certain level of hardness, it must be softened, i.e. decalcified, so that it can be used in the dishwasher.

This is achieved by adding a special salt to the water softener inside the dishwasher.

The water softener, that is the required amount of salt, is set up according to how hard the tap water is.

Setting up the water softener

• Determine the level of hardness of your tap water. Your local water company or service agent can help you with this.
• Identify setting from the following water hardness table.
• Hold down the programme button B and switch on the main switch 1, then release the buttons.

The display 4 flashes and buttons

A and B illuminate.

(Hardness value 2 was set at the factory).

- To change the setting: Press programme button B. Each depression of the button increases the set value by one (0–3). If buttons A, B and C illuminate, the maximum hardness value has been reached.

If the hardness value is now increased again, the illuminated buttons go out and the hardness value is set to 0 (no buttons illuminated).

- Switch off the mains switch 1. The set value is stored in the appliance.

Approx. 4 litres of water are required for regenerating the water softening system. The overall water consumption per load can therefore be increased by between 0 and a maximum of 4 litres according to the water hardness setting.

Water hardness table

°dh °Clafke mmol/			I
					Reset
0–6	0–11	0–8	0–1,1	0
7–16	12–29	9–20	1,2–2,9	1
17–21	30–37	21–26	3,0–3,7	2
22–35	38–60	27–44	3,8–6,2	3

en

Filling the special salt container

How the salt works

While washing is taking place, salt is automatically rinsed out of the salt container into the water softener where it dissolves the lime in the water.

The dissolved lime is pumped out of the dishwasher. The water softening system is then ready for the next load.

This process of regeneration can only function when the salt is dissolved in water.

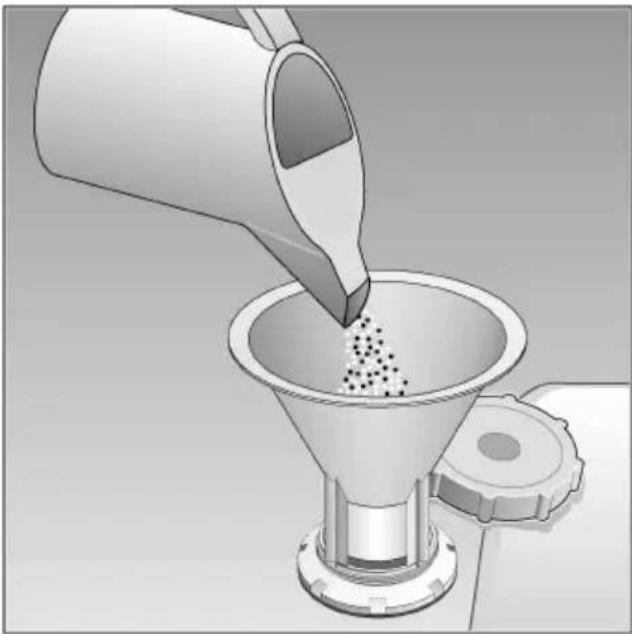

Unscrew the lid on the salt container 24.

Before you use the dishwasher for the first time, pour approx. 1 litre of water into the salt container.

Place the funnel supplied with the dishwasher in the filler hole.

Tip in enough salt to fill the container to the top (maximum of 1.5 kg). As you tip in salt, some of the water is displaced and drains away. When you have done this, clean off any remnants of salt from the area round the neck of the container. Screw the lid back onto the container, ensuring that it is not cross-threaded.

Illustration of a funnel pouring granular material into a conical container (no text or symbols)

The LOW SALT indicator 4 on the front panel will light up initially but will extinguish again after a short period when the salt solution has become sufficiently concentrated.

If the switch is set to "0", it is not necessary to add any salt, as none is consumed while the dishwasher is operating. If the switch is set between "1" and "3", then salt must be added.

Warning!

Do not pour detergent into the container for special salt. This would destroy the water softener.

LOW SALT indicator

Add more salt as soon as the LOW SALT indicator 4 on the front panel lights up.

Filling the rinse-aid container

The purpose of a rinse-aid is to prevent the formation of water marks on tableware and utensils, and to ensure that glasses are clean and sparkling. The rinse-aid is consumed during the washing process.

- Fold back the lid on the rinse-aid container 29.

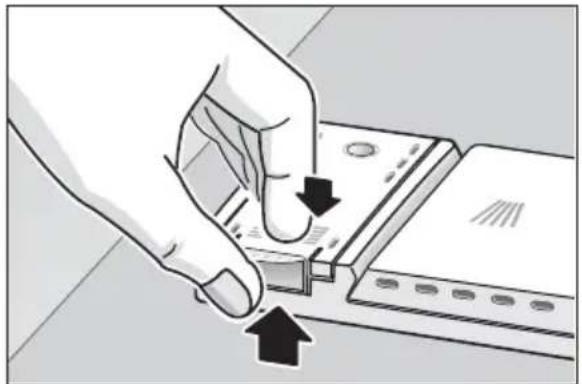

To open the lid, press the mark on the rinse-aid lid and simultaneously lift the lid off the lug.

Hand inserting a device into a rack, showing black arrows indicating the process (no text or symbols present)

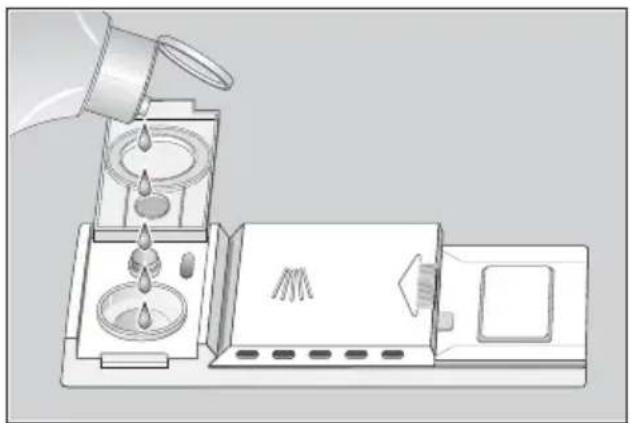

— Pour the rinse-aid into the filler hole until the level indicator turns dark.
— Close the lid, ensuring that you hear it snap closed.

Illustration of a laboratory setup with a hand pouring liquid into a separatory chamber containing two dropping vessels (no text or symbols visible)

Important

Use only rinse-aids intended for use in domestic dishwashers.

Adjusting the amount of rinse-aid

The amount of rinse-aid added to the water can be varied by adjusting the stepless control. The rinse-aid control has been set to "4" in the factory.

Do not alter the setting of the rinse-aid control unless streaks (turn knob towards “−”) or water marks (turn knob towards “+”) are left on the dishes.

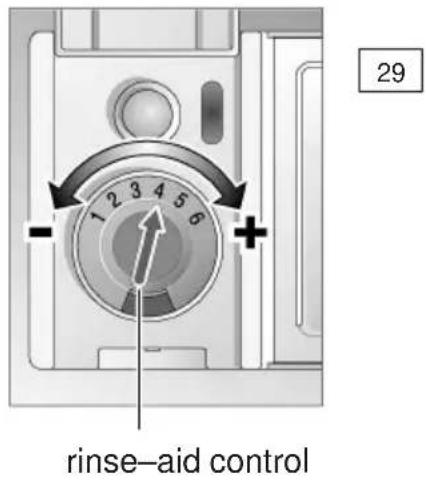

29 rinse-aid control

Low rinse-aid indicator

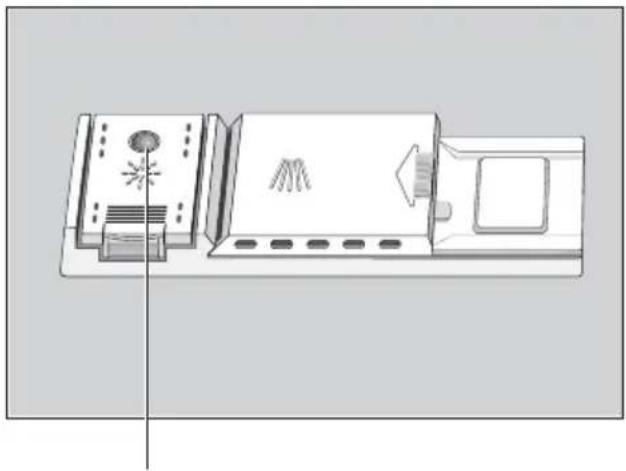

As long as the rinse-aid refill indicator on the panel 5 (on applicable models) or dispenser 29 has not illuminated, there is sufficient rinse-aid in the dishwasher.

Diagram of a device with labeled components and directional arrows, no readable text or symbols present

LOW RINSE-AID indicator

en

Not suitable for the dishwasher

What you should not put into the dishwasher:

Cutlery and tableware manufactured in whole or part from wood. They become faded and unsightly in appearance. Furthermore, the adhesives that are used are not suitable for the temperatures that occur inside the dishwasher. Delicate decorative glassware and vases, special antique or irreplaceable china. The decorative patterns on such items will not be dishwasher-proof.

Plastic objects that are not resistant to hot water, copper and pewter utensils are also not suitable. Decorative patterns printed or painted onto the surface of crockery, glasses, etc., aluminium and silver items tend to become discoloured or faded if washed in the dishwasher. Some types of glass can become opaque in appearance after they have been washed many times in a dishwasher. Highly absorbent materials, such as sponges and towels, should never be placed in the dishwater.

Our recommendation:

In future, only purchase table or kitchenware that has been confirmed as being dishwasher-proof.

Important

Dishes or cutlery that have been soiled by tobacco ash, wax, lubricating grease or paint, should not be put in the dishwasher.

Damage to glassware and other dishes

Possible causes:

— type of glass or manufacturing process
- chemical composition of detergent
— water temperature and duration of dishwasher programme.

Suggested remedy:

• Use glassware or porcelain dishes that have been marked 'dishwasher-proof' by the manufacturer.
• Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from detergent manufacturers.
• Select a programme with as low a temperature and as short a duration as possible.
• To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.

Arranging crockery, glasses, etc. in the dishwasher

Loading the dishwasher

Scrape off any large amounts of left-over food. It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in such a way that

• items such as cups, glasses, pots/pans, etc. are stood upside down,
• curved items, or those with recesses, should be at a slant so that water can run off,
• they are stacked securely and cannot tip over,
• they do not prevent the spray arms from rotating while washing takes place.

Very small items should not be washed in the dishwasher as they could easily fall out of the baskets.

Removing the dishes

To prevent water dripping from the top basket onto the dishes in the lower basket, we recommend that you empty the lower basket first and then the top basket.

Cups and glasses

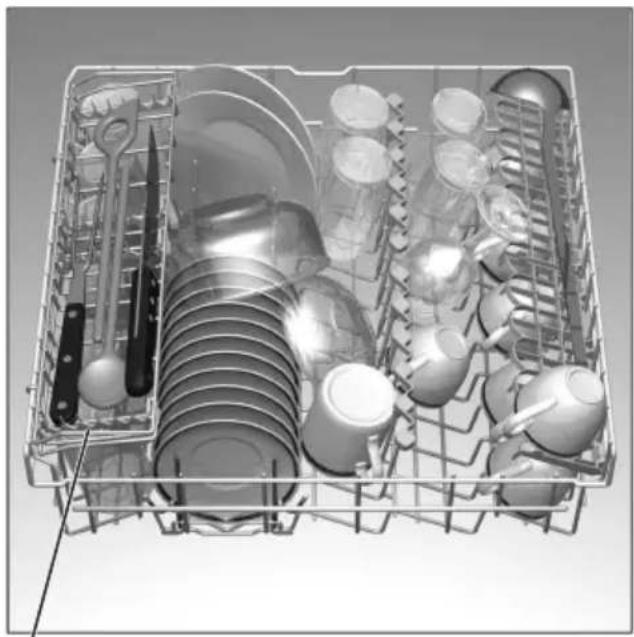

Upper basket 20

Interior view of a multi-level kitchen appliance rack with cutlery and utensils (no text or labels visible)

* on applicable models

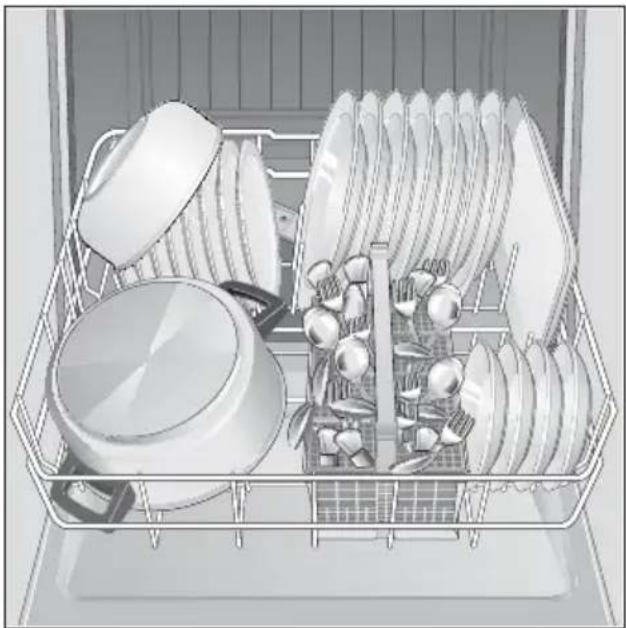

Pots and pans

Lower basket 27

Interior view of a kitchen appliance showing a rack with plates, cutlery, and a pot (no text or symbols visible)

Cutlery

Cutlery should always be inserted in random order with the handles pointing downwards (take care with knife blades!). This enables the jet of water to reach the individual items more easily.

To prevent the risk of injury, place long and pointed implements and knives on the shelf (some models) or knife shelf (available as an accessory).

Folding spikes \*

* on applicable models

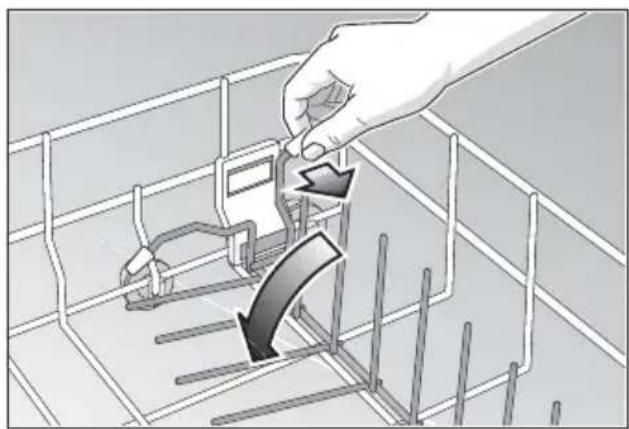

To improve stacking of pots and pans, the spikes can be folded down.

Illustration of a hand placing a vehicle into a wire cage with directional arrows indicating motion (no text or symbols)

en

Spray head for baking sheets \*

* on applicable models

Please refer to the drawings enclosed in the envelope

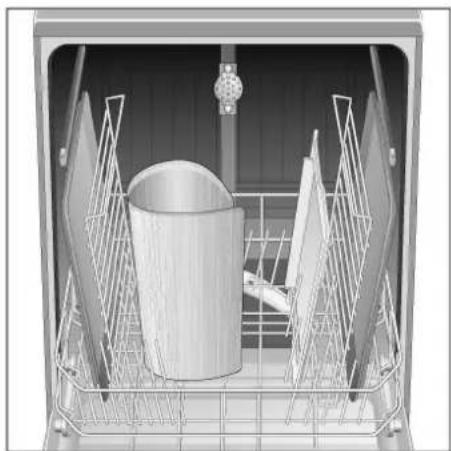

Large baking sheets or grids can be cleaned with the aid of the special spray head. Remove the top basket and attach the spray head as shown in the drawing. Arrange the baking sheets as illustrated, so that the jet of water can reach all parts of them (max. 4 baking sheets and 2 grids).

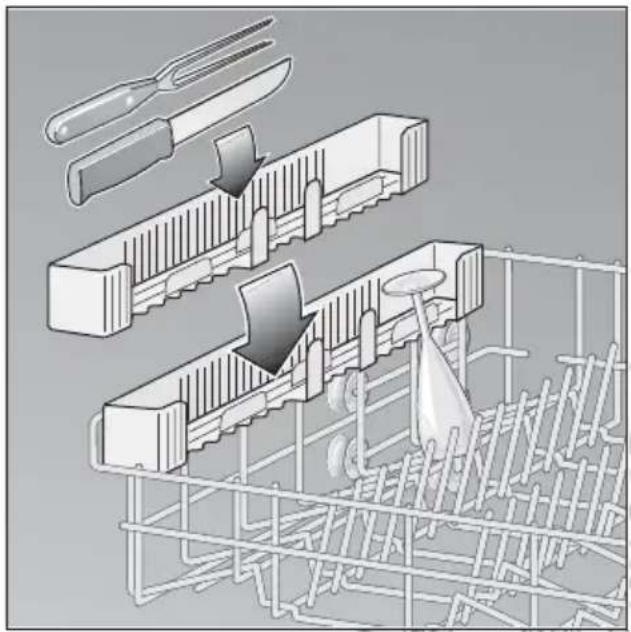

Knife rack \*

* on applicable models

Illustration of a kitchen utensil assembly with a knife and a bag, showing structural components (no text or symbols)

Shelf \*

* not on all models

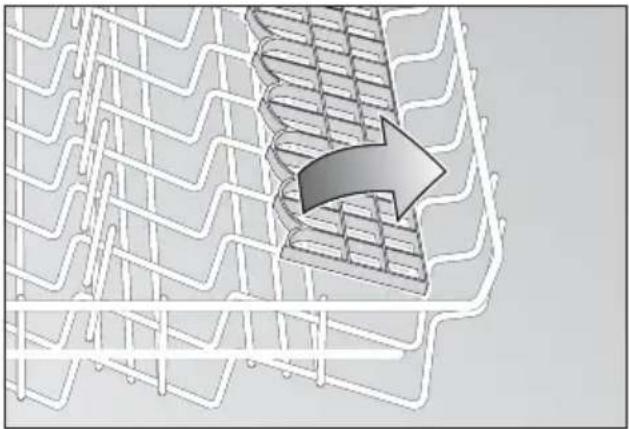

Lean tall glasses and those with long stems against the shelf – not against other items to be washed.

Diagram showing a grid pattern with an arrow pointing to a curved structure, no text or symbols present.

Long items, serving cutlery, salad servers or knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back when not required for use.

Adjusting position of basket \*

* not on all models

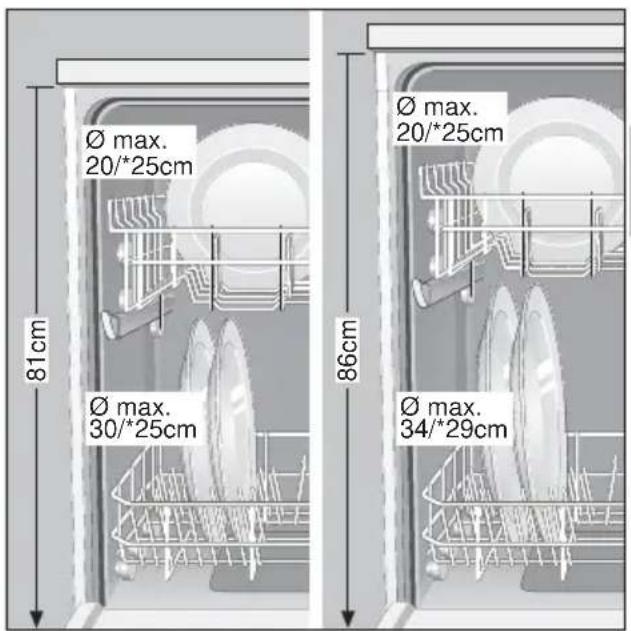

Ø max. 20/*25cm 81cm Ø max. 30/*25cm 86cm Ø max. 20/*25cm Ø max. 34/*29cm

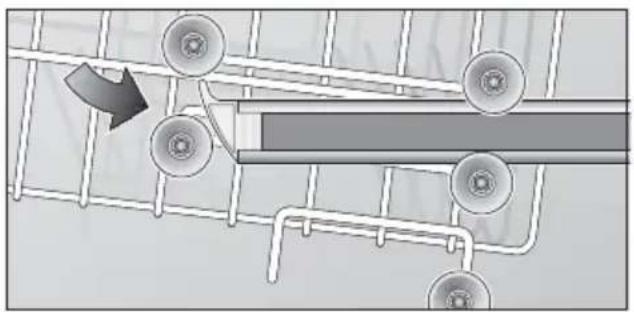

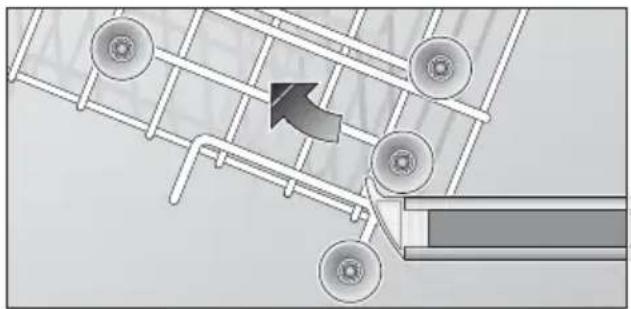

The top basket can be inserted on either its upper or lower rollers, according to requirement. This enables more height to be gained for bigger dishes in either the top or bottom basket.

Diagram of a parking lot with wheels and an arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with pulleys and pipes, no visible text or symbols

Detergents

Information about detergents

You can use any brand of liquid or powder detergent, as well as tablets, that have been specifically designed for use in domestic dishwashers. (Do not use normal washing-up liquid!)

Nowadays there are three types of dishwasher detergent available:

1. those containing phosphates and chlorine,
2. those containing phosphates but no chlorine,
3. those containing neither phosphates nor chlorine.

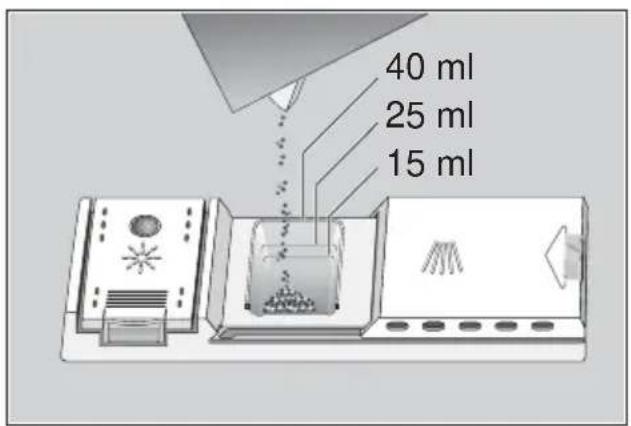

When a phosphate-free detergent is used in conjunction with hard water, there is a greater possibility that white marks will be left behind on crockery and glasses, etc. These can be avoided by pouring an increased amount of detergent into the dispenser.

Chlorine-free detergents have a reduced bleaching effect. This can mean that tea stains are not completely removed or plastic items become discoloured.

This can be resolved by:

– selecting a higher temperature programme, or
– increasing the amount of detergent, or
– using a detergent that contains chlorine.

Check the label on the detergent packaging to determine whether a particular product is suitable for use with silverware.

If you have any further questions, we recommend that you contact the customer advice departments of the various detergent manufacturers.

en

Detergent compartment with measuring marks

The side of the detergent compartment is marked with lines to help you determine how much powder to add.

The capacity of the detergent container is 15 ml up to the bottom line and 25 ml up to the middle line. When the compartment is full it contains 40 ml.

40 ml 25 ml 15 ml

Important

If the lid on the detergent compartment is closed, press the release lever to open the flap.

Adding detergent

- Tip detergent powder into the corresponding compartment 30.

Please observe the manufacturer's instructions printed on the detergent packaging when determining the correct dosage.

When you select the INTENSIVE programme, tip an extra 10–15 ml of detergent onto the inside surface of the door.

Reduce costs!

If your dishes are only moderately dirty, you may be able to use less detergent than recommended.

- Close the lid on the detergent compartment.

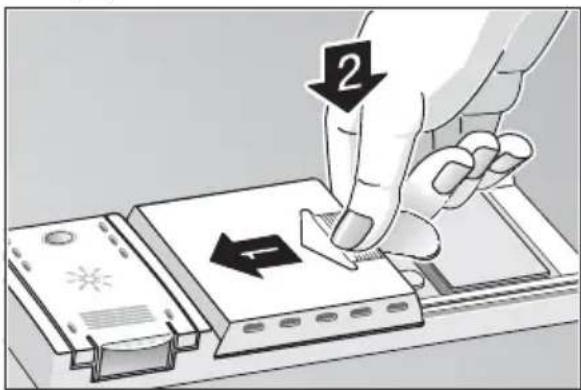

Press down the lid (1) until it clicks shut (2).

Diagram showing a hand pressing down on a device with a numbered arrow indicating process step 2

- If you are using detergent in tablet form, read the manufacturer's

recommendations on the packaging in order to

determine where the tablets should be placed inside the dishwasher (e.g. in cutlery basket, detergent compartment, etc.).

Make sure that the lid on the detergent compartment is closed, even if you are using tablets.

CAUTION IMPORTANT NOTE ON THE USE OF COMBINED CLEANING PRODUCTS

Please note the following when using "combined cleaning products" which eliminate the need for a rinsing agent or salt, for example:

• Some products with a built-in rinsing agent are only used to their full effect in certain programmes.
• This type of product does not generally produce the desired effect with automatic programmes.
• Products which eliminate the need for regeneration salt can only be used within a certain water hardness range.
• If you wish to use these combined products, please read the instructions carefully and heed any notes on the packaging.

Contact the manufacturer of the cleaning agent if you have any questions, particularly if:

— the crockery is very wet once the programme has finished.
- limescale deposits are formed.

Any problems which arise as a direct result of the use of these products are not covered by our warranty.

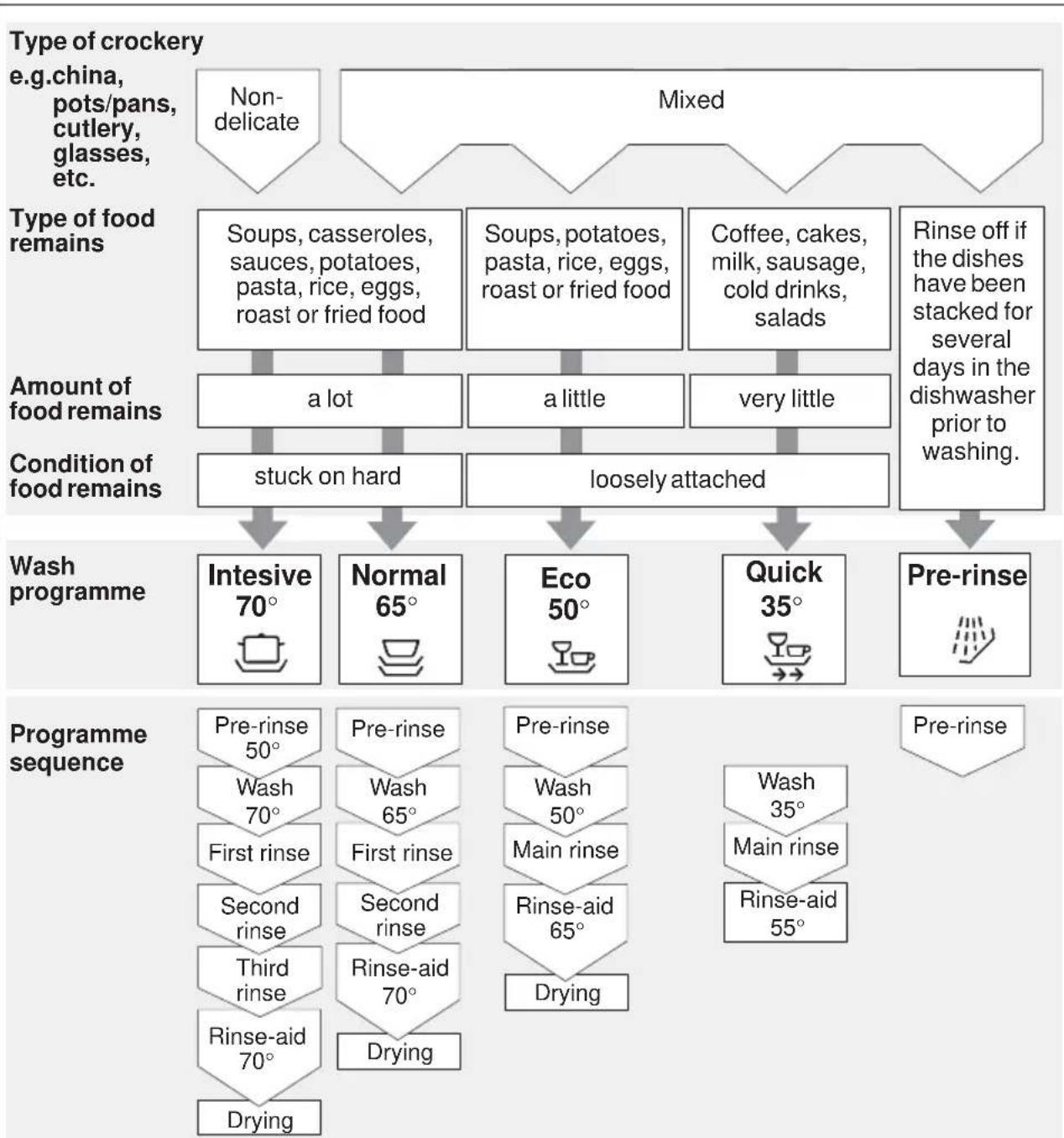

Programme overview

This overview lists the max. possible number of programmes. The programmes supplied with your appliance are indicated on the fascia.


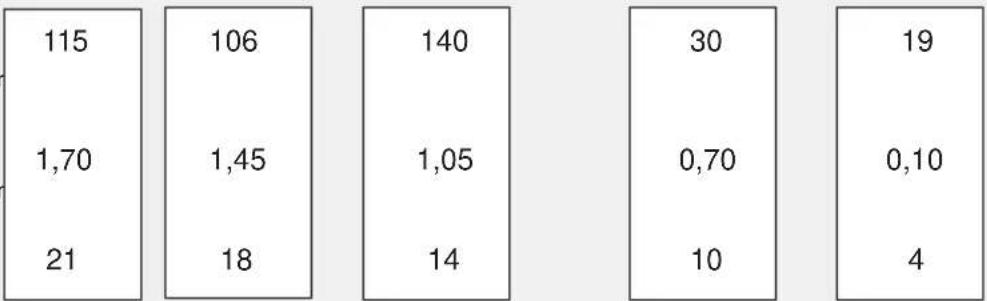

Programme details

Duration in minute

without heat exchanger

Electricity consumption in kWh

without heat exchanger

Water consumption in litres

Laboratory measured value in accordance with European Standard EN 50242

Washing dishes

Programme selection

The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., as well as the amount and condition of food remains, with the details contained in the programme overview.

The corresponding programme sequence, duration and consumption details are shown in the bottom half of the overview.

For example:

Use the “Normal” programme for dishes and utensils which have plenty of food remains stuck on hard.

Reduce costs!

If only a small number of dishes have been loaded into the dishwasher, selecting a programme that operates at the next lowest temperature will usually suffice.

Programme data

The stated programme data are based on standard operating conditions. The values can vary considerably according to:

• different amounts of dishes
• temperature of mains water supply
  — pressure of mains water supply
• ambient temperature
• fluctuations in mains voltage
• machine-related factors (e.g. temperature, water volume, ...).

Energy and water consumption is reduced by up to 1/4 when dishes are washed in the upper basket only.

Water consumption values are based on a water hardness setting of 2.

Switching the dishwasher ON

• Set main switch 1 to ON.
  Indicators light up according to the last programme that was selected.
  This same programme will run again if no other programme button 6 is pressed.
• The programme starts automatically.

End of programme

The programme has come to an end when the PROGRAMME END indicator 3 and the indicator for the selected programme are both lit up.

Switching the dishwasher OFF

Several minutes after the programme has ended:

• Set the main switch 1 to OFF.
  — Turn the water tap off.
  (Does not apply when Aqua-Stop unit has been fitted)
• Remove dishes, etc. when they have cooled down.

Interrupting the programme

• Set main switch 1 to OFF.
  — Indicator lights extinguish. The programme is retained in the dishwasher memory.
• If the hot water was switched ON or the appliance has already heated up and then the appliance door opened, leave the door ajar for several minutes and then close.
  Otherwise, the appliance door may fly open due to expansion.
• In order to continue with the stored programme, set the main switch to ON again.

en

Cancel programme (Reset)

• Only when the master switch is ON. Press the A and C programme buttons simultaneously and hold them pressed for approx. 3 sec.
• The programme continues for approx. 1 min. The PROGRAMME END indicator and the indicator for the programme that has just been terminated light up.
• Set main switch 1 to OFF.
• Close the detergent compartment 30.

To restart the dishwasher, set main switch 1 to ON again and select desired programme.

Changing the programme

It is possible to change the programme within 2 minutes after you have switched the dishwasher on.

Should it be necessary to change the programme after this period, the programme cycle that has already been begun (e.g. washing) will be completed first of all.

Care and maintenance

Regular inspection and maintenance of your appliance helps to prevent problems from occurring. This saves time and aggravation. You should therefore carefully inspect the inside of your dishwasher from time to time.

Overall condition of appliance

• Check that no grease or scale has accumulated on the inside of the dishwasher.
  If you discover any deposits:
  — Clean the interior of the dishwasher thoroughly with a detergent solution.

Special dishwasher salt

Check the LOW SALT indicator 4. Top up with salt, if required.

Rinse-aid

Check the LOW RINSE-AID indicator 5 on the front panel or the level indicator on the rinse-aid container 29. Top up with rinse-aid, if required.

Filters

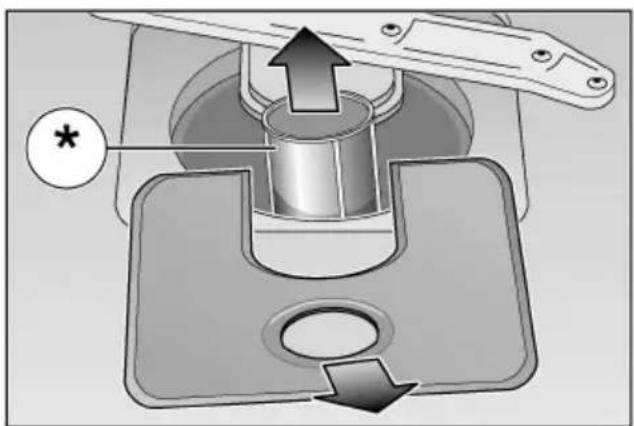

The filters 25 prevent larger remnants of food or other objects from getting inside the pump. This residue can occasionally clog up the filters.

The filter system consists of a filter cylinder, a flat fine filter and, depending on the model, a microfilter (*).

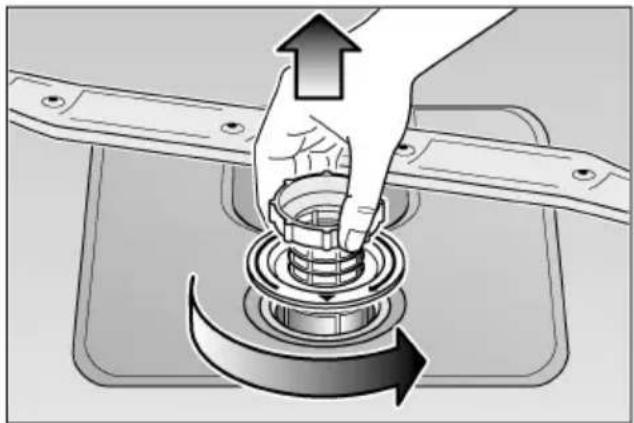

• Inspect the filters for obstructions every time the dishwasher has been used.

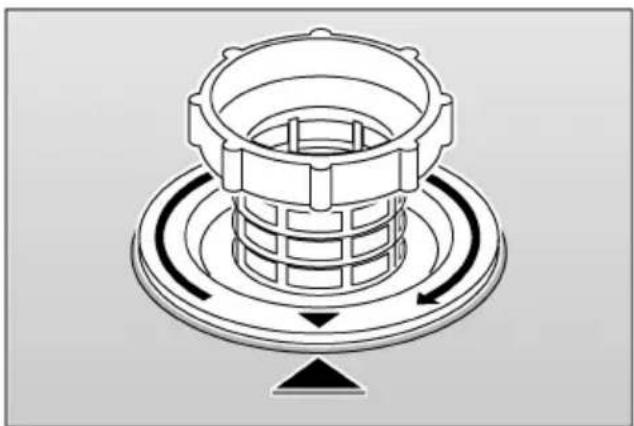

• By unscrewing the filter cylinder, you can remove the filter system. Remove any food remnants and clean the filters under running water.

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a piston and lever mechanism with directional arrows (no text or labels)

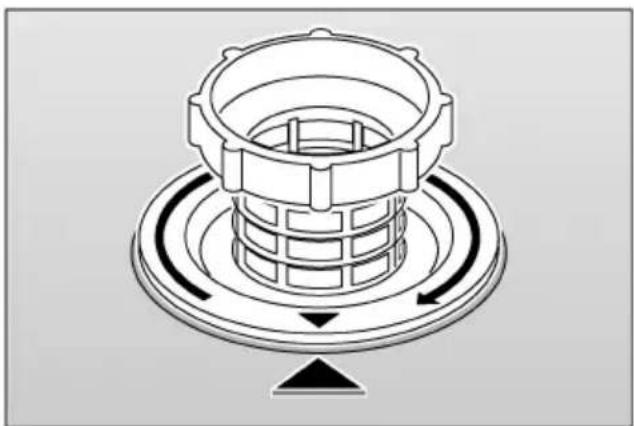

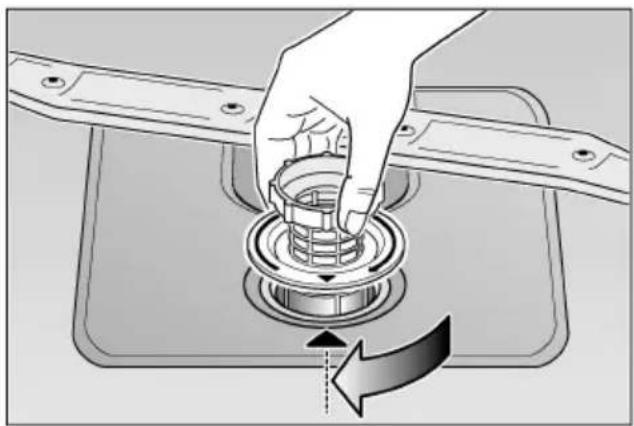

- Reassembly:

Insert the filter system and screw down with the filter cylinder.

Illustration of a hand pressing down on a mechanical component with a circular dial and directional arrow (no text or symbols)

Technical diagram of a mechanical component with concentric rings and directional arrows, no text or symbols present.

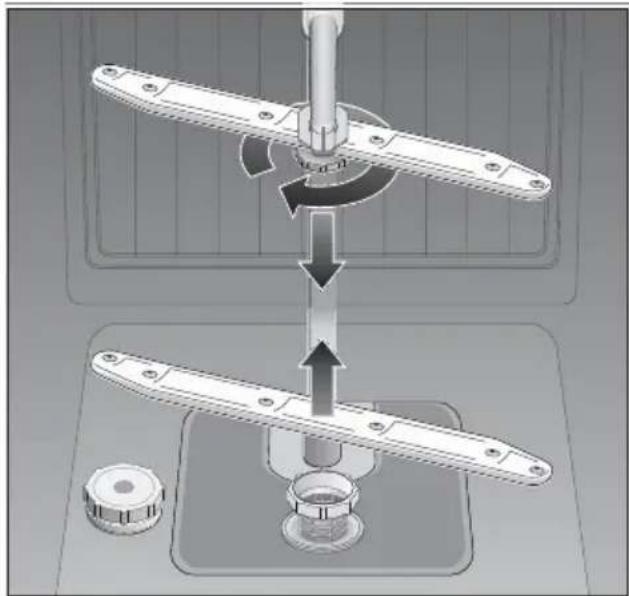

Spray arms

Lime and remnants of food in the washing water can block the nozzles in the spray arms 22 and 23 and the arm mountings.

• Inspect the nozzles in the spray arms for blocked holes due to remnants of food.
• If necessary, pull the lower arm 23 upwards and lift it off.
• Unscrew the upper spray arm 22.
  — Clean both spray arms under running water.
• Refit the spray arms. Ensure that the lower arm has locked into place and the upper one is screwed tight.

Mechanical assembly diagram showing a rotating component being processed into a base with a knob (no text or symbols)

Spray arms

en

Fault finding

Resolving minor problems yourself

Experience has shown that you can resolve most problems that arise during normal daily usage yourself, without having to call out a service engineer. Not only does this save costs, but it also means that the appliance is available for use again that much sooner. The following list of common occurrences and their remedies should help you identify the causes of most problems.

Problems ...

... when the appliance is switched on

● Appliance does not start up

• Fault with fuse in mains electricity supply.
• Plug not inserted in wall socket.
  — Appliance door not closed properly.
• Programme button has not been pressed.
  — Water tap not turned on.

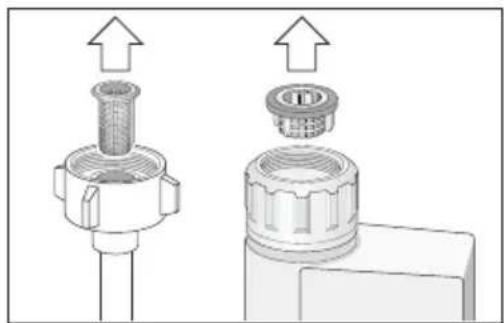

• Blocked strainer in water intake hose.
  The strainer is situated in the Aquastop or supply-hose connection.

Technical illustration of a mechanical component with two views showing internal structure (no text or symbols)

Caution

Do not forget that repairs should only be carried out by a qualified specialist. Improper repairs can lead to considerable equipment damage as well as danger to the user.

... with the appliance itself

● Lower spray arm rotates with difficulty

- Spray arm is blocked by small items or food remains.

- Lid in detergent compartment cannot be closed

• Detergent compartment has been overfilled.
• Mechanism is clogged with remnants of detergent. Indicator lamps do not extinguish after washing has finished.

● Indicator lamps do not extinguish after washing has finished

- Main switch is still set to ON.

● Remnants of detergent stuck inside dispenser

- Compartment was damp when it was filled up with detergent. Compartment must be dry before detergent is added.

● Water remains inside appliance after programme has ended

• Blockage or kink in drainage hose.
• Pump is jammed.
• Filters are blocked.
• The programme is still running. Wait for the programme to end (programme-end display will illuminate).
• Perform "Reset" function.

... during washing

● Unusual amount of foam is created

• Normal washing up liquid has been poured into the rinse-aid container.
• Remove any spilled rinse aid with a cloth as it could otherwise lead to excessive foaming during the next washing cycle.

● Appliance stops suddenly while washing is taking place

• Cut in electricity supply to appliance.
  — Water supply has been interrupted.

● Knocking sound can be heard while washing is taking place

— A spray arm is knocking against the dishes inside the appliance.

● Rattling sound can be heard while washing is taking place

- Crockery has not been stacked properly inside the appliance.

● Knocking sound coming from inlet valves

- This is caused by the way the water pipes have been laid and it has no effect upon the way the appliance functions. There is no remedy for this.

... with the dishes, cutlery, etc.

- Remnants of food are stuck to the dishes, cutlery, etc.

• Dishwasher was not loaded properly. Jets of water could not reach all parts of the dishes, etc.
• Too many items in the rack.
• Items in the rack were touching each other.
• Not enough detergent was added to dispenser.
• Selected wash programme was not intensive enough.
• Rotation of spray arm was obstructed by dish, etc.
• Nozzles in spray arm are blocked by remnants of food.
• Filters are blocked.
• Filters have been incorrectly fitted.
• Waste-water pump is jammed.

- Plastic items are discoloured

• Not enough detergent was added to dispenser.
• Detergent has insufficient bleaching properties. Use a detergent containing a chemical bleaching agent.

● White stains are left on crockery, glasses have a milky appearance

• Not enough detergent was added to input compartment.
• Amount of rinse-aid was set too low.
  — Although water is quite hard, no salt has been put in appliance.
  — Water softener was set too low.
• Lid on salt container is not screwed tight.
• If you used a phosphate-free detergent, try a detergent containing phosphates and compare results.

en

● Dishes, cutlery, etc. have not been dried

• Selected programme did not include drying function.
  — Amount of rinse-aid was set too low.
• Items were removed from dishwasher too soon.

● Glasses have a dull appearance

— Amount of rinse-aid was set too low.

● Tea stains or traces of lipstick have not been completely removed

— Detergent does not have a sufficient bleaching effect.
- Washing temperature was set too low.

- Traces of rust on cutlery

• Cutlery is not sufficiently rustproof.
• Salt content in washing water is too high.
• Lid on salt container is not screwed tight.
• Too much salt was spilt while filling container.

● Glasses become clouded and discoloured; coating cannot be wiped off

• Unsuitable detergent was used.
• Glasses are not dishwasher-proof.

● Smears left behind on glasses and cutlery; glasses have acquired a metallic appearance

— Amount of rinse-aid set too high.

Customer Service

Please call your local service agent, if you are not able to resolve any problem yourself. The name of your nearest service agent is shown in the Customer Service address list. When you call, please provide details of the model number (1) and the production (FD) number (2) which are shown on the nameplate on the appliance door.

1 FD 2

Warning

Please note that a visit by the customer service technician in the event of a fault or one of the problems previously discussed is not free of charge even during the warranty period.

Important information

Notes on waste disposal

Old appliances still have some residual value. An environment-friendly method of disposal will ensure that valuable raw materials can be recovered and used again.

When an appliance has reached the end of its working life, unplug it from the mains.

Cut through the mains cable and dispose of it together with the plug.

Destroy the door locking mechanism.

This will ensure that children at play cannot become locked inside and are not exposed to the risk of suffocation.

Your new appliance was protected by suitable packaging while it was on its way to you. All materials used for this purpose are environment-friendly and can be recycled. Please make a contribution to protecting the environment by disposing of the packaging appropriately.

Do not allow children to play with any parts of the packaging. There is a risk of suffocation by the cardboard boxes and the plastic wrapping.

Up-to-date information concerning options for disposal can be obtained from your retailer or local municipal administration.

General information

- Measures must be taken to ensure that built-under and built-in units that are subsequently re-sited as free-standing appliances cannot topple over. This can be achieved by bolting the dishwasher to the wall or fitting it under a continuous work surface which is screwed to the adjacent cupboards.

- For Switzerland only: There are no restrictions on installing the appliance between wooden or plastic walls as part of a fitted kitchen. If the appliance is not plugged into a wall socket, it must be connected to the mains via a separator for all poles within the domestic wiring system. This device must have a gap of at least 3 mm between open contacts, in order to conform with relevant safety regulations.

Installation

In order to function correctly the dishwasher must be properly installed. Specifications for the water intake and waste-water drainage, as well as electrical connections, must fulfil the criteria that are set out in the following paragraphs and the installation instructions.

When installing the dishwasher, carry out tasks in the following order:

• check contents of delivery upon receipt,
• site dishwasher,
• connect drainage hose,
• connect inlet hose to water supply,
• connect dishwasher to electricity supply.

Checking contents of delivery

All functions of your dishwasher have been thoroughly tested in the factory. A small number of water marks have been left on the dishwasher as a result. They disappear as soon as the appliance is used for the first time.

Siting the dishwasher

Dimensions associated with siting the dishwasher are contained in the installation instructions. Ensure that the appliance is completely level by adjusting the feet. Make sure that it is standing on a firm surface.

Drainage connection

See the installation instructions for details of procedure to be followed.

If necessary, fit a siphon trap (U-bend) with a connecting piece for the drainage hose.

Connect the drainage hose to the trap using the enclosed parts.

Fresh-water connection

Connect the inlet hose to a water tap using the enclosed parts and in accordance with the installation instructions.

Water pressure:

Minimum 0,5 bar – maximum 10 bar. If the water pressure is higher, install a pressure reducing valve.

Flow rate:

Minimum of 10 litres per minute.

Water temperature:

We recommend that you use cold water. If you do use hot water, the temperature should not exceed 60 °C .

Electrical connection

This appliance should only be connected to a 230/240 V AC source via a properly installed earthed socket. See nameplate 31 for size of required fuse.

The socket must be installed close to the dishwasher.

If you need to extend the mains connecting lead, do not cut off the plug. Replace the whole cable, which can be disconnected at the junction box on the rear of the appliance.

If the domestic wiring includes a residual-current-operated (FI) circuit-breaker, make sure that it bears the mark, as only this type conforms to the latest regulations

Disconnecting the dishwasher

Here too, it is important that tasks are carried out in the correct sequence: always unplug the appliance from the mains electricity first of all.

Pull plug out of wall socket.

Turn off water supply.

Disconnect drain and water input hoses.

Remove screws in underside of work surface. Detach base board, if fitted.

Pull out appliance and carefully withdraw hoses at same time.

Transporting the dishwasher

Drain water from the dishwasher. Secure all loose parts. The appliance should only be transported in an upright position.

- If the appliance is not kept upright during transport, any water left inside may seep into the control module and cause subsequent errors with programme functions.

Protection from freezing temperatures

If the appliance is installed in a location where there is a risk of freezing temperatures (e.g. in a holiday home), all water must be completely drained out of the interior.

Turn OFF the tap, disconnect the supply hose and allow to drain.

Illustration of a funnel pouring granular material into a conical container (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a laboratory setup with a hand pouring liquid into a chamber, no text or symbols present

Remarque

Diagram of a device with labeled components and directional arrows, no readable text or symbols present

Interior view of a multi-level kitchen appliance rack with cutlery and utensils (no text or labels visible)

* selon le modèle

Casseroles

Interior view of a kitchen appliance with multiple plates and a sink (no text or symbols visible)

Couverts

Illustration of a hand placing a small object into a wire cage with arrows indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly with tool holders and a conveyor belt system (no text or symbols)

L'étagère \*

Diagram showing a grid pattern with an arrow pointing to a curved structure, no text or symbols present.

Two-panel diagram showing mechanical components with arrows indicating motion, no text or symbols present.

Détergent

Diagram showing a hand pressing down on a device with a numbered arrow indicating process step 2

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a piston and lever mechanism with directional arrows (no text or labels)

Illustration of a hand pressing down on a mechanical component with a circular dial and directional arrow (no text or symbols)

Mechanical component diagram showing a cylindrical housing with internal components and directional arrows (no text or symbols)

Bras pivotants

Mechanical assembly diagram showing a rotating propeller with directional arrows indicating motion (no text or symbols)

Bras pivotants

Technical illustration of a mechanical component with two views showing top and side views (no text or symbols)

Attention

Illustration of a funnel pouring granular material into a conical container (no text or symbols)

Hand inserting a device into a rack, showing black arrows indicating the process (no text or symbols present)

Illustration of a laboratory setup with a hand pouring liquid into a chamber, showing no text or symbols.

Attentie!

Diagram of a device with labeled components and directional arrows, no readable text or symbols present

Interior view of a multi-level kitchen appliance rack with cutlery and utensils (no text or labels visible)

Interior view of a kitchen appliance showing a rack with multiple kitchen utensils and a lid (no text or symbols visible)

Bestek

Illustration of a hand placing a component into a wire cage with directional arrows indicating flow or movement (no text or symbols)

nl

Diagram illustrating a procedure for handling meat in a cage, showing tool application and structural change.

De etagère \*

Diagram showing a grid pattern with a curved arrow pointing upward, no text or symbols present

Diagram showing a mechanical or structural assembly with pulleys and a directional arrow (no text or symbols)

Diagram of a mechanical assembly with pulleys and a rotating arrow (no text or symbols)

Afwasmiddelen

Attentie

Diagram showing a hand pressing down on a device with a numbered arrow indicating process step 2

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a piston and lever mechanism with directional arrows (no text or labels)

Illustration of a hand pressing down on a mechanical component with a circular dial and directional arrow (no text or symbols)

Technical diagram of a mechanical component with concentric rings and directional arrows (no text or symbols)

Sproeiarmen

Mechanical assembly diagram showing a rotating component being processed into a base with a circular base (no text or symbols)

Sproeiarmen

nl

Opsporing van storingen

Diagram showing two mechanical components with upward arrows indicating assembly or force direction (no text or symbols present)

Attentie!

Diagram of a kitchen appliance showing a bed, mouse, and tray with directional arrows indicating rotation (no text or symbols)

Interior view of a kitchen appliance showing a cylindrical container, metal rack, and showerhead (no text or symbols visible)

① ② ③ Reset 4 5 6 End End Reset A B C

20 21 22 23 24 25 26 27 28 29 30 31

fr

Garantie AQUA-STOP.

(not applicable to appliances without Aqua-Stop)

In addition to warranty claims against the seller based on the sales agreement and in addition to our appliance warranty we shall replace the appliance under the following conditions:

1. If damage is caused by water due to a malfunction of our Aqua-Stop system, we shall make good the damage in the case of private consumers.
2. This liability warranty is valid for the service life of the appliance.
3. The warranty claim is subject to correct installation and connection of the appliance in accordance with our instructions. "This also includes correct installation of the Aqua-Stop extension (original accessory)." Our warranty does not cover defective supply lines or fittings up to the Aqua-Stop connection on the tap.
4. In principle, it is not necessary to monitor an appliance fitted with Aqua-Stop during operation or to secure it afterwards by turning off the tap. You should only turn off the tap if you are absent from home for a prolonged period, e.g. on holiday for several weeks.

Bosch Info–Team:

DE Tel. 0180 / 5 30 40 50 (EUR 0,12/Min. DTAG)

AT Tel. 0660 / 59 95

Internet:
