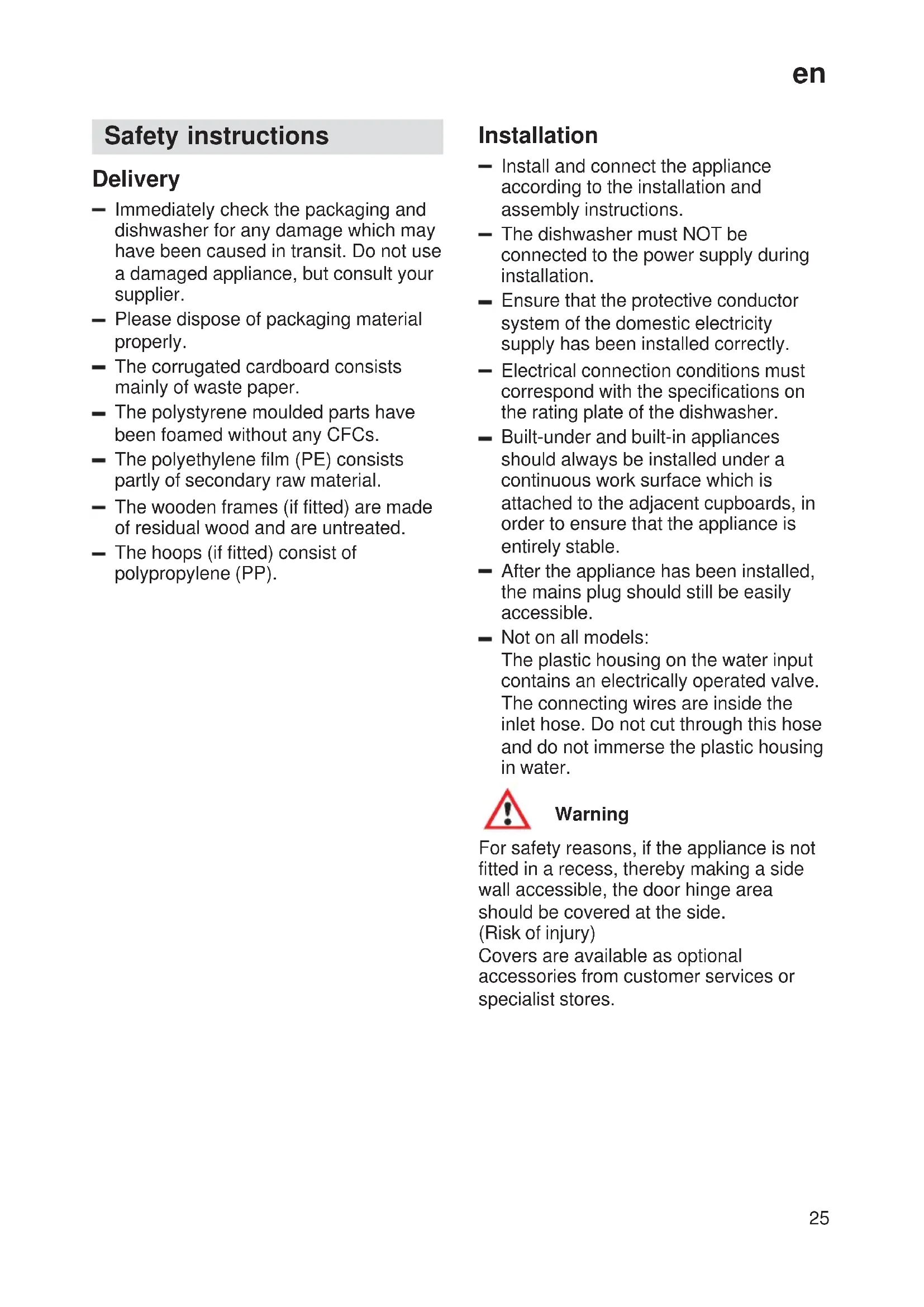

• Immediately check the packaging and dishwasher for any damage which may have been caused in transit. Do not use a damaged appliance, but consult your supplier.
• Please dispose of packaging material properly.
  — The corrugated cardboard consists mainly of waste paper.
• The polystyrene moulded parts have been foamed without any CFCs.
• The polyethylene film (PE) consists partly of secondary raw material.
  — The wooden frames (if fitted) are made of residual wood and are untreated.
  — The hoops (if fitted) consist of polypropylene (PP).

Installation

— Install and connect the appliance according to the installation and assembly instructions.
- The dishwasher must NOT be connected to the power supply during installation.
- Ensure that the protective conductor system of the domestic electricity supply has been installed correctly.
- Electrical connection conditions must correspond with the specifications on the rating plate of the dishwasher.
- Built-under and built-in appliances should always be installed under a continuous work surface which is attached to the adjacent cupboards, in order to ensure that the appliance is entirely stable.
- After the appliance has been installed, the mains plug should still be easily accessible.
- Not on all models: The plastic housing on the water input contains an electrically operated valve. The connecting wires are inside the inlet hose. Do not cut through this hose and do not immerse the plastic housing in water.

Warning

For safety reasons, if the appliance is not fitted in a recess, thereby making a side wall accessible, the door hinge area should be covered at the side. (Risk of injury)

Covers are available as optional accessories from customer services or specialist stores.

en

During normal use

Warning

Knives and other utensils with sharp points must be loaded in the basket with their points down or in a horizontal position.

• Use the dishwasher solely in a domestic environment and for its designated purpose: washing household tableware and other utensils.
• Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward.
  — The water inside the dishwasher is not suitable for drinking.
• Do not use solvents of any kind inside your dishwasher. They could cause an explosion.
• Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.

If your family includes children

• Do not permit small children to play with or operate the dishwasher.
• Keep children away from detergents and rinse-aids.
• Keep small children away from the open door of the dishwasher. There could still be some detergent left inside.

Child lock \*

* on applicable models
Please refer to the drawings enclosed in the envelope
40 Engaging the child lock
41 Opening the door with the child lock engaged
42 Disengaging the child lock

If a fault occurs

• Repairs or other work on the dishwasher should only be carried out by a qualified specialist.
• The dishwasher must be disconnected from the electricity supply before any repairs or other work are started. Pull the mains plug out of the wall socket or switch off at the fuse box. Grasp the plug to remove it from the socket; do not tug on the cable. Turn the water off at the tap.

When disposing of old appliances

• Appliances that have reached the end of their service life should be rendered inoperable in order to exclude the possibility of subsequent accidents. Pull the mains plug out of the wall socket, cut through the connecting cable and disable the door lock.
  — Take the appliance to a designated waste disposal centre.

Warning

Children could get locked in the appliance (risk of suffocation) or get stuck in other positions.

Therefore: Remove the mains plug, cut the mains wire and set aside. Damage the door lock so that the door can no longer be closed.

Getting to know your dishwasher

Illustrations of the control panel and the interior of the dishwasher are shown on the rear fold-out cover of this manual. Fold this page out before you read the manual.

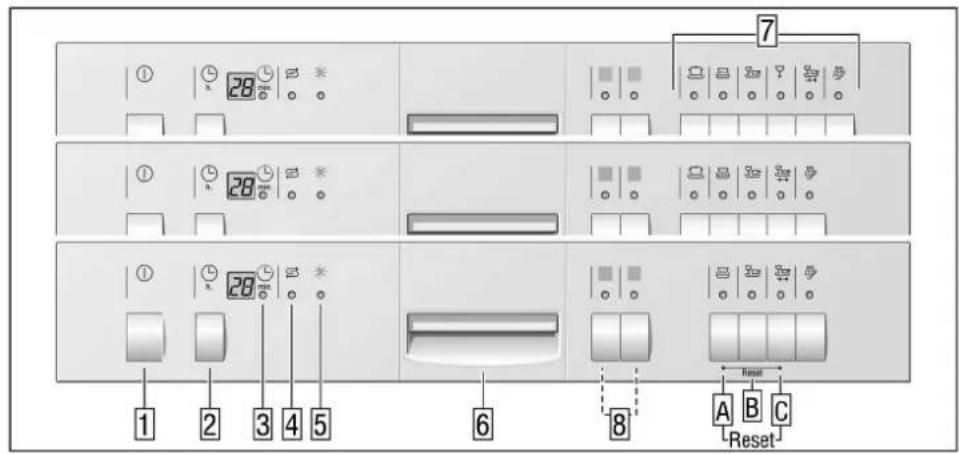

Control panel

1 Main switch
2 Time delay
3 Digital display/ Programme progress indicator
4 Salt refill indicator
5 Rinse-aid refill indicator
6 Door opener
7 Programme buttons
8 Additional functions *

* some models only

Appliance interior

20 Upper basket with 2-tiered cup rack
21 Additional cutlery basket for the top basket *

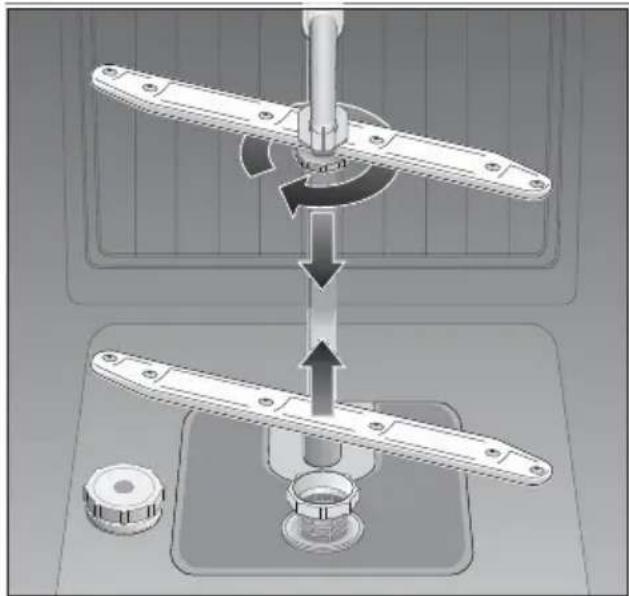

22 Upper spray arm
23 Lower spray arm
24 Container for special salt with level indicator *
25 Filters
26 Cutlery basket
27 Lower basket
28 Locking mechanism
29 Container for rinse-aid, with level indicator

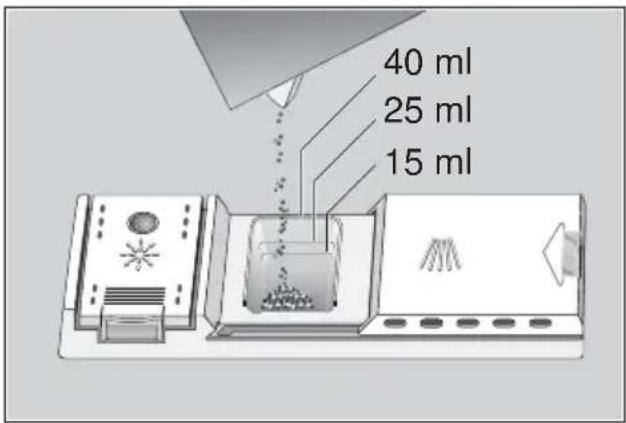

30 Detergent compartment

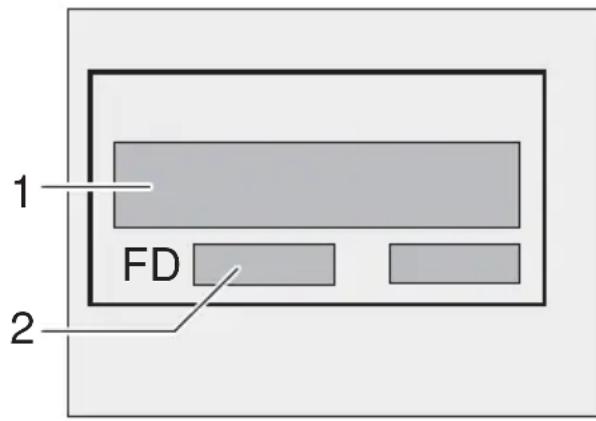

31 Nameplate
* not on all models

You will need to purchase the following before using the dishwasher for the first time:

– special salt for use in dishwashers
- detergent
- rinse-aid

Only use products, which are suitable for dishwashers.

Water softener

In order to rinse dishes and glasses satisfactorily, the dishwasher requires soft water, i.e. containing little or no lime, otherwise water stains will be left behind on crockery and glasses, etc.

If the tap water exceeds a certain level of hardness, it must be softened, i.e.

decalcified, so that it can be used in the dishwasher.

This is achieved by adding a special salt to the water softener inside the dishwasher.

The water softener, that is the required amount of salt, is set up according to how hard the tap water is.

Setting up the water softener

(see introduction)

en

Filling the special salt container

How the salt works

While washing is taking place, salt is automatically rinsed out of the salt container into the water softener where it dissolves the lime in the water.

The dissolved lime is pumped out of the dishwasher. The water softening system is then ready for the next load.

This process of regeneration can only function when the salt is dissolved in water.

Unscrew the lid on the salt container 24.

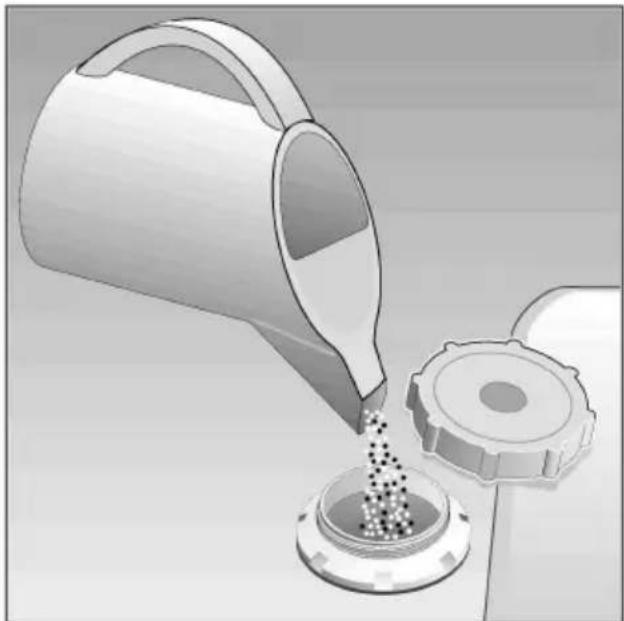

Before you use the dishwasher for the first time, pour approx. 1 litre of water into the salt container.

Use the enclosed salt filler.

Refill with salt (do not use edible salt) until the salt dispenser is full (max. 1.5 kg).

When the salt dispenser is being refilled, water is displaced and drains away.

Therefore always refill the salt dispenser immediately before switching on the dishwasher (to prevent corrosion). As a result, the overflowing salt solution will be immediately diluted and rinsed out. Then remove salt residue from the filler area and screw on the dispenser cover, ensuring that it is not fitted askew.

Illustration of a watering can pouring liquid into a container with a gear nearby (no text or symbols)

The LOW SALT indicator 4 on the front panel will light up initially but will extinguish again after a short period when the salt solution has become sufficiently concentrated.

Note

When the control is set to 0t is not necessary to fill up with salt as none will be consumed while the dishwasher is operating. The LOW SALT indicator is switched off. If the control is set between 1 and 7 then salt must be added to the dispenser.

Do not pour detergent into the container for special salt. This would destroy the water softener.

Salt refill indicator

As soon as the salt refill indicator 4 is lit on the control panel, refill with salt immediately before the next rinse cycle.

Filling the rinse-aid container

The purpose of a rinse-aid is to prevent the formation of water marks on tableware and utensils, and to ensure that glasses are clean and sparkling. The rinse-aid is consumed during the washing process.

- Fold back the lid on the rinse-aid container 29.

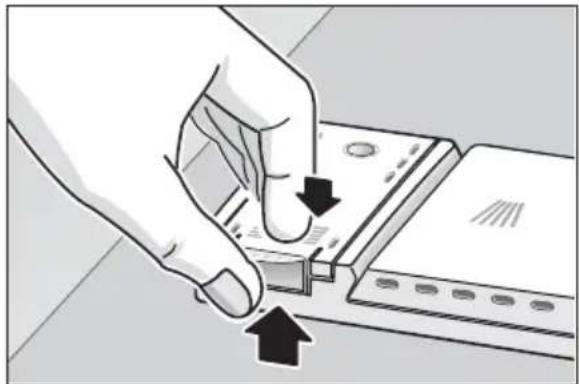

To open the lid, press the mark on the rinse-aid lid and simultaneously lift the lid off the lug.

Illustration of a hand pressing down on a device with arrows indicating action (no text or symbols)

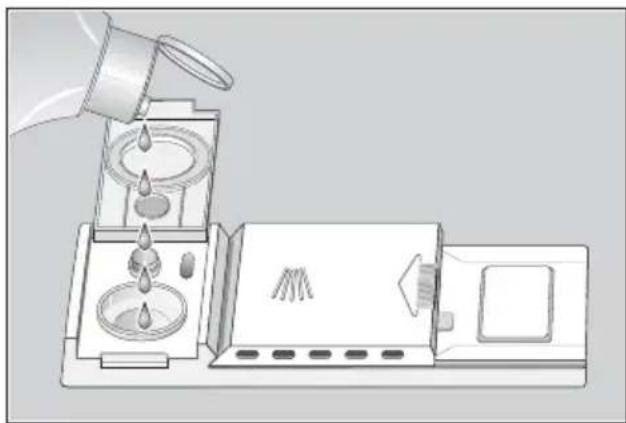

— Pour the rinse-aid into the filler hole until the level indicator turns dark.
— Close the lid, ensuring that you hear it snap closed.

Illustration of a laboratory setup with a hand pouring liquid into a gas stove and a control panel (no text or symbols visible)

Note

Use only rinse aid for domestic dishwashers. Spilt rinse aid may result in excessive foam formation in the next rinse cycle. Therefore, remove any spilt rinse aid with a cloth.

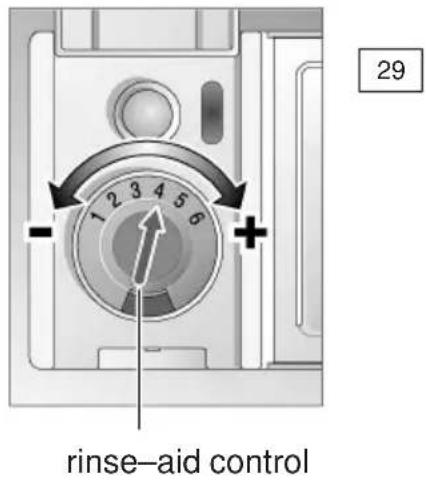

Adjusting the amount of rinse-aid

The amount of rinse-aid added to the water can be varied by adjusting the stepless control. The rinse-aid control has been set to "4" in the factory.

Do not alter the setting of the rinse-aid control unless streaks (turn knob towards “—”) or water marks (turn knob towards “+”) are left on the dishes.

29 rinse-aid control

Low rinse-aid indicator

As long as the rinse-aid refill indicator on the panel 5 (on applicable models) or dispenser 29 has not illuminated, there is sufficient rinse-aid in the dishwasher.

Diagram of a device with labeled components and directional arrows, no readable text or symbols present

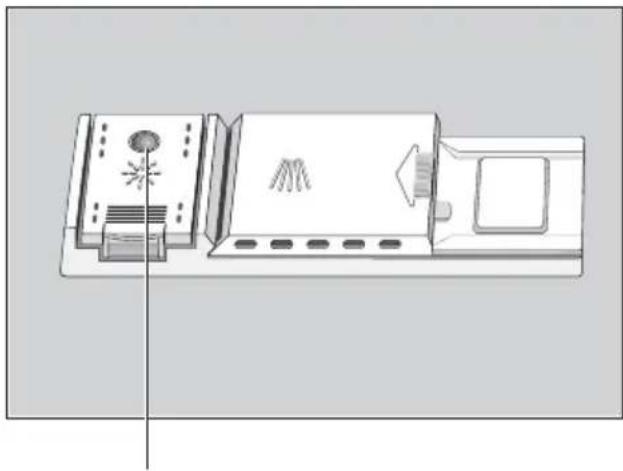

LOW RINSE-AID indicator

en

Unsuitable dishes

You should not clean the following items in your dishwasher:

• Cutlery and dishes made of wood. They will leach out and become unsightly; the utilised adhesives are also not suitable for the dishwasher temperatures.
• Delicate décor glasses, craft dishes and vases, special antique or irreplaceable dishes. These décor items are not dishwasher-safe.

Plastic parts, copper and tin dishes sensitive to hot water are not suitable either. Overglazed patterns, aluminium and silver parts tend to become discoloured and fade during the rinsing cycle. Even some types of glass (e.g. crystal glass objects) may become cloudy after many rinse cycles. Completely absorbent materials, such as sponges and cloths must not be cleaned in the dishwasher either.

Recommendation:

In future buy only dishes which are identified as dishwasher-safe.

Note

Dishes which are soiled with ash, wax, lubricating grease or ink must not be cleaned in the dishwasher.

Damage to glassware and other dishes

Possible causes:

— type of glass or manufacturing process
- chemical composition of detergent
— water temperature and duration of dishwasher programme.

Suggested remedy:

• Use glassware or porcelain dishes that have been marked 'dishwasher-proof' by the manufacturer.
• Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from detergent manufacturers.
• Select a programme with as low a temperature and as short a duration as possible.
• To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.

Arranging crockery, glasses, etc. in the dishwasher

Loading the dishwasher

Scrape off any large amounts of left-over food. It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in such a way that

• items such as cups, glasses, pots/pans, etc. are stood upside down,
• curved items, or those with recesses, should be at a slant so that water can run off,
• they are stacked securely and cannot tip over,
• they do not prevent the spray arms from rotating while washing takes place.

Very small items should not be washed in the dishwasher as they could easily fall out of the baskets.

Removing the dishes

To prevent water dripping from the top basket onto the dishes in the lower basket, we recommend that you empty the lower basket first and then the top basket.

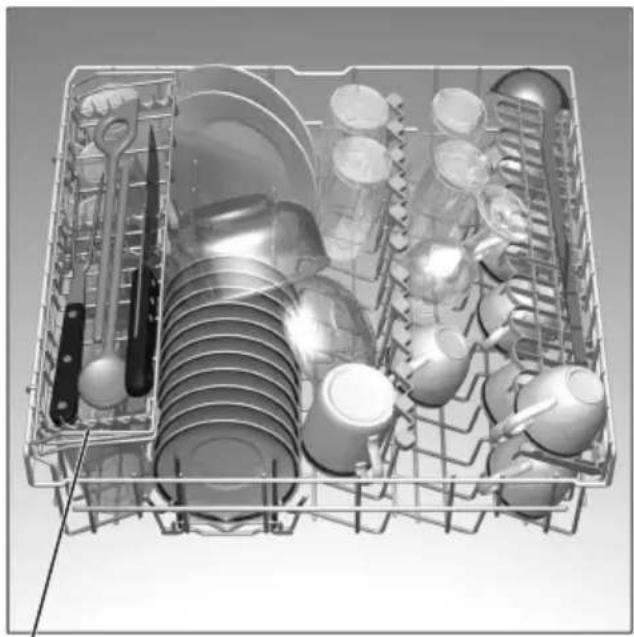

Cups and glasses

Upper basket 20

Interior view of a multi-level kitchen appliance rack with cutlery and utensils (no text or labels visible)

* on applicable models

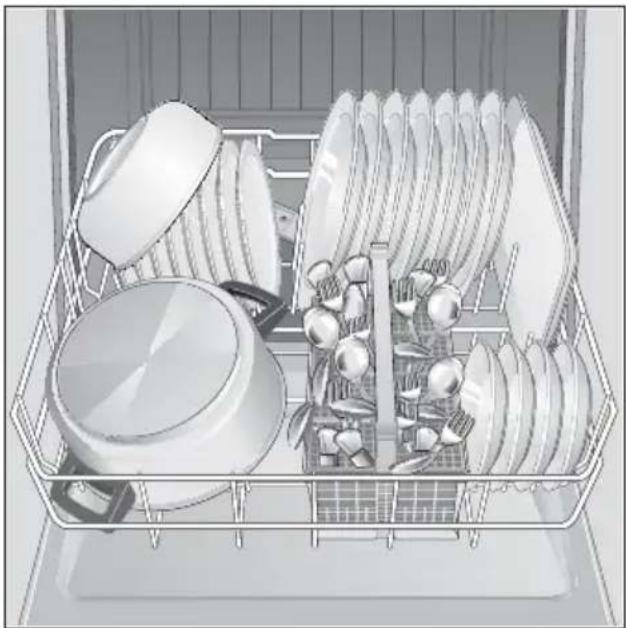

Pots and pans

Lower basket 27

Interior view of a kitchen appliance showing a rack with multiple kitchen utensils and a lid (no text or symbols visible)

Cutlery

Cutlery should always be inserted in random order with the handles pointing downwards (take care with knife blades!). This enables the jet of water to reach the individual items more easily.

To prevent the risk of injury, place long and pointed implements and knives on the shelf (some models) or knife shelf (available as an accessory).

Folding spikes \*

* on applicable models

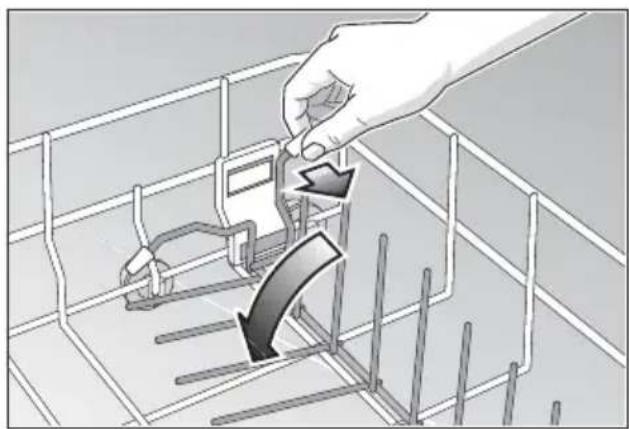

To improve stacking of pots and pans, the spikes can be folded down.

Illustration of a hand placing a vehicle into a wire cage with directional arrows indicating motion (no text or symbols)

en

Spray head for baking sheets \*

* on applicable models

Please refer to the drawings enclosed in the envelope

Large baking sheets or grids can be cleaned with the aid of the special spray head. Remove the top basket and attach the spray head as shown in the drawing. Arrange the baking sheets as illustrated, so that the jet of water can reach all parts of them (max. 4 baking sheets and 2 grids).

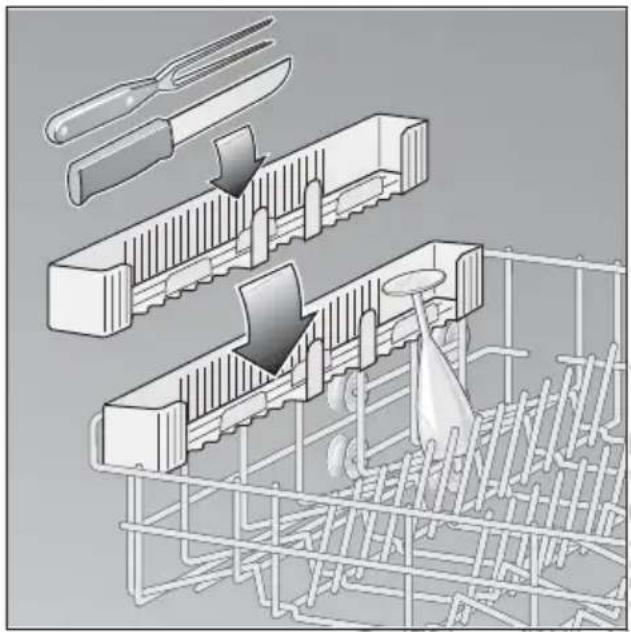

Knife rack \*

* on applicable models

Illustration of a kitchen utensil and tool assembly (no text or symbols)

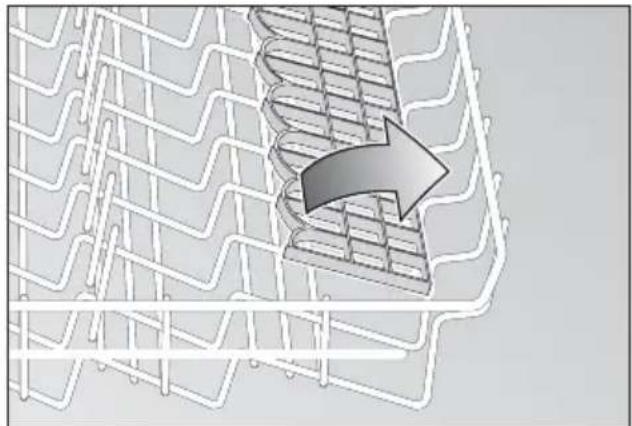

Shelf \*

* not on all models

Lean tall glasses and those with long stems against the shelf – not against other items to be washed.

Diagram showing a grid pattern with a curved arrow pointing upward, no text or symbols present

Long items, serving cutlery, salad servers or knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back when not required for use.

Adjusting position of basket \*

* not on all models

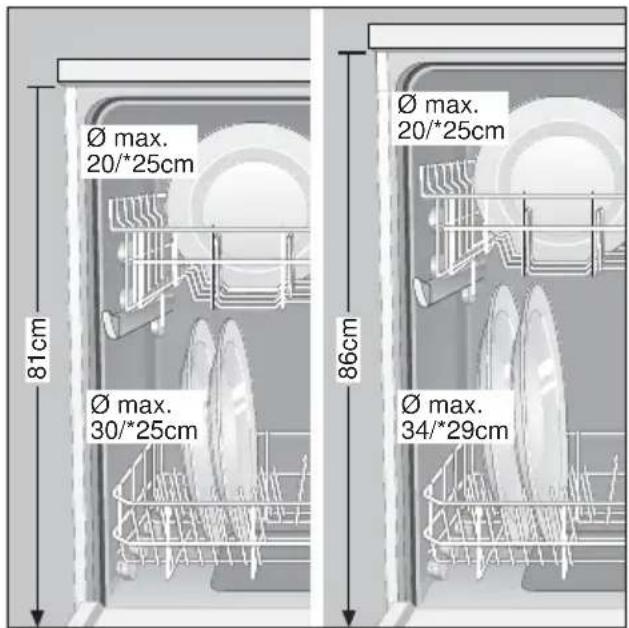

Ø max. 20/*25cm 81cm Ø max. 30/*25cm 86cm Ø max. 20/*25cm Ø max. 34/*29cm

If required, the height of the top basket can be adjusted in order to create more space for large utensils either in the top or bottom basket.

Select one of the two following procedures according to the design of the top basket for your appliance model:

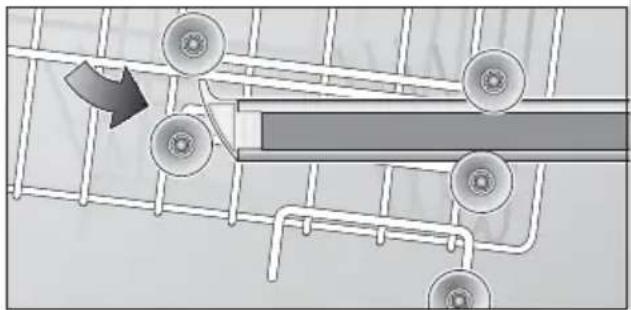

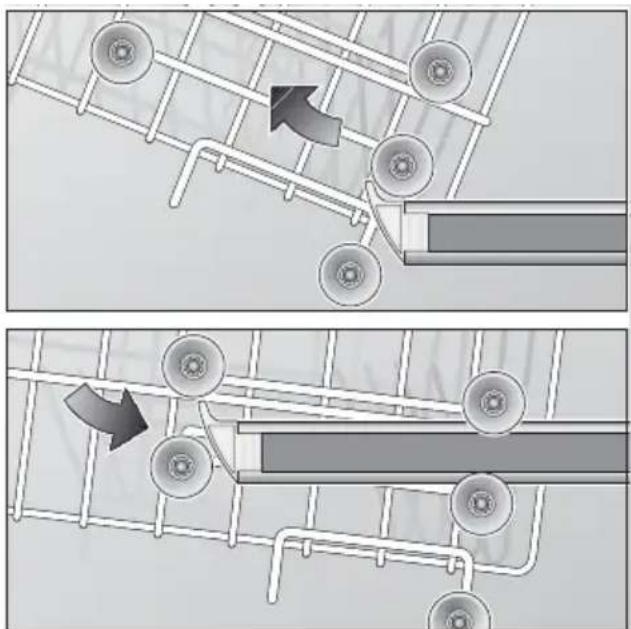

Top basket with upper and lower roller pairs

— Pull out the top basket.
- Remove the top basket and re-attach it to the upper or lower rollers.

Diagram showing two mechanical or electrical setups with pulleys and pipes, no text or symbols present.

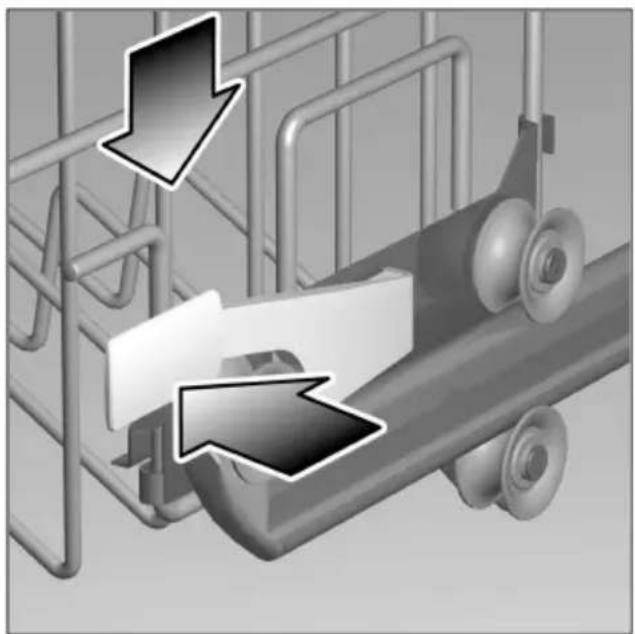

Top basket with side levers (Rackmatic)

- Pull out the top basket.

3D mechanical assembly diagram showing conveyor belt and pulley system with directional arrows (no text or symbols)

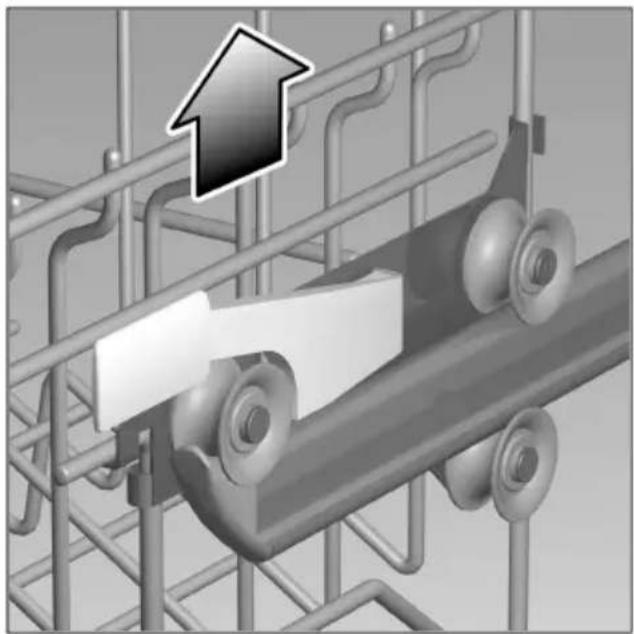

- To lower the basket, press in succession the two levers on the left and right sides of the basket. Always take hold of the side of the basket on the upper edge, otherwise the basket will not drop smoothly (and may damage the utensils).

3D illustration of a conveyor belt system with rollers and metal railings, no text or symbols present

• To raise the basket, take hold of the basket on the upper edge and pull upwards.
• Before you re-insert the basket, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not connect to the water circuit.

Detergents

Information about detergents

You can use any brand of liquid or powder detergent, as well as tablets, that have been specifically designed for use in domestic dishwashers. (Do not use normal washing-up liquid!)

Nowadays there are three types of dishwasher detergent available:

1. those containing phosphates and chlorine,
2. those containing phosphates but no chlorine,
3. those containing neither phosphates nor chlorine.

When a phosphate-free detergent is used in conjunction with hard water, there is a greater possibility that white marks will be left behind on crockery and glasses, etc. These can be avoided by pouring an increased amount of detergent into the dispenser.

Chlorine-free detergents have a reduced bleaching effect. This can mean that tea stains are not completely removed or plastic items become discoloured.

This can be resolved by:

• selecting a higher temperature programme, or
• increasing the amount of detergent, or
• using a detergent that contains chlorine.

Check the label on the detergent packaging to determine whether a particular product is suitable for use with silverware.

If you have any further questions, we recommend that you contact the customer advice departments of the various detergent manufacturers.

Detergent compartment with measuring marks

The side of the detergent compartment is marked with lines to help you determine how much powder to add.

The capacity of the detergent container is 15 ml up to the bottom line and 25 ml up to the middle line. When the compartment is full it contains 40 ml.

40 ml 25 ml 15 ml

Important

If the lid on the detergent compartment is closed, press the release lever to open the flap.

Adding detergent

- Tip detergent powder into the corresponding compartment 30.

Please observe the manufacturer's instructions printed on the detergent packaging when determining the correct dosage.

When you select the INTENSIVE programme, tip an extra 10–15 ml of detergent onto the inside surface of the door.

Reduce costs!

If you are using the upper rack only, or if your dishes are only moderately dirty, it will normally suffice to employ a reduced amount of detergent than otherwise recommended.

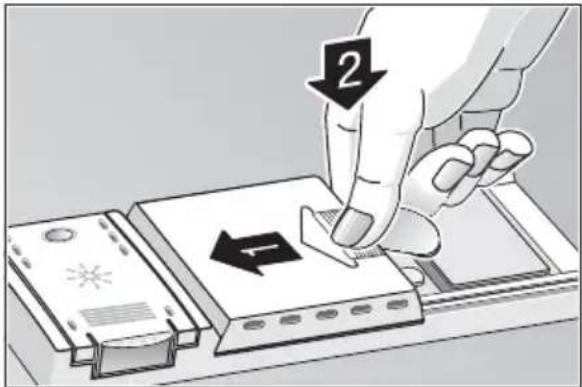

— Close the lid on the detergent compartment.

Press down the lid (1) until it clicks shut (2).

Diagram showing a hand pressing down on a device with a numbered arrow indicating process step 2

- If you are using detergent in tablet form, read the manufacturer's

recommendations on the packaging in order to

determine where the tablets should be placed inside the dishwasher (e.g. in cutlery basket, detergent compartment, etc.).

Make sure that the lid on the detergent compartment is closed, even if you are using tablets.

CAUTION IMPORTANT NOTE ON THE USE OF COMBINED CLEANING PRODUCTS

Please note the following when using "combined cleaning products" which eliminate the need for a rinsing agent or salt, for example:

• Some products with a built-in rinsing agent are only used to their full effect in certain programmes.
• This type of product does not generally produce the desired effect with automatic programmes.
  — Products which eliminate the need for regeneration salt can only be used within a certain water hardness range.
• If you wish to use these combined products, please read the instructions carefully and heed any notes on the packaging.

Contact the manufacturer of the cleaning agent if you have any questions, particularly if:

— the crockery is very wet once the programme has finished.
- limescale deposits are formed.

Any problems which arise as a direct result of the use of these products are not covered by our warranty.

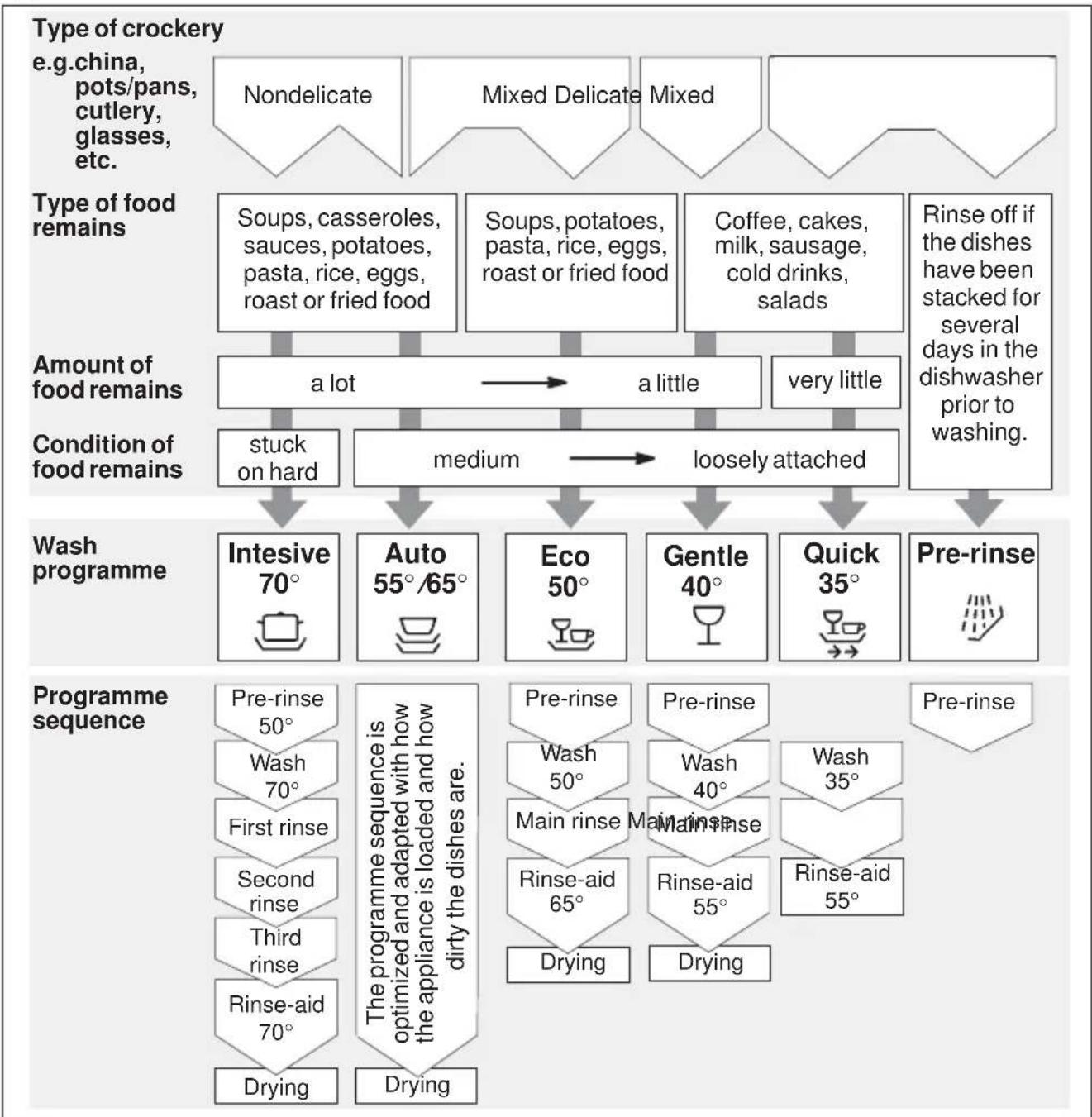

Programme overview

This overview lists the max. possible number of programmes. The programmes supplied with your appliance are indicated on the fascia.

    F["Type of food remains"] --> G["Soups, casseroles, sauces, potatoes, pasta, rice, eggs, roast or fried food"]
    F --> H["Soups, potatoes, pasta, rice, eggs, roast or fried food"]
    F --> I["Coffee, cakes, milk, sausage, cold drinks, salads"]
    F --> J["Rinse off if the dishes have been stacked for several days in the dishwasher prior to washing."]

    K["Amount of food remains"] --> L["a lot"]
    K --> M["a little"]
    K --> N["very little"]

    O["Condition of food remains"] --> P["stuck on hard"]
    O --> Q["medium"]
    O --> R["loosely attached"]

    S["Wash programme"] --> T["Intesive 70°"]
    S --> U["Auto 55°/65°"]
    S --> V["Eco 50°"]
    S --> W["Gentle 40°"]
    S --> X["Quick 35°"]
    S --> Y["Pre-rinse"]

    Z["Programme sequence"] --> AA["Pre-rinse 50°"]
    Z --> AB["Wash 70°"]
    Z --> AC["First rinse"]
    Z --> AD["Second rinse"]
    Z --> AE["Third rinse"]
    Z --> AF["Rinse-aid 70°"]
    Z --> AG["Drying"]

    AH["The programme sequence is optimized and adapted with how the appliance is loaded and how dirty the dishes are."] --> AI["Pre-rinse"]
    AH --> AJ["Wash 50°"]
    AH --> AK["Main rinse Main rinse"]
    AH --> AL["Rinse-aid 65°"]
    AH --> AM["Drying"]

    AN["Pre-rinse"] --> AO["Wash 40°"]
    AN --> AP["Rinse-aid 55°"]
    AN --> AQ["Drying"]

    AR["Pre-rinse"] --> AS["Wash 35°"]
    AR --> AT["Rinse-aid 55°"]

Programme selection

The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., as well as the amount and condition of food remains, with the details contained in the programme overview.

You will find the appropriate programme information in the introduction.

Washing dishes

Reduce costs!

If only a small number of dishes have been loaded into the dishwasher, selecting a programme that operates at the next lowest temperature will usually suffice.

Programme data

The stated programme data are based on standard operating conditions. The values can vary considerably according to:

different amounts of dishes temperature of mains water supply pressure of mains water supply ambient temperature fluctuations in mains voltage machine-related factors (e.g. temperature, water volume, ...).

Energy and water consumption is reduced by up to 1/4 when dishes are washed in the upper basket only.

Water consumption values are based on a water hardness setting of 4.

Aquasensor

The Aquasensor is an optical measuring device with which the cloudiness of the water in the dishwasher is measured. A photoelectric sensor is used to detect the degree of soiling in the water, caused by dissolved food particles such as egg, fat and rolled oats, etc.

The Aquasensor functions during all programmes that include a pre-rinse cycle. If the water is still “clean” at the end of the pre-rinse cycle, then the same water is used for the following wash cycle. If the water is dirty, it is pumped out of the dishwasher and replaced by fresh water. The effect is to reduce water consumption by approx. 4 litres when the dishes are only “slightly” dirty.

Switching the dishwasher ON

Set main switch 1 to ON.

Indicators light up according to the last programme that was selected.

This same programme will run again if no other programme button 7 is pressed.

The programme starts automatically.

End of programme

The programme has ended when a figure appears in the numerical display 3.

Switching the dishwasher OFF

Several minutes after the programme has ended:

Set the main switch 1 to OFF.

Turn the water tap off.

(Does not apply when Aqua-Stop unit has been fitted)

Remove dishes, etc. when they have cooled down.

Interrupting the programme

Set main switch 1 to OFF.

Indicator lights extinguish. The programme is retained in the dishwasher memory.

If the hot water was switched ON or the appliance has already heated up and then the appliance door opened, leave the door ajar for several minutes and then close.

Otherwise, the appliance door may fly open due to expansion.

In order to continue with the stored programme, set the main switch to ON again.

en

Programming the timer

You can delay the start of a programme in increments of one hour for up to 19 hours.

Switch dishwasher ON.

Immediately press the TIMER button 2. The numerical display 3 changes to .

Press the TIMER button as many times as necessary until the numerical display shows the required delay.

To erase the time delay setting, keep pressing the TIMER button until appears in the numerical display.

You can change your programme selection as often as you like during the intervening period before the dish-washer starts up.

Time-remaining indicator

The time-remaining indicator is self-learning. When the programme begins, it displays the estimated duration of that programme. This figure is based upon the duration of the previous programme, or if the dishwasher is being used for the first time, the duration of the programme used for testing the appliance in the factory. While the programme is running, the indicator shows the amount of time before the programme ends. The time remaining is also adjusted to account for the temperature of the water supply and the number of dishes.

Intensive drying function

Activating the intensive drying function increases the temperature during the rinse-aid stage which gives better drying results.

Press and hold the A programme button, and set the main switch 1 to ON.

Release both buttons.

Either (ON) or (OFF) flashes in the numerical display 3.

Press the A programme button to change the setting.

Set the main switch 1 to OFF. The new setting is stored in the dishwasher memory.

Cancel programme (Reset)

Only when the master switch is ON.

Press the A and C buttons simultaneously, and hold them pressed for approx. 3 seconds.

The numerical display shows .

Close the door.

The programme continues for approx. 1 min.

When it has ended, set the main switch 1 to OFF.

Close the detergent compartment 30.

To restart the dishwasher, set main switch 1 to ON again and select desired programme.

Changing the programme

It is possible to change the programme within 2 minutes after you have switched the dishwasher on.

Should it be necessary to change the programme after this period, the programme cycle that has already been begun (e.g. washing) will be completed first of all.

The new remaining time displayed is the sum of the remaining time from the preceding programme cycle and the remaining time attributable to the new programme that has been selected.

Additional functions \*

* on applicable models

Pre-Soak \*

The Pre-Soak programme option serves to perform a pre-soak cycle before the main programme. This cycle enables cookware, e.g. pans, bowls, etc. to be pre-soaked and pre-rinsed in the lower rack. If you wish to pre-soak the dishes, this programme option must be selected by pressing the “Pre-Soak” button before the programme starts. The recommended detergent amount is approx. 5 g poured onto the inside of the door.

Quick \*

Pressing the “Quick” button provides a short wash cycle by curtailing the drying phase and the washing time. The washing and drying performance will be reduced with the Quick programme option.

Washing contents of UPPER

RACK only \*

If you have a small number of dishes to wash in the upper rack (e.g. glasses, cups, plates), switch on the UPPER RACK function. If you select the UPPER RACK function, the lower rack must be empty. Add a reduced amount of detergent compared to that which is recommended for a full load.

Washing contents of

LOWER RACK only \*

If you have a small number of dishes to wash in the lower rack (e.g. plates, pans, bowls), switch on the LOWER RACK function. If you select the LOWER RACK function, the upper rack must be empty. Add a reduced amount of detergent compared to that which is recommended for a full load.

Maintenance and care

You can help prevent faults by checking and maintaining your appliance regularly. This will save time and reduce problems. Therefore you should occasionally examine the inside of your dishwasher.

Overall condition of the appliance

Check the rinsing compartment for grease and limescale deposits. If you find any deposits:

• Fill the detergent dispenser with detergent. Start the empty appliance with the programme which has the highest rinsing temperature.
  Clean the door seal:
• Wipe the door seal regularly with a damp cloth and remove any deposits.

Special dishwasher salt

Check the LOW SALT indicator 4. Top up with salt, if required.

Rinse-aid

Check the LOW RINSE-AID indicator 5 on the front panel or the level indicator on the rinse-aid container 29. Top up with rinse-aid, if required.

Filters

The filters 25 prevent larger remnants of food or other objects from getting inside the pump. This residue can occasionally clog up the filters.

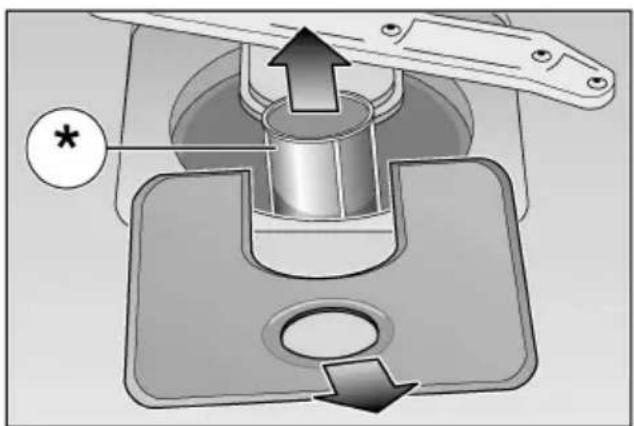

The filter system consists of a filter cylinder, a flat fine filter and, depending on the model, a microfilter (*).

• Inspect the filters for obstructions every time the dishwasher has been used.

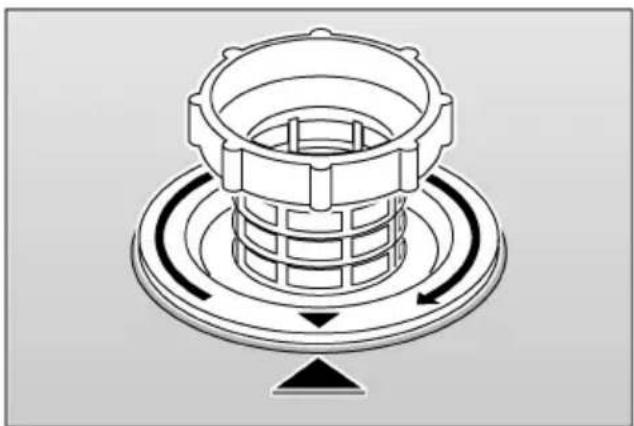

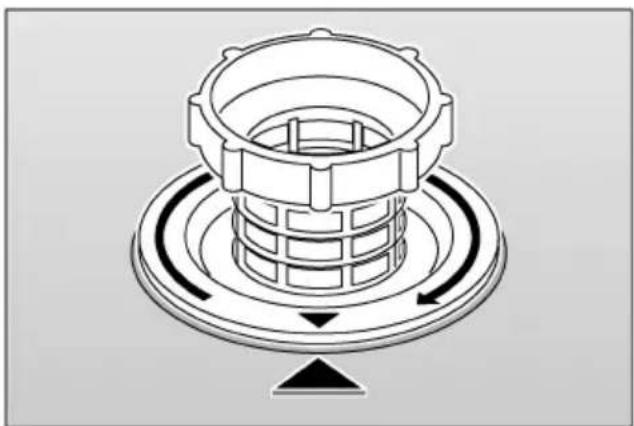

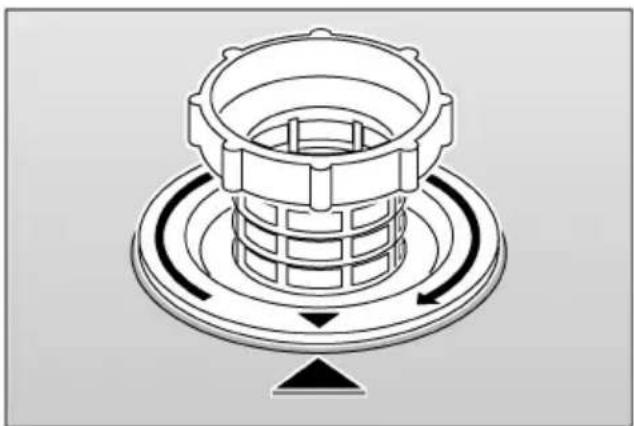

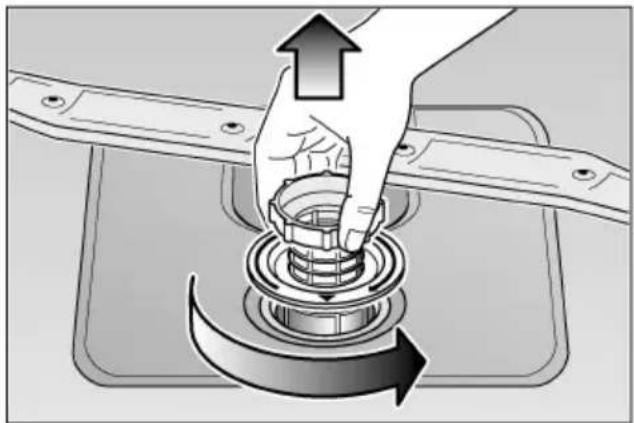

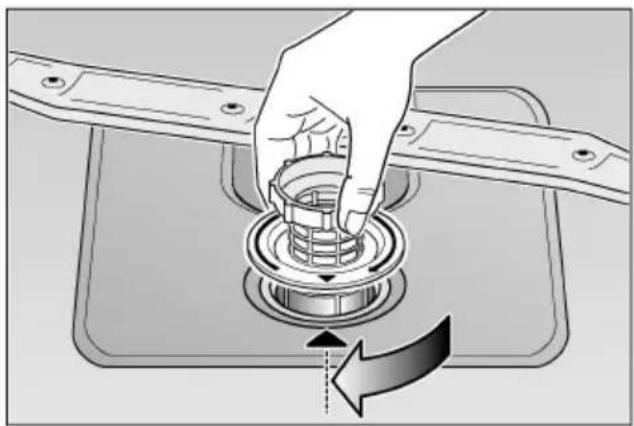

• By unscrewing the filter cylinder, you can remove the filter system. Remove any food remnants and clean the filters under running water.

en

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a piston and lever mechanism with directional arrows (no text or labels)

- Reassembly: Insert the filter system and screw down with the filter cylinder.

Illustration of a hand pressing down on a mechanical component with a circular dial and directional arrow (no text or symbols)

Technical diagram of a mechanical component with concentric rings and directional arrows, no text or symbols present.

Spray arms

Lime and remnants of food in the washing water can block the nozzles in the spray arms 22 and 23 and the arm mountings.

• Inspect the nozzles in the spray arms for blocked holes due to remnants of food.
• If necessary, pull the lower arm 23 upwards and lift it off.
• Unscrew the upper spray arm 22.
• Clean both spray arms under running water.
• Refit the spray arms. Ensure that the lower arm has locked into place and the upper one is screwed tight.

Mechanical assembly diagram showing a rotating component with a base and housing, no text or symbols present

Spray arms

Fault finding

Resolving minor problems yourself

Experience has shown that you can resolve most problems that arise during normal daily usage yourself, without having to call out a service engineer. Not only does this save costs, but it also means that the appliance is available for use again that much sooner. The following list of common occurrences and their remedies should help you identify the causes of most problems.

Problems ...

... when the appliance is switched on

● The appliance does not start.

— The mains fuse has tripped.
- The appliance plug has not been inserted.
— The appliance door has not been shut properly.
- The tap has not been turned on.

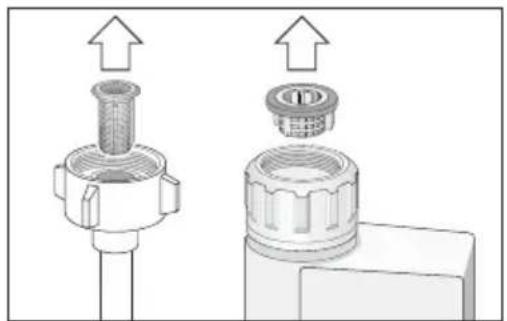

— The filter on the water supply hose is blocked.

Switch off the appliance and pull out the mains plug. Turn off the tap. Then clean the filter which is situated at the connection of the supply hose. Finally, restore the power, turn on the tap and switch on the appliance.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols present)

Warning

Remember: The appliance may be repaired by a technician only. Improper repairs may cause considerable damage and/or injure the user.

... with the appliance itself

● Lower spray arm rotates with difficulty

- Spray arm is blocked by small items or food remains.

● Lid in detergent compartment cannot be closed

• Detergent compartment has been overfilled.
• Mechanism is clogged with remnants of detergent. Indicator lamps do not extinguish after washing has finished.

● Indicator lamps do not extinguish after washing has finished

- Main switch is still set to ON.

● Remnants of detergent stuck inside dispenser

- Compartment was damp when it was filled up with detergent. Compartment must be dry before detergent is added.

● Water remains inside appliance after programme has ended

• Blockage or kink in drainage hose.
• Pump is jammed.
• Filters are blocked.
• The programme is still running. Wait for the programme to end (numerical display will indicate 0).
• Perform "Reset" function.

en

... during washing

● Unusual amount of foam is created

• Normal washing up liquid has been poured into the rinse-aid container.
• Remove any spilled rinse aid with a cloth as it could otherwise lead to excessive foaming during the next washing cycle.

● Appliance stops suddenly while washing is taking place

• Cut in electricity supply to appliance.
  — Water supply has been interrupted.

- Knocking sound can be heard while washing is taking place

— A spray arm is knocking against the dishes inside the appliance.

● Rattling sound can be heard while washing is taking place

- Crockery has not been stacked properly inside the appliance.

● Knocking sound coming from inlet valves

- This is caused by the way the water pipes have been laid and it has no effect upon the way the appliance functions. There is no remedy for this.

... with the dishes, cutlery, etc.

- Remnants of food are stuck to the dishes, cutlery, etc.

• Dishwasher was not loaded properly. Jets of water could not reach all parts of the dishes, etc.
• Too many items in the rack.
• Items in the rack were touching each other.
• Not enough detergent was added to dispenser.
• Selected wash programme was not intensive enough.
• Rotation of spray arm was obstructed by dish, etc.
• Nozzles in spray arm are blocked by remnants of food.
• Filters are blocked.
• Filters have been incorrectly fitted.
• Waste-water pump is jammed.

- Plastic items are discoloured

- Not enough detergent was added to dispenser.

● White stains are left on crockery, glasses have a milky appearance

• Not enough detergent was added to input compartment.
• Amount of rinse-aid was set too low.
• Although water is quite hard, no salt has been put in appliance.
• Water softener was set too low.
  — Lid on salt container is not screwed tight.
• If you used a phosphate-free detergent, try a detergent containing phosphates and compare results.

● Dishes, cutlery, etc. have not been dried

• Selected programme did not include drying function.
  — Amount of rinse-aid was set too low.
• Items were removed from dishwasher too soon.

● Glasses have a dull appearance

— Amount of rinse-aid was set too low.

● Tea stains or traces of lipstick have not been completely removed

— Detergent does not have a sufficient bleaching effect.
- Washing temperature was set too low.

- Traces of rust on cutlery

• Cutlery is not sufficiently rustproof.
• Salt content in washing water is too high.
• Lid on salt container is not screwed tight.
• Too much salt was spilt while filling container.

● Glasses become clouded and discoloured; coating cannot be wiped off

• Unsuitable detergent was used.
• Glasses are not dishwasher-proof.

● Smears left behind on glasses and cutlery; glasses have acquired a metallic appearance

— Amount of rinse-aid set too high.

Customer Service

Please call your local service agent, if you are not able to resolve any problem yourself. The name of your nearest service agent is shown in the Customer Service address list. When you call, please provide details of the model number (1) and the production (FD) number (2) which are shown on the nameplate on the appliance door.

1 FD 2

Warning

Please note that a visit by the customer service technician in the event of a fault or one of the problems previously discussed is not free of charge even during the warranty period.

Information

Disposal

Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances.

Pull out the mains plug of the redundant appliance. Cut off the power cord and discard with mains plug.

To prevent children from locking themselves in the appliance and suffocating, destroy the door lock and childproof lock (if fitted).

You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable.

Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner. All plastic parts of the appliance are identified by internationally standardised symbols (e.g. >PS< polystyrene).

When the appliance is being disposed of, the plastic waste can be sorted for environmentally-friendly recycling.

Please ask your dealer or inquire at your local authority about current means of disposal.

Keep children away from shipping carton and packaging components. Danger of suffocation from folding cartons and plastic film.

Notes on comparison tests

You will find details of the conditions for the comparison tests on the additional "Notes on comparison tests" sheet. The consumption values for the relevant programmes are given in the introduction.

General

- Built-under and integrated appliances which are subsequently installed as free-standing appliances must be secured to prevent them from falling over, e.g. by screwing them to the wall or by installing them under a continuous worktop which is screwed to the adjoining units.

- For Swiss version only: The appliance can be installed without difficulty between wooden and plastic walls in a kitchen range. If the appliance is not connected via a plug, the installation side must feature an all-pole disconnector with a contact gap of at least 3 mm in order to satisfy the relevant safety regulations.

Installation

The dishwasher must be connected by a qualified technician to ensure correct operation. The specifications for supply, drainage and connected load must fulfil the required criteria as stated in the following paragraphs or in the installation instructions.

Install the appliance in the following sequence:

• Check the delivery
• Install the appliance
• Connect the waste water
• Connect the fresh water
• Connect the power supply

Delivery

Your dishwasher was checked at the factory to ensure that it was in perfect working order. This may have left some small water stains in the dishwasher. These will disappear after the first rinse cycle.

Installation

The required installation dimensions can be found in the installation instructions. Using the height-adjustable feet, adjust the appliance until it is level. Ensure that the appliance is standing firmly.

Waste water connection

See the installation instructions for the required connection steps. If required, attach a siphon with drainage spigot.

Using the enclosed parts, connect the waste water hose to the drainage spigot of the siphon.

Ensure that the drainage hose is not kinked, crushed or twisted (ensure that there is no sealing cover which prevents the waster water from flowing away!).

Fresh water connection

Using the enclosed parts, connect the fresh water connection to the tap according to the installation instructions. Ensure that the fresh water connection is not kinked, crushed or twisted.

When replacing the appliance, always connect a new water supply hose to the water supply. The old supply hose must not be re-used.

Ensure that the fresh water connection is not kinked, crushed or twisted.

Water pressure:

Minimum 0,5 bar – maximum 10 bar. If the water pressure is higher, install a pressure reducing valve.

Flow rate:

Minimum of 10 litres per minute.

Water temperature:

We recommend that you use cold water. If you do use hot water, the temperature should not exceed 60 °C .

Electrical connection

This appliance should only be connected to a 230/240 V AC source via a properly installed earthed socket. See nameplate 31 for size of required fuse.

The socket must be installed close to the dishwasher.

If the domestic wiring includes a residual-current-operated (FI) circuit-breaker, make sure that it bears the mark, as only this type conforms to the latest regulations

Disconnecting the dishwasher

Here too, it is important that tasks are carried out in the correct sequence: always unplug the appliance from the mains electricity first of all.

Pull plug out of wall socket.

Turn off water supply.

Disconnect drain and water input hoses. Remove screws in underside of work surface. Detach base board, if fitted.

Pull out appliance and carefully withdraw hoses at same time.

en

Transporting the dishwasher

Drain water from the dishwasher. Secure all loose parts. The appliance should only be transported in an upright position.

• If the appliance is not kept upright during transport, any water left inside may seep into the control module and cause subsequent errors with programme functions.
  — The appliance must be drained in the following sequence:

• Turn on the tap.

• Set main switch to ON.
• Select the B programme. The programme duration in minutes is shown in the numerical display.
• Close the door.
  — Wait for approximately 4 minutes.
• Terminate the programme by pressing A and C simultaneously.
• The time display changes to 0
• Wait a further minute and then switch the appliance off.
• Turn off the tap.

Protection from freezing temperatures

If the appliance is installed in a location where there is a risk of freezing temperatures (e.g. in a holiday home), all water must be completely drained out of the interior (see “Transporting the dishwasher”).

Turn OFF the tap, disconnect the supply hose and allow to drain.

Illustration of a watering can pouring liquid into a container with a gear (no text or symbols)

Illustration of a hand pressing down on a device with arrows indicating press or action (no text or symbols)

Illustration of a laboratory setup with a hand pouring liquid into a chamber, showing no text or symbols.

Remarque

Diagram of a device with labeled components and directional arrows, no readable text or symbols present.

3D cutaway view of a kitchen appliance showing various kitchen utensils and dish units (no text or labels visible)

* selon le modèle

Casseroles

Interior view of a kitchen appliance rack with multiple kitchen utensils and a large sink (no text or symbols visible)

Couverts

Illustration of a hand placing a component into a wire cage with arrows indicating direction (no text or symbols)

Illustration of a fish jumping structure with tool and mesh components (no text or symbols)

L'étagère \*

Diagram showing a grid pattern with an arrow pointing to a curved structure, no text or symbols present.

Diagram showing two mechanical or electrical setups with pulleys and rotating components, no text or symbols present.

3D illustration of a conveyor belt system with two directional arrows indicating movement or flow (no text or symbols present)

3D illustration of a conveyor belt system with rollers and a directional arrow (no text or symbols)

Diagram showing a hand pressing down on a device with a numbered arrow indicating process step 2

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a piston and lever mechanism with directional arrows (no text or labels)

Illustration of a hand pressing down on a mechanical component with a circular dial and directional arrow (no text or symbols)

Technical diagram of a mechanical component with concentric rings and directional arrows, no text or symbols present.

Bras pivotants

Mechanical assembly diagram showing a rotating propeller with directional arrows indicating motion (no text or symbols)

Bras pivotants

Technical illustration of a mechanical component with two views showing internal structure (no text or symbols)

Attention

Illustration of a watering can pouring liquid into a container with a gear-shaped container nearby (no text or symbols)

Hand inserting a device into a rack, showing black arrows indicating the process (no text or symbols present)

Illustration of a laboratory setup with a hand pouring liquid into a beaker, showing no text or symbols.

Attentie!

Diagram of a device with labeled components and directional arrows, no readable text or symbols present

Interior view of a multi-level kitchen appliance rack with cutlery and utensils (no text or labels visible)

Interior view of a kitchen appliance showing a tray with plates and a microwave oven (no text or symbols visible)

Bestek

Illustration of a hand placing a component into a wire cage with directional arrows indicating motion (no text or symbols)

Illustration of a food processing setup with a knife, blade, and container (no text or symbols)

De etagère \*

Diagram showing a grid pattern with an arrow pointing to a curved path, no text or symbols present

Diagram showing a mechanical or electrical component with rotating parts and an arrow indicating direction (no text or symbols present)

Diagram of a mechanical assembly with pulleys and pipes, no visible text or symbols

3D mechanical assembly diagram showing conveyor belt and rollers (no text or symbols)

3D illustration of a conveyor belt system with rollers and metal railings, no text or symbols present

Diagram showing a hand pressing down on a device with a numbered arrow indicating process step 2

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a piston and lever mechanism with directional arrows (no text or labels)

Illustration of a hand pressing down on a mechanical component with a circular dial and directional arrow (no text or symbols)

Mechanical component diagram showing a piston-like structure with concentric rings and directional arrows (no text or symbols)

Sproeiarmen

Mechanical assembly diagram showing a rotating component being processed into a base plate (no text or symbols)

Sproeiarmen

nl

Opsporing van storingen

Technical illustration of a mechanical component with two views showing internal structure and assembly (no text or symbols)

Attentie!

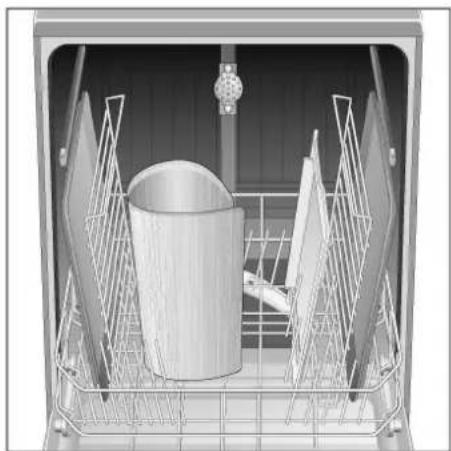

Diagram of a kitchen appliance showing a bed, mouse, and tray with directional arrows indicating rotation (no text or symbols)

Interior view of a kitchen appliance showing a cylindrical container, rack-mounted dish, and showerhead (no text or symbols visible)

7 1 2 3 4 5 6 8 Reset A B C Reset

20 21 22 23 24 25 26 27 28 29 30 31

fr

Garantie AQUA-STOP.

(not applicable to appliances without Aqua-Stop)

In addition to warranty claims against the seller based on the sales agreement and in addition to our appliance warranty we shall replace the appliance under the following conditions:

1. If damage is caused by water due to a malfunction of our Aqua-Stop system, we shall make good the damage in the case of private consumers.
2. This liability warranty is valid for the service life of the appliance.
3. The warranty claim is subject to correct installation and connection of the appliance in accordance with our instructions. "This also includes correct installation of the Aqua-Stop extension (original accessory)." Our warranty does not cover defective supply lines or fittings up to the Aqua-Stop connection on the tap.
4. In principle, it is not necessary to monitor an appliance fitted with Aqua-Stop during operation or to secure it afterwards by turning off the tap. You should only turn off the tap if you are absent from home for a prolonged period, e.g. on holiday for several weeks.

Bosch Info-Team:

DE Tel. 0180 / 5 30 40 50 (EUR 0,12/Min. DTAG)

AT Tel. 0660 / 59 95

Internet:
