Product type	4-channel audio amplifier
Brand	Ground Zero
Model	GZUA 4135DX
Dimensions (W x H x D)	265 x 53 x 170 mm
Weight	Approx. 2 kg
Power supply	+12 V DC, fuse 2 x 25 A
RMS power @ 2 Ω (1% THD)	4 x 190 W
RMS power @ 4 Ω (1% THD)	4 x 135 W
Bridged RMS power @ 4 Ω (1% THD)	2 x 380 W
Signal-to-noise ratio	> 90 dB
Damping factor	> 60
Minimum impedance	2 Ω stereo, 4 Ω bridged
Adjustable high-pass filter	10 Hz - 500 Hz
Adjustable low-pass filter	50 Hz - 500 Hz
Frequency response	10 Hz - 30 kHz (±1 dB)
Total harmonic distortion (THD)	< 0.1%
Input sensitivity	200 mV - 10 V
Channel separation	> 75 dB
Built-in protections	Overvoltage, overheating, short circuit
Audio inputs	4 pairs of RCA (low-level inputs)
Speaker outputs	4 channels, screw terminals
Additional features	MOS-FET PWM power supply, Full/LPF/HPF mode (depending on model), subwoofer level remote control (depending on model)
Maintenance and cleaning	Clean with a soft dry cloth. Avoid moisture and solvents.
Safety	Disconnect the battery before installation. Use appropriate cable gauge (min. 20 mm²). Install a fuse near the battery.
Spare parts and repairability	Fuses are replaceable. For repairs, contact a qualified technician or Ground Zero customer service.
General information	Designed for vehicle installation. Legal warranty according to applicable rights.

Frequently Asked Questions - GZUA 4135DX Ground Zero

What is the power of the GZUA 4135DX amplifier?

The RMS power is 4 x 190 W at 2 Ω and 4 x 135 W at 4 Ω. In bridged mode, it delivers 2 x 380 W at 4 Ω.

Can the amplifier run on a 12 V battery?

Yes, the required power supply is 12 V DC. Use a power cable of at least 20 mm² and a fuse of 2 x 25 A.

How to adjust the amplifier gain?

Turn the GAIN control to minimum. Set the radio to 2/3 of maximum volume. Then increase the GAIN until the sound is pleasant without distortion.

What to do if the PROTECTION LED lights up?

This indicates a short circuit on the speakers, overheating or a fault. Check speaker connections and impedance (minimum 2 Ω stereo). Let the amplifier cool down.

What types of filters are available?

The amplifier has an adjustable high-pass filter from 10 Hz to 500 Hz and an adjustable low-pass filter from 50 Hz to 500 Hz, with a slope of 18 dB/octave.

Can I connect a passive subwoofer?

Yes, in bridged mode on two channels, you can get a power of 380 W at 4 Ω. Use a low-pass filter for the subwoofer.

Is the amplifier compatible with a car stereo without RCA outputs?

It requires RCA outputs (low level). If your car stereo does not have them, use a high-to-low level adapter.

What cable gauge is recommended for power?

Use a power cable of 20 mm² minimum and a ground cable of the same gauge. The ground cable should be as short as possible (max 1 m).

Is it normal for the amplifier to get hot?

Yes, some heat is normal. Ensure the installation location is well ventilated. In case of overheating, the protection shuts off the device.

What to do if one channel produces no sound?

Check the RCA cable and the corresponding speaker cable. Ensure the connection is correct. If the problem persists, the cable or connector may be defective.

USER MANUAL GZUA 4135DX Ground Zero

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

We reserve the right to make needed change or improvement to the product without informing customer about this in advance.

Please read before Installation

Thank you for selecting a GROUND ZERO amplifier. We are providing a helpful hints

list which should keep you from experiencing unnecessary shut down.

Features

Efficiency 80% (4 Ohm at 1KHz) - Ultra small sized heatsink - 2 Ohm stable stereo (bridged 4 Ohm) MOS-FET PWM power supply - Adjustable lowpass filter 18 dB/ Octave crossover slope - Multi way protection circuitry

(Thermal / over current / speaker short / Speaker DC protection)

Adjustable highpass filter (GZUA 2250DX / 4135DX) Adjustable phase shift (GZUA 2250DX / 5600DX) Adjustable subsonic filter (GZUA 2250DX / 5600DX) Adjustable bass boost (GZUA 2250DX) RCA Cinch output (mono) for other subwoofer amplifiers (GZUA 2250DX) Adjustable crossover frequency FULL/LPF/HPF switch (GZUA 5600DX) Input mode switch (GZUA 5600DX) Bass remote control (GZUA 5600DX)

Introduction

Amplifiers provide high-performance sound reinforcement for your mobile audio equipment. It's versatility enables compatibility with optional Equalizer, Frequency Dividing Network Crossovers and other audio processors in a customized system.

The Multi-Mode bridging capabilities allow flexibility in hosting several different speaker configurations.

To achieve optimum performance, it is highly recommend that you read this Owners manual before the installation.

Tools and materials you need

• Screwdriver Electric drill, 3mm
• Mounting screws Power wire min. 20mm² Ground wire min 20mm²
• Speaker wire min. 2 × 1.5 mm²

Attention

• As a precaution it is advisable to disconnect the vehicle's battery before making connection to the +12 Volts supply wiring (see owner's manual of your car for further information!)
• Do not drill holes into the tank, the brake pipe, wires or other important parts of the vehicle.
• Never pass wires over sharp angles. It is recommended to buffer the power supply of the amplifier with a capacitor min. 1 Farad.

WARNING

High powered audio systems in a vehicle are capable of generating "Live Concert" high levels of sound pressure. Continued exposure to excessively high volume sound levels may cause hearing loss or damage. Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear external sound such as horns, warning signals, or emergency vehicles, thus constituting a potential traffic hazard. In the interest of safety, Consumer Electronics recommends listening at lower volume levels while driving.

Planning your System

Before beginning the installation, consider the following:

a. If you plan to expand your system by adding other components sometime in the future, ensure adequate space is left, and cooling requirements are met. b. If your radio source is equipped with Pre-Amp outputs, it is recommended to utilize them to drive the amplifier. c. Are your components matched? The peak power rating of your speakers must be greater than the Amplifiers. They also must be 2-8 ohms impedance (This information is normally printed on the speaker magnet.) d. Consider both the length of your leads, and routing when choosing the mounting location. Pre-Amp input jacks require a length of high quality shielded male to male RCA patch cord.

Mounting your amplifier

a) Select a suitable location that is convenient for mounting, accessible for wiring and has enough room for air circulation and cooling. b) Use the amplifier as a template to mark the mounting holes, remove the amplifier and drill 4 holes, use extreme caution. Inspect underneath surface before drilling.

Warning

Investigate the layout of your automobile thoroughly before drilling or cutting any holes. Take care when you work near the tanks, lines, or hydraulic lines, and electrical wiring. Don't mount this system so that wire connections are unprotected or are subject to pinching or damage from nearby objects.

The +12 Volt DC power wire must be fused at the battery positive terminal connection. Before making or breaking power connections at this system's power terminals, disconnect the +12 Volt wire at the battery end.

Confirm your radio/cassette player and/or other equipment is turned off while connecting the input jacks and speaker terminals.

If you need to replace the power fuse, replace it only with a fuse identical to that supplied with the system. Using a fuse of a different type or rating may result in damage to this system which isn't covered by the warranty.

Wiring connection

Attention! - min. 20 mm² wires are necessary for power connection!

(1) Ground: Ground connection should be passed directly to the car body as short as possible (max. 1m). (2) +12 Volt: Power connection should be passed directly to the battery. Please pay attention to a correct fuse protection of the installation with an inline device with a max. wire length to the battery of 30 cm. (3) Remote turn on: This connection is connected with the remote control line of the radio. It is used for turning on and off the amplifier.

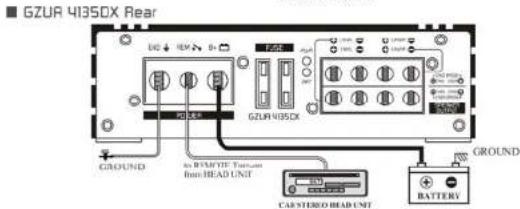

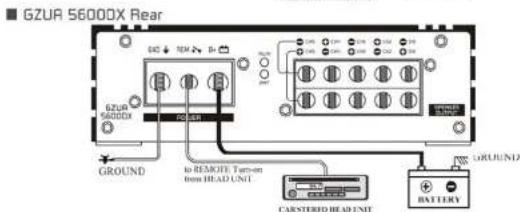

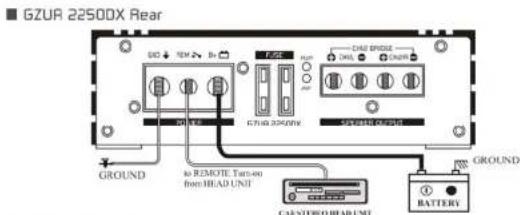

Power connection

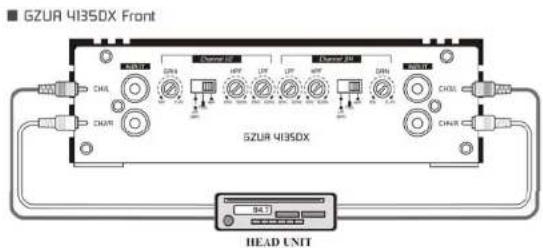

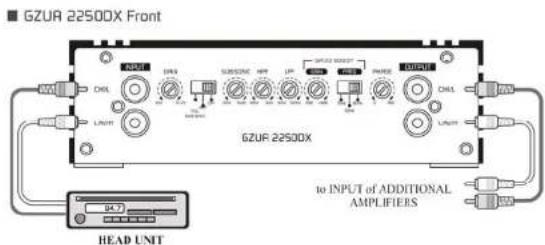

RCA connection

This amplifier has a signal input terminal of RCA connector type for low level inputs. Adjustment of input levels is accomplished by the gain control of both channels. Adjusting this control allows the amplifier gain to be controlled to match and balance both channels. The RCA input connector should be used when connecting the radio/cassette line out and this connection is usually made using RCA-RCA connector wires.

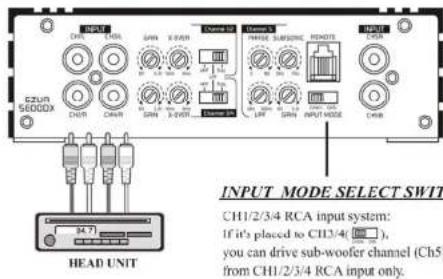

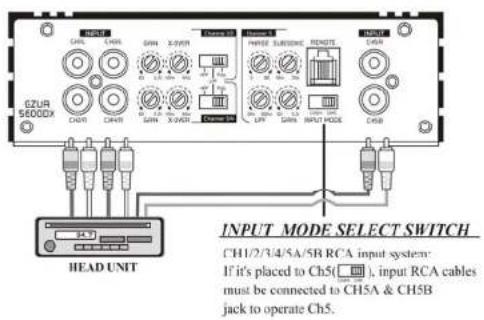

RCA connection

This amplifier has a signal input terminal of RCA connector type for low level inputs. Adjustment of input levels is accomplished by the gain control of both channels. Adjusting this control allows the amplifier gain to be controlled to match and balance both channels. The RCA input connector should be used when connecting the radio/cassette line out and this connection is usually made using RCA-RCA connector wires.

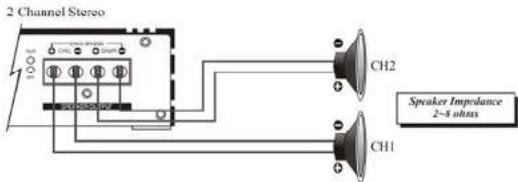

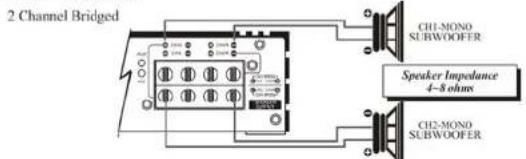

Speaker connection

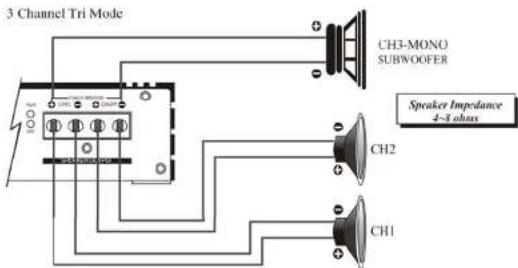

Speaker connection

GZUR41350X Rear

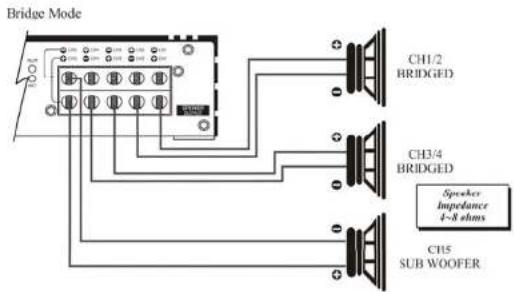

Speaker connection

GZUR5600DX Rear

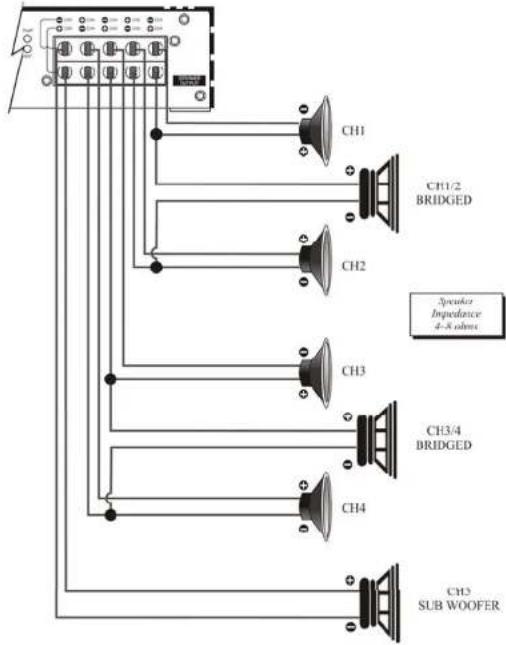

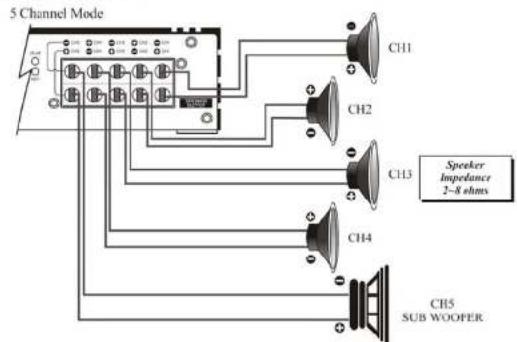

Speaker connection

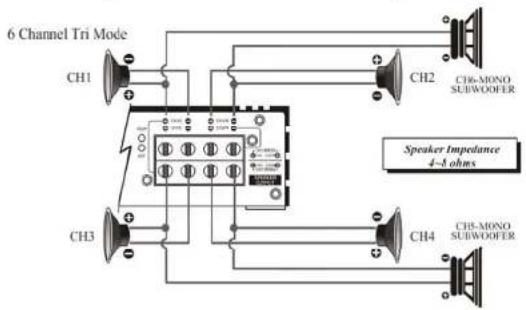

GZUR5600DX Rear

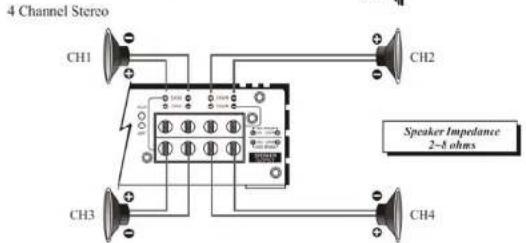

Dual Tri Mode

Adjusting the audio level

For the best performance, you must set LEVEL (MIN:MAX) on the side of the amplifier to adjust the level of the audio signals.

Use a screwdriver to turn LEVEL(MIN/MAX) fully to MIN. 2. Turn the auto sound system's volume control to about two-thirds of its full range. 3. Adjust LEVEL(MIN/MAX) to a comfortable listening level. 4. Turn up the auto sound system's volume control until the sound begins to distort. Then immediately turn the volume down to a point just before where the distortion began. Caution: Never turn up the auto sound system's volume control more than needed to adjust the audio level, more than two thirds of its maximum volume. 5. Adjust LEVEL (MIN/MAX) until the sound is at the maximum level you want the amplifier to produce. 6. Adjust the auto sound system's volume control to a comfortable listening level.

Troubleshooting

This power amplifier has protection features to prevent any damages from misuse or faulty conditions. If the unit senses excessive heat, short circuited speakers or overload, the protection indicators will light, and the system will be turned off. In order to check the occupied problems, you should turn all levels down and all power off and turn off the lights. The system will then turn on and turn off the lights. When the power switch down due to excessive heat, the protection indicators will not light; simply allow time for the unit to start.

Before removing your amplifier, refer to the list below and follow the suggested procedures.

A

Problem Check points
Amplifier is not powered up	Check that there is battery power on the +12V terminal. Check that remote terminal has at least +12V DC remote connection. Check a good ground connection. Check all fuses. Check the protection LED is not lit.
Protection LED illuminates when amplifier is powered up	Check shorts on speaker wires. Remove speaker wires and reset the amplifier. If the protection LED still comes on, then the amplifier is faulty.
Fuse blowing	Check that the minimum speaker impedance is correct. Check short on power cable and vehicle chassis.
Overheating	Check that the minimum speaker impedance is correct. Check speaker shorts. Check that there is a good airflow around the amplifier.
Sound too low / Distorted sound	Check that the input level control is set to match the cutout level of the unit. Check the head unit volume. Check speaker shorts. Check that crossover frequencies have been properly set.
High hiss / engine noise in speakers	Check a good ground and for speaker shorts. Disconnect all RCA inputs from the amplifier. If hiss/voice disappears, check it with a good RCA interconnect. Then check the component driving the amplifier.

Specifications

Model GZUA 2250DX GZUA 4.135DX GZUA 5600DX
RMS power @ 2 Ω, 1% THD CEA Standard CEA-2006-A	2 x 450W 4 x 190W		4 x 150W + 1 x 330W
RMS power @ 4 Ω, 1% THD CEA Standard CEA-2006-A	2 x 290W 4 x 135W		4 x 90W + 1 x 250W
RMS power @ 4Ω Bridged 14,6 V, 1% THD	1 x 900W 2 x 380W		2 x 240W + 1 x 250W
Damping factor	> 60 > 60 > 60
Signal to noise ratio	> 90 dB > 90 dB > 90 dB
Lowpass crossover	30 Hz - 500 Hz 30 Hz - 500 Hz		30 Hz - 300 Hz [CH 5]
Highpass crossover	40 Hz - 3 kHz 10 Hz - 500 Hz ---
X-over crossover	---	---	40 Hz - 3 kHz [CH 1-4]
Subsonic Filter	10 Hz - 160 Hz ---		10 Hz - 70 Hz [CH 5]
Bass boost	0 - +9 dB --- ---
Bass boost Frequency	35 / 50 / 80 Hz --- ---
Phase shift	0 - 180° --- 0 - 180° (CH 5)
Frequency response	10 Hz - 30 KHz (- 1 dB)	10 Hz - 30 KHz (+ 1 dB)	10 Hz - 30 KHz (+ 1 dB)
Efficiency @ 4 Ω	80 % 80 % 80 %
Input sensitivity	200 mV - 10 V (± 5%)	200 mV - 10 V (± 5%)	200 mV - 10 V (± 5%)
Channel separation	75 dB 75 dB 75 dB
THD	0.10 %	0.10 %	0.10 %
Fuse	2 x 25A	2 x 25A	2 x 25A (Built-in fuse)
Dimensions W x H x L mm	170 x 53 x 265	170 x 53 x 265	170 x 53 x 275
Dimensions W x H x L inch	6.09 x 2.09 x 10.43°	6.09 x 2.09 x 10.43°	6.09 x 2.09 x 10.83°
