Product Type	Active speaker (powered)
Brand	Power Dynamics
Model	Active Speaker PD 12A
RMS Output Power	200 W
Peak Output Power (musical)	400 W
Sensitivity	122 dB
Frequency Response	50 Hz – 18 kHz
Speaker (woofer)	12" (30.5 cm)
Inputs	1x Line/Mic (XLR/6.3 mm jack), 1x Mic (XLR), 1x USB (MP3 player)
Outputs	1x Balanced line (XLR) for linking to second speaker
Controls	Master volume, channel and line volume, bass, treble, MP3 player (Play/Pause, Stop, Repeat, Prev, Next)
Power Supply	230 V~ / 50 Hz, 16 A fuse
Dimensions (W x H x D)	585 x 420 x 310 mm
Weight	17 kg
Enclosure Material	Solid plastic with perforated protective grille
Usage	Indoor only
Special Features	Integrated MP3 player (USB), wall/celling mounting points, pole mount base, transport handles
Safety	Overload protection, main fuse, mandatory grounding
Included Accessories	Power cord, user manual
Maintenance	Disconnect before cleaning, use dry cloth, do not expose to moisture

Frequently Asked Questions - Active Speaker PD 12A Power Dynamics

How to connect the Active Speaker PD 12A?

Connect the power cord to a 230 V~ / 50 Hz outlet protected by a 16 A fuse and grounded. For audio signal, use the Line/Mic inputs (XLR or 6.3 mm jack) or the USB input for the MP3 player. Always set the volume to minimum before powering on.

How to use the built-in MP3 player?

Insert a USB flash drive into the dedicated port. Use the MP3 control panel: PLAY/PAUSE, STOP, REPEAT, PREV (previous track), NEXT (next track). The display shows the current track information.

What to do if the speaker produces no sound?

First check that the speaker is powered on (green indicator light). Check all audio cables and connections. Ensure volume is not set to zero. If the problem persists, try another source or swap the speaker with a working one.

Why is the sound intermittent?

Intermittent sound is often due to a poor connection of cables or plugs. Check all connectors and replace faulty cables. A damaged speaker may also be the cause.

How to eliminate hum or constant noise?

Constant humming usually comes from a noisy electrical device (amplifier, mixing console, etc.) or improper grounding. Ensure all devices are properly grounded and use shielded cables.

What does the LIMIT indicator mean?

The LIMIT (or clip) indicator lights up when the amplifier reaches its maximum power. Occasional flashing is normal. If it stays on permanently, reduce volume to avoid damaging the speaker.

Can I use the speaker outdoors?

No, this speaker is designed for indoor use only. It must be kept away from rain and moisture to avoid risk of electric shock and damage.

How to mount the speaker on a stand or ceiling?

The speaker has mounting points for wall or ceiling installation, and a pole mount base for stand installation. Use a suitable support for the weight (17 kg) and ensure the surface is stable. Never stack more speakers than the maximum load allowed (60 kg when stacking).

How to replace the fuse?

Disconnect the speaker from the mains before any intervention. The fuse holder is located near the power connector. Replace only with a fuse of the same type and rating (16 A). If the fuse blows again, consult a qualified technician.

What safety precautions should I follow?

Never open the enclosure (risk of electric shock). Do not expose to moisture or flames. Use only the supplied power cord. Disconnect during storms or prolonged non-use. Repairs must be carried out by a qualified technician.

USER MANUAL Active Speaker PD 12A Power Dynamics

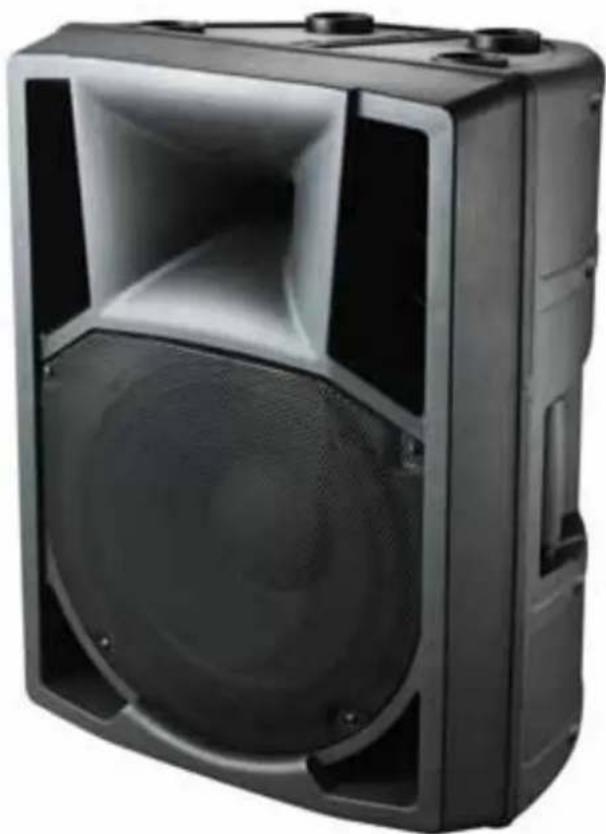

Power Dynamics Professional Audio

Active Speakers

178.843 PD-12A MP3 12Inch

178.846 PD-15A MP3 15Inch

HANDLEIDING
INSTRUCTION MANUAL
MODE D'EMPLOI
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES

Backpanel

MP3 control

NL

ABS ACTIEVE PA LUIDSPREKERS

Constante brom, lawaai of zoem

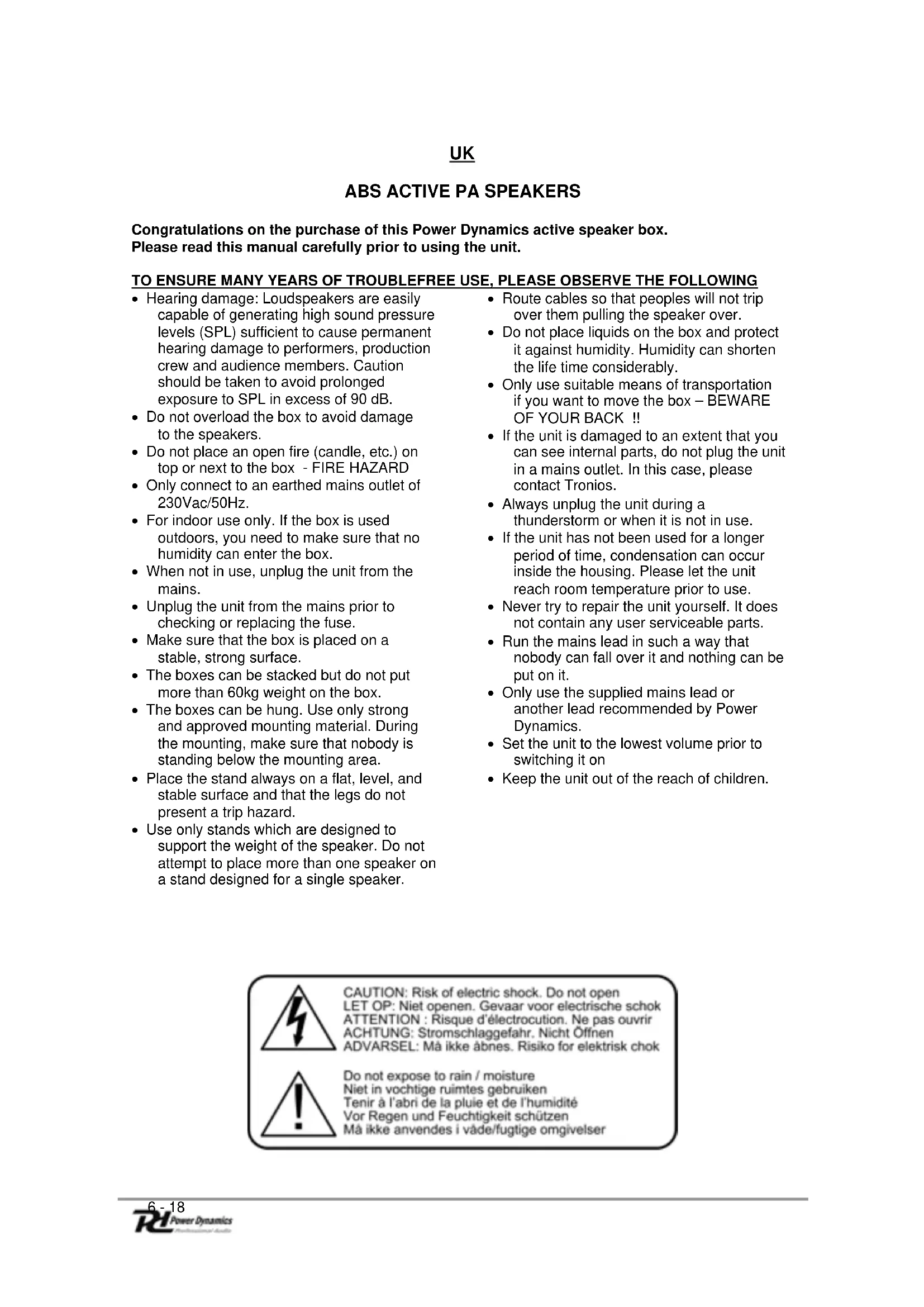

ABS ACTIVE PA SPEAKERS

Congratulations on the purchase of this Power Dynamics active speaker box. Please read this manual carefully prior to using the unit.

TO ENSURE MANY YEARS OF TROUBLEFREE USE, PLEASE OBSERVE THE FOLLOWING

• Hearing damage: Loudspeakers are easily capable of generating high sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production crew and audience members. Caution should be taken to avoid prolonged exposure to SPL in excess of 90 dB.
• Do not overload the box to avoid damage to the speakers.
• Do not place an open fire (candle, etc.) on top or next to the box - FIRE HAZARD
• Only connect to an earthed mains outlet of 230Vac/50Hz.
• For indoor use only. If the box is used outdoors, you need to make sure that no humidity can enter the box.
• When not in use, unplug the unit from the mains.
• Unplug the unit from the mains prior to checking or replacing the fuse.
• Make sure that the box is placed on a stable, strong surface.
• The boxes can be stacked but do not put more than 60kg weight on the box.
• The boxes can be hung. Use only strong and approved mounting material. During the mounting, make sure that nobody is standing below the mounting area.
• Place the stand always on a flat, level, and stable surface and that the legs do not present a trip hazard.

• Use only stands which are designed to support the weight of the speaker. Do not attempt to place more than one speaker on a stand designed for a single speaker.

• Route cables so that peoples will not trip over them pulling the speaker over.

• Do not place liquids on the box and protect it against humidity. Humidity can shorten the life time considerably.
  Only use suitable means of transportation if you want to move the box - BEWARE OF YOUR BACK !!
  If the unit is damaged to an extent that you can see internal parts, do not plug the unit in a mains outlet. In this case, please contact Tronios.
  Always unplug the unit during a thunderstorm or when it is not in use.
• If the unit has not been used for a longer period of time, condensation can occur inside the housing. Please let the unit reach room temperature prior to use.
• Never try to repair the unit yourself. It does not contain any user serviceable parts.
• Run the mains lead in such a way that nobody can fall over it and nothing can be put on it.
  Only use the supplied mains lead or another lead recommended by Power Dynamics.
• Set the unit to the lowest volume prior to switching it on
• Keep the unit out of the reach of children.

CAUTION: Risk of electric shock. Do not open LET OP: Niet openen. Gevaar voor electrische schok ATTENTION: Risque d'electrocution. Ne pas ouvrir ACHTUNG: Stromschlaggefahr. Nicht Offnen ADVARSEL: Maijke abnes. Risiko for elektrisk chok

Do not expose to rain / moisture
Niet in vochtige ruimtes gebruiken
Tenir à l'abri de la pluie et de l'humidité
Vor Regen und Feuchtigkeit schützen
Ma ikke anwendes i vade/fugtige omgivelser

PRODUCT FEATURES

General

• Professional & sturdy ABS enclosure;
• Enclosure and baffle are molded of tough and durable co-polymer material. This range of speakers is able to withstand high powered impacts;
• A heavy-duty, perforated metal grill protects the woofer;
• Ergonomically designed balanced handle and lightweight enclosure for easy and comfortable carrying;
• Attachment points for wall or ceiling mount brackets;
• Integral 35mm pole mount receptacle with securing thumb screw.

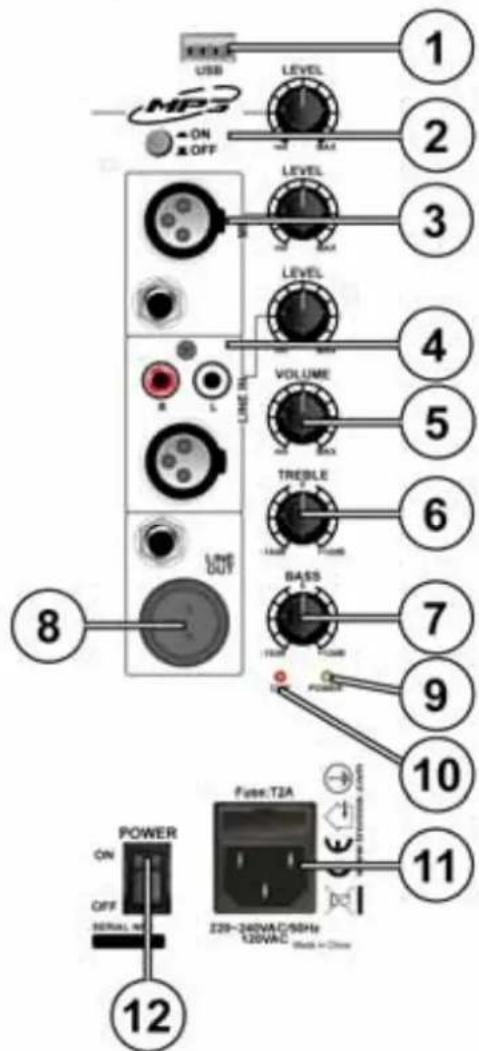

INPUT PANEL

1. USB Input MP3 player
2. MP3 player on/off Volume control for MP3 player
3. Balanced input connector MIC (XLR or 6.3mm Jack) Volume control for MIC
4. Line input for audio input source e.g. mixer, CD player, etc. Volume control for Line Input
5. Master volume control.
6. Treble Tone control
7. Bass Tone control
8. Balanced output connector (line out). For connette a second active speaker box.
9. Clip lindication.

These LED will light up when amplifier are on max power. It can occur that these LED will lit up now and then, this is not a problem. But if it lights up continually you need to adjust the volume down, otherwise permanent damage to equipment might occur

1. Power Indication.

This clear green indicator will light when the amplifier is turned on.

1. Mains Power Connector / Fuse

This main fuse secures the speaker against defects. Replace this only with a fuse of same type and value.

1. On/Off Switch.

For switching the speaker on and off. Always adjust the volume down to its minimum before switching this speaker on.

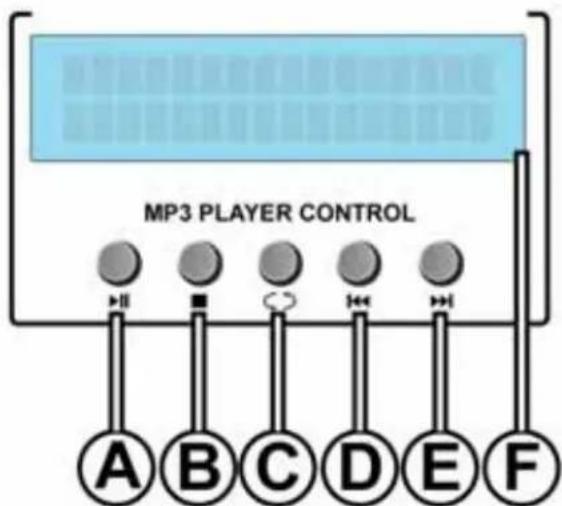

MP3 Control

A. PLAY/PAUSE
Track play or pause mode
B. STOP
Track stop playing
C. REPEAT
Playing same track again
D. PREV
Play previous track
E. NEXT
Play next track
F. Display MP3 information

TROUBLESHOOTING

One certain method of determining if a speaker is faulty is to substitute a speaker that is known to work correctly for the suspected problem speaker. If the "normally correct speaker" is experiencing the same difficulties or problems as the suspected problem speaker, use the information below to isolate the problem.

No output

Possible cause Action

Speaker cables Reseat all connectors

Inspect cable for damage

Inspect wire or connector

for stray strand that m

Intermittent

Possible cause Action

Poor connections While it is possible for a faulty speaker to exhibit intermittent output, it's more likely that an output cable/connector is the problem. Reseat all connectors

Constant noise, buzzing and/or humming

Possible cause Action

Faulty electronic Any constant noise originates in the amplifier, mixer, signal processing, source device in the signal devices, or line-level wiring. Check and correct system grounding as required. Chain check for noisy sources or electronic components. Check wiring for shielding.

SPECIFICATIONS

Item PD-12A MP3	D-15A MP3
Output power 200W	250W
Output power (music)	400W 500W
Sensitivity	122dB	125dB
Frequency Range 50	18.000Hz 40	18.000Hz
Input(s)	1x Line/Mic + 1x Mic	2x Line/Mic + 1x Line
Woofer (inch) 12"	15"
Dimensions 585 x 420	0 x 310 mm 685 x 460	0 x 400 mm
Weight	17kg	22kg
Ref. Nr.	178.843	178.846

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Trionios cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

F

ENCEINTES SONO ACTIVES

CE - RTTE Declaration of Conformity

Importer: TRONIO S BV

Product Description: Passive PA Speaker

Regulatory Requirement: EN 60065

EN 55013

EN 55020

EN61000-3-2/-3-3

The product meets the requirements stated in the above mentioned Standards.

05-03-2012

S i g n a t u r e

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2012 by TRONIOS the Netherlands
