USER MANUAL TKG MG 39 DG KALORIK

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

TEAM KALORIK

Mikrowelle

Microwave Oven

Four à micro-ondes

Microgolfoven

Microondas

CE

I/B Version 090911

TKG MG 39 DG

230V\~50Hz 1250W

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

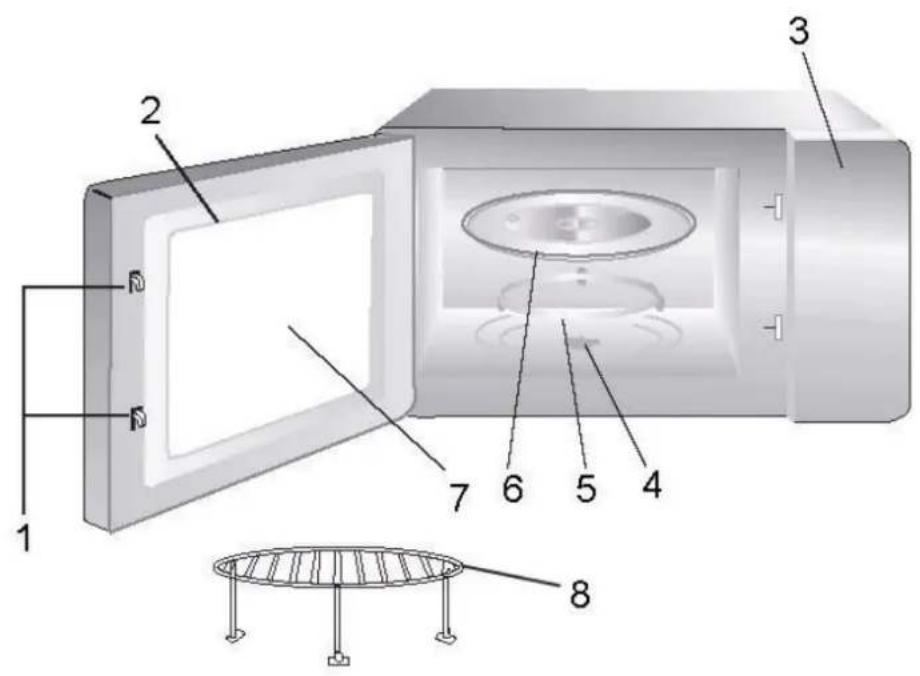

Technical diagram of a microwave oven with labeled components including fan, lid, and base

2

TKG MG 39 DG - 090911

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

D

1. Door safety lock system
2. Oven door
3. Control panel
4. Shaft
5. Roller ring
6. Glass turntable
7. Oven window
8. Metal rack

SP

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Einbauanweisung

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

2 INSTALLATION HOLE

3 INSTALLATION HOLE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

GEBRAUCH

WICHTIGE HINWEISE:

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

UMWELTSCHUTZ - RICHTLINIE 2002/96/EG

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

OPERATING INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

The safety instructions in your manual are important and should be read carefully. Keep your manual for future reference.

MAINTENANCE:

If your appliance is not maintained in a good condition, its surface could be damaged and diminish inexorably the lifespan of the appliance and lead to a dangerous situation.

SPECIFICATIONS

Actual microwave power: 800W

Grill: 1000W

Voltage - frequency: 230V\~50Hz

Operation frequency: 2450MHz

Capacity: 20 liters

Turntable system: {Φ245mm}

Net weight: 14 kg

IMPORTANT SAFETY INSTRUCTIONS

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy, please read all instructions carefully before using the appliance:

1. This microwave oven is intended for built-in use only. It is not intended for counter top use.

2. Use this appliance only for domestic use as described in this manual. This appliance is not suitable for professional use. Do not use corrosive chemicals or vapours in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3. Do not operate the microwave oven when empty.

4. Do not attempt to operate this microwave oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

5. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

6. WARNING: △ Do not operate the microwave oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:

7. Door (bent),

8. Hinges and latches (broken or loosened),
9. Door seals and sealing surfaces.
10. (Inner or outer) windows of the door.

Do not use the microwave oven until repairs have been made by a competent qualified service(*).

18

TKG MG 39 DG - 090911

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

1. If steam appears between the inner and outer window when cooking, immediately stop the microwave oven, unplug it, and contact the nearest customer service. Otherwise, you might be exposed to microwave energy.

2. WARNING ⚠It is hazardous for anyone other than a trained person to carry out any service or repair operation that involves the removal of any cover that gives protection against exposure to microwave energy. Should the appliance or its power cord be damaged, do not use this appliance. All repairs should be made by a competent qualified service (*).

3. Do not attempt to disassemble the appliance or to remove feet, cover, seals, screws etc.

4. WARNING: Children should not use this appliance without supervision except if they were previously given proper instructions so that they can use it correctly and understand the risks linked to improper use.

5. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, check the oven frequently to avoid any risk of fire.

b. Remove wire twist-ties from paper or plastic bags before placing the bags in the oven.

c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. IMPORTANT: UTENSILS THAT ARE NOT SUITABLE FOR MICROWAVE COOKING.

Always check if your utensils are microwave resistant before using them in the appliance.

- Never use utensils with a metal handle.

- Never use utensils with metal decorations.

- Never use iron locking clips (not even covered with paper).

- Never use melamine receptacles as these contain a substance that absorbs microwave energy. The receptacle might break or carbonise and the cooking process would be slower.

- The use of traditional thermometers is prohibited, use microwave resistant thermometers.

- In case of doubt, please contact the supplier of the utensil to know whether it is microwave resistant or not.

1. Do not prepare food in receptacles with a too narrow opening, as this might cause these receptacles to explode.

2. WARNING: CAUTION, ▲liquid or other food must not be heated in sealed containers (such as receptacles with lid or feeding bottle with dummy) since they are liable to explode.

3. Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means: "CAUTION, this surface may get very hot during use".

4. Eggs in their shell or whole hard-boiled eggs must not be heated in the microwave oven as they might explode.

5. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when you handle the container.

6. CAUTION: Do not fry food in the microwave oven. Hot oil can damage oven parts and utensils and even result in skin burns. Do not warm up greasy foods in the microwave oven, as it might catch fire.

7. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before cooking. Otherwise they might explode.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

1. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
2. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
3. Before operating the microwave oven, make sure the glass tray, the motor shaft and the roller ring are in correct position inside the microwave oven.
4. Make sure the openings of microwave resistant receptacles are neither obstructed nor covered in order to avoid that they explode during operation.
5. Do not place the preparation directly on the glass tray, but put it in a microwave resistant receptacle.
6. Food containing a mixture of water and grease should be left 30 to 60 seconds in the microwave oven when switched off to allow the mixture to come down to avoid bubbling, especially when a beef cube is added.
7. It is necessary to clean the cavity of your microwave oven regularly and to remove any rests of food. Food remains on the heating elements of the microwave oven will produce smoke and bad smells.

^1) Competent qualified service: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. Check the microwave oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the microwave oven and contact a competent qualified service.
3. This microwave oven must be placed on a flat, stable surface which is able to hold its weight (14 kg) and the heaviest food likely to be cooked in the oven.
4. Do not place the microwave oven where heat, moisture or high humidity are generated, or near combustible materials.
5. Do not cover or block any openings on the appliance. Do not remove the feet.
6. The socket must be readily accessible so that it can be easily unplugged in case of emergency.
7. Do not use the microwave oven outdoors.

WARNING: THIS APPLIANCE MUST BE GROUNDED.

Avoid using extension cords or make sure they are compatible with the power of your appliance.

We advise you to call for an electrician if you have any questions concerning the technical installation of your appliance.

This appliance is protected by a safety fuse. Should this fuse be replaced, please contact a competent qualified electrician (*).

Built-in microwave oven

The appliance can be installed in a 60cm wide wall-mounted cupboard which is at least 55cm deep and 85cm off the floor.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

If the plug is no longer accessible after installation, an isolating switch must be present on the installation side with a contact gap of at least 3mm.

The built-in cabinet must not have a rear wall behind the appliance.

The minimum installation height is 850mm.

Do not cover the ventilation slots and the air intake points.

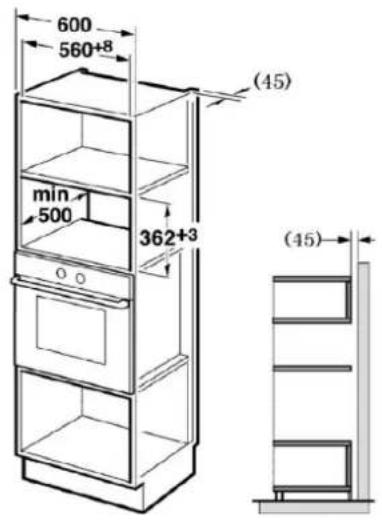

600 560+8 (min) 500 362+3 (45) (45)

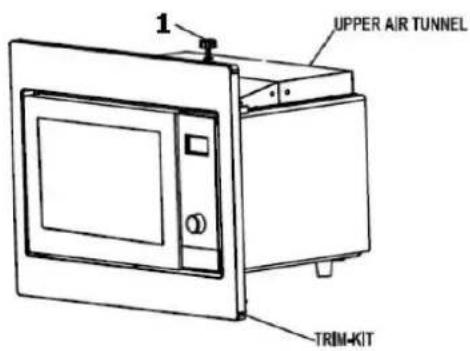

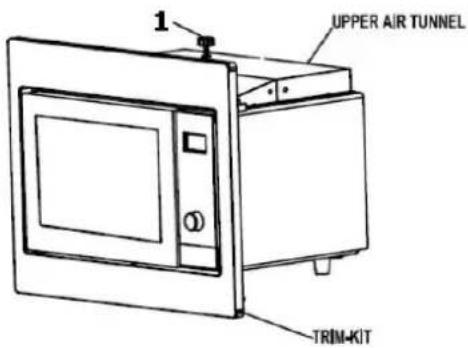

1 UPPER AIR TUNNEL TRIM-KIT

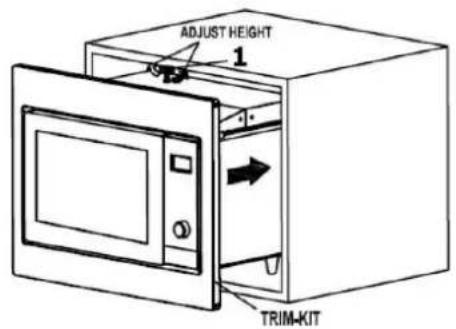

ADJUST HEIGHT 1 TRIM-KIT

To install the microwave oven:

• Fix screw 1 on the upper air tunnel of the oven.
• Adjust the height of screw 1 in order to keep a 1mm gap between the screw and the top side of the cabinet.
• Make sure that the power cord is not trapped or kinked.
• Make sure that the oven is installed in the centre of the cabinet.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

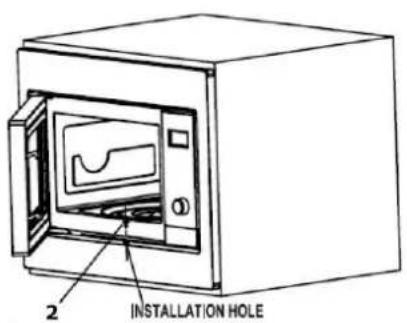

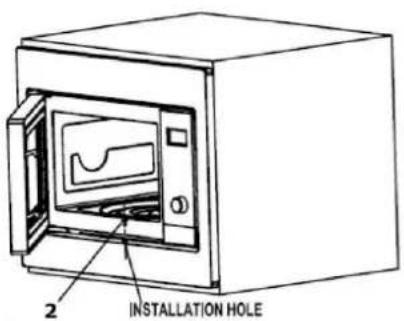

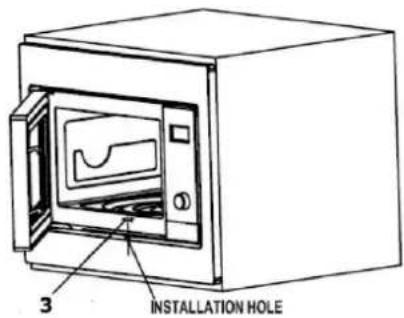

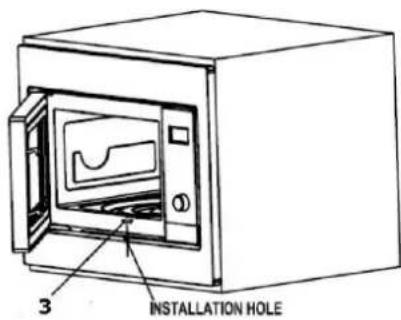

2 INSTALLATION HOLE

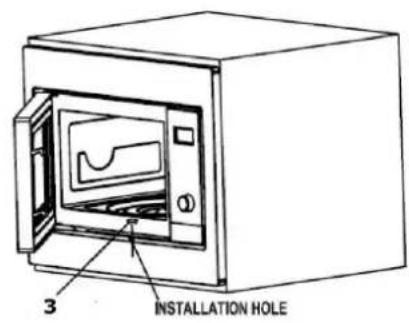

3 INSTALLATION HOLE

• Open the door.
  • Fix screw 2 in the installation hole of the trim kit to connect the oven to the cabinet.
• Put the plastic cover (3) of the trim kit on the installation hole.

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean the door and sealing surface of the microwave oven.
2. Reorient the receiving antenna of radio or television.
3. Move the microwave oven away from the receiver.
4. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place the thickest areas towards the outside of the dish.
2. Watch the cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the centre of the dish to the outside.

UTENSILS GUIDE

1. We advise you to use utensils that are specially conceived for microwave cooking as they allow energy to pass through the container and heat the food.
2. Microwaves cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fire.
4. Round/oval dishes rather than square/oblong ones are recommended, as food in corners tends to overcook.

The table below is a general guide to help you select the correct utensils.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Cookware	Microwave Cooking	Grill	Combination
Heat-Resistant Glass	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No
Kitchen Paper	Yes	No	No
Metal Tray	No	Yes	No
Metal Rack	No	Yes	No
Aluminium Foil & Foil Containers	No	Yes	No

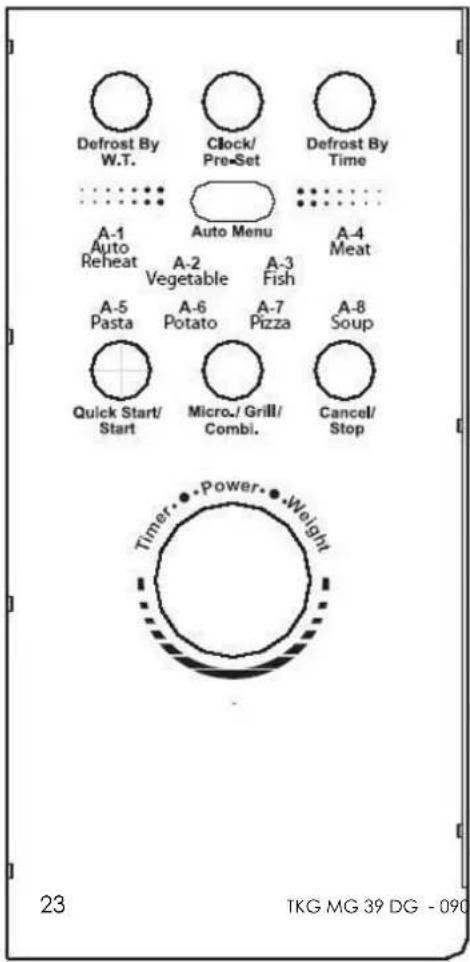

CONTROL PANEL

For each key, please refer to the chapter "USE" to know their functions.

Defrost By W.T. Clock/ Pre-Set Defrost By Time A-1 Auto Reheat Auto Menu A-2 Vegetable A-3 Fish A-4 Meat A-5 Pasta A-6 Potato A-7 Pizza A-8 Soup Quick Start/ Start Micro./ Grill/ Combi. Cancel/ Stop Timer•Power•Weight 23 TKG MG 39 DG - 090

Display: Indicates the cooking time, the power, the present time and the state of the different settings or other adjustments.

Defrost By W.T.: Press this key to defrost by weight.

Clock/Pre-Set: allows to set the clock or to delay the start of a programme to a later time.

Defrost By Time: Press this key to defrost by time.

Auto Menu: allows to set an automatic cooking programme.

Quick Start/Start: Press this key to start a cooking programme or to set the time for cooking at full microwave power level.

Micro./Grill/Combi.: Use to set the microwave cooking function, the grill cooking function or a combination cooking function (microwave and grill cooking).

Cancel/Stop: Press once during the input stage to cancel current settings; press once during cooking to stop the oven or press twice to cancel the cooking programme. It can also be used to activate and to deactivate the child safety lock.

Rotary knob: allows regulating the cooking times, power, weights or current time.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

USE

IMPORTANT REMARKS:

1) There must be a food preparation in the oven cavity before starting the microwave oven.
2) Make sure the receptacle does not touch the walls of the cavity in order not to disturb the rotation of the glass tray.
3) The metal rack supplied can be used without any risk in the grill function. It can be used to put the food nearer to the heating element or to put several receptacles in the oven.

Each time a key is pressed, a short beep will sound to acknowledge the press.

When the appliance starts, the light switches on in order to check the cooking. The cooking time countdown begins.

At the end of the cooking time, beeps will sound and the light switches off.

If you press the "Cancel/Stop" key once while the microwave oven is cooking, the oven will pause (press the "Quick Start/Start" key to continue cooking). If you press "Cancel/Stop" twice during the cooking process, the oven will stop. If you are setting a programme when pressing "Cancel/Stop", the programme will be cancelled.

If you open the door during the cooking process, the ongoing programme will stop. To continue cooking, close the door and press "Quick Start/Start".

SETTING THE CLOCK

When you plug in the appliance, "0:00" will appear on the display and a beep will sound.

The oven has a digital clock. To set the time:

1. Press key "Clock/Pre-Set". The first digit, indicating the hours, will flash and the clock indicator will light up.
2. Turn the rotary knob to set the hours (0-23).
3. Press "Clock/Pre-Set" again. The last digits, indicating the minutes, will flash.
4. Turn the rotary knob to set the minutes (0-59).
5. Press "Clock/Pre-Set" again to finish the setting. The clock indicator will go out and ":" will flash.

If time resetting is needed afterwards, press "Clock/Pre-Set" and proceed as described above.

SETTING THE COOKING TIME, POWER AND COOKING FUNCTION

a) Microwave cooking

1. Press "Micro./Grill/Combi.". "P100" appears on the display.
2. Turn the rotary knob to choose the desired power level (see table below). For microwave cooking, you can select a power level from 100% microwave power (P100) to 10% microwave power (P10).
3. Press "Micro./Grill/Combi." to confirm the setting.
4. Turn the rotary knob to set the cooking time (maximum 95 minutes).
5. Press "Quick Start/Start" to start cooking. The countdown begins.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Display	Power level
P100	100% microwave power
P80	80% microwave power
P50	50% microwave power
P30	30% microwave power
P10	10% microwave power
G*	100% grill power, 0% microwave power
C-1*	55% microwave power, 45% grill power
C-2*	36% microwave power, 64% grill power

* See sections "Grill cooking" and "Microwave + grill combination cooking"

b) Grill cooking

The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages or pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes.

1. Press "Micro./Grill/Combi.". "P100" appears on the display.
2. Turn the rotary knob until "G" appears on the display.
3. Press "Micro./Grill/Combi." to confirm the setting.
4. Turn the rotary knob to set the cooking time (maximum 95 minutes).
5. Press "Quick Start/Start" to start cooking. The countdown begins.

Caution: when cooking with the grill function, the oven will pause and two beeps will sound when half of the cooking time has elapsed in order to warn you to turn the food if necessary. Turn over the food, close the door and press "Quick Start/Start" to continue the cooking process. However, if you do nothing after the beeps, the oven will continue cooking after 1 minute.

c) Microwave + grill combination cooking

When using the microwave + grill combinations, the power of microwave and grill is used proportionally.

Combination cooking programme C-1 (55% microwave power, 45% grill power) can be used for puddings, omelettes, baked potatoes and poultry.

Combination cooking programme C - 2 (36% microwave power, 64% grill power) can be used for fish and au gratin dishes.

1. Press "Micro./Grill/Combi.". "P100" appears on the display.
2. Turn the rotary knob until "C - 1" or "C - 2" appears on the display.
3. Press "Micro./Grill/Combi." to confirm the setting.
4. Turn the rotary knob to set the cooking time (maximum 95 minutes).
5. Press "Quick Start/Start" to start cooking. The countdown begins.

d) Defrost by weight

With this function, the power is set automatically in order to defrost your preparation progressively without cooking it.

1. Press "Defrost By W.T.". "dEF1" will be displayed.

25

TKG MG 39 DG - 090911

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

1. Turn the rotary knob to select the weight that has to be defrosted (starting from 100 g).
2. Press "Quick Start/Start" to start the defrost process.

e) Defrost by time

1. Press "Defrost By Time". "dEF2" will be displayed.
2. Turn the rotary knob to select the time (minimum 5 seconds, maximum 95 minutes).
3. Press "Quick Start/Start" to start the defrost process.

Note: If the weight is no more than 200 g, place the food at the edge of the glass turntable rather than in the centre.

f) Quick Start

When the microwave oven is in the standby mode, press the "Quick Start/Start" key and the appliance will start cooking for 1 minute. Each time you press this key, 1 minute will be added to the cooking time (up to 95 minutes).

This function allows setting the microwave cooking time quickly. The oven will operate at full power (100% power output).

g) AUTO-menu

The auto-functions select the appropriate cooking programme according to the food you want to prepare.

1. Press the "Auto Menu" key.
2. Turn the rotary knob to select the desired auto code corresponding to the food you want to cook.

AUTO code table

AUTO Code	Food	Quantity
A - 1	Auto Reheat	200 g	400 g	600 g
A - 2	Vegetables	200 g	300 g	400 g
A - 3	Fish	250 g	350 g	450 g
A - 4	Meat	250 g	350 g	450 g
A - 5	Pasta	50 g	100 g
A - 6	Potatoes	200 g	400 g	600 g
A - 7	Pizza	200 g	400 g
A - 8	Soup	200 ml	400 ml

1. Press "Auto Menu" to confirm the setting.
2. Turn the rotary knob to set the desired quantity (see table).
3. Press "Quick Start/Start" to start cooking.

MULTI-STAGE COOKING

Three stages can be set at the most. If one of the stages involves defrosting, this stage has to come first.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

1. Set a cooking programme without pressing "Quick Start/Start" at the end of the setting.
2. Set a second cooking programme (and if desired also a third) and press "Quick Start/Start" at the end of the last setting.
3. One beep will sound and the appliance will be switched on according to the first cooking setting. The time counts down for the first setting.
4. One beep will sound again when the oven starts according to the second cooking setting. If you have set a third programme, one beep will sound at the beginning of this programme as well.
5. At the end of the cooking time, beeps will sound.

PRESET FUNCTION

It is possible to delay the start-up time of the appliance by presetting it.

To do so:

1. Set the clock (see section "Setting the clock").
2. Select the desired cooking setting (see above) without pressing "Quick Start/Start" at the end of the setting. Caution: Three stages can be preset at the most. The defrost function should always be set as the first stage if it is included in a multi-stage preset programme.
3. Press "Clock/Pre-Set". The hours will start flashing and the clock indicator will light up.
4. Turn the rotary button to set the hours (0-23).
5. Press "Clock/Pre-Set" again; the last figures indicating the minutes will start flashing.
6. Turn the rotary knob to set the minutes (0-59)
7. Press "Quick Start/Start" to confirm the setting. The clock indicator will flash.
8. As soon as the preset time is reached, the clock indicator will go out, you'll hear 2 beeps and the appliance will be switched on according to the chosen cooking setting.

STATE INQUIRING

1. Microwave power inquiring: In the process of microwave cooking and grill or combination cooking, press "Micro./Grill/Combi." and the current power will be displayed. 4 seconds later the oven will turn back to the former state.
2. Time inquiring: During the cooking process, press "Clock/Pre-Set" and the current time will be displayed. 4 seconds later the oven will turn back to the former state.
3. Preset time inquiring: In the preset state, press "Clock/Pre-Set" and the preset time will be displayed. 4 seconds later the oven will turn back to the former state.

CHILD SAFETY DEVICE

This microwave oven has a safety device that locks the keys so that the oven cannot be used when it is unsupervised.

To lock the control panel, press "Cancel/Stop" for 3 seconds, a long beep will be heard denoting the entering into the children lockout state and "[≡≡]" will be displayed.

To unlock, press "Cancel/Stop" for 3 seconds. A long beep will be heard denoting that the lock is released.

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.

b) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

27

TKG MG 39 DG - 090911

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

c) Check to ensure that the control panel is programmed correctly and the timer is set.
d) Check to ensure that the door is securely closed. Otherwise, the microwave energy will not flow into the microwave oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A COMPETENT QUALIFIED ELECTRICIAN. DO NOT TRY TO ADJUST OR REPAIR THE MICROWAVE OVEN YOURSELF.

CLEANING AND CARE

1. Turn off the microwave oven and remove the power plug from the wall socket before cleaning.
2. It is very important to clean the oven door, as it is responsible for the impenetrability of the microwave oven. Therefore, make sure it is always clean and make sure no object hinders the door from being properly closed.
3. Keep the inside of the microwave oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
4. Clean the waveguide cover on the right side of the oven cavity with a damp cloth, then wipe it with a dry cloth to remove food splashes and grease which may overheat and cause smoke or catch fire. Do not remove the waveguide cover.
5. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the microwave oven, water should not be allowed to seep into the ventilation openings.
6. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave the oven door open to prevent the microwave oven from accidentally turning on.
7. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions, this is normal.
8. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
9. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or a dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
10. Remove odours from your microwave oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
11. When it becomes necessary to replace the oven light, please consult the customer service to have it replaced.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

FR MODE D'EMPLOI

INSTRUCTIONS IMPORTANTES DE SECURITE

Plateau tournant: {Φ245mm}

Poids net: 14 kg

INSTRUCTIONS IMPORTANTES DE SECURITE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

2 INSTALLATION HOLE

3 INSTALLATION HOLE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

PROTECTION DE L'ENVIRONNEMENT - DIRECTIVE 2002/96/CE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

GEBRUIKSAANWIJZING

BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

OPGELET: DIT APPARAAT MOET GEAARD WORDEN.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

2 INSTALLATION HOLE

3 INSTALLATION HOLE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

GEBRUIK

BELANGRIJKE OPMERKINGEN:

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Display	Vermogen
P100	100% microgolfvermogen
P80	80% microgolfvermogen
P50	50% microgolfvermogen
P30	30% microgolfvermogen
P10	10% microgolfvermogen
G*	100% grillvermogen, 0% microgolfvermogen
C-1*	55% microgolfvermogen, 45% grillvermogen
C-2*	36% microgolfvermogen, 64% grillvermogen

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fox [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering, keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

1 UPPER AIR TUNNEL TRIM-KIT

ADJUST HEIGHT 1 TRIM-KIT

2 INSTALLATION HOLE

3 INSTALLATION HOLE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

PANEL DE MANDOS

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

FUNCIONAMIENTO

NOTA IMPORTANTE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

TKG MG 39 DG - 090911

TKG MG 39 DG

Deutsch	4
English	16
Français	27
Nederlands	39
Español	51

TEAM

KALORIK

Back cover page (last page)
