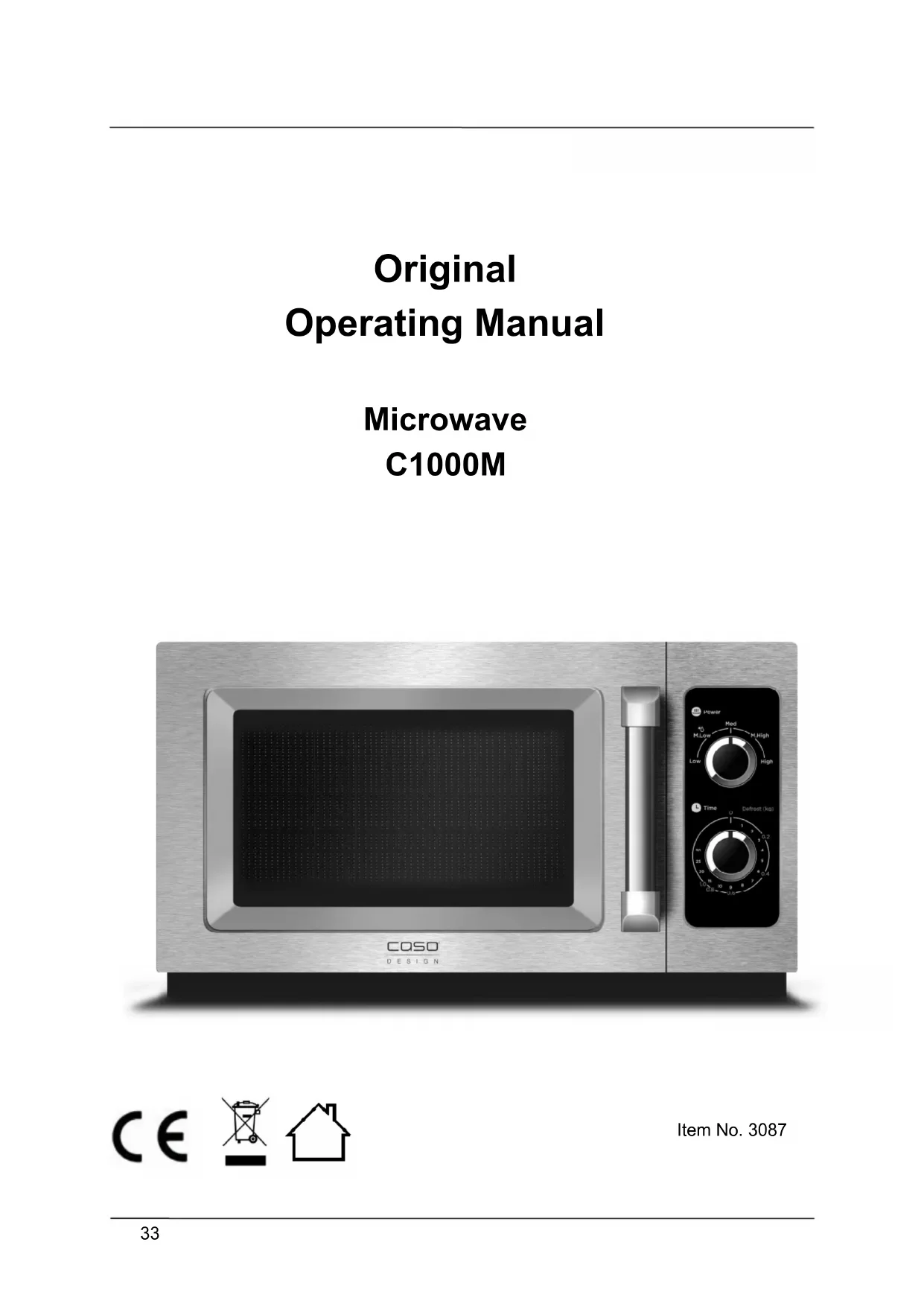

USER MANUAL C1000M CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your microwave will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

13.2 Information on this manual

These Operating Instructions are a component of the microwave (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

13.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.35

13.4 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. Read all these instructions before using the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► The device is not intended for drying, warming up or heating up living animals. ► This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. ► Children are not allowed to play with the device. ► The device and its connecting cable must be kept away from children who are less than 8 years old. ► The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► Only use utensils that are suitable for use in microwave ovens.36 Please note ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Use this device only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this device. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. ► Do not operate this device if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. ► Food thermometers are unsuitable to be used when the microwave is in operation. ► This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose. for domestic purpose. ► The microwave oven is only used when it is freestanding. ► The microwave oven must not be placed in a cabinet. ► The device shall be placed against a wall. ► Warning: Do not install the oven over a range cooktop or other heat-producing device. If it is installed it could be damaged and the warranty would be void.37 Please note ► The device is not intended to be operated by means of an external timer or separate remote-control system. ► Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation. ► Please secure the turn table before you move the device to avoid damages. ► The microwave oven is intended for defrosting, cooking and steaming of food only. ► The device must not be cleaned with a steam cleaner.

13.5 Sources of danger

13.5.1 Danger due to microwaves

Warning Exposure to microwaves on the human body can result in injuries. Please observe the following safety notices in order not to expose yourself or others to microwaves. ► Never operate the device when the door is open. Having a faulty or manipulated safety switch results in the danger of exposing oneself directly to the microwaves. ► If the door or door seals are damaged, the device must not be operated until it has been repaired by an authorized person. ► WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. This applies to changing the power cord or the lighting as well. Send the device in these cases to our service centre.38

13.5.2 Danger of burns

Warning The culinary items being heated up in this device as well as the cookware that being used and the surface of the device can become very hot. Please observe the following safety notices in order not to burn or scald yourself or others. ► Microwave heating of beverages can result in delayed eruptive boiling (boiling retardation), therefore care must be taken when handling the container. ► Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns. ► In particular, the contents of baby bottles and baby food jars must be stirred or shaken, and the temperature must be checked before consumption to prevent scolding. ► Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil. ► The door or the outer surface may get hot when the device is operating. ► The accessible surface may be hot during operation. ► The temperature of accessible surfaces may be high when the device is operating. ► Use gloves if you remove any heated food. ► Caution! Steam will escape, when opening lids or wrapping foil.

13.5.3 Danger of fire

Warning There is a danger of fire due to the ignition of the content in the event the device is not used properly. Observe the following safety notices to avoid dangers of fire: ► Never use the device to store or dry flammable materials.39 Warning ► Do not warm up any alcohol in an undiluted state. ► Do not operate the oven when empty. ► To reduce the risk of fire in the oven cavity: a) When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition. b) Remove wire twist-ties from paper or plastic bags before placing bag in oven. c) If smoke is emitted turn off the device or unplug the device and keep the door closed to extinguish any flames. d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. ► Never the leave the device unsupervised if you are warming up or cooking foods in disposable containers made of plastic, paper or other flammable materials. ► Disposable containers made of plastic must have the properties shown under the heading “Notices on microwave cookware”. ► The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. ► Always remove grease residues in the device, as these residues can otherwise ignite.

13.5.4 Danger of explosion

Warning There is a danger of explosion due to excess pressure that is created in the event the device is not used properly. Observe the following safety notices to avoid dangers of an explosion:40 Warning ► Liquids and other food must not be heated in closed vessels as these may explode. ► Do not cook eggs in the shell or extremely hard boiled eggs in the device as they can still explode, even after the microwave operation has been completed. ► Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

13.5.5 Dangers due to electrical power

Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Do not operate this device if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. ► Caution: It is dangerous to repair or maintain the device by anyone other than a specialist because under these circumstances the cover would have to be removed which ensures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the device in these cases to our service center.

13.6 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.41 No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: Non-observance of the manual Uses for non-intended purposes Improper repairs Technical alterations, modifications of the device Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

13.7 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 14 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for Defrosting warming up cooking foods and beverages. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.42 15 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

15.1 Safety information

Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► Packaging materials may not be used for playing. There is a danger of suffocation. ► Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

15.2 Delivery scope and transport inspection

As a rule, the C1000M Microwave is delivered with the following components: C1000M Microwave Operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, proceed as follows: Remove all packaging and accessories. Check the appliance for possible damages (dents, damaged door etc.). Damaged appliances may not be used. Casing: Remove the protective film covering the outside surface of the appliance.

15.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.43

15.5 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites: The device must be set up on a firm, flat, horizontal and heat-resistant surface with sufficient load-bearing capacity for the oven and the maximum weight of the expected food that is to be prepared in the oven. Choose the setup location in such a way that children cannot reach any hot surfaces on the device. The device is not intended to be installed in a wall or a built-in cupboard. Do not set up the device in a hot, wet or extremely damp environment or near flammable material. Ensure that the power cable does not hang down over a table or counter edge. The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency. The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

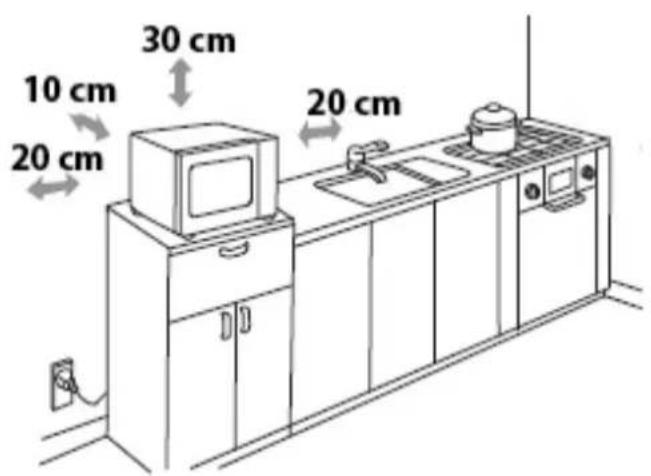

15.5.1 Installation of the appliance

1) Select a level surface

providing enough distance between the ventilation slots and walls or other units. a) The surface for placing the appliance must be at least 85 cm above the floor. b) The rear of the appliance must be facing a wall (10 cm distance). Above the appliance a clearance of 30 cm is needed, and on the sides at least 20 cm distance to other walls or units are needed. c) The left side of the device must be open. d) Do not remove the feet from the bottom of the appliance. e) Do not cover or obstruct any openings in the appliance. f) Covering the ventilation slots may cause damage to the appliance. g) Place the microwave appliance as far away from radios of TVs to minimize any interference to radio and TV reception.44

2) Insert the power plug into a normal household outlet; check that voltage and

frequency of the appliance (see appliance rating label) matches that of the household electrical supply.

15.5.2 Avoiding radio interference

The device can cause the occurrence of interference in radios, televisions or similar devices. Such faults can be rectified or reduced as a result of employing the following measures: Clean the door and the sealing surfaces of the device. Set the radio, the television, etc as far as possible away from the device. Connect the device to a different electrical outlet, so that various power circuits are used for the device and the receiver with the interference. Use a properly installed antenna for the receiver, to ensure good reception.

15.6 Electrical connection

DANGER ► Risk of electrocution ► Touching internal compponents may cause serious, severe and fatal injuries. ► Do not disassemble the appliance. ► Improper grounding can cause electrical shocks. Do not use a power outlet if it is not properly installed and grounded. In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician. The electrical outlet must be protected by a 16A safety cut-out switch, separately from other electricity consumers, The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this. Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces. This appliance must be electrically grounded. In case of a short circuit grounding will protect against electric shocks because the electrical current is diverted through the grounding lead. The appliance is fitted with an appropriate cable with a ground lead and a grounded safety plug. The plug must be inserted into a properly installed and grounded outlet. The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.45

15.6.1 Extension cables

The power cable is kept intentionally short to reduce the risk of tangling or presenting a tripping hazard. If a longer cable or an extension cable is required:

1) The power rating of the cable or extension cable must be no less than the rating of

2) The extension cable must a three-lead (grounded) cable.

3) Arrange the long cable so that it does not hang down from table or counter tops

where it can be pulled by children and that it does not present a tripping hazard.

16 Design and Function This chapter provides you with important safety notices on the design and function of the device.

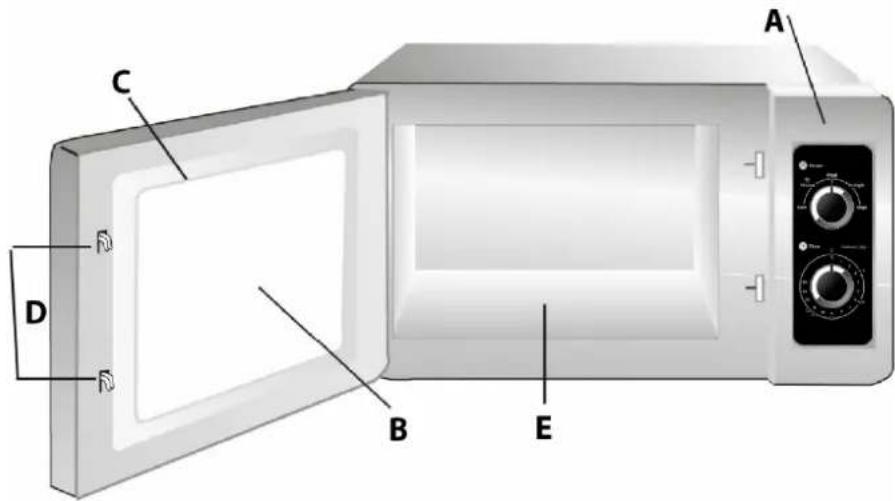

overview A) Operating panel B) Window C) Door D) Protective door latch E) Ceramic board Please note ► Don’ press the ceramic board forcibly, it could be damaged. ► Place and remove the food carefully so that you do not damage the ceramic board. ► The ventilator can continue running afterwards to cool down the device. Warning ► After using, don’t touch the ceramic board it could be hot. Risk of burns!46

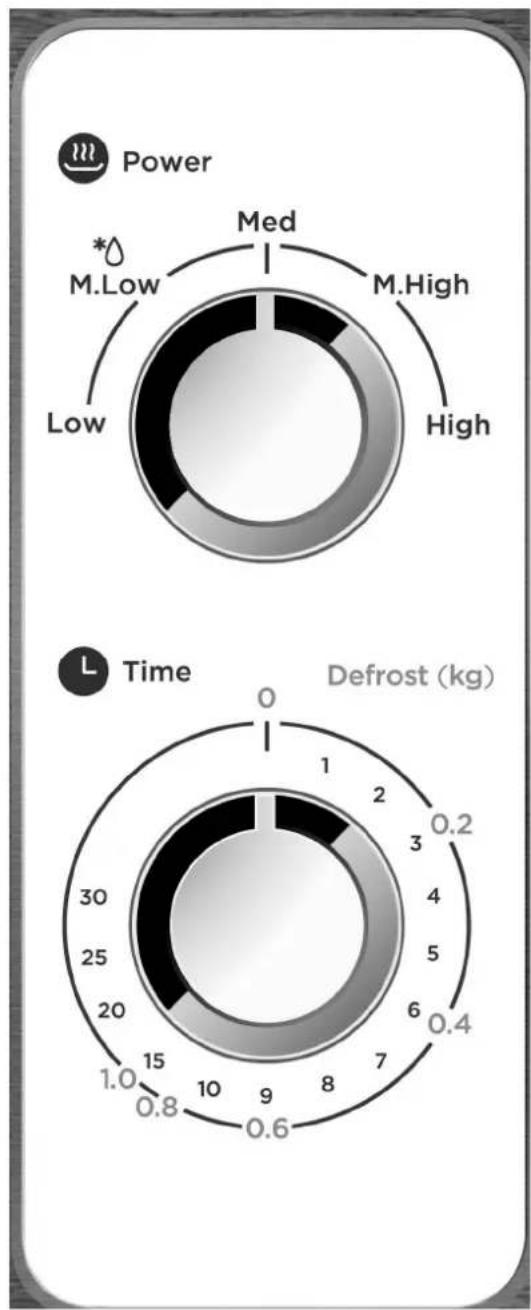

16.2 Operating elements

Control knob Power: To set the desired microwave power level Control knob Time/Defrost: To set the desiret time / defrost quantity Please note ► Always turn the control knob Time to 0, when you do not use the device. ► Do not use the device, when it is empty. It could be damaged.

The appliance will emit the following signal tone as acoustic feedback: One signal tone: End of the cooking time.

16.4 Safety equipment

16.4.1 Warning notices on device

ATTENTION Danger due to hot surface! There is a warning notice referring to dangers due to hot surfaces located on the back upper side of the housing. The surfaces of the device can become extremely hot. ► Do not touch the hot surfaces of the device. Danger of burns! ► Do not set or lay any items on the device. Setting Power in % Low 17 % Middle-low/ Defrost 33 % Middle 55 % Middle-high 77 % High 100 %47 ATTENTION ► Do not place the microwave appliance above a cooker, hob or another devices producing heat, as this would damage the microwave appliance and render the warranty void.

A safety switch is installed in the door latch of the device, which prevents the device from being operated when the door is open. ATTENTION Danger due to microwaves! If this safety device is defective or if this safety device is bypassed, you can directly expose yourself and others to microwave radiation. ► Do not operate the device if the safety switch is defective. ► Do not disable this safety device.

The rating plate with the connection and performance data can be founded on the back of the device. 17 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Warning ► Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

17.1 Principles of microwave cooking

The power levels and time required for cooking / warming up food items depends on the starting time, the quantity and the type and consistency of the food, etc. Use the shortest indicated cooking time and extend the cooking procedure as necessary. Arrange the food carefully. Position the thickest areas on the external edge of the bowl. Cover the food while it is cooking. Lids protect against spatters and also contribute towards cooking/warming up the food evenly. During warming, the food should be turned, rearranged or stirred repeatedly, in order for the temperature to be distributed evenly. Any existing germs in the food are only killed off if the temperature is sufficiently high enough (> 70°C) and if the time used is sufficiently long enough (> 10 min).48 Foods with a firm skin or shell, such as tomatoes, sausages, potatoes in the skin, eggplants must be pierced or punctured repeatedly so that any developing steam can escape and so that the food does not burst. Eggs without their shell may only be cooked in the microwave if the skin of the egg yoke has been pierced repeatedly first. Otherwise, the egg yoke can squirt out with excessive pressure after cooking. Rearrange layers of foods such as meat balls from top to the bottom and from the middle to the outside edge.

17.2 Operating modes:

The unit is to be operated in various operating modes. The following list shows the operating modes that are possible with the device: “Microwave” mode This operating mode is suitable for the normal reheating of food. Defrost This operating mode is suitable for defrosting frozen food. You can set desired time or weight.

17.3 Information on microwave cookware

The ideal material for microwave cookware is permeable for microwaves and allows the energy to penetrate the container and warm up the food. Please observe the following tips when selecting the correct cookware: ► Microwaves cannot penetrate metal. Therefore, you should not use utensils made of metal or cookware with metal trim. ► For microwave cooking, do not use any products made from recycled paper, as they could contain tiny metal fragments, which could cause sparks and/or result in fire. The following table is intended as a basis for selecting the correct cookware: Cookware Microwave Cookware Microwave Heat-resistant glass dishes

Heat-resistant ceramic dishes

Microwave-resistant plastic container

Aluminium foil and container

Open door Pull the door handle with a slight tug to open the door of the device. If the device is switched on, the current cooking programme will be interrupted. Please note ► Leave the door open for a moment before reaching into the cooking chamber, to allow the accumulated heat to escape.49 Close doors Close the door until the door latch audibly locks in place. If a current cooking programme was interrupted as a result of opening the door, the current cooking programme will be continued automatically. 18 “Microwave” mode

1. Set the desired power by turning control knob power accordingly.

2. Set the desired time by turning control knob time/defrost accordingly.

3. The device starts cooking automatically, once power and time are chosen.

4. One signal tone sounds when cooking time is over.

Please note ► Always turn the control knob Time to 0, when you do not use the device. ► Do not use the device, when it is empty. It could be damaged. 19 Defrost Turn the control knob Power to . This level is for gently defrosting of your food. Turn the control know time/defrost to your desired time/quantity. Stir your food after half of time is over. 20 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

20.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► The device must be cleaned regularly and any food residues must be removed. Insufficient cleanliness of the device can lead to the destruction of the surface, which for its part can have a negative impact upon the service life of the device and can lead to a dangerous condition of the device as well as fungal and bacterial contamination. ► Switch the oven off prior to cleaning it and unplug the plug from the wall power outlet. ► The cooking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down. ► Clean the cooking chamber after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.50 Attention ► If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items. ► Because of the hazards involved in repair or maintenance work for which the radiation safety cover must be removed, any such work may only be carried out by a skilled and qualified specialist.

Cooking chamber and inside of door Keep the cooking chamber of the oven clean. Wipe off any spattered or spilt food from the walls of the cooking chamber with a damp cloth. If the oven is excessively dirty, you can use a mild cleaning agent. Wipe the door, window and the door gaskets with a damp cloth, to remove any spatters and spilt food. Residues on the door gasket can mean that the door does not close properly any more, which will cause the microwaves to escape. Wipe off any steam, which has settled on the oven door, with a soft cloth. This may be the case if the device is used in an extremely damp environment and is normal. After cleaning the interior space, leave the oven door open until the interior of the device is completely dry. Cleaning hint – If there are cooked food residues stuck to the inside walls of the oven, there is an easy way to clean these: Place half a lemon into bowl, add 300 ml water and microwave this for 10 minutes at full power. Then simply wipe the inside of the appliance clean with a soft and dry cloth. Front of device and operating panel Clean the front of the device and the operating panel with a soft, slightly damp cloth. Please bear in mind that the control knobs do not get wet. Use a soft, damp cloth for cleaning. Please note ► Leave the oven door open to prevent the device from being re-started accidentally. Exterior housing Clean the exterior surfaces of the device with a damp cloth. 21 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:51

Attention ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment. ► Improperly performed repairs can cause considerable dangers for the user and damages to the device.

21.2 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults. Error Possible cause Action The selected program will not start. Device door is not closed Close device door Power plug is not plugged in Plug in mains plug! Fuse is not activated Activate fuse Food is not sufficiently defrosted, warmed up or cooked after preset time has elapsed. Incorrectly selected time or power level Re-set time and power level Repeat process The device functions but the cooking chamber lighting does not work. Defective cooking chamber light. Have Service dept repair cooking chamber light. Abnormal noises can be heard during operation of microwave. Food is covered with aluminium foil Remove aluminium foil The cookware contains metal and sparks are being created within the cooking chamber Observe information on cookware! Attention ► If you are unable to solve the problem with the steps shown above, please contact Customer Service. 22 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.52 Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. 23 Guarantee We provide a 12 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in commercial situations and has the appropriate performance levels. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 24 Technical Data Device Microwave Name C1000M Item No.:
