USER MANUAL CMP1800 CASO

13.5 Setup 44
13.5.1 Setup location requirements: 44
13.5.2 When you stack your microwave ovens 45
13.5.3 Avoiding radio interference 46

13.6 Electrical connection 46
14 Design and Function 47

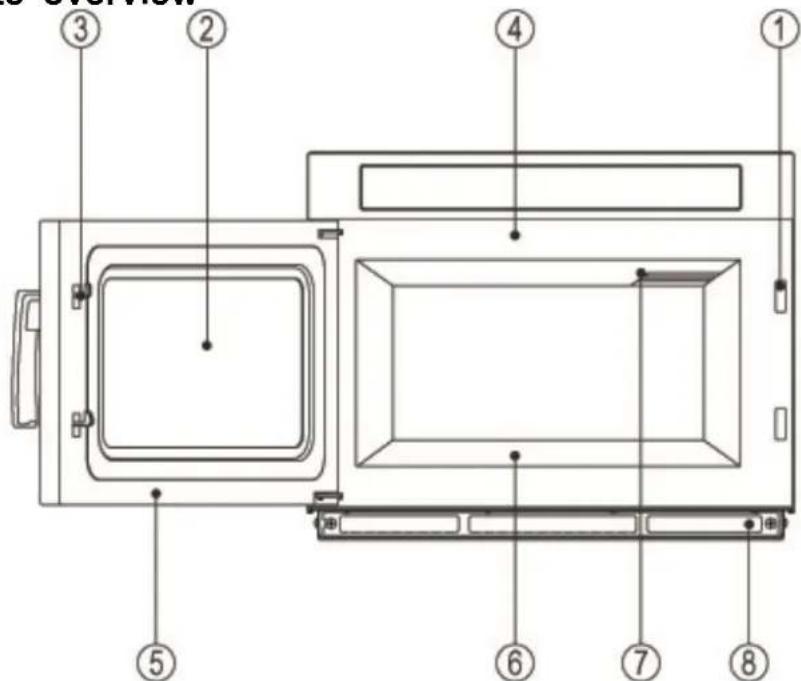

14.1 Complete overview 47
14.2 Operating elements and displays 48
14.3 Signal tones 48
14.4 Safety equipment 48
14.4.1 Warning notices on device 48
14.4.2 Door latch 49
14.5 Rating plate 49
15 Operation and Handing 49
15.1 Principles of microwave cooking 49
15.2 Information on microwave cookware 50
15.3 Opening / closing door 50
15.4 Selecting a program 51
15.5 Quick start 51
15.6 De-activation: 51
15.7 Manual programming/Multistage cooking 51
15.8 Programming with „programming mode“ 52
15.9 Using the "cook factor" 53
15.10 Cooking charts 54
15.11 Changing user options 55
16 Cleaning and Maintenance 57
16.1 Safety information 57
16.2 Cleaning 58
16.2.1 Cleaning of Ceiling cover 58
16.2.2 Cleaning the Air filter 59
17 Troubleshooting 59
17.1 Safety notices 59
17.2 Causes and rectification of faults 59
18 Disposal of the Old Device 60
19 Guarantee 60
20 Technical Data 61
21 Mode d'emploi 63

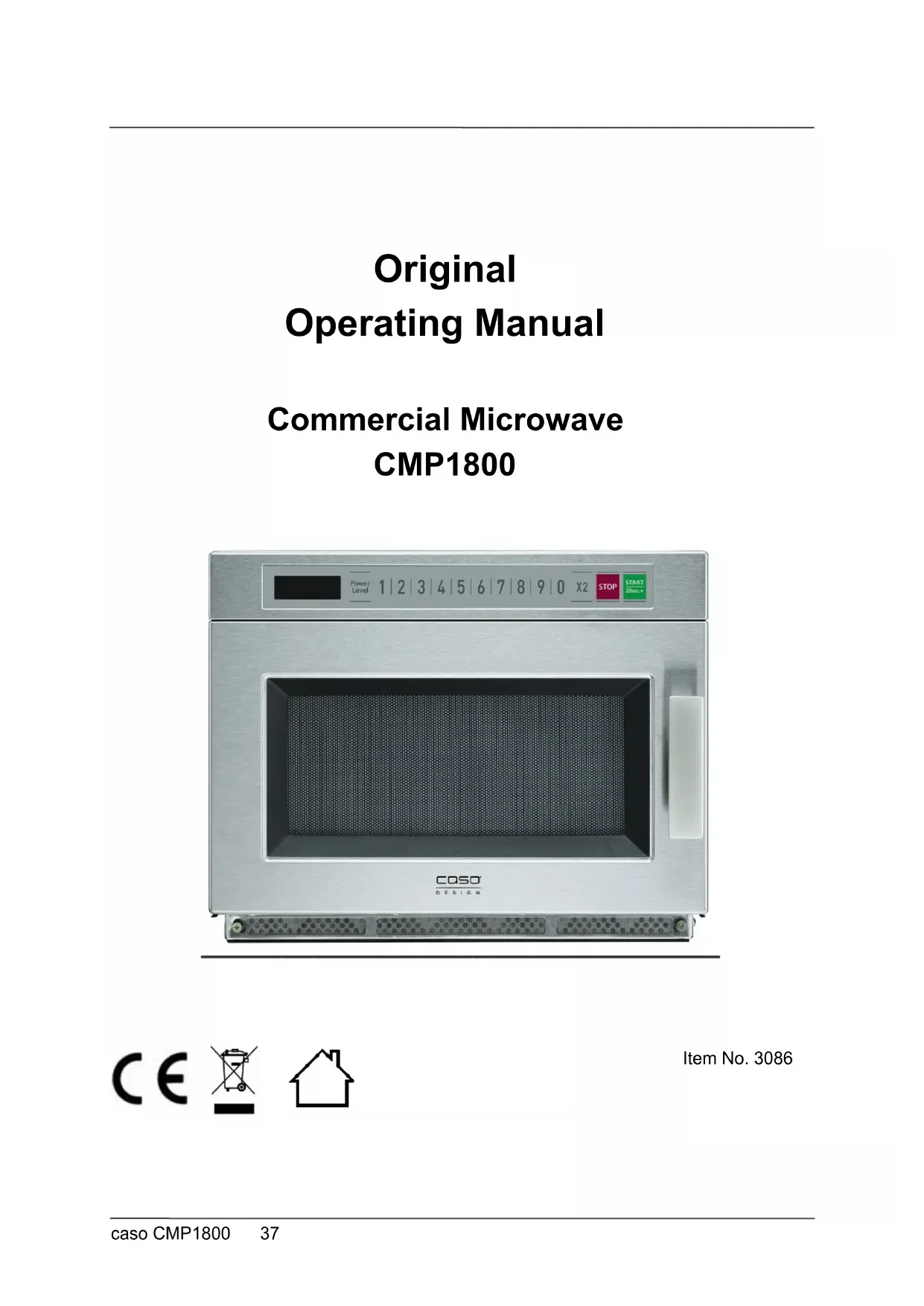

Original Operating Manual

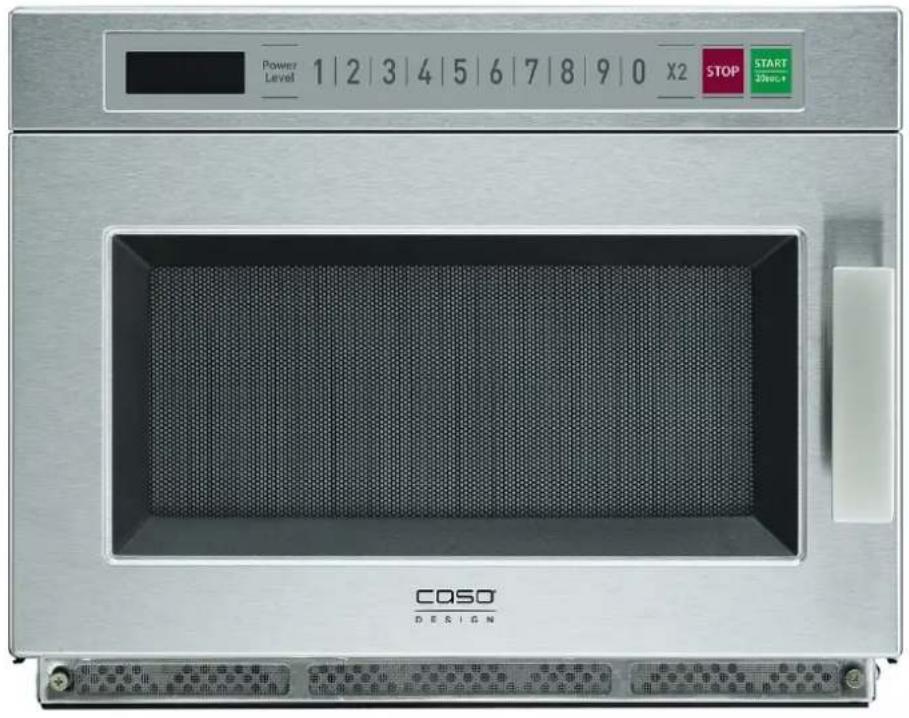

Commercial Microwave CMP1800

Item No. 3086

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your microwave will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the microwave (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

AGEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE

NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

Non-observance of the manual
Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

Defrosting

• warming up

• cooking

grilling

• Reducing

• baking

foods and beverages. Uses for a different purpose or for

a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING

Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used

for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

• Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
  If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
  This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
  Cleaning and user maintenance shall not be made by children without supervision.
  Do not leave the device unsupervised when it is in operation.
  Do not operate the oven if it is empty. This could damage the device.
  The device is not intended for drying, warming up or heating up living animals.
  ▶ Food thermometers are unsuitable to be used when the microwave is in operation.
• Do not use the cooking chamber for storage purposes. Do not leave any paper products, cooking utensils or foodstuffs in the cooking chamber when the oven is not being used.
• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
• Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
  Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

12.3 Sources of danger

12.3.1 Danger due to microwaves

▲WARNING Warning

Exposure to microwaves on the human body can result in injuries.

Please observe the following safety notices in order not to expose yourself or others to microwaves.

• Never operate the device when the door is open. Having a faulty or manipulated safety switch results in the danger of exposing oneself directly to the microwaves.

▲WARNING Warning

• Never position any items between the front of the oven and the oven door and avoid any dirt deposits or cleaning material residues directly on the sealing areas of the device.
  Do not use the device under the following circumstances:

• if the device door is warped - if the door hinges are loose

• if there are visible holes or cracks on the housing,

• on the door or on the walls of the cooking chamber
  Do not remove any of the coverings on the device.

12.3.2 Danger of burns

▲WARNING Warning

The culinary items being heated up in this device as well as the cookware that being used and the surface of the device can become very hot.

Please observe the following safety notices in order not to burn or scald yourself or others.

• When grilling with or without operating the microwave, the cooking chamber, the grill element and the device door will become hot!
• Use oven mitts when sliding in or removing items that are being browned as well while foods/cookware are being handled within the cooking chamber, whenever the grill is switched on or just before it is switched on.
• Do not use the oven for deep-frying. Hot oil can damage parts of the oven and the cookware and cause burns.
  Please bear in mind that the foods and liquids in the device are mainly being heated when the microwave is in operation, and not the container itself. Although the lid of a container is not hot, the same amount of steam and spills can be created on removing the lid as in a conventional cooking process when you remove it from the device.
  Always check the temperature of the cooked food, especially if you are heating up foods or liquids for babies. It is advisable never to consume foods or liquids, directly after they come out of the device. Wait a few minutes and stir the food or liquid, to allow the heat to be distributed evenly.
• With certain foods, there is a danger of burns due to superheating. With foods consisting of a mixture of fat and water, such as broth, wait about 30 to 60 seconds before removing the food from the device. This will allow the mixture to settle. Thus, you avoid sudden bubbling up when a spoon is inserted into the food or the liquid or after adding a stock cube. In order to prevent superheating, you can also place a metal spoon into the cooking vessel prior to cooking. However, bear in mind that the spoon must not make contact with any parts of the device walls or the grill, as this could result in damages to the device.

12.3.3 Danger of fire

▲WARNING Warning

There is a danger of fire due to the ignition of the content in the event the device is not used properly.

Observe the following safety notices to avoid dangers of fire:

Please bear in mind that the times for cooking, heating up, defrosting using the device are frequently considerably shorter than on a stove top or in the oven. Leaving the device on for too long will result in foods drying out and eventually selfigniting. There is then a danger of fire! The danger of fire is also present if bread, rolls, flowers or herbs are being dried for too long.
- Do not warm up pillows or similar items filled with grains, cherry pits or gel. These items can ignite, even if they are removed out of the device after they are warmed up.
Do not warm up any alcohol in an undiluted state.
- Never the leave the device unsupervised if you are warming up or cooking foods in disposable containers made of plastic, paper or other flammable materials. Disposable containers made of plastic must have the properties shown under the heading "Notices on microwave cookware".
Switch off the device or disconnect the power plug and keep the door closed if you discover smoke, to smother the flames.
- Never use the device to store or dry flammable materials.
Always remove grease residues in the device, as these residues can otherwise ignite.

12.3.4 Danger of explosion

WARNING Warning

There is a danger of explosion due to excess pressure that is created in the event the device is not used properly.

Observe the following safety notices to avoid dangers of an explosion:

• Never warm up foods or liquids in sealed containers or bottles.
  Remove the sealing caps and nipples on baby bottles.
• Do not use dishes with hollow handles and buttons on lids for cooking in which liquid can get inside the voids if these voids are not sufficiently vented.
• Do not cook eggs in the shell or extremely hard boiled eggs in the device as they can still explode, even after the microwave operation has been completed.
• Remove twisted wire closures on paper or plastic bags so that no excessive pressure can develop.

12.3.5 Dangers due to electrical power

▲GEFAHR Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
- Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
- Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

WARNING Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

• Packaging materials may not be used for playing. There is a danger of suffocation.
  Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

13.2 Delivery scope and transport inspection

As a rule, the CMP1800 Microwave is delivered with the following components:

• CMP1800 Microwave
• Operating Instructions

HINWEIS Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.
• Open the door of the device and remove the internal protective film from the door.
• Remove the accessories located in the cooking chamber and remove the packaging material.
• Remove the red coloured safety adhesive strip on the floor of the cooking chamber.

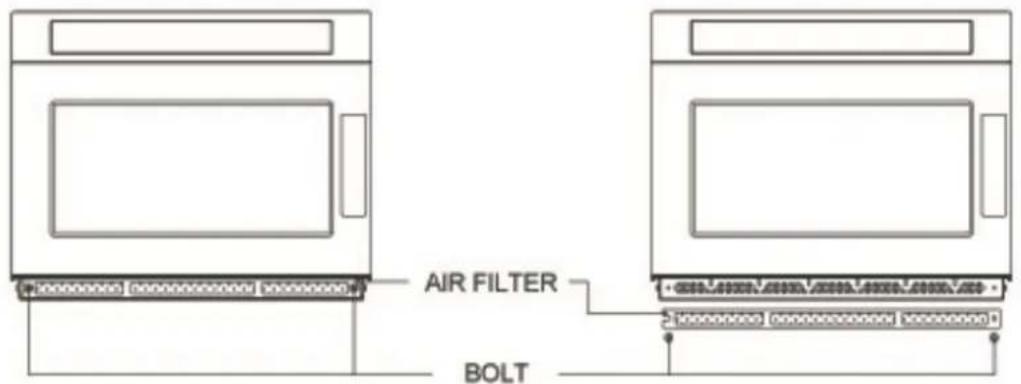

• Do not remove the film on the oven ventilation opening!
• Remove the blue protective film on the device itself.

HINWEIS

Please note

• Only remove the blue protective film shortly before setting up the device in the location where it will be used, to prevent scratches and dirt accumulations.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS

Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.5 Setup

13.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal and heat-resistant surface with sufficient load-bearing capacity for the oven and the maximum weight of the expected food that is to be prepared in the oven.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 10cm above the oven, 10cm around the back and 10cm on both sides.
• Do not cover up any openings on the device and do not block these off.
• Do not remove the device's adjustable feet.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

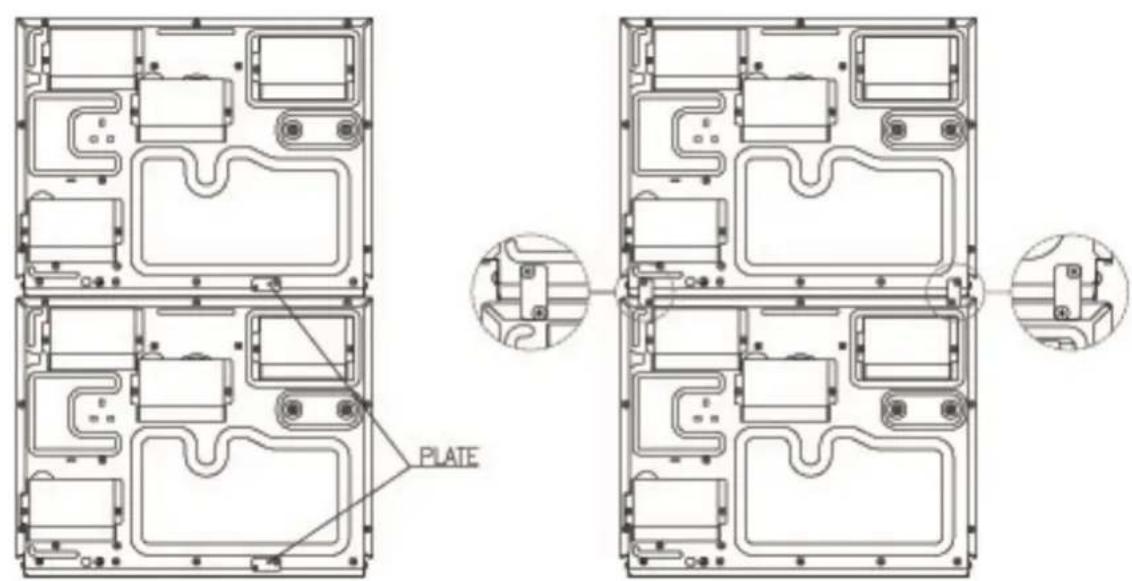

13.5.2 When you stack your microwave ovens

1) Place one microwave oven on top of the other one, and remove the plate which are each secured by a single screw to the bottom-right corner at the rear of both microwaves.
2) Use the upper and lower plate screw holes to secure the upper and lower microwave ovens with the four screws.
3) Ensure the top oven is at a safe and workable height

13.5.3 Avoiding radio interference

The device can cause the occurrence of interference in radios, televisions or similar devices.

Such faults can be rectified or reduced as a result of employing the following measures:

• Clean the door and the sealing surfaces of the device.
• Set the radio, the television, etc as far as possible away from the device.
• Connect the device to a different electrical outlet, so that various power circuits are used for the device and the receiver with the interference.
• Use a properly installed antenna for the receiver, to ensure good reception.

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device
  If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

14.1 Complete overview

(1) Protective door latch
(2) Oven window
(3) Door opener
(4) Microwave Cavity
(5) Door Seal
(6) Plate tray
(7) Cover oven ventilation opening (Do not remove film!)
(8) Air filter

14.2 Operating elements and displays

1. Display: Microwave Cooking activated
2. Display: Double Quantity activated
3. Display: program number
4. Display: Clean the filter
5. Display: Power Level
6. Power Level: Press to program the microwave power
7. Number Pad (1-0): To adjust the cooking time and cooking programs
8. Double Quantity: Increases the programmed cooking time
9. Stop: To temporarily stop the cooking program or to erase all previous settings.
10. Start / +20 sec: Press to start the cooking program or to adjust the quick-start cooking program.

14.3 Signal tones

The device transmits the following signal sounds as an acoustic feedback signal:

One signal tone: The device has accepted the entry.
- Three signal tones: The cooking time has ended.

14.4 Safety equipment

14.4.1 Warning notices on device

▲VORSICHT Attention

Danger due to hot surface!

There is a warning notice referring to dangers due to hot surfaces located on the back upper side of the housing. The surfaces of the device can become extremely hot.

Do not touch the hot surfaces of the device. Danger of burns!
Do not set or lay any items on the device.

14.4.2 Door latch

A safety switch is installed in the door latch of the device, which prevents the device from being operated when the door is open.

AVORSICHT Attention

Danger due to microwaves!

If this safety device is defective or if this safety device is bypassed, you can directly expose yourself and others to microwave radiation.

Do not operate the device if the safety switch is defective.
Do not disable this safety device.

14.5 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

15 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

WARNING Warning

• Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

15.1 Principles of microwave cooking

• The power levels and time required for cooking / warming up food items depends on the starting time, the quantity and the type and consistency of the food, etc. Use the shortest indicated cooking time and extend the cooking procedure as necessary.
• Arrange the food carefully. Position the thickest areas on the external edge of the bowl.
• Cover the food while it is cooking. Lids protect against spatters and also contribute towards cooking/warming up the food evenly.
• During warming, the food should be turned, rearranged or stirred repeatedly, in order for the temperature to be distributed evenly.
• Any existing germs in the food are only killed off if the temperature is sufficiently high enough (>70^) and if the time used is sufficiently long enough (>10~m~in) .

• Foods with a firm skin or shell, such as tomatoes, sausages, potatoes in the skin, eggplants must be pierced or punctured repeatedly so that any developing steam can escape and so that the food does not burst.

• Eggs without their shell may only be cooked in the microwave if the skin of the egg yoke has been pierced repeatedly first. Otherwise, the egg yoke can squirt out with excessive pressure after cooking.

• Rearrange layers of foods such as meat balls from top to the bottom and from the middle to the outside edge.

15.2 Information on microwave cookware

The ideal material for microwave cookware is permeable for microwaves and allows the energy to penetrate the container and warm up the food.

Please observe the following tips when selecting the correct cookware:

Microwaves cannot penetrate metal. Therefore, you should not use utensils made of metal or cookware with metal trim.
For microwave cooking, do not use any products made from recycled paper, as they could contain tiny metal fragments, which could cause sparks and/or result in fire.
- Use round or oval instead of square or rectangular cookware, as otherwise the food could tend to overheat in the corners.
- You can use narrow strips of aluminium foil to protect sensitive areas against excessive heating. But do not use too much foil and maintain a distance of approx 2.5cm between the foil and the walls of the cooking chamber.
- Do not use any aluminium foil when using the microwave or combinations with the microwave (see following table).

The following table is intended as a basis for selecting the correct cookware:

Cookware Microwave
Heat-resistant glass dishes	✓
Non heat-resistant glass dishes x
Heat-resistant ceramic dishes	✓
Microwave-resistant plastic container	✓
Kitchen roll x
Metal sheet	x
Metal rack	x
Aluminium foil and container x

15.3 Opening / closing door

Gently pull on the handle to open the door of the device. If the device is switched on, the current cooking programme will be interrupted.

HINWEIS

Please note

• Leave the door open for a moment before reaching into the cooking chamber, to allow the accumulated heat to escape.

Close doors

Close the door until the door latch audibly locks in place. If a current cooking programme was interrupted as a result of opening the door, the current cooking programme will be continued after pressing the button Start.

15.4 Selecting a program

Select the program. The program starts automatically.

15.5 Quick start

Utilise this function to programme the oven for comfortable cooking at 100% microwave performance.

Press the Start button in quick sequence to set the cooking time. The maximum cooking time is 5 minutes. If you press the button Start once, the oven will work for 20 sec., if you press it twice more, it works for 1 min.

The oven starts automatically after 2 seconds.

Once the end of the cooking time is reached, three signal tones will be emitted and END will appear in the display.

15.6 De-activation:

In order to interrupt an ongoing cooking programme, you can proceed as follows:

• Press the Stop button once. The cooking programme that is in use will be stopped.
• Open the door of the device. The cooking programme that is in use will be stopped.

HINWEIS Please note

To continue the interrupted cooking program, press the button Start after closing the door.
- To terminate the interrupted program, press the button Stop a second time.

HINWEIS Please note

Before beginning a different cooking process you must delete the display and reset the system by pressing the button Stop.

15.7 Manual programming/Multistage cooking

When microwaving you can adapt the power setting and the cooking time (max. 60 min.)

Setting Power Level

Select the desired power setting by pressing the Powerlevel button as often as necessary to get the setting you want (see table below).

If no button is pressed, maximum power will be used.

Setting the cooking time

Adjust the cooking time by pressing the Time set pad 1-0 accordingly.

You can add additional cooking time with the appropriate power level. Up to three stages can be programmed.

Starting the cooking programme

After selecting the program, press the button Start, to start the preset cooking programme. The first STAGE indicator will start to blink and heating time will count down.

End of the cooking programme

Once the end of the cooking time is reached, three signal tones will be emitted and END will appear in the display.

Button presses	Powerlevel	Usage for
1 100 %		High and heating	Fast cooking and heating
2 70% Gentle cooking
3 50% Medium-high			Reheating of small amounts of food sensitive
4 20% Medium low / Defrost Fast thawing simmering
5 >0,5% Low Keeping warm

15.8 Programming with „programming mode“

You can program up to 20 programs by yourself and save them individually.

HINWEIS Please note

To make sure, not to change in the programing mode during operation, always open the door for programming.

Selecting Program

Press and hold the Powerlevel button - the display will show "Program".

Setting the program number

Press the number keys to be programmed (Time set pad 1 - 0) - the display shows the selected numbers

Setting power level

Press the Power button, according to the adjusted performance level - the power level will be displayed in%.

Select cooking time

Set the desired cooking time using the numeric keys (Time set pad 1 - 0) one - the display shows them.

Save

Press the program after the election the Start button to save your settings. The display shows "Stage 2" and a long beep is heard.

You can add an additional cooking time with the appropriate power level:

Setting power level

Press the Power button, according to the adjusted performance level - the power level will be displayed in%.

Select cooking time

Set the desired cooking time using the numeric keys (Time set pad 1 - 0) one - the display shows them.

Save

Press the program after the election the Start button to save your settings. The display shows "Stage 3" and "End" and a long beep is heard.

To delete the keys, press Stop.

HINWEIS Please note

The keys 1 - 0 shown in the table below are preprogrammed keys.

Pad Cooking time	Power Level
1 10sec. 100%
2 20sec. 100%
3 30sec. 100%
4 45sec. 100%
5 1min. 100%
6 1min. 30sec. 100%
7 2min. 100%
8 3min. 100%
9 4min. 100%
0 5min. 100%

HINWEIS Please note

If you want to dial a programmed program, simply press the corresponding number and the program starts cooking according to your selections stored.

15.9 Using the "cook factor"

The cook factor can be used and stored for a programme.

Select program modus

Press and hold the Powerlevel button- the display shows „Program".

Select cook program

Set the desired cook program using the numeric keys (Time set pad 1 - 0) one - the display shows it.

Select cook factor

Press the button X2, - the display shows the cook factor in use.

Select cook factor desired by pressing the numeric keys

(1 = 10% ,0 = 100%) - the display shows the cook factor.

Factory setting for cook factor is 80% - CF:80.

Save

Press the program after the election the Start button to save your settings.

To delete the keys, press the Stop.

15.10 Cooking charts

The times given in the following charts are a guideline only.

Many factors e.g. starting temperature of the food can affect the final heating time required. The cooking and defrosting times must be adjusted when necessary.

All times are tested using foods at starting temperatures as below ;

chilled foods - - - - approx. +5^

frozen foods - - approx. -20^

HINWEIS Please note

After halfway of defrosting the food must be turned or stirred.
- Stop the oven occasionally to remove the unthawed frozen food or to separate it. If the frozen food has not been defrosted at the end of the estimated defrosting time, proceed as follows:
▶ Programme the oven in 1 minute increments, until the frozen food is completely defrosted.

Food, frozen	Quantity	Time min.	power	Wating time
beef	500g	5	20%	15-20 min.
Poultry whole Chicken	1360g	25	20%	1-2 h
slice of bread	800g	4-5	20%	5-10 min.
cooked rice	450g	5-6	20%	10-15 min.
Apple cake, piece	1	1:20	20%	Uncovered
Sausage (thick)	450g	6-7 min.	20%	15-20 min.
Broccoli, carrots, cauliflower	225g	3	100%	Add 30ml water 1-2 min.
Peas	225g	2-3	100%
Food, fresh	Quantity	Time min.	power	Waiting time
potatoes	290g	5-6	100%	3-4 min. Pierce each potatoe several times
Broccoli, carrots, cauliflower	225g	2	100%	Add 30ml water 1-2 min.
Peas	225g	1-2	100%

Reheat food	Quantity	Time min.	power	Special
hamburger	125g	40sec.	100%	Uncovered
cheeseburger	175g	40sec.	100%	uncovered
tomatoes	400g	2:30	100%
asparagus	350g	1:40	100%
Apple cake, piece	1	15sec.	100%	Uncovered

15.11 Changing user options

User Options can be changed to suit individual preferences.

To make sure, not to change in the programing mode during operation, always open the door for programming.

Select programming mode

Press and hold Stop for a while. When the oven enters Option mode, it will show "Code---" in the display

Select Number pad

Press a number pad to be programmed. (1-0) It will show a option number in the display. Press the number pad again to change the option.

Each time the number pad is pressed, option will change.

Save

Press START pad to save changes. To change additional options, repeat steps 3 and 4.

Number Pad function	Display		User Options (Factory Settings in Bold)
1	Cook Ending Signal	Code 1-0	3 long beeps for 3 seconds
		Code 1-1	1 short, 1 long beeps for 3 seconds
		Code 1-2	3 second beep
		Code 1-3	3 quick beeps for 3 seconds
		Code 1-4	5 quick beeps for 3 seconds
2	Key Beep On/Off	Code 2-1	No beep when a key pad is pressed
		Code 2-0	A key pad will beep when it is pressed.
3	Manual cooking Change of cooking stage/Beep On/Off	Code 3-0	The oven will beep when stage cook changes to the next stage.
		Code 3-1	No beep when stage cook changes to the next stage.
4	Maximum Cooking time	Code 4-0	Maximum Cooking Time is 60 minutes.
		Code 4-1	Maximum Cooking Time is 10 minutes.
5	Preprogrammed Cook	Code 5-0	10 preprogrammed cooks for key pad (0-9)
		Code 5-1	200 preprogrammed cooks for key pad (0-199)
6	Display Off Time Counter	Code 6-0	Display will turn of if a key isn’t entered in 1 minute.
		Code 6-1	Display will turn of if a key isn’t entered in 2 minutes.
		Code 6-2	Display will turn of if a key isn’t entered in 3 minutes.
		Code 6-3	Display will turn of if a key isn’t entered in 4 minutes.
7 Repeat Feature		Code 7-0	Repeat feature not allowed
		Code 7-1	Repeat feature allowed
8	Cook End message reminder	Code 8-0	No End message after finishing cooking.
		Code 8-1	End message will be left on the display during display-on time.
9	Manuel Time Cook Lock	Code 9-0	A user may use preprogrammed pads and manual time cook.
		Code 9-1	A user use pregrommaed pads without manual time cook.
0	Clean Filter Message	Code 0-0	Oven will display clen filter message avery 90 days.
		Code 0-1	Oven will display clen filter message avery 60 days.
		Code 0-2	Oven will display Clean Filter message every 30 days.
		Code 0-3	Oven will display Clean Filter message every 10 days.
		Code 0-4	Oven will not display clean filter message.

HINWEIS Clean filter reminder

The reminder that the filter needs to be cleaned, expires after 24 hours. You can also end the reminder, with closed door, by pressing and holding "stop" until a beep sounds.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

AVORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

The oven must be cleaned and food residues must be removed at regular intervals. If the oven is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
Switch the oven off prior to cleaning it and unplug the plug from the wall power outlet.
The cooking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down.
- Clean the cooking chamber after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
- If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
Do not use any aggressive or abrasive cleaning agents or solvents.
Do not scrape off stubborn dirt with hard items.

HINWEIS Please note

• Leave the oven door open to prevent the device from being re-started accidentally.

16.2 Cleaning

Cooking chamber and inside of door

WARNUNG Danger of fire

Always remove grease residues in the device, as these residues can otherwise ignite.

• Keep the cooking chamber of the oven clean. Wipe off any spattered or spilt food from the walls of the cooking chamber with a damp cloth. If the oven is excessively dirty, you can use a mild cleaning agent.
• Wipe the door, window and the door gaskets with a damp cloth, to remove any spatters and spilt food. Residues on the door gasket can mean that the door does not close properly any more, which will cause the microwaves to escape.
• Wipe off any steam, which has settled on the oven door, with a soft cloth. This may be the case if the device is used in an extremely damp environment and is normal.
• Smells can be removed from the oven by mixing a cup of water with the juice and the skin of a lemon, pouring this into a deep microwave-proof bowl and allowing it to cook in Microwave mode for five minutes. Then, dry off the oven thoroughly with a soft cloth.
• After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.

Front of device and operating panel

• Clean the front of the device and the operating panel with a soft, slightly damp cloth.
• Please bear in mind that the operating panel does not get wet. Use a soft, damp cloth for cleaning.

Exterior housing

• Clean the exterior surfaces of the device with a damp cloth.
• The stainless steel surfaces can be cleaned with commonly available stainless steel cleaners.

16.2.1 Cleaning of Ceiling cover

1. Push left side of stopper in centre of ceiling cover and seperate it from cavity.
2. Hold side stoppers of ceiling cover with both hands and pull down. Then take off the Ceiling Cover out of the oven cavity
3. Wash this Ceiling Cover in soapy water or Food Sanitizer Solution.
4. Be sure to replace the Ceiling Cover before using the device.

HINWEIS Please note

• Ceiling Cover must be placed securely when you use the oven. When you remove the Ceiling Cover for the purpose of cleaning, be sure to be extremely careful about the exposed inside components on the top of the oven cavity.
  If any of them are deformed, abnormal symptom can happen such as arcing or sparks during operation.
  In case of such problem, contact the nearest servise centre.

16.2.2 Cleaning the Air filter

Clean the Air Filter regularly according to the following instructions.

1. Remove the bolt at both ends of Air Filter.
2. Take the Air Filter off carefully.
3. Wash the Air Filter in warm soapy water.
4. Be sure to replace the Air Filter before using the oven

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Safety notices

AVORSICHT Attention

• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
• Improperly performed repairs can cause considerable dangers for the user and damages to the device.

17.2 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults.

Error Possible cause Action

The selected program will not start.

Device door is not closed Close device door

Power plug is not plugged in Plug in mains plug!

	Fuse is not activated Activate fuse
Food is not sufficiently defrosted, warmed up or cooked after preset time has elapsed.	Incorrectly selected time or power level	Re-set time and power level Repeat process
The device functions but the cooking chamber lighting does not work.	Defective cooking chamber light.	Have Service dept repair cooking chamber light.
Abnormal noises can be heard during operation of microwave.	Food is covered with aluminium foil	Remove aluminium foil
	The cookware contains metal and sparks are being created within the cooking chamber	Observe information on cookware!

AVORSICHT Attention

If you are unable to solve the problem with the steps shown above, please contact Customer Service.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  Ensure that your old device is stored safely away from children until it is taken away.

19 Guarantee

We provide a 12 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not

responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in commercial situations and has the appropriate performance levels.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery.

All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

20 Technical Data

Device Microwave
Name CMP1800
Model KOM-9F0CTS
Item No.: 3086
Mains data 230V~50Hz
Power consumption 3000 W (Microwave)
Nominal output of microwave 1800 W
Operating frequency	2450 ± 50MHz
External measurements (H x W x D): 467 x 370 x 595 mm
Cooking chamber dimensions (H x W x D):	371 x 198,5 x 372 mm
Timer 60 min.
Power Level 5 Level
Net weight Ca. 34 kg
