USER MANUAL MLG 23 Touch CASO

12.6 Delivery scope and transport inspection 53
12.7 Unpacking 54
12.8 Disposal of the packaging 54
12.9 Setup 54
12.9.1 Setup location requirements: 54
12.9.2 Avoiding radio interference 55
12.10 Assembly of the accessories 55
12.10.1 Grill rack and drip pan 55
12.11 Electrical connection 56
13 Design and Function 57

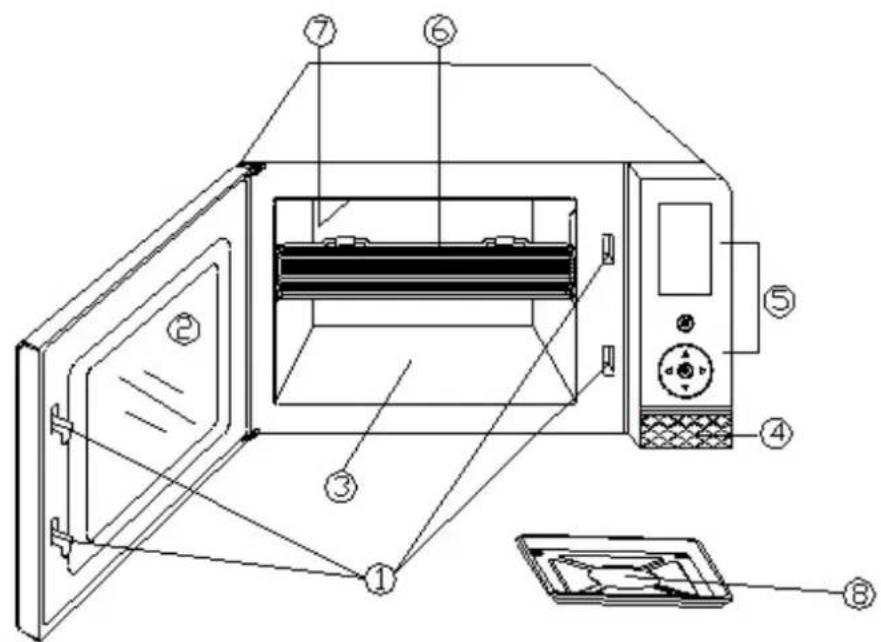

13.1 Complete overview 57

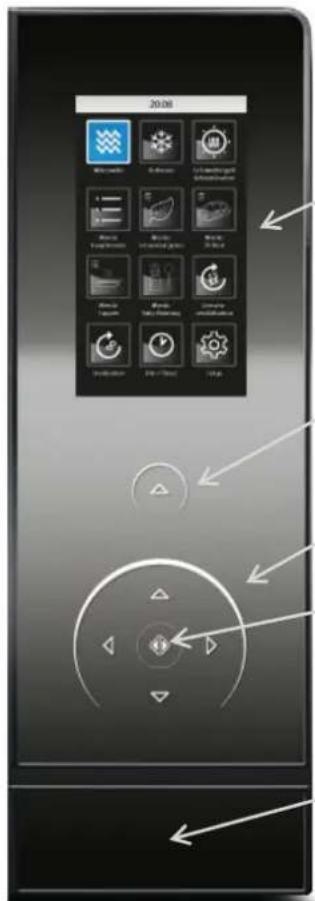

13.2 Operating elements and displays 58
13.3 Safety equipment 58
13.3.1 Warning notices on device 58
13.3.2 Door latch 58
13.4 Rating plate 59
14 Operation and Handing 59
14.1 Principles of microwave cooking 59
14.2 Operating modes: 59
14.3 Information on microwave cookware 60
14.4 Opening/closing door 61
14.5 Switch on/off sound 61
14.6 Reactivation 61
15 Menu-control 61

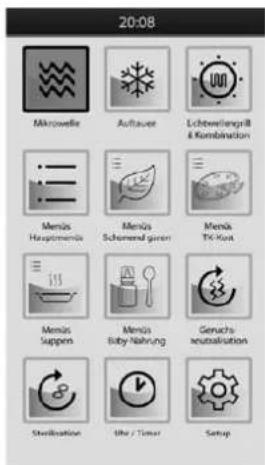

15.1 Menu overview 62

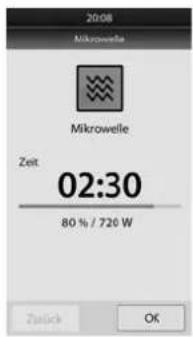

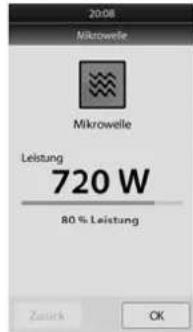

15.2 Menu microwave 62

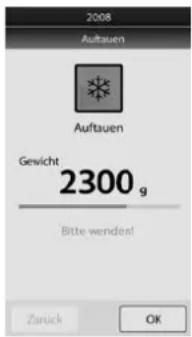

15.3 Menu defrosting 63

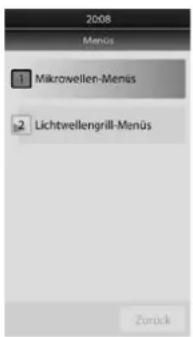

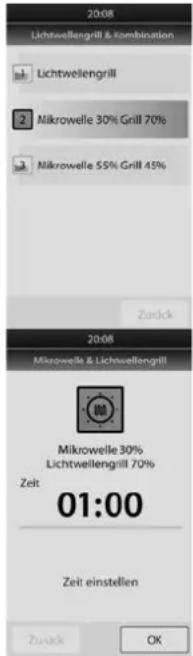

15.4 Menu Lightwavegrill & Combination 63

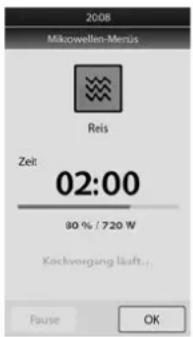

15.5 Menus Main menu/Microwave menu 63
15.5.1 Menu (1) Rice 63
15.5.2 Menu (2) fresh vegetables and menu (8) corn 64

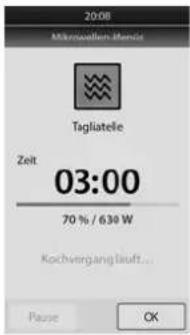

15.5.3 Menu (3) Tagliatelle and menu (9) Tortellini 64

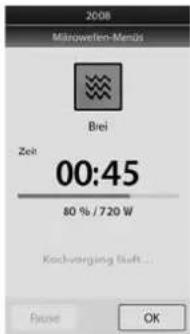

15.5.4 Menu (4) Porridge 64

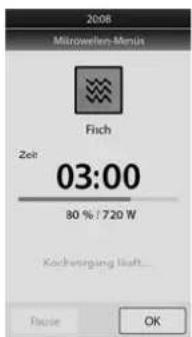

15.5.5 Menu (5) Fish 64

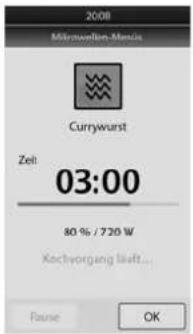

15.5.6 Menu (6) Currywurst, menu (7) ready meal and menu (10) Hot dog.. 65
15.5.7 Menu (11) Heat beverages 65
15.5.8 Menu (12) Hamburger 65

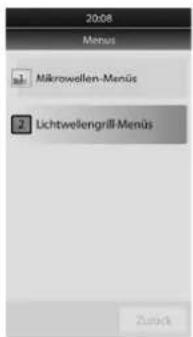

15.6 Menu-Main menu/menu Lightwavegrill 65

GERMANY

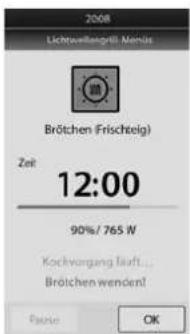

15.6.1 Menu (1) -Bread roll (fresh dough) 65
15.6.2 Menu (2) roulade and menu (6) goulash 66
15.6.3 Menu (3) Duck classic 66

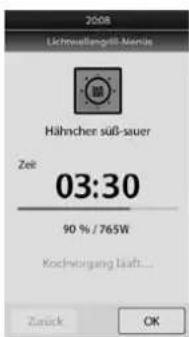

15.6.4 Menu (4) Chicken sweet & sour 66

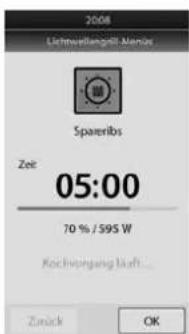

15.6.5 Menu (5) Spare ribs 66
15.7 Menus gentle cooking 66

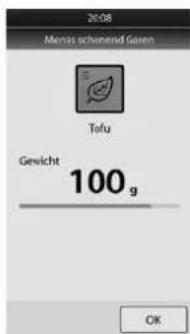

15.7.1 Menu (1) Tofu 66

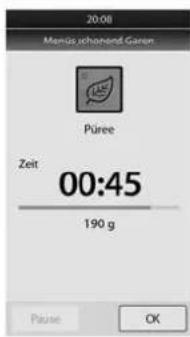

15.7.2 Menu (2) Puree 67

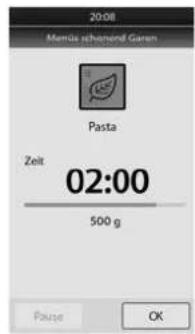

15.7.3 Menu (3) Pasta 67
15.8 Menus Frozen food 67

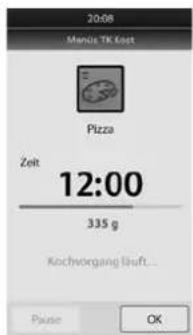

15.8.1 Menu (1) Pizza 67

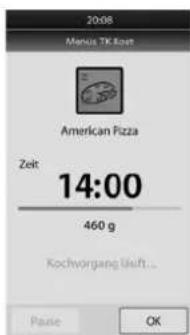

15.8.2 Menu (2) American Pizza 67

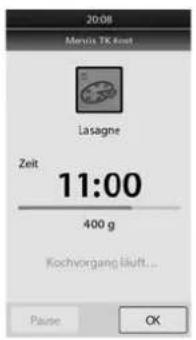

15.8.3 Menu (3) Lasagne 68

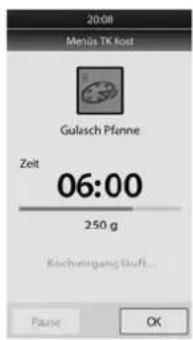

15.8.4 Menu (4) Goulash 68
15.9 MenusSoups 68

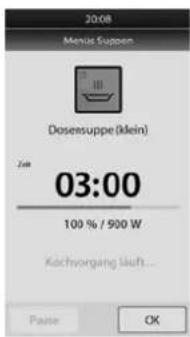

15.9.1 Menu (1) Canned soup (small) and menu (3) Cream soup 68
15.9.2 Menu (2) Canned soup (big) 68
15.10 69

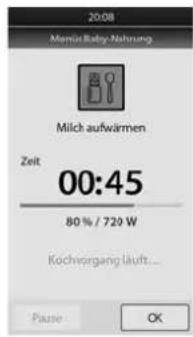

15.10.1 Menu (1) Warm up milk, Menu (2) Milk mash, Menu (3) Vegetable purée and Menu (4) carrot mash and Menu (5) semolina pudding 69

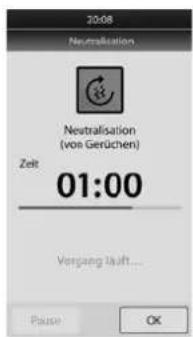

15.11 Neutralisation (of odors) 69

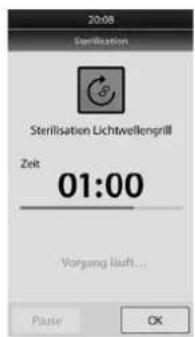

15.12 Sterilisation 69

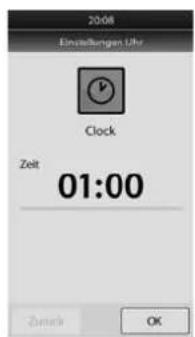

15.13Clock/Timer 69

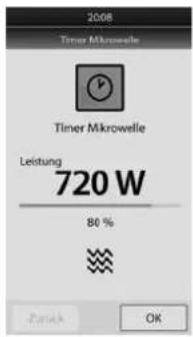

15.13.1 Setting Timer 70

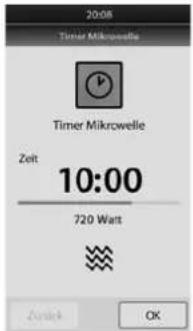

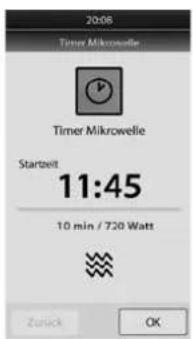

15.13.1.1. Timer Microwave 70

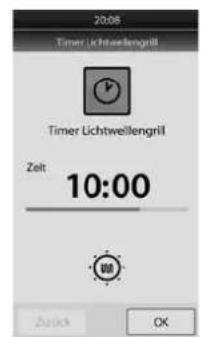

15.13.1.2. Timer Lightwavegrill and Timer Combination 70

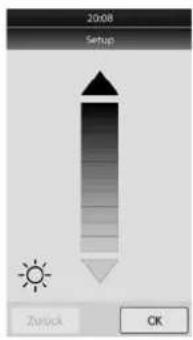

15.14 Menu Setup 71

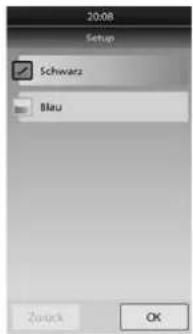

15.14.1 Menu Brightness 71
15.14.2 Menu Background 71

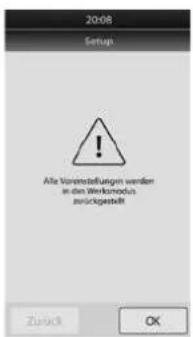

15.14.3 Menu factory settings 71
16 Cleaning and Maintenance. 71
16.1 Safety information 71
16.2 Cleaning 72
17 Troubleshooting 73
17.1 Safety notices 73
17.2 Causes and rectification of faults 73
18 Disposal of the Old Device. 74
19 Guarantee 74

20 Technical Data. 75

21 Mode d'emploi 77

21.1 Généralités 77

5.6.5 Menu (5) Spareribs

Microwave & Lightwavegrill

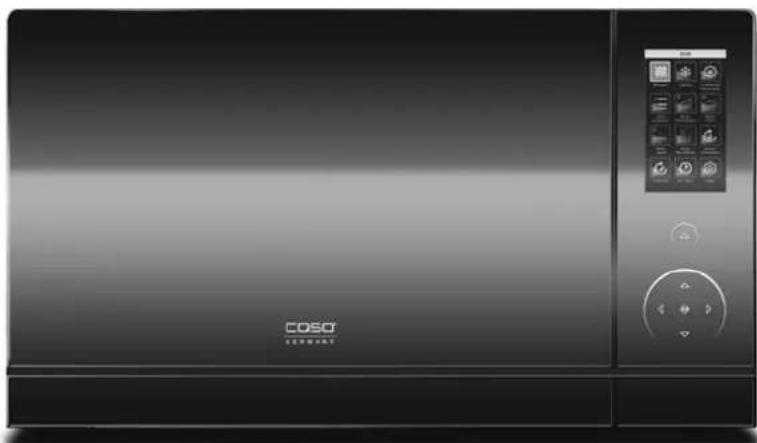

MLG 23 Touch black

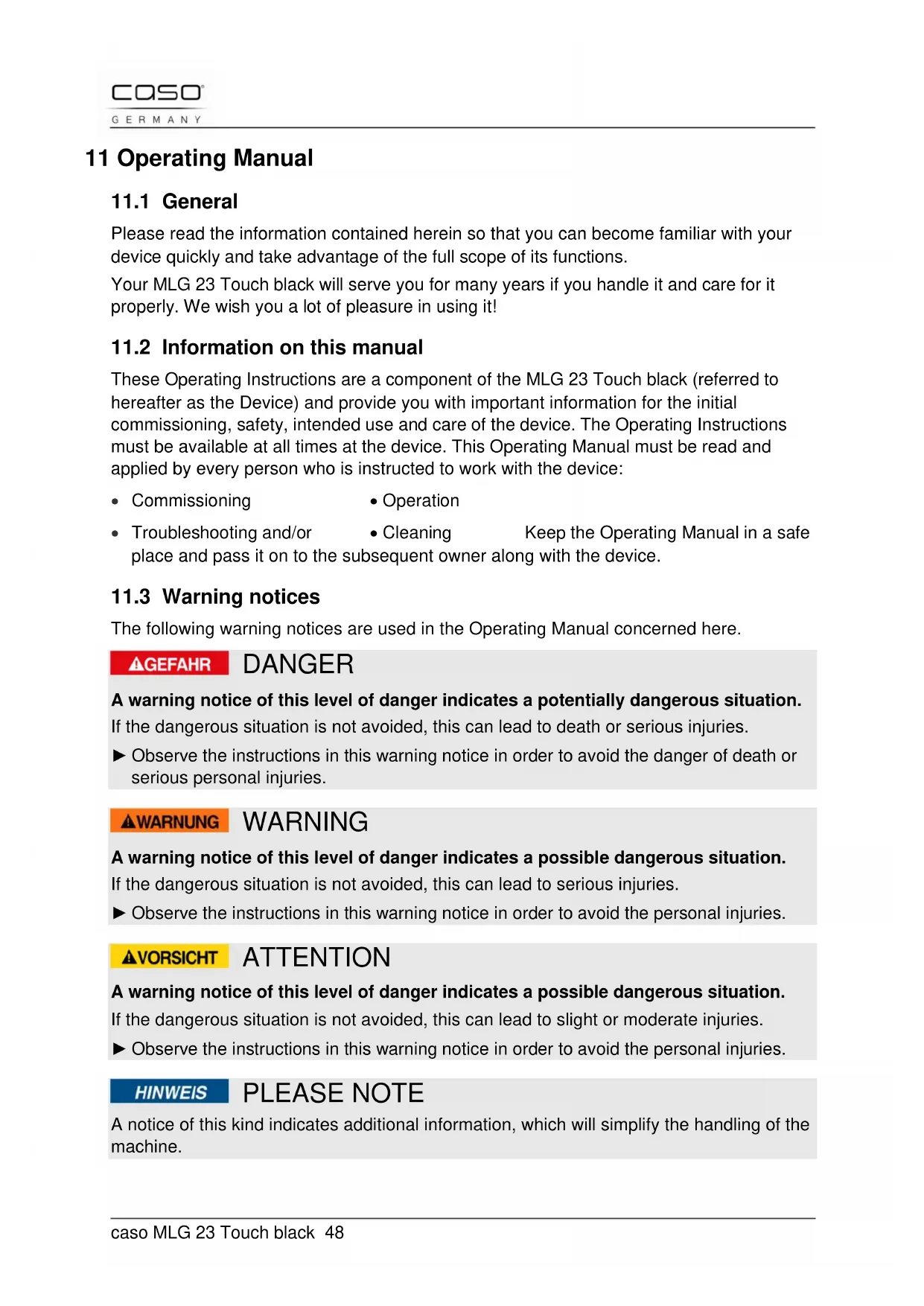

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your MLG 23 Touch black will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the MLG 23 Touch black (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

Commissioning
Operation
Troubleshooting and/or
- Cleaning
- Keep the Operating Manual in a safe bag with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.
Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.
Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

Non-observance of the manual
Uses for non-intended purposes
- Improper repairs
- Use of unauthorized spare parts
- Technical alterations, modifications of the device

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

Defrosting

• warming up

• cooking

• grilling

reducing

• baking

foods and beverages. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG

Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

12.2 General Safety information

HINWEIS Please note

Please observe the following general safety notices with regard to the safe handling of the device.

Read all these instructions before using the appliance.
- Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
The device is not intended for drying, warming up or heating up living animals.
▶ Food thermometers are unsuitable to be used when the microwave is in operation.
- Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
- Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
- Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
- Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose. for domestic purpose.
The microwave oven is only used when it is freestanding.
Warning: Do not install the oven over a range cooktop or other heat-producing appliance. If it is installed it could be damaged and the warranty would be void.
The microwave oven may not be placed in a cabinet.

HINWEIS Please note

The appliance shall be placed against a wall.
The appliance is not intended to be operated by means of an external timer or separate remote-control system.
The microwave oven is for household use only and not for commercial use.
- Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
Please secure the turn table before you move the appliance to avoid damages.
The microwave oven is intended for defrosting, cooking and steaming of food only.

12.3 Sources of danger

12.3.1 Danger due to microwaves

▲WARNING Warning

Exposure to microwaves on the human body can result in injuries.

Please observe the following safety notices in order not to expose yourself or others to microwaves.

• Never operate the device when the door is open. Having a faulty or manipulated safety switch results in the danger of exposing oneself directly to the microwaves.
• Caution: It is dangerous to repair or maintain the appliance by anyone other than a specialist because under these circumstances the cover would have to be removed which ensures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
  Warning: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person

12.3.2 Danger of burns

▲WARNING Warning

The culinary items being heated up in this device as well as the cookware that being used and the surface of the device can become very hot.

Please observe the following safety notices in order not to burn or scald yourself or others.

Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
- Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

WARNING Warning

Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
The accessible surface may be hot during operation.
The door or the outer surface may get hot when the appliance is operating.
The temperature of accessible surfaces may be high when the appliance is operating.
Use gloves if you remove any heated food.
Caution! Steam will escape, when opening lids or wrapping foil.

12.3.3 Danger of fire

WARNING Warning

There is a danger of fire due to the ignition of the content in the event the device is not used properly.

Observe the following safety notices to avoid dangers of fire:

Never use the device to store or dry flammable materials.
Do not warm up any alcohol in an undiluted state.
Do not operate the oven when empty.
To reduce the risk of fire in the oven cavity:
a) When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c) If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
Utensils should be checked to ensure that they are suitable for use in microwave oven.
- Disposable containers made of plastic must have the properties shown under the heading "Notices on microwave cookware".
If smoke emits, switch off or unplug the appliance and keep the door closed in order to stifle the smoke.

12.3.4 Danger of explosion

WARNING Warning

There is a danger of explosion due to excess pressure that is created in the event the device is not used properly.

Observe the following safety notices to avoid dangers of an explosion:

Warning: Liquid or other food must not be heated in sealed containers since they are liable to explode.

WARNING Warning

• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
• Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

12.3.5 Dangers due to electrical power

AGEFAHR Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

• Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
• Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  Caution: It is dangerous to repair or maintain the appliance by anyone other than a specialist because under these circumstances the cover would have to be removed which ensures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service center.

12.4 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.5 Safety information

WARNING Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

Packaging materials may not be used for playing. There is a danger of suffocation.
Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

12.6 Delivery scope and transport inspection

As a rule, the MLG 23 Touch black is delivered with the following components:

• MLG 23 Touch black

• Grill rack

• Operating Instructions

• drip pan

HINWEIS Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.7 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.
• Remove the accessories located in the cooking chamber and remove the packaging material.
• Remove the red coloured safety adhesive strip on the floor of the cooking chamber.
• Do not remove the film on the oven ventilation opening!
• Remove the blue protective film on the device itself.

HINWEIS Please note

• Only remove the blue protective film shortly before setting up the device in the location where it will be used, to prevent scratches and dirt accumulations.
• Please don't remove the protective film from the inside of the door (if equipped), since this makes the cleaning of the device easier.

12.8 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.9 Setup

12.9.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal and heat-resistant surface with sufficient load-bearing capacity for the oven and the maximum weight of the expected food that is to be prepared in the oven.

• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.

• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 20~cm above the oven, 10~cm around the back and 5~cm on both sides.
• Do not cover up any openings on the device and do not block these off.
• Do not remove the device's adjustable feet.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.9.2 Avoiding radio interference

The device can cause the occurrence of interference in radios, televisions or similar devices.

Such faults can be rectified or reduced as a result of employing the following measures:

• Clean the door and the sealing surfaces of the device.
• Set the radio, the television, etc as far as possible away from the device.
• Connect the device to a different electrical outlet, so that various power circuits are used for the device and the receiver with the interference.
• Use a properly installed antenna for the receiver, to ensure good reception.

12.10Assembly of the accessories

HINWEIS

Please note

The operation of the device is possible with grill.
Please only use the grill rack when grilling.

12.10.1 Grill rack and drip pan

• Please push the grill rack into the oven.
• In case of using the grill always put the drip pan under the grill.

12.11 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

13 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

13.1 Complete overview

1) Safety lock
2) Window
3) Ceramic base
4) Door opener
5) Control panel
6) Grill rack
7) Light wave tube
8) Drip pan
9) Handle of drip pan

HINWEIS Please note

The ventilator can continue running afterwards to cool down the device.

13.2 Operating elements and displays

CASO LOGIC Menu 1.0

Display panel indicates menu, programs as well as information about the current settings and cooking process.

Rest/Stop: To stop the cooking program temporarily or to delete all previous settings.

Menu selection: Arrow keys to select menu, cooking program and to set time and weight.

Start: Press to start the cooking program.

Door opener: Press to open the door.

13.3 Safety equipment

13.3.1 Warning notices on device

A VORSICHT ATTENTION

Danger due to hot surface!

There is a warning notice referring to dangers due to hot surfaces located on the back upper side of the housing. The surfaces of the device can become extremely hot.

Do not touch the hot surfaces of the device. Danger of burns!
Do not set or lay any items on the device.

13.3.2 Door latch

A safety switch is installed in the door latch of the device, which prevents the device from being operated when the door is open.

VORSICH ATTENTION

Danger due to microwaves! If this safety device is defective or if this safety device is bypassed, you can directly expose yourself and others to microwave radiation.

Do not operate the device if the safety switch is defective.
Do not disable this safety device.

13.4 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

14 Operation and Handing

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

▲WARNING Warning

Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

14.1 Principles of microwave cooking

• The power levels and time required for cooking / warming up food items depends on the starting time, the quantity and the type and consistency of the food, etc. Use the shortest indicated cooking time and extend the cooking procedure as necessary.
• Arrange the food carefully. Position the thickest areas on the external edge of the bowl.
• Cover the food while it is cooking. Lids protect against spatters and also contribute towards cooking/warming up the food evenly.
• During warming, the food should be turned, rearranged or stirred repeatedly, in order for the temperature to be distributed evenly.
• Any existing germs in the food are only killed off if the temperature is sufficiently high enough (>70^) and if the time used is sufficiently long enough (>10m in).
• Foods with a firm skin or shell, such as tomatoes, sausages, potatoes in the skin, eggplants must be pierced or punctured repeatedly so that any developing steam can escape and so that the food does not burst.
• Eggs without their shell may only be cooked in the microwave if the skin of the egg yoke has been pierced repeatedly first. Otherwise, the egg yoke can squirt out with excessive pressure after cooking.
• Rearrange layers of foods such as meat balls from top to the bottom and from the middle to the outside edge.

14.2 Operating modes:

The unit is to be operated in various operating modes. The following list shows the operating modes that are possible with the device:

"Microwave" mode

This operating mode is suitable for the normal reheating of food.

Operating mode „Lightwavegrill“

This operating mode is suitable for uniform and quick heating of foods.

Operating mode „Microwave and Lightwavegrill“

This operating mode is suitable for uniform microwaving and lightwavegrilling.

Combination 1

In this operating mode the device works 30% of the cooking time in the microwave mode and 70% of the cooking time in the lightwave mode.

Combination 2

In this operating mode the device works 55% of the cooking time in the microwave mode and 45% of the cooking time in the lightwave mode.

,Cooking Program"Mode

This mode allows you to select the cooking program from 6 different menus.

14.3 Information on microwave cookware

The ideal material for microwave cookware is permeable for microwaves and allows the energy to penetrate the container and warm up the food.

Please observe the following tips when selecting the correct cookware:

Microwaves cannot penetrate metal. Therefore, you should not use utensils made of metal or cookware with metal trim.
For microwave cooking, do not use any products made from recycled paper, as they could contain tiny metal fragments, which could cause sparks and/or result in fire.
- Use round or oval instead of square or rectangular cookware, as otherwise the food could tend to overheat in the corners.
- You can use narrow strips of aluminium foil to protect sensitive areas against excessive heating. But do not use too much foil and maintain a distance of approx 2.5cm between the foil and the walls of the cooking chamber.
- Do not use any aluminium foil when using the microwave or combinations with the microwave (see following table).

The following table is intended as a basis for selecting the correct cookware:

Cookware	Micro-wave	Lightwavegrill	Combination*
Heat-resistant glass dishes	✓✓✓
Non heat-resistant glass dishes	×	×	×
Heat-resistant ceramic dishes	✓✓✓
Microwave-resistant plastic container	✓××
Kitchen roll	✓××
Metal sheet	×✓×
Metal rack	×✓×
Aluminium foil and container	×✓×

*both, Microwave+Lightwavegrill

14.4 Opening / closing door

Push the door opener to open the door of the device. If the device is switched on, the current cooking programme will be interrupted.

HINWEIS Please note

• Leave the door open for a moment before reaching into the cooking chamber, to allow the accumulated heat to escape.
  Close doors

Close the door until the door latch audibly locks in place. If a current cooking programme was interrupted as a result of opening the door, the current cooking programme will be continued after pressing the button Start.

14.5 Switch on/off sound

Press the button Rest/stop for three seconds to switch on or off the sound (beep). When the sound is switched on, you can see in the display on the top right corner a loudspeaker symbol. This is crossed out when the sound is switched off.

14.6 Reactivation

The device has an automatic shutoff.

If the power cord is plugged in, please open the door to reactivate the device.

In standby mode, the device switches itself off after 48 hours. To reactivate the device, please open the door. If the unit is more than 24 hours off, please set the clock again.

15 Menu-control

Basically you can navigate via the arrow keys in the menu and set the time and quantities.

Via the Start-button you can confirm your selection.

In the submenu the panel "OK" is white bordered and via the Start-button you confirm this "Ok". You will return by one panel correspondingly if you select "return".

Via the button Rest/Stop as well as the selection of the panel "Rest" you can interrupt the program and selection. Press again the button Rest/Stop, then return to the menu overview, menu level one.

15.1 Menu overview

On the first menu level you can select the desired cooking menu via the arrow keys.

Please confirm your selection with the Start button. You get to the menu level two, example: menu microwave.

15.2 Menu microwave

Please set the desired power level with the arrow keys. Confirm your selection with Start.

Set the desired time (0-95 minutes) with the arrow keys. Below the time display you see the previously selected power level.

Confirm your selection by Start. The chosen cooking program starts.

During the cooking process you see the selected settings.

Display	Watt	Power level		Function
900W	900	100 %	High	Quick cooking and heating
810W	810	90 %		Gentle cooking and heating
720W	720	80 %
630W	630	70 %	Medium high	Heating of small and delicate foods
540W	540	60 %
450W	450	50 %	Medium	Weak simmering
360W	360	40 %
270W	270	30 %	Medium-low/defrost-ing	Quick defrosting
180W	180	20 %		Gentle defrosting of delicate foods
90W	90	10 %	Low	Keeping warm
0W	Low			Keeping warm

15.3 Menu defrosting

Set the weight (100g - 2.300g) of the foods to be defrosted with the arrow keys.

Confirm your selection with Start. The selected cooking program starts.

The defrosting program stops after 2/3 of the time, so that you can stir the cooked product. Via Start you can continue the program.

15.4 Menu Lightwavegrill & Combination

Select the menu Lightwavegrill & Combination.

Select the desired submenu.

Example: Microwave 30% and grill 70%

Set the desired time with the arrow keys.

Confirm your selection with Start. The selected cooking program starts.

15.5 Menus Main menu/Microwave menu

Select the desired submenu.

Example: Microwave-menu

15.5.1 Menu (1) Rice

Preparation:

Fill 150 g rice into a dish or put a 150g-rice bag into a dish. Add some water according to the manufacturer's specification and put the dish into the device.

Confirm your selection with Start. Cooking time: 2 minutes.

15.5.2 Menu (2) fresh vegetables and menu (8) corn

Preparation:

You need 100g each of fresh vegetables/corn 2-3 tablespoons of water. Fill the vegetables in a dish and pour some water over the vegetables.

Set the desired weight via the arrow keys and confirm with Start.

The program stops after 2/3 of the time, so that you can stir the food. Via Start you can then continue the program.

15.5.3 Menu (3) Tagliatelle and menu (9) Tortellini

With this menu you can heat 500g boiled Tagliatelle/Tortellini.

Confirm with the selection Start.

Cooking time: 3 minutes.

15.5.4 Menu (4) Porridge

With this menu you can heat 190g of porridge. Please fill the porridge into a dish.

Confirm the selection with Start.

Cooking time: 45 seconds.

HINWEIS

Please stir well the porridge. Always check the temperature of the food, particularly if you heat food or liquids for babies.

15.5.5 Menu (5) Fish

With this menu you can heat 90g fish.

Confirm your selection with Start.

Cooking time: 3 minutes.

15.5.6 Menu (6) Currywurst, menu (7) ready meal and menu (10) Hot dog

With this menu you can heat ready meals (220g), Currywurst (ready meal 220g) or Hot dogs (ready meal 220g).

Confirm your selection with Start.

Cooking time: 3 minutes.

15.5.7 Menu (11) Heat beverages

With this menu you can reheat a beverage (220ml).

Confirm your selection with Start.

Cooking time: 30 seconds.

15.5.8 Menu (12) Hamburger

With this menu you can heat a Hamburger (ready meal 150g).

Confirm your selection with Start.

Cooking time: 2 minutes.

15.6Menu-Main menu/menu Lightwavegrill

15.6.1 Menu (1) -Bread roll (fresh dough)

With this menu you can bake 4-5 bread rolls (fresh dough). For this purpose please use the supplied grill.

Confirm your selection with Start.

The program stops after 2/3 of the time, so that you can turn the bread rolls. Via Start you can then continue the program.

Cooking time: 12 minutes.

15.6.2 Menu (2) roulade and menu (6) goulash

With this menu you can heat roulades or goulash (ready dish 460 g).

Confirm your selection with Start.

Cooking time: 3 minutes.

15.6.3 Menu (3) Duck classic

With this menu you can heat a ready dish duck classic (400 g).

Confirm your selection with Start.

Cooking time: 3 minutes.

15.6.4 Menu (4) Chicken sweet & sour

With this menu you can heat a ready dish chicken sweet & sour (375g).

Confirm your selection with Start.

Cooking time: 3:30 minutes.

15.6.5 Menu (5) Spare ribs

With this menu you can heat a ready dish spare ribs (750g).

Confirm your selection with Start.

Cooking time: 5:00 minutes.

15.7 Menus gentle cooking

15.7.1 Menu (1) Tofu

With this menu you can heat 100g-300g Tofu.

Set the desired weight via the arrow keys and confirm with Start.

15.7.2 Menu (2) Puree

With this menu you can heat 190 g puree.

Confirm your selection with Start.

Cooking time: 45 seconds.

15.7.3 Menu (3) Pasta

With this menu you can heat 500g pasta.

Confirm your selection with Start.

Cooking time: 2 minutes.

15.8 Menus Frozen food

The menus for frozen food work with a combination of 55% microwave and 45% Lightwavegrill.

15.8.1 Menu (1) Pizza

With this menu you can bake 335g frozen pizza.

Confirm your selection with Start.

Cooking time: 12 minutes.

15.8.2 Menu (2) American Pizza

With this menu you can bake 460g American-frozen pizza.

Confirm your selection with Start.

Cooking time: 14 minutes.

15.8.3 Menu (3) Lasagne

With this menu you can bake 400 g frozen Lasagne.

Confirm your selection with Start.

Cooking time: 11 minutes.

15.8.4 Menu (4) Goulash

With this menu you can cook 250 g frozen goulash.

Confirm your selection with Start.

Cooking time: 6 minutes.

15.9 MenusSoups

15.9.1 Menu (1) Canned soup (small) and menu (3) Cream soup

With this menu you can heat a small canned soup (400g) or a cream soup

(400 g). Please fill the soup into a dish.

Confirm your selection with Start.

Cooking time: 3 minutes.

15.9.2 Menu (2) Canned soup (big)

With this menu you can heat a big canned soup (800g). Please fill the

soup into a dish.

Confirm your selection with Start.

Cooking time: 5 minutes.

15.10 Menus Baby food

15.10.1 Menu (1) Warm up milk, Menu (2) Milk mash, Menu (3) Vegetable puree and Menu (4) carrot mash and Menu (5) semolina pudding

With this menu you can warm up 190g milk, milk mash, vegetable purée, carrot mash or semolina pudding.

Please fill the mash in a dish.

Confirm your selection with Start.

Cooking time: 45 seconds.

HINWEIS

Please shake the milk well. Stir the mash well. Always check the temperature of the food, particularly if you heat food or liquids for babies.

15.11 Neutralisation (of odors)

With this menu you can neutralise odors in the cooking chamber.

Confirm your selection with Start.

Time: 1 minute.

15.12 Sterilisation

With this menu you can sterilise dishes or baby bottles.

Example: Sterilisation Lightwavegrill

Confirm your selection with Start.

Time: 1 minute.

15.13 Clock/Timer

Setting clock

Press

start, until the hour display flashes.

Set the hour display via the arrow keys and confirm with Start.

Then set minutes display and confirm with Start.

Then confirm the panel, "return" with Start.

15.13.1 Setting Timer

15.13.1.1. Timer Microwave

Set the desired power with the arrow keys.

Confirm your selection with Start.

Set the desired time of the cooking process via the arrow keys. Confirm your selection with Start.

Set Start-time:

Set the hour display via the arrow keys and confirm with Start.

Then set the minutes display via the arrow keys and confirm with Start.

The Timer is running until the desired Start time has been reached.

15.13.1.2. Timer Lightwavegrill and Timer Combination

Set the desired time of the cooking process via the arrow keys. Confirm your selection with Start.

Set Start-time:

Set the hour display via the arrow keys and confirm with Start.

Then set the minutes display via the arrow keys and confirm with Start.

15.14 Menu Setup

15.14.1 Menu Brightness

Set the desired brightness via the arrow keys. Confirm your selection with Start.

15.14.2 Menu Background

Via the arrow keys you can select between blue and black background.

Confirm your selection with Start.

15.14.3 Menu factory settings

With this menu you can revert to factory settings.

Confirm your selection with Start.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

The oven must be cleaned and food residues must be removed at regular intervals. If the oven is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
Switch the oven off prior to cleaning it and unplug the plug from the wall power outlet.

VORSICHT Attention

The cooking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down.
- Clean the cooking chamber after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
- If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
Do not use any aggressive or abrasive cleaning agents or solvents.
Do not scrape off stubborn dirt with hard items.

16.2 Cleaning

Cooking chamber and inside of door

• Keep the cooking chamber of the oven clean. Wipe off any spattered or spilt food from the walls of the cooking chamber with a damp cloth.
  If the oven is excessively dirty, you can use a mild cleaning agent.
• Wipe the door, window and the door gaskets with a damp cloth, to remove any spatters and spilt food. Residues on the door gasket can mean that the door does not close properly any more, which will cause the microwaves to escape.
• Wipe off any steam, which has settled on the oven door, with a soft cloth. This may be the case if the device is used in an extremely damp environment and is normal.
• Smells can be removed from the oven by mixing a cup of water with the juice and the skin of a lemon, pouring this into a deep microwave-proof bowl and allowing it to cook in Microwave mode for five minutes. Then, dry off the oven thoroughly with a soft cloth.
• After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.

Front of device and operating panel

• Clean the front of the device and the operating panel with a soft, slightly damp cloth.
• Please bear in mind that the operating panel does not get wet. Use a soft, damp cloth for cleaning.

HINWEIS Please note

• Leave the oven door open to prevent the device from being re-started accidentally.
  Exterior housing
• Clean the exterior surfaces of the device with a damp cloth.
  Grill and oven bottom

• The grill has to be removed and cleaned regularly. Clean the grill with warm soap solution or in the dishwasher.

• Wipe the oven bottom with a damp cloth. In the event of hard-to-remove dirt, a mild cleaning agent may be used.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Safety notices

A VORSICHT Attention

• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
• Improperly performed repairs can cause considerable dangers for the user and damages to the device.

17.2 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults.

Error	Possible cause	Action
The selected program will not start.	Device door is not closed Close device door
	Power plug is not plugged in	Plug in mains plug!
	Fuse is not activated	Activate fuse
Food is not sufficiently defrosted, warmed up or cooked after preset time has elapsed.	Incorrectly selected time or power level	Re-set time and power level Repeat process
The device functions but the cooking chamber lighting does not work.	Defective cooking chamber light.	Have Service dept repair cooking chamber light.
Abnormal noises can be heard during operation of microwave.	Food is covered with aluminium foil	Remove aluminium foil
	The cookware contains metal and sparks are being created within the cooking chamber	Observe information on cookware!
The time in the display field is not correct.	Power failure Re-set time

A VORSICHT Attention

If you are unable to solve the problem with the steps shown above, please contact Customer Service.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
• Ensure that your old device is stored safely away from children until it is taken away.

19 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels.

Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery.

All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

20 Technical Data

Device	Microwave and Lightwavegrill
Name	MLG 23 Touch black
Model	G90W23MSP-WD
Item No.: 3030
Mains data	230-240 V, 50 Hz
Power consumption	1400 W (Microwave)
	850 W (Lightwavegrill)
Standby < 1 W	-
Nominal output of microwave	900 W
Operating frequency 2450 MHz
External measurements (H x W x D): 310 x 508 x 376 mm
Cooking chamber dimensions (H x W x D):	214 x 332 x 346 mm
Oven capacity	23 litre
Net weight	16,7 kg

23.7 Raccordement electrique

58.5 Menu's hoofdmenu's/magnetronmenu's

58.6.5 Menu (5) spareribs

58.8.2 Menu (2) American pizza

58.10 Menu's babyvoeding

58.10.1 Menu (1) melk opwarmen, menu (2) melkpap en menu, menu (3) groenteppuree en menu (4) worteltjespuree (5) gerstepap
