USER MANUAL FBM3501 FOSCAM

Wireless Video Baby Monitor

User's Manual Manuel de l'utilisateur Manual del Usuario Bedienungsanleitung Manuale d'uso

Line drawing of a digital tablet device with control panel and buttons (no text or symbols)

Line drawing of a smart home control device with spherical head and antenna (no text or symbols)

Diagram showing a power switch operation with labeled components including power button, switch, and power outlet

Fig. 3

2 Monitor Setup/Installation du moniteur/Configuración del monitor /Monitoreinrichtung/Installazione del monitor

2.1 Power Supply/Alimentation/Fuente de alimentación/Stromversorgung/Alimentazione

Loading the Battery/Installation de la batterie/Insertar las pilas /Akku einlegen/Inserimento delle batterie

Diagram illustrating the step-by-step installation of a device, showing steps from battery to screen control and display.

Using AC Power/Utilisation de l'alimentation secteur /Uso de la alimentación de CA/Netzstrom verwenden /Uso dell'alimentazione CA

Fig. 5 ① ② ③

Out of Range

2.2 Monitor Remote Control Function Fonction télécommande du moniteur Función del mando a distancia del monitor Monitorfernbedienungsfunktion Funzioni del telecomando del monitor

Función del mando a distancia del monitor Monitorfernbedienungsfunktion Funzioni del telecomando del monitor Tilt Pan Fig. 6

2.3 Zoom in Function / Fonction de zoom / Función de zoom de ampliación / Vergrößern-Funktion / Funzione ingrandimento

Fig. 7

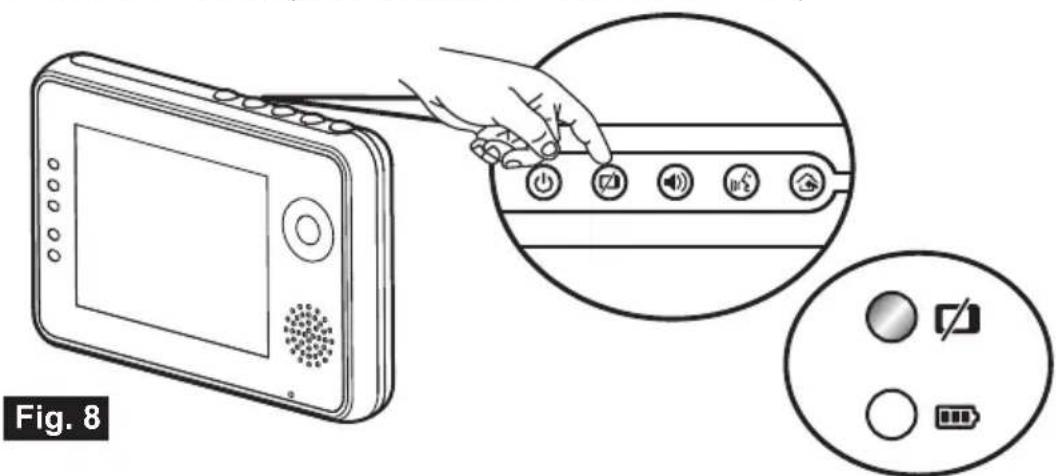

2.4 VOX (Voice-Operated Transmission) Function Fonction TCV (Transmission de Commande Vocale) Función VOX (transmisión de activación por voz) VOX-Funktion (geräuschaktivierte Übertragung) Funzione VOX (trasmissione attivata a voce)

Fig. 8

2.5 Volume Setting / Réglage du volume

/ Configuración del volumen
/Lautstärkeeinstellung / Impostazione del volume

Fig. 9

Fig. 9

Diagram showing a hand interacting with a device panel and its screen, with Chinese UI labels visible.

Fig. 10

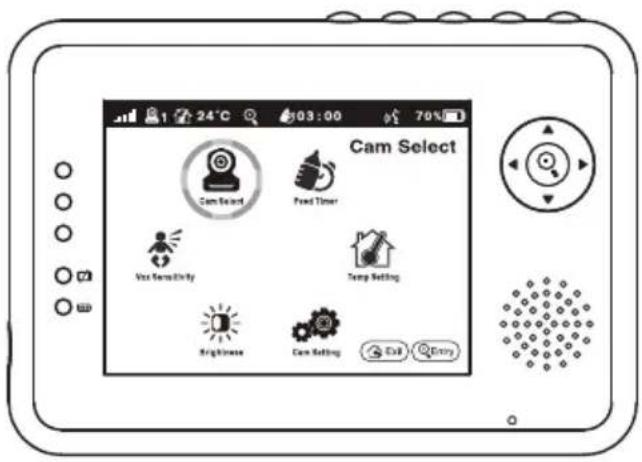

3 Menu Options/Options du menu/Opciones del menú /Menüoptionen/Opzioni del menu

Cam Select Cam Select Feed Timer Vcc Sensitivity Temp Setting Brightness Cam Setting Call Entry

Fig. 11

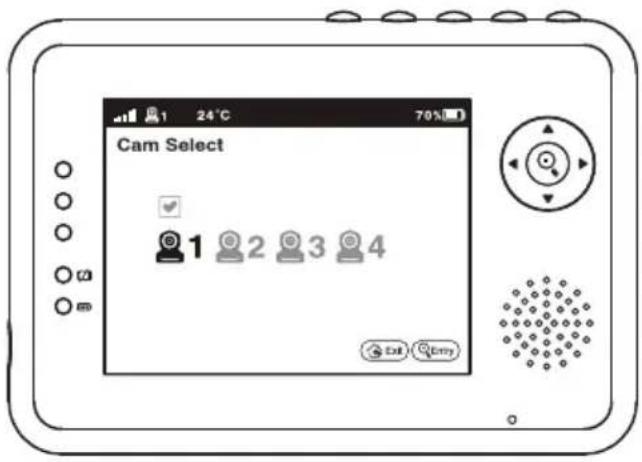

3.1 Camera Selection / Sélection de la caméra / Selección de la cámara / Kameraauswahl / Selezione telecamera

Cam Select 1 2 3 4 Exit Entry

Fig. 12

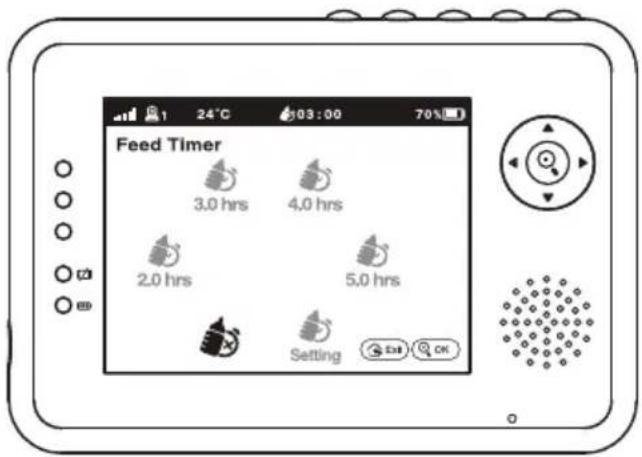

3.2 Feed Timer Setting / Paramètre du minuteur d'alimentation / Configuración del temporizador de fuentes / Fütterungstimer-Einstellung / Impostazione timer alimentazione

Feed Timer 3.0 hrs 4.0 hrs 2.0 hrs 5.0 hrs Setting Edit OK

Fig. 13

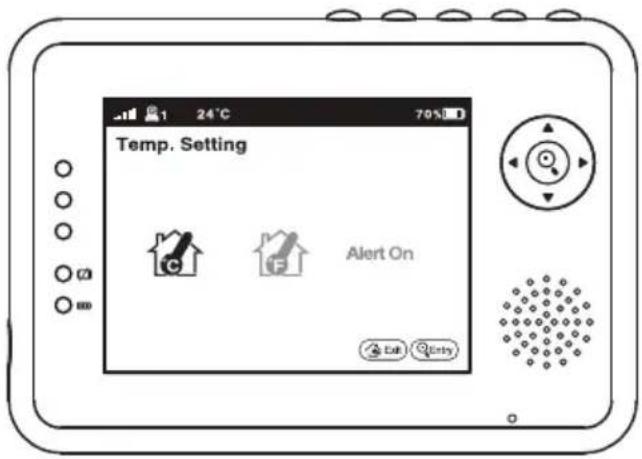

3.3 Temperature Setting / Réglage de la température / Configuración de la temperatura / Temperatureinstellung / Impostazione temperatura

Temp. Setting Alert On Edit Entry

Fig. 14

3.4 Camera Setting / Paramètre caméra / Configuración de la cámara / Kameraeinstellung / Impostazione videocamera

Cam Setting 1 2 3 4

Fig. 15

3.5 Brightness Setting / Réglage de la luminosité / Configuración del brillo / Helligkeitseinstellung / Impostazione della luminosità

Brightness 24°C 70%

Fig. 16

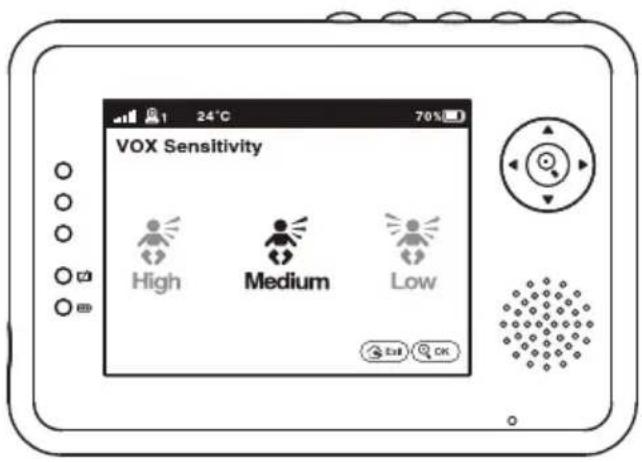

3.6 VOX Sensitivity / Sensibilité VOX / Sensibilidad de VOX / VOX-Empfindlichkeit / Sensibilità VOX

VOX Sensitivity High Medium Low Edit OK

Fig. 17

4 Status Information/Informations de statut /Información de estado Statusinformationen /Informazioni di stato

2 3 4 5 6 7 8 1 1 24°C 03:00 70% Cam Select Cam Select Feed Timer Vas Sensitivity Tang Setting Brightness Cam Setting Exit Entry

Fig. 18

Package Contents

• One Camera
  One Monitor
• Two Power Adapters
  • Battery for Monitor (3.7V 1100mAh Li-ion)
• Two Cable Clips
  • One Screw and One Wall Anchor
  • This User's Manual

Product Layout

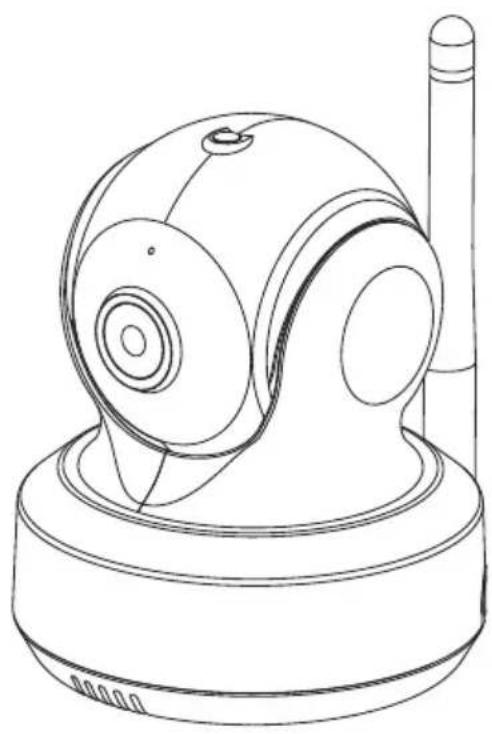

Camera (Fig. 1)

1. Light sensor
2. Microphone
3. Lens
4. Infrared LEDs
5. Speaker
6. Power adapter plug
7. Power/Pairing button
8. Antenna
9. Temperature sensor
10. Power indicator LED

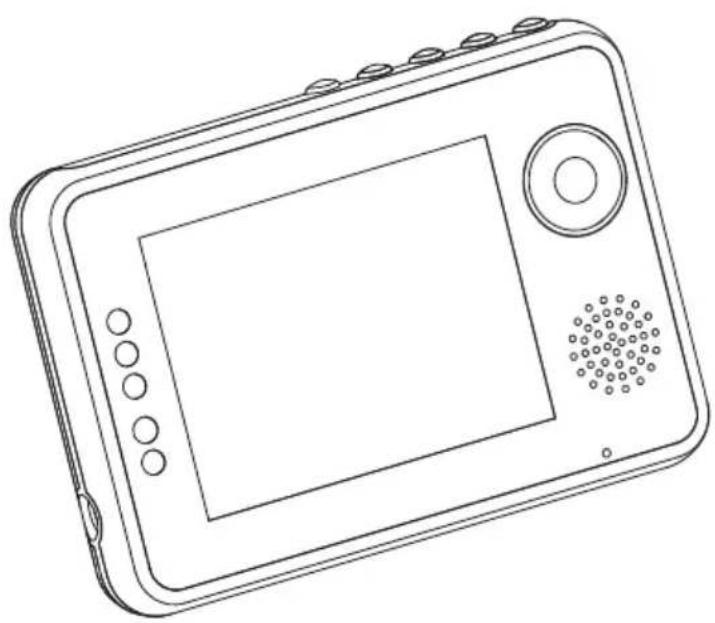

Monitor (Fig. 2)

1. LCD screen
2. Left button
3. Up button
4. Zoom/OK button
5. Right button
6. Down button
7. Speaker
8. Microphone
9. Power indicator LED
10. VOX indicator LED
11. Volume indicator LEDs
12. Power button
13. VOX button
14. Volume setup button
15. Talkback button
16. Menu button
17. Battery compartment
18. Holder
19. Power adapter plug

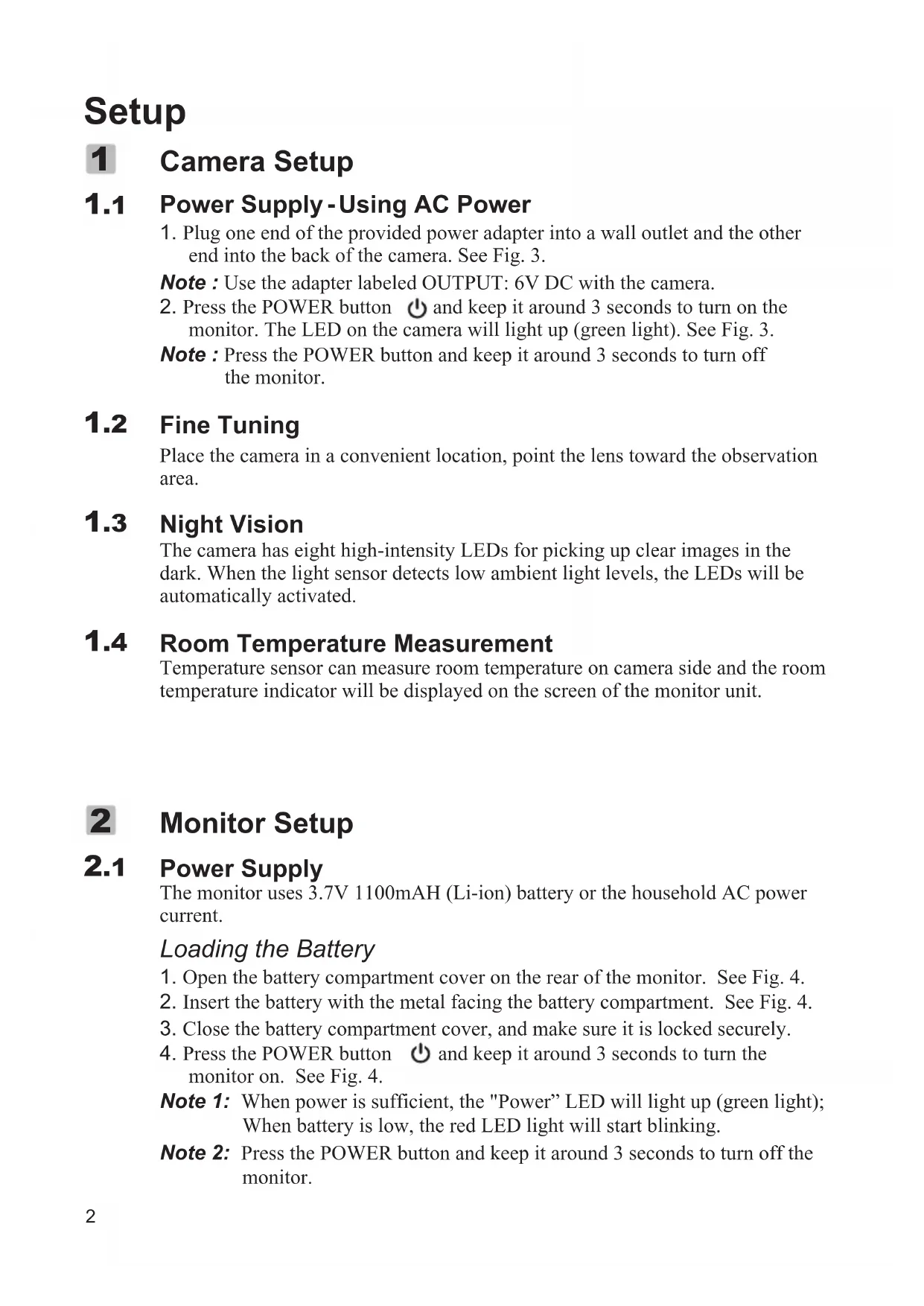

Setup

1 Camera Setup

1.1 Power Supply - Using AC Power

1. Plug one end of the provided power adapter into a wall outlet and the other end into the back of the camera. See Fig. 3.

Note : Use the adapter labeled OUTPUT: 6V DC with the camera.

1. Press the POWER button ⏻ and keep it around 3 seconds to turn on the monitor. The LED on the camera will light up (green light). See Fig. 3.

Note : Press the POWER button and keep it around 3 seconds to turn off the monitor.

1.2 Fine Tuning

Place the camera in a convenient location, point the lens toward the observation area.

1.3 Night Vision

The camera has eight high-intensity LEDs for picking up clear images in the dark. When the light sensor detects low ambient light levels, the LEDs will be automatically activated.

1.4 Room Temperature Measurement

Temperature sensor can measure room temperature on camera side and the room temperature indicator will be displayed on the screen of the monitor unit.

2 Monitor Setup

2.1 Power Supply

The monitor uses 3.7V 1100mAh (Li-ion) battery or the household AC power current.

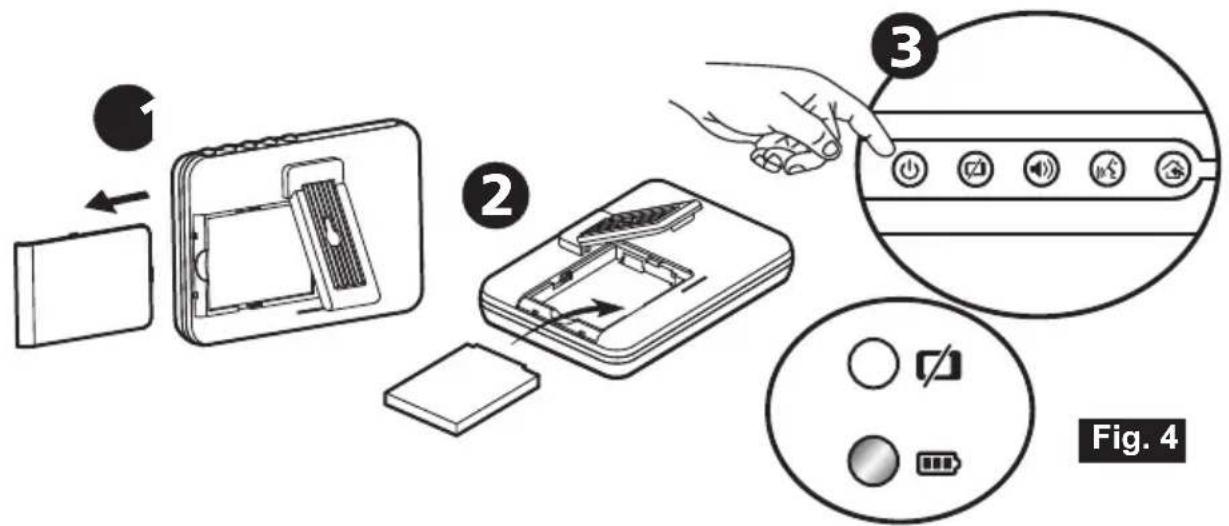

Loading the Battery

1. Open the battery compartment cover on the rear of the monitor. See Fig. 4.
2. Insert the battery with the metal facing the battery compartment. See Fig. 4.
3. Close the battery compartment cover, and make sure it is locked securely.
4. Press the POWER button ⏻ and keep it around 3 seconds to turn the monitor on. See Fig. 4.

Note 1: When power is sufficient, the "Power" LED will light up (green light); When battery is low, the red LED light will start blinking.

Note 2: Press the POWER button and keep it around 3 seconds to turn off the monitor.

Using AC Power

1. Plug one end of the provided power adapter into a wall outlet and the other end into the monitor. See Fig. 5.

Note : Use the adapter labeled OUTPUT: 6V DC with the monitor.

1. Press the POWER button ⏻ and keep it around 3 seconds to turn the monitor on. See Fig. 5.

Note 1: When power on the monitor, "Power" LED will light up (green light).

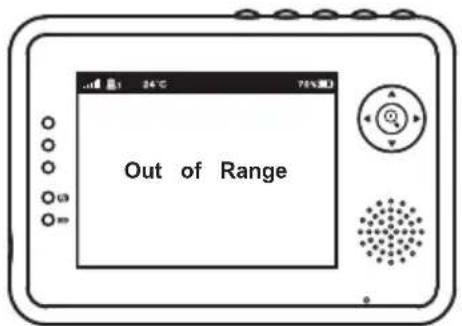

Note 2: "Out of Range" will be displayed on the LCD screen if the monitor exceeds the range (unlink).

Note 3: Press the POWER button and keep it around 3 seconds to turn off the monitor.

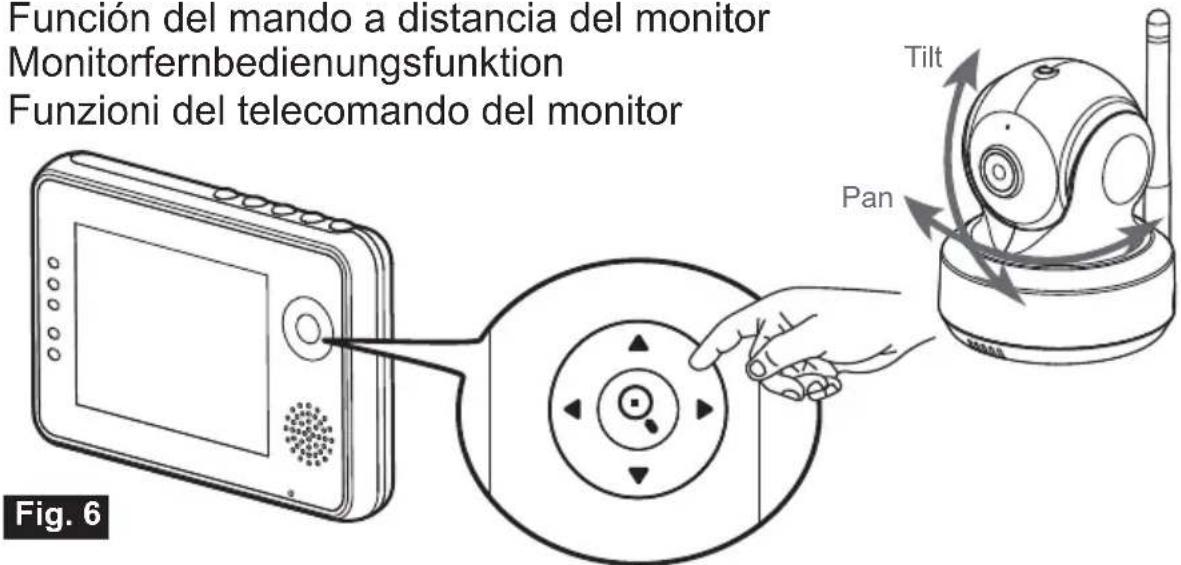

2.2 Monitor Remote Control Function

The monitor can control the movement of the camera. The camera head has the ability to rotate up, down, right and left. Press the up ▲ or down ▼ buttons on monitor to move the camera up or down. Press the left ◀ or right ▶ buttons on monitor to move the camera left or to the right. See Fig. 6.

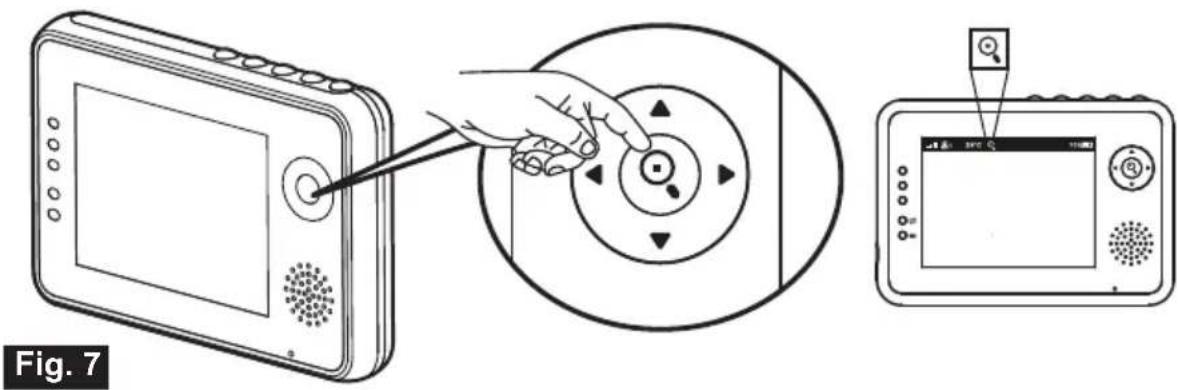

2.3 Zoom in Function

Press the Zoom/OK button ⚙️ on monitor once for a 2X zoom of image and press again to change back to normal view. See Fig. 7.

2.4 VOX (Voice-Operated Transmission) function

1. Press the VOX button ☑ on the monitor unit to enable the VOX function. This will turn OFF the screen but the VOX LED ☑ will remain ON (green) to remind you the VOX function is enabled. See Fig. 8.

2. When the sound from the camera reaches the setting level (See Fig. 17), the screen will turn ON automatically. It will turn OFF again after 30 seconds. If the sound from the camera still reaches the setting level during the 30 seconds, it will extend 30 seconds to turn OFF the screen from the last voice event.

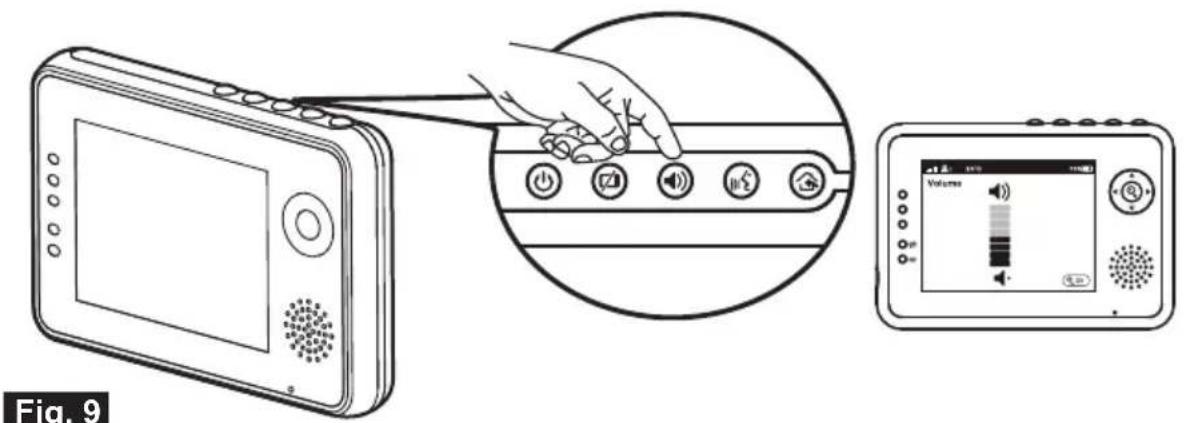

2.5 Volume Setting

1. Press the volume setup button 🔊 to enter volume setup. See Fig. 9.

2. Press up ▲ or down ▼ buttons to adjust volume level, and then press ok button ⊙ to confirm the setting. Fig. 9.

2.6 Talkback Function

Press the talkback button to speak through the camera unit, and the icon will then be displayed on the screen. See Fig. 10.

3 Menu Options

1. Press the menu button ⏻ on the monitor unit to display the main menu on the screen. See Fig. 11.
2. Use the left ◀ and right ▶ buttons to navigate through the menu.
3. Press the Zoom/OK ⏻ button to confirm a setting.
4. The main menu contains 6 submenus.

3.1 Camera Selection (Camera Select)

In this submenu you can switch between multiple cameras if the cameras have been paired. See Fig. 12.

3.2 Feed Timer Setting (Feed Timer)

In this submenu you can set up feed timer to remind you the timing. See Fig. 13.

3.3 Temperature Setting (Temp. Setting)

1. In this submenu you can choose the temperature unit between degrees Celsius or degrees Fahrenheit. See Fig. 14.
2. You can set the temperature range of the temperature alert. If you select "Alert On" to enable the temperature alert and the temperature is outside the range, a warning sound will be emitted from the monitor unit. See Fig. 14.

3.4 Camera Setting (Camera Setting)

The system comes with a camera unit that has already been paired with the monitor unit. The "Cam Setting" function gives each baby unit a separate channel on the monitor unit. This is necessary for configuring additional camera units.

1. If you want to add a new camera, please choose which number of cameras you want to add, and then select add camera icon 🔒 and press the 🔒 button to confirm your selection (See Fig. 15).

The screen will show "Press the pairing button on the Baby unit", and then please also press and hold the power button less than 1 second on the camera side at the same time.

1. If you want to delete a paired camera, please choose which number of cameras you want to delete, and then select delete camera icon 📋 to delete the camera (See Fig. 15).

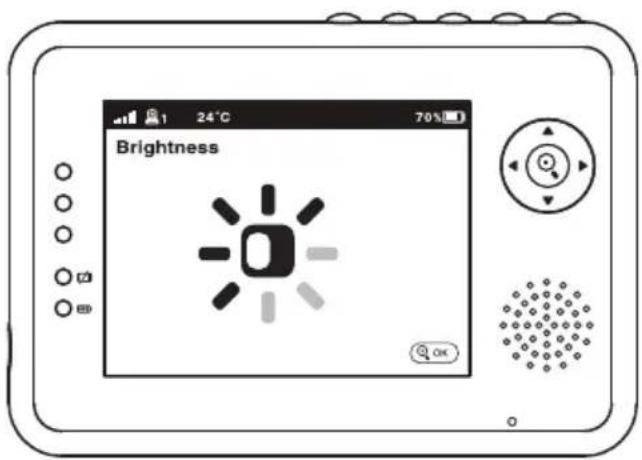

3.5 Brightness Setting (Brightness)

In this submenu you can adjust brightness of the screen. See Fig. 16

3.6 VOX Sensitivity (VOX Sensitivity)

This submenu lets you choose the VOX (voice activation) sensitivity level.

When the level set to high, the screen will turn on by lower sounds.

See Fig. 17.

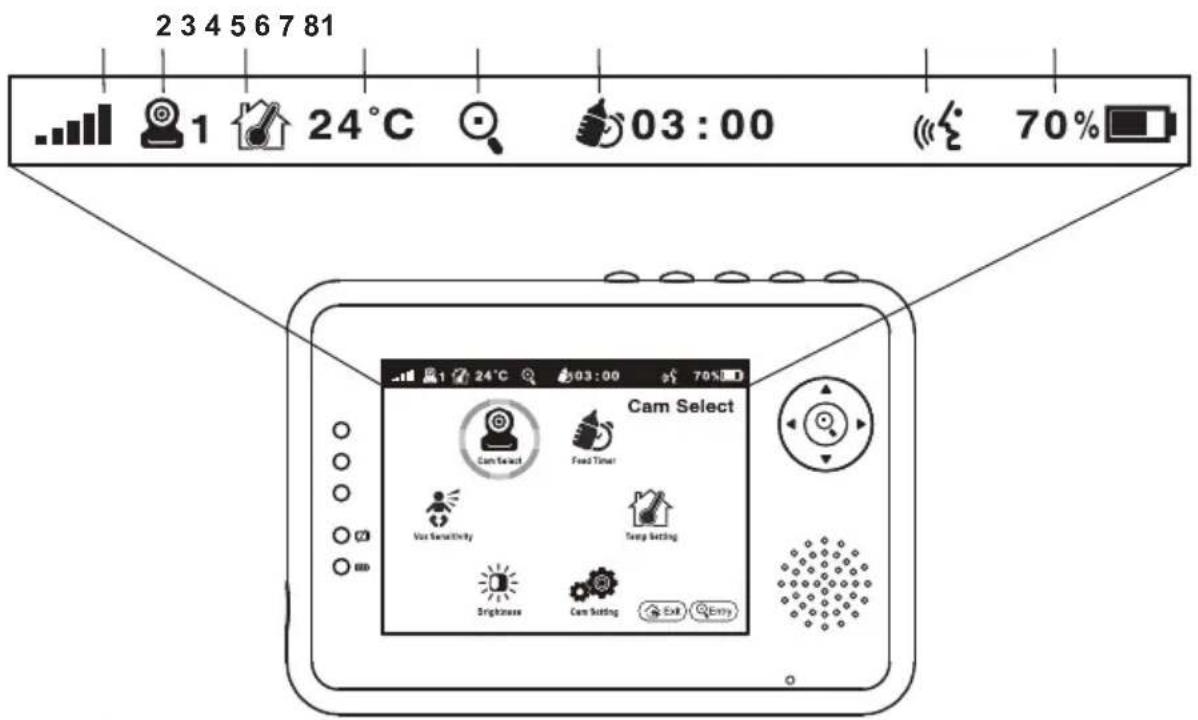

4 Status Information

The status bar will be displayed on the top of the screen. See Fig. 18.

1. Signal strength indicator
2. Camera number indicator
3. Temperature alert on/off indicator
4. Room temperature indicator
5. Zoom in indicator
6. Feed timer
7. Talkback indicator
8. Battery status/Charging indicator

Troubleshooting

You don't getting any signal at all

• Make sure the camera and the monitor are turned on.
• Make sure the power plugs are pushed all the way in.

If the signal is poor, or there is interference

• If there is a microwave oven in use in the path between the camera and monitor, remove the microwave oven or turn it off.
  • Make sure the camera and the monitor are within range of each other (range of approximately 500 feet; 150 meters in a clear line of sight).
• If the power LED is on but only voice signal input is detected, the monitor can be in voice-activated mode. Press the VOX button to turn on the screen.

Care and Maintenance

• Keep all parts and accessories out of children's reach.
• Fingerprints or dirt on the lens surface can adversely affect camera performances. Avoid touching the lens surface with your fingers.
• Should the lens become dirty, use a blower to blow off dirt and dust, or a soft, dry cloth to wipe off the lens.
• Keep the camera dry. Precipitation, humidity, and other liquids contain minerals will corrode electronic circuits.
  • Do not use or store in dusty, dirty areas.
• Do not store in hot areas. High temperatures can shorten the life of electronic devices and warp or melt certain plastics.
• Do not store in very cold areas. When the system warms up (to its normal temperature), moisture can form inside the case, which may damage electronic circuit boards.
• Do not attempt to open the case. Non-expert handling of the device may damage the system.
• Avoid dropping or strong shocks.
• Operate this product using only with the power supply included or provided as an accessory.
• Do not overload electrical outlets or extension cords this can result in fire or electric shocks.
• Do remember that you are using public airwaves when you use the system and that sound and video may be broadcast to other 2.4 GHz receiving devices. Conversations, even from rooms near the camera, may be broadcast. To protect the privacy of your home, always turn the camera off when not in use.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution

• To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.
• This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
• Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

Following the safety tips

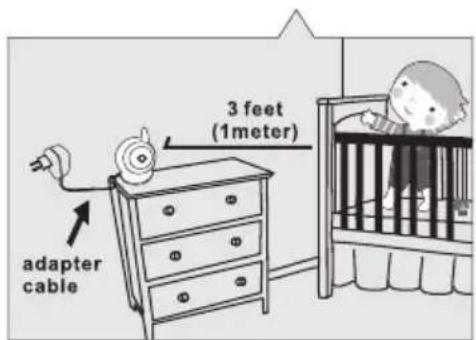

To prevent deaths and injuries associated with baby monitor cords :

- Make sure the baby unit and AC adapter cords are always out of reach of the baby at least 3 feet (1 meter) away.

Not important even if your baby is not yet standing or mobile.

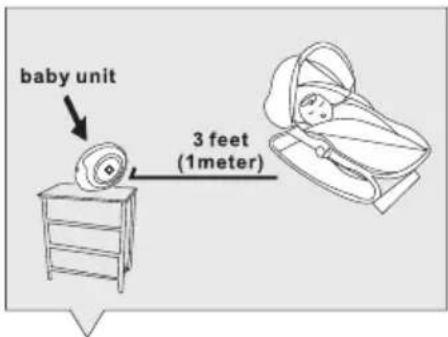

3 feet (1meter) adapter cable

baby unit 3 feet (1meter)

• Use a wireless baby monitor to avoid risk of strangulation.
- Never use extension cords with AC adapters. Only use the AC adapters provided.

Specifications

Camera

Frequency

Antenna

Transmission distance

Modulation

Image Sensor

Lens

IR LED

Dimensions

Weight

Power

Operating temperature

2.4 GHz

Dipole antenna

150 M (Line of Sight)

GFSK, FHSS

CMOS image sensor

f 3.0mm, F 2.4

8 pcs

8.5(W) x 11(H) x 10(D) cm

223g

DC 6V, 800mA

0^ 40^ (32°F \~ 104°F)

Monitor

Frequency

Antenna

Modulation

Display

Display colors

Brightness Control

VOX

Dimensions

Weight

Power

Operating temperature

2.4 GHz

Monopole antenna

GFSK, FHSS

3.5" LCD panel

Full-color

8 levels

Voice activation

12(W) x 8.3(H) x 2.6(D) cm

154g

DC 6V, 800mA or Li battery

0^ 40^ (32°F \~ 104°F)

Specifications subject to change without notice

This device is for indoor use only

This item is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
