USER MANUAL HR4366 PHILIPS

• Keep pages 3 and 46 open when reading these operating instructions. Français Page 7

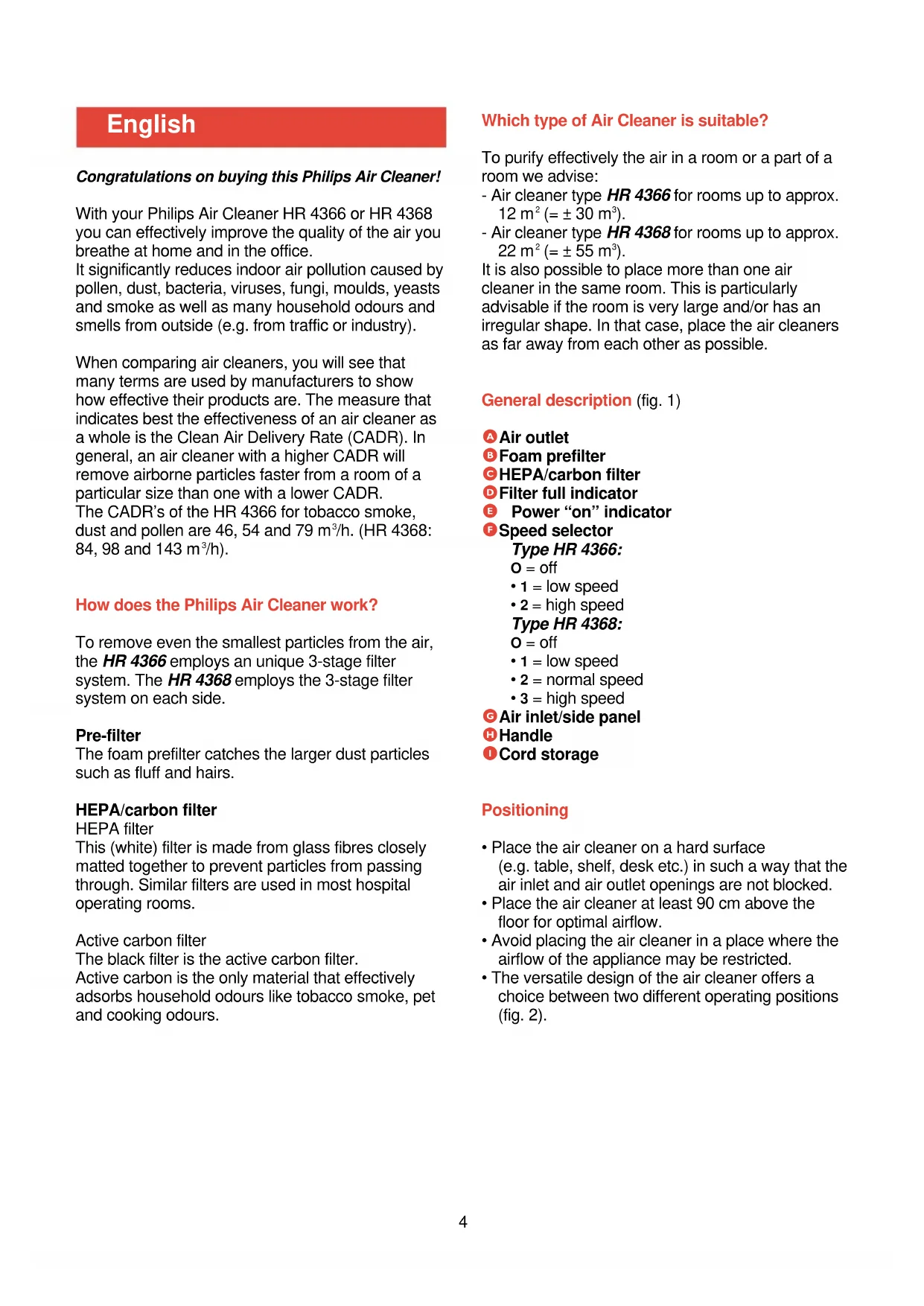

3Congratulations on buying this Philips Air Cleaner! With your Philips Air Cleaner HR 4366 or HR 4368 you can effectively improve the quality of the air you breathe at home and in the office. It significantly reduces indoor air pollution caused by pollen, dust, bacteria, viruses, fungi, moulds, yeasts and smoke as well as many household odours and smells from outside (e.g. from traffic or industry). When comparing air cleaners, you will see that many terms are used by manufacturers to show how effective their products are. The measure that indicates best the effectiveness of an air cleaner as a whole is the Clean Air Delivery Rate (CADR). In general, an air cleaner with a higher CADR will remove airborne particles faster from a room of a particular size than one with a lower CADR. The CADR’s of the HR 4366 for tobacco smoke, dust and pollen are 46, 54 and 79 m

/h). How does the Philips Air Cleaner work? To remove even the smallest particles from the air, the HR 4366 employs an unique 3-stage filter system. The HR 4368 employs the 3-stage filter system on each side. Pre-filter The foam prefilter catches the larger dust particles such as fluff and hairs. HEPA/carbon filter HEPA filter This (white) filter is made from glass fibres closely matted together to prevent particles from passing through. Similar filters are used in most hospital operating rooms. Active carbon filter The black filter is the active carbon filter. Active carbon is the only material that effectively adsorbs household odours like tobacco smoke, pet and cooking odours.

English Which type of Air Cleaner is suitable? To purify effectively the air in a room or a part of a room we advise: - Air cleaner type HR 4366 for rooms up to approx. 12 m

- Air cleaner type HR 4368 for rooms up to approx. 22 m

It is also possible to place more than one air cleaner in the same room. This is particularly advisable if the room is very large and/or has an irregular shape. In that case, place the air cleaners as far away from each other as possible. General description (fig. 1) A Air outlet B Foam prefilter C HEPA/carbon filter D Filter full indicator E Power “on” indicator F Speed selector Type HR 4366: O = off

• 2 = high speed Type HR 4368: O = off

• 3 = high speed G Air inlet/side panel H Handle I Cord storage Positioning

• Place the air cleaner on a hard surface (e.g. table, shelf, desk etc.) in such a way that the air inlet and air outlet openings are not blocked.

• Place the air cleaner at least 90 cm above the floor for optimal airflow.

• Avoid placing the air cleaner in a place where the airflow of the appliance may be restricted.

• The versatile design of the air cleaner offers a choice between two different operating positions (fig. 2).5 Important

• Read these instructions in conjunction with the illustrations before using the appliance.

• Do not immerse the appliance in water or any other liquid.

• Do not use the appliance outdoors or in a humid environment.

• The appliance influences the air circulation in the room. In general, it is not advisable to use it near an open fire.

• Always unplug the appliance before you remove any parts, before you start cleaning it and when the appliance is not used.

• The appliance can be cleaned with a damp cloth and some detergent, if necessary.

• Do not use this air cleaner (or any motor-driven household appliances) in the presence of oxygen or any flammable material or gases.

• Use only the original Philips filters.

• Do not obstruct the air inlet and air outlet openings.

• Do not place the air cleaner on a soft surface such as a bed or couch.

• Do not place the air cleaner next to a humidifier.

• Do not place the air cleaner within 1.5 m of a computer.

• Keep the mains cord away from heated surfaces.

• If the mains cord of this appliance is damaged, it must only be replaced by Philips or its service representative, as special tools and/or parts are required.

• Save these instructions for future reference. How to use

• Put the mains plug in the socket.

• Set the speed selector (F) to the desired setting. The power “on” Indicator (E) will light up to indicate that the air cleaner is working (fig. 3). Type HR 4366:

• 1 = low quiet air cleaning

• 2 = high high-speed air cleaning Type HR 4368:

• 1 = low quiet air cleaning

• 2 = normal quiet continuous air cleaning

• 3 = high high-speed air cleaning

• For quick air cleaning, set the speed control to the high-speed setting. After approximately half an hour, set the switch to a lower speed setting.

• To maintain clean, fresh air in your room all the time, it is best to run the appliance continuously at the low or normal setting.

• For nighttime use, set the air cleaner to the low- speed (• 1) setting for quiet air cleaning. When to clean / replace the filters

• Remove and clean the foam prefilter at least every two months.

• Remove and replace the HEPA/carbon filter at least every six months or when the colour of the HEPA/carbon filter matches that of box 4 of the filter full indicator.

• To replace your HEPA/carbon filter on time, regularly check the colour against the filter full indicator (fig. 4). The four coloured boxes indicate: box 1: filter is new. box 2/3: used filter, can still be used box 4: filter is full and needs to be replaced.

• Check the filters right away if the appliance becomes noisier. Clean the prefilter and/or replace the HEPA/carbon filter if necessary.

• The HEPA/carbon filter in your air cleaner should remain effective for approximately 6 months when used continuously.

• The life of the filter is affected by the frequency of use and the concentration of pollutants in the air.

• New HEPA/carbon filters are available from your dealer under number HR 4990 (single pack).6 How to remove the filters - Set the speed selector to position O (“off”). - Remove the mains plug from the wall socket. - Remove the side panel by lifting and pulling it outwards (fig. 5). - Remove the foam prefilter by gently lifting it along the bottom edge and pulling it away from the side panel. (fig. 6). - To remove the HEPA/carbon filter, hold the filter by its frame and pull it straight out (fig. 7). (Type HR 4368: remove the HEPA/carbon filters on both sides of the appliance). How to clean the filters - Wash the foam prefilter thoroughly in cold tap water to remove dirt and odour (fig. 8). - Allow the filter to air-dry thoroughly (fig. 9) before you reassemble it. (Type HR 4368: clean the foam prefilters on both sides of the appliance). NOTE: only the foam prefilter is washable and reusable, the HEPA/carbon filter is not. How to change the filter - Discard the old HEPA/carbon filter with normal household waste. - Before replacing the HEPA/carbon filter, clean the receptacle area with a clean, soft cloth. - Remove the new filter from its plastic bag and insert it into the air cleaner with the white pleated HEPA material facing you. Push the filter in firmly until it rests flush in the filter receptacle area. - Replace the prefilter only when it is completely dry. - Wipe the screened side panel with a soft, clean cloth. - Put the mains plug back into the wall socket. - The appliance is ready for use again. (Type HR 4368: change the HEPA/carbon filter on both sides of the appliance). HR 4366 HR 4368 Power consumption 40 Watt 44 Watt Filter system: - Pre-filter 12 - HEPA filter 12 - Active carbon filter 12 HEPA/carbon filter life time 6 months 6 months Number of replacement 12 filters (HR 4990) needed Suiteable room/area size 12m
