USER MANUAL PA 20001 M SIEMENS

Instructions for Use

Mode d'emploi

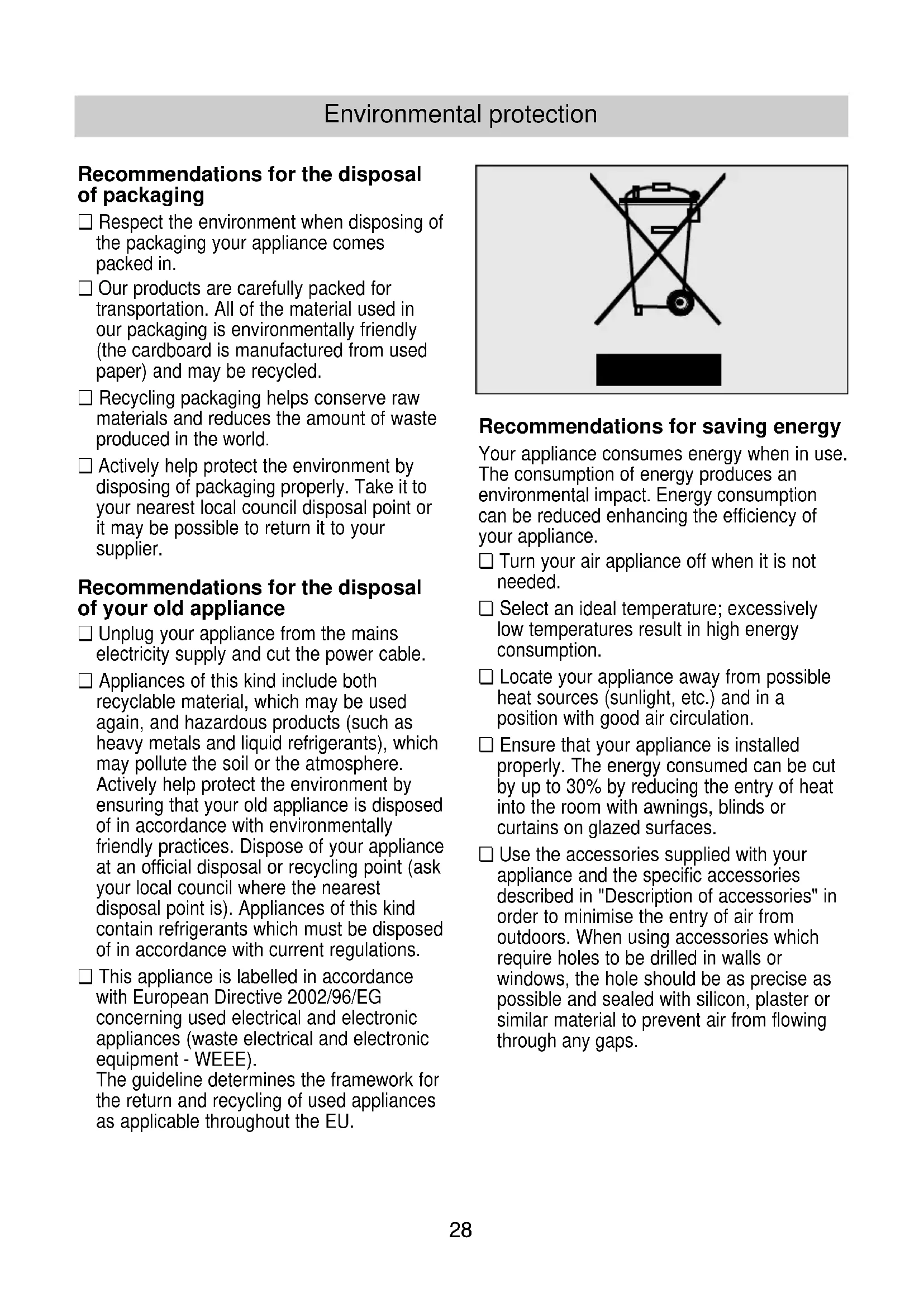

Environmental protection

Recommendations for the disposal of packaging. 28

Recommendations for the disposal of your old appliance.....28

Recommendations for saving energy 28

Important Information

Before connecting your appliance 29

Your new appliance

Description of the appliance 30

Control panel. 31

Description of accessories 32

Requirements for use

Requirements for use. 32

Navigation

"Up" and "down" keys. 33

+^ and - keys. 33

Instructions for Use

Preparing the appliance before use. 34

Turning the appliance on and off 36

Selecting the operation function 36

Cooling. 36

Dehumidification 37

Air purification. 38

Selecting the temperature 38

Selecting the speed 38

Side fins. 39

Setting the clock / Programming the timer. 39

Cleaning, Transportation and Maintenance

Cleaning the appliance. 43

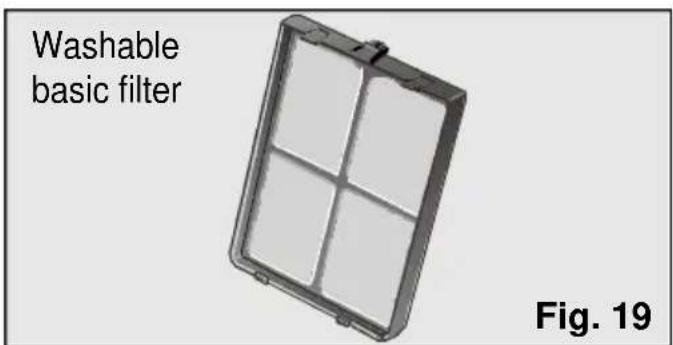

Cleaning and changing the purifying filters. 43

Transportation requirements. 45

Storage requirements 45

Prior to use at change of season. 45

Things to check before calling the Technical Service

General operation. 46

Noise. 46

Technical Service / Warranty /

Technical Information 47

Recommendations for the disposal of packaging

Respect the environment when disposing of the packaging your appliance comes packed in.
Our products are carefully packed for transportation. All of the material used in our packaging is environmentally friendly (the cardboard is manufactured from used paper) and may be recycled.
Recycling packaging helps conserve raw materials and reduces the amount of waste produced in the world.
- Actively help protect the environment by disposing of packaging properly. Take it to your nearest local council disposal point or it may be possible to return it to your supplier.

Recommendations for the disposal of your old appliance

Unplug your appliance from the mains electricity supply and cut the power cable.
□ Appliances of this kind include both recyclable material, which may be used again, and hazardous products (such as heavy metals and liquid refrigerants), which may pollute the soil or the atmosphere. Actively help protect the environment by ensuring that your old appliance is disposed of in accordance with environmentally friendly practices. Dispose of your appliance at an official disposal or recycling point (ask your local council where the nearest disposal point is). Appliances of this kind contain refrigerants which must be disposed of in accordance with current regulations.
This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Recommendations for saving energy

Your appliance consumes energy when in use. The consumption of energy produces an environmental impact. Energy consumption can be reduced enhancing the efficiency of your appliance.

Turn your air appliance off when it is not needed.
- Select an ideal temperature; excessively low temperatures result in high energy consumption.
- Locate your appliance away from possible heat sources (sunlight, etc.) and in a position with good air circulation.
- Ensure that your appliance is installed properly. The energy consumed can be cut by up to 30% by reducing the entry of heat into the room with awnings, blinds or curtains on glazed surfaces.
Use the accessories supplied with your appliance and the specific accessories described in "Description of accessories" in order to minimise the entry of air from outdoors. When using accessories which require holes to be drilled in walls or windows, the hole should be as precise as possible and sealed with silicon, plaster or similar material to prevent air from flowing through any gaps.

Environmental protection

It is recommended that you follow the manufacturer's instructions concerning the air expulsion tube (see "Preparing the appliance before use") in order to prevent efficiency loss and unnecessary energy consumption.
- Avoid sharp bends on the air expulsion tube and do not lengthen it more than necessary.
- When expelling hot air through sliding windows, install the accessory which prevents hot air entering the room from outdoors and enhances efficiency.
Make sure that the diffusion duct is positioned in such a way that the window can be closed as far as possible in order to prevent air from outdoors entering the room.

Check that the sleeves (collection and diffusion) are correctly joined to the air expulsion tube. See "Ways of releasing air outdoors".
Make sure that the air intakes and outlets are not obstructed. Keep them clean and free of dirt, dust and foreign objects.
Make sure that the filters fitted on your appliance are clean and installed properly (see "Cleaning and Maintenance").
In the summer,ventilate the building when the air outdoors is at its coolest (early morning, night).

Important Information

Before connecting your appliance

• Read the instructions book before using the appliance for the first time. It contains important information concerning not only how to use the appliance, but also maintenance and personal safety.
• Keep this instructions book. It may be needed by another user at a later date.
  Do not use the appliance when damaged.
• Your appliance should be assembled and connected to the mains electricity supply in accordance with the assembly instructions and current regulations. You may lose your warranty if you fail to observe these instructions.
  Our appliances are manufactured in accordance with current safety regulations. Only technicians instructed in these matters are authorised to repair them. Your safety is at stake.

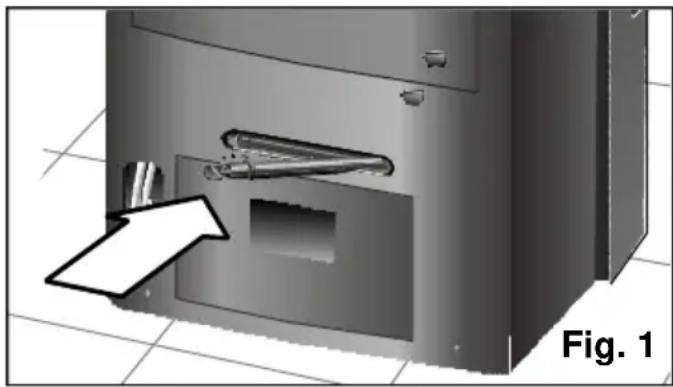

Make sure that the drainage plug is fully inserted. It may have come loose during transportation, Fig. 1.

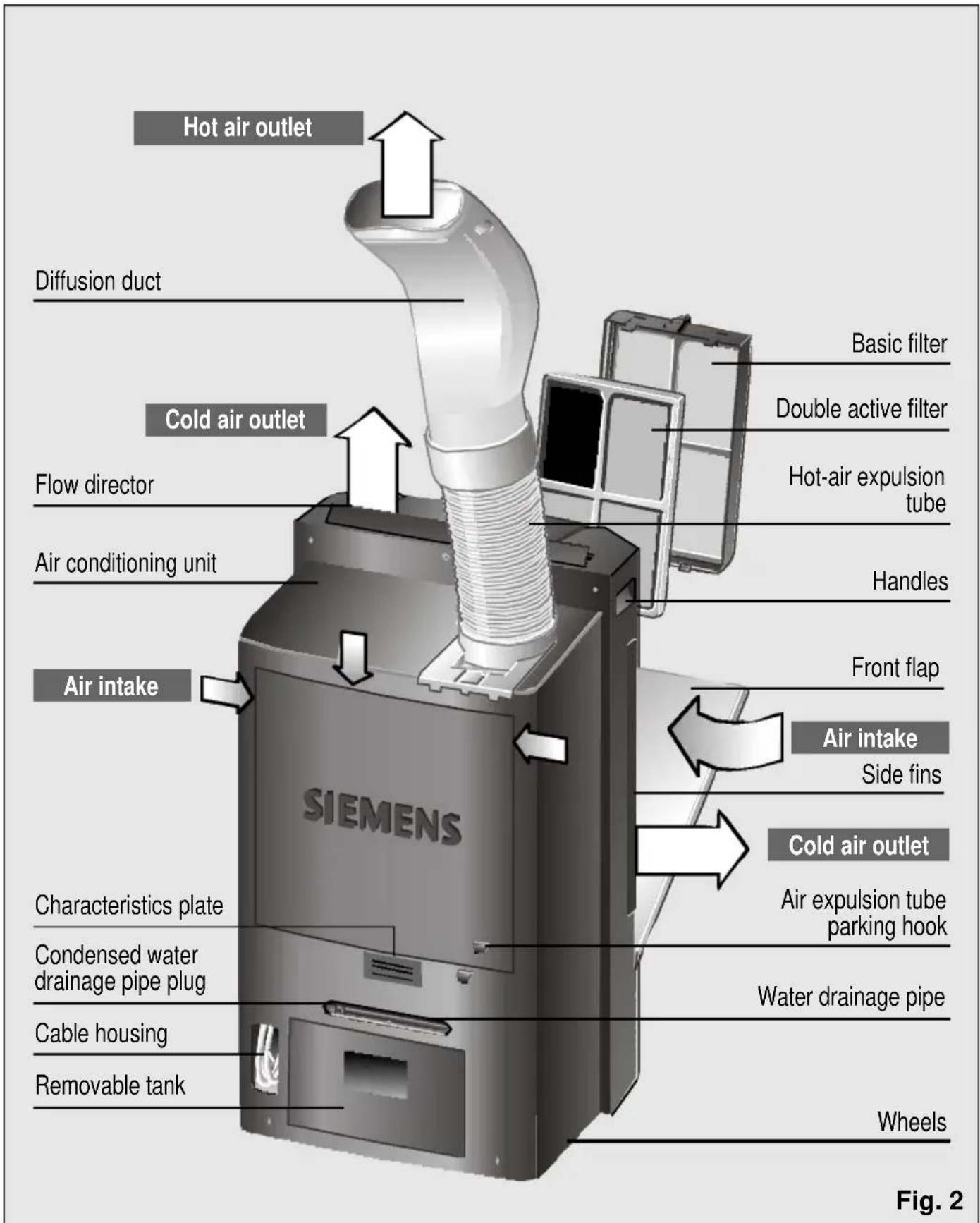

Description of the appliance

Your new appliance

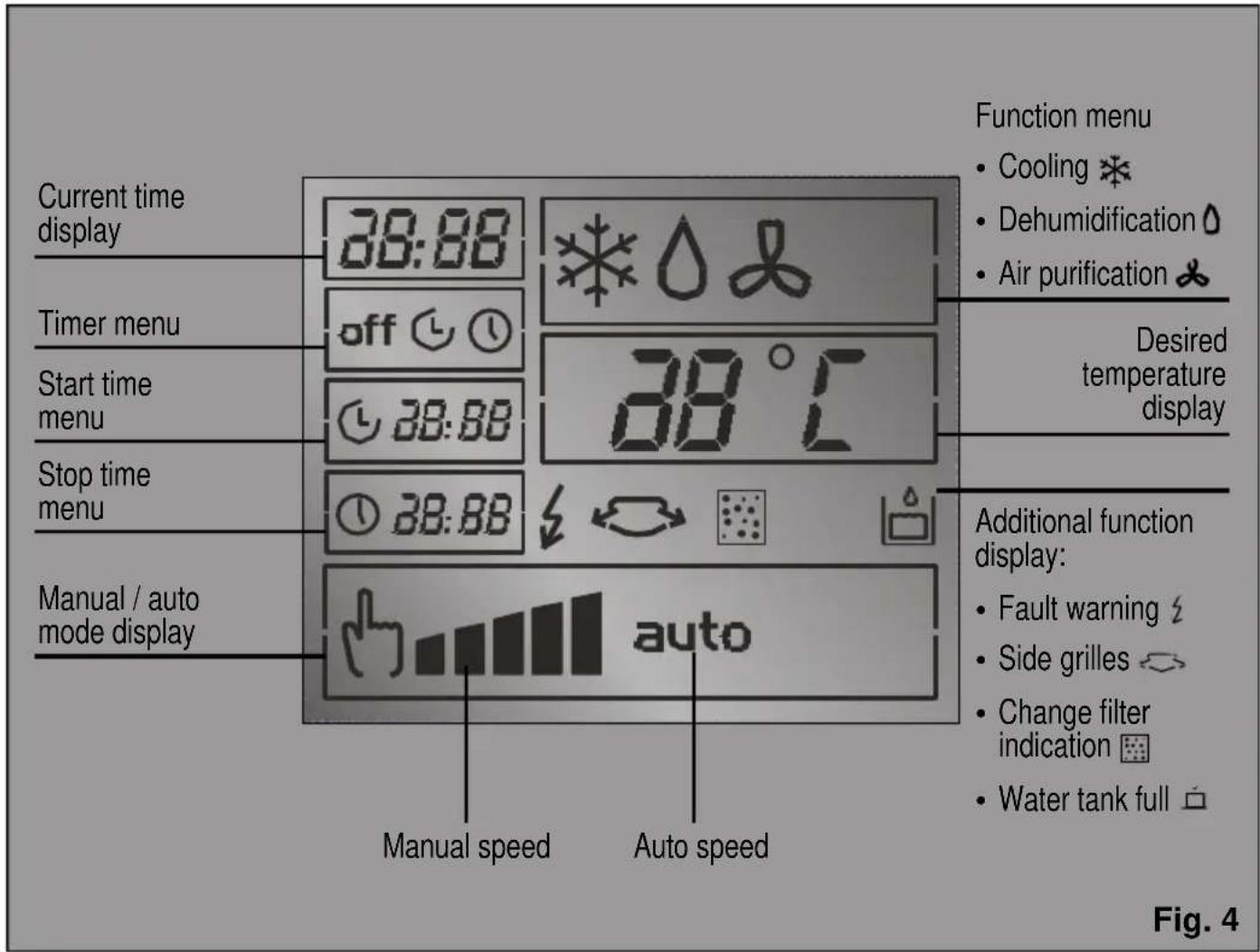

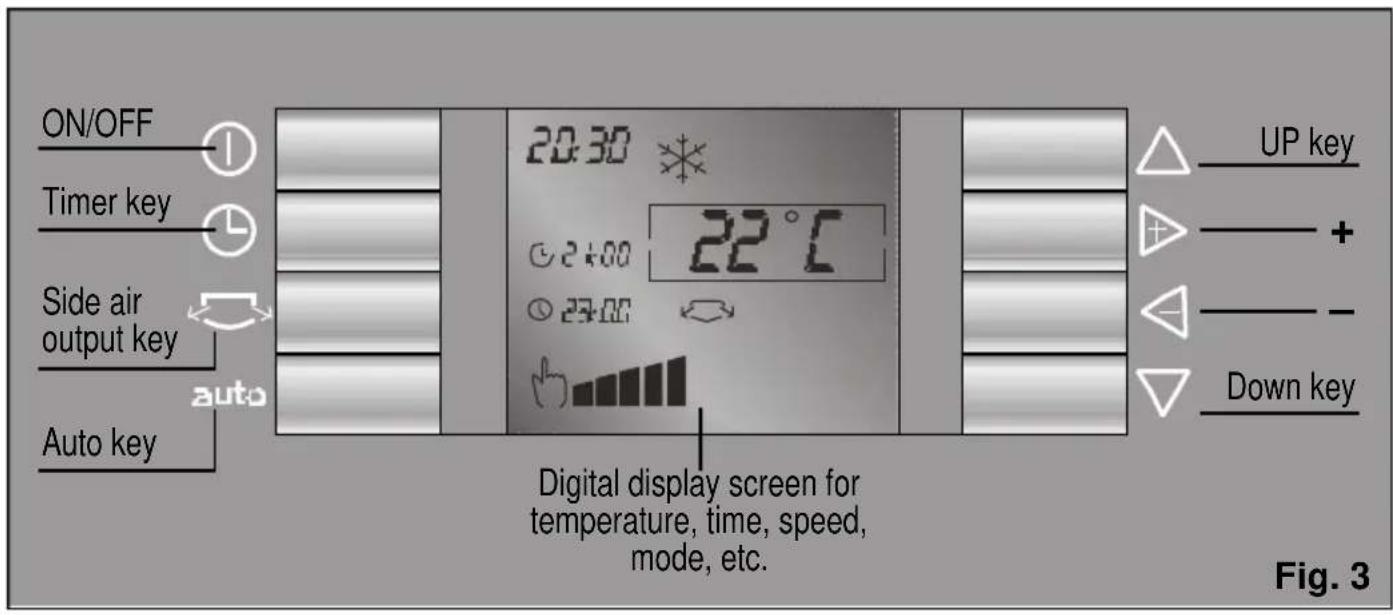

Control panel

Description of accessories

	Suction Base pad filter active W	Base Double Window grommet / Sliding window grommet balcony filter accessory Art. No: Art. No: Art. No: PA10000Z PA11000Z 9000060070
PA20001M	✓	✓	✓ / ●	●	★
Approx. max. (length x width) cm.				Ø wall 10,5	70 x 10 205 x 10

Standard accessories: These accessories are supplied with the appliance.
- Optional accessories: These accessories are available for purchase from the manufacturer's official technical service and authorised distributors.
Optional accessories: These accessories are only available for purchase from the manufacturer's official technical service.

Requirements for use

Requirements for use

This home appliance should be connected to a 220/240 V, 50 Hz mains electricity supply via an earthed socket.
It must be protected with a 10 A slow-action fuse.
Should an extension lead be required, then this lead should be at least 1.5mm^2 thick per terminal, less than 25 m long and earthed.
There is a cavity at the back of the appliance to house the mains electricity supply cable. See Fig. 2.
Do not allow water to enter your appliance and do not cover the air intakes/outlets.

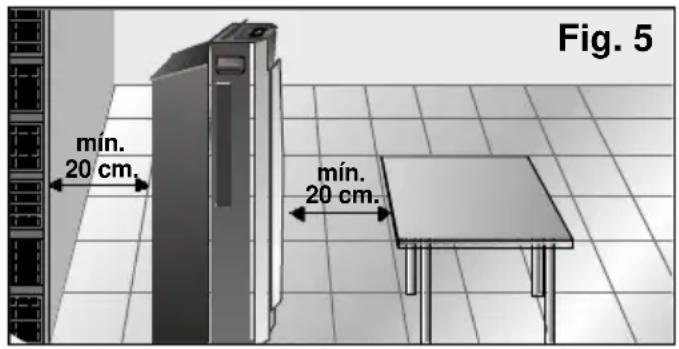

For safety reasons, the appliance must be at least 20~cm away from any nearby surface before it is turned on, Fig. 5.

Warning!

The mains electricity supply connection cable must only be replaced by authorised members of the manufacturer's Official Technical Service.

When the appliance is turned off and then turned back on, it takes the compressor 3 minutes to start up again. This period of time is required in order to ensure correct operation.

Avoid direct contact with the air expelled through the expulsion tube.

Navigation

The control panel is designed to make it easier to use your appliance. The following points need to be taken into consideration. The "up" and "down" keys are used to move up and down the screen. The "+" and "-" keys (right and left) are used to move to the right and to the left in the selection box. The box shows the function selected for modification. The following is an example of navigation:

Up and down keys

The "up" and "down" keys are used to move up and down the screen.

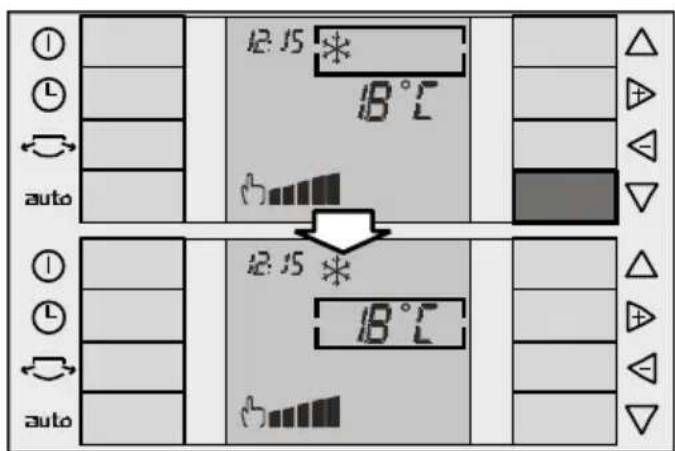

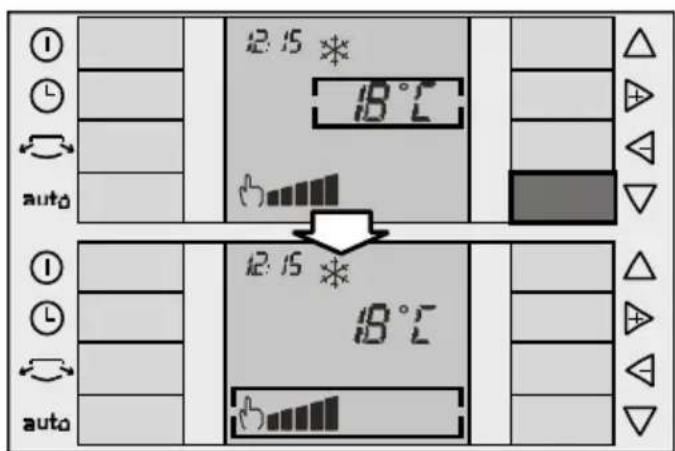

"Down" key

Starting from the screen shown in the first figure (the selection box is situated on the operation function option). If you press key , the selection box moves down to the "Temperature selection" function.

If you press key again, the selection box moves down to the "speed selection" function.

"Up" key

Key works in exactly the same way as key , the selection box moving up rather than down.

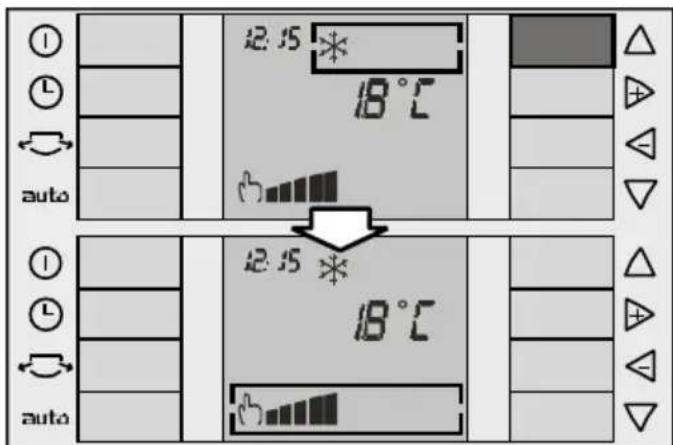

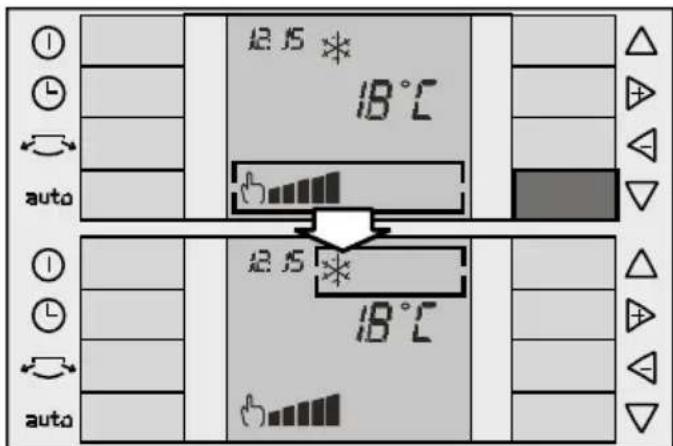

Cyclical operation:

Both keys work cyclically, i.e. if the selection box is at the bottom of the screen and key is pressed again, the selection box moves to the top of the screen. Likewise, if the selection box is at the top of the screen and key is pressed, the selection box moves to the bottom of the screen.

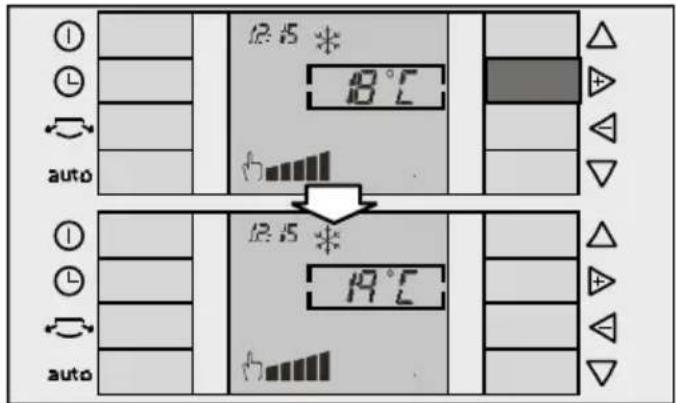

" +" and "- " keys

The "+" and "-" keys are used to move to the right and to the left within the selection box. If the function selected is temperature, these keys are used to increase and reduce the desired temperature as shown below:

Navigation

Instructions for Use

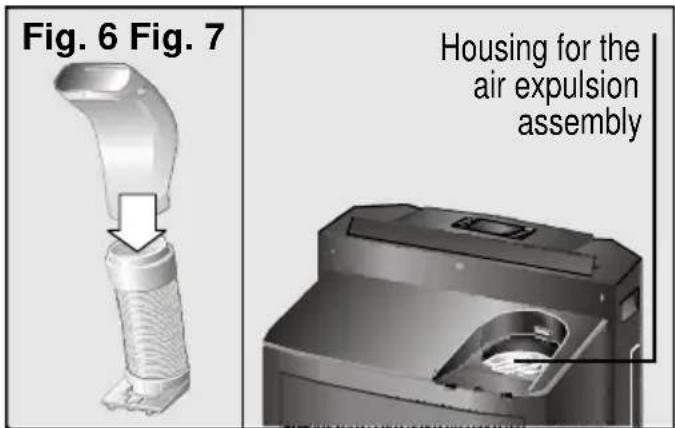

Preparing the appliance before use Installing the air expulsion tube

Fit the air expulsion tube assembly into the housing on the top of the appliance at the back, Fig. 7.

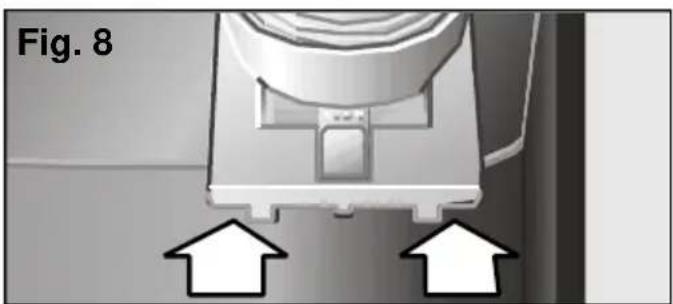

In order to fit the expulsion tube assembly properly in its housing, it is necessary to slide the sleeve into the positioning slot (as shown by the arrows on Fig. 8).

The diffusion duct, Fig. 6, is added when the tube assembly has been fitted onto the appliance.

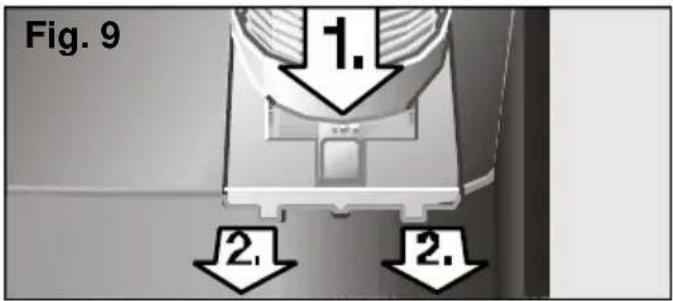

Press the "Push" tab (Fig. 9, 1) and slide out (Fig. 9, 2) to remove the assembly from the appliance.

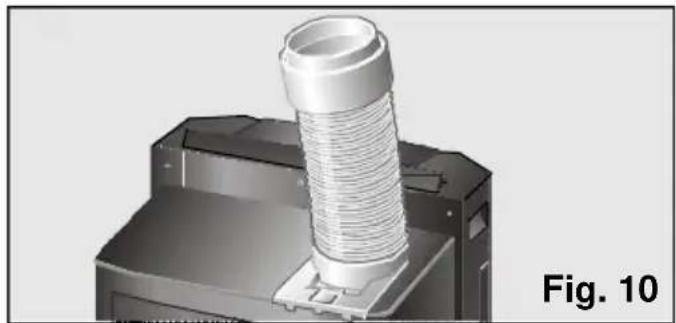

Installation for the dehumidification and air purification function

Remove the diffusion duct and set the air expulsion tube to the position shown in fig. 10.

The expulsion tube may also be totally dismantled if desired.

Installing the air expulsion accessories for the air-conditioning function

There are a set of accessories used to expel hot air (see "Description of accessories").

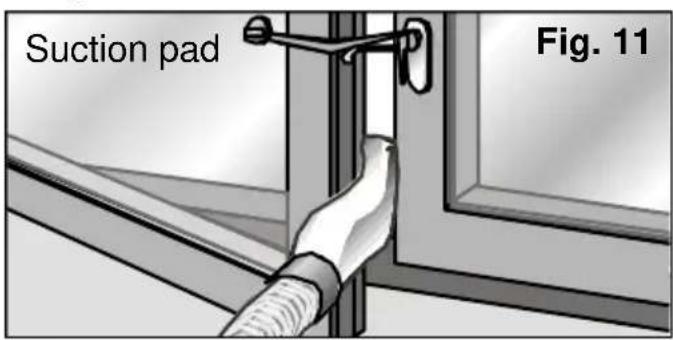

Installing the suction pad

Open the window slightly and position the diffusion duct between the jamb and the glaze frame.
- Close the window as far as possible and secure it with the suction pad supplied, Fig. 11.

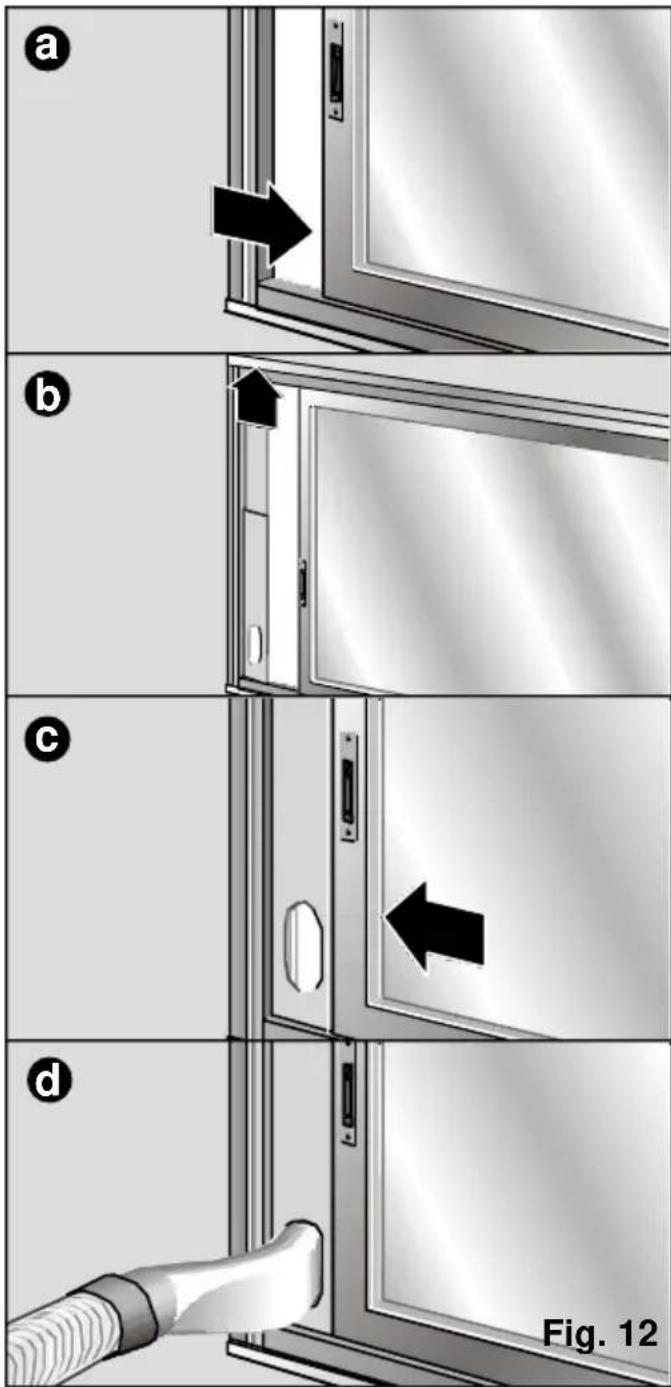

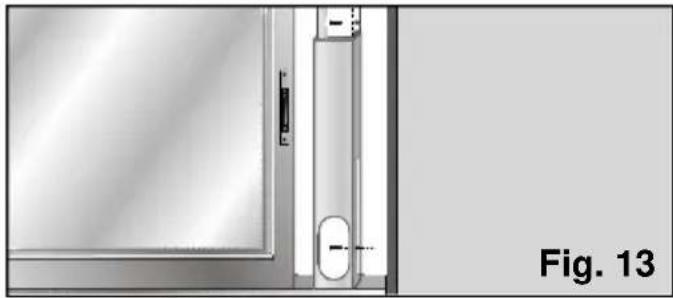

Installing the sliding window / balcony accessory

The sliding window/balcony installation accessory supplied with your appliance can also be used (See "Description of accessories"), Fig. 12: a, b, c, d. This accessory can be used for both horizontal and vertical windows.

The accessory has two holes on the side to fit it to the window / balcony with. The user can secure it to the frame or wall with two screws (not included with the accessory) to prevent it from moving or falling out of place, Fig. 13.

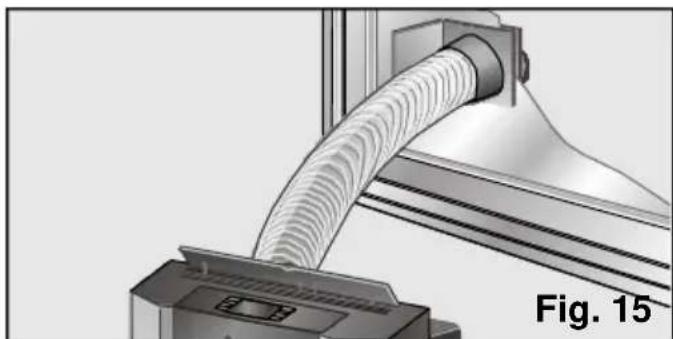

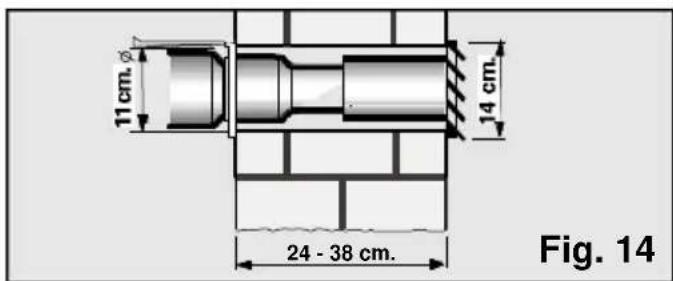

Permanent installation

Performed using the wall grommet / window grommet accessory. See "Description of accessories".

To expel hot air through the wall, it is necessary to make a hole in the wall and fit the wall grommet, Fig. 14.

Remove the diffusion sleeve and connect the air expulsion tube to the accessory.

If permanent installation is to be performed through the window, then it is only necessary to use the transparent end piece on the accessory. A 10.5-cm diameter hole needs to be cut in the glass, Fig. 15.

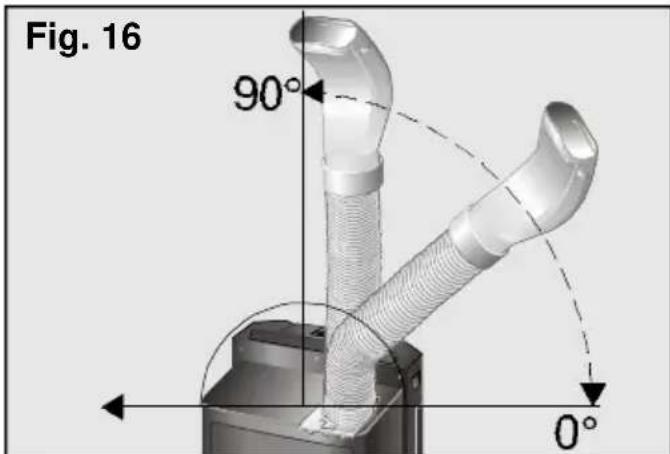

Notes

Do not extend the hot air expulsion tube more than necessary (maximum length; 140 cm).

Do not form sharp bends when positioning the tube, otherwise the correct expulsion of hot air may be impeded. This may cause a reduction in the cooling power and performance of the appliance.

In order to achieve maximum cooling efficiency and minimum noise levels, the expulsion tube should be fitted above the total height of the appliance, Fig. 16.

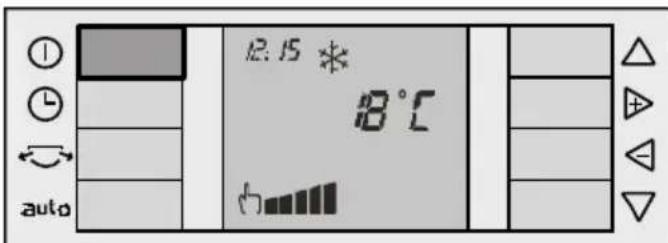

Turning the appliance on and off

Press the "On" / "Off" key ① to start the appliance.

Warning!

Make sure that the appliance is plugged into the mains electricity supply.

Selecting the operation function

The following functions can be selected on your appliance:

□ cooling※.
dehumidification
□ air purification.

Place the selection box on the operation function menu using the "up" and "down" keys (see "Navigation": "up" and "down" keys).

Use the "+" and "-" keys to move within the selection box and select the desired function (see "Navigation": "+" and "-" keys).

Cooling

In this function, the appliance reduces ambient temperature until the desired temperature is reached. The appliance dehumidifies and purifies the air in the room at the same time in order to create a pleasant atmosphere.

Plug the appliance into the mains electricity supply.
Lead the hot air expulsion tube outside, (see "Preparing the appliance before use").
Check that the plug is fitted onto the water drainage pipe to prevent water from leaking onto the support surface.

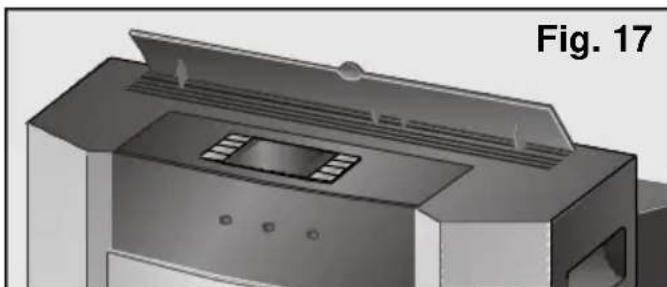

Lift the air director on the top of the appliance, Fig. 17.

Turn the appliance on by pressing the "On" key ①.
Select the cooling function 水 (see "Selecting the operation function").
Select the desired temperature, (see "Selecting the temperature").
- Select the operation speed, (see "Selecting the speed").

During air conditioning, the condensed water produced evaporates automatically and is expelled outdoors together with the expelled air through the hot air expulsion tube.

In conditions of extreme humidity, the appliance accumulates condensed water in the appliance's rear tank. When a certain level is reached, the removable tank full symbol appears on the screen to indicate that the tank needs to be emptied. The appliance stops working when this happens. To empty the removable tank, press the handle and remove the tank carefully. Empty the water down the nearest drain.

The symbol disappears from the screen when the water tank has been emptied and replaced on the appliance properly.

Warning!

When you turn the appliance back on again after emptying all of the water, do not forget to replace the removable tank on the appliance properly. Should you fail to do so, the symbol will not disappear from the screen and the appliance will not work.

Remember that when the appliance is turned off, it is necessary to wait for approximately 3 minutes before the compressor starts up again. This period of time is required in order to ensure correct appliance operation.

Dehumidification

In this operation function, the appliance reduces the humidity in the atmosphere. The appliance purifies the air in the room at the same time in order to create a pleasant atmosphere.

Plug the appliance into the mains electricity supply.
Fit the hot air expulsion tube outside as indicated in "Preparing the appliance before use".
- Lift the air director on the top of the appliance.

There are two ways of expelling condensed water: via the removable tank and in continuous mode.

Dehumidification via the removable tank:

• Check that the removable tank is fitted onto the appliance properly and that the plug is fitted onto the water drainage pipe to prevent water from leaking onto the support surface.
• The water level in the removable tank rises. When it reaches its maximum level, the symbol appears on the screen. This symbol also appears when the removable tank is not properly fitted into its housing.
• In both events, it is necessary to extract the tank and pour the water carefully down the nearest drain.

Dehumidification in continuous mode:

• Place a receptacle at the end of the water drainage pipe to collect the condensed water or lead the pipe to the nearest drain.
• Remove the plug from the water drainage pipe on the back at the bottom of the unit. When operating in this mode, the appliance does not stop or warn that the external receptacle is full via the symbol .
• Select the dehumidification function (see "Selecting the operation function").
• Select the operation speed, (see "Selecting the speed").

Warnings

The amount of water dehumidified from the atmosphere may reach 38 litres in 24 hours depending on atmospheric conditions.

When the appliance is operating in the dehumidification function, the temperature does not appear on the screen and cannot be selected or modified.

Warning!

Do not forget to replace the plug onto the water drainage pipe when you change function, otherwise the appliance will shed water when operated.

Remember that ambient temperature must be 18^ or higher in order for the appliance to work.

The appliance expels hot air through the drainage pipe when operating in dehumidification function. This is necessary for the appliance to work more efficiently in this operation function.

Air purification

The air inside the room (ventilation) is circulated through a purifying filter (air purification) when the appliance is set to this function.

The standard appliance is fitted with a basic filter and a double active filter (see "Cleaning and Maintenance") against:

• Smells and smoke.
• Pollen, bacteria and dust.

Plug the appliance into the mains electricity supply.
Fit the hot air expulsion tube (see "Preparing the appliance before use").
- Lift the air director on the top of the appliance.
Select the air purification function, (see "Selecting the operation function").
- Select the operation speed, (see "Selecting the speed").

Warning

We recommend you leave the filters in position regardless of the function setting (cooling, dehumidification, air purification) in order to purify the air more effectively.

Selecting the temperature

This function is only available in the cooling function.

Place the selection box on the temperature selection menu (see "up" and "down" keys). Use the "+" and "-" keys to move within the selection box until the desired temperature is reached (see "+" and "-" keys).

The "+" key increases the desired temperature and the "-" key reduces the desired temperature.

The temperature selectable ranges from 18^ to 30^ and can be set to the nearest 1^ . Keep the key pressed in to increase or decrease the desired temperature more quickly.

Selecting the speed

There are two manual speeds (maximum and silent) and one automatic speed auto available on your appliance. The automatic speed setting works in maximum or silent mode depending on room conditions and the temperature set by the user.

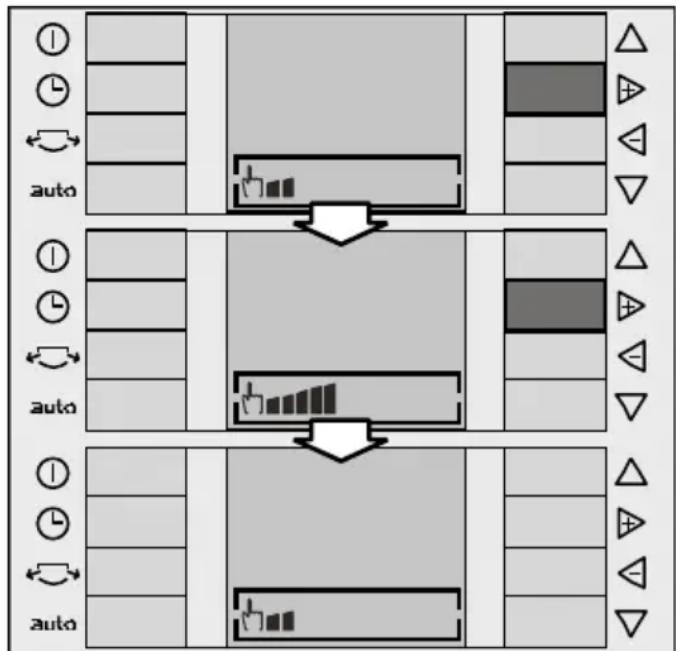

Manual speeds:

Place the selection box on the speed selection menu (see "up" and "down" keys). Use the "+" and "-" keys to move within the menu to set the desired speed (see "+" and "-" keys).

The manual symbol appears on the screen followed by the last speed set. Press the "+" and "-" keys to change the speed from maximum to and vice versa.

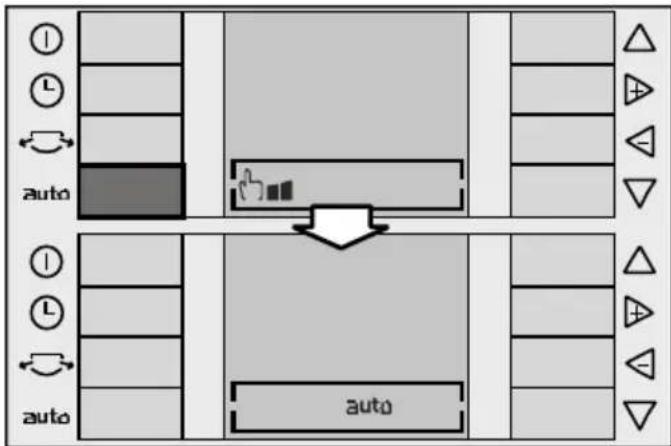

Automatic speed

Press the auto key on the control panel to activate this speed. The manual symbol disappears and the auto symbol is displayed on the screen.

Press the auto key again to deactivate automatic speed. The auto symbol disappears and the appliance returns to the manual speed previously set.

Instructions for Use

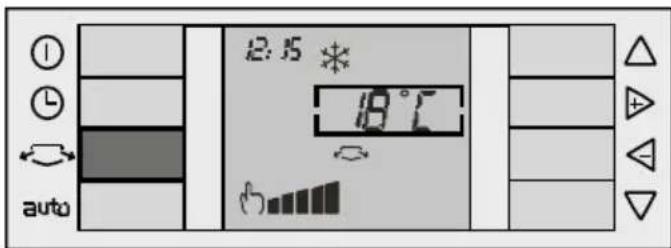

Side fins

Your appliance is fitted with side fins which can be activated to distribute the air more efficiently.

Press the side fin key to open the fins and activate their operation. The relevant symbol is displayed on the screen.

Press the same key again to close the fins. The symbol disappears from the screen and the fins close.

These fins are available in all operation functions: cooling, dehumidification and air purification.

The side fins close automatically when the appliance is turned off via the "Off" key. If the side fins were open prior to turning the appliance off, they open again when the appliance is turned back on.

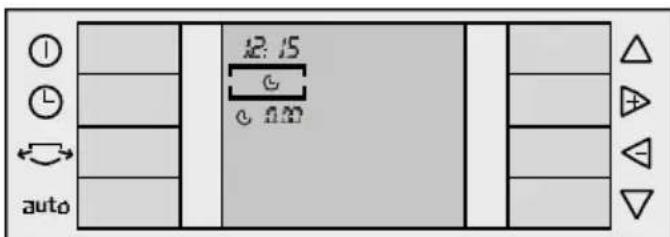

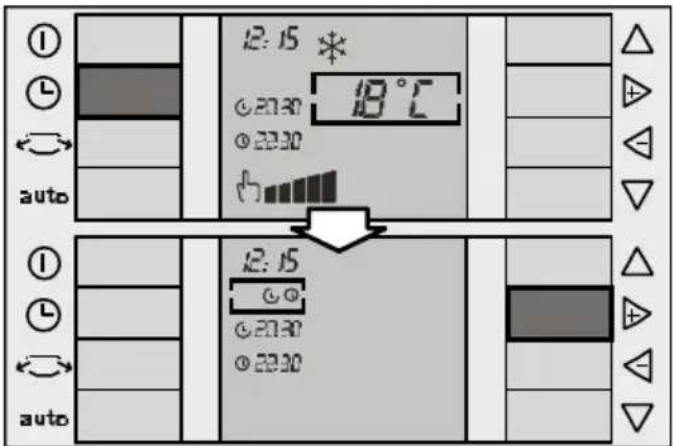

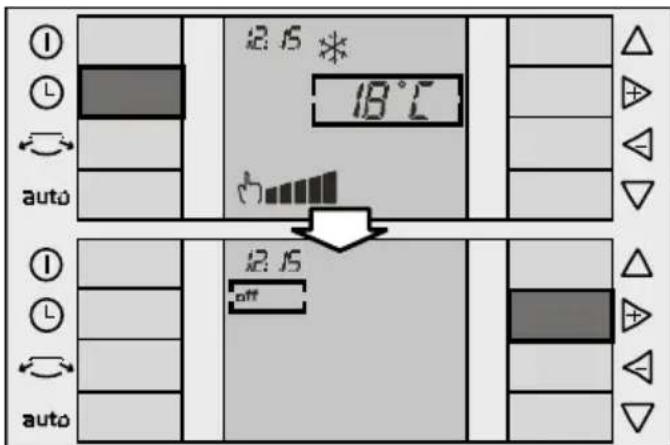

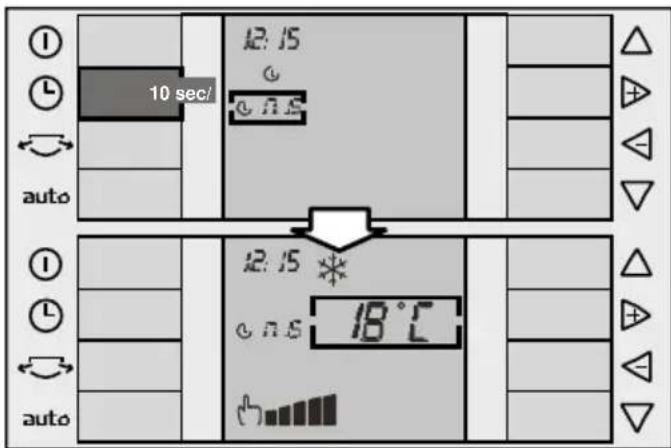

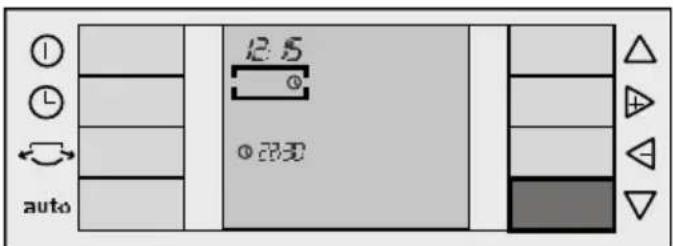

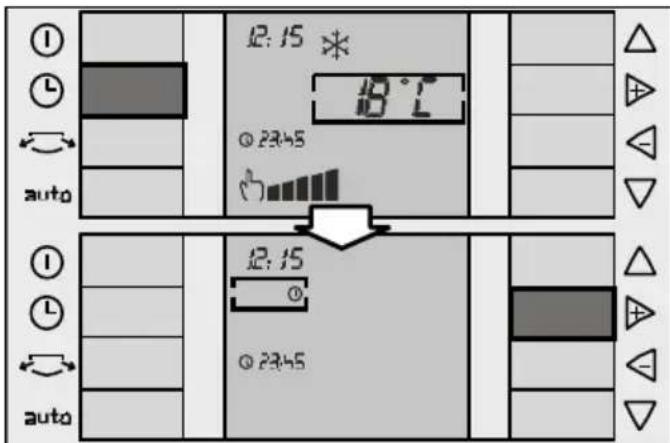

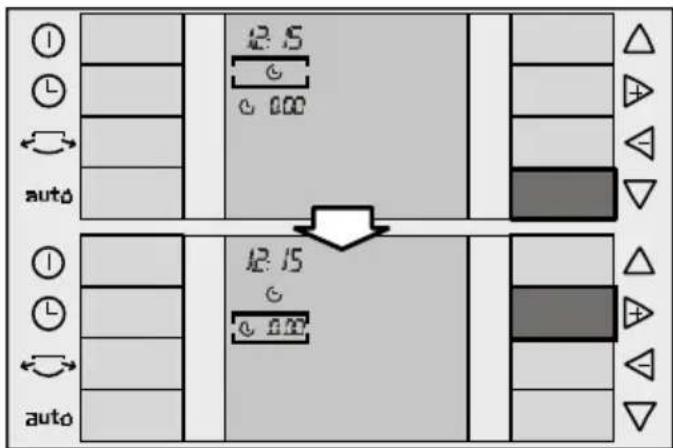

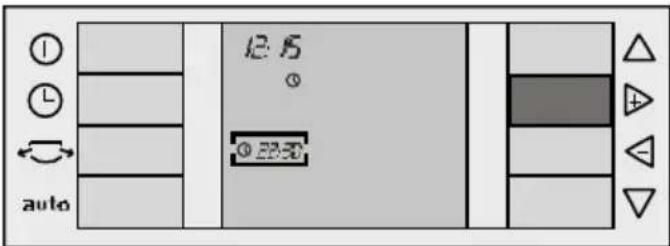

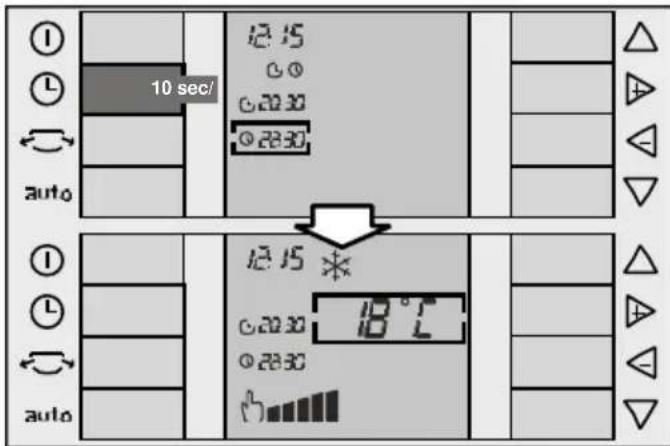

Setting the clock / Programming the timer

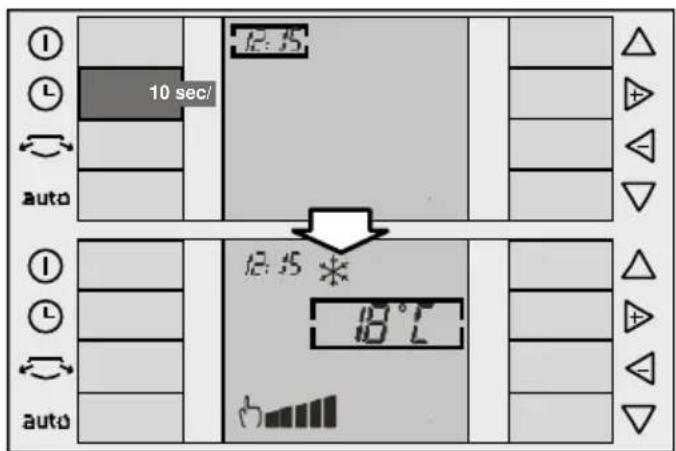

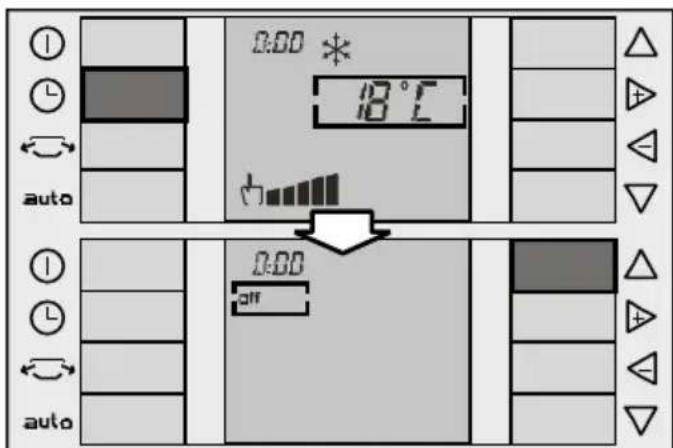

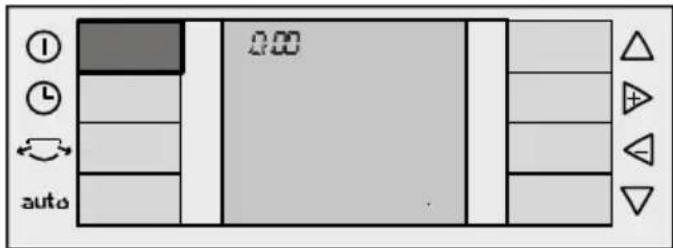

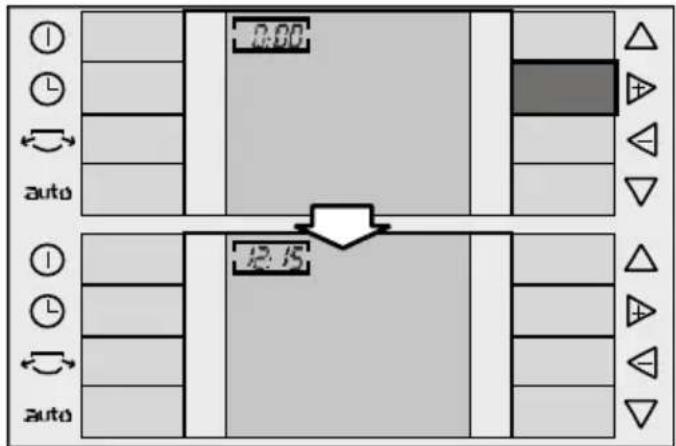

Setting the clock

The current time (24-hour clock) is displayed in the top left-hand corner of the screen the first time the appliance is connected to the mains electricity supply. 0:00 flashes by default.

To set the time, it is necessary to turn the appliance on by pressing the "On" key ①. If you take more than 10 seconds to perform the next operation during programming / setting the clock on your appliance, the screen automatically returns to the main menu and the factory-set default settings are displayed or, if this is not the first time that the timer is set, the last settings used are displayed on the screen.

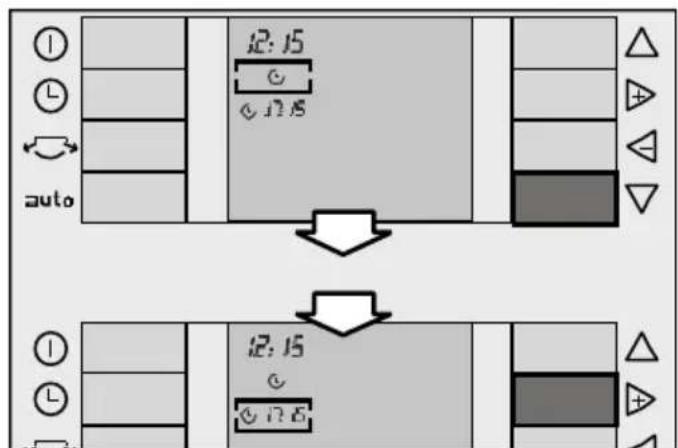

Press the "Timer" key. The selection box appears on the timer menu with the last function selected ("Off" is displayed by default).

Use the "up" key to place the selection box on the time. The time is modified using the "+" and "-" keys. The time increases or decreases by one minute each time one of these keys is pressed. Keep the key pressed in to increase or decrease the minutes more quickly.

Press the "Timer" key, to memorise the time. If you do not press this key, the time is automatically memorised when a period of 10 seconds has passed without pressing any key. The screen returns to the main menu.

Programming the timer

The appliance needs to be turned on with the clock set in order to programme the start / stop times.

Press the "Timer" key, to navigate through the timer menu. Press the "+" key to programme the different functions available on your appliance. These are:

• "Off" ①: appliance not programmed.
  "Start" (c) programming the appliance start time.
  "Start/Stop" programming the appliance start and stop time.
• "Stop"①: programming the appliance.

Programming the appliance start time

Press the "Timer" key, to position the cursor on the timer menu. The last function programmed appears by default

Use the "+" and "-" keys to select the "Start" function (see "+" and "-" keys).

Use the "down" key (see "up" and "down" keys) to lower the cursor to the start time menu. Then use the "+" and "-" keys to modify the programmed time until the desired time is reached.

The time changes 15 minutes at a time.
Press the "Timer" key, or wait for 10 seconds without touching any keys to memorise the set start time.

Instructions for Use

The set time is displayed on the screen together with the relevant symbol (the "Start" symbol ) and the set functions.

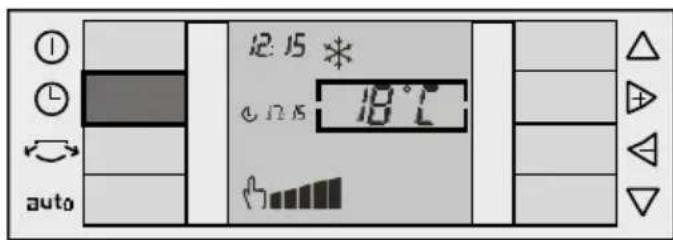

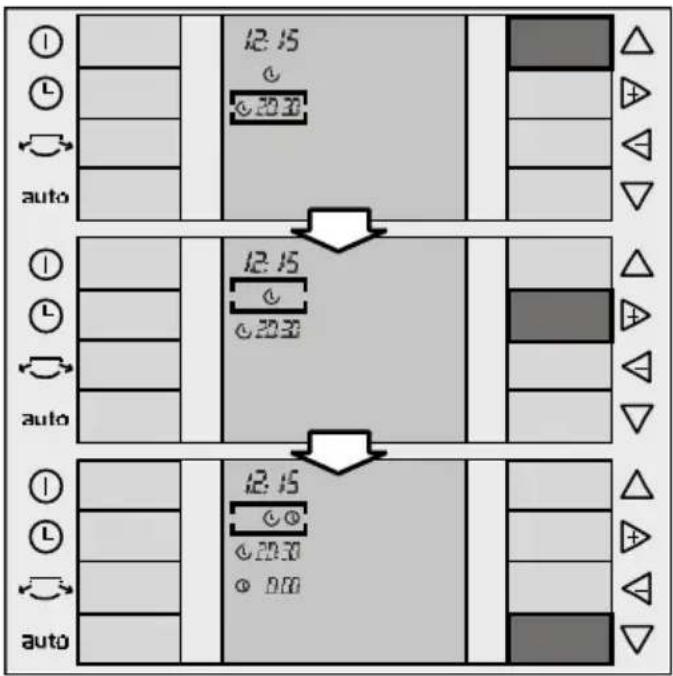

Programming the appliance "Start" / "Stop" timer

Press the "Timer" key, to position the cursor on the timer menu. The last function programmed appears by default.

Use the "+" and "-" keys to select the "Start" function (see "+" and "-" keys).
Use the "down" key (see "Up" and "down" keys) to lower the cursor to the start time menu. Then use the "+" and "-" keys to modify the programmed time until the desired time is reached.

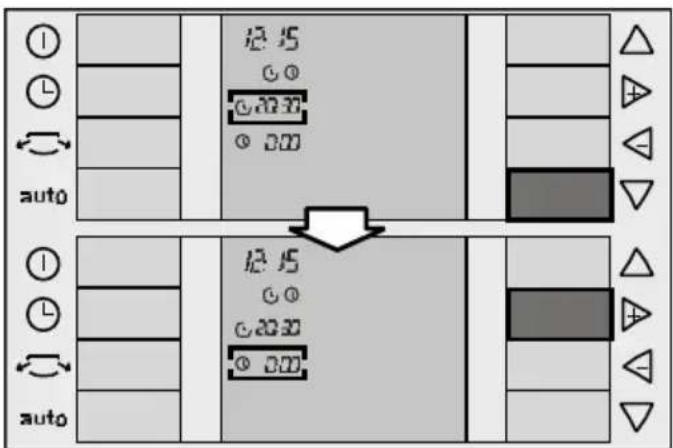

Press the "up" key again to position the cursor on the timer menu. Use the "+" and "-" keys to select the "Start" / "Stop" function. (see "+" and "-" keys).

Use the "down" key to position the cursor on the stop time menu. Then use the "+" and "-" keys to modify the stop time until the desired time is reached.
The time changes 15 minutes at a time.

Press the "Time" key, or wait for 10 seconds without touching any keys to memorise the set start / stop times.
The set time is displayed on the screen.

Instructions for Use

Programming the appliance stop time

Press the "Timer" key, to position the cursor on the timer menu. The last function programmed appears by default.

Use the "+" and "-" keys to select the "Stop" function (see "+" and "-" keys).

Use the "down" key (see "up" and "down" keys) to lower the cursor to the stop time menu. Then use the "+" and "-" keys to modify the stop time until the desired time is reached.
The time changes 15 minutes at a time.

Press the "Timer" key, or wait for 10 seconds without touching any keys to memorise the set stop time.
The set time is displayed on the screen.

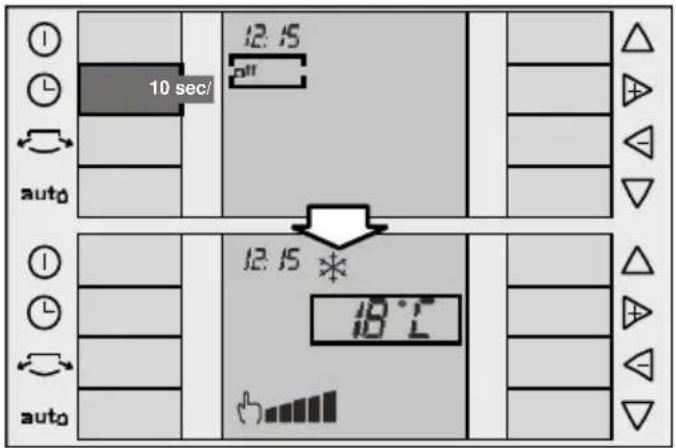

Turning the timer off

Press the "Timer" key, to position the cursor on the timer menu. The last function programmed appears by default.

Use the "+" and "-" keys to select the "Off" function.
Press the "Timer" key, or wait for 10 seconds without touching any keys to turn the timer off. No set time is displayed on the screen.

Instructions for Use

The times and functions set on the timer remain active and the programmed operation is repeated every day at the set times until deactivated or cancelled as described above.

Cleaning and Maintenance

Cleaning the appliance

For safety reasons, you should unplug the appliance from the mains electricity supply before cleaning.
The appliance can be cleaned with a cloth or sponge, slightly warm water and a mild detergent.
Never use hot water (more than 40^ bleach, benzene, petrol, acid, scouring pads, brushes or strong detergents. Prevent water from entering the appliance.
Do not clean the appliance with a hose..

Cleaning and changing the purifying filters

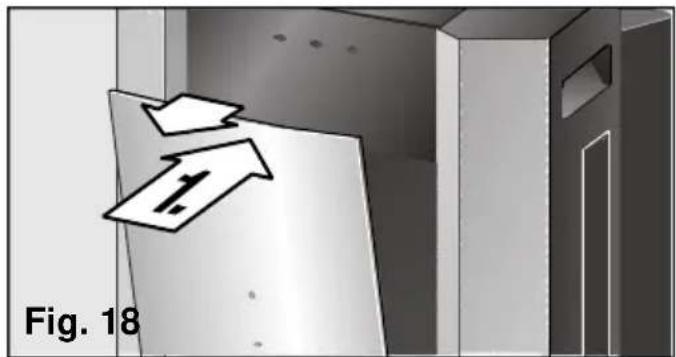

To change the purifying filter, it is first necessary to open the front flap on the appliance (it is not necessary to remove it). Pull the flap gently to do this. The flap can be opened up to the safety stop without risk of falling, Fig. 18.

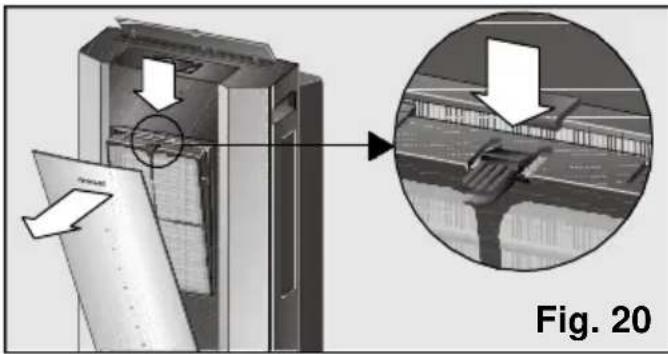

All models are fitted with a basic filter which needs to be cleaned regularly, Fig. 19. The filter is accessed by pressing the tab at the top and removing it from its housing, Fig. 20. The filter is cleaned under a cold tap, dried and replaced.

Cleaning and Maintenance

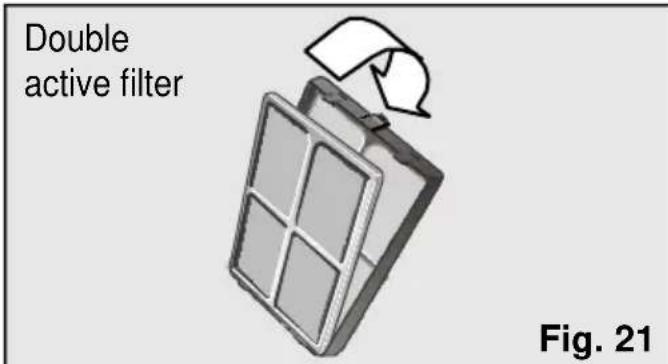

A double active filter is also fitted inside the basic filter on these models, Fig. 21.

In order to remain operational, this filter needs to be changed every year or when the "change filter" symbol appears on the screen.

These accessories are available for purchase from the Manufacturer's Official Technical Service and authorised distributors).

Press the "+" and the "-" key at the same time to make the symbol disappear from the screen after changing the filter. The symbol disappears from the screen and the filter is operational again.

Installing the double active filter:

Remove the basic filter from the appliance, Fig. 20.
- Change the double active filter inside the basic filter for a new one as shown in Fig. 21.
Install the assembly onto the appliance by lining the lower studs up with the slots on the front casing of the appliance and pressing the top clip in until it clicks into position. The assembly is fitted properly when it clicks into position.
Close the front flap.

In order to maintain cooling power, only fit one set of filters onto the support.

Note

The flaps on these models are fitted with safety stops up to which point they can be opened without risk of the front flap falling and causing damage and/or injury. The flap on the appliance can be removed (firmly pull the flap towards you) to make it easier to clean and change the filters. Afterwards, or should for any reason the flap come out of its original housing, proceed as follows to fit it:

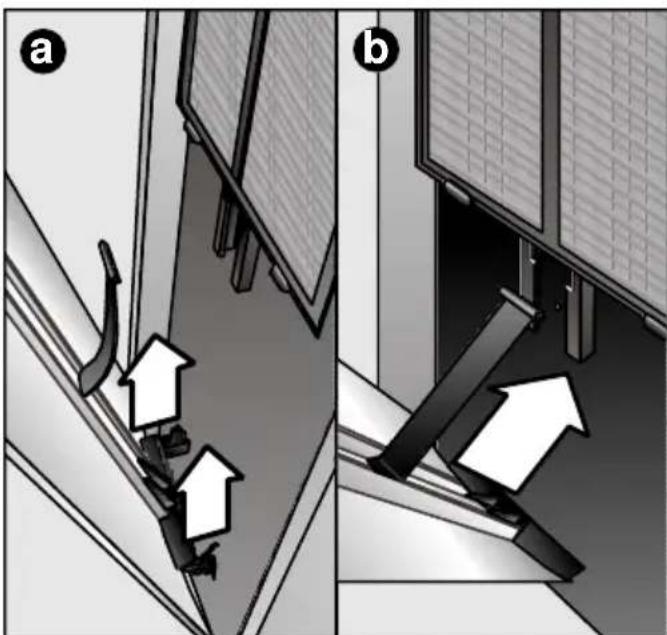

1^ Lift the flap until it comes out of its lower supports, (Fig. 22: a).
2^ Position the plastic leg in the front groove on the appliance (in T position) and slide it down to the safety stop, (Fig. 22: b).
3^ fit the lower studs in the front stops on the appliance making sure that the plastic leg fitted in the previous step does not come out of position, (Fig. 22: c).

When finished, the user should make sure that the flap is fitted properly and does not fall when opened again. (The door opens up to the safety stop). If not fitted properly, repeat steps 1^ and 2^ again.

Transportation requirements

The appliance is fitted with wheels to make it easier to move around. It can be tilted, if necessary, in order to make transportation easier. You should not turn the appliance back on again for a minimum period of one hour after performing this procedure.

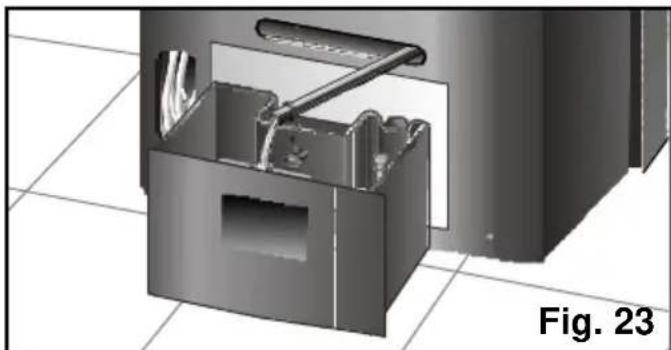

Before tilting it, empty the condensed water from the internal tank by extracting the water drainage pipe from its housing and removing the plug, Fig. 23. Place a receptacle (or the appliance's removable tank) at the end of the water drainage pipe to collect the condensed water or lead the pipe to the nearest drain. Do not forget to replace the plug and reinsert the pipe in its housing when the tank is empty.

Storage requirements

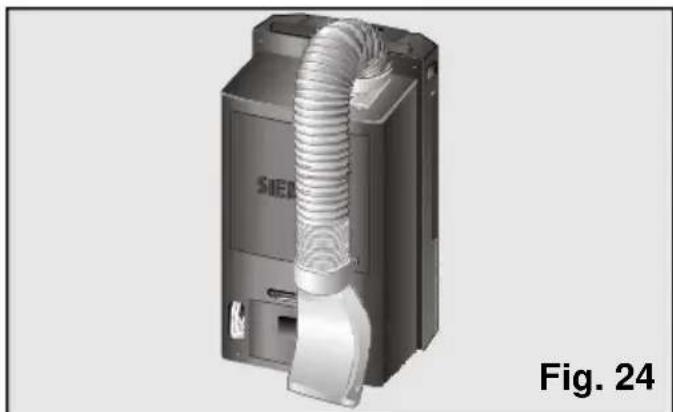

When the appliance is out of use for a long period, set the expulsion tube to parking position so that the appliance takes up as little space as possible.

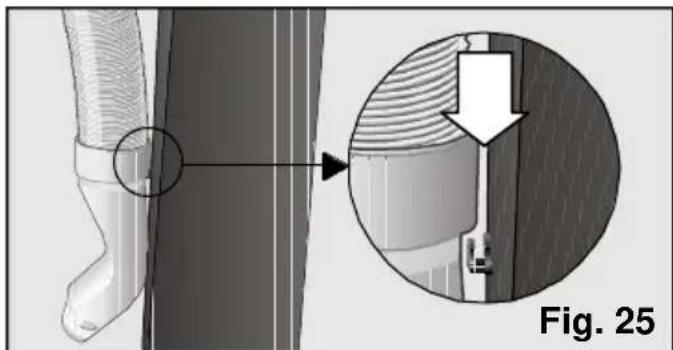

To do this, bend the tube towards the back of the appliance and secure it with the diffusion hook, Figs. 24 and 25.

Prior to use at change of season

Clean the air filter.
Clean the casing and the grilles if necessary.

Things to check before calling the Technical Service

General requirements for operation

What to do if ...

... the appliance does not work ...

Check that it is plugged in properly.
Check that the mains electricity supply is working. Check the fuse box.
Set the thermostat to a lower temperature.

... the appliance does not work and the symbol indicating that the condensed water tank is full is displayed on the screen ...

Set the appliance on a flat surface. If the symbol does not disappear, empty the water tank. Make sure that the tank is refitted properly afterwards. (See instructions in "Cooling").

... the appliance does not reduce room temperature sufficiently ...

Check the joins on the hot air expulsion tube.
Make sure that the expulsion tube is not too bent and that it is not extended to more than 140~cm
Make sure that the plug is fitted on the drainage water pipe.
Fit the suction pad to close the window as far as possible.
Lower blinds to reduce direct sunlight.

... the fault symbol is displayed on the screen ...

Get in touch with an authorised dealer, customer service or the manufacturer's Technical Service Network.

... there is water on the control panel grille or on the basic filter housing ...

There is no cause for concern. This is normal.

Noise

... the appliance makes a lot of noise ...

Some noise is normal and other types of noise can be solved easily. You need to be able to distinguish between these types of noise:

Perfectly normal noise

The sound of water flowing in cycles is due to the pump, which circulates the water to enhance the power of the appliance.
A dull, humming sound is inevitable due to the compressor.
A faint, whistling sound is due to the refrigerant passing through the thinner pipes on the appliance when the compressor starts up.
A short clicking sound is produced when the pump connects and disconnects or when the regulator connects or disconnects the electronics system.

Easy-to-solve noises

Make sure that the air expulsion tube and the diffusion and collection sleeves are fitted properly onto the appliance.
Make sure that the air intakes and outlets on the appliance are free of obstacles.
Make sure that the appliance is not in direct contact with furniture or other appliances. The air output may be flowing directly onto these and thereby increasing the noise level.

Any other type of fault or repair work should be dealt with by a specialised Technician. Get in touch with your authorised dealer, customer service or the Technical Service Network.

Technical service / Warranty / Technical Information

Technical service

Should your appliance fail to work properly and all the instructions for use and installation (especially the section headed "Requirements....") have been carefully observed, then remember that our Technical Service Network is at your full disposal.

When contacting the Technical Service, quote the model code (E-NR) and the appliance's factory number (FD). This information can be found on characteristics plate, Fig. 2.

Warranty

The conditions of warranty depend on the relevant Supplier in a particular country. Contact the establishment where you purchased your appliance for more information and quote the appliance model and factory number. The receipt of purchase for the appliance must be produced prior to any work carried out under warranty.

Technical Information

Model	PA20001M
Consumption at maximum power (W)* 975
Dehumidification capacity (I./day) 38
Fuse (A) 10
Energy efficiency (letter) C
Consumption at maximum power (W)* 2000
Working range - Dehumidification (min./max. °C) 18 – 35 - Cooling (min./max. °C) 18 – 35
(*) per EN14511

Sommaire

Deshumidification. 58

Purification 59

Touches "up" et "down"

Conditions de transport
