USER MANUAL AF 10000E Amcor

White portable air conditioner unit with ventilation grille and control panel (no visible text or symbols)

PORTABLE AIR CONDITIONER

GB Portable air conditioner
NL Mobiele airconditioner
F Climatiseur monobloc mobile
D Mobiles Klimagerät
Climatizzatore d'aria portatile
E Aire acondicionado movil

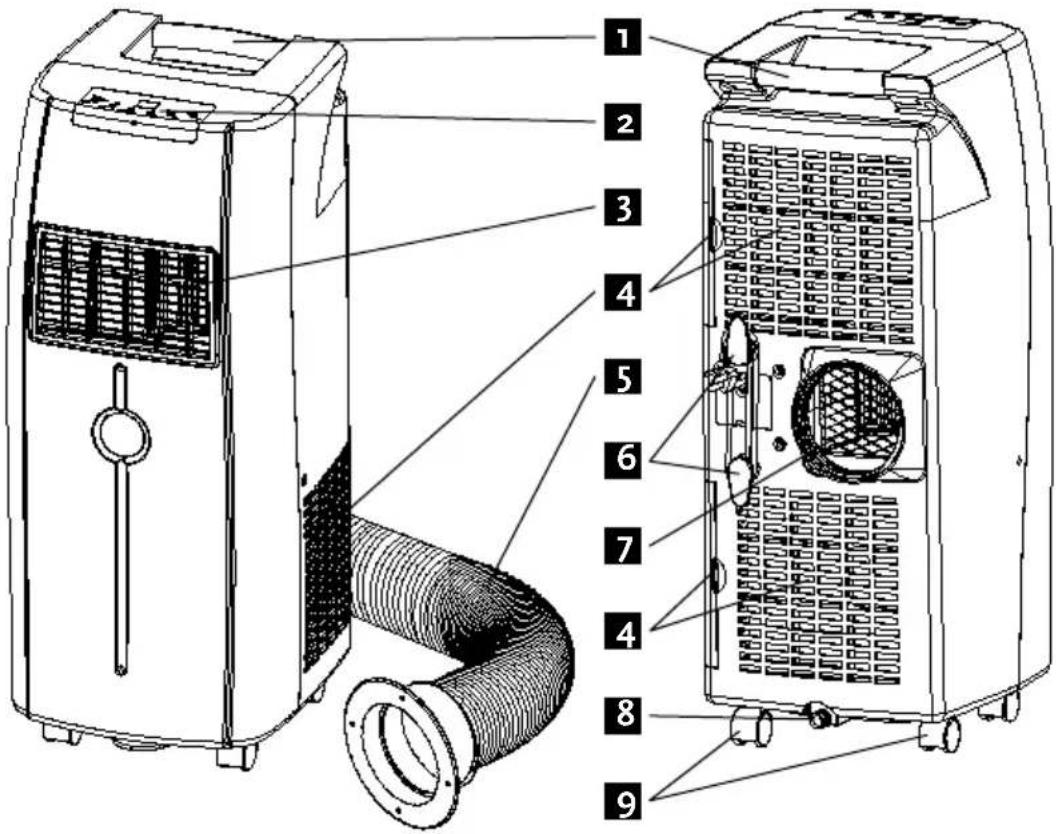

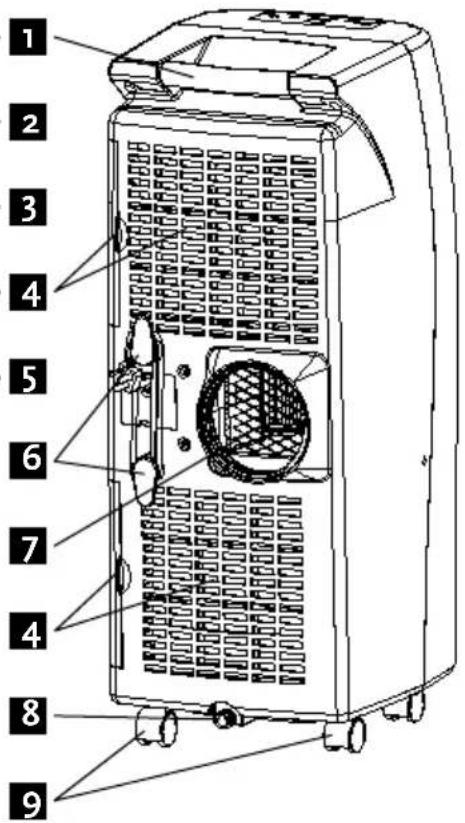

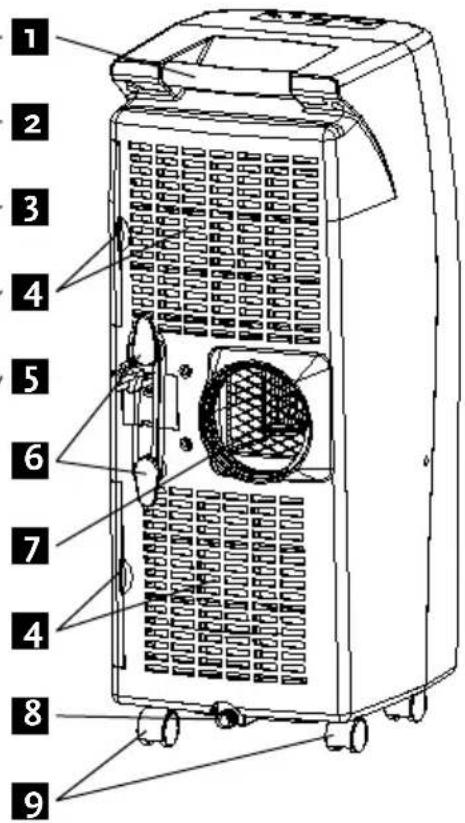

PARTS

Technical diagram of an air conditioner unit with numbered parts for identification

Labeled diagram of household appliances and fixtures including a coiled spring, mobile phone, and patterned fabric

1. Handle
2. Control panel
3. Air outlet
4. Air inlet with filter
5. Exhaust hose with adapter
6. Power cord hanger
7. Exhaust air outlet
8. Water stopper (plug inside

9. Casters

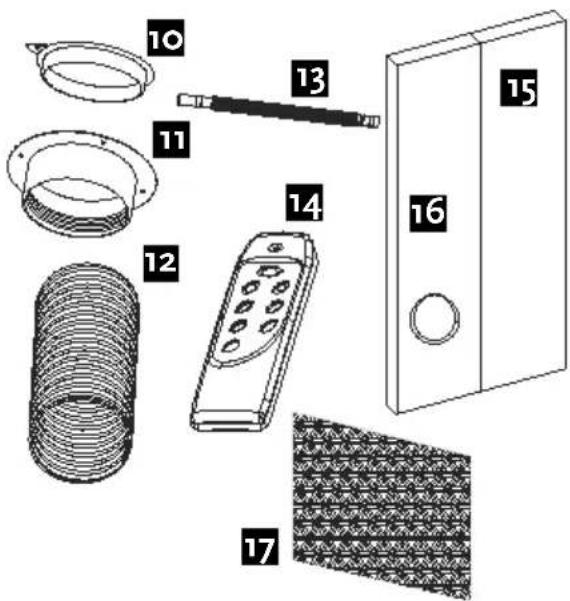

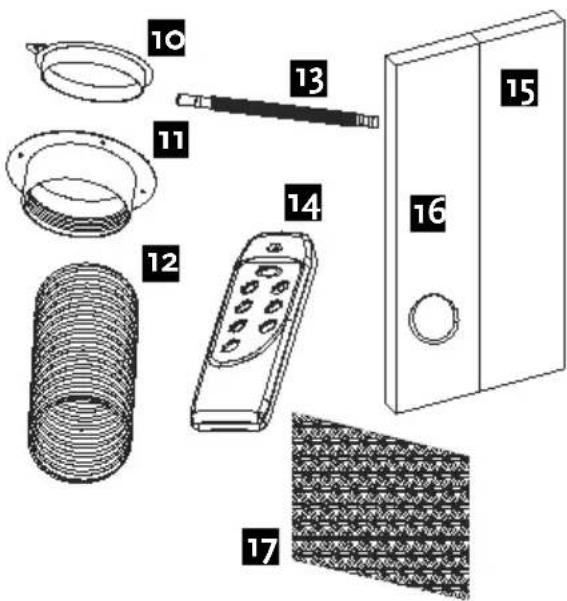

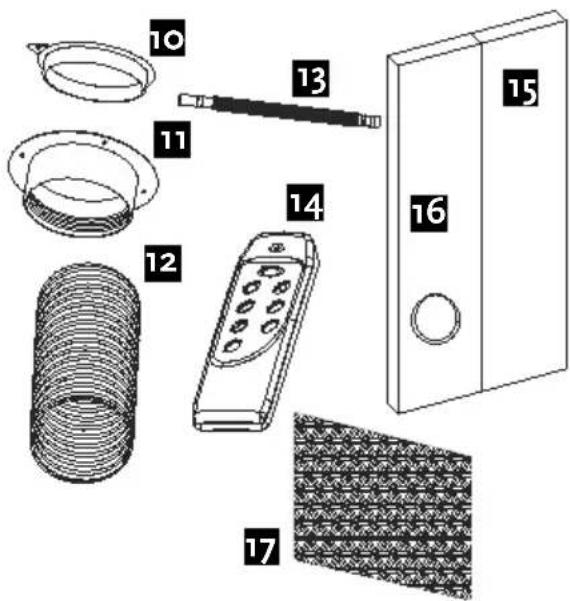

10. Cap – hole cover

11. Wall adapter

12.Exhausthose

1. Drainage hose

2. Remotecontrol

3. Foam (extension)

4. Foam with hole for exhaust hose

17.Filter

THANK YOU

Thank you for choosing this innovative Amcor air conditioner. We suggest that you keep this manual in a safe place for future reference. It describes the many benefits and advanced features this unique product has to offer. Before you use your air conditioner you should carefully read these instructions to maximise this product's performance.

For over 50 years Amcor has specialised in complete indoor environmental control, manufacturing and marketing; dehumidifiers, portable air conditioners, coolers, air purifiers, ionisers and aroma therapy scent diffusers. These world class products incorporate the latest technological developments.

SAFETY INSTRUCTIONS

IMPORTANT!

• The unit is designed for indoor operation.
• Rating: This unit must be connected to a 220-240 V / 50 Hz earthed outlet.
• The installation must be in accordance with regulations of the country where the unit is used.

If you are in any doubt about the electrical installation, have it checked and if necessary modified by a qualified electrician.

• The air conditioner is safe. However, as with other electrical appliances, use it with care.
• Keep out of the reach of children.
• Do not clean the unit by spraying it or immersing it in water.
• Do not insert any object into the openings of the unit.
• Disconnect it from the mains before cleaning the unit or any of its components.
• Never connect the unit to an electrical outlet using an extension cord. If an outlet is not available, one should be installed by a licensed electrician.
• Never operate this appliance if it has a damaged cord or plug. Do not lead the cord over sharp edges.
• A damaged supply cord should be replaced by the manufacturer, its service agent or a qualified person in order to avoid a hazard.
• Any service other than regular cleaning or filter replacement should be performed by an authorized service representative. Failure to do so could result in a loss of warranty.

Do not use your air conditioner:

Abstract black-and-white geometric pattern with diagonal lines and a central emblem (no text or symbols)

If the power cable wires are frayed or cut

Symbolic illustration of a dog and a cat crossed out by diagonal lines (no text or labels)

When small children may be left unattended

>10

On a slope or uneven surface

Simple line drawing of a campfire with no text or symbols

Close to a heat source

Abstract geometric pattern with black and gray shapes intersecting by diagonal lines (no text or symbols)

This products is not made for DIY repair

Simple line drawing of a container with liquid inside, crossed out by two diagonal lines (no text or symbols)

If there is a risk of liquid falling on the unit

Simple line drawing of a window frame with diagonal lines and a shaded bottom panel (no text or symbols)

Inside unit exposed to the weather outdoors

Black and white pictogram of a faucet with water droplets falling, no text or symbols present

In a permanent very humid environment

Pure electrical circuit lines without any symbols

If an extension lead may become overloaded

Abstract black-and-white line drawing of a stylized letter 'L' with a snake-like shape inside, no text or symbols present.

Where the power cable may be damaged

OIL

Where it may be damaged by chemicals

Hand holding a pen over a grid-patterned object, crossed out by diagonal lines (no text or symbols)

Where there is a risk of interference by foreign objects

Technical diagram showing three different electrical or mechanical configurations with symbols indicating check and cross marks.

Reminder:

Waste electrical products must not be disposed of with household waste.

This product should be taken to our local recycling centre for safe treatment.

POSITIONING

This unit can easily be moved from one room to another. In doing so keep this in mind:

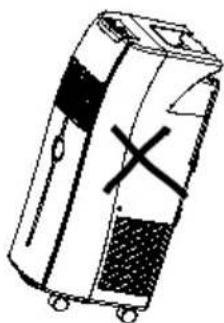

• The air conditioner must stand upright on an even surface.
• Do not position near bath, douche or other permanent wet or damp area.
• Keep for free air circulation at least 50 cm free from any obstacle or curtains.


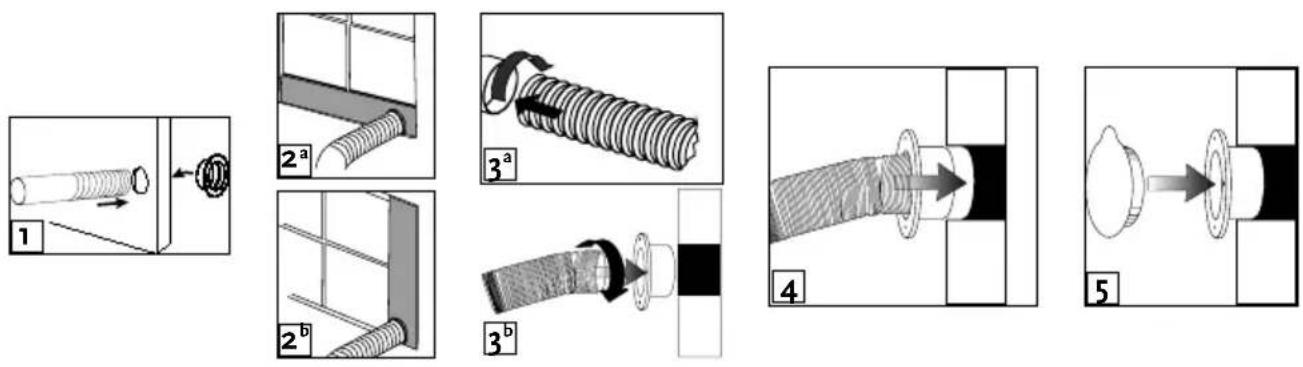

Window foam fitting

If necessary, cut the foam to the height or width of the window.

• Pass the adapter (11) through the opening in the foam (16) and put the exhaust hose (12) into the hose adapter (11) (fig. 1).
- Place the foam with the hole (16) – if needed together with the foam extension (15) – in the window and close this as far as possible to refrain the warm air from re-entering the room.
Depending on how the window opens, vertically (fig. 2a) or horizontally (fig. 2b).
- Connect the exhaust hose to the air conditioner (fig. 3a).

Permanent wall fitting

Make sure that no pipes or wires run through the chosen spot.

• Drill a hole to fit the outer diameter of the adapter (11).
• Connect the exhaust hose (12) to the air conditioner (fig. 3a).
• Connect the exhaust hose to the adapter (fig. 3b).
• Place the adapter with hose in the hole (fig. 4) and fix with plugs and screws.
  Use the cap (10) to close the hole when the air conditioner is not placed (fig. 5).

Important

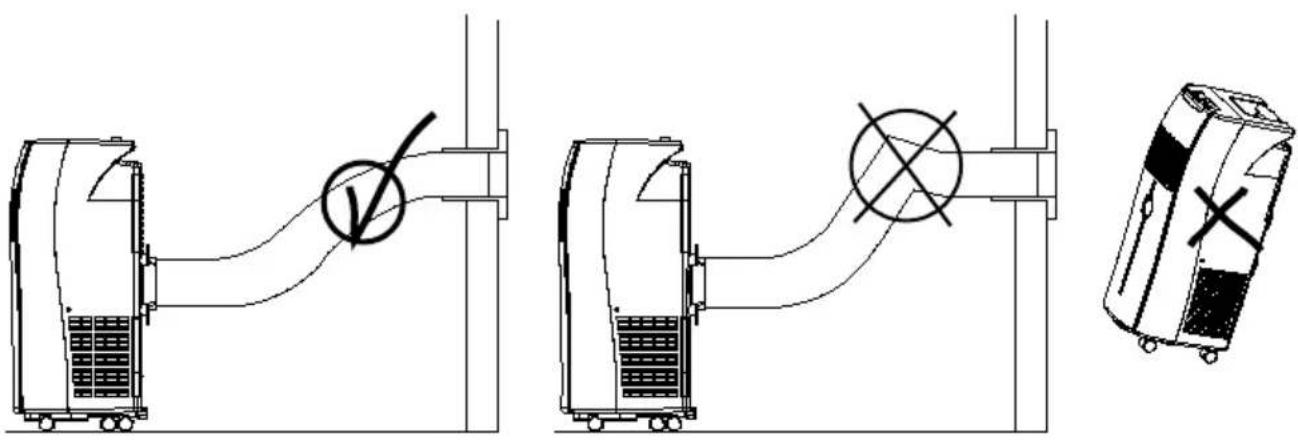

The flexible exhaust hose can be extended from 300 to 1500 mm for mounting. This length has been designed especially according to the specifications of the air conditioner. Do not use an extension or exchange for a different hose as that may lead to malfunctioning.

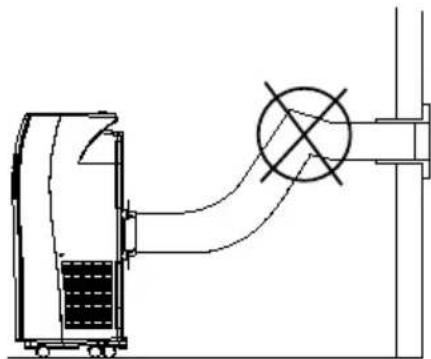

The exhaust air must flow freely, any blockage can lead to overheating of the air conditioner. Take care to prevent any kink or bend in the exhaust hose.

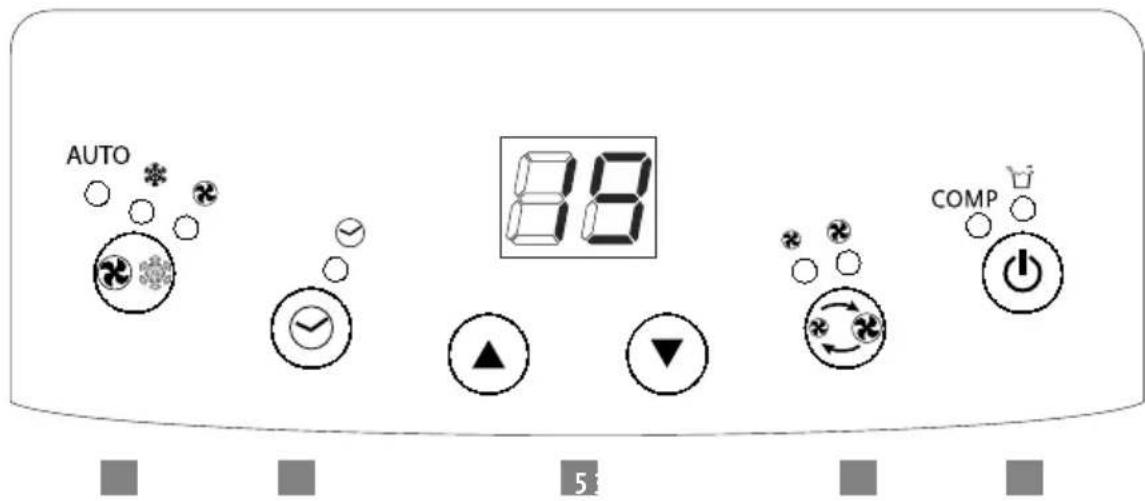

OPERATION

AUTO 8.8 COMP 5

1. ON/OFF ⏻

Press the ON/OFF-button to switch the unit on or off.

2. Setting the timer √

Press the ⏻ button to set the operating hours (1 to 12 hours, 1 hour each press).

When set, the LED will light up.

When the set hours have elapsed, the unit will turn off automatically. The display will show the hour(s) remaining when you press the ⏻ button.

By pressing the ⏻ button but without turning the unit on, you can pre-set in how many hour(s) the unit will switch on automatically.

3. Setting the operating mode

Select the required operating mode: cooling ✝, fan ✝ or AUTO. The corresponding LED will lit. In AUTO mode the unit will select cooling or fan depending on the ambient temperature.

4. Fan speed

Select the fan speed, the corresponding LED will lit: ✗ low or ✗high.

5. Temperature setting, increase ▲(up) or decrease (down)

When the unit is ON the display shows the ambient temperature, and any LED of operating mode, fan speed, timer is on.

Press button ▲ or ▼ see the set temperature and adjust if necessary – in the range from 17 °C to 32 °C – with the ▲ and ▼ buttons (1 °C each press). After a few seconds the room temperature will be displayed.

Warning lights and COMP

When the water container is full, the unit automatically stops, the warning light will flash to signal that the container must be emptied.

When the unit is cooling, the compressor light COMP will be on. If this light is off

further cooling is not needed at this time, or the compressor may be de-icing its coils. The fan can still be on.

Remote control

The air conditioner responds to all signals that are sent by the remote control. Two AAA-batteries are required to use the remote control. Point the remote control hand set towards the control panel of the unit and press the relevant button, the red LED on the hand set will flash whenever a button is pressed.

Note: the air flow direction can not be adjusted with the remote control.

Air flow

Adjust the left-right direction of the out flowing air by turning the roller on the front of the air outlet grill.

Adjust the air flow up and down by turning the outlet grill around at its horizontal axis.

Diagram of a grid-patterned container with an arrow indicating direction (no text or symbols)

Important:

• The compressor will start approximately 3 minutes after the unit is turned on (this will help prolong the life of the compressor). After switching the unit off, please wait at least 3 minutes before turning the unit back on.
• The cooling will switch off when the room temperature is lower than the set one. Ventilation will however continue to work at the set level. When the ambient temperature rises above the chosen value, the cooling will resume.

PERMANENT DRAINAGE

Permanent drainage eliminates the need to empty the water container.

Switch off the unit and remove the plug from the mains.

• Empty the water container as usual.
- Keep the rubber plug and drain knob in a safe place.
- Insert the drainage hose over the sprout.
- Lead the other end of the drainage hose to a normal water outlet.
Make sure the hose has no sharp bends and slopes down all the way to let the water flow freely.

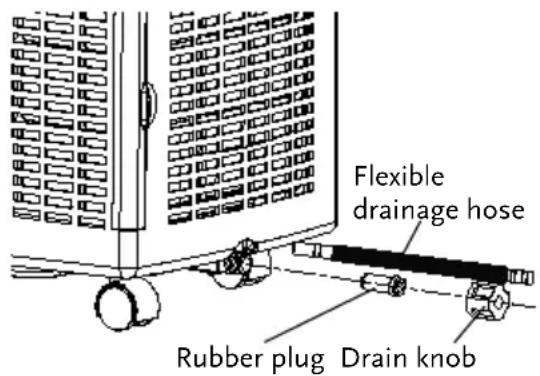

Flexible drainage hose Rubber plug Drain knob

- Connect to the mains and start using the unit again.

When the unit is relocated or permanent drainage is not wanted any more, simply disconnect the unit from the mains, remove the drainage hose and replace the rubber plug and drain knob.

EMPTYING THE WATER CONTAINER

During the process of cooling, some water will be extracted from the air into the unit. Most of this water is used to cool the unit and make it run more efficiently. This is a feature not found in most portable air conditioners.

If the unit is operated in VERY HUMID air, water will collect in the container inside the unit. If the water container is full, the compressor will stop, but the fan will continue to circulate the air. The warning light will flash to inform you to empty the internal container. To make the cooling function work again, empty this container— must be emptied.

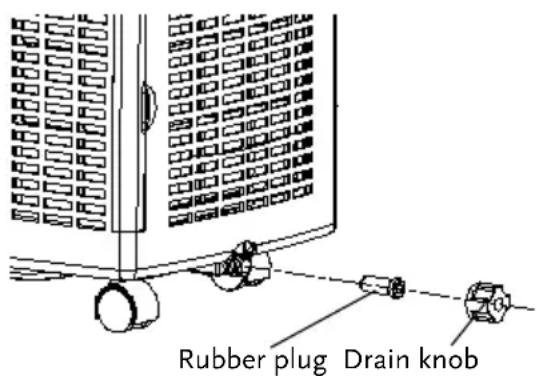

Switch off the unit and remove the plug from the mains.

• Position a flat container or dish on the floor under the drain hole. Do not allow the water to drip continuously into the container as it might easily overflow.
• Remove the drain knob.
• Remove the rubber plug, the water will flow in the container. When this is nearly full, replace the plug to stop the water flow and empty it. Repeat this process until all water has been removed.

Rubber plug Drain knob

- Replace the rubber plug into the drain hole firmly, the warning light should not flash any longer.

- Replace the drain knob.

CLEANING

Always unplug the unit from the power supply (wall outlet) before beginning the cleaning.

Housing

Use a soft, damp cloth to wipe the body clean. Never use strong chemicals, oil-based products, detergents, chemically treated cloths or other cleaning solutions. These could possibly damage the housing.

Filter

The active carbon filter must not be rinsed.

Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from the filters and then rinse only the dust filter thoroughly under running water (not warmer than 40 °C). Dry thoroughly before replacing.

Notice! Never operate the air conditioner without the filters.

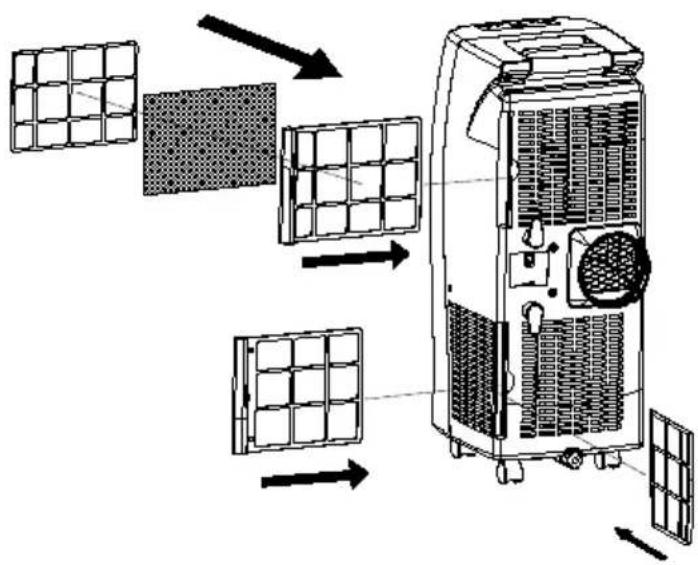

INSTALLATION OF CARBON FILTER(S)

It is recommended to replace an active carbon filter every 3 to 6 months.

• Remove the filter frames from the unit by pulling them out.
• Separate the filter from the filter frame.
• Remove the active carbon filter from its plastic bag.
• Insert the active carbon filter into the filter frame.
  • Fix the filter by reassembling the fixer onto the filter frame.
  • Re-fit the filter frames inside the unit.

STORAGE

See the instructions "Emptying the water container".

• Drain the condensed water completely.
• Clean or change the filter.
• Put the unit on a warm day in fan mode for a couple of hours to ensure that the inside can dry out completely.
• Store the power cable as shown, protect the unit against dust (put back into its original carton) and store in a dry place not accessible for children.
• Do not stock heavy objects on top of the unit.

TROUBLE SHOOTING

Never try to repair or dismantle the air condition yourself. Incompetent repairs result in loss of warranty and can endanger the user and the property.
Problem Cause Solution
The air conditioner does not function.	No power supply. Connect to a functioning outlet and switch on.
	Is the power light fl ashing? Empty the drain pan.
	Timer function is active. Deactivate the TIMER function.
The air conditioner does not seem to perform.	The unit is in direct sunlight. Close curtains.
	Windows or doors open, many people or a heat source in the room.	Close doors and windows, place an extra air conditioner.
	The filter is dirty. Clean or replace the filter.
	Air inlet or air outlet blocked. Remove the blockage.
	Room temperature lower than the selected value.	Change temperature selection. Set at the lowest possible setting: 17 °C.
The unit is noisy.	Unit stands uneven. Place on an even, solid surface (less vibrations).
The compressor does not work.	The overheat protection is probably activated.	Wait 3 minutes until the temperature has decreased, then turn on the unit again.
The remote control does not function.	Distance too great. Make sure the remote control is correctly aimed at the control panel.
	Remote control signal not detected by the control panel.
	The batteries are drained. Replace the batteries.
To correct problems that have not been described in the table and/or if the recommended solutions fail to solve the problem, contact an authorized service centre.

TECHNICAL DATA

Model AF 8000E AF 10000E
Cooling capacity measured conform EN 14511	BTU/h 6000 8000
	kW 1.75	2.35
Mains 220–240 V / 50 Hz / 1Ph
Power consumption W 690 870
Current A 3.1 4
Dehumidification L/24h 20 24
Refrigerant		R410A
Compressor		rotary
Fan speeds		2
Thermostat	°C	17 – 32
Timer	h	1 – 12
Dimensions (W x H x D)	mm 305 x 750 x 380
Net weight	kg	20	20.6
Subject to modifications without prior notice. Please refer to the rating label for greater precision.

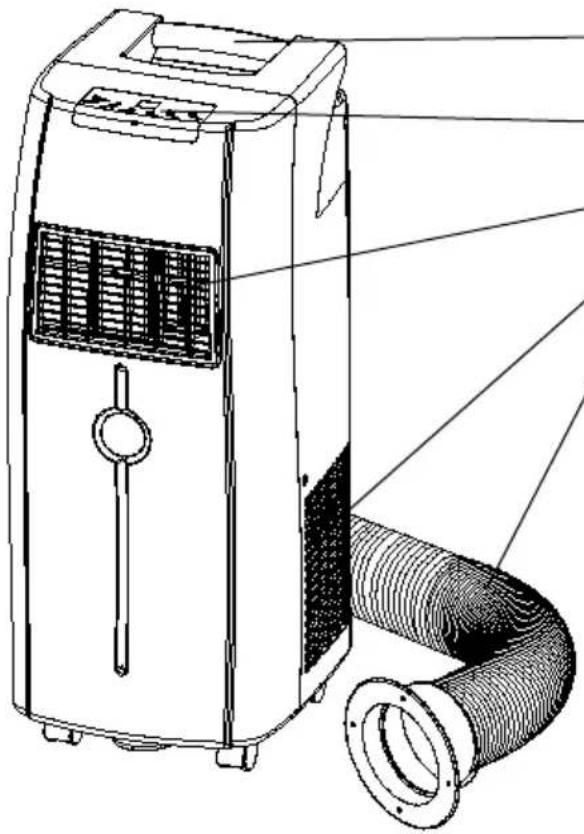

ONDERDELEN

Line drawing of a portable air conditioner unit with coiled hose and fan (no text or symbols)

Diagram of a portable air conditioner unit with numbered parts labeled 1 through 9

Labeled diagram of household home appliances and fixtures including rings, a phone, and a wall panel

Abstract black-and-white geometric pattern with diagonal lines and a central emblem (no text or symbols)

Black and white pictogram showing a dog and a cat crossed out by diagonal lines (no text or symbols)

Simple line drawing of a campfire with no text or symbols

nabij warmtebron

Abstract geometric pattern with black and gray shapes intersecting by diagonal lines (no text or symbols)

Simple line drawing of a spray bottle on a block with diagonal lines (no text or symbols)

Simple line drawing of a window frame with diagonal lines and a shaded bottom panel (no text or symbols)

Black and white pictogram of a faucet with water droplets falling, set against a diagonal line (no text or symbols)

in natte omgeving

Pure electrical circuit lines without any symbols

Abstract black-and-white line drawing of a stylized creature or symbol (no text or symbols present)

Hand holding a tool interacting with a grid-patterned object (no text or symbols visible)

Technical diagram showing three different electrical or mechanical configurations with symbols indicating check and cross marks.

Niet vergeten:

Diagram of a grid-patterned panel or vent with an arrow pointing upward (no text or symbols)

Belangrijk:

Technical diagram of an air conditioner unit with numbered parts for identification

Labeled diagram of household appliances and fixtures including coiled pipes, a mobile phone, and a patterned fabric.

Abstract black-and-white graphic with diagonal lines and a stylized flame or cloud shape (no text or symbols)

Silhouette of a dog and a cat crossed out by diagonal lines (no text or symbols)

Simple line drawing of a campfire with no text or symbols

Près d'une flamme

Abstract geometric pattern with black and gray shapes intersecting by diagonal lines (no text or symbols)

Simple line drawing of a container with liquid and bubbles, crossed out by two diagonal lines (no text or symbols)

Simple line drawing of a double door with diagonal bracing and a shaded base (no text or symbols)

Black and white pictogram of a faucet with water droplets falling, enclosed in a diagonal line (no text or symbols)

Près de l'eau

Pure electrical circuit lines without any symbols

Abstract black-and-white line drawing with intersecting curves and a small arrow (no text or symbols)

Hand holding a tool interacting with a grid-like object (no text or symbols visible)

Technical diagram showing three different electrical or mechanical configurations with symbols indicating check and cross marks.

Diagram of a ventilation grille with grid pattern and directional arrow (no text or symbols)

Important:

Line drawing of an air conditioner unit with cooling fan and hose (no text or symbols)

Diagram of a portable air conditioner unit with numbered labels pointing to internal components

Labeled diagram of household appliances and fixtures including coiled pipes, a mobile phone, and a patterned fabric.

Abstract black-and-white graphic with diagonal lines and a stylized hand holding a rock (no text or symbols)

Silhouette of a dog and a cat crossed in a diagonal line (no text or symbols)

Simple line drawing of a campfire with no text or symbols

Abstract geometric pattern with black and gray shapes intersecting by diagonal lines (no text or symbols)

Simple line drawing of a container with liquid inside, crossed by two diagonal lines (no text or symbols)

Simple line drawing of a window frame with diagonal lines and a shaded bottom panel (no text or symbols)

Black and white pictogram of a faucet with water droplets falling, no text or symbols present

Pure electrical circuit lines without any symbols

Abstract geometric pattern with intersecting lines and a central symbol (no text or symbols present)

Hand holding a tool interacting with a grid-patterned object (no text or symbols visible)

Pure technical line drawing of a mechanical or electrical component with no text, numbers, or symbols

Pure technical line drawing of a mechanical or electrical component without any text, numbers, or symbols

Illustration of a cylindrical device with a cross mark on its side (no text or symbols)

Nicht vergessen:

Diagram of a grid-patterned panel or enclosure with a vertical pole and horizontal bar (no text or symbols)

Wichtige Hinweise:

LAGERUNG

Technical diagram of an air conditioner unit with numbered parts for identification

Diagram showing 17 labeled household home appliances and materials including rings, a mobile phone, and a textured fabric.

Abstract black-and-white graphic with diagonal lines and a central emblem (no text or symbols)

Silhouette of a dog and a cat crossed in a cross pattern (no text or symbols)

Simple line drawing of a campfire with no text or symbols

Abstract geometric pattern with black and gray shapes intersected by diagonal lines (no text or symbols)

Simple line drawing of a spray bottle on a block with diagonal lines (no text or symbols)

Simple line drawing of a double door frame with diagonal lines and a shaded bottom panel (no text or symbols)

Black and white icon of a faucet with water droplets falling, enclosed in a diagonally divided rectangle (no text or symbols)

Pure electrical circuit lines without any symbols

Abstract black-and-white geometric line drawing with no text or symbols

Diagram showing a hand using a tool to cut a rectangular object with diagonal lines (no text or symbols)

Technical diagram showing three stages of a vehicle or air conditioning system with checkmark and cross symbols indicating inspection or failure points.

Diagram of a rectangular grid structure with an arrow pointing upward (no text or symbols)

Importante:
        D["Grid Component 1"]
        E["Grid Component 2"]
    end
    subgraph Air_Purifier_2
        F["Grid Component 3"]
        G["Grid Component 4"]
    end
    D --> H["Arrow to Panel 1"]
    E --> I["Arrow to Panel 2"]
    F --> J["Arrow to Panel 3"]
    G --> K["Arrow to Panel 4"]
    H --> L["Arrow to Panel 5"]
    I --> M["Arrow to Panel 6"]
    J --> N["Arrow to Panel 7"]
    K --> O["Arrow to Panel 8"]

COME RIPORRE L'APPARECCHIO

Line drawing of an air conditioner unit with coiled hose and fan (no text or symbols)

Diagram of a portable air conditioner unit with numbered parts labeled 1 through 9

Labeled diagram of household appliances and fixtures including coiled pipes, a mobile phone, and a door panel

Abstract black-and-white geometric pattern with diagonal lines and a central emblem (no text or symbols)

Symbolic illustration of a cat and a dog crossed out by diagonal lines (no text or labels)

Simple line drawing of a campfire with diagonal lines crossing through (no text or symbols)

Abstract geometric pattern with black and gray shapes intersecting by diagonal lines (no text or symbols)

Simple line drawing of a container with liquid and a handle, crossed out by two diagonal lines (no text or symbols)

Simple line drawing of a double-framed window with diagonal lines and a shaded bottom panel (no text or symbols)

Black and white pictogram of a faucet with water droplets falling, set against a diagonal line (no text or symbols)

Cerca del agua

Pure electrical circuit lines without any symbols

Abstract geometric line drawing with intersecting curves and a small arrow (no text or symbols)

Hand holding a tool interacting with a grid-like object (no text or symbols visible)

Technical diagram showing three different electrical or mechanical configurations with symbols indicating check and cross marks.

Diagram of a vehicle front panel with grid pattern and support structure (no text or symbols)

Importante:

Technical line drawing of a mechanical assembly with no visible text or symbols

Suite 2007, Tower 6, The Gateway,

Harbour City, 9 Canton Road,

Tsim Sha Tsui, Kowloon,

Hong Kong

Tel: [phone]

Fax: [phone]

Email: [e-mail]

United Kingdom

Amcor Ltd

9 Ryan Drive, West Cross Centre,

Great West Road, Brentford,

Middlesex, TW8 9ER,

United Kingdom

Tel: [phone]

Fax: [phone]

Email: [e-mail]

USA

Amcor Inc.

685A Gotham Parkway, Carlstadt,

New Jersey 07072,

United States of America

Tel: [phone]

Amcor International Ltd

1 Sapir St.,

P.O. Box 12001,

Hertzelia Pituach,

Israel

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Singapore

Amcor Investments (Singapore) Pte Ltd

545 Orchard Road,

13-02, Far East Shopping Centre,

Singapore 238882

Tel: [phone]

Fax: [phone]

Email: [e-mail]

China

Shan Xia Industrial Development Zone,

Heng Li Town, Dongguan City,

Guangdong Province, China

Plant One - Amcor (China) Ltd

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Plant Two - Amcor Appliances Ltd

Tel: [phone]

Fax: [phone]

Email: [e-mail]

World map silhouette showing continents (no text or labels)
