Product type	Multifunction kitchen robot
Model	DO9146KR
Brand	DOMO
Mixing bowl capacity	2 kg of dough
Blender capacity	1.4 L
Speeds	Multiple speeds with pulse function
Included accessories	Stainless steel mixing bowl with lid, blender, vegetable cutter with 3 graters and salad cutter, beater, dough hook, balloon whisk
Main functions	Kneading, mixing, beating, blending, vegetable cutting, grating
Power supply	220-240 V ~ 50/60 Hz
Power	Approximately 1000 W (estimated)
Dimensions (approx.)	40 x 25 x 35 cm (estimated)
Weight (approx.)	5 kg (estimated)
Bowl material	Stainless steel
Cord length	Short, approximately 80 cm (estimated)
Warranty	2 years from date of purchase
Spare parts and accessories	Available online at webshop.domo-elektro.be and in stores
Maintenance and cleaning	Motor unit cleaned with a damp cloth; accessories washable in soapy water or dishwasher (depending on part)
Safety	Automatic stop after 10 minutes of continuous operation; do not immerse the motor unit; short cord to avoid risks
Repairability	Repair by the manufacturer or authorized service; do not repair yourself

Frequently Asked Questions - DO9146KR DOMO

What is the maximum capacity of the mixing bowl?

The mixing bowl can hold up to 2 kg of dough. Do not exceed this limit to avoid overflow.

Can I blend hot liquids?

No, never pour boiling liquids into the blender. Let them cool to room temperature before blending.

How do I clean the kitchen robot?

Always unplug the appliance before cleaning. The motor unit is cleaned with a damp cloth (do not immerse). Accessories can be washed in soapy water or dishwasher depending on the parts.

Which accessory should I use to knead bread dough?

Use the dough hook for heavy doughs. Caution: do not exceed speed 1 with this accessory.

Can the robot operate continuously?

No, do not operate the appliance for more than 10 minutes continuously. Let it cool for 30 minutes before another use.

How do I assemble the vegetable cutter?

Open the cover on the multifunction head, insert the vegetable cutter at 25° into the opening, then turn a quarter turn counterclockwise until it clicks.

Where can I buy spare parts?

Domo spare parts and accessories are available online at webshop.domo-elektro.be or in the store where you purchased the appliance.

What should I do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger.

How do I disassemble the accessories after use?

Unplug the appliance, raise the head, unlock and remove the accessory by turning it clockwise. Remove the bowl by turning counterclockwise.

Does the warranty cover wear and tear?

No, the 2-year warranty does not cover parts subject to wear and tear nor damage due to improper use. Keep your receipt.

USER MANUAL DO9146KR DOMO

Black and white image of a modern kitchen mixer with control panel (no visible text or symbols)

DO9145KR-DO9146KR

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no text or labels

RECYCLING INFORMATIONEN

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

INFORMACE O RECYKLACI ODPADU

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

CZ

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Clear plastic blender with black handle and lid, labeled with number 9 (no text or symbols on the blender itself)

DOMO 1 2 3 4 5 6 7 8

Black plastic kitchen tool with four metallic kitchen utensils, one labeled 10 (no text or symbols on main objects)

Simple line drawing of a bird-like shape with curved lines and a base, labeled with number 11 below (no text or symbols on the shape itself)

Simple line drawing of a wire mesh head with a black base and dark body, labeled with number 13 (no text or symbols on the diagram itself)

Close-up of a metallic cylindrical object with a small circular feature, mounted on a black base (no text or symbols visible)

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Close-up of a mechanical component with a metallic cylindrical part and a small bolt, no visible text or symbols.

Close-up of a red plastic mechanical component with a handle and mounting bracket (no visible text or symbols)

Close-up of a red and white electronic device component (no visible text or symbols)

Close-up of a black mechanical component mounted on a red cylindrical base (no visible text or symbols)

Three-panel image showing red and black industrial tools with circular components, alongside three metallic gridded containers (no text or symbols visible)

Red industrial device with a circular dial and mechanical components (no visible text or symbols)

Close-up of a modern kitchen blender with black handle and lid (no text or symbols visible)

⑨

Three metallic cylindrical containers with perforated lids, one being filled with a black T-shaped object (no text or symbols visible)

10

11

12

13

AVANT LA PREMIÈRE UTILISATION

Close-up of a metallic cylindrical object with a circular mark on its surface, mounted on a black base (no visible text or symbols)

Close-up of a black mechanical component with a metallic fitting and lever (no visible text or symbols)

Close-up of a metallic mechanical component with a bolt and cylindrical shaft (no visible text or symbols)

Close-up of a red plastic mechanical component with a handle and mounting bracket (no visible text or symbols)

Red industrial sensor device with circular head and central hub (no visible text or symbols)

Close-up of a red mechanical device with black plastic component (no visible text or symbols)

Close-up of a red and black mechanical component with a circular lens (no text or symbols visible)

Close-up of a red and black handheld device with a circular lens and perforated ports (no visible text or symbols)

Three metallic cylindrical containers with perforated lids, arranged horizontally (no text or symbols visible)

Red and white electronic device with a circular dial and antenna (no visible text or symbols)

Clear plastic blender with black handle and lid, no visible text or symbols

⑨

Black industrial pipe fittings and three metallic cylindrical containers (no text or symbols visible)

10

11

12

13

Close-up of a metallic cylindrical object with a circular mark on its surface, mounted on a black base (no visible text or symbols)

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and bolt, no visible text or symbols

Close-up of a red plastic mechanical component with a handle and mounting bracket (no visible text or symbols)

Close-up of a red and white electronic device with a circular lens (no visible text or symbols)

Close-up of a red mechanical device with black plastic component (no visible text or symbols)

Close-up of a red and black mechanical component with a transparent lens (no visible text or symbols)

Close-up of a red and black handheld device with a circular lens and four holes (no visible text or symbols)

Three metallic cylindrical containers with perforated lids, arranged horizontally (no text or symbols visible)

Red industrial device with white circular top and black pointer (no visible text or symbols)

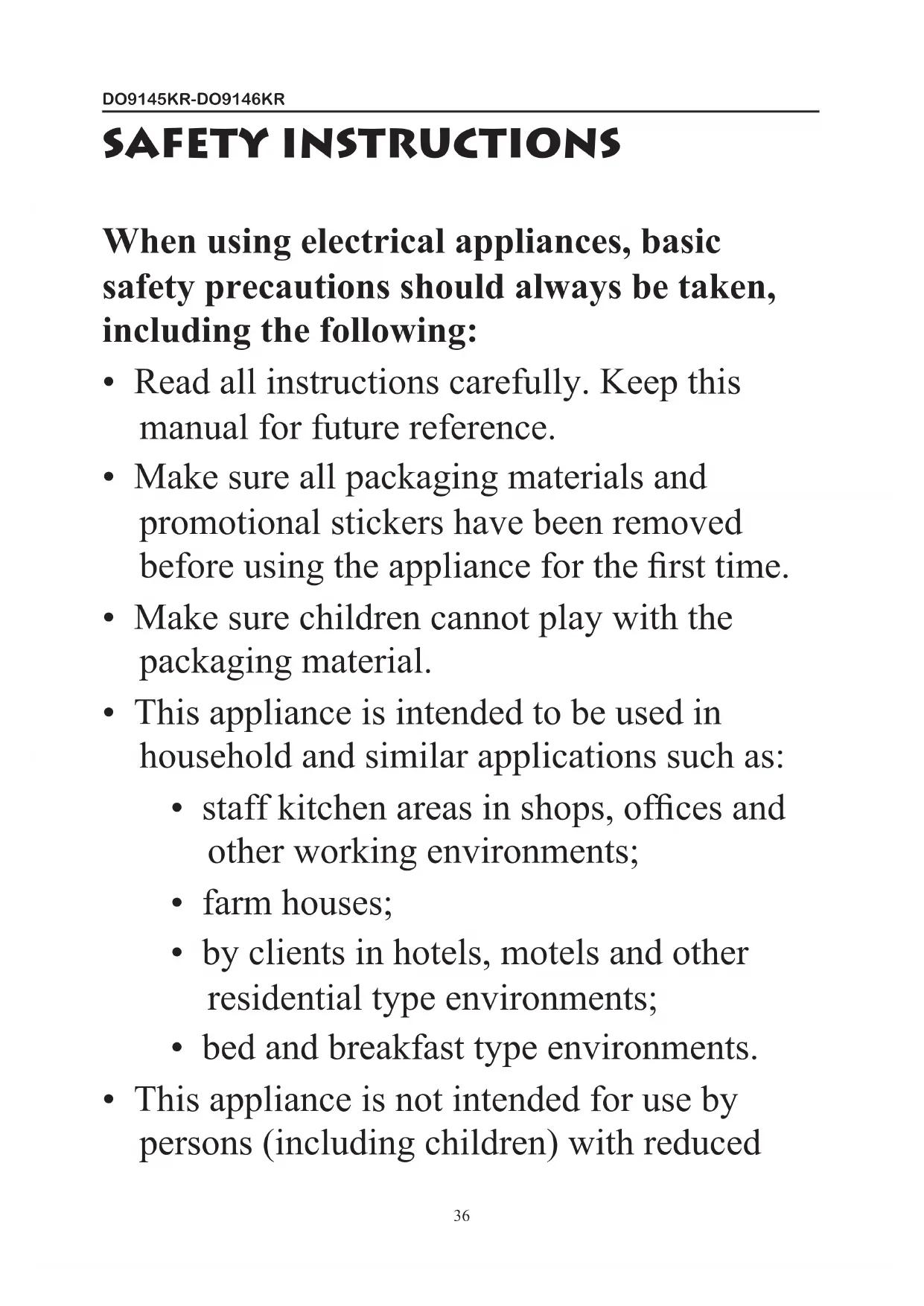

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
• Make sure children cannot play with the packaging material.
• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.
• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to

cool before putting on or taking off parts, and before cleaning the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• Never leave the appliance unattended while it is functioning.
• Do not use or store this appliance outdoors.
• Do not use this appliance for other than intended use.
• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Only use the utensils delivered with the appliance.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.
• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Do not operate the appliance with wet hands.
• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.
• Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Do not allow the power cord supply to run underneath or around the unit.
• Make sure the appliance is correctly assembled, then plug the cord in the wall

outlet. To disconnect, turn controls to "OFF" or "0" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Do not use the appliance if there is any water in it or the parts are still wet after cleaning.

- Do not use the appliance without ingredients.

- Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

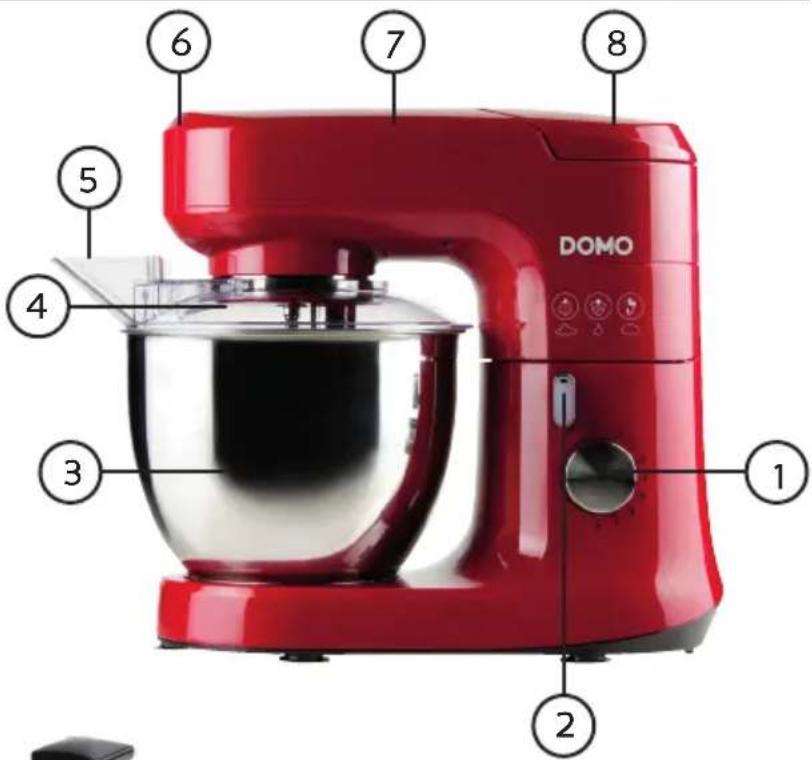

PARTS

1. Speed control
2. Release button multifunctional head
3. Stainless steel mixing bowl
4. Bowl lid
5. Fill opening
6. Connection point for vegetable slicer
7. Multifunctional head
8. Connection point for blender
9. Blender

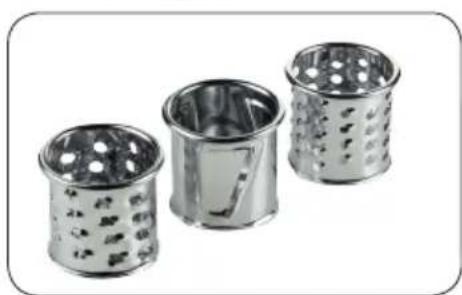

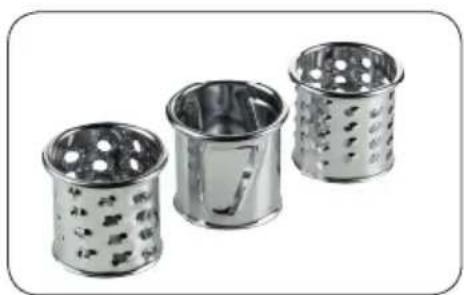

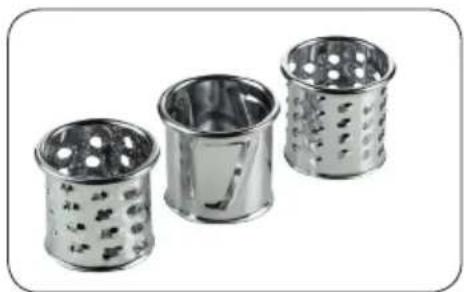

10. Vegetable slicer
11. Beater
12. Dough hook
13. Balloon whisk

Clear plastic blender with black handle and lid, no visible text or symbols

⑨

Black industrial pipe fitting with three metallic cylindrical containers (no text or symbols visible)

10

11

12

13

BEFORE THE FIRST USE

• Remove the appliance and the accessories from the packaging. Remove any promotional stickers.
• Wash all removable parts in warm soapy water and dry thoroughly.
• Never immerse the motor unit in water to avoid electrocution.

ASSEMBLY AND USE

Kneading/beating/whisking

Depending on the nature of the ingredients, the mixing bowl with lid can make 2 kg of dough.

1. Place the appliance on a flat, clean and dry surface.
2. Make sure that the plug is removed from the socket and that the speed control is set to '0'.
3. Turn the release button a quarter turn to the left, push the head up entirely and turn the release button to the right again, so that it points upwards, to lock the head.
4. Put the mixing bowl in the base and turn it clockwise so it locks. Put the ingredients into the bowl.
5. Choose the accessory you want to use: beater, dough hook, balloon whisk.

a. Attach the accessory to the head by sliding it around the axis.
b. Turn the accessory a quarter turn counterclockwise.
c. Release the accessory so that it falls into the lock position.

Caution: only use the dough hook up to a maximum of speed 1.

Close-up of a metallic cylindrical object with a small circular feature, mounted on a black base (no visible text or symbols)

Close-up of a mechanical component with a black cylindrical shaft and a metallic end (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and bolt, no visible text or symbols

1. Turn the release button a quarter turn to the left, push the head down entirely and turn the release button a quarter turn to the right again so that it point upwards, to lock the head.
2. Place the lid onto the bowl. Slide the opening on the lid.
3. Put the plug into the socket and select the desired speed by turning the speed control knob.
4. During the preparation you can add ingredients through the fill opening in the lid. Caution: Do not use the appliance for longer than 10 minutes at a time. After 10 minutes of use, let the appliance cool down for 30 minutes before using it again.
5. To stop the appliance, turn the speed control knob to the '0' position.

Vegetable slicer

Turn off the machine and pull the plug from the outlet before mounting, removing or cleaning any accessories.

1. Open the lid at the tip of the multifunctional head of the food processor: tilt the lid

slightly upwards and remove the lid.

1. The connection point for accessories is revealed.

2. Place the vegetable slicer on the connection point at an angle of 25^ and turn it counterclockwise a quarter turn. You will hear a click when it is attached. The vegetable slicer is now perfectly vertical.

Close-up of a red plastic mechanical component with a handle and mounting bracket (no visible text or symbols)

Close-up of a red and white industrial device component (no visible text or symbols)

Close-up of a black mechanical component mounted on a red industrial machine (no visible text or symbols)

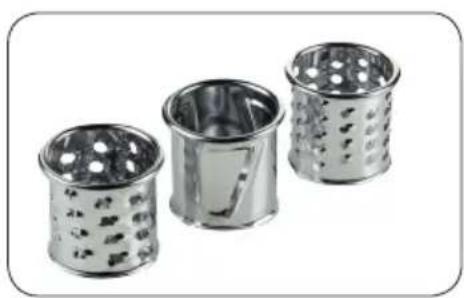

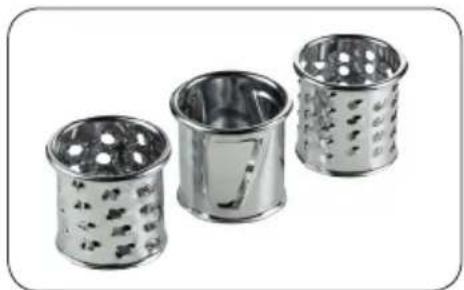

1. Press the grater into the opening of the vegetable slicer. You may select from a cutter and 3 different graters.

Close-up of a red and black mechanical component with a transparent lens (no visible text or symbols)

Close-up of a red handheld device with a circular lens and metallic rim (no visible text or symbols)

Three metallic cylindrical containers with perforated lids, arranged horizontally (no text or symbols visible)

1. Operate the vegetable slicer with the food processor's speed regulator.

2. Vegetables can be pushed into the vegetable slicer safely by using the pusher.

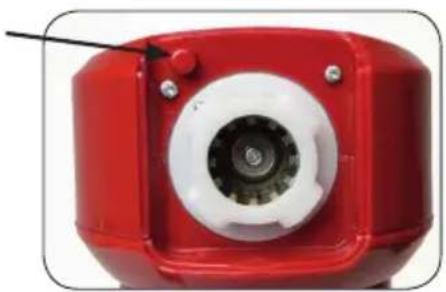

3. To remove the vegetable slicer: Press the unlock button (see diagram) and turn the vegetable slicer clockwise a quarter turn.

Red industrial device with circular vent and mechanical components (no visible text or symbols)

1. Remove the vegetable slicer and replace the lid onto the connection.

2. Clean and dry all parts thoroughly prior to using them again.

Blender

Depending on the nature of the ingredients, the blender is capable of mixing 1.4 litres.

1. Put the multifunctional head in a horizontal position and remove the lid at the top of the head by turning it clockwise.

2. Add the ingredients to the work bowl and close the work bowl with the lid,

including the measuring cup in the feed tube.

1. Place the blender on the connection point and lock the blender by turning it counterclockwise.
2. Use the speed regulator to blend.
3. During blending, it is possible to remove the measuring cup from the lid and add ingredients through the feed tube. Then always close the opening again with the measuring cup.

Note:

• Never run the blender empty.
- Never fill the work bowl with boiling fluids; always allow them to cool to room temperature.
- If you want to crush ice, do not use more than 9 ice cubes (4x4x2 cm) at a time.

DISASSEMBLY

1. Remove the plug from the socket.
2. Remove the lid from the mixing bowl.
3. Turn the release button a quarter turn to the left, push the head up entirely and turn the release button to the right again, so that it points upwards, to lock the head.
4. Push the accessory out of the locked position and turn it clockwise a quarter turn. Then slide the accessory off of the drive shaft and remove the accessory. Use caution when removing the accessories since there may be sharp edges.
5. Turn the bowl counterclockwise out of the lock position and remove the bowl.
6. Turn the release button a quarter turn to the left, push the head down entirely and turn the release button a quarter turn to the right again so that it point upwards, to lock the head.

CLEANING

1. Always remove the plug from the socket before cleaning the appliance.
2. Never immerse the motor unit in water or under running water. Clean the motor unit with a soft, damp cloth.
3. Disassemble all accessories according to the instructions under the section ‘Disassembly’.
4. For quick cleaning, rinse the accessories under running water.
5. For thorough cleaning, wash, rinse and dry the accessories.
6. To clean the blender, combine warm water with a few drops of detergent in the blender. Put the lid on the blender. Briefly turn the speed regulator to pulse and back. Repeat if needed. Rinse the blender under running water and allow it to drip-dry upside down.

Clear plastic blender with black handle and lid, no visible text or symbols

⑨

Three metallic kitchen utensils with perforated bases, arranged on a plain background (no text or symbols visible)

10

11

12

13

Close-up of a metallic cylindrical object with a circular end, mounted on a black base (no visible text or symbols)

Close-up of a mechanical component with a black cylindrical shaft and flange (no visible text or symbols)

Close-up of a mechanical component with a metallic fitting and a small orange bolt (no visible text or symbols)

Close-up of a red plastic mechanical component with a handle and mounting bracket (no visible text or symbols)

Red handheld device with a circular lens and central hub (no visible text or symbols)

Close-up of a black mechanical component mounted on a red base (no visible text or symbols)

Close-up of a red and black mechanical component with a circular lens (no visible text or symbols)

Close-up of a red handheld device with a circular lens and metallic rim (no visible text or symbols)

Three metallic cylindrical containers with perforated lids, arranged horizontally (no text or symbols visible)

Red industrial sensor device with white head and circular internal components (no visible text or symbols)

USCHOVEJTE SI TENTO MANUÁL I PRO POZDĚJŠÍ NAHLÉDNUTÍ

ČÁSTI

Clear plastic blender with black handle and lid, no visible text or symbols

⑨

Black plastic pipe fittings and three metallic cylindrical containers (no text or symbols visible)

10

11

12

13

PŘED PRVNÍM POUŽITÍM

Close-up of a metallic cylindrical object with a circular mark on its surface, mounted on a black base (no visible text or symbols)

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Close-up of a metallic mechanical component with a circular end and a small bolt, no visible text or symbols.

Close-up of a red plastic mechanical component with a handle and mounting bracket (no visible text or symbols)

Close-up of a red and white electronic device with a circular lens (no visible text or symbols)

Close-up of a red mechanical component with black plastic housing (no visible text or symbols)

Close-up of a red and black mechanical component with a circular lens (no text or symbols visible)

Close-up of a red handheld device with a circular dial and four holes (no visible text or symbols)

Three metallic cylindrical containers with perforated lids, arranged horizontally (no text or symbols visible)

Red industrial device with white circular head and black pointer (no visible text or symbols)

USCHOVAJTE SI TENTO MANUÁL AJ K NEJSKORŠIEMU NAHLIADNUTI

ČASTI

Close-up of a modern kitchen blender with black handle and lid (no text or symbols visible)

⑨

Black plastic pipe fitting with three metallic cylindrical containers, no visible text or symbols

10

11

12

13

PRED PRVÝM POUŽITÍM

Close-up of a metallic cylindrical object with a small circular mark on its surface, mounted on a black base (no text or symbols visible)

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Close-up of a metallic mechanical component with a small bolt, no visible text or symbols

Close-up of a red plastic mechanical component with a handle and mounting bracket (no visible text or symbols)

Close-up of a red and white electronic device with a circular lens (no visible text or symbols)

Close-up of a black plastic mechanical component mounted on a red base (no visible text or symbols)

1. Vyberte si jedno z 3 strúhadiel a zatlačte ho dovnútra do krájača.

Close-up of a red and black mechanical component with a glossy cylindrical feature (no visible text or symbols)

Close-up of a red handheld device with a circular lens and four holes (no visible text or symbols)

Three metallic cylindrical containers with perforated lids, arranged horizontally (no text or symbols visible)

Close-up of a red industrial device with a circular white component and black pointer (no visible text or symbols)

Two cylindrical white objects with small protrusions, possibly milk or tea, placed on a plain white surface (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular baking bowl (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
