USER MANUAL DO1002KR DOMO

Black DOHO brand mixer with stainless steel bowl and control panel (no visible text or symbols)

DO1002KR

Handleiding Keukenrobot

Mode d'emploi Robot de cuisine

Gebrauchsanleitung Küchenmaschine

Instruction booklet Stand mixer

Manual de instrucciones Robot de cocina

Návod k použití Kuchyňský robot – sada

Návod na použitie Kuchynský robot - sada

Two black-and-white icons: a triangular warning symbol with an exclamation mark and an open book (no text or symbols present)

Close-up of a modern kitchen blender with black handle and lid (no visible text or symbols)

⑨

Product photo of a stainless steel kitchen feedstock with various kitchen utensils and accessories (no text or symbols visible)

10

11

12

13

Close-up of a metallic cylindrical object with a small circular feature, mounted on a black base (no visible text or symbols)

Close-up of a mechanical component with a black cylindrical part and a metallic end (no visible text or symbols)

Close-up of a mechanical component with a metallic cylindrical shaft and a small circular feature, no visible text or symbols.

Close-up of a metallic cylindrical component with a circular badge labeled '123' (no other text or symbols visible)

Close-up of a black cylindrical device with a circular lens and central aperture (no visible text or symbols)

Close-up of a stainless steel mechanical component with a circular vent and internal structure (no visible text or symbols)

Exploded view of a mechanical component showing internal gears and a cross-shaped part (no text or symbols visible)

Two circular perforated metal plates, labeled 5 and 6, with no text or symbols on the plates themselves.

Close-up of a metallic circular object with a small protrusion, no visible text or symbols.

Black and white photo of a kitchen stand mixer with a bowl of food (no visible text or symbols)

Close-up of a hand using a food processor (no visible text or symbols)

Close-up of mechanical components including a cylindrical valve, coiled spring, and piston (no text or symbols visible)

Close-up of mechanical components including a metallic T-junction, gear assembly, and circular components (no text or symbols visible)

Close-up of a black cylindrical device with a circular lens and labeled component (12), no readable text or symbols beyond the number.

Black kitchen mixer with blender and bowl (no visible text or symbols)

Opgelet:

Warning sign with crossed lines and a trash can symbol, indicating no liability or prohibition

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

Close-up of a black and white plastic blender with lid and handle (no text or symbols visible)

⑨

Product photo of a stainless steel robotic feedstock with various kitchen utensils and accessories (no text or symbols visible)

10

11

12

13

AVANT LA PREMIÈRE UTILISATION

Close-up of a metallic cylindrical object with a circular mark on its surface, mounted on a black base (no visible text or symbols)

Close-up of a mechanical component with a metallic cylindrical part and a small protrusion, no visible text or symbols.

Close-up of a mechanical component with a metallic cylindrical body and a small protrusion, no visible text or symbols.

Close-up of a metallic cylindrical component with a circular badge labeled '123' (no other text or symbols visible)

Close-up of a black cylindrical device with a circular lens and central aperture (no visible text or symbols)

Close-up of a metallic mechanical component with a central meshed circular opening (no visible text or symbols)

Close-up of a metal kitchen knife with internal components and a cross-shaped tool (no text or symbols visible)

Two circular metal components labeled 5 and 6, showing different hole patterns (no text or symbols beyond labels)

Close-up of a metallic circular object with a small protrusion, no visible text or symbols.

Black kitchen stand mixer with metal bowl and handle (no visible text or symbols)

Close-up of a hand holding a black food processor with a handle, no visible text or symbols

Close-up of mechanical components including a piston, crankshaft, and flange assembly (no text or symbols visible)

Close-up of mechanical components including a metallic T-junction, gear-like shafts, and a black circular component (no text or symbols visible)

Close-up of a black cylindrical device with a circular aperture and labeled component (12), no visible text or symbols beyond the number.

Black kitchen mixer with blender and bowl (no visible text or symbols)

Attention :

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

Close-up of a modern kitchen blender with black handle and lid (no visible text or symbols)

⑨

Close-up of a stainless steel robotic feedstock with various kitchen components and plastic parts (no text or symbols visible)

10

11

12

13

Close-up of a metallic cylindrical object with a circular mark on its surface, mounted on a black base (no visible text or symbols)

Close-up of a mechanical component with a metallic fitting and lever (no visible text or symbols)

Close-up of a metallic mechanical component with a bolt and cylindrical shaft (no visible text or symbols)

Close-up of a metallic cylindrical component with a circular badge labeled '123' (no other text or symbols visible)

Close-up of a black cylindrical device with a circular lens and central hub (no visible text or symbols)

Close-up of a metallic mechanical component with a circular vent and internal structure (no visible text or symbols)

Exploded view of a mechanical component with internal gears and a cross-shaped part (no text or symbols visible)

Two circular metal components labeled 5 and 6, showing different hole patterns (no text or symbols beyond labels)

Close-up of a metallic circular object with a small protrusion, no visible text or symbols.

Black and white photo of a kitchen mixer with handle and bowl (no visible text or symbols)

Close-up of a hand using a manual electrician's grater, no visible text or symbols

Close-up of two mechanical components: a metallic T-joint and a black piston, both with threaded ends and a circular head (no text or symbols visible)

Close-up of mechanical components including a metallic T-junction, gear assembly, and circular components (no text or symbols visible)

Close-up of a black cylindrical device with a circular aperture and labeled component (12), no visible text or symbols beyond the number.

Black kitchen mixer with blender and bowl (no visible text or symbols)

Achtung:

Warning sign with crossed-out trash bin and no text, indicating no waste or plastic waste.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
  · Make sure children cannot play with the packaging material.
  · This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  · farm houses;

• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

· Children should be supervised to ensure that they do not play with the appliance.
- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Keep the appliance and its cord out of reach of children younger than 16 years.
- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• CAUTION: in order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• Never leave the appliance unattended while it is functioning.
• Do not use or store this appliance outdoors.
• Do not use this appliance for other than intended use.
• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Only use the utensils delivered with the appliance.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

· Do not operate the appliance with wet hands.

· A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.

· Unwrap the cord completely to prevent overheating of the cord.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

· Do not allow the power cord supply to run underneath or around the unit.

- Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Do not use the appliance if there is any water in it or the parts are still wet after cleaning.

· Do not use the appliance without ingredients.

· Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

· Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

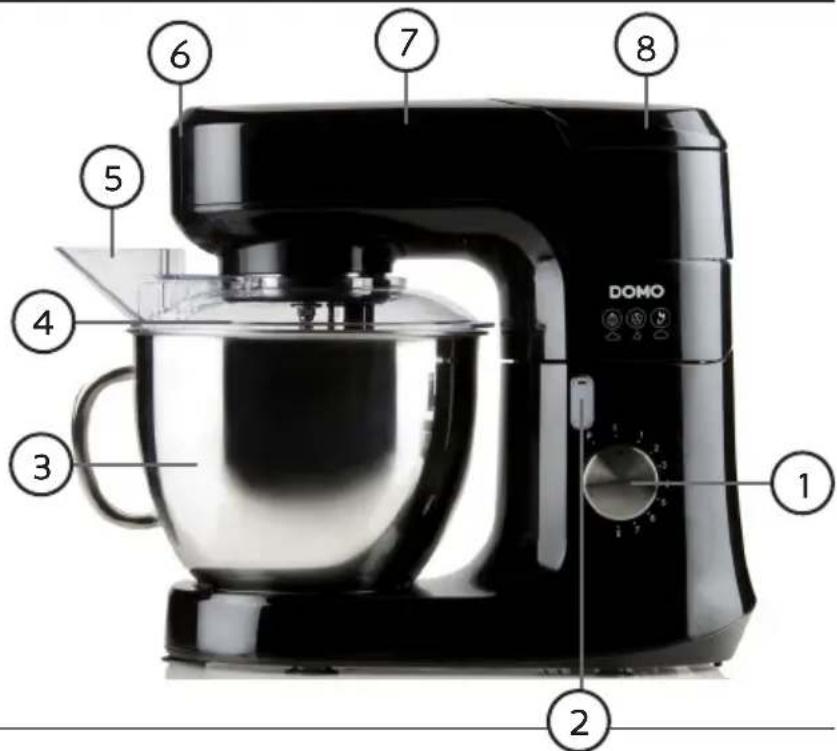

PARTS

1. Speed control
2. Release button multifunctional head
3. Stainless steel mixing bowl
4. Bowl lid
5. Fill opening
6. Connection point for meat grinder
7. Multifunctional head
8. Connection point for blender
9. Blender
10. Meat grinder

DOMO 1 2 3 4 5 6 7 8

1. Beater
2. Dough hook
3. Balloon whisk

Close-up of a modern kitchen blender with black lid and side handle (no visible text or symbols)

⑨

Three black plastic mechanical components with flanges and caps, no visible text or symbols

10

Metallic stainless steel meat maker with a side flange and circular base (no text or symbols visible)

11

12

13

BEFORE THE FIRST USE

• Remove the appliance and the accessories from the packaging. Remove any promotional stickers.
  · Wash all removable parts in warm soapy water and dry thoroughly.
  · Never immerse the motor unit in water to avoid electrocution.

ASSEMBLY & USE

KNEADING/BEATING/WHISKING

1. Depending on the nature of the ingredients, the mixing bowl with lid can make 2 kg of dough.
2. Place the appliance on a flat, clean and dry surface.
3. Make sure that the plug is removed from the socket and that the speed control is set to 'o'.
4. Turn the release button a quarter turn to the left, push the head up entirely and turn the release button to the right again, so that it points upwards, to lock the head.
5. Put the mixing bowl in the base and turn it clockwise so it locks. Put the ingredients into the bowl.
6. Choose the accessory you want to use: beater, dough hook, balloon whisk.

a. Attach the accessory to the head by sliding it around the axis.
b. Turn the accessory a quarter turn counterclockwise.
c. Release the accessory so that it falls into the lock position. Caution: only use the dough hook up to a maximum of speed 1.

Close-up of a metallic cylindrical object with a circular end, mounted on a black base (no visible text or symbols)

Close-up of a mechanical component with a black cylindrical body and a metallic shaft (no visible text or symbols)

Close-up of a mechanical component with a metallic cylindrical body and a small protrusion, no visible text or symbols.

1. Turn the release button a quarter turn to the left, push the head down entirely and turn the release button a quarter turn to the right again so that it point upwards, to lock the head.
2. Place the lid onto the bowl. Slide the opening on the lid.
3. Put the plug into the socket and select the desired speed by turning the speed control knob.
4. During the preparation you can add ingredients through the fill opening in the lid. Caution: Do not use the appliance for longer than 10 minutes at a time. After 10 minutes of use, let the appliance cool down for 30 minutes before using it again.
5. To stop the appliance, turn the speed control knob to the 'o' position.

MEAT GRINDER

Turn off the device, and take the plug out of the socket before you add, remove or clean any accessories.

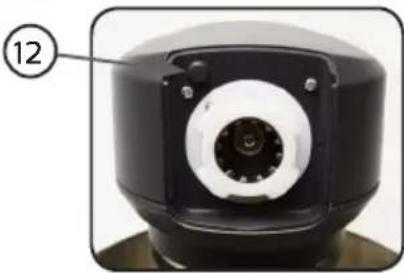

1. Open the lid at the tip of the multifunctional head of the food processor: tilt the lid slightly upwards and remove the lid.
2. The connecting point for accessories is now shown.
3. Place the meat grinder at an angle of 25^ to the connection point and tighten it by making a quarter turn clockwise. You hear a click when it is securely fastened. Your meat grinder is now in a perfect vertical position.

Close-up of a metallic industrial component with a circular badge showing the number 123 (no visible text or symbols on the component itself)

Close-up of a black cylindrical device with a circular lens and central hub (no visible text or symbols)

Close-up of a metallic mechanical component with a circular vent and internal structure (no visible text or symbols)

1. For grinding meat insert in succession: the worm wheel and the cutting knife.

Close-up of a mechanical component with internal gears and a cross-shaped connector (no text or symbols visible)

1. Then make a selection from the grinding discs: fine or coarse.
2. Position the notch on the disc at the height of the projecting catch.
3. Connect it altogether with the screw ring.

Two circular metal components labeled 5 and 6, showing different hole patterns (no text or symbols beyond labels)

Close-up of a metallic mechanical component with a circular hole and flanged ends (no text or symbols visible)

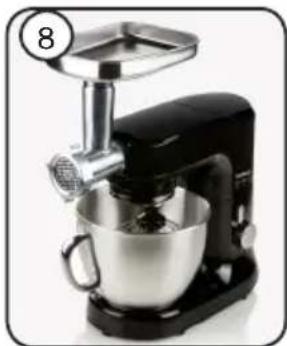

1. Position the bowl in the best way possible so as to put your meat in it.

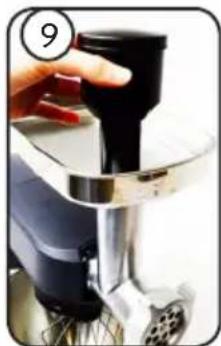

2. You can use the pushing rod to press the meat firmly inside.

Close-up of a kitchen stand mixer with metal bowl and handle (no visible text or symbols)

Close-up of a hand using a manual electric shaver on a metal workpiece (no visible text or symbols)

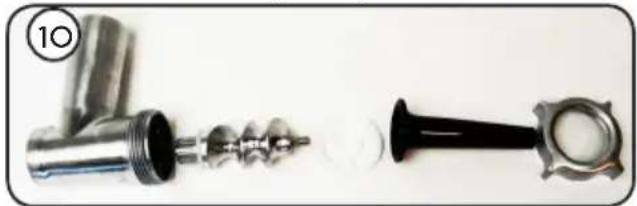

1. For sausage making, insert the following components:

Close-up of mechanical components including a cylindrical connector, threaded shaft, and piston (no text or symbols visible)

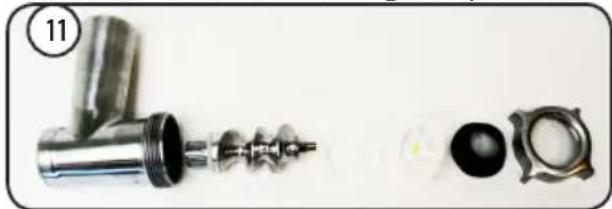

1. For making stuffed meatballs, insert the following components:

Close-up of mechanical components including a metallic T-joint, gear assembly, and circular eye-like parts (no text or symbols visible)

1. To remove the meat grinder, press the release button next to the connection point for meat grinder. Make a quarter turn clockwise on the meat grinder. Clean all parts thoroughly and dry carefully before using them again.

Close-up of a black cylindrical device with a circular aperture and labeled component (12), no visible text or symbols beyond the number.

Cleaning: Do not use the dishwasher for cleaning the meat grinder.

BLENDER

1. Depending on the nature of the ingredients, the blender is capable of mixing 1.5 litres.

2. Put the multifunctional head in a horizontal position and remove the lid at the top of the head by turning it clockwise.

3. Add the ingredients to the work bowl and close the work bowl with the lid, including the measuring cup in the feed tube.

4. Place the blender on the connection point and lock the blender by turning it counterclockwise.

5. Use the speed regulator to blend.

6. During blending, it is possible to remove the measuring cup from the lid and add ingredients through the feed tube. Then always close the opening again with the measuring cup.

Black kitchen mixer with blender and bowl (no visible text or symbols)

Note:

• Never run the blender empty.
• Never fill the work bowl with boiling fluids; always allow them to cool to room temperature.
  · If you want to crush ice, do not use more than 9 ice cubes (4×4×2 cm) at a time.

DISASSEMBLY

1. Remove the plug from the socket.
2. Remove the lid from the mixing bowl.
3. Turn the release button a quarter turn to the left, push the head up entirely and turn the release button to the right again, so that it points upwards, to lock the head.
4. Push the accessory out of the locked position and turn it clockwise a quarter turn. Then slide the accessory off of the drive shaft and remove the accessory. Use caution when removing the accessories since there may be sharp edges.
5. Turn the bowl counterclockwise out of the lock position and remove the bowl.
6. Turn the release button a quarter turn to the left, push the head down entirely and turn the release button a quarter turn to the right again so that it point upwards, to lock the head.

CLEANING AND MAINTENANCE

· Always remove the plug from the socket before cleaning the appliance.
- Never immerse the motor unit in water or under running water. Clean the motor unit with a soft, damp cloth.
- Disassemble all accessories according to the instructions under the section 'Disassembly'.
· For quick cleaning, rinse the accessories under running water.
· For thorough cleaning, wash, rinse and dry the accessories.
- To clean the blender, combine warm water with a few drops of detergent in the blender. Put the lid on the blender. Briefly turn the speed regulator to pulse and back. Repeat if needed. Rinse the blender under running water and allow it to drip-dry upside down.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with diagonal lines, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Close-up of a black and white blender with lid and handle (no text or symbols visible)

9

Close-up of a metal kitchen feedstock with various kitchen components and plastic parts (no text or symbols visible)

10

11

12

13

Close-up of a metallic cylindrical object with a circular mark on its surface, mounted on a black base (no visible text or symbols)

Close-up of a mechanical component with a black cylindrical shaft and flange (no visible text or symbols)

Close-up of a metallic mechanical component with a circular end and a small orange dot, no visible text or symbols.

Close-up of a metallic cylindrical component with a circular badge labeled '123' (no other text or symbols visible)

Close-up of a black cylindrical device with a circular lens and central hub (no visible text or symbols)

Close-up of a metallic mechanical component with a circular vent and internal structure (no visible text or symbols)

Exploded view of a mechanical tool with internal components and a cross-shaped part (no text or symbols visible)

Two circular perforated metal components labeled 5 and 6, with component 6 showing a hole (no text or symbols on the perforated surfaces)

Close-up of a metallic mechanical component with a circular badge and wavy base (no text or symbols visible)

Black and white photo of a kitchen mixer with handle and bowl (no visible text or symbols)

Close-up of a hand using a black and silver electrician brush on a metal workpiece (no visible text or symbols)

Close-up of mechanical components including a piston and crankshaft, with no visible text or symbols.

Close-up of mechanical components including a T-junction, flanges, and circular parts (no text or symbols visible)

Close-up of a black cylindrical device with a circular aperture and labeled component (12), no visible text or symbols beyond the number.

Black and white photo of a modern kitchen mixer with a blender and bowl (no visible text or symbols)

Atención:

Warning sign with crossed-out trash bin and no text, indicating hazardous material

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

USCHOVEJTE SI TENTO MANUÁL I PRO POZDĚJŠÍ NAHLÉDNUTÍ

ČÁSTI

Product catalog image showing various kitchen utensils and kitchen tools (no text or labels visible)

PŘED PRVNÍM POUŽITÍM

Close-up of a metallic cylindrical object with a circular end, mounted on a black base (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

Close-up of a metallic mechanical component with a central shaft and mounting bracket (no visible text or symbols)

Close-up of a metallic cylindrical device with a circular badge labeled '123' (no visible text or symbols on the device itself)

Close-up of a black cylindrical device with a circular lens and central aperture (no visible text or symbols)

Close-up of a metallic mechanical component with a circular groove and internal structure (no visible text or symbols)

Exploded view of a mechanical component showing internal gears and a cross-shaped part (no text or symbols visible)

Two circular metal components labeled 5 and 6, showing different hole patterns (no text or symbols beyond labels)

Close-up of a metallic circular object with a small protrusion, no visible text or symbols.

Black kitchen mixer with metal bowl and handle, no visible text or symbols

Close-up of a hand operating a kitchen electric shaver with a handle (no visible text or symbols)

Close-up of mechanical components including a cylindrical connector, internal gears, and a piston (no text or symbols visible)

Close-up of mechanical components including a T-junction, threaded shaft, and flanged parts (no visible text or symbols)

Close-up of a black cylindrical device with a circular vent and labeled component (12), no visible text or symbols beyond the number.

Black kitchen mixer with blender and bowl (no visible text or symbols)

Poznámka:

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

USCHOVAJTE SI TENTO MANUÁL AJ K NEJSKORŠIEMU NAHLIADNUTI

ČASTI

Close-up of a metallic cylindrical object with a circular end, mounted on a black base (no visible text or symbols)

Close-up of a mechanical component with a metallic fitting and lever (no visible text or symbols)

Close-up of a metallic mechanical component with a bolt and cylindrical shaft (no visible text or symbols)

Close-up of a metallic cylindrical component with a circular badge labeled '123' (no other text or symbols visible)

Close-up of a black cylindrical device with a circular lens and central aperture (no visible text or symbols)

Close-up of a metallic mechanical component with a circular vent and internal structure (no visible text or symbols)

Exploded view of a stainless steel kitchen knife showing internal components and a cross-shaped part (no text or symbols visible)

Two circular perforated metal components labeled 5 and 6, with component 6 showing a hole (no text or symbols on the perforated surfaces)

Close-up of a metallic circular object with a small protrusion, no visible text or symbols.

Close-up of a kitchen stand mixer with metal components and a bowl (no visible text or symbols)

Close-up of a hand holding a black and white electric motor (no visible text or symbols)

Close-up of mechanical components including a cylindrical valve, threaded shaft, and piston (no text or symbols visible)

Close-up of mechanical components including a metallic T-joint, threaded shaft, and circular components (no visible text or symbols)

Close-up of a black industrial sensor or optical device with a circular lens and central aperture (no visible text or symbols)

Black kitchen mixer with blender and bowl (no visible text or symbols)

Poznámka:

Warning symbol for a waste bin with crossed lines indicating no waste and a black rectangle below

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

QR code image containing encoded data, no visible human-readable text
