USER MANUAL DO9130KR DOMO

Pink kitchen mixer with stainless steel bowl and control panel (no visible text or symbols)

DO9130KR

Piet Huysentrayt by DOMO

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original

till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

RECYCLING INFORMATIONEN

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

Simple black line drawing of a plug with a curved wire (no text or symbols)

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Three metallic mechanical components with no visible text or symbols, labeled '14' below (no other text or symbols)

Three black metal mixing fans with wire mesh heads, labeled 10, 9, and 11 (no text or symbols on the fans themselves)

Product photo of a kitchen tool with various components including a cutter, screwdriver, and filter (no text or symbols visible)

Five different types of plastic containers, including a black plastic clip and five patterned cylindrical containers (no text or symbols visible)

Close-up of a mechanical component with a metallic shaft and circular base (no visible text or symbols)

Close-up of a mechanical press or clamping device with metallic components and a cylindrical shaft (no visible text or symbols)

Close-up of a stainless steel kitchen sink with faucet and drain (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a modern robotic device with a metallic head and transparent casing (no visible text or symbols)

Close-up of a black and white mechanical device with a circular component, possibly a sensor or connector (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and circular opening, labeled with number 3 (no text or symbols on the object itself)

Close-up of a mechanical device with a black box and metallic component, labeled '4' in the corner (no readable text or symbols on the device itself)

Close-up of a mechanical component with metallic flange and bolted joints (no visible text or symbols)

Three metallic cylindrical containers with patterned lids, arranged horizontally (no text or symbols visible)

Close-up of a modern stainless steel smartwatch (no visible text or symbols)

Close-up of a black and silver camera lens with a circular aperture, no visible text or symbols

Close-up of a mechanical component with a metallic handle and internal part (no visible text or symbols)

Close-up of a mechanical gear and a cross-shaped tool component (no text or symbols visible)

Close-up of three metallic pipe fittings and a mechanical component, no visible text or symbols

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal component with a central hole and a numbered label '6' (no text or symbols on the object itself)

Close-up of a metallic gear or knob with six teeth, no visible text or symbols

Close-up of a metal mixing tool with a textured central component (no visible text or symbols)

Black plastic mechanical component with a circular top and cylindrical shaft, labeled with number 9 (no text or symbols on the object itself)

Close-up of metallic mechanical components including a conical tool, threaded shaft, and flange (no text or symbols visible)

Close-up of a metallic mechanical component with a pointed tip and cylindrical shaft (no visible text or symbols)

Product photo of a mechanical component with various parts including a T-shaped tool, threaded screw, plastic housing, and circular components (no text or symbols visible)

Close-up of a mechanical device with metallic components and a cylindrical shaft (no visible text or symbols)

Three metallic mechanical components with threaded ends, displayed against a plain background (no text or symbols visible)

Close-up of a black mechanical device with a circular lens and mounting base (no visible text or symbols)

BEREIDING PASTA

Basisrecept

Three metallic mechanical components with no visible text or symbols, labeled '14' below (no other text or symbols)

1 2 3 4 5 6 7 8 9 10 11

Collection of kitchen utensils and circular components, no text or symbols visible

Product lineup showing five items: a black plastic brush, a black rectangular tool, four metallic cylindrical containers with dotted patterns, and one white brush (no text or symbols visible)

AVANT LE PREMIER USAGE

Pétrir/hacher/battre

Close-up of a mechanical component with no visible text or symbols

Close-up of a mechanical press or cutting tool in operation, showing no visible text or symbols

Close-up of a stainless steel kitchen sink with faucet and handle (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a modern smart water dispenser device with a logo, no visible text or symbols on the device itself.

Close-up of a mechanical device with a central circular component and metallic casing (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and white cylindrical body (no visible text or symbols)

Close-up of a mechanical device with a black box and metallic ring, no visible text or symbols

Close-up of a mechanical component with circular flanges and a handle, no visible text or symbols

Three metallic cylindrical containers with patterned lids, arranged horizontally (no text or symbols visible)

Close-up of a modern coffee maker with a logo, no visible text or symbols on the device itself.

Close-up of a mechanical device with a central circular component and metallic casing (no visible text or symbols)

Close-up of a mechanical component with a metallic housing and a small white component inside (no visible text or symbols)

Close-up of mechanical components including a gear and a cross-shaped tool (no visible text or symbols)

Close-up of a metallic pipe fitting and mechanical component, showing internal structure and cross-section (no text or symbols)

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal component with a central hole and a numbered label '6' (no readable text or symbols beyond the number)

Close-up of a metallic gear or knob with six teeth, no visible text or symbols

Close-up of a stainless steel robotic feeder with a handle and meshing (no visible text or symbols)

Black plastic mechanical component with a circular top and tapered shaft, labeled '9' in the corner (no other text or symbols)

Close-up of metallic mechanical components including a T-junction, threaded shaft, flanged screw, and conical tip (no text or symbols visible)

Close-up of a metallic mechanical component with a pointed tip and cylindrical shaft (no visible text or symbols)

Product photo of a stainless steel kitchen tool with various mechanical components (no visible text or labels)

Close-up of a mechanical device with metallic components and a cylindrical shaft (no visible text or symbols)

Three metallic mechanical components arranged side by side on a plain background (no text or symbols visible)

Close-up of a black and white mechanical device with a circular lens or aperture (no visible text or symbols)

Three black metal kitchen utensils with wire mesh heads, labeled 10, 9, and 11 (no text or symbols on the items themselves)

1 2 3 4 5 6 7 8

OPTIONELL

Three metallic mechanical components with attached metal brackets, labeled '14' below (no text or symbols on the components themselves)

Collection of industrial kitchen components including a cutter, screwdriver, and filter (no text or symbols visible)

Five different types of plastic containers, including a black plastic clip and four patterned cups (no text or symbols visible)

VOR DEM ERSTEN GEBRAUCH

Close-up of a mechanical component with a metallic tool inserted, no visible text or symbols

Close-up of a mechanical press or cutting tool with no visible text or symbols

Close-up of a stainless steel kitchen sink with water pump (no visible text or symbols)

Close-up of a metallic mechanical component with a central cylindrical feature (no visible text or symbols)

Close-up of a futuristic smart device with a metallic head and transparent casing (no visible text or symbols)

Close-up of a mechanical component with a central circular feature and a black square housing (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and circular opening (no visible text or symbols)

Close-up of a mechanical device with a black box and metallic component, no visible text or symbols

Close-up of a mechanical component with circular flanges and a knob, no visible text or symbols

Three metallic cylindrical containers with patterned lids, arranged horizontally (no text or symbols visible)

Close-up of a modern stainless steel coffee maker with a handle and spout, no visible text or symbols

Close-up of a black and white mechanical device with a circular lens or aperture (no visible text or symbols)

Close-up of a mechanical component with a metallic housing and plastic housing (no visible text or symbols)

Two metallic mechanical components: a gear-like shaft and a cross-shaped tool with a diamond-shaped hole (no text or symbols visible)

Close-up of a metallic T-junction pipe fitting with a separate mechanical component, labeled '4' (no text or symbols on the parts themselves)

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal object with a central hole and a numbered label '6' (no text or symbols on the object itself)

Close-up of a metallic gear or knob with six teeth, no visible text or symbols

Close-up of a metal cutting tool with a tray and central hub, no visible text or symbols

Black plastic mechanical component with a circular top and cylindrical shaft, labeled with number 9 (no text or symbols on the object itself)

Close-up of metallic mechanical components including a T-junction, threaded shaft, conical tip, and flanged end (no text or symbols visible)

Close-up of a mechanical component with a metallic shaft and flange (no visible text or symbols)

Collection of industrial cutting tools including a T-shaped tool, threaded screw, plastic components, and circular flanges (no text or symbols visible)

Close-up of a mechanical tool or device with a metallic shaft and flange (no visible text or symbols)

Three metallic mechanical components with threaded ends, displayed against a plain background (no text or symbols visible)

Close-up of a black and white mechanical device with a circular aperture and control buttons (no visible text or symbols)

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
• Make sure children cannot play with the packaging material.
• This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and

before cleaning the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• Never leave the appliance unattended while it is functioning.

• Do not use or store this appliance outdoors.
• Do not use this appliance for other than intended use.
• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Only use the utensils delivered with the appliance.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.
• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Do not operate the appliance with wet hands.
• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.
• Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Do not allow the power cord supply to run underneath or around the unit.

• Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

• Do not use the appliance if there is any water in it or the parts are still wet after cleaning.

• Do not use the appliance without ingredients.
• Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.
• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

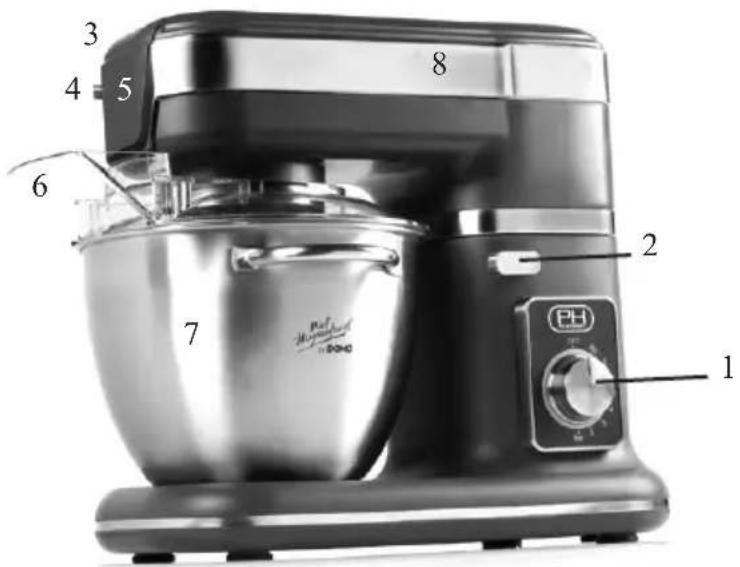

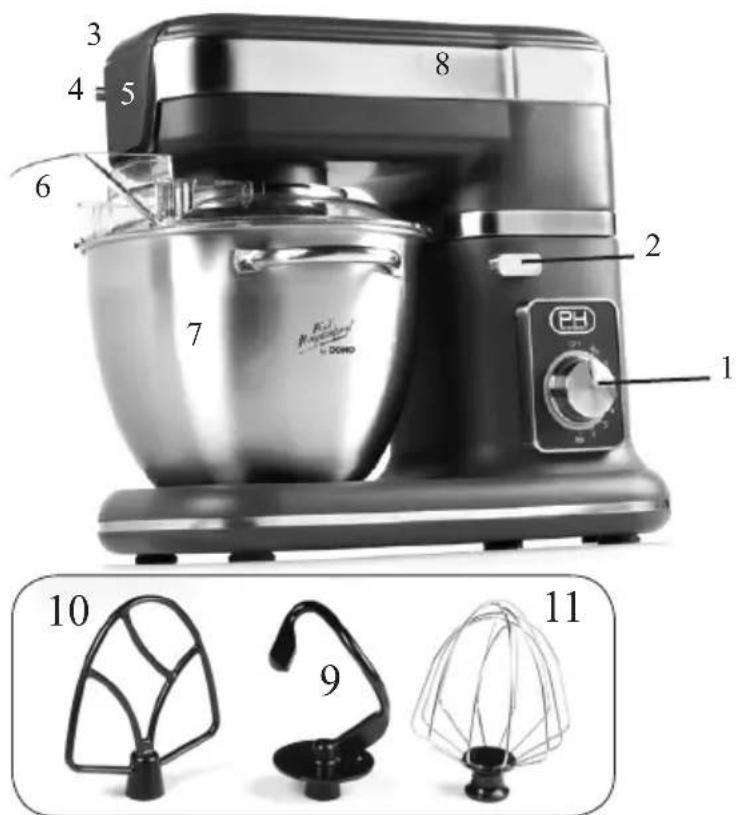

COMPONENTS

1. Speed control
2. Release button for multifunctional head
3. Connection accessories lid
4. Release button for lid accessories
5. Connection for accessories (under lid)
6. Mixing bowl lid
7. Stainless steel mixing bowl

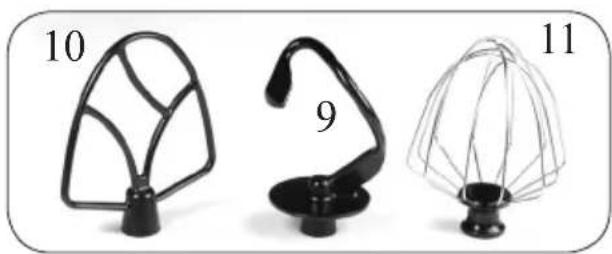

8. Multifunctional head
9. Dough hook
10. Beater
11. Whisk

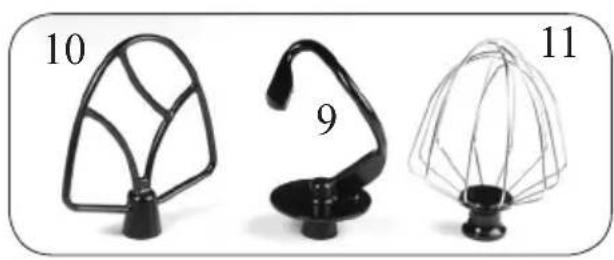

Three black metal mixing devices labeled 10, 9, and 11, shown side by side without any text or symbols on the devices themselves.

1 2 3 4 5 6 7 8 French HAPP

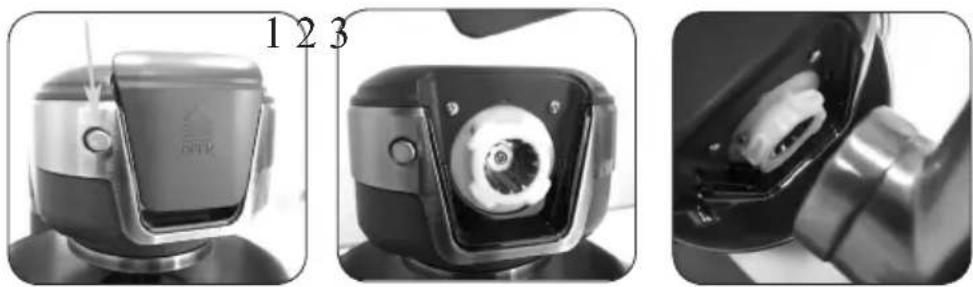

OPTIONAL ACCESSORIES

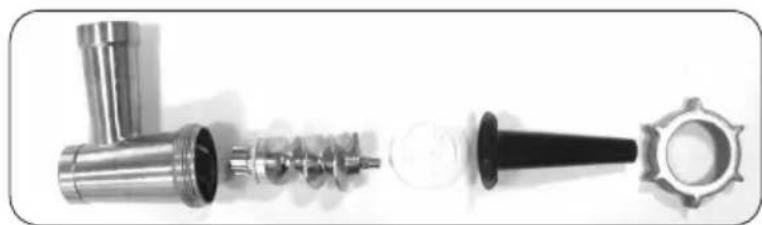

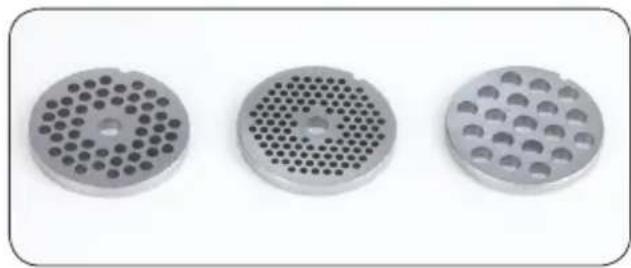

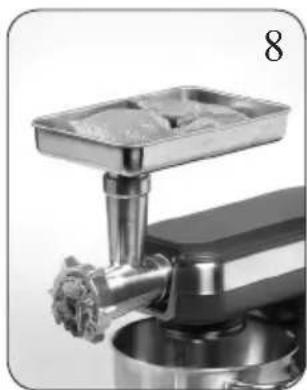

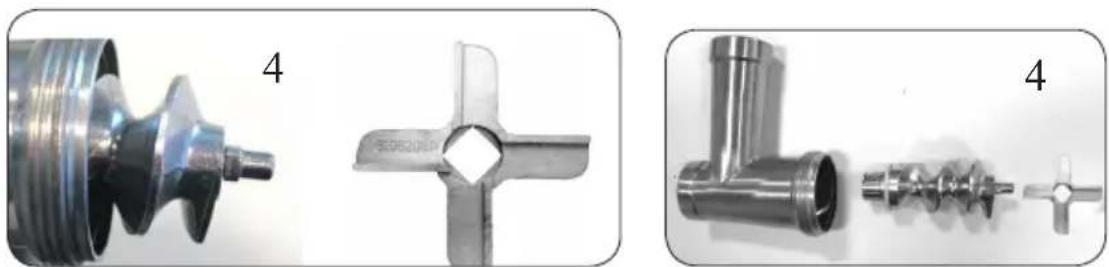

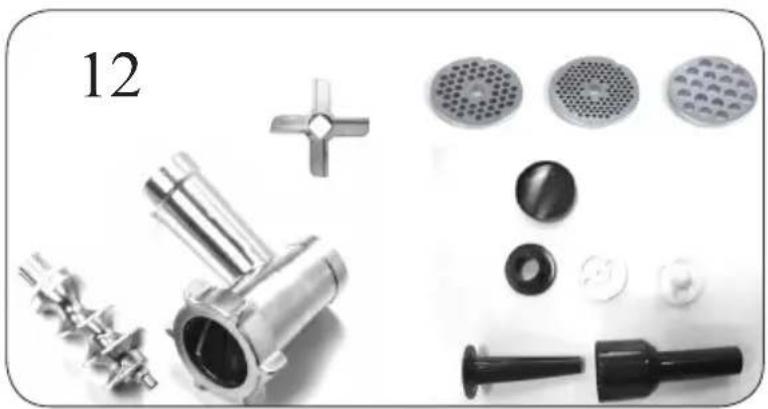

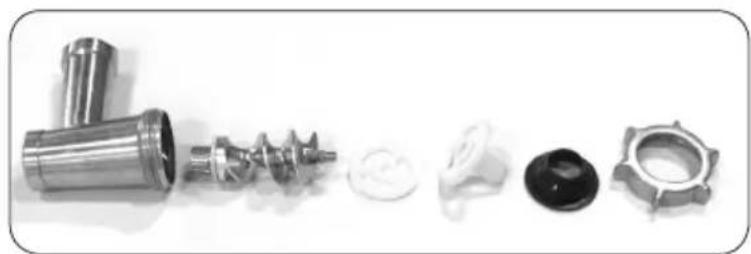

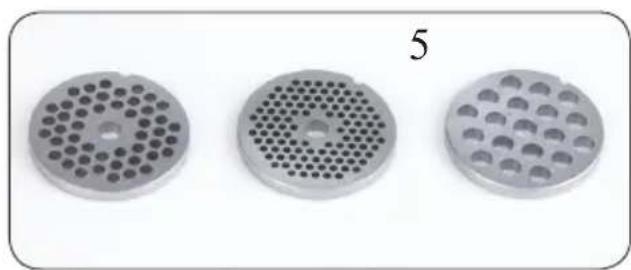

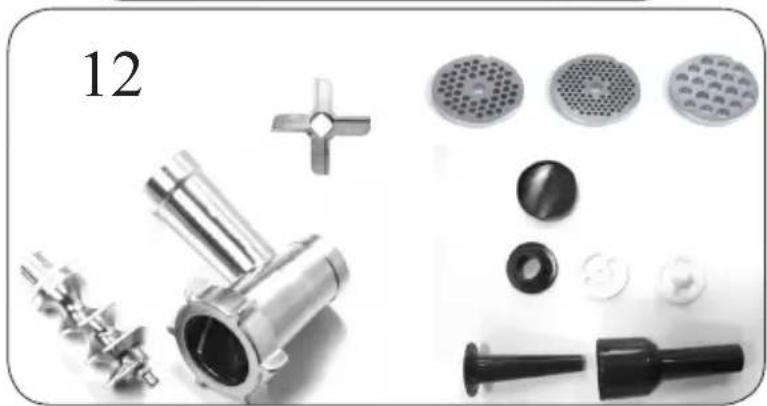

1. Meat grinder with components

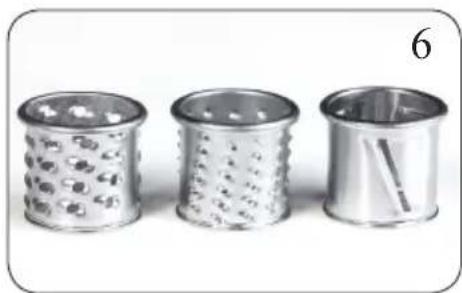

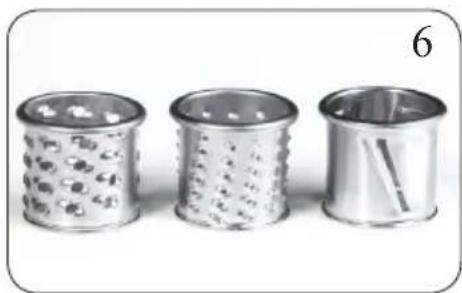

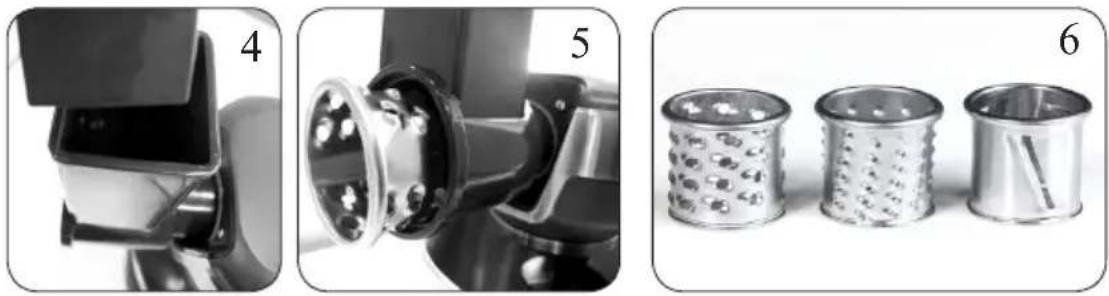

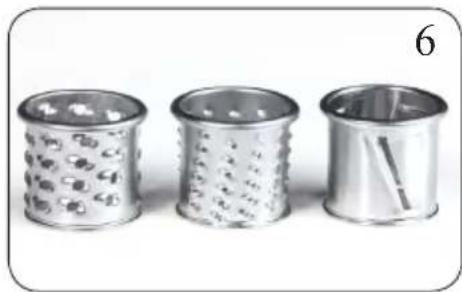

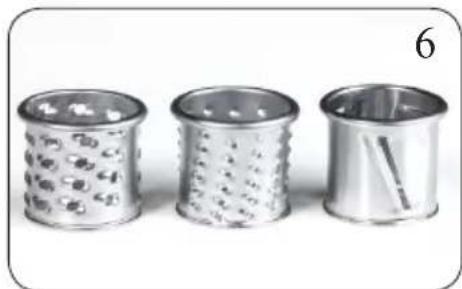

2. Vegetable cutter with components

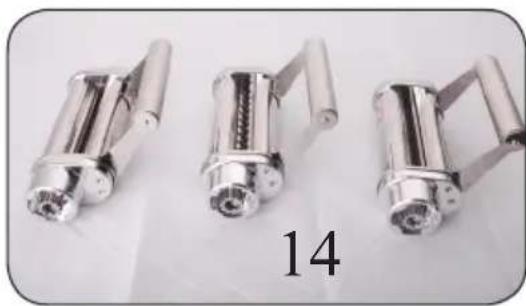

3. Pasta set

Three metallic mechanical components with no visible text or symbols, labeled '14' below (no other text or symbols)

Exploded view of kitchen utensils including a knife, screwdriver, and filter components (no text or symbols visible)

Product lineup showing five cylindrical containers with different designs and colors, no visible text or labels

FIRST USE INSTRUCTIONS

1. Remove the unit and accessories from the packaging.
2. Wash all components with soap in warm water and dry carefully.
3. Never immerse the motor unit in water, in order to prevent electrocution.

INSTALLATION AND USAGE

Kneading / grinding / beating

Depending on the nature of the ingredients, the mixing bowl and lid allow for the making of 2 kg of dough.

1. Make a quarter turn with the release button (2) to release the head, then push the head upward until you hear a click.

2. Put the bowl (7) on the base and turn it clockwise to tighten it. Place the ingredients in the bowl.

3. Select the preferred accessory: dough hook, beater or whisk.

a. Attach the hook to the head by moving it upward and sliding it around the shaft.
b. Turn the hook by a quarter in an anti-clockwise direction.
c. Position the hook so that it falls into the lock position.

Close-up of a mechanical component with a metallic ring and curved shaft (no visible text or symbols)

Close-up of a mechanical press or cutting tool with no visible text or symbols

Close-up of a kitchen sink with a metal tool and tubing (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

1. Turn back the release button (quarter turn) so that the head falls down. Push the head back into its original position until you hear a click.
2. Put the lid on the bowl with the opening at the front of the unit.
3. While it is operating, you can add ingredients through the opening in the lid.
4. In order to make the device stop, you turn the speed control to OFF.
5. Place the device on a clean and dry surface. Put the plug in the socket and select

the desired speed by turning the speed control.

DISASSEMBLING

1. Remove the plug from the socket.
2. Remove the lid from the bowl.
3. Make a quarter turn on the release button, then push the head upwards until you hear a click.
4. Remove the hook from the lock position and turn it a quarter in a clockwise direction. Then slide the hook off the drive shaft and remove the hook. Remove the hook gently as accidents with sharp edges may occur.
5. Turn the bowl in an anti-clockwise direction from the lock position and remove the bowl.
6. Make a quarter turn backwards with the release button so that the head falls down. Then push the head back into its original position until you hear a click.

CLEANING

1. Always remove the plug from the socket before cleaning the device.
2. Never immerse the motor unit in a bowl of water or under running water. Clean the motor unit with a soft damp cloth.
3. Disassemble all accessories according to the user instructions in the section "Disassembling".
4. For quick cleaning, rinse the accessories under running water.
5. For thorough cleaning, wash, rinse and dry the accessories.

OPTIONAL ACCESSORIES: VEGETABLE SLICER DO907OKR-V

Turn the device off, and take the plug out of the socket before you add, remove or clean any accessories.

1. Open the lid by pressing the release button and push it upwards.
2. The connecting point for accessories is now shown.
3. Place the vegetable cutter at an angle of 25^ to the connection point and tighten it by making a quarter turn clockwise. You hear a click when it is securely fastened. Your vegetable cutter is now in a perfect vertical position.

Close-up of a modern robotic device with a metallic head and transparent frame (no visible text or symbols)

Close-up of a mechanical device with a circular component and metallic casing (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and circular housing (no visible text or symbols)

1. With the pushing rod you can safely place vegetables in the vegetable cutter.

2. Push the grater or slicer fully into the opening of the vegetable cutter.

3. You can choose between a cutter and two types of graters.

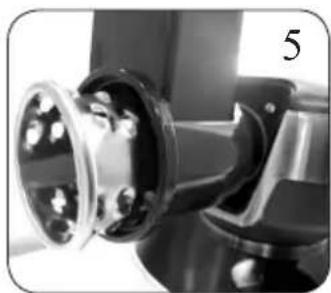

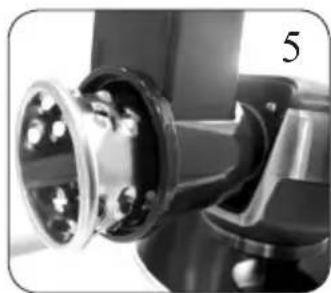

Three-panel image showing a kitchen tool, a mechanical component with circular features, and three metallic food containers (no text or symbols visible)

To remove the vegetable cutter, press the release button. Make a quarter turn clockwise on the vegetable cutter. Clean all parts thoroughly and dry carefully before using them again.

OPTIONAL ACCESSORIES: FITTING MEAT GRINDER DO907OKR-M

Turn off the device, and take the plug out of the socket before you add, remove or clean any accessories.

1. Open the lid by pressing the release button and pushing the lid upwards.
2. The connecting point for accessories is now shown.
3. Place the meat grinder at an angle of 25^ to the connection point and tighten it by making a quarter turn clockwise. You hear a click when it is securely fastened. Your meat grinder is now in a perfect vertical position.

Three-panel image showing a device with labeled parts: top view, front view, and close-up of internal components (no readable text or symbols)

1. For grinding meat insert in succession: the worm wheel and the cutting knife.

Three views of a mechanical component: external gear, cross-shaped tool, and threaded pipe assembly (no text or symbols visible)

1. Then make a selection from the grinding discs: fine, medium or coarse.
2. Position the notch on the disc at the height of the projecting catch.
3. Connect it altogether with the screw ring.

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a metallic cylindrical component with evenly spaced circular holes, no visible text or symbols

Close-up of a metallic gear or knob with six teeth, no visible text or symbols

1. Position the bowl in the best way possible so as to put your meat in it.
2. You can use the pushing rod to press the meat firmly inside.

Close-up of a stainless steel robotic arm with a flat top and central shaft (no visible text or symbols)

Black plastic mechanical component with a circular top and cylindrical body, labeled with number 9 (no text or symbols on the object itself)

For sausage making, insert the following components:

Close-up of metallic mechanical components including a T-junction, threaded shaft, gear, and conical end (no text or symbols visible)

Close-up of a mechanical component with a metallic shaft and flange (no visible text or symbols)

For making stuffed meatballs, insert the following components:

Collection of industrial kitchen components including a knitzer, screwdriver, and gear (no text or symbols visible)

Close-up of a mechanical tool or device with a metallic handle and central shaft (no visible text or symbols)

To remove the meat grinder, press the release button. Make a quarter turn clockwise on the meat grinder. Clean all parts thoroughly and dry carefully before using them again.

OPTIONAL ACCESSORIES: PASTA DO907OKR-L-T-S

There are three accessories: a roller for lasagna, a tagliatelle cutter and spaghetti cutter.

To make spaghetti or tagliatelle, you must first use the lasagna roller to flatten sheets of pasta.

Three metallic mechanical components with threaded ends, displayed against a plain background (no text or symbols visible)

Close-up of a black mechanical device with a circular lens and mounting bracket (no visible text or symbols)

PREPARATION OF PASTA

Basic recipe

• 500 grams of flour
  • 4 eggs
• a pinch of salt
• 2,5ml oil
• optionally water

For whole-wheat pasta replace the regular flour with whole-wheat flour.

For pasta rossa replace one egg with 75g tomato paste.

• Put the ingredients in the bowl.
• Mix with the dough hook n speed 1-2 for 2 to 3 minutes. Add water if the dough is too dry.
• Stop your food processor and knead the dough by hand until it is smooth.
• Let it rest in a kitchen towel for 15 minutes.
• Put the pasta roller into the connector for accessories.
• First, use the pasta roller to make flat sheets of pasta as for lasagna making.
• Enter these pasta sheets through the pasta cutter for spaghetti or tagliatelle.
  • Fill a large pan full of water with a pinch of salt.
• Add some olive oil in order to prevent the pasta stick together
• Bring water to boil and add the pasta. Let simmer for 2 to 4 minutes depending on your personal preference.

CLEANING

Clean the pasta accessories with a damp cloth and wipe dry. Do not immerse in water or use the dishwasher for cleaning.

Three black metal kitchen utensils with wire mesh designs, labeled 9 and 10, shown against a white background (no text or symbols on the items themselves)

1 2 3 4 5 6 7 8 Pet Louis Mécanique HONATO

OPCIONAL

Three metallic cylindrical electronic components with connectors, labeled '14' below (no text or symbols on components)

Collection of kitchen utensils and components including a cutter, plunger, and filter (no text or symbols visible)

Product lineup showing five cylindrical containers with different designs and patterns, labeled '13' (no text or symbols on containers)

Close-up of a mechanical component with a circular feature and metallic parts (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

Close-up of a kitchen sink with a metal tool and tubing (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a modern smart home device with a logo and handle (no visible text or symbols)

Close-up of a mechanical device with a circular component and metallic casing (no visible text or symbols)

Close-up of a mechanical component with a circular opening and a numbered label '3' (no readable text or symbols beyond the number)

Close-up of a mechanical device with a metallic component and a black housing (no visible text or symbols)

Close-up of mechanical components with circular flanges and a central shaft (no visible text or symbols)

Three metallic cylindrical containers with textured surfaces, arranged horizontally (no text or symbols visible)

Close-up of a modern electric scooter head with visible branding and control panel (no text or symbols)

Close-up of a black and white mechanical device with a circular aperture and central hub (no visible text or symbols)

Close-up of a mechanical component with a metallic housing and a white plastic component inserted (no visible text or symbols)

Two metallic mechanical components: a gear-like mechanical part and a cross-shaped tool with a central hole (no text or symbols visible)

Close-up of three metallic pipe fittings and a helical screw assembly (no text or symbols visible)

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal object with circular holes, no visible text or symbols

Close-up of a metallic gear or knob with six teeth, no visible text or symbols

Close-up of a metal mixing presser with a grater and a side bowl (no visible text or symbols)

Black plastic mechanical component with a circular top and cylindrical shaft, labeled with number 9 (no text or symbols on the object itself)

Close-up of metallic mechanical components including a knuckle, threaded shaft, and conical end (no text or symbols visible)

Close-up of a mechanical component with metallic shaft and flange (no visible text or symbols)

Collection of industrial cutting gears and mechanical components (no text or symbols visible)

Close-up of a mechanical tool or device with metallic components and a black cylindrical component (no visible text or symbols)

Three metallic mechanical components with threaded ends, displayed against a plain white background (no text or symbols visible)

Close-up of a black mechanical component with a circular aperture and central hub (no visible text or symbols)

TUHLE PŘÍRUČKU USCHOVEJTE I PRO DALŠÍ UŽIVATELE

POPIS

Three black metal kitchen utensils with numbered labels (10, 9, 11) showing different designs and angles (no text or symbols on the objects themselves)

1 2 3 4 5 6 7 8

ZVLÁŠTNÍ PŘÍSLUŠENSTVÍ

Three metallic mechanical components with threaded ends, labeled '14' below (no text or symbols on components)

Assorted kitchen utensils including a cutter, screwdriver, and filter components (no text or symbols visible)

Product lineup showing five metal containers with different designs, one being cut (no text or symbols visible)

PŘED PRVNÍM POUŽITÍM

Close-up of a mechanical component with a metallic handle and circular base (no visible text or symbols)

Close-up of a mechanical press or cutting tool in operation, showing a metallic component and a cylindrical shaft (no visible text or symbols)

Close-up of a kitchen sink with a metal stand and water tubing (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Two metallic mechanical components: a cylindrical gear and a cross-shaped tool with a diamond-shaped hole (no text or symbols visible)

Close-up of a metallic T-junction pipe fitting with internal components, shown from exploded and assembled views (no text or symbols visible)

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal component with a central hole (no text or symbols visible)

Close-up of a metallic gear or knob with six blades (no text or symbols visible)

Close-up of a stainless steel robotic arm with a central handle and meshing (no visible text or symbols)

Black plastic mechanical component with a circular top and tapered shaft (no text or symbols visible)

Close-up of metallic mechanical components including a T-junction, threaded fastener, and flanged connector (no text or symbols visible)

Close-up of a metallic mechanical component with a black tip and cylindrical shaft (no visible text or symbols)

Product photo of various kitchen utensils including a T-shaped tool, helical screw, and mechanical components (no text or symbols visible)

Close-up of a mechanical device with metallic components and a black cylindrical top (no visible text or symbols)

TĚSTOVINY DO907OKR-L-T-S

Three metallic mechanical components arranged on a plain surface (no text or symbols visible)

Close-up of a black and silver mechanical device with a circular lens or aperture (no visible text or symbols)

PŘÍPRAVA

Four-panel image showing milk products: two with clear liquid, four with square and cross-shaped cards, a glass pitcher, and a small bowl (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
