USER MANUAL DO7088S DOMO

PRODUCT OF LINEA 200

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be.

The accessories and parts can also still be obtained at the store where you bought the appliance.

• Enkel in Belgie, Nederland, Luxemburg, Frankrijk en Duitsland.
• Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
• Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
• Only in Belgium, the Netherlands, Luxembourg, France and Germany.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or

electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Place the descending cartridge in your device before using it. Do save the descending cartridge and fillings outside of children's reach.
• Always empty the water reservoir after each use.
• Never allow children to touch the device whilst you are using it.
• Straighten the cord and steam hose before use.
• Caution: it is possible to burn yourself on hot metal

parts, hot water or hot steam.

• Unplug the appliance before filling the tank with water.
• Never fill the water tank with hot water, perfumed liquids, vinegar, descaler, starch, fabric softener or other chemicals.

COMPONENTS

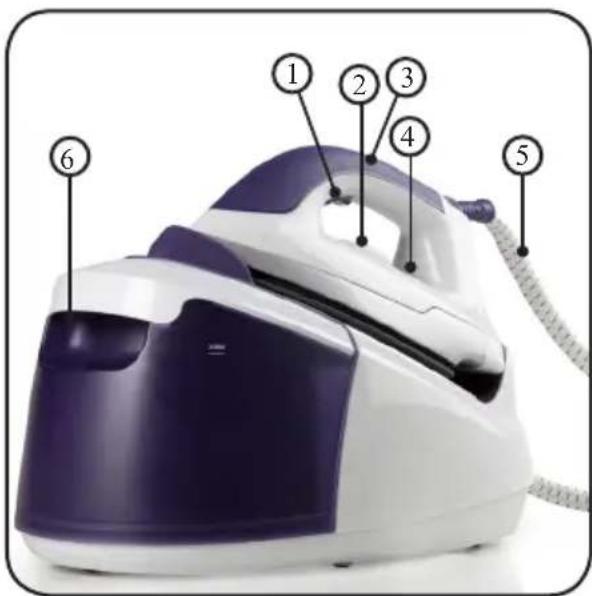

STEAM IRON

1. Steam button
2. Temperature control
3. Handle
4. Temperature light (device heats up)
5. Steam generator cord
6. Water reservoir with fill opening

TEMPERATURE DIAL

Set the right temperature for the right fabric with the temperature dial.

For synthetic fabrics/silk: 70 < T < 120^

For wool: 100 < T < 160^

For cotton: 140 < T < 210^

For linnen: 170 < T < 225^ MAX

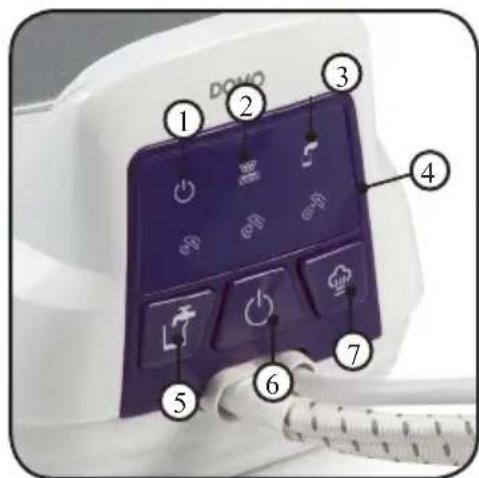

STEAM GENERATOR

1. On/Off indication light
   2.2. Descaling cartridge indication light
2. Water reservoir indication light
3. Steam indication lights
4. Reset button water reservoir
5. On/off button
6. Steam choice switch

Note: Whenever the descending cartridge indication light (2) lights up, you can reset this by pressing the water reservoir reset button (5) and the steam choice switch (7) simultaneously for a couple of seconds. Of course you should only do this after you've swapped out the descending cartridges.

Trigger

Grab the water tank by the handle and pull the trigger with 1 finger. You can now remove the water tank from the generator.

Filling cap

Open the filling cap and use the opening to fill the water tank.

On/off button

Plug in the appliance and press the on/off button. The on/off indicator will light up and the lowest steam level indicator will start blinking. The appliance is now switched on. To turn the appliance off again, press the on/off button and hold. The indicators will go out and the appliance is now switched off.

Setting the steam level

The two arrows can be used to set the steam level: low, medium or high. When a certain level has been selected, the corresponding indicator will start blinking and will light up continuously after a short while. You can now produce steam and iron with steam.

Temperature indicator

When the iron is heating up, the temperature indicator will be lit up. When the set temperature has been reached, the light indicator will go out again. During ironing the indicator will alternately light up and go out again, as the iron is being kept at the right temperature.

Steam release button

When you have turned on the appliance and selected the desired steam level, the indicator of the selected steam level will start blinking. When the light indicator lights up continuously, you can start using steam. Press the steam release button on the inside of the handle of the iron to spray a continuous steam out of the soleplate. When you let go of the button, you will iron dry again, without steam.

Empty water tank indicator

When the water tank is empty, the corresponding indicator will light up and there will be a double buzzer sound. The steam generator will stop operating until the water tank is refilled.

Descending indicator

This light indicator will light up when the steam generator needs to be descaled. When all scale is removed, the light will go out again.

Cord clamp

After use you can easily store the cord and steam hose by using the cord clamp. Pull out the clamp, lead the steam hose and the cord around the steam generator and push in the clamp to lock the cord and steam hose.

Automatic shut-off

The appliance will switch itself off when there has not been sprayed steam out of the soleplate for longer than 10 minutes.

BEFORE THE FIRST USE

1. Remove any stickers or protective foil from the ceramic soleplate.
2. Heat up the iron until the maximum temperature and iron on a damp cloth during a couple of minutes to remove any possible residues from the soleplate. Iron according to the instructions in the section «Steam ironing».

Caution:

• During the first use it is normal that a specific odeur escapes from the appliance. This odeur will disappear after a while.
• Some particles may come out of the soleplate during the first use. This is normal. The particles are harmless and will disappear after a while.
• When turning on the appliance, the steam generator may produce a pumping sound. This is normal. This sound indicates that water is pumped into the steam generator.
• While the soleplate is heating up, some steam will be released automatically. This is also normal and will last for about 3 seconds.

USING THE STEAM GENERATOR

This steam generator offers 2 options: dry ironing or steam ironing. Follow the instructions below. Also carefully read the ironing tips at the end of this section before using the appliance.

Dry ironing

1. Place the iron on the thermal insulation pads of the steam generator.
2. Plug in the appliance and press the on/off button.
3. Select the desired temperature with the temperature dial, according to the kind of fabric that needs to be ironed. The temperature indicator will light up and the iron will start heating up.
4. When the temperature indicator goes out, the selected temperature has been

reached. You can now start ironing.

Caution: Never touch the hot soleplate!

Steam ironing

Caution: do not plug in the appliance yet at this point.

1. Grab the water tank of the steam generator by the handle and pull the trigger on the inside of the handle to pull the water tank out of the generator. Open the filling cap and fill the water tank with water. It is best to use demineralized water. Make sure that you do not exceed the maximum level (1.2 L). Close the filling cap after filling the water tank.
2. Place the water tank back into the steam generator.
3. Place the iron on the thermal insulation pads of the steam generator.
4. Plug in the generator, press the on/off button and the light indicator of the lowest steam level (default) will start blinking. Set the temperature dial to the desired temperature, according to the kind of fabric, and the temperature indicator will light up.
5. The water in the water tank will start heating up and after a couple of minutes the

temperature indicator will go out. This indicates that the soleplate has reached the set temperature. When the steam level indicator stops blinking and stays lit up, you can start ironing with steam by pressing the steam release button.

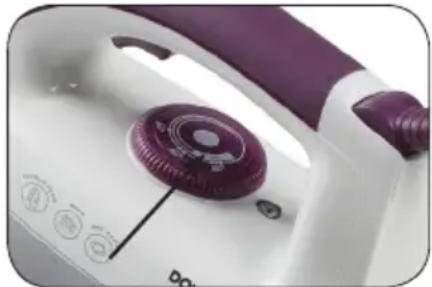

Attention: make sure that the temperature dial is positioned into the steam area (indicated by ).

1. You can choose your desired steam level - low (left), medium (middle) or high (right) - by using the arrows on the control panel. Make sure that there is enough water in the water tank.

Caution:

• Never touch the hot soleplate!

• Never aim the steam at people!

• After ironing, press and hold the on/off button. The appliance will shut off and all the light indicators will go out. Unplug the appliance. Place the iron on the thermal insulation pads of the generator and let the appliance cool down completely.

Ironing tips

• Always check first if there is a label on the garment with instructions for ironing. If this is the case, then always follow these instructions.
• The iron heats up faster than it cools down. Therefore, always iron the garments that require the lowest temperature first, like synthetic fabrics.
• If a fabric contains several types of fibres, always choose the lowest temperature to iron the combination of these fibres.
• Silk and other shiny fabrics should be ironed inside-out.
• Velvet and other fabrics that easily become shiny should be ironing with slight pressure, in one direction. Always keep the iron moving.
• Fabrics that are a 100% wool can be ironed with steam. Set the temperature to the maximum and use a dry cloth to place on the fabric.
• Never iron over zippers or other metal objects in a garment. This can damage the soleplate. Always iron around such objects.

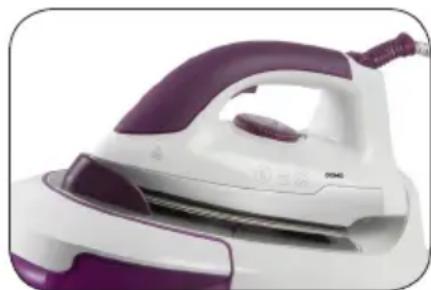

During ironing you can place the iron on the steam generator.

Caution: if you iron woollen fabrics, the fabric may become shiny. That is why you should turn the garment inside-out for ironing.

CLEANING AND MAINTENANCE

1. Unplug the appliance and let it cool down before cleaning it.
2. Wipe residues from the soleplate with a damp cloth or with a non-abrasive (liquid) cleaner.

Caution: Do not use any chemical, steel, wooden or abrasive cleaners to scrape the soleplate.

1. Clean the upper part of the iron with a soft, damp cloth.
2. Wipe the water drops on the steam generator and the thermal insulation pads with a dry cloth.
3. When not using the steam generator for a long time, pour out the water from the water tank and place the iron on the thermal insulation pads to store the appliance.
4. Wind the steam hose and cord around the appliance and lock them into place with the cord clamp.

DESCALING SYSTEM

• This device has an electronic system that checks the water hardness.
• The descending cartridge will remove the hard water. Depending on how hard the water is and how the device is used, the descending cartridge will need to be replaced regularly.

• Whenever the indication light ( ) lights up, you need to change the cartridge.

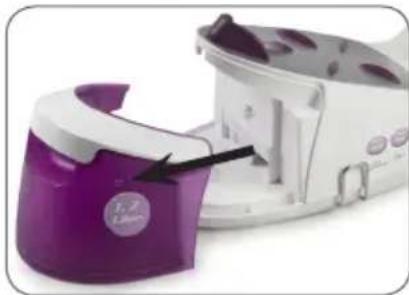

• Remove the water reservoir from the steam generator.

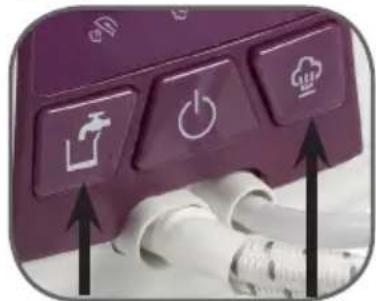

• After you've placed a new descending cartridge, reset the device by pressing the tap button ( ) and the steam selection switch ( ) simultaneously. Press both buttons simultaneously until the indication light goes off.

• Should you have no descaling cartridges handy, you may temporarily use a combination of 50% tap water and 50% distilled or purified water to fill the device. Afterwards you can continue ironing for a little while until your descaling cartridge arrives.

After you have replaced your descending cartridge, it will take a little while before you get steam out of your iron. This is normal and happens because your cartridge is still completely dry and it takes a bit for all the water in the generator to pass through entirely. We advise you to replace the descending cartridge the night before you plan on ironing, making sure it's drenched.

IRONING TABLE

Symbol Fabric Variable steam
	synthetic fabric/silk
	wool
	cotton linnen
	This symbol means that the article can not be ironed!
