Product type	Steam station
Brand	Domo
Model	DO7083S
Water tank capacity	1,7 L
Adjustable steam levels	3 (low, medium, high)
Automatic shut-off	Yes (after 10 minutes without use)
Descaling indicator	Yes
Empty tank indicator	Yes
Temperature indicator	Yes
Soleplate	Ceramic
Cord lock	Yes
Use	Household
Warranty	2 years
Recommended water type	Tap water (or mix 50% tap + 50% demineralized in hard water areas)
Descaling method	White vinegar and water
Dry ironing	Yes
Steam ironing	Yes
Thermal insulation pads	Yes

Frequently Asked Questions - DO7083S DOMO

How to fill the water tank?

Remove the tank by pressing the release button, open the lid, fill with tap water (max 1.7 L), close and replace.

How to adjust the iron temperature?

Use the rotary selector on the iron according to the fabric: synthetic/silk (70-120°C), wool (100-160°C), cotton (140-210°C), linen (170-225°C).

How to use the steam function?

Press the steam button under the iron handle after the steam level indicator is steady. Release to stop steam.

What to do if the empty tank indicator lights up?

Fill the water tank. The station automatically stops until water is refilled.

When and how to descale the steam station?

When the descaling indicator lights up. Turn off, unplug, let cool, empty the tank, pour 400 ml water + 400 ml vinegar, heat for 2 hours, then rinse with clean water.

What to do in case of odor or particles during first use?

It is normal. The odor and particles disappear after a few uses.

How to store the appliance after use?

After cooling, empty the tank, wind the cord and hose in the designated groove, and use the cord lock to secure them.

Can the appliance be used by children?

Yes, from 8 years under supervision, but not for maintenance without supervision.

What type of water to use to avoid limescale?

Use tap water. If water is hard, mix 50% tap water + 50% demineralized water. Do not use softened water.

What to do if the iron soleplate is dirty?

Clean with a damp cloth or non-abrasive detergent. Do not use chemical or abrasive products.

USER MANUAL DO7083S DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

CONDICIONES DE GARANTIA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

BEFORE USING AN ELECTRICAL APPLIANCE, CERTAIN BASIC PRECAUTIONS SHOULD BE FOLLOWED, INCLUDING THE FOLLOWING:

• Read all instructions before use.
• Make sure that the voltage on the rating label corresponds with the voltage of your power grid.
• Do not use the appliance if the cord, plug or appliance itself is damaged or if the appliance leaks or has been dropped. Have the appliance checked and repaired by a qualified service center or technician to avoid a hazard.
• Straighten the cord and steam hose before use.
• Caution: it is possible to burn yourself on hot metal parts, hot water or hot steam.
• Do not let the cord hang over the edge of a table or over a hot surface.
• Place the appliance on a flat and stable, horizontal surface.
• Make sure that the cord or plug do not touch any warm parts.
• Unplug the appliance before filling the tank with water.
• Empty the water tank after use.
• Never immerse the appliance in water or any other liquid. In case this does happen, make sure you do not use the appliance anymore.
• Keep the appliance out of reach of children.
• Never leave the appliance unattended when it is connected to the power supply or when it sits on the ironing board.
• The use of accessories that are not recommended by the manufacturer may cause injuries or damaging of the appliance.

• Make sure the drain cap at the bottom of the appliance is always closed properly during use.

• Never fill the water tank with hot water, perfumed liquids, vinegar, descaler, starch, fabric softener or other chemicals.

• Always unplug the appliance when it is not in use, for filling the water tank or before cleaning the appliance.
• Do not use the appliance for other purposes than it was designed for.
• For household use only.

SAVE THESE INSTRUCTIONS

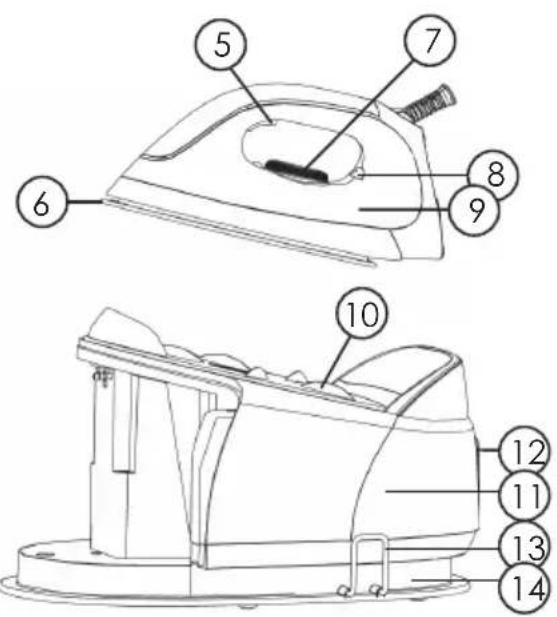

PARTS

1. Filling cap
2. Trigger for removing the water tank
3. Handle
4. Water tank
5. Steam release button
6. Soleplate
7. Temperature dial
8. Temperature indicator
9. Iron
10. Thermal insulation pads
11. Steam generator
12. Control panel
13. Cord clamp
14. Cord winding groove

TEMPERATURE DIAL

Set the right temperature for the right fabric with the temperature dial.

For synthetic fabrics/silk: 70 < T < 120^

For wool: 100 < T < 160^

For cotton: 140 < T < 210^

For linnen: 170 < T < 225^ MAX

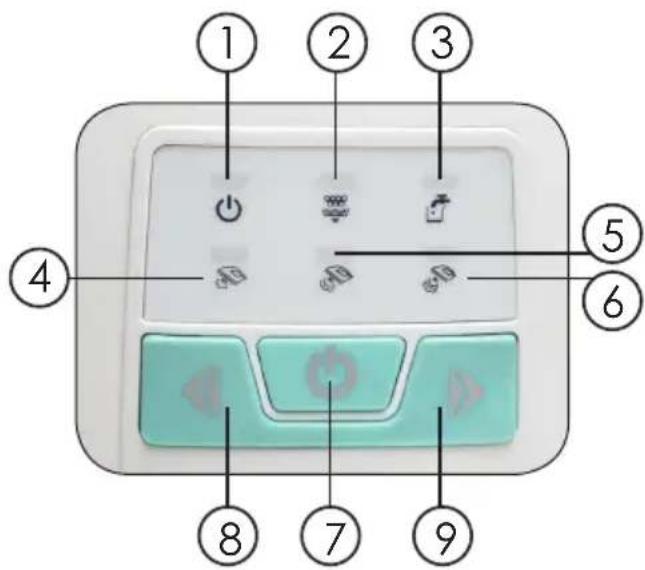

CONTROL PANEL

1. On/off indicator
2. D escaling indicator
3. Empty water tank indicator
4. Steam level 1 (low) indicator
5. Steam level 2 (medium) indicator
6. Steam level 3 (high) indicator
7. On/off button
8. Decrease steam level
9. Increase steam level

Trigger

Grab the water tank by the handle and pull the trigger with 1 finger. You can now remove the water tank from the generator.

Filling cap

Open the filling cap and use the opening to fill the water tank.

On/off button

Plug in the appliance and press the on/off button. The on/off indicator will light up and the lowest steam level indicator will start blinking. The appliance is now switched on. To turn the appliance off again, press the on/off button and hold. The indicators will go out and the appliance is now switched off.

Setting the steam level

The two arrows can be used to set the steam level: low, medium or high. When a certain level has been selected, the corresponding indicator will start blinking and will light up continuously after a short while. You can now produce steam and iron with steam.

Temperature indicator

When the iron is heating up, the temperature indicator will be lit up. When the set temperature has been reached, the light indicator will go out again. During ironing the indicator will alternately light up and go out again, as the iron is being kept at the right temperature.

Steam release button

When you have turned on the appliance and selected the desired steam level, the indicator of the selected steam level will start blinking. When the light indicator lights up continuously, you can start using steam. Press the steam release button on the

inside of the handle of the iron to spray a continuous steam out of the soleplate. When you let go of the button, you will iron dry again, without steam.

Empty water tank indicator

When the water tank is empty, the corresponding indicator will light up and there will be a double buzzer sound. The steam generator will stop operating until the water tank is refilled.

Dscaling indicator

This light indicator will light up when the steam generator needs to be descaled. When all scale is removed, the light will go out again.

Cord clamp

After use you can easily store the cord and steam hose by using the cord clamp. Pull out the clamp, lead the steam hose and the cord around the steam generator in the cord winding groove and push in the clamp to lock the cord and steam hose.

Automatic shut-off

The appliance will switch itself off when there has not been sprayed steam out of the soleplate for longer than 10 minutes.

BEFORE THE FIRST USE

1. Remove any stickers or protective foil from the ceramic soleplate.

2. Heat up the iron until the maximum temperature and iron on a damp cloth during a couple of minutes to remove any possible residues from the soleplate. Iron according to the instructions in the section «Steam ironing».

Caution:

• During the first use it is normal that a specific odeur escapes from the appliance. This odeur will disappear after a while.
• Some particles may come out of the soleplate during the first use. This is normal. The particles are harmless and will disappear after a while.
• When turning on the appliance, the steam generator may produce a pumping sound. This is normal. This sound indicates that water is pumped into the steam generator.
• While the soleplate is heating up, some steam will be released automatically. This is also normal and will last for about 3 seconds.

USING THE STEAM GENERATOR

This steam generator offers 2 options: dry ironing or steam ironing. Follow the instructions below. Also carefully read the ironing tips at the end of this section before using the appliance.

Dry ironing

1. Place the iron on the thermal insulation pads of the steam generator.
2. Plug in the appliance and press the on/off button.
3. Select the desired temperature with the temperature dial, according to the kind of fabric that needs to be ironed. The temperature indicator will light up and the iron will start heating up.
4. When the temperature indicator goes out, the selected temperature has been reached. You can now start ironing.

Caution: Never touch the hot soleplate!

Steam ironing

Caution: do not plug in the appliance yet at this point.

1. Grab the water tank of the steam generator by the handle and pull the trigger on the inside of the handle to pull the water tank out of the generator. Open the filling cap and fill the water tank with water. It is best to use demineralized water. Make sure that you do not exceed the maximum level (1.7l). Close the filling cap after filling the water tank.
2. Place the water tank back into the steam generator.
3. Place the iron on the thermal insulation pads of the steam generator.
4. Plug in the generator, press the on/off button and the light indicator of the lowest steam level (default) will start blinking. Set the temperature dial to the desired temperature, according to the kind of fabric, and the temperature indicator will light up.
5. The water in the water tank will start heating up and after a couple of minutes the temperature indicator will go out. This indicates that the soleplate has reached the set temperature. When the steam level indicator stops blinking and stays lit up, you can start ironing with steam by pressing the steam release button.
6. You can choose your desired steam level - low (left), medium (middle) or high (right) - by using the arrows on the control panel. Make sure that there is enough water in the water tank.

Caution:

• Never touch the hot soleplate!

• Never aim the steam at people!

• After ironing, press and hold the on/off button. The appliance will shut off and all the light indicators will go out. Unplug the appliance. Place the iron on the thermal insulation pads of the generator and let the appliance cool down completely.

Ironing tips

• Always check first if there is a label on the garment with instructions for ironing. If this is the case, then always follow these instructions.
• The iron heats up faster than it cools down. Therefore, always iron the garments that require the lowest temperature first, like synthetic fabrics.
• If a fabric contains several types of fibres, always choose the lowest temperature to iron the combination of these fibres.
• Silk and other shiny fabrics should be ironed inside-out.
• Velvet and other fabrics that easily become shiny should be ironing with slight pressure, in one direction. Always keep the iron moving.
• Fabrics that are a 100% wool can be ironed with steam. Set the temperature to the maximum and use a dry cloth to place on the fabric.
• Never iron over zippers or other metal objects in a garment. This can damage the soleplate. Always iron around such objects.

During ironing you can place the iron on the steam generator.

Caution: if you iron woollen fabrics, the fabric may become shiny. That is why you should turn the garment inside-out for ironing.

CLEANING AND MAINTENANCE

1. Unplug the appliance and let it cool down before cleaning it.
2. Wipe residues from the soleplate with a damp cloth or with a non-abrasive (liquid) cleaner.

Caution: Do not use any chemical, steel, wooden or abrasive cleaners to scrape the soleplate.

1. Clean the upper part of the iron with a soft, damp cloth.
2. Wipe the water drops on the steam generator and the thermal insulation pads with a dry cloth.
3. When not using the steam generator for a long time, pour out the water from the water tank and place the iron on the thermal insulation pads to store the appliance.
4. Wind the steam hose and cord around the appliance by placing them into the cord winding groove and lock them into place with the cord clamp.

Dscaling

When the descending indicator is lit up, it is time for you to descale the boiler. At this point it is necessary to clean this tank to extend the lifecycle of your steam generator and to avoid scale.

1. Press the on/off button and hold until the appliance switches off.
2. Unplug the appliance.
3. Let the appliance cool down completely. Caution: when you are about to clean the generator, never unscrew the drain cap while the appliance is

under pressure. Steam will escape from the appliance and you may burn yourself.

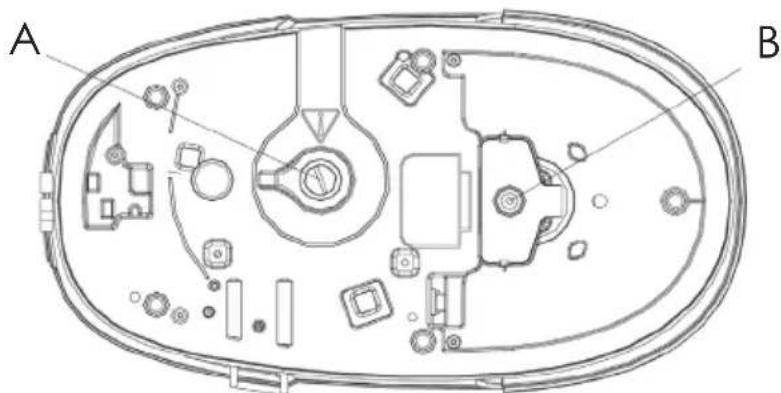

Bottom of the appliance

1. Tilt the steam generator so it is upside down and pull out the rubber plug that covers the drain cap (A) at the bottom of the appliance.
2. Unscrew the drain cap (A) of the boiler by using the attached screwdiver (B) on the bottom of the generator and pour out the water that is inside.
3. Prepare a mixture of 400ml water and 400ml vinegar and pour it into the opening of the boiler.
4. Replace the drain cap, tighten and replace the rubber plug.
5. Slightly shake the appliance so the water can spread inside the boiler.
6. Place the appliance on a flat surface (upright) and let it heat up. Do not forget to place the blue water tank into the appliance, otherwise it will not heat up.
7. When the steam level indicator lights up continuously, the steam generator is warm. At this point, switch off the appliance by pressing the on/off button for a few seconds. Unplug the appliance and let the mixture soak for another 2 hours.
8. Pour out the water/vinegar mixture from the boiler (first remove the drain cap again) and rinse twice with clean water to remove the scale and vinegar residues.
9. Now pour 100ml clean water into the boiler. Leave this water in the boiler, to avoid the risk of damage to the boiler.
10. Replace the drain cap (use the screwdriver) without using too much power.
11. Replace the rubber plug. The appliance is now ready for use.

CAUTION: Only use tap water (or 50% tap water and 50% demineralized water in case of hard water) in your steam generator. Careful: softened water should be absolutely avoided! In case of use of a "softener" and/or perfumed water, brown stains could emerge, which would cause damage to the steam chamber.

IRONING TABLE

Symbol Fabric Variable steam
	synthetic fabric/silk
	wool
	cotton linnen
	This symbol means that the article can not be ironed!
