USER MANUAL FG 45 STEBA

Instructions for use

Mode d'emploi

Gebruiksaanwijzing

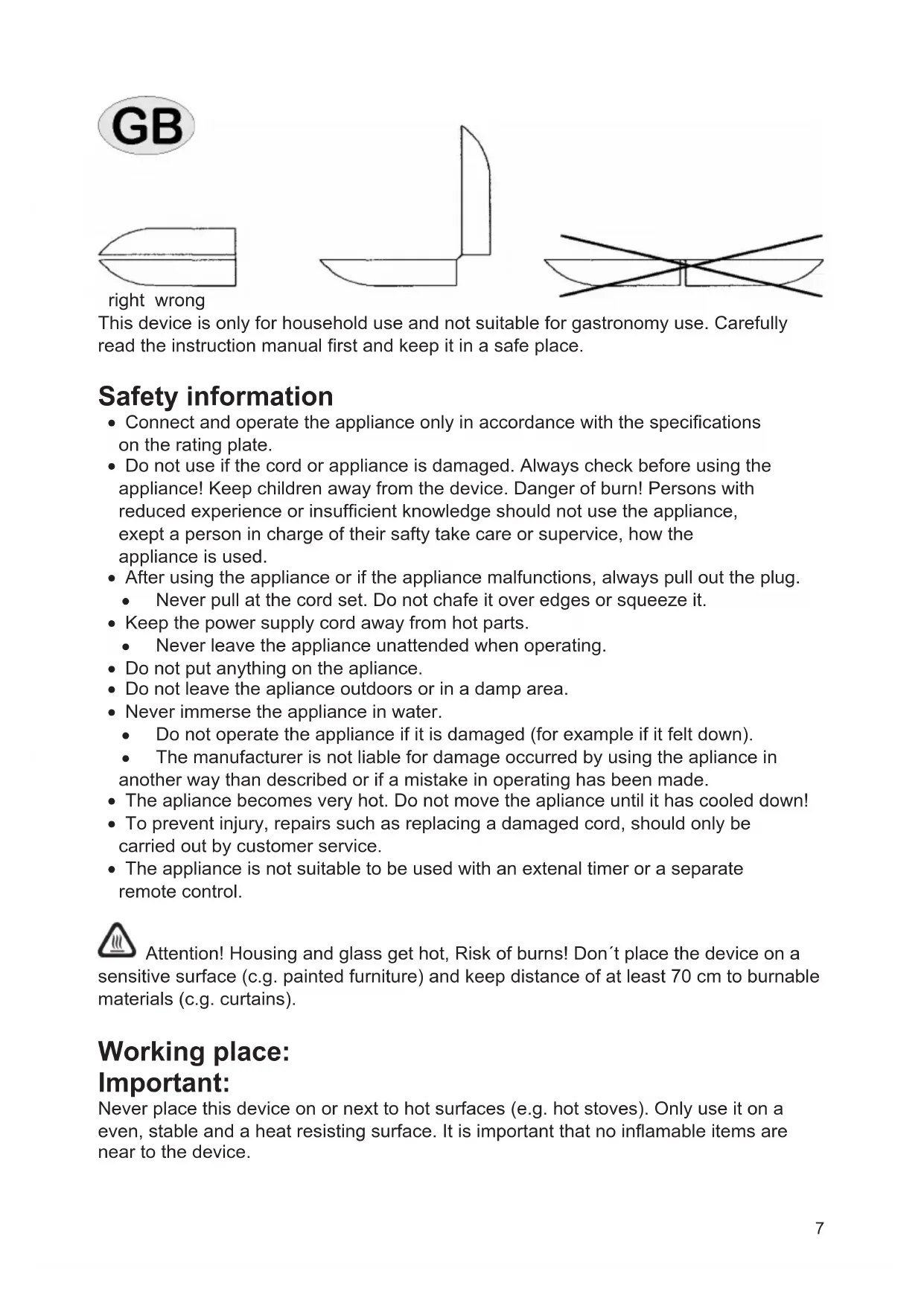

This device is only for household use and not suitable for gastronomy use. Carefully read the instruction manual first and keep it in a safe place.

Safety information

• Connect and operate the appliance only in accordance with the specifications on the rating plate.

• Do not use if the cord or appliance is damaged. Always check before using the appliance! Keep children away from the device. Danger of burn! Persons with reduced experience or insufficient knowledge should not use the appliance, expt a person in charge of their safty take care or supervise, how the appliance is used.

After using the appliance or if the appliance malfunctions, always pull out the plug.

• Never pull at the cord set. Do not chafe it over edges or squeeze it.

• Keep the power supply cord away from hot parts.

• Never leave the appliance unattended when operating.

• Do not put anything on the appliance.

• Do not leave the appliance outdoors or in a damp area.

• Never immerse the appliance in water.

• Do not operate the appliance if it is damaged (for example if it felt down).

• The manufacturer is not liable for damage occurred by using the appliance in another way than described or if a mistake in operating has been made.

The appliance becomes very hot. Do not move the appliance until it has cooled down!

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by customer service.

• The appliance is not suitable to be used with an external timer or a separate remote control.

Attention! Housing and glass get hot, Risk of burns! Don't place the device on a

sensitive surface (c.g. painted furniture) and keep distance of at least 70~cm to burnable materials (c.g. curtains).

Working place:

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device.

Before the first use:

Oil the grill slightly before the first use. Then heat up the device for ca 10 min with closed plates without food and the thermostat on maximum level. Afterwards clean the plates with a humid cloth. Do not use agressive cleaners to avoid damages to the non-stick surface.

Food preparation:

• Plug in the device according to the datas on the rating label. The red light shines and shows that the device is plugged in. If you turn the thermostat, the green and the red control light shines.
• At the first heating a little bit of smoke can occur. This smoke will vanish after some minutes.
• Heat up the device with closed plates until the green light turns off. You have reached the wanted temperature.
• Put the food in the grill and close the device.
• During grilling, the green light can turn on and off. The thermostat is working.
• When the food is ready, remove it from the grilling plate with a plastic or wodden device, to avoid damages from the non-stick coating.
• Always close the plates to avoid loosing heat.
• When the green light turned off, you can put food again on the grill.

The grill time and the temperature selection depends on several factors:

• Kind and thickness of the food
• The colour of the food
• The personal preferences

Temperature adjustments

Step1 90^ Keeping warm

Step2 115^ Fish/Vegetable

Step3 135^ slow cooking of poultry, after it was shortly grilled on Step5

Step4 155^ Vegetable

Slow cooking of meat, after it was shortly grilled on Step6

Step5 175^ Grill position for poultry/sea food/game

Step6 200^ Grill position for light and dark meat

Carefull!!

Steam from the food can emerge between the plates. Danger of burns!

Cleaning and maintenance:

• The device should be cleaned after each use
• Unplug the device
• The device should cool down a little. It can be cleaned easier when it is not that hot.
• Never immerse the device in water!
• Use a humid cloth with a little bit of detergent to clean it. Resisting dirt should

be covered with some oil, wait for ca 5 min and try to remove it again with a humid cloth. Do not use abherasive cleaners. When cleaning the oil tray, be careful, that the liquid in it is cooled down completely.

LCD-Timer (model FG 65)

• By pressing the button in the handle, the grill time can be adjusted in minute steps. The clock is counting down. Is the time less than a minute, the time is shown by seconds. A beeper turns on, when the time is running out.
• If the time is adjusted not correct, press the button for ca 2 sec. Then start the time adjustment again.

Attention: The clock doesn't turn off the device. It is only a reminder.

Change of the Battery: (model FG 65)

Open the cover in the buttom of the handle by turning and change the battery. Please deposit the battery according correct.

Disposal of the package materials:

Please inform yourself at your retailer or your local administration about the latest possibilities for disposing the package materials.

Service:

We have high quality standarts for all our products. If there are any question about the product, please feel free and contact us.

Repair:

Electrical appliances must be repaired by a electro specialist, this is due to enormous dangers of non correct repairs.

Position 4 155^ C legumes
