A 2554 ME - Vacuum Cleaner Kärcher - Free user manual and instructions
Find the device manual for free A 2554 ME Kärcher in PDF.
| Brand | Kärcher |
| Model | A 2554 ME |
| Vacuum cleaner type | Wet/dry vacuum cleaner |
| Supply voltage | 220-240 V ~ 50/60 Hz |
| Mains protection | 10 A (delayed action) |
| Rated power | 1400 W |
| Maximum power | 1600 W |
| Tank volume | 25 l |
| Max. water recovery capacity | 13 l |
| Sound pressure level | 75 dB(A) |
| Power cable | H05-VV-F2x0,75 |
| Functions | Suction of dust and liquids, blowing |
| Filter bag | Yes (paper bag) |
| Cartridge filter | Yes, washable |
| Included accessories | Suction hose, 2 tubes of 0.5 m, crevice nozzle, floor brush, floor nozzle with diverter |
| Maintenance | Clean tank and accessories with water, dry completely before reuse. Do not use aggressive cleaning agents. |
| Safety | Use a socket with a residual current circuit breaker (30 mA max). Do not vacuum flammable or explosive substances. |
| Warranty | According to the conditions valid in the country, contact the dealer with the purchase receipt. |
| After-sales service | Kärcher branch (address on back of manual) |
| Spare parts | Available from the dealer or from a Kärcher subsidiary |
Frequently Asked Questions - A 2554 ME Kärcher
User questions about A 2554 ME Kärcher
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual A 2554 ME - Kärcher and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. A 2554 ME by Kärcher.
USER MANUAL A 2554 ME Kärcher
√ register and win. www.kaercher.com

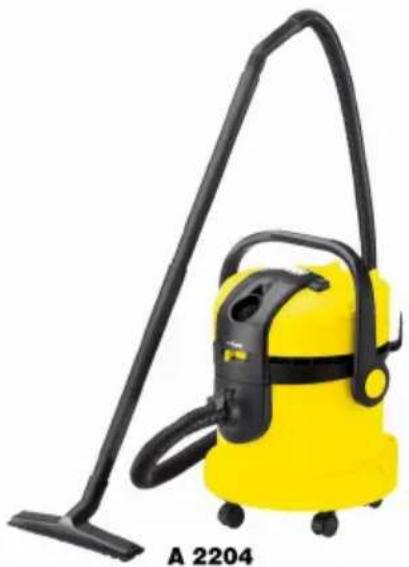

A 2204

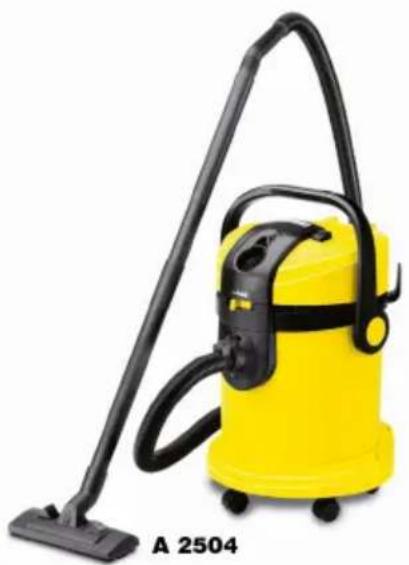

A 2504

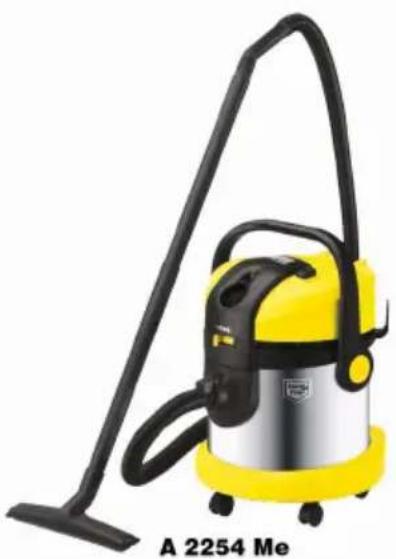

A 2254 Me

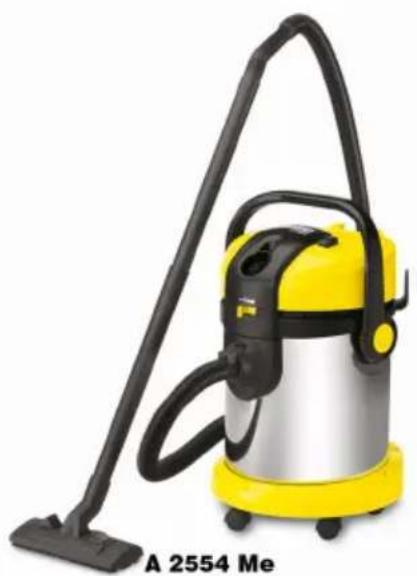

A 2554 Me


Deutsch 3Deutsch 3Deutsch 3
English 6
Francais 9
Italiano 13
Nederlands 16
Espanol 19
Portugues 23
Dansk 26
Norsk 29
Svenska 32
Suomi 35
EAAynikα 38
Türkce 42
Pycckn 45
Magyar 49
Cestina 52
Slovenscina 55
Polski 58
Romaneeste 61
Slovencina 64
Hrvatski 67
Srpski 70
BbIrapckn 73
Eesti 77
Latviešu 80
Lietuviskai 83
YkpaHcbka 86








Please read and comply with these original operating instruc
tions prior to the initial operation of your appliance and store them for later use or subsequent owners.
Proper use
The appliance is intended for use as a wet and dry vacuum cleaner corresponding to the descriptions given in these operating instructions and the safety notes.
- Protect the unit from rain. Do not store outside.
- This device may not be used to suck in ash and soot.
Use the wet/dry vacuum cleaner only with:
- Original filter bag.
- Original spare parts, accessories and special accessories.
The manufacturer is not responsible for any damages that may occur on account of improper use or wrong operations.
Environmental protection

The packaging material can be recycled. Please do not place the packaging
into the ordinary refuse for disposal, but arrange for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old
appliances. Please dispose your old appliances using appropriate collection systems.
Disposing the filters and filter bags
Filters and filter bags are made from environment-friendly materials.
They can therefore be disposed off through the normal household garbage provided you have not sucked in substances that are not permitted to be thrown into household garbage.
Safety instructions
- This device is not intended for use by persons (including children) with reduced physical, sensory or mental abilities or lacking experience and/or knowledge, unless they are supervised by a person responsible for their safety or are instructed by these persons on the use of the device.
Children should be supervised, to ensure that they do not play with the device.
- Switch the appliance off after every use and prior to every cleaning/maintenance procedure.
- Risk of fire. Do not vacuum up any burning or glowing objects.
- The appliance may not be used in areas where a risk of explosion is present.
△Electrical connection
The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.
Risk of electric shock
Never touch the mains plug and the socket with wet hands.
Do not pull the plug from the socket by pulling on the connecting cable.
Check the power cord with mains plug for damage before every use. If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.
To avoid accidents due to electrical faults we recommend the use of sockets with a lineside current-limiting circuit breaker (max. 30 mA nominal tripping current).
Caution
Certain materials may produce explosive vapours or mixtures when agitated by the suction air!
Never vacuum up the following materials:
- Explosive or combustible gases, liquids and dust particles (reactive dust particles)
- Reactive metal dust particles (such as aluminium, magnesium, zinc) in combination with highly alkaline or acidic detergents
- Undiluted, strong acids and alkalies
- Organic solvents (such as petrol, paint thinners, acetone, heating oil).
In addition, these substances may cause the appliance materials to corrode.
Start up
Description of the Appliance
These operating instructions describe the basic models of the wet/dry vacuum cleaner shown on the front cover.
When unpacking the product, make sure that no accessories are missing and that none of the package contents have been damaged. If you detect any transport damages please contact your dealer.
You will find the accessories and the swivel casters in the container. The swivel casters must be mounted on the appliance.

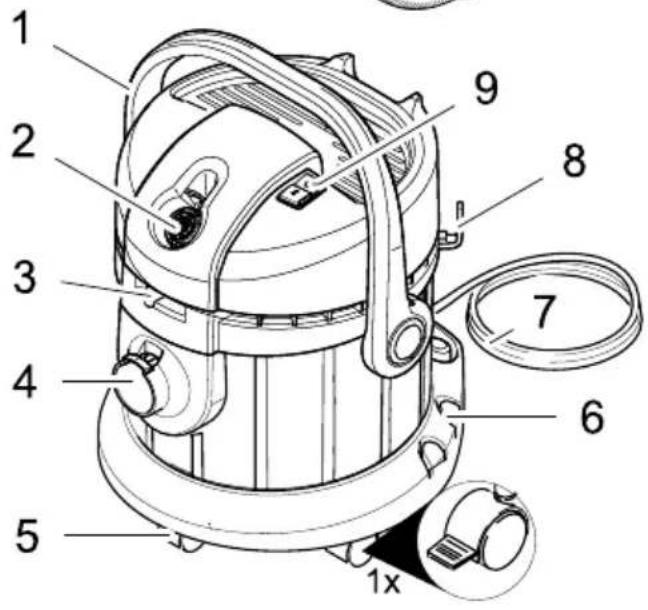

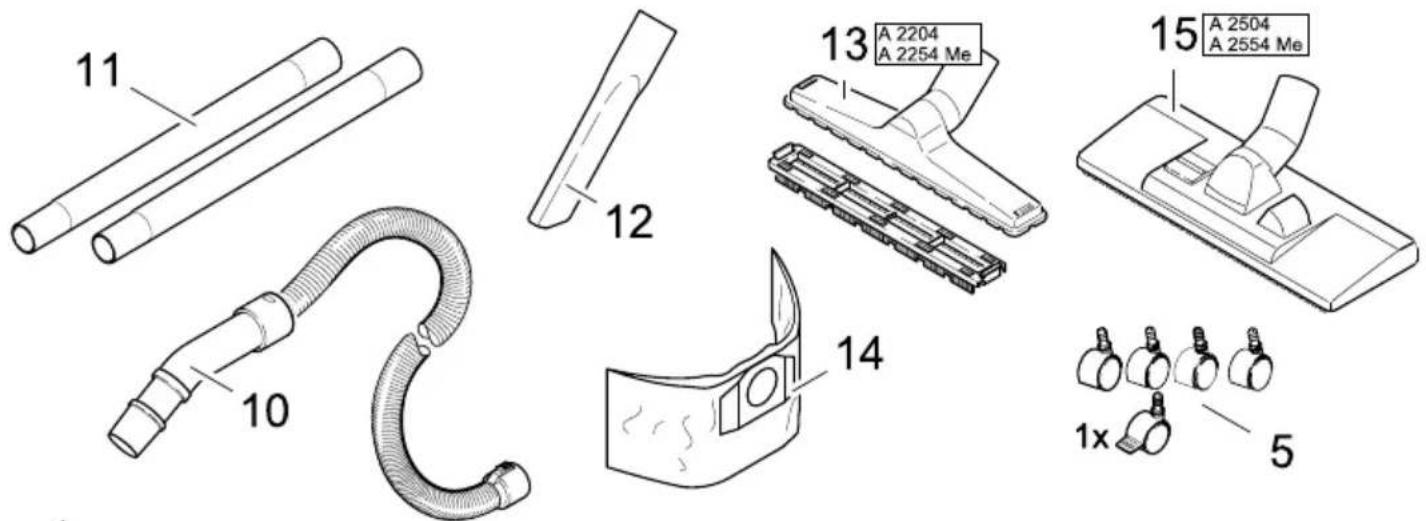

Illustrations on Page 2
1 Carrying handle
2 Blowing connection
3 Air regulation of the blowing function
4 Suction hose connection
5 Swivel casters
6 Accessory mount
7 Power cord with plug
8 Storage, power cord
9 ON/OFF switch for appliance
10 Suction hose
11 Suction tubes 2 × 0.5 ~m
12 Crevice nozzle
13 Floor nozzle with hard surface insert * Included in the scope of delivery with A 2204 / A2254 Me
14 Filter bag
15 Floor nozzle, reversible
* Included in the scope of delivery with A 2504 / A2554 Me
Attaching the Accessories

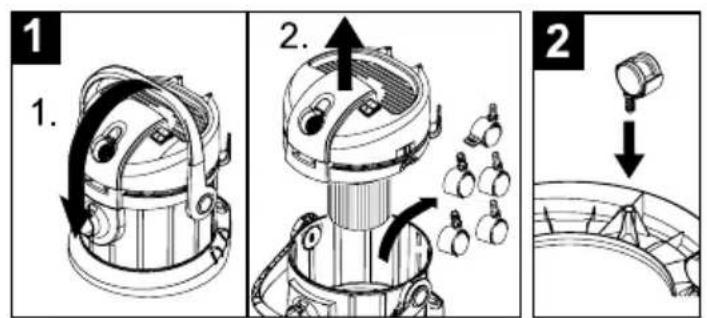

Illustration 1
Remove the motor casing, take the attachments and the swivel casters out of the container.
Illustration 2
Turn the container, press in the swivel casters in the openings at the base of the container till the end-point.

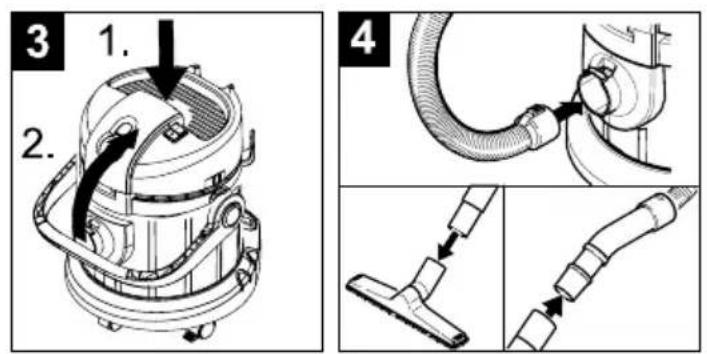

Illustration 8
Place motor casing on the container and lock it.
Illustration 4
Connect accessories.
Operations
Turning on the Appliance

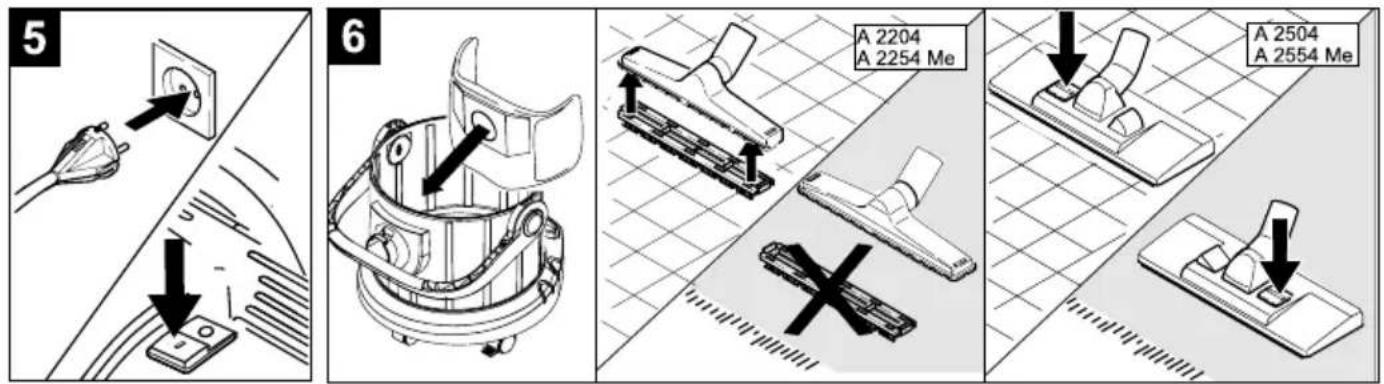

Illustration 5
Plug in the main plug.
Turn the appliance on and put it into operation.
Switch off the appliance when finished.
Dry vacuum cleaning
Illustration 6
For a dust-free disposal of the vacuuming material we recommend to insert the paper filter bag as well. This provides the additional advantage that the cartridge filter will not become contaminated that quickly.
Work only with a dry cartridge filter!
Therefore: Always let the cartridge filter dry thoroughly before using it!
Added filter bags can burst!
Therefore: Change the filter bag at the appropriate time!
Always use a filter bag while sucking in fine dust!
Wet vacuum cleaning
Caution:
Do not use a filter bag!
Immediately switch the appliance off if foam forms or liquids escape!
Note: If the container is full a float closes the suction opening and the appliance works at a higher speed. Switch off the appliance immediately and empty the container.
Blowing function
Use this function, for example, to blow out leaves or dust from the garage, hobby room, work shop, courtyard or garden.

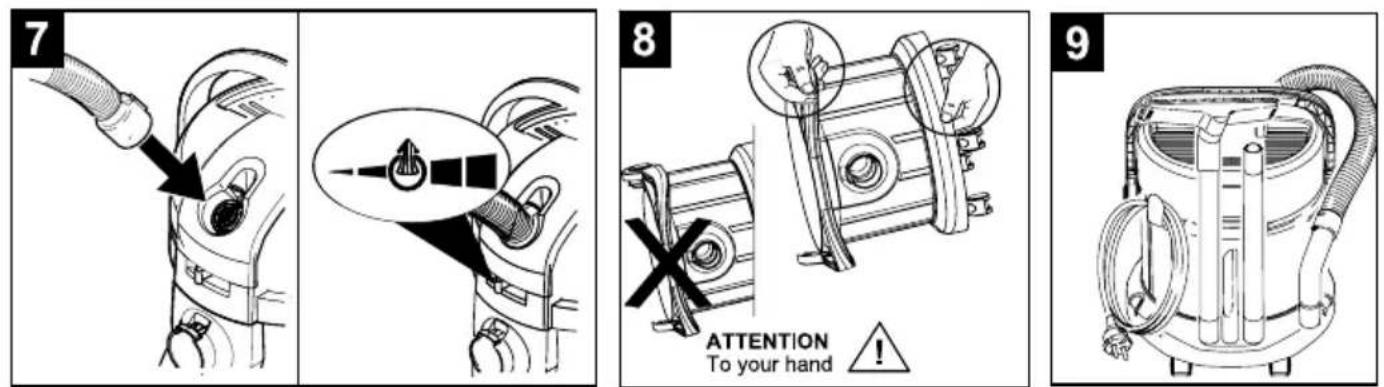

Illustration 7
Connect connection hose. Open the slide of the air regulation, and select the desired blowing performance.
Finish operation
Illustration 8
Empty the container
Turn off the appliance and disconnect the mains plug.
Remove the motor casing and empty the container.
Illustration 9
Storing the Appliance
Place the accessories in the appropriate compartments at the appliance and store the appliance in a dry room.
Transporting the device
The device is to be fastened properly before transporting the device in the car.
Maintenance and Care
Risk of injury
Always switch off the appliance and pull out the mains plug before care and maintenance work.
Cleaning the appliance and accessories
Caution
Do not use abrasives, glass or universal cleaners! Never immerse the appliance in water.
Clean the appliance and accessory parts made of plastic with a commercial plastic cleaner.
If required, rinse the container and accessories with water properly and dry them before reuse.
General notes
Warranty
The terms of the guarantee applicable in each country have been published by our respective national distributors. We will repair possible faults on your unit free of charge within the warranty period, insofar as the faults are caused by material defects or defective workmanship. Guarantee claims should be addressed to your dealer or the nearest authorized customer service centre, and supported by documentary evidence of purchase. (See address on the reverse)
Customer Service
Our KARCHER branch will be pleased to help you further in the case of questions or faults. (See address on the reverse)
Ordering spare parts and special attachments
At the end of the operating instructions you will find a selected list of spare parts that are often required.
You can procure the spare parts and the attachments from your dealer or your KARCHER branch office.
(See address on the reverse)
Troubleshooting
Suction power decreases
Attachment, suction hose or suction pipe are blocked
Remove the blockage with the help of a stick.
Filter bag is full
Insert new filter bag.
Cartridge filter is dirty
Take out the filter and shake it. If the dirt does not come off, then clean it under flowing water and let it dry thoroughly before fitting it back. Replace it if the dirt is stubborn or if the filter itself is damaged.
Appliance does not suck in water
Container is full
Switch off the appliance and empty the container.
Specifications
Subject to technical modifications!
| A 2204 A 2254 Me | A 2504 A 2554 Me | |
| Mains voltage 1~ 50/60 Hz | 220 - 240V | |
| Mains fuse (slow- blow) | *EU 10 A *GB 13 A | |
| Container capacity 18 | 25 | | ||
| Water intake, max. 8 | 13 | | ||
| Output Pnom | 1200 W | 400 W | |
| Output Pmax | 1400 W | 600 W | |
| Mains cable: Type: H05-VV-F2x0,75 | ||
| Sound pressure level (EN 60704-2-1) | 75 dB(A) | |
Cher client,
Sett inn ny filterpose.
Patronfilter er tilsmusset
YcTaHOBnTbHape3epByap npu6opa KOpnyc 3NeKToPDnIgTeJIyN 3aKpbITb erO.
PucyHOK 4
→PnncoeHHTb npHaAnEeXHOCTN.
3Kcnpnyataun
BkIIOueHne np6opa
PucyHOK 5
BCTaBbTe WTeNCEJIbHyIO BUNKy B 3JIeKtpopo3ETky.
→ BkIIOUHTb np6Op npncTynTb k pa6oTe.
→ BbIKNIOHTb np6Op b KOHcpe pa60TbI.
Cyxay nctka
PucyHok 6
ДябсьлбновутлзациOTXODOBBCaCbIBaHIMMbIpeKOMeHnyemOJHOBpeMeHHOyCTaHOBNTbNJIeC6bpHbMeWOk.3To DaetDOnONHTeNbHOTO ppeMMyueCTBO,HTo NaTpOHHbIΦnIbTp TaK6bICTpo He 3acopReTcra.
Pa6omamb moIbko npu cyxom nampoHHOM unbmpe!
ПоэтOMy: MokpbIи naTpoHbIи ФильТр nepeДИСПОЛБЗОВАнEM xopoшо npocuWntb!
YcmaHoeJIeHHbIe nbIine6OpHbIe MeuKU Moaym nonHymb!
N03Tomy: CBoeBpeMeHHo 3aMeHrTb nbIec6OpHbIe MeWK!
Ipu 8cacbibaHuu MeNKou nbiu 8ce2da doJxeh 6bimb ycmaHOeH nbinec6OpHbu Mewok!
YnCTka BO BJIaxHOM pexKmE
△ BHUMAHue:
ucnoIb3ObaHue duIbmpoBaIbHO2o MeuKa He donyckaemc!
Ipu oba3oBaHuu neHbI uUu bImekHaUU xudKocmu npubop hadnexum He3aMeDnumenbHo ebiknouumb!
Yka3aHue: npu nonHom pe3epByape 6xodHoe omeepcmue 3akpbieaemcra nonnaekom, a npubop hauHaem paobamb c no6biweHHbIM yucnOM oboporoe. Ppubop cneoyem He3ameDnumelbHo 8bIKNoUumb, a u3 pe3epByapa - ydaunmb codepkumoe.
ФункцяпогачиВоздуха
IcnoIb3o8amb, Hanpumep, dny npodybku Iucmbbl, unu nbInu u3 zapaxa, domawneu unu npocceccuoHaBHO Macmepckou, deopa u cada.
Pucyhok 7
→HaedeB BCacbIbAIOuN IJNaHr. OTkpbItb 3acnoHky peryIaTopa BO3dyxa N yCTaHOBnTb XeJaEMyIO MOUHOCTb BbIDyBaHnI.
OkoHuaHne pa6oTbI
PucyHok 8
OnyctooseHne 6aka
→ BbIKIOHTb np6Op n BBITaIHTb cTeByo BNkY,
→ Cnryt b KpbIuKy DvuraTeN ydaJIITb coepKIMoe n3 pe3epByapa dIy Mycopa.
PucyHok 9
XpaHHe nIpIbOpa
pa3MeCTnTb npHaJnEJXHocTn Ha npIbope. Pnp6op cIeJyET xpaHTb B cyxnx NOMeUeHnX.
TpaHcnpToPbKa np6opa
→ПиТранспортуровke пибopaВ abTomошип Нeo6хODIMO habeЖно 3akpenntb пибop.
YxOД,TEXHnueckoe 06cnyXnBaHne
Onachocmb nonyuheu npaem!
Ppu npoeedeenu liobix pa6om no yxody u mexnueckomy o6cnykuaeauo npubop cneedyem omknioumb, a cemeou uHyp - bihumymb u3 po3emku.
OuHCTnTb np6Op n npHaJdxKHOCTn
△ BHUMaHue
He ucnolb3oabmb yucmuaux nacm, mouux cpecdme dner cmeKna u yHubepcalnbHbIX mooux cpecdme! 3anpeuaemcna noapyxamb npubop e body.
→Пиборипинадлжнои3ИСКУСТBEHHbIX MaTeрnaIOB CNeIyET YIcTITb CTaHdapTHbIMN MOIOUIMN CpeIcTBaMn ДЯ ИСКУСТBEHHbIX MaTeрnaIOB.
→ Pn Heo6xOIMocTn 6ak n DeTaJI npOnIOCKaTb BODoN BBICyWHTb DnA NOcJeDyUoIeRo NcNoJIb3OBAHn.
06uyeka3aHn
Fapantna
B kajdoi ctpaHe DeiCTbYOT COOTBeTCTBeHNO rapaHTnHbIe ycNoBn, n3daHHbIe yNOnHMOueHHo orpaHn3auné C6bIta HaWei npOdyKUnn B daHHoI CTpAHe. Bo3MoXhIe HeuCnpaBHOCTn np6opa B TeueHne rapaHTnHOrO cPoka Mbl yCTpaHae 6ecnPaTHO, ecnn pnpuHa 3akNIOuaeTcR B DepeKtax MaepnaIOB nn Own6kax npn I3rTOBJIeHN. B clyuae Bo3NknHOBeHnpyTeH3n B TeueHne rapaHTnHOrO cPoka npoc6ba o6paatbcra, IMe pnpi cebe Yek O NOKyKnke, B TOPROByo opraHn3aunO, npOdaBswUo Bam npnbOp nIN B 6JInKaIShUO yNOnHMOueHHUo cnyx6by cepBnCHoro 06cIyXnBaHnra.
(Adpec yka3aHa Ha o6oPoTe)
CepBnchna cnyx6a
B cnyuae BO3HnKHOBeHHa BOpocOB nIN IIOJOMOK haI nnan FnpMbI KARCHER nomoket Bam pa3peuHTb ux.
(Adpec yka3aHa Ha o6opoTe)
3aka3 3anaacnbix yacteH n cneuaJIbHbIX npHaIaJIexKHOCTeH
BbI6Op Han6OJIee Yacto Heo6xOIMbIX 3aIyacte Bbl HauTe B KOHcE INCTpyKUIN NO 3KcNpyTaUIN. 3aIacHbIe Yactn I npHaJdIeXHocTn Bbl MoKeTe nOlyuHTb y BaUero dIInepa IIIN B cIIInaIe fIpMbI KARCHER.
(Adpec yka3aH Ha o6oPoTe)
YcTpaHHeHHeNCnPaBHOCTe
Chnkaetc BcacbibaOua MoHocTbD
3acopehbl npHaIeXHocTn, BcacbBaIOuNIM shaHr nnBcacbBaIOUaT py6a
→ YdaJIITb 3acOpHne npn NOMOu n naIKN.
PbIeSc6OpHbMeWOk 3aONHeH.
→ BCTaBtB HObI NbJIec6OpHbI MeJIOK.
NatpoHHbIΦnIbTp 3arp3HeH.
BbHyTbΦnIbTpN BbITpycntb ero.Ecnn rpa3b He BO3MOxHO ydaJIHTb, npOuHCTNTbΦnIbTp npOTouHO BDOJ,peepyctaHOKoI NOHOCTBbYBCUHTb ero.3aMeHNTb eRO BCnyae 3aTBePdEeBwe Ipr3n INBO3HNKHOBEHNA NOBpeXKeHNA.
Pn6op He BcacbBaet Boyd
Pe3epByap 3aNoHHeNd
BbIKIOuHTb np6Op, ydaIHTb coepxIMoe n3 pe3epByapa.
TexHnueckne daHHbIe
Mult stimate client,
CmykaTeJIHata MoUHOCT HaMaJIyBa
PpnaJnEJXHOCTIe, CmyKaTeJHnMa MapKyu I BcMyKBaUnte Tpb6n ca 3anyuenn
OTctpaHete 3anyuBaHeTO c npbka.
ΦnIITbphata Top6nUka e nblHa
Da ce noctabn HOBa qnTbpha Top6uKa.
ΦnITbphNt naTpoH e 3aMbpceH
→ CbaIeTe φnITbpa I ro n3TynaiTe. Ako MpbcOTnra T He ce OTdJIe, NOuCTeTe NOD Teuaa BOda, INpei MOHTaJr TO OCTaBete Da n3cbxHe HAnbIHo. Ppr ynpnto 3ambpcBaHe IIN IOBpeKdaHe r OcmHeTe.
YpeBHa 3acMykBa Boda
Pe3epBoapbTe nblen
Ypea da ce n3KIOUH, pe3epBoapa da ce n3npa3HN.
TexHnueckn daHHN
| A 2204 A 2254 Me | A 2504 A 2554 Me | |
| Нашистения оtmреката1~50/60 Hz | 220 - 240V | |
| Проблеме (инертын) | 10 A | |
| Осем на peз扼воара | 18 I | 25 I |
| Посъпваши вoda, макс. | 8 I 13 I | |
| Мошност P_HOM. | 1200 W 1400 W | |
| Мошност P_MAKC. | 1400 W 1600 W | |
| Мрeshови кабел:Тип: | H05-VV-F2x0,75 | |
| Донустимо НИВО наш汞 (EN 60704-2-1) | 75 dB(A) | |
3ana3aMe cu npabomo ha mexHuyecku u3MeHeHua!
Lisavarustuse monteerimine
Joonis 1
Padrunifilter on must
Hikon He BCMOKTyBaTn NINOCOCOM HAcTyNHi peOBOHN:
Bn6yxohe6e3neuHi a6o ropuoi ra3n, piDNHn a6o nn (peaKTNBn nn)
PeaknBn MeTaeBn nIaHOMiHi, MaHni, uHK) y cNoJyci 3 cnIbHOJyKHM Ta KNCLOTHMn 3acO6amn dnyuueHHra
- Hepo3BeHei CnIbHi KcNToT Ta Jnyr
- OpraHiHpi03uHHNk (HaepnKlaD, 6eH3nH, po3piJxkyBauchap6n, aueToH, Ma3yT).
DoToroJ,zipeoBHHMOxTybNOOHTMaTepiAnu,IO BnKOpNCTOByOTbcy npncTpoi.
BVeHnB eKcnnyataciio
Onnc npncTropo
U ycbomy noci6nky 3 ekcnnyataui onncahi 6a30bi moJei nnococib JnB oJororo/cyxoro npnbpaHna, kippectabnehi ha obknaunci.
Pn po3naKyBaHHi nepeBipTe Bmict ynaKOBKn Ha HaraBHicTb DoaTKOBoro 6bnHaHHa NIOwKOJKeHb. Y BNpaNkY noWkoJKeHb np TpaHCnOpTyBaHHi NOIOMTe npo ue CBOeMy npOdaBuo.
I OdaTKOBe 6bnaHaHnTa KOniuaTa 3haxoJrbcype3epByapi. KOniuaTa Heo6xIDHO BCTaHOBHTN.
3a6pydHe He DoaTkoBe 06JaHaHHn, BCMOKTyBaIbHn IJNaHr a6o BCMOKTyBaIbHa Tpy6a
→BuaNTu3acMueHn3a donomoroUo zinka.
ΦiNbtpyBaJIbHmMiWiOK3anOBHeHn
BCTaHOBUH NHOBIΦINbTPyBaJIbHN MiJOK.
PataonHHnΦinbTp 3a6pydHeHn
→ BnHrTa fiNbTp Ta BnTpycuTn Ioro. RaKIO 6pyd He 3MnBaEcTbCra, To cIiD npOMTu 6pydPiNCTpyMeHem BOAn. 3aIIuHTu Ioro Do IOBHO BucxHaHHa nepeq yctaHOBOIO. 3amHHTu npi HaABHOcTi CnIbHOrO 3a6pydHeHHa 6o yUkoJXeHHa.
PnucTpiH He BcMOKToe BoDy
Pe3epByap 3anOBHeHn
→Ппст piBnMkHyTu Ta BuaNTu BMict i3 pe3epByapa.
Texhiu hi dahi
GB
Kärcher (UK) Limited
Kärcher House
Beaumont Road
Banbury
Oxon, OX16 1TB
01295 752200
HK
Karcher Limited
Unit 10,17/F.
APEC Plaza
49Hoi Yuen Road
Kwun Tong,Kowloon
(02)357-5863
I
Kärcher S.p.A.
Via A. Vespucci 19
21013 Gallarate (VA)
848 - 99 88 77
IRL
Kärcher Limited
12 Willow Business Park
Nangor Road
Clondalkin
Dublin 12
01 409 7777
KOR
Karcher Co. Ltd. (South Korea)
Youngjae B/D, 50-1, 51-1
Sanso-dong, Mapo-ku
Seoul 121-060
032-465-8000
MAL
Karcher Cleaning Systems Sdn. Bhd.
No. 8, Jalan Serindit 2
Bandar Puchong Jaya
47100 Puchong, Selangor
(03) 5882 1148
NZ
Karcher Limited
12 Ron Driver Place
East Tamaki,Auckland
(09)274-4603
PRC
Kärcher Cleaning Systems Co., Ltd.
Part B, Building 30,
No. 390 Ai Du Road
Shanghai Waigaoquiao 200131
(021) 5046-3579
P
Neoparts Com. e Ind. Automóvel, Lda.
Largo Vitorino Damásio. 10
1200 Lisboa
(21)3950040
PL
Kärcher Sp. z o.o.
Ul. Stawowa 140
31-346 Kraków
(012) 6397-222
RUS
Karcher Ltd.
Vienna House
Strastnoi Blvd. 16
107031 Moscow
095-933 87 48
S
Kärcher AB
Tagenevagen 31
42502 Hisings-Karra
(031) 577-300
SGP
Karcher Asia Pacific Pte. Ltd.
5 Toh Guan Road East
01-00 Freight Links Express Distripark
Singapore 608831
6897-1811
TR
Kärcher Servis Ticaret A.S.
9 Eylul Mahallesi
307 Sokak No. 6
Gaziemir / Izmir
(0232) 252-0708
TWN
Karcher Limited
5F/6. No.7
Wu-Chuan 1st Rd
Wu-Ku Industrial Zone
Taipei County
(02) 2299-9626
UA
Kärcher Ukraine
Kilzeva doroga, 9
03191, Kyiv
(044) 5947575
UAE
Karcher FZE
Jebel Ali Free Zone
RA 8,XB1,Jebel Ali,Dubai (04)8836-776
ZA
Kärcher (Pty.) Limited
144 Kuschke Street
Meadowdale
Edenvale 1614
(011) 574-5360
05/2008
KARCHER www.kaercher.com
