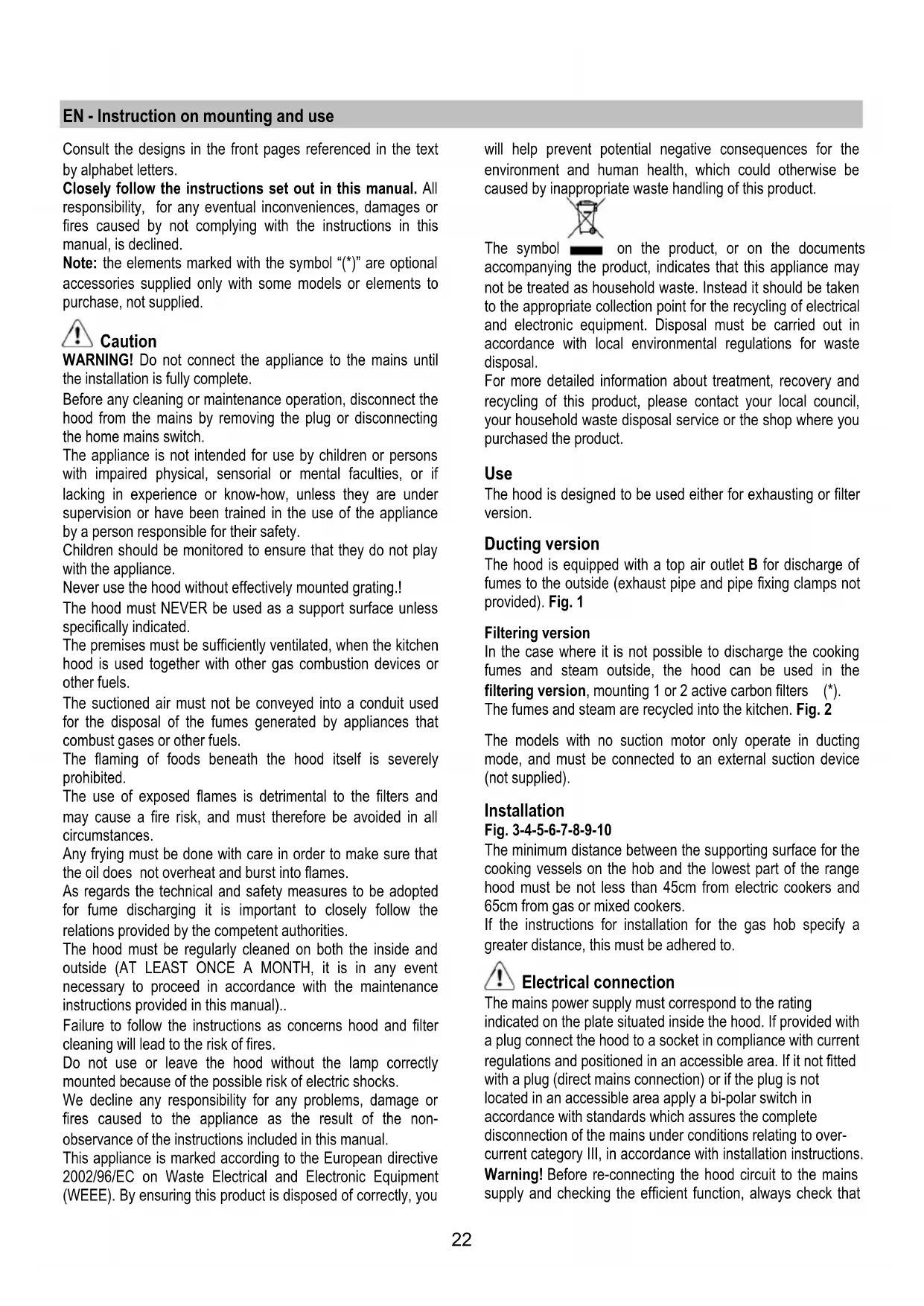

EN - Instruction on mounting and use

Consult the designs in the front pages referenced in the text

by alphabet letters.

Closely follow the instructions set out in this manual. All

responsibility, for any eventual inconveniences, damages or

fires caused by not complying with the instructions in this

manual, is declined.

Note: the elements marked with the symbol “(*)” are optional

accessories supplied only with some models or elements to

purchase, not supplied.

WARNING! Do not connect the appliance to the mains until

the installation is fully complete.

Before any cleaning or maintenance operation, disconnect the

hood from the mains by removing the plug or disconnecting

the home mains switch.

The appliance is not intended for use by children or persons

with impaired physical, sensorial or mental faculties, or if

lacking in experience or know-how, unless they are under

supervision or have been trained in the use of the appliance

by a person responsible for their safety.

Children should be monitored to ensure that they do not play

Never use the hood without effectively mounted grating.!

The hood must NEVER be used as a support surface unless

specifically indicated.

The premises must be sufficiently ventilated, when the kitchen

hood is used together with other gas combustion devices or

The suctioned air must not be conveyed into a conduit used

for the disposal of the fumes generated by appliances that

combust gases or other fuels.

The flaming of foods beneath the hood itself is severely

The use of exposed flames is detrimental to the filters and

may cause a fire risk, and must therefore be avoided in all

Any frying must be done with care in order to make sure that

the oil does not overheat and burst into flames.

As regards the technical and safety measures to be adopted

for fume discharging it is important to closely follow the

relations provided by the competent authorities.

The hood must be regularly cleaned on both the inside and

outside (AT LEAST ONCE A MONTH, it is in any event

necessary to proceed in accordance with the maintenance

instructions provided in this manual)..

Failure to follow the instructions as concerns hood and filter

cleaning will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly

mounted because of the possible risk of electric shocks.

We decline any responsibility for any problems, damage or

fires caused to the appliance as the result of the non-

observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE). By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

on the product, or on the documents

accompanying the product, indicates that this appliance may

not be treated as household waste. Instead it should be taken

to the appropriate collection point for the recycling of electrical

and electronic equipment. Disposal must be carried out in

accordance with local environmental regulations for waste

For more detailed information about treatment, recovery and

recycling of this product, please contact your local council,

your household waste disposal service or the shop where you

purchased the product.

The hood is designed to be used either for exhausting or filter

The hood is equipped with a top air outlet B for discharge of

fumes to the outside (exhaust pipe and pipe fixing clamps not

In the case where it is not possible to discharge the cooking

fumes and steam outside, the hood can be used in the

filtering version, mounting 1 or 2 active carbon filters (*).

The fumes and steam are recycled into the kitchen. Fig. 2

The models with no suction motor only operate in ducting

mode, and must be connected to an external suction device

Fig. 3-4-5-6-7-8-9-10

The minimum distance between the supporting surface for the

cooking vessels on the hob and the lowest part of the range

hood must be not less than 45cm from electric cookers and

65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a

greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating

indicated on the plate situated inside the hood. If provided with

a plug connect the hood to a socket in compliance with current

regulations and positioned in an accessible area. If it not fitted

with a plug (direct mains connection) or if the plug is not

located in an accessible area apply a bi-polar switch in

accordance with standards which assures the complete

disconnection of the mains under conditions relating to over-

current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains

supply and checking the efficient function, always check that23

the mains cable is correctly assembled.

Warning! Power cable replacement must be undertaken by

the authorized service assistance centre or similar qualified

Expansion wall plugs are provided to secure the hood to most

types of walls/ceilings. However, a qualified technician must

verify suitability of the materials in accordance with the type of

wall/ceiling. The wall/ceiling must be strong enough to take

the weight of the hood. Do not tile, grout or silicone this

appliance to the wall. Surface mounting only.

The hood is fitted with a control panel with aspiration speed

selection control and a light switch to control cooking area

Use the high suction speed in cases of concentrated kitchen

vapours. It is recommended that the cooker hood suction is

switched on for 5 minutes prior to cooking and to leave in

operation during cooking and for another 15 minutes

approximately after terminating cooking.

Functioning - Model with display

The electronic controls on your ducting cooker hood

have multiple functions-features:

- Motor on-off function

The motor is turned on and off by pressing pushbutton nr. 1.

When you turn on the cooker hood it automatically starts

running at the third speed.

To select the required speed use pushbuttons nr. 2 and nr. 3.

The speed setting is given on the display provided for this

purpose. It is possible to modify these 6 speeds from

intensive mode “H” , display flashes, to normal mode “L”. To

do this simply press pushbutton 5 (LAMP) for five seconds.

When modifying speed mode the cooker motor must be off.

This function permits you to program your cooker hood so that

the motor and lights turn off automatically 10 minutes after you

have activated this function. To program press pushbutton nr.

4. At the bottom on the right of the display a point will flash

indicating that the timer function is activated.

To turn the lights on and off press pushbutton nr. 5

The electronic controls provided on your ducting cooker hood

have advanced features to facilitate maintenance and correct

- Prompt - clean metal filters

After every 40 hours of use a microprocessor, heart of the

system, prompts the user that it is time to clean the metal

grease filters to guarantee better ducting performance and to

improve hygiene. This prompt is indicated by the letter “A”

which flashes on the display.

To delete this prompt, once the filters have been cleaned and

with the cooker hood off (not powered), maintain pushbutton

2 pressed for more than 5 seconds. When you press this

pushbutton the letter “A” will come up on the display and then

disappear after 5 seconds. The microprocessor zeros the

number of hours and starts a new count from zero until

reaching 40 hours prompting this maintenance procedure.

- Prompt - replace active carbon filters (if mounted)

If your cooker hood utilizes the re-circulation air filtering

system and therefore is fitted out with active carbon filters for

purifying the vapors extracted, it is necessary that you

program the microprocessor for this extraction system. To do

this, always with the cooker hood off (not powered), maintain

pushbutton nr. 4 pressed for 5 seconds. The symbol “ –“ will

come up on the display (this indicates the cooker hood is not

provided with a carbon filter) and after 5 seconds this symbol

changes to “C” (now indicating the cooker hood is provided

with a carbon filter). After every 80 hours of use the

microprocessor will prompt the user to replace the carbon filter.

This prompt is indicated by the letter “C” which flashes on the

display. This is to guarantee better filtering performance and

To delete this prompt, once the filters have been replaced and

with the cooker hood off (not powered), maintain pushbutton

3 pressed for more than 5 seconds. When you press this

pushbutton the letter “C” will come up on the display and then

disappear after 5 seconds. The microprocessor zeros the

number of hours and starts a new count from zero until

reaching 80 hours prompting this maintenance procedure.24

ATTENTION! Before performing any maintenance operation,

isolate the hood from the electrical supply by switching off at

the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and

socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the

same frequency with which you carry out maintenance of the

fat filters) internally and externally. Clean using the cloth

dampened with neutral liquid detergent. Do not use abrasive

products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning

recommendations of the cooker hood and replacement of the

filters may cause fire risks.

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to

the motor or any fire damage linked to inappropriate

maintenance or failure to observe the above safety

Traps cooking grease particles.

This must be cleaned once a month using non aggressive

detergents, either by hand or in the dishwasher, which must

be set to a low temperature and a short cycle. When washed

in a dishwasher, the grease filter may discolour slightly, but

this does not affect its filtering capacity.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The saturation of the activated charcoal occurs after more

or less prolonged use, depending on the type of cooking

and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least

The carbon filter may NOT be washed or regenerated.

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are

If the lights do not work, make sure that the lamps are fitted

properly into their housings before you call for technical
