Instructions for use

! This instruction manual should be kept in a safe place for

future reference. If the washing machine is sold, transferred

or moved, make sure that the instruction manual remains

with the machine so that the new owner is able to familiari-

se himself/herself with its operation and features.

! Read these instructions carefully: they contain vital infor-

mation relating to the safe installation and operation of the

Unpacking and levelling Unpacking 1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been

damaged during the transportation process. If it has been

damaged, contact the retailer and do not proceed any

further with the installation process.

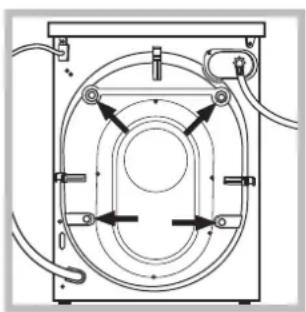

3. Remove the 4 protective

screws (used during tran-

sportation) and the rubber

washer with the correspon-

ding spacer, located on the

rear part of the appliance

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them

again if the washing machine needs to be moved to ano-

! Packaging materials should not be used as toys for

children. Levelling 1. Install the washing machine on a flat sturdy floor, without

resting it up against walls, furniture cabinets or anything

2. If the floor is not perfectly

level, compensate for any

unevenness by tightening

or loosening the adjusta-

ble front feet (see figure);

the angle of inclination,

measured in relation to the

worktop, must not exceed

Levelling the machine correctly will provide it with stability,

help to avoid vibrations and excessive noise and prevent it

from shifting while it is operating. If it is placed on carpet or

a rug, adjust the feet in such a way as to allow a sufficient

ventilation space underneath the washing machine.

Connecting the electricity and water

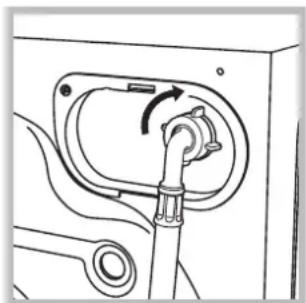

supplies Connecting the water inlet hose 1. Connect the supply pipe

by screwing it to a cold

water tap using a ¾ gas

threaded connection (see

Before performing the con-

nection, allow the water to

run freely until it is perfectly

2. Connect the inlet hose

to the washing machine by

screwing it onto the corre-

sponding water inlet of the

appliance, which is situa-

ted on the top right-hand

side of the rear part of the

appliance (see figure).

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values

indicated in the Technical details table (see next page).

! If the inlet hose is not long enough, contact a specialised

shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

Technical data ModelIWC 91082Dimensionswidth 59.5 cmheight 85 cmdepth 60 cmCapacityfrom 1 to 9 kg Electrical connectionsplease refer to the technical data plate fixed to the machineWater connectionmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 62 litresSpin speedup to 1000 rotations per minuteTest wash cycles in accordance with directives 1061/2010 and 1015/2010.programme 2; temperature 60°C and 40°C.This appliance conforms to the following EC Directives:- 2004/108/CE (Electromagnetic Compa-tibility)- 2002/96/EC- 2006/95/EC (Low Voltage)Connecting the drain hose

Connect the drain hose,

without bending it, to a drai-

nage duct or a wall drain

located at a height between

65 and 100 cm from the

alternatively, rest it on

the side of a washbasin

or bathtub, fastening the

duct supplied to the tap

(see figure). The free end

of the hose should not be

! We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same

diameter as the original hose and must not exceed 150 cm

in length. Electrical connections Before plugging the appliance into the electricity socket,

• the socket is earthed and complies with all applicable

• the socket is able to withstand the maximum power load

of the appliance as indicated in the Technical data table

• the power supply voltage falls within the values indicated

in the Technical data table (see opposite);

• the socket is compatible with the plug of the washing

machine. If this is not the case, replace the socket or the

! The washing machine must not be installed outdoors,

even in covered areas. It is extremely dangerous to leave

the appliance exposed to rain, storms and other weather

! When the washing machine has been installed, the elec-

tricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.

! The power supply cable must only be replaced by autho-

Warning! The company shall not be held responsible in the

event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use

it for the first time, run a wash cycle with detergent and no

laundry, using the wash cycle 2.

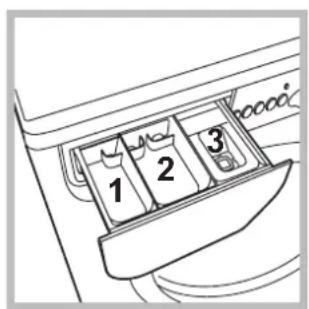

GB Detergent dispenser drawer: used to dispense

detergents and washing additives (see “Detergents and

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles. Du-

ring the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the

available functions. The indicator light corresponding to the

selected function will remain lit.

TEMPERATURE knob: sets the temperature or the cold

wash cycle (see “Personalisation”).

SPIN SPEED knob: sets the spin speed or exclude the

spin cycle completely (see “Personalisation”).

s: used to monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in

If the Delay Timer function has been set, the time remai-

ning until the wash cycle starts will be indicated (see next

DOOR LOCKED indicator light: indicates whether the

door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or tem-

porarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this

button; the corresponding indicator light will flash orange,

while the indicator light for the current wash cycle phase

will remain lit in a fixed manner. If the DOOR LOCKED

indicator light is switched off, the door may be opened.

To start the wash cycle from the point at which it was inter-

rupted, press this button again.

This washing machine, in compliance with new energy sa-

ving regulations, is fitted with an automatic standby system

which is enabled after about 30 minutes if no activity is

detected. Press the ON-OFF button briefly and wait for the

machine to start up again.

Consumption in off-mode: 1W Consumption in Left-on: 1W Description of the washing

machine and starting a wash cycle

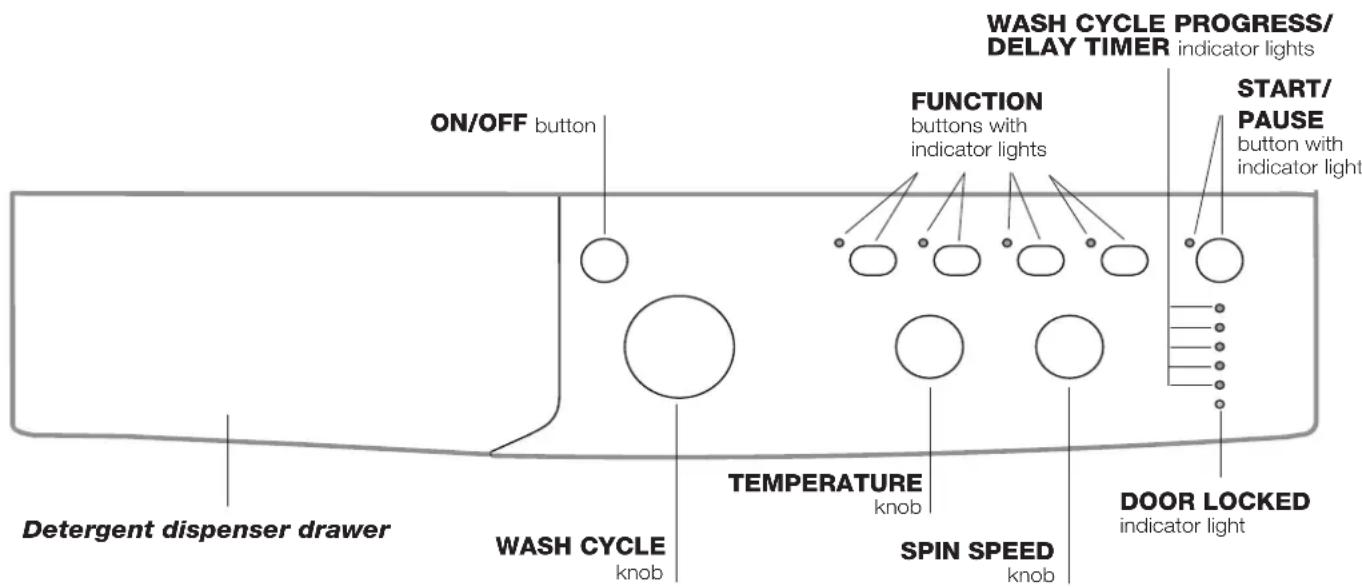

WASH CYCLE PROGRESS/

button with indicator light Control panel

The indicator lights provide important information.

This is what they can tell you:

If the DELAY TIMER function has been activated (see “Per-

sonalisation”), after the wash cycle has been started the

indicator light corresponding to the selected delay period

will begin to flash:

As time passes, the remaining delay will be displayed and

the corresponding indicator light will flash:

The set programme will start once the selected time delay

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has be-

gun, the indicator lights switch on one by one to indicate which

phase of the cycle is currently in progress.

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator

light will illuminate.

If the selected function is not compatible with the program-

med wash cycle, the corresponding indicator light will flash

and the function will not be activated.

If the selected function is not compatible with another

function which has been selected previously, the indicator

light corresponding to the first function selected will

flash and only the second function will be activated; the

indicator light corresponding to the enabled option will

Door locked indicator light

When the indicator light is on, the porthole door is locked

to prevent it from being opened; make sure the indicator

light is off before opening the door (wait approximately 3

minutes). To open the door during a running wash cycle,

press the START/PAUSE button; the door may be opened

once the DOOR LOCKED indicator light turns off.

Starting a wash cycle

1. Switch the washing machine on by pressing the ON/OFF button. All indicator lights will switch on for a few seconds, then

they will switch off and the START/PAUSE indicator light will pulse.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see “Personalisation”).

5. Set the spin speed (see “Personalisation”).

6. Measure out the detergent and washing additives (see “Detergents and laundry”).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed man-

ner, in green. To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the indicator light will switch on. The door can be opened once the DOOR LOCK indi-

cator light turns off. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch

the washing machine off by pressing the ON/OFF button.

GB Specials wash cycles

Express (wash cycle 9) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and

therefore saves both energy and time. By selecting this wash cycle (9 at 30°C), it is possible to wash different fabrics together

(except for wool and silk items), with a maximum load of 1.5 kg.

10) is studied for washing water-repellent fabrics and winter jackets (e.g. Gore-Tex, polyester,

nylon); for best results, use a liquid detergent and dosage suitable for a half-load; pre-treat necks, cuffs and stains if

necessary; do not use softeners or detergents containing softeners. Stuffed duvets cannot be washed with this pro-

11) is for washing heavily soiled sports clothing fabrics (tracksuits, shorts, etc.); for best

results, we recommend not exceeding the maximum load indicated in the “Table of wash cycles”.

12) is for washing lightly soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results,

we recommend not exceeding the maximum load indicated in the “”Table of wash cycles”. We recommend using a

liquid detergent and dosage suitable for a half-load.

13) is for washing sports shoes; for best results, do not wash more than 2 pairs simultaneously.

Table of wash cycles Wash cyclesDescription of the wash cycleMax. temp. (°C) Max. speed (rpm)DetergentsMax. load (kg) Residual dampness %Energy consumption kWh Total water ltCycle durationPrewash Wash Fabric softenerDaily 1 Cotton with prewash: extremely soiled whites. 90° 1000  9 62 2,86 98 195 2 Cotton: extremely soiled whites. 90° 1000 -   9 62 2,54 85 180 2 Cotton (1-2): heavily soiled whites and resistant colours. 60° 1000 -   9 62 1,564 76 185 2 Cotton (2): lightly soiled whites and delicate colours. 40° 1000 -   9 62 1,094 92 180 3 Cotton: heavily soiled whites and resistant colours. 60° 1000 -   9 - - - 140 4

Coloured Cottons (3): lightly soiled whites and delicate colours. 40° 1000 -

  9 62 0,83 63 100 5

Synthetics: heavily soiled resistant colours. 60° 800 -

  4 46 1,03 60 110 5

Synthetics energetic (4): heavily soiled resistant colours. 40° 800 -

  4 46 0,56 60 95Special 6 Wool: for wool, cashmere, etc. 40° 800 -   2 - - - 90 7

Silk/Curtains: for garments in silk and viscose, lingerie. 30° 0 -

  2 - - - 658 Jeans40° 800 -   4 - - - 75 9 Express: to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).30° 800 -   1,5 71 0,11 33 1510 Outwear30° 400 - 

- 2,5 - - - 60 Sport11 Sport Intensive30° 600 -   4 - - - 8512 Sport Light30° 600 -   4 - - - 6013 Special Shoes30° 600 -  

Max. 2 pairs - - - 60 Partial wash cyclesRinse - 1000 - -  9 - - - 36 Spin - 1000 - - - 9 - - - 16

Drain - 0 - - - 9 - - - 2

The cycle duration indicated on the display or instruction manual is an estimate based on standard conditions. The actual duration may vary in rela-

tion to several factors, such as the temperature and pressure of the incoming water, ambient temperature, amount of detergent, load quantity and type, load balancing and any additional options selected.For all Test Institutes:1) Test wash cycle in compliance with regulation 2010/1061: set wash cycle 2 with a temperature of 60°C and 40°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption;

it should be used for garments which can be washed at 60°C and 40°C. The actual washing temperature may differ from the indicated value. 2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40°C. 3) Short wash cycle for cottons: set wash cycle 4 with a temperature of 40°C.4) Synthetic program along: set wash cycle 5 with a temperature of 40°C.GB

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash .

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value

set for each wash cycle.

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol .

The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed

set for each wash cycle.

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the

selected wash cycle.

Selecting this option enables you to suitably adjust drum rotation, temperature and water to a reduced load of lightly soiled

cotton and synthetic fabrics (refer to the

“Table of wash cycles”

). “ ” enables you to wash in less time thereby saving

water and electricity. We suggest using a liquid detergent suitably measured out to the load quantity.

! This function may not be used in conjunction with wash cycles 1, 2, 6, 7, 8, 9, 10, 11, 12, 13, , , .

The function saves energy by not heating the water used to wash your laundry - an advantage both to the

environment and to your energy bill. Instead, intensified wash action and water optimisation ensure great wash results in the

same average time of a standard cycle.

For the best washing results we recommend the usage of a liquid detergent.

! This function may not be used in conjunction with wash cycles 1, 6, 7, 9, 11, 12, 13, , , .

This option is recommended for when the load of laundry is equal to half, or less than half, of the maximum recommended

! This function may not be used in conjunction with wash cycles 8, 9, 10, 11, 12, 13, , .

This timer delays the start time of the wash cycle by up to 12 hours.

Press the button repeatedly until the indicator light corresponding to the desired delay time switches on. The fifth time the button

is pressed, the function will be disabled.

N.B. Once the START/PAUSE button has been pressed, the delay time can only be modified by decreasing it until launching

! This option is enabled with all programmes.

GB Detergents and laundry

Detergent dispenser drawer Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessa-rily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution. ! Do not use hand washing detergents because these create too much foam. ! Use powder detergent for white cotton garments, for pre- washing, and for washing at temperatures over 60°C. ! Follow the instructions given on the detergent packaging. Open the detergent di-spenser drawer and pour in the detergent or washing additive, as follows.compartment 1: Pre-wash detergent (powder)compartment 2: Detergent for the wash cycle (powder or liquid)Liquid detergent should only be poured in immediately prior to the start of the wash cycle.compartment 3: Additives (fabric softeners, etc.)The fabric softener should not overflow the grid. Preparing the laundry • Divide the laundry according to: - the type of fabric/the symbol on the label - the colours: separate coloured garments from whites.• Empty all garment pockets and check the buttons.• Do not exceed the listed values, which refer to the weight of the laundry when dry: Durable fabrics: max. 9 kg Synthetic fabrics: max. 3,5 kg Delicate fabrics: max. 2 kg Wool: max. 2 kg Silk: max. 2 kgHow much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g

Garments requiring special care Wool: all wool garments can be washed using programme 6, even those carrying the “hand-wash only” label. For best results, use special detergents and do not exceed 2 kg of laundry.Silk: use special wash cycle 7 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 7.Jeans: Turn garments inside-out before washing and use a liquid detergent. Use programme 8. Load balancing system Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.GB

Precautions and tips

! This washing machine was designed and constructed in

accordance with international safety regulations. The fol-

lowing information is provided for safety reasons and must

therefore be read carefully.

• This appliance was designed for domestic use only.

• This appliance is not intended for use by persons (inclu-

ding children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concer-

ning use of the appliance by a person responsible for their

safety. Children should be supervised to ensure that they

do not play with the appliance.

• The washing machine must only be used by adults, in

accordance with the instructions provided in this manual.

• Do not touch the machine when barefoot or with wet or

• Do not pull on the power supply cable when unplugging

the appliance from the electricity socket. Hold the plug

• Do not open the detergent dispenser drawer while the

machine is in operation.

• Do not touch the drained water as it may reach extremely

• Never force the porthole door. This could damage the

safety lock mechanism designed to prevent accidental

• If the appliance breaks down, do not under any circum-

stances access the internal mechanisms in an attempt to

• Always keep children well away from the appliance while it

• The door can become quite hot during the wash cycle.

• If the appliance has to be moved, work in a group of two

or three people and handle it with the utmost care. Never

try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

• Disposing of the packaging materials: observe local regu-

lations so that the packaging may be re-used.

• The European Directive 2002/96/EC on Waste Electrical

and Electronic Equipment, requires that old household

electrical appliances must not be disposed of in the

normal unsorted municipal waste stream. Old appliances

must be collected separately in order to optimise the

recovery and recycling of the materials they contain and

reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product

reminds you of your obligation, that when you dispose of

the appliance it must be separately collected.

Consumers should contact their local authority or retailer

for information concerning the correct disposal of their old

GB Care and maintenance

Cutting off the water and electricity

• Turn off the water tap after every wash cycle. This will

limit wear on the hydraulic system inside the washing

machine and help to prevent leaks.

• Unplug the washing machine when cleaning it and

during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance

can be cleaned using a soft cloth soaked in lukewarm

soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

Remove the dispenser by

raising it and pulling it out

Wash it under running wa-

ter; this operation should

be repeated frequently.

Caring for the door and drum of your

• Always leave the porthole door ajar in order to prevent

unpleasant odours from forming.

The washing machine is fitted with a self-cleaning pump

which does not require any maintenance. Sometimes,

small items (such as coins or buttons) may fall into the

pre-chamber which protects the pump, situated in its

! Make sure the wash cycle has finished and unplug the

To access the pre-chamber:

1. using a screwdriver,

remove the cover panel

on the lower front part of

the washing machine (see

2. unscrew the lid by rota-

ting it anti-clockwise (see

figure): a little water may

trickle out. This is perfectly

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely

in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any

cracks, it should be replaced immediately: during the wash

cycles, water pressure is very strong and a cracked hose

could easily split open.

! Never use second-hand hoses.GB

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure

that the problem cannot be not solved easily using the following list.

The washing machine does not

The wash cycle does not start.

The washing machine does not

take in water (the indicator light for

the first wash cycle stage flashes

The washing machine continuously

takes in and drains water.

The washing machine does not

The washing machine vibrates a lot

during the spin cycle.

The washing machine leaks.

The “function” indicator lights and

the “start/pause” indicator light

flash, while one of the “phase in pro-

gress” indicator lights and the “door

locked” indicator light will remain lit

There is too much foam.

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or is not making contact.

• There is no power in the house.

• The washing machine door is not closed properly.

• The ON/OFF button has not been pressed.

• The START/PAUSE button has not been pressed.

• The water tap has not been opened.

• A delayed start has been set (see “Personalisation”).

• The water inlet hose is not connected to the tap.

• The water tap has not been opened.

• There is no water supply in the house.

• The pressure is too low.

• The START/PAUSE button has not been pressed.

• The drain hose is not fitted at a height between 65 and 100 cm from the floor

(see “Installation”).

• The free end of the hose is under water (see “Installation”).

• The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch

the appliance off and contact the Assistance Service. If the dwelling is on one of

the upper floors of a building, there may be problems relating to water drainage,

causing the washing machine to fill with water and drain continuously. Special

anti-draining valves are available in shops and help to avoid this inconvenience.

• The wash cycle does not include draining: some wash cycles require the drain

phase to be started manually.

• The drain hose is bent (see “Installation”).

• The drainage duct is clogged.

• The drum was not unlocked correctly during installation (see “Installation”).

• The washing machine is not level (see “Installation”).

• The washing machine is trapped between cabinets and walls (see “Installation”).

• The water inlet hose is not screwed on properly (see “Installation”).

• The detergent dispenser drawer is blocked (for cleaning instructions, see

“Care and maintenance”).

• The drain hose is not fixed properly (see “Installation”).

• Switch off the machine and unplug it, wait for approximately 1 minute and

then switch it back on again.

If the problem persists, contact the Technical Assistance Service.

• The detergent is not suitable for machine washing (it should display the text

“for washing machines” or “hand and machine wash”, or the like).

• Too much detergent was used.12

Before calling for Assistance:

• Check whether you can solve the problem alone (see “Troubleshooting”);

• Restart the programme to check whether the problem has been solved;

• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on

the guarantee certificate.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N).

This information can be found on the data plate applied to the rear of the washing machine, and can also be found

on the front of the appliance by opening the door.ES

Consumo in off-mode: 1W Consumo in Left-on: 1W Tasto e spia START/
