USER MANUAL Alio FMCD TANGENT

FM Radio, iPhone/iPod docking, CD player and AUX

TANGENT Alio FMCD - 1

text_image tangent ALIO 00:12 iPhone AUTOCINE PAGE NEW ENTER

USER MANUAL MODE D'EMPLOI BEDIENUNGSANLEITUNG INSTRUTIEHANDLEIDING BETJENINGSVEJLEDNING BRUKSANVISNING KÄYTTÖOHJE ISTRUZIONI PER L'USO MANUAL DEL USUARIO MANUAL DO UTILIZADOR

UK – USER MANUAL 2

FR - MANUEL D'UTILISATION 14

Menu Description in FM Mode....10

Menu Description in iPhone/AUX Mode.... 11

Menu Description in CD Mode.... 11

Specifications 13

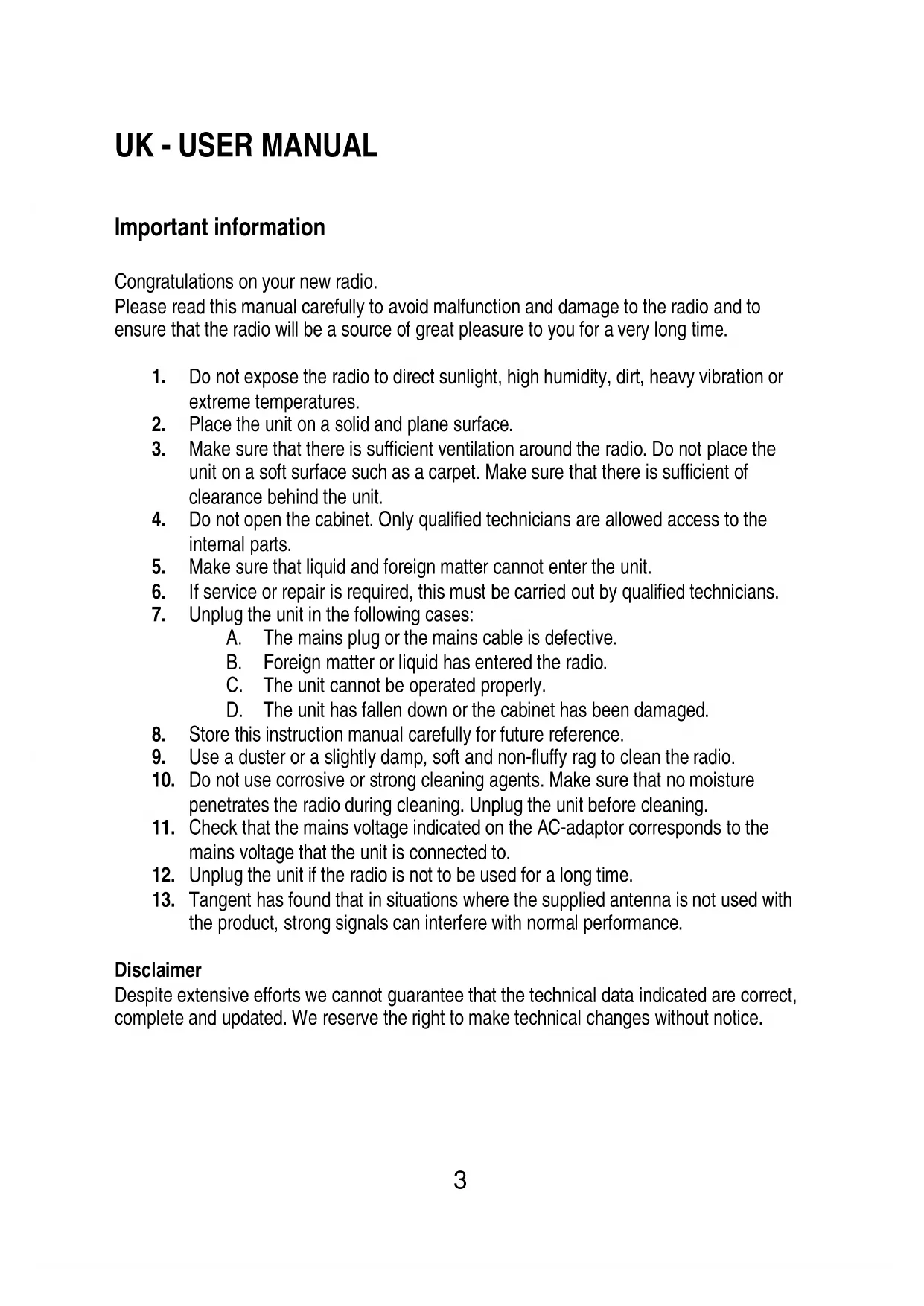

UK - USER MANUAL

Important information

Congratulations on your new radio.

Please read this manual carefully to avoid malfunction and damage to the radio and to ensure that the radio will be a source of great pleasure to you for a very long time.

  1. Do not expose the radio to direct sunlight, high humidity, dirt, heavy vibration or extreme temperatures.
  2. Place the unit on a solid and plane surface.
  3. Make sure that there is sufficient ventilation around the radio. Do not place the unit on a soft surface such as a carpet. Make sure that there is sufficient of clearance behind the unit.
  4. Do not open the cabinet. Only qualified technicians are allowed access to the internal parts.
  5. Make sure that liquid and foreign matter cannot enter the unit.
  6. If service or repair is required, this must be carried out by qualified technicians.
  7. Unplug the unit in the following cases:

A. The mains plug or the mains cable is defective.
B. Foreign matter or liquid has entered the radio.
C. The unit cannot be operated properly.
D. The unit has fallen down or the cabinet has been damaged.

  1. Store this instruction manual carefully for future reference.
  2. Use a duster or a slightly damp, soft and non-fluffy rag to clean the radio.
  3. Do not use corrosive or strong cleaning agents. Make sure that no moisture penetrates the radio during cleaning. Unplug the unit before cleaning.
  4. Check that the mains voltage indicated on the AC-adaptor corresponds to the mains voltage that the unit is connected to.
  5. Unplug the unit if the radio is not to be used for a long time.
  6. Tangent has found that in situations where the supplied antenna is not used with the product, strong signals can interfere with normal performance.

Disclaimer

Despite extensive efforts we cannot guarantee that the technical data indicated are correct, complete and updated. We reserve the right to make technical changes without notice.

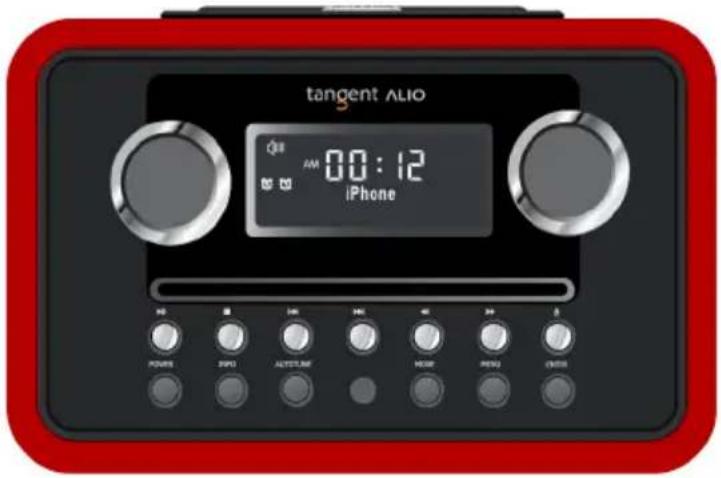

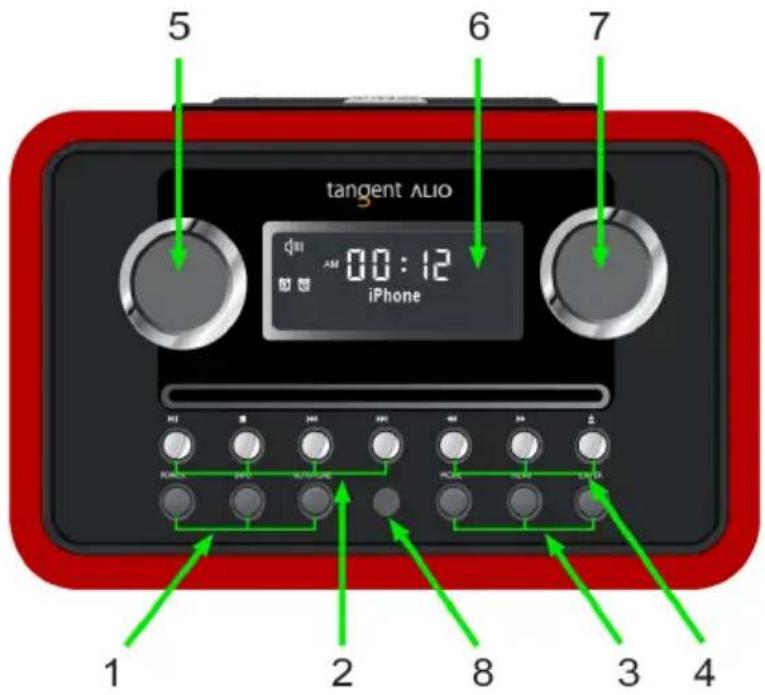

Front panel

TANGENT Alio FMCD - Front panel - 1

text_image tangent ALIO 00:12 iPhone 1 2 3 4 5 6 7
  1. POWER, INFO and AUTOTUNE:

A. POWER: Press this button to toggle the radio between ON and standby.
B. INFO: In FM mode, while receiving a broadcast signal, press this button to display queue information.
C. AUTOTUNE: In FM mode, press this button to autotune.

2.

iPhone/iPod and CD mode only:

A. Press◀◀ or ▶▶ once to go to the previous or next track respectively.
B. Press ▶to pause, press ▶ again to continue enjoying.
C. Press■ to stop, press ▶ to exit stop.

  1. MODE, MENU and ENTER:

A. MODE: Press this button to shift between FM, iPhone, CD and AUX. CD and AUX are only featured when a plug or disc is present.
B. MENU: Press this button to access the menu.
C. ENTER: a. Press this button to confirm.

4.

CD mode only:

A. While playing a track, press and hold ◀ or ▶ to fast back- or forward.
B. Press ▲ to eject a CD from the CD slot.

  1. VOLUME:

Turn this knob CW to increase the volume or CCW to decrease the volume.

  1. DISPLAY SCREEN: LCD featuring special icons.
  2. TUNE: Turn this knob to browse options and in FM mode stations can be tuned manually in 0.05MHz steps.
  3. IR Receiver: Infrared receiver eye.

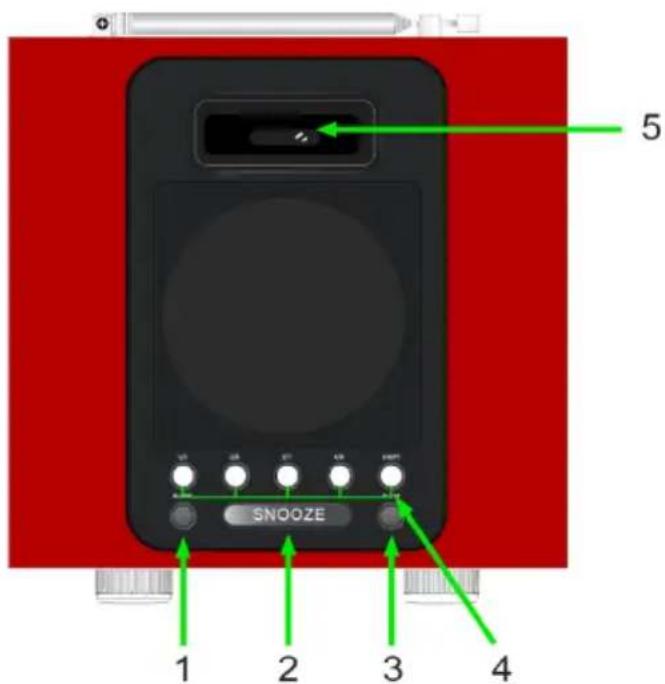

Top panel

TANGENT Alio FMCD - Top panel - 1

text_image SNOOZE 1 2 3 4 5
  1. ALARM: Press this button to set an alarm.
  2. SNOOZE: When an alarm is given, press this button to postpone it for 7 minutes (default). While under SNOOZE function, the display of the radio will indicate Snooze, during this time, if you press any another button, snooze will be canceled.
  3. SLEEP: Press this button to amend the sleep setting.
  4. Preset buttons 1/5 2/6 3/7 4/8 and SHIFT: FM mode use only:

A. To store a station in preset 1-4: press and hold the preferred preset button, until the display indicates 'Preset # stored'.
B. To store a station in preset 5-8: press the SHIFT button once, press and hold the preferred preset button, until the display indicates 'Preset # stored'.
C. To recall a stored in preset station 1-4: press the preferred preset button once.
D. To recall a stored in preset station 5-8: press the SHIFT button once, press the preferred preset button once.

  1. iPhone/iPod Docking: For playback and charging an iPhone/iPod.

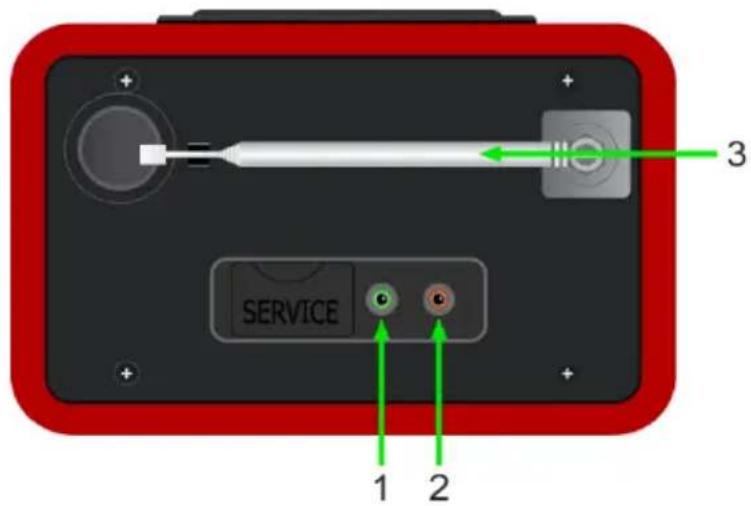

Rear panel

TANGENT Alio FMCD - Rear panel - 1

text_image SERVICE 1 2 3
  1. AUX: Connect any stereo or mono audio source to this stereo input.
  2. POWER SUPPLY: 12VDC---2.0A use this input to connect the radio's DC power supply.
  3. EXTERNAL ANTENNA: The radio comes with a telescopic antenna. To improve FM reception, angle the antenna for best the reception.

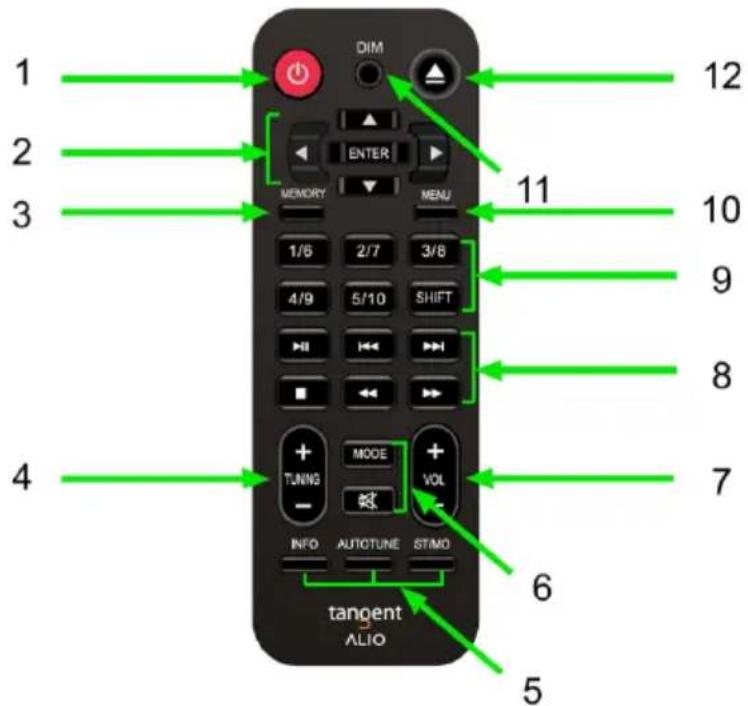

Remote control

TANGENT Alio FMCD - Remote control - 1

text_image 1 2 3 4 DIM ENTER MEMORY MENU 1/6 2/7 3/8 4/9 5/10 SHIFT TUNING MODE VOL INFO AUTOTUNE STIMO tangent ALIO 11 12 10 9 8 7 6 5

  1. POWER: Press this button to toggle the radio between ON and standby.

  2. A. ◀ ▶ ▼ ▲: For navigation of the menu, iPhone/iPod and CD.

B. ENTER: Press this button to confirm.

  1. MEMORY: No function.

    • TUNING -:

Stations can be tuned manually in 0.05MHz steps.

  1. INFO, AUTOTUNE and ST/MO:

A. INFO: In FM mode, while receiving a broadcast signal, press this button to display queue information.

B. AUTOTUNE: In FM mode, press this button to autotune.

C. ST/MO: In FM mode, press this button to shift between stereo or mono.

6. MODE and

A. MODE: Press this button to shift between FM, iPhone, CD and AUX. CD and AUX are only featured when a plug or disc is present.
B. ☒: Press this button to mute or unmute.

    • VOL -: Press this button to adjust the volume level.

8.

Same as front panel section.

  1. Preset buttons 1/6 2/7 3/8 4/9 5/10 and SHIFT:

Same as top panel section.

  1. MENU: Press this button to access the menu.
  2. DIM: Press this button to adjust dimmer.
  3. ▲: Press to eject a CD from the CD slot.

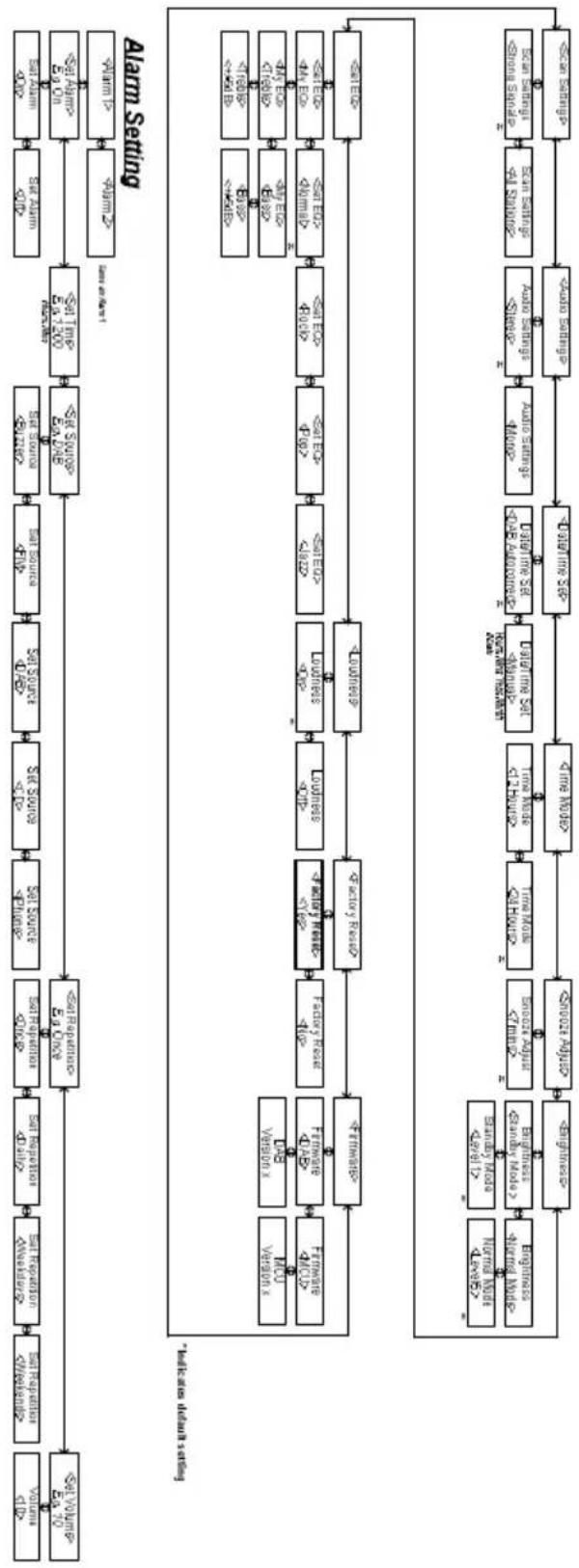

TANGENT Alio FMCD - Menu Description in FM Mode - 1


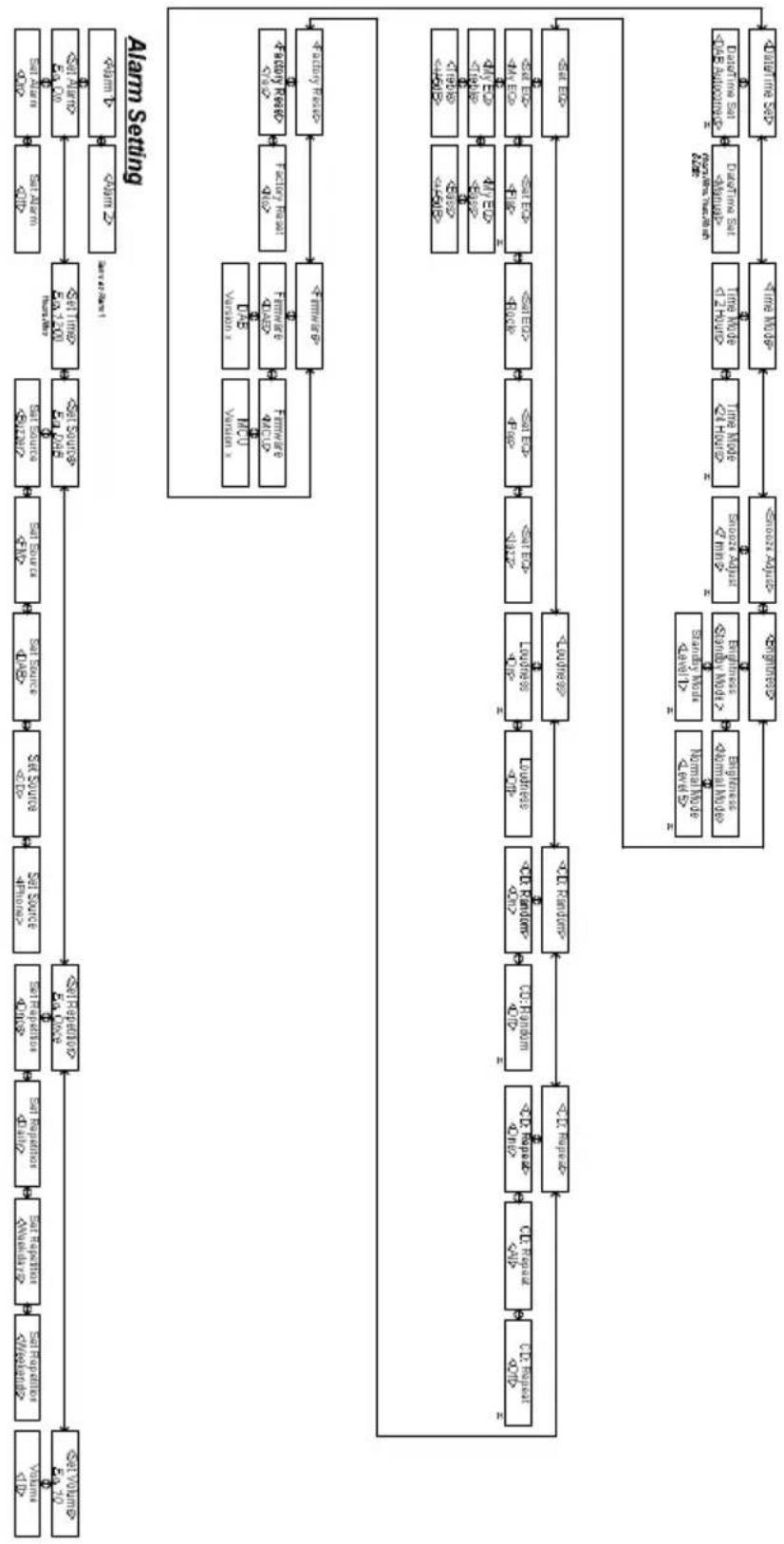

TANGENT Alio FMCD - Menu Description in iPhone/AUX Mode - 1

Menu Description in CD Mode
TANGENT Alio FMCD - Menu Description in iPhone/AUX Mode - 2

Specifications

Speaker: 3.5" wide range speaker

Power Output: 10 Watt RMS@1% THD

Connections: 3,5mm jack for stereo analog audio AUX input 12 V DC input

Power: DC 12V/2A

Tuner Band: FM (87.5 – 108MHz)

CD Decoding: Regular CD, WMA and MP3 (ID3-tag)

Dimensions: 210 x 135 x 200mm (W x H x D)

All specifications are subject to change without notice.

TANGENT Alio FMCD - Specifications - 1

text_image Made for iPhone

TANGENT Alio FMCD - Specifications - 2

text_image Made for iPod

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Sommaire

Sommaire 14

MANUEL D'UTILISATION - FR 15

Informations importantes .... 15

Façade....16

Vue du dessus....18

Vue arrière....19

Télécommande....20

Description du menu en mode FM 22

Description du menu en mode iPhone/AUX 23

Description du menu en mode CD 23

Dimensions : 210 x 135 x 200mm (I x H x P)

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Inhaltsverzeichnis

Technische Daten

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Inhoudsopgave

Inhoudsopgave....38

Specifications

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Indhold

Indhold 50

DK - BRUGERMANUAL 51

Vigtig information 51

Frontpanel 52

Toppanel....54

Bagpanel....55

Beskrivelse af CD-menuen

TANGENT Alio FMCD - Beskrivelse af CD-menuen - 1

Specifikationer

Strømforsyning: DC 12V/2A

Frekvensbånd: FM (87,5 – 108MHz)

CD-afkodning: Normal CD, WMA og MP3 (ID3-tag)

Mål: 210 x 135 x 200mm (B x H x D)

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Innehåll

Innehåll 62

SE - BRUKSANVISNING....63

Viktig information....63

Frampanel 64

Övre panel....66

Bakpanel....67

Fjärrkontroll....68

Menybeskrivning i FM Mode....70

Menybeskrivning i iPhone/AUX Mode 71

Menybeskrivning i CD Mode....72

Specifikationer....73

SE - BRUKSANVISNING

Viktig information

Grattis till din nya radio.

Menybeskrivning i CD mode
TANGENT Alio FMCD - Viktig information - 1

Specifikationer

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Sisällysluettelo

Tekniset tiedot

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Indice

Indice 86

ITA - MANUALE UTENTE 87

  1. Pulsanti pre-impostati 1/6 2/7 3/8 4/9 5/10 e SHIFT:

Dimensioni: 210 x 135 x 200mm (L x A x P)

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Contenido

Contenido....98

ES – MANUAL DEL USUARIO....99

flowchart Alarm setting flowchart detailing steps from calling volume to calling mode, including data collection and routing modules.

Especificaciones

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Conteúdos

Conteúdos 110

PT – MANUAL DO UTILIZADOR....111

Especificações

Coluna: Coluna de longo alcance de 3,5"

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

TANGENT Alio FMCD - Especificações - 1

text_image tangent Alio 00:12 iPhone POS M TAIN MOUT MOUT 30 8 POMES BPG ALISTLINE MOSER PENG JNNTS

DESIGN - PERFORMANCE - AFFORDABILITY

THE OBJECTIVE OF EVERY TANGENT PRODUCT IS THAT FUNDAMENTALLY CORRECT DESIGN CAN PRODUCE A PRODUCT CAPABLE OF ACHIEVING EXCELLENT PERFORMANCE AND AFFORDABILITY.

www.tangent-audio.com

Item no.: 40631.01

TANGENT Alio FMCD - Especificações - 2

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : TANGENT

Model : Alio FMCD

Category : Radio
