Congratulations on your purchase of a Coby alarm clock. This manual is designed to help you easily set up and begin using your new alarm clock right away. Please read this manual carefully and retain it for future reference.

Package Contents

Coby alarm clock

Poweradapter

Instruction manual

If any of the above items are missing, please contact the dealer from whom you purchased this product.

This package may contain plastic bags or other materials that pose a hazard to children. Be sure to safely dispose of all packing materials after opening.

Features

Jumbo 2" LED digital clock

Two-level dimmable display

Universal dock for iPod charges and plays your favorite iPod music

AM/FM stereo radio

Alarm clock with sleep/snooze timers

Wake to music or buzzer

35 mm audio input for use with any portable audio device

Clock backup maintains the time in case of power failure (9V battery required)

Unit at a Glance

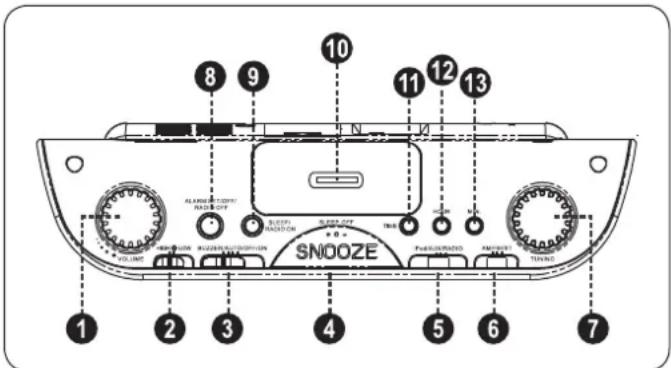

Volume Control dial 1.

Turn to adjust the volume level.

Dimmer switch (High, Low) 2.

Set the intensity of the clock display.

Power / Function switch (Buzzer, Auto, Off, On) 3.

Set the alarm function, or turn the audio on.

SNOOZE/SLEEP OFF 4.

Snoopze: Press to delay the alarm when it sounds.

Sleep Off: Press to turn the sleep timer off.

Audio Source switch (iPod, Aux, Radio) 5.

Set the audio source to listen to iPod, an auxiliary device, or the radio.

Radio Band switch (AM, FM, FM stereo) 6.

Set the radio band.

Radio Tuning dial 7.

Turn to tune to a radio station.

ALARM SET/OFF/RADIO OFF 8.

Alarm Set: Press and hold to set the alarm timer.

Off: Press to turn the alarm off when it sounds.

Radio Off: Press to turn the radio off.

SLEEP / RADIO ON9.

Sleep: Press and hold to set the sleep timer.

Radio On: Turn the radio on.

1. Dock connector for iPod
   Connect an iPod here to charge and play iPod.
2. TIME
   Press and hold to set the clock time.
   12.HOUR (press to set clock/alarm/sleep hours).
3. MIN (press to set clock/alarm/sleep minutes).

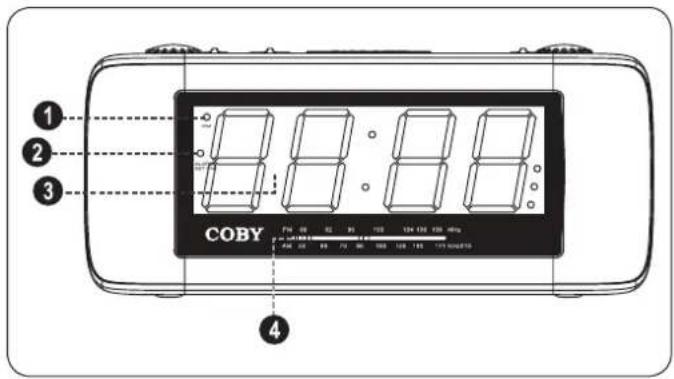

AM/PM indicator 1.

When lit, indicates that the current time is PM. When dark, indicates that the current time is AM.

Alarm Set On indicator2.

When lit, indicates that the alarm timer is on. When dark, indicates that the alarm timer is off. Clock display3.

Radio Tuning display4.

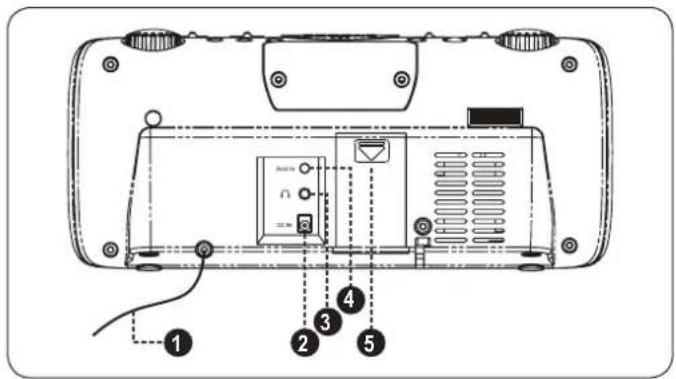

FM antenna1.

Power In (DC 9V) 2.

Connect the included power adapter here to power the unit.

Headphone In 3.

Connect a pair of 3.5mm headphones here.

Aux In 4.

Connect an audio device here to play it over the unit's speakers (optional 3.5mm male-to-male cable required).

1. Battery compartment

Load one 9V battery for clock backup.

Getting Started

AC Power

This unit is powered by an AC adapter.

Connect one end of the included AC adapter to an AC 120V / 60Hz mains outlet. Connect the other end to the Power In (DC 9V) jack located on the rear of the unit.

Do not connect the power adapter to a power outlet other than that which is indicated here or on the label as this may result in the risk of fire or electric shock.

Do not handle the power plug with wet hands. Doing so may cause electric shock.

Battery Backup

The battery backup function maintains the clock time should the power be interrupted. When power is restored, the correct time will be displayed.

The battery compartment is located on the rear of the unit. Install one 9V "006P" battery (not included) in the battery compartment.

Make sure that the positive (+) and negative (-) battery terminals match the markings in the battery compartment.

The battery backup feature will not power the radio nor any other functions. It is designed to maintain the clock time only.

The battery used in this device may present a fire or chemical burn if mistreated. Do not disassemble, incinerate, or heat the battery.

Risk of explosion if battery is replaced by an incorrect type. Contact the manufacturer before replacing the battery.

If the unit will not be used for a long time, remove the battery to prevent damage or injury from possible leakage.

Setting the Clock Time

Press and hold the TIME button. While holding the TIME button:

Press the HOUR button to set the clock hour.

Press the MINUTE button to set the clock minutes.

The PM indicator will light for PM hours and darken for AM hours.

Listening to Music

Set the Power / Function switch (Buzzer, Auto, 1. Off, On) to ON.

Use the Audio Source switch (iPod, Aux, Radio) 2. to select an audio source.

Set the Audio Source switch (iPod, Aux, Radio) to iPod to listen to iPod.

Set the switch to Aux to listen to an auxiliary audio device; the device must be connected to the Aux In jack on the rear of the unit.

Set the switch to Radio to listen to the radio.

Adjusting the Volume Level

Turn the Volume dial clockwise to lower the volume level.

Turn the Volume dial counter-clockwise to raise the volume level.

Listening to Music (Radio, iPod, Aux)

Listen to AM/FM radio broadcasts, or play your iPod or other auxiliary device.

Listening to the Radio

Turn the radio on

Set the Audio Source switch to RADIO.1.

Set the Power / Function switch to ON.2.

Select the radio band (AM, FM, ST)

Set the Radio Band switch to one of the following positions.

AM: Listen to AM broadcasts.

FM: Listen to FM mono broadcasts. Choose FM if the broadcast signal is weak.

ST: Listen to FM stereo broadcasts. Choose ST for the best sound quality.

Tune to a radio station

Turn the Radio Tuning dial to tune to a radio station. Adjust the antennas as necessary.

FM antenna: Extend the FM antenna wire located on the rear of the unit and position it for optimum reception.

AM antenna: The AM antenna is built into the unit. If you are having difficulty receiving an AM station, reposition the unit.

Operating the radio on a metal surface may adversely affect reception.

Do not place the unit near strong magnets such as those used in television sets, speaker boxes, etc. as these may cause the frequency to drift.

Listening to iPod®

If you have an iPod, you can play and charge it with the integrated dock connector for iPod.

This unit supports the following iPod models.

Made for:

iPod touch (2nd generation)

iPod nano (3rd generation)

iPod classic

iPod touch (1st generation)

iPod nano (2nd generation)

iPod (5th generation)

iPod nano (4th generation)

iPod nano (1st generation)

Connect your iPod

iPod doesn't come in just one size or shape. The Universal Dock provides a single, elegant way to connect any iPod with dock connector to your iPod accessory. iPod fits into the Universal Dock through the use of interchangeable inserts called Dock Adapters.

If you have a Dock Adapter, gently press the adapter into the recessed Dock Connector bay. (Dock 1. Adapters are provided by Apple with their recent iPod models.)

Gently plug your iPod into the Dock Connector. When your iPod is properly connected, the Power icon 2. on your iPod screen should indicate that it is plugged in and charging.

Turn iPod mode on

Set the Audio Source switch to iPod.1.

Set the Power / Function switch to ON.2.

Using your iPod

Use the controls available on your iPod (e.g., play/pause, skip next/previous, browse menus).

Turn the Volume Control dial of the CSMP120 to adjust the volume level.

Listening to an Auxiliary Device

If you have a device with a 3.5mm headphone jack (e.g., CD player, MP3 player), you can play it through the speakers of this unit.

You will need a 3.5mm male-to-male audio cable (optional) to use this function.

Connect your device

Using a 3.5mm male-to-male audio cable (optional), connect the Headphone Out jack of the device to the Aux In jack located on the rear of the CSMP120.

Turn Aux mode on

Set the Audio Source switch to AUX.1.

Set the Power / Function switch to ON.2.

Use the controls of the Aux device to turn it on.3.

Using your Aux device

Use the controls available on your Aux device (e.g., play/pause, skip next/previous, browse menus).

possible, set the volume level of the Aux device to approximately 80% , then turn the Volume Control dial of the CSMP120 to further adjust the volume level.

Using the Alarm Timer

Set the Alarm Time

Set the Alarm Time to have the unit sound at the set time.

Press and hold the ALARM SET / OFF / RADIO OFF button. While holding the button:

Press the HOUR button to set the alarm hour.

Press the MINUTE button to set the alarm minutes.

The PM indicator will light for PM hours and darken for AM hours.

Turn the Alarm Timer On or Off

To turn the Alarm Timer on, set the Power / Function switch (Buzzer, Auto, Off, On) to BUZZER or AUTO.

To turn the Alarm Timer off, set the switch to OFF.

Wake to Buzzer Option

Set the Power / Function switch to BUZZER to have the alarm beep at the set time.

It is not necessary to set the volume level.

Wake to Music Option

Set the Power / Function switch to AUTO have 1. the alarm turn on the radio at the set time.

Set the Audio Source switch (iPod, Aux, Radio) 2. to RADIO to wake to radio.

Make sure the radio has been tuned to a station.

Although not recommended, you may set the switch to iPod or Aux to wake to iPod or Aux, respectively. To do so, an iPod or auxiliary device must be connected to the unit and playing.

1. Adjust the Volume Dial to a level that will wake you up when the alarm sounds.

When the Alarm Sounds

When the alarm timer sounds at the set time:

Press the Snooze button to delay the timer temporarily. The alarm will sound again after approximately 9 minutes.
Press the Alarm Set / Off / Radio Off button to turn off the alarm for the day. (The alarm will sound again the next day.)

Set the Power / Function switch to OFF to turn the alarm off completely.

Using the Sleep Timer

Set the Sleep Timer to turn the unit off automatically, to allow you to fall asleep to music.

To adjust the sleep timer, press and hold the 4.

Sleep / Radio On button, then:

The sleep timer will not work if the Power / Function switch is set to ON.

Set the Power / Function switch to BUZZER, 1. AUTO, or OFF.

Set the Audio Source switch to listen to iPod, 2. Aux, or Radio.

Press the Sleep / Radio On button to activate 3. the sleep timer.

Press the HOUR button to add one hour to the sleep timer.
Press the MIN button to subtract one minute from the sleep timer.

The unit will turn off automatically when the timer counts down to "0:00".

The maximum timer count is one hour and fifty nine minutes (1:59).

The default timer is set for 59 minutes (0:59).

To cancel the sleep timer, press the Sleep Off / Snooze button.

Safety Notices

CAUTION

WARNING: SHOCK HAZARD. DO NOT OPEN. AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK) OF THE UNIT. REFER SERVICING ONLY TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the appliance.

For Customer Use:

Enter below the serial number that is located on the rear of the unit. Retain this information for future reference.

Model No.

Serial No.

WARNING: To prevent fire or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot of outlet and fully insert.

Protect your hearing: Hearing experts advise against the constant use of personal stereos played at high volume. Constant exposure to high volumes can lead to hearing loss. If you should experience ringing in the ears or hearing loss, discontinue use and seek medical advice.

For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org.

FCC Statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Important Safety Instructions

Read Instructions: All the safety and operating instructions should be read before the product is operated.1.

Retain Instructions: The safety and operating instructions should be retained for future reference.2.

Heed Warnings: All warnings on the product and in the operating instructions should be adhered to.3.

Follow Instructions: All operating and usage instructions should be followed.4.

Cleaning: Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. 5. Use a damp cloth for cleaning.

Attachments: Use only attachments recommended by the manufacturer. Use of other attachments may be hazardous.6.

Water and Moisture: Do not use this product near water (e.g., near a bath tub, washbowl, kitchen sink, laundry tub, 7. in wet basements, or near a swimming pool and the like).

Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. Use only 8 with carts, stands, tripods, brackets, or tables recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

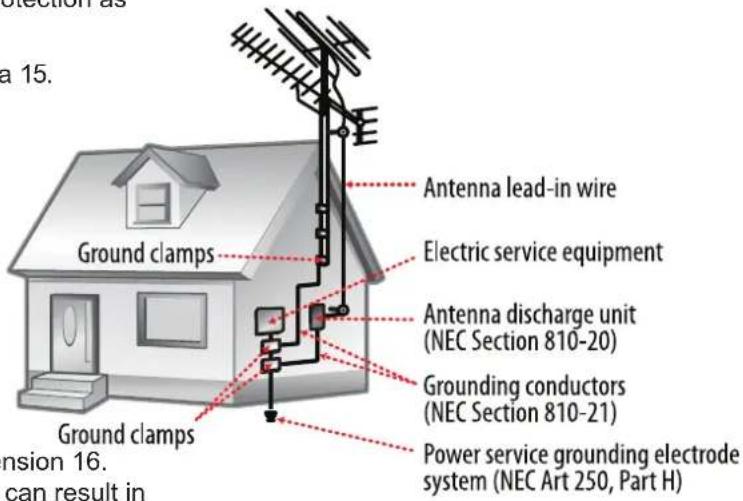

1. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
2. Ventilation: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer instructions have been adhered to.

Power Sources: This product should be operated only from the type of power source indicated on the rating label. 11. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power or other sources, refer to the operating instructions.

Grounding or Polarization: This product may be equipped with a polarized alternating-current line plug that has one 12. blade wider than the other. This plug will only fit into the power outlet in one direction. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the direction of the plug. If the plug should still fail to fit, contact an electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Power-Cord Protection: Power supply cords should be routed so that they are not likely to be walked on or pinched 13. by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and at the point which they exit from the product.

1. Protective Attachment Plug: The product may be equipped with an attachment plug with overload protection. This is a safety feature. See the operating instructions for replacement or directions to reset the protective device. If replacement of the plug is required, be sure the service technician has used

a replacement plug that has the same overload protection as the original plug as specified by the manufacturer.

Outdoor Antenna Grounding: If an outside antenna 15.

is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANS/NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode (see figure).

Overloading: Do not overload wall outlets, extension 16. cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch 17. dangerous voltage points or shout-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dan-18. Gerous voltage or other hazards. Refer all servicing to qualified service personnel.

1. Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) when the power-supply or plug is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if the product has been exposed to rain or water; d) if the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation; e) if the product has been dropped or damaged in any way; f) when the product exhibits a distinct change in performance—this indicates a need for service.

Replacement Parts: When replacement parts are required, be sure that your service technician has used replace-20.
ment parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform 21. safety checks to ensure that the product is in proper operating condition.

Wall or Ceiling Mounting: The product should be mounted to a wall or ceiling only as recommended by the manu-22. facturer.

Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other 23. products (including amplifiers) that produce heat.

Legal and Trademark Notices

"Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Coby is a registered trademark of Coby Electronics Corporation. iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

All other trademarks and logos are property of their respective owners unless indicated otherwise.

Troubleshooting & Support

If you have a problem with this device, please check our website at www.cobyusa.com for Frequently Asked Questions (FAQ) and product updates. If these resources do not resolve the problem, please contact Technical Support.

Address

Coby Electronics Technical Support

150 Knowlton Way

Savannah, Georgia 31407

Email

[e-mail]

Web

www.cobyusa.com

Phone

800-727-3592: Monday to Friday, 8:30AM-9:00PM EST

Saturday, 9:00 AM-5:30PM EST

718-416-3197: Monday to Friday, 8:00AM-5:30PM EST

If you experience problems with the speaker system (e.g., no sound), please check the following:

Ensure that the power cord is connected securely to the unit and the wall outlet.

Ensure that the unit has been turned on.

Ensure that the volume is set to an audible level.

Ensure that the correct audio source has been selected.

• When playing iPod, ensure that the iPod is compatible with this unit, and that the proper dock adapter (supplied by Apple) is installed.
  When listening to the radio, ensure that the correct radio frequency is selected.
• When using an auxiliary audio device, make sure that it has been connected securely to the AUX In jack with a 3.5mm male-to-male audio cable.

The CSMP120 does not turn on.

Ensure that the unit has been powered on (set the Power / Function switch to the "ON" position).

Ensure that the AC adapter is connected securely to an AC 120V / 60Hz power outlet.

Specifications

Power	120 V/60 Hz AC Adapter (DC 9 V/60 Hz)
Radio Tuning System	AM: 530-1710 KHzFM: 88-108 MHz
iPod Charge	5 V/500 mA
iPod Compatibility*	Made for:iPod touch (2nd generation)iPod touch (1st generation)iPod nano (4th generation)iPod nano (3rd generation)iPod nano (2nd generation)iPod nano (1st generation)iPod classiciPod (5th generation)
Audio Input	3.5 mm Auxiliary Line-In
Audio Output	Stereo Speakers
Output Power	4 W total (2 W x 2)

• Please visit www.cobyusa.com for the latest iPod compatibility information.
  Design, specifications, and manual are subject to change without notice.

Índice

MUCHAS GRACIAS 26

Email [e-mail]

Web www.cobyusa.com

Teléfono 800-727-3592: De Lun-Vie, 8:30-21:00 EST Sab, 9:00-17:30 EST

718-416-3197: De Lun-Vie de, 8:00-17:30 EST

I'installation electrique (article

Address Coby Electronics Technical Support

150 Knowlton Way

Savannah, Georgia 31407

Courriel [e-mail]

Internet www.cobyusa.com

Telephone [phone]: Lun-Ven, 8:30-21:00 EST

Sam, 9:00-17:30 EST

718-416-3197: Lun-Ven, 8:00-17:30 EST

Coby Electronics Corp.

1991 Marcus Ave, Suite 301

Lake Success, NY 11042

www.cobyusa.com

www.ecoby.com

Coby is a registered trademark of Coby Electronics Corporation. Printed in China.

COBY es lamarca registrada de COBY Electronics Corporation. Imprimido en China.
