Product type	DAB+/FM clock radio with CD player and iPhone/iPod docking station
Brand	Tangent
Model	ALIO DAB+
Category	Radio
Dimensions (mono version)	210 × 135 × 200 mm (W x H x D)
Dimensions (stereo version)	370 × 135 × 200 mm (W x H x D)
Power supply	DC 12 V / 2 A (3 A for stereo version)
Output power	10 W RMS @1% THD (2 x 10 W in stereo version)
Speaker	Full-range 3.5 inches (3 inches in stereo version)
Radio bands	FM 87.5 - 108 MHz, DAB/DAB+ 174 - 240 MHz (band I, II, III)
CD formats	CD audio, WMA, MP3 (ID3-tag)
Connectors	3.5 mm stereo AUX input, DC power, telescopic antenna
Docking station	For iPhone/iPod (charging and playback)
Remote control	Infrared included
Functions	Alarm, Snooze, Sleep, 8 presets (4+4 with SHIFT), info display, brightness adjustment
Display	LCD with special icons
Cleaning	Soft non-linting cloth slightly damp, no corrosive products
Safety	Do not open the casing, avoid moisture, unplug before cleaning
Spare parts	No user-serviceable parts; contact qualified technician
Repairability	Service by qualified technician only

Frequently Asked Questions - ALIO DAB+ TANGENT

How to turn on the radio?

Press the POWER button on the front panel or on the remote control to turn the radio on or to standby.

How to change mode (DAB/FM/CD/AUX)?

Press the MODE button on the front panel or on the remote control to switch between DAB/DAB+, FM, iPhone, CD and AUX. CD and AUX modes are only available if a disc is inserted or a device is connected.

How to adjust the volume?

Turn the VOLUME knob on the front panel clockwise to increase volume, counterclockwise to decrease. You can also use the VOL+ and VOL- buttons on the remote control.

How to save a station as a preset?

For presets 1 to 4: press and hold the desired preset button (1/5, 2/6, 3/7, 4/8) until 'Preset # stored' is displayed. For presets 5 to 8: first press SHIFT, then press and hold the corresponding preset button.

How to set an alarm?

Press the ALARM button on top of the radio. Follow the on-screen instructions to set the time, source (DAB, FM, CD, etc.) and repeat.

How to use the snooze function?

When the alarm sounds, press the SNOOZE button on top. The alarm will sound again after 7 minutes (default). Pressing any other button cancels the snooze.

How to set the sleep timer?

Press the SLEEP button on top to scroll through duration options (e.g., 15, 30, 60 minutes). The radio will turn off automatically after the selected time.

How to listen to DAB+ radio?

Press MODE to select DAB/DAB+. For an automatic station search, press AUTOTUNE. Use the TUNE knob to manually browse the station list.

How to clean the device?

Use a duster or a soft, non-linting cloth slightly damp. Do not use corrosive products. Ensure moisture does not enter the device. Unplug the radio before cleaning.

What to do if the radio does not turn on?

Check that the power adapter is properly connected and the voltage matches the one indicated on the device (12 V DC). Try another electrical outlet. If the problem persists, contact a qualified technician.

USER MANUAL ALIO DAB+ TANGENT

DAB/DAB+, FM Radio, iPhone/iPod docking, CD player and AUX

USER MANUAL MODE D'EMPLOI BEDIENUNG SANLEITUNG INSTRUTIEHANDLEIDING BETJENINGSVEJLEDNING BRUKSANVISNING KAYTTOOHJE ISTRUZIONI PER L'USO MANUAL DEL USUARIO MANUAL DO UTILIZADOR

UK-USERMANUAL 2
FR-MANUEL D'UTILISATION 16
DE-BEDIENUNGSANLEITUNG 30
NL - GEBRUIKSAANWIJZING 44
DK-BRUGERMANUAL 58
SE-BRUKSANVISING 72
FI-KAYTTOOHJEKIRJA 86
ITA-MANUALE UTENTE 100
ES-MANUAL DEL USUARIO 114
PT-MANUAL DO UTILIZADOR 128

Contents

Contents 2
UK-USERMANUAL 3
Front panel 5
Top panel 7
Rear panel 8
Remote control 9
Menu Description in DAB Mode 11
Menu Description in FM Mode 12
Menu Description in iPhone/AUX Mode 13
Menu Description in CD Mode 14
Specifications 15

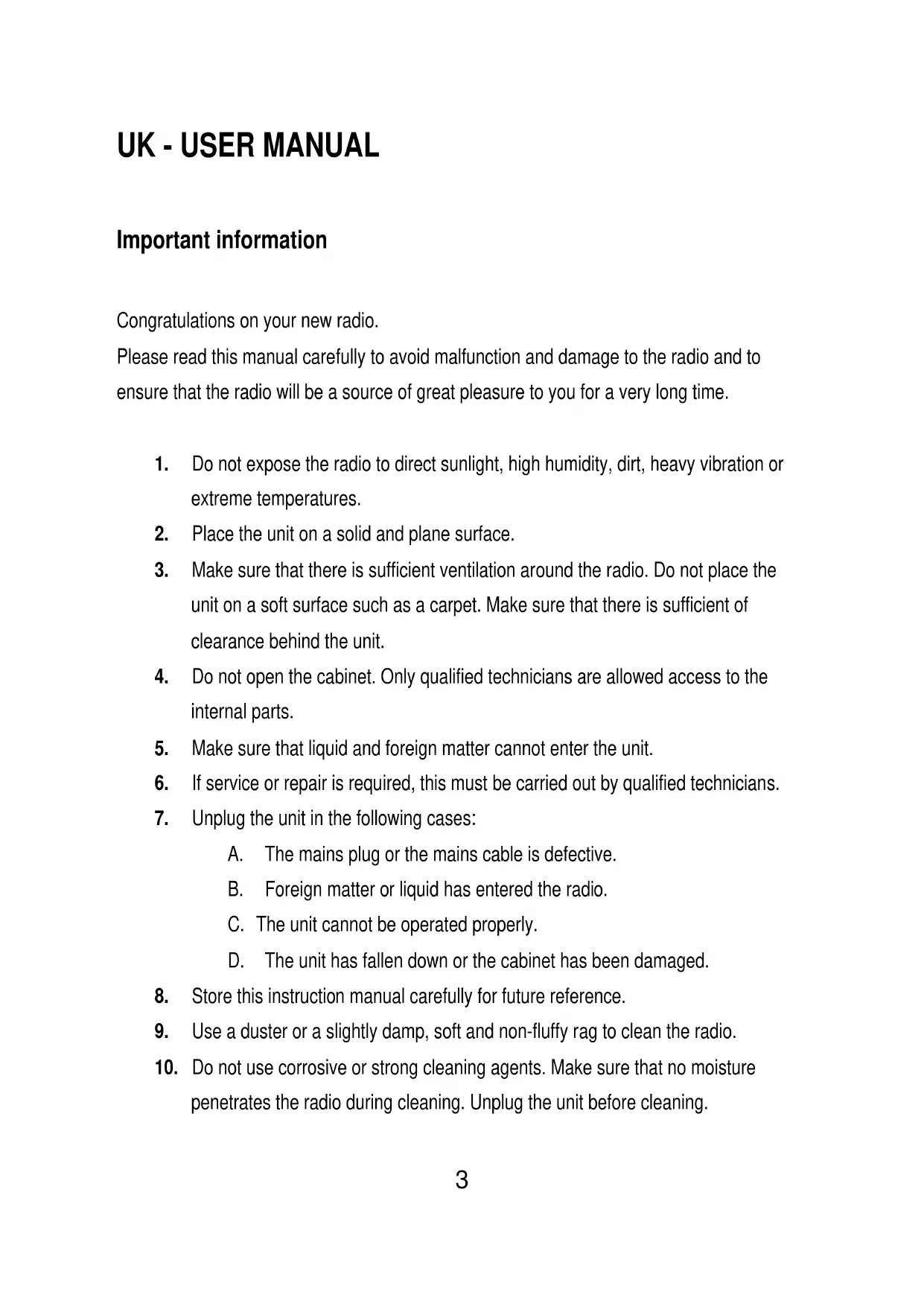

UK - USER MANUAL

Important information

Congratulations on your new radio.

Please read this manual carefully to avoid malfunction and damage to the radio and to ensure that the radio will be a source of great pleasure to you for a very long time.

1. Do not expose the radio to direct sunlight, high humidity, dirt, heavy vibration or extreme temperatures.
2. Place the unit on a solid and plane surface.
3. Make sure that there is sufficient ventilation around the radio. Do not place the unit on a soft surface such as a carpet. Make sure that there is sufficient of clearance behind the unit.
4. Do not open the cabinet. Only qualified technicians are allowed access to the internal parts.
5. Make sure that liquid and foreign matter cannot enter the unit.
6. If service or repair is required, this must be carried out by qualified technicians.
7. Unplug the unit in the following cases:

A. The mains plug or the mains cable is defective.
B. Foreign matter or liquid has entered the radio.
C. The unit cannot be operated properly.
D. The unit has fallen down or the cabinet has been damaged.

1. Store this instruction manual carefully for future reference.
2. Use a duster or a slightly damp, soft and non-fluffy rag to clean the radio.

3. Do not use corrosive or strong cleaning agents. Make sure that no moisture penetrates the radio during cleaning. Unplug the unit before cleaning.

4. Check that the mains voltage indicated on the AC-adaptor corresponds to the mains voltage that the unit is connected to.

5. Unplug the unit if the radio is not to be used for a long time.
6. Tangent has found that in situations where the supplied antenna is not used with the product, strong signals can interfere with normal performance.

Disclaimer

Despite extensive efforts we cannot guarantee that the technical data indicated are correct, complete and updated. We reserve the right to make technical changes without notice.

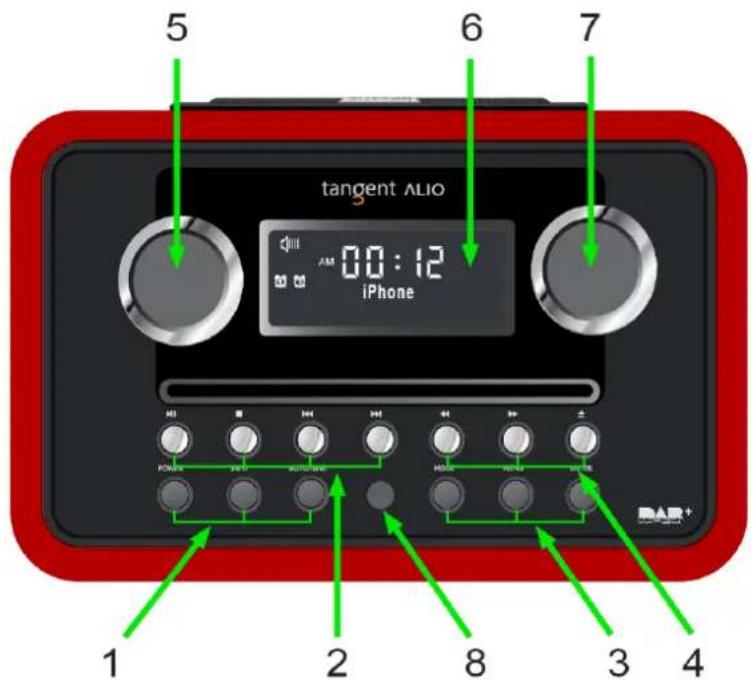

Front panel

1. POWER, INFO and AUTOTUNE:

A. POWER: Press this button to toggle the radio between ON and standby.
B. INFO: In DAB/DAB+, FM mode, while receiving a broadcast signal, press this button to display queue information.
C. AUTOTUNE: In DAB/DAB+ mode press this button to make a quick scan; In FM mode, press this button to autotune.

iPhone/iPod and CD mode only:

A. Press or once to go to the previous or next track respectively.
B. Press▶to pause, press▶ again to continue enjoying.
C. Press to stop, press to exit stop.

1. MODE, MENU and ENTER:

A. MODE: Press this button to shift between DAB/DAB+, FM, iPhone, CD and AUX. CD and AUX are only featured when a plug or disc is present.
B. MENU: Press this button to access the menu.
C. ENTER: a. Press this button to confirm.

CD mode only:

A. While playing a track, press and hold to fast back- or forward.
B. Press to eject a CD from the CD slot.

5. VOLUME:

Turn this knob CW to increase the volume or CCW to decrease the volume.

1. DISPLAY SCREEN: LCD featuring special icons.
2. TUNE: Turn this knob to browse options.
3. IR Receiver: Infrared receiver eye.

Top panel

1. ALARM: Press this button to set an alarm.
2. SNOOZE: When an alarm is given, press this button to postpone it for 7 minutes (default). While under SNOOZE function, the display of the radio will indicate Snooze, during this time, if you press any another button, snooze will be canceled.
3. SLEEP: Press this button to amend the sleep setting.
4. Preset buttons 1/5 2/6 3/7 4/8 and SHIFT: DAB/DAB+ and FM mode use only:

A. To store a station in preset 1-4: press and hold the preferred preset button, until the display indicates 'Preset # stored'.
B. To store a station in preset 5-8: press the SHIFT button once, press and hold the preferred preset button, until the display indicates 'Preset # stored'.
C. To recall a stored in preset station 1-4: press the preferred preset button once.
D. To recall a stored in preset station 5-8: press the SHIFT button once, press the preferred preset button once.

1. iPhone/iPod Docking: For playback and charging an iPhone/iPod.

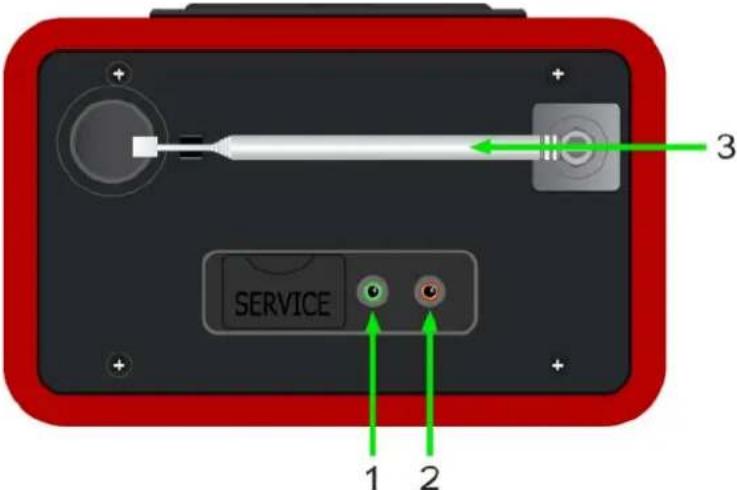

Rear panel

1. AUX: Connect any stereo or mono audio source to this stereo input.
2. POWER SUPPLY: 12VDC = 2.0A (3A stereo version), use this input to connect the radio's DC power supply.
3. EXTERNAL ANTENNA: The radio comes with a telescopic antenna. To improve FM reception, angle the antenna for best the reception.

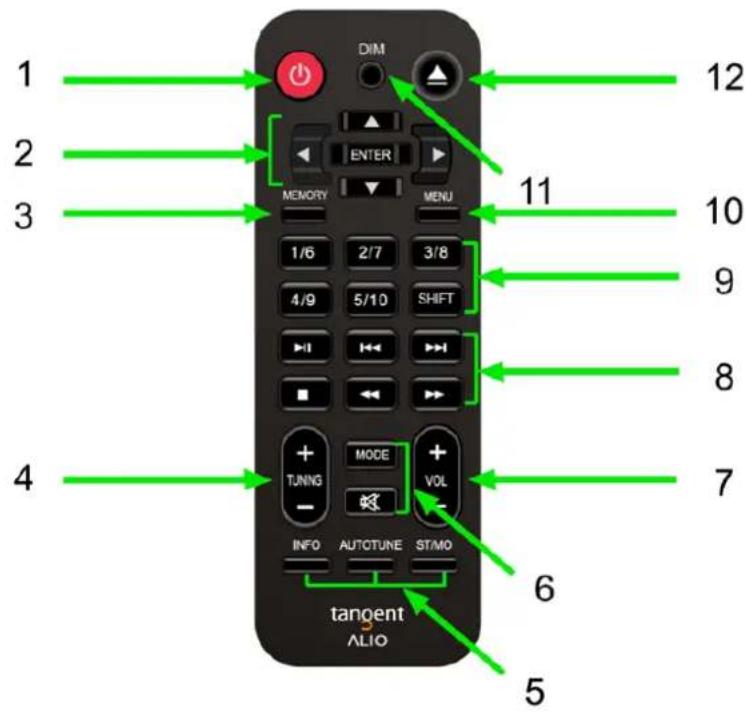

Remote control

1. POWER: Press this button to toggle the radio between ON and standby.
2. A. ▲: For navigation of the menu, iPhone/iPod and CD.
   B. ENTER: Press this button to confirm.
3. MEMORY: No function.
4. • TUNING -:

A. Stations can be tuned manually in 0.05MHz steps.
B. In DAB mode, press this button to toggle the station list.

1. INFO, AUTOTUNE and ST/MO:

A. INFO: In DAB/DAB+, FM mode, while receiving a broadcast signal, press this button to display queue information.
B. AUTOTUNE: In DAB/DAB+ mode press this button to make a quick scan; In FM mode, press this button to autotune.
C. ST/MO: In DAB/DAB+ or FM mode, press this button to shift between stereo or mono.

1. MODE and

A. MODE: Press this button to shift between DAB/DAB+, FM, iPhone, CD and AUX. CD and AUX are only featured when a plug or disc is present.
B. Press this button to mute or unmute.

1. +VOL - · Press this button to adjust the volume level.
2. Same as front panel section.
3. Preset buttons 1/6 2/7 3/8 4/9 5/10 and SHIFT: Same as top panel section.
4. MENU: Press this button to access the menu.
5. DIM: Press this button to adjust dimmer.
6. : Press to eject a CD from the CD slot.

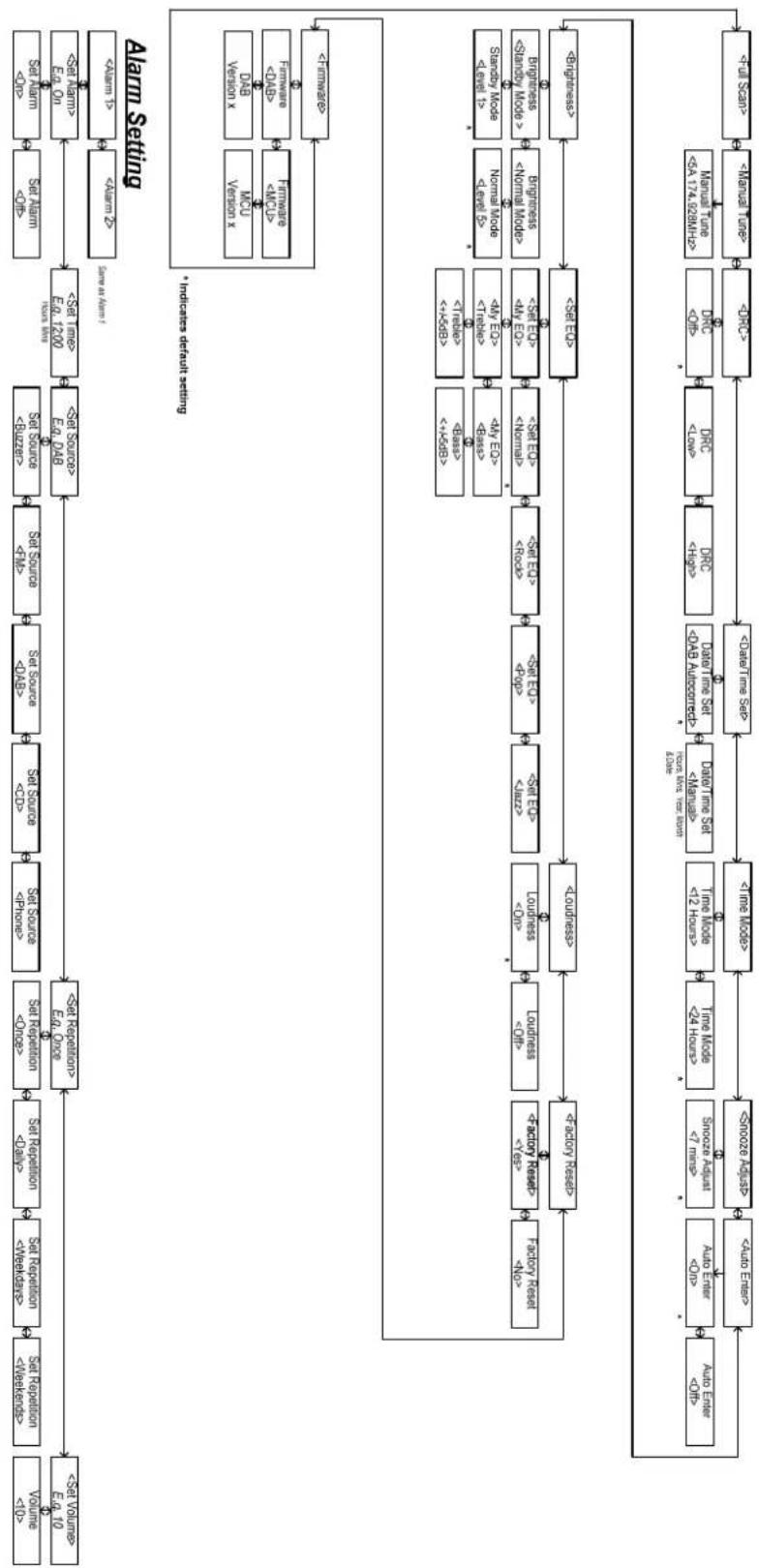

Menu Description in DAB Mode

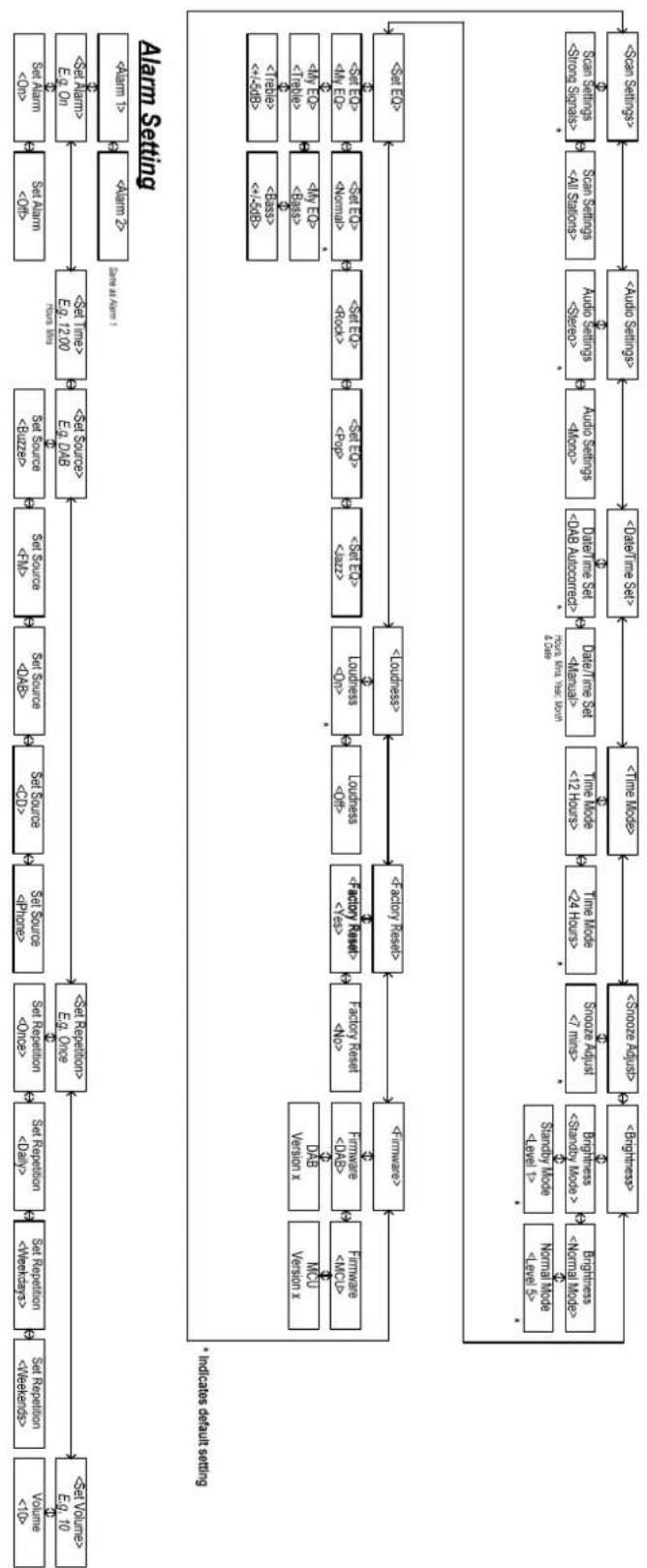

Menu Description in FM Mode

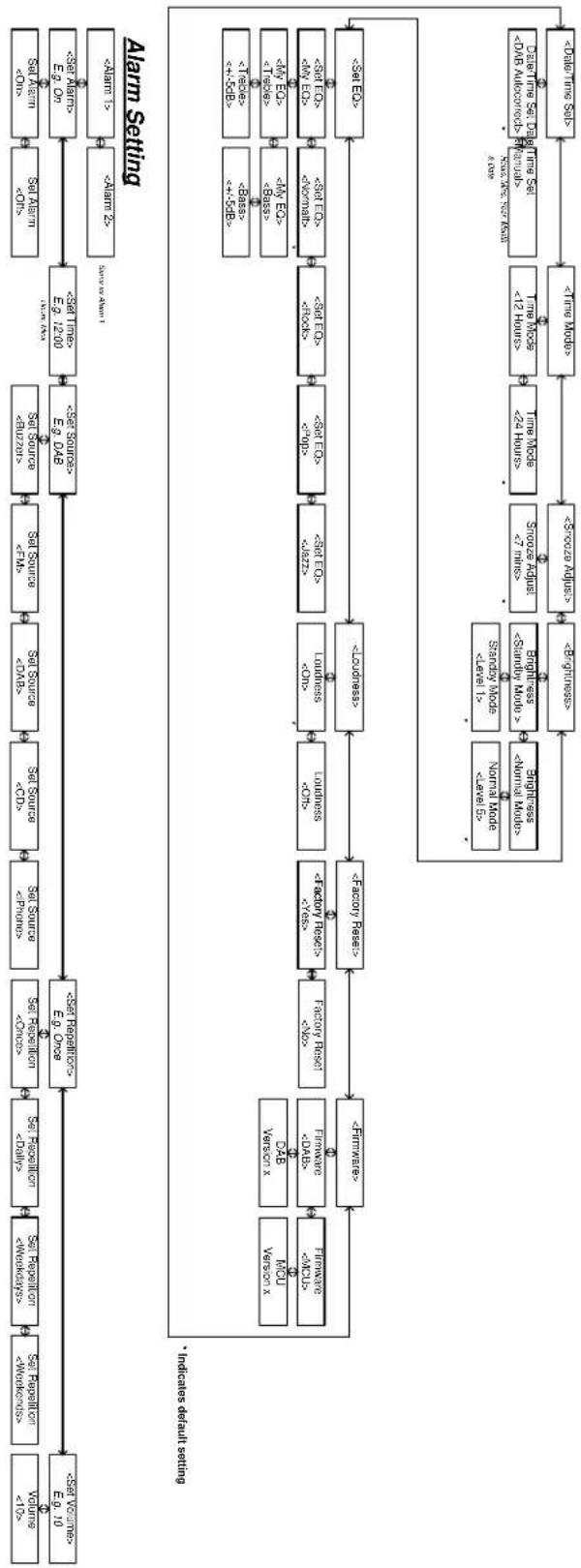

Menu Description in iPhone/AUX Mode

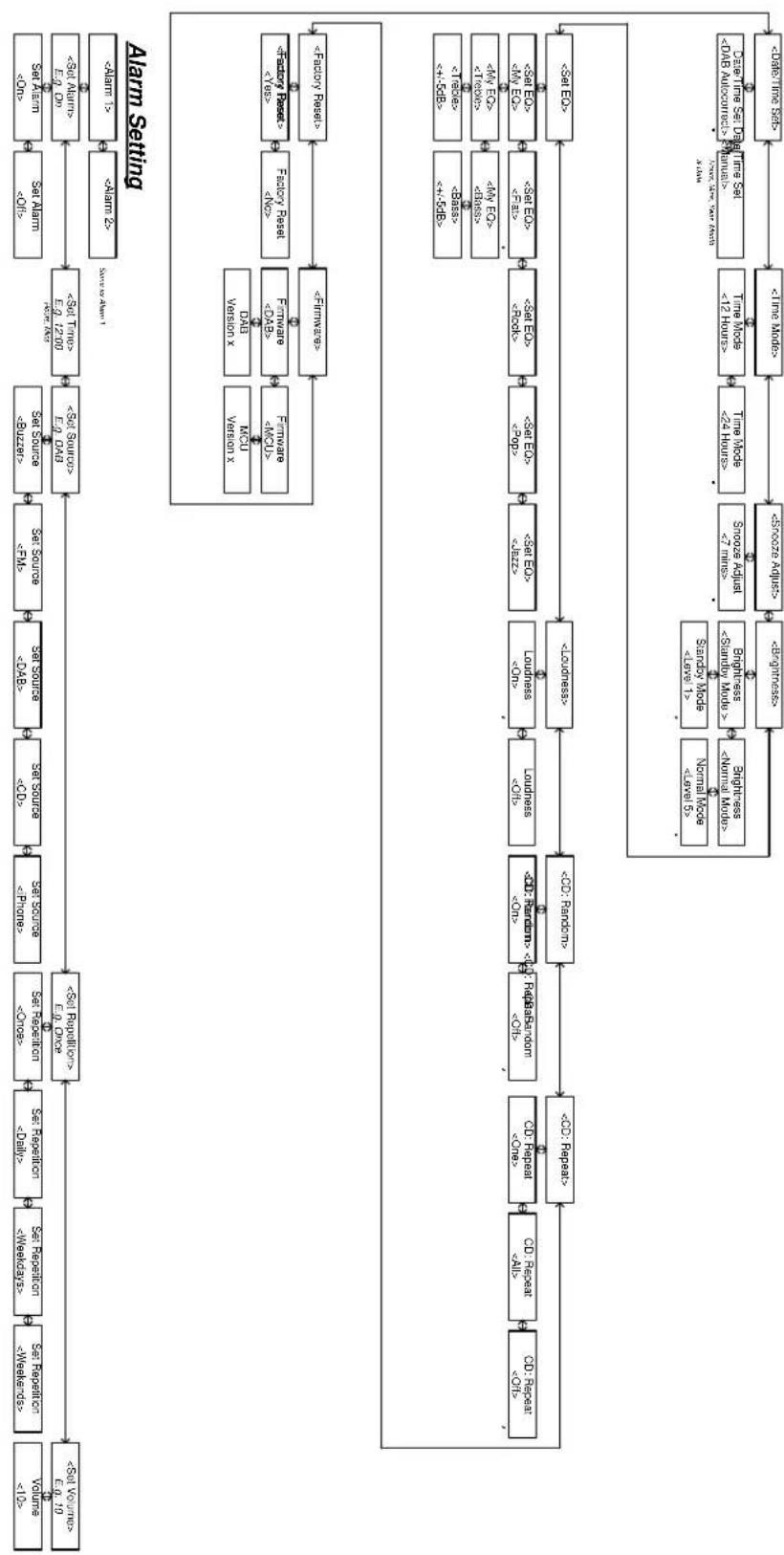

Menu Description in CD Mode

Specifications

Speaker: 3.5" wide range speaker (3" stereo version)

Power Output: 10 Watt RMS@1% THD (2x 10W stereo version)

Connections: 3,5mm jack for stereo analog audio AUX input

12 V DC input

Power: DC 12V/2A (3A stereo version)

Tuner Band: FM (87.5 - 108MHz)

DAB/DAB+ (174 - 240MHz) same as Band I, II and III

CD Decoding: Regular CD, WMA and MP3 (ID3-tag)

Dimensions: 210 × 135 × 200 ~mm (W × H × D)

370 × 135 × 200 ~mm (stereo version)

All specifications are subject to change without notice.

Made for iPhone

Made for iPod

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Sommaire

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Inhaltsverzeichnis

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Inhoudsopgave

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Indhold

Indhold 58
DK-BRUGERMANUAL 59
Frontpanel 61
Toppanel 63
Bagpanel 64
Fjernbetjening 65
Beskrivelse af DAB-menuen 67
Beskrivelse af FM-menuen 68
Beskrivelse af menuerne for iPhone/AUX 69
Beskrivelse af CD-menuen. 70
Specificationer 71

DK - BRUGERMANUAL

Vigtig information

Strømforsyning: DC 12V/2A (3A stereoversion)

Frekvensband: FM (87,5 - 108MHz)

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Innehåll

Innehall 72
SE- BRUKSANVISING. 73
Frampanel. 75
Övre panel. 77
Bakpanel. 78
Fjarrkontroll. 79
Menybeskrivning i DAB mode. 81
Menybeskrivning i FM mode. 82
Menybeskrivning i iPhone/AUX mode. 83
Menybeskrivning i CD mode. 84
Specificationer 85

SE - BRUKSANVISNING

Viktig information

Grattis till dinnya radio.

Ström: DC 12V/2A (3A stereo version)

Frekvensband: FM (87.5 - 108MHz)

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Sisällysluettelo

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Indice

1. Pulsanti pre-impostati 1/6 2/7 3/8 4/9 5/10 e SHIFT:

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Contidente

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Contudos

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.
