USER MANUAL LT22R3CGW HAIER
DIGITAL LCD/LED LCD TELEVISION TELEVISION NUMERIQUE ECRAN LCD/LED LCD DIGITAL LCD/LED LCD-TV TELEVISORE LCD/LED LCD DIGITALE DIGITALE LCD/LED LCD-TELEVISIE
INSTRUCTION MANUAL MANUELD'UTILISATION BEDIENUNGSANLEITUNG MANUALE DI STRUZIONI GEBRUIKSAANWIJZING
Please read this manual carefully before operating the unit, and keep it for future reference.
About your LCD /LED LCD TV 5
INSTALLING THE STAND. 5
GET TO KNOW YOUR TV. 7
GET TO KNOW YOUR REMOTE CONTROL 11
CONNECTING YOUR TV. 12
ANTENNA CONNECTION 12
IMPROVE YOUR SIGNAL 12
CONNECT YOUR PC TO THE TV 12
CONNECT A DVD PLAYER TO YOUR TV 12
CONNECT A DVD PLAYER OR VCR TO YOUR TV ....12
Connection Option 1. 12
Connection Option 2 . 12
SCART INPUT. 12
HDMI INPUT. 13
MOUNT YOUR TV ONTO THE WALL. 13
PREPARATION OF YOUR REMOTE CONTROL.... 13
BATTERY INSTALLATION. 13
BATTERY CAUTION. 13
Getting Started 13
Setting up. 13
LOCATION. 13
CONNECTION. 13
SWITCHING YOUR TV ON 14
TUNING YOUR TV 14
SWITCHING TO AN EXTERNAL SOURCE OTHER THAN TV. 14
AUTO SEARCH. 14
DIGITAL MANUAL SEARCH. 14
Analog Manual Search 15
Channel Edit. 15
RENAME 16
MOVE. 16
Setting favourite channel. 16
SKIP 16
GUIDE (Electronic Program Guide) 16
COMMON INTERFACE 17
Software Update function 17
Operation. 18
USING YOUR TV. 18
How to select the TV program. 18
HOW to adjust volume. 18
CH.LIST function 19
ADJUSTING PICTURE SETTINGS 19
Changing the Picture Setting 19
ADJUSTING SOUND SETTINGS 19
Changing the Sound Setting 19
FUNCTION SETTINGS. 20
TIME SETTINGS 21
LOCK MENU SETTING 23
SHORTCUT MENU DISPLAY 24
Using the features 26
Teletext functions 26
Teletext. 26
USB MODE. 27
TO USE THE USB DEVICE 27
When connecting/removing the USB device.27
Operating the USB device. 28
Playing a Picture 28
Playing Music 28
Playing a Movie 29
Text 29
Using External USB Disk For Recording 29
TIME SHIFT 30
RECORDING 30
USING YOUR DVD PLAYER
(certain models only) 31
ADDITIONAL DVD FUNCTIONS 32
Reference Sections 33
TROUBLESHOOTING 33
Specification 34

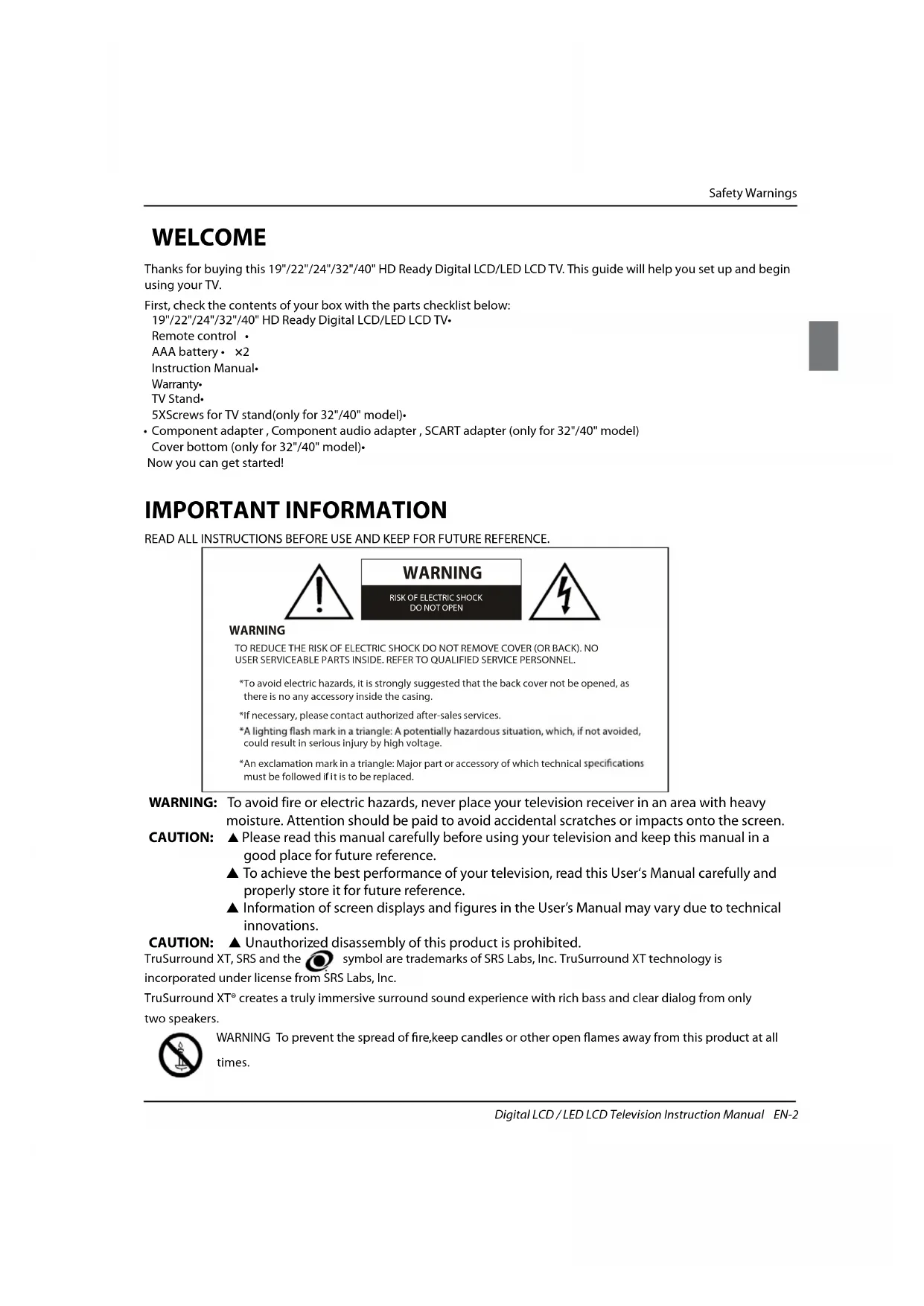

WELCOME
Thanks for buying this 19"/22"/24"/32"/40" HD Ready Digital LCD/LED LCD TV. This guide will help you set up and begin using your TV.
First, check the contents of your box with the parts checklist below:
19"/22"/24"/32"/40" HD Ready Digital LCD/LED LCD TV
Remote control
AAA battery × 2
Instruction Manual
Warranty
TV Stand
5 Screws for TV stand (only for 32"/40" model).
- Component adapter, Component audio adapter, SCART adapter (only for 32"/40" model)
Cover bottom (only for 32"/40" model).
Now you can get started!
READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
To avoid electric hazards, it is strongly suggested that the back cover not be opened, as there is no any accessory inside the casing. If necessary, please contact authorized after-sales services. *A lighting flash mark in a triangle: A potentially hazardous situation, which, if not avoided, could result in serious injury by high voltage. *An exclamation mark in a triangle: Major part or accessory of which technical specifications must be followed if it is to be replaced.
WARNING: To avoid fire or electric hazards, never place your television receiver in an area with heavy moisture. Attention should be paid to avoid accidental scratches or impacts onto the screen.
CAUTION: Please read this manual carefully before using your television and keep this manual in a good place for future reference.
To achieve the best performance of your television, read this User's Manual carefully and properly store it for future reference. Information of screen displays and figures in the User's Manual may vary due to technical innovations.
CAUTION: Unauthorized disassembly of this product is prohibited.
TruSurround XT, SRS and the symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.
TruSurround XT^* creates a truly immersive surround sound experience with rich bass and clear dialog from only two speakers.
WARNING To prevent the spread of fire, keep candles or other open flames away from this product at all times.
Don't use or store inflammable materials near the product to avoid explosion or fire hazards.
Don't place the product in a humid area to avoid fire hazards.
The antenna of the product should be away from electric cable to avoid electric shocks.
Never touch the plug when your hand is wet as this might cause electric shocks.
Always make sure that the television is well plugged as poor electric connection might cause fire.
When antenna is used, measures should be
taken to prevent water from flowing down along the cable into the television.
Unplug the television, use soft fabric, never chemicals, if you are going to make cleaning of the product.
Make sure that no water drops in the product.
The plug and electric cable must be kept clean to avoid electric
shocks or fire hazards.
Disconnect the television from power supply and antenna when there is a rainstorm or thunderstorm
to avoid electric shocks or fire hazards.
Disconnect the television from power supply to avoid electric shocks or fire
hazards in a long vocation.
Installing the Stand
Only 19"/22"/24" LED LCD Model
- Remove the small piece out of the base stand.
- Position the column with the base stand.
- Push the TV onto the base . Rotate the machine about 15 degrees according to the arrow on the base stand .
- Replace the small piece in the base.
Installing the Stand
Only 32"/40" LED LCD Model
- Carefully place the TV screen face down on a table. We suggest that you place the wrapping material from the TV package on the table top to protect the screen from damage.
- Position the stand with the bottom of the TV as shown below.
3. Push the stand onto the TV.
- Attach the screws from the bottom of the stand to the TV.
About your LCD/LED LCD TV
GET TO KNOW YOUR TV
Only 19"/22" LCD Model
Front control panel
| ① POWER | Press to turn the TV on and off. |
| ② SOURCE | Call the Input Source menu/Confirm button when operating menu. |
| ③ MENU | Press to select the main menu |
| ④ VOL- | Volume down/Left orientation to adjust the item in the OSD. |
| VOL+ | Volume up/Right orientation to adjust the item/Press to enter. |
| ⑤ | CH- | TV channel down/to select the item in the menu |
| CH+ | TV channel up/to select the item in the menu |
| ⑥ | Power indicator | |
| ⑦ | Remote Sensor | |
Rear Terminals Control
| ① | USB | |
| ② | HDMI | Connect to HDMI output of other equipment |
| ③ | TV SCART | |
| ④ | YPbPr | Connect a component video/audio device to these jacks |
| ⑤ | Common Interface | |
| ⑥ | S-VIDEO | Component/S-Video Audio Input |
| ⑦ | AUDIO IN | |
| ⑧ | VGA IN | Connect to the VGA 1SPIN analog output connector of the Pc display card for PC display purpose |
| ⑨ | PC AUDIO IN | Connect the PC output connect or from a PC to the audio |
| ⑩ | Earphone port | |
| ⑪ | COAXIAL | |
| ⑫ | ANT IN | Connect cable or antenna signals to the TV, either directly or through your cable box. |
Only 19"/22"/24" LED LCD Model
Front control panel
| SOURCE | Call the input Source menu/Confirm button when operating menu. |
| ② MENU | Press to select the main menu. |
| ③ VOL- | Volume down/Left orientation to adjust the item in the OSD. |
| VOL+ | Volume up/Right orientation to adjust the item in the OSD. |
| ④ CH- | TV channel down/to select the item in the menu. |
| CH+ | TV channel up/to select the item in the menu. |
| ⑤ POWER | |
| ⑥ Power indicator | |
| ⑦ Remote Sensor | |
Rear Terminals Control
| ① DC IN input | |
| ② EARPHONE | output |
| ③ USB | input |
| ④ Digital output input | |
| ⑤ HDMI IN | input |
| ⑥ PC IN input | |
| ⑦ | PC/DVI AUDIO IN | input |
| ⑧ | TV SCART input/output |
| ⑨ | COMPONENT AUDIO | input |
| ⑩ | AV IN input |
| ⑪ | COMPONENT IN | input |
Only 32"/40" LED LCD Model
Front control panel
SOURCE
Toggles between all the available input sources
CH-/+
Press to change channels.
MENU
Press to see an on-screen menu of your TV's features.
POWER
Press to turn the TV on and off.
VOL-/+ Press to increase or decrease the volume.
Rear Terminals Control
① SCART input ② Component input ③ Component Audio input ④ PC input ⑤ PC/DVI AUDIO input ⑥ HDMI3 IN input ⑦ HDMI2 IN input
Common Interface ⑨ Earphone ⑩ ANTENNA input ⑪ Optical output ⑫ USB ⑬ HDMI1 IN input
GET TO KNOW YOUR REMOTE CONTROL
When using the remote control, aim it towards the remote sensor on the TV.
Note
RED button, GREEN button, BLUE button and YELLOW button are fast text button in analog signal. Function button in DVBT (just reference the OSD)
① POWER ② DVD Menu / REC ③ DVD open / close ④ Picture Mode ⑤ Sound Mode ⑥ Call Screen Display ⑦ Sleep button ⑧ DTV Audio / NICAM / DVD Audio 9 Aspect Ratio Control button 10 Channel list button Subtitle button 12 Program Number Channel selection 13 Source Exchange Q.VIEW/Swap Channel V+/V-Volume selection 16 P+/P: Channel selection 17 Mute 18) Menu button GUIDEBuTton (only for DTV) Favourite list button OK button CursorMoverbutton Back button (only for USB) Exit Screen Display REPEAT (only for DVD, USB, REC & Timeshift)/CANCEL button Zoom (only for DVD & USB)/Teletext index (only for TV) / REC index Play/Pause button (only for DVD & USB)/Timeshift Stop (only for DVD, USB, REC & Timeshift) Fast Reverse (only for DVD, USB, REC & Timeshift) Fast Forward (only for DVD, USB, REC & Timeshift) Previous (only for DVD, USB, REC & Timeshift) Next (only for DVD, USB, REC & Timeshift) 33 DVD Set up / Text DVD Title/Teletext Mix DVD Search / Teletext Subcode DVD 10+ / Teletext Hold DVD Program/Teletext Reveal DVD A-B Repeat/Teletext Size 39 DVD Call / Teletext Mode DVD Angle/Teletext Time
CONNECTING YOUR TV
ANTENNA CONNECTION
Connect your aerial to the back of the TV into the ANTENNA IN socket.
IMPROVE YOUR SIGNAL
To improve picture quality in a poor signal area, use a signal amplifier (not supplied).
CONNECT YOUR PC TO THE TV
You can use your TV as a monitor for your personal computer by connecting it with a VGA cable (not supplied).
0 Read your computer user guide and check it has a VGA connector. Turn the power off on your TV and PC. Connect a D type 15-pin VGA interface cable to the VGA video interface connector on the PC. Connect the other end of the cable to the PC interface connector on the TV. Tighten the screws on the VGA connectors and connect the audio cable (not supplied) to the audio input socket on the back of the TV. 4 Turn on the power of the TV firstly and then the PC. Press the button on the TV or TV remote control to 5 set the video input mode to VGA. 6 Once the image shows, if there is noise present, change the VGA mode to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear.
CONNECT A DVD PLAYER TO YOUR TV
Connect the DVD video outputs (Y, Pb, Pr) to the COMPONENT (Y, Pb, Pr) IN socket on your TV.
Turn on the DVD player and insert a DVD.
Press the button to select 8.
Refer to the DVD player user guide for operating instructions.
CONNECT A DVD PLAYER OR VCR TO YOUR TV
There are two ways in which you can connect a DVD player or VCR to your TV. Make sure that both the TV and DVD player or VCR are switched off before you connect them.
Connection Option 1
Connect the audio and S-VIDEO cables from the VCR 1 output jacks to the TV input jacks.
Insert a video tape into the VCR and press the VCR. Turn on the power of the TV first, then the VCR. Press the SOURCE button on the TV to set the video input mode to S-VIDEO.
Connection Option 2
Connect the AV DVD/VCR outputs to the AV IN 1 socket on your TV. Press the SOURCE button on the TV to set the video input mode to AV.
Connect the scart lead from the external device (DVD player, Set-top box or games console) to the TV scart socket.
Press the SOURCE button to select SCART mode. Press the AV button on the external device.
Connect the cable from the HDMI device to the TV HDMI socket.
Press the SOURCE button to select HDMI mode. Refer to the HDMI device user guide for how to operate.
MOUNT YOUR TV ONTO THE WALL
You can mount your TV onto the wall by using a wall bracket (not supplied). Use M4/M6 machine screws (4 pcs) to screw the TV onto the bracket (not supplied).
PREPARATION OF
YOUR REMOTE
CONTROL
BATTERY INSTALLATION
Place the remote control face down, then open the cover of the battery compartment.
Install two AAA batteries. (The + and - symbols of the 2 batteries must match with the marks on the remote).
Close the cover of the battery compartment.
BATTERY CAUTION
Confirm there is no object between the remote control and the remote sensor of the TV set.
Sunshine or other strong light will interfere with the signal sent by the remote control. In this situation, turn the TV set to avoid the direct light source.
Do not put the remote control in direct heat or in a damp place as you may damage the remote.
Please use two AAA 1.5V batteries. Do not mix battery types. Install the batteries at the correct polarities. Do not use rechargeable batteries. If your TV is to be stored for a period of time, remove the batteries from the remote control.
03 Getting
Started
Setting up
LOCATION
You will need to place your TV near your plug socket (so the power cable can comfortably reach) and within reach of your aerial socket or extension lead.
CONNECTION
Insert your TV aerial lead into the Antenna input at the side of the TV.
Insert the batteries into the remote control. Make sure they are inserted the right way around, matching the polarity as indicated inside the battery compartment.
SWITCHING YOUR TV ON
Press the POWER button on the right side of the TV once. A red flashing light will appear in the corner of the screen. Press POWER on the remote control. The TV will turn on and the red light will turn blue. This may take a few moments. Select your chosen language when prompted from the list that will appear on screen. Use the ▸ button to scroll to the language you want and press to confirm.
TUNING YOUR TV
SWITCHING TO AN EXTERNAL SOURCE OTHER THAN TV
If you have attached a DVD player or similar external device to the TV, you will need to tell the TV to display the content from it. Simply press SOURCE which will bring up the source menu in the left corner of the screen, use the △ and ▸ buttons to highlight the required source and press OK to select.
For details of how to plug in other equipment see GET TO KNOW YOUR TV on page 5.
AUTO SEARCH
Press 0
MENU button.
Press the MENU button to select the Tuning menu, then press the OK button to enter. Press the button to select the Country item. Press the OK button to select your needed country. Press the button to select the Auto Search item, then press the OK button to enter. Press the OK button to select the OK option, and press the OK button to start searching. Press the MENU button, and you can choose to skip the TV/DTV Search or not.
Press the EXIT button to stop auto search during searching.
Note
It may take a few moments to complete the Auto Search.
DIGITAL MANUAL SEARCH
Press the MENU button.
Press the OK button to select the Tuning menu, then press the OK button to enter. Press the button to select the Digital Manual Search item, then press the RIGHT button to enter.
Press the OK button to select the Channel. Press the OK button to start searching. Once a channel is located, you can press the OK button to save it. Press the EXIT button to exit.
Analog Manual Search
Follow the below steps when you need to have a manual search. Press the MENU button.
Press the OK button to select the Tuning menu, then press the OK button to enter. Press the button to select the Analog Manual Search item, then press the OK button to enter.
Press the LEFT button to select the Search item. Press the UP button to select the higher frequency channel. Press the DOWN button to select the lower frequency channel. And for the selector Storage To, press the OK button to select the position number you want the channel on. Once a channel is located, you can press the red button to save it. Press the EXIT button to exit.
Sound System
Press the LEFT button to select "Sound System", then press the OK button to select the correct sound system.
Current CH
Press the ▶ button to select the channel number to edit.
Storage To
Press the ▶ button to select the program number you want to store to.
Fine tune
If the picture and/or sound are poor, try using the FINE TUNE feature. Do not use this feature unless reception is poor.
Repeat the above steps 1-3, then press the ◀ button to select the Fine Tune item. Press the button repeatedly to carry out fine tuning until the best picture and sound are obtained, then release the button.
Channel Edit
Using this function, you can rename, move, set favorite channels, and skip channels in analogue mode. Press the MENU button.
Press the ▶ button to select the TUNING menu, then press the ▶ button to enter. Press the button to select the CHANNEL EDIT item. Press the ▶ button to enter the sub-menu. You can press the red, green, yellow, or blue button to enter the menu you need.
RENAME
Press the ◀ button to select the channel, and press the green button to rename.
Press the button to select the number position of the channel name. Press the ◀ button to select the number. You can press the EXIT button to cancel the changes at any time.
Note
The RENAME function is only available in ATV programs.
MOVE
Press the left button to select the channel and press the yellow button to select the position.
Press the left button to select the number position you want to move to, then press the yellow button to confirm. You can cancel the changes at any time.
Setting favourite channel
Press the left button to select the channel, then press the red button to set your favourite channel. You can press the red button to cancel the changes at any time. Press the PAF button on the remote control and the Favourite List will be displayed. Press the button to select the channel, and press the OK button to enter.
SKIP
Press the left button to select the channel and press the blue button to skip the current channel. You can cancel the changes at any time.
GUIDE (Electronic Program Guide)
Using this function, you can access the DTV program information.
Press the MENU button.
Press the left button to select the TUNING menu. Press the left button to enter.
Press the button to select the guide item.
Press the OK button to enter the submenu, the electronic program guide is displayed.
You can quickly call up the Guide menu by pressing the GUIDE button on the remote control.
Note
Only DTV mode.
COMMON INTERFACE
The common interface (CI) slot is designed to accept the Conditional Access (CA) Module and Smart card in order to view the pay TV programmes and additional services. Contact your Common Interface service provider to get more information about the modules and subscription. Please note that CA modules and smart cards are neither supplied nor optional accessories from us.
Warning
Switch off your TV before any module is inserted in the Common Interface slot.
CI Module Insert
Insert the CAM correctly, then Smart Card to the CI slot that is located at the side of the TV.
Turn on the TV and it will display the below message if the CA module is detected. Wait for a few moments until the card is activated.
Press the MENU button to display the Main Menu and use the △ and △ buttons to highlight the "Common Interface" line and press the "OK" button. Detailed information on the CI card in use is displayed. Press the button to access the card menu. Refer to the module instruction manual for setting details. When the module is removed, the following message will appear on the screen.
CI module removed
Software Update function
When you get the updating news from the TV shop's web, you can update the operating software using the Download menu. The data for various units are transferred consecutively on a special receiving channel.
You need to search the channel with updating code - stream.
Note
You can get information from the TV shop or internet.
Operation
Press the 1 MENU button.
Press the ▼ button to select the TUNING menu, then press the ▼ button to enter. Press the button to select the Software Upgrade item. Press the button to set it to On. (The default is Off.) The Start Upgrade item can then be selected. (The default is grey and cannot be selected.)
Press the ◀ button to select the Start Upgrade option and use the OK button to enter. Then the TV will restart and search for the upgrade information.
Note
If the upgrade information is received, the TV will begin to upgrade. Otherwise, the TV will return to the DTV source.
7. Load the receiver identification. This process may also take several minutes. You can press the EXIT button to cancel the download and your TV set will return to the DTV source.
After the download has finished, your TV set will enter the burning state and the indicator light will shine. The menu on the right appears.
The set will return to the DTV source when the update is completed.
USING YOUR TV
How to select the TV program
Using the Program number button: Enter the channel number with the number keypad on the remote control.
2. UP/DOWN button.
Press the P+ / P- button to select a channel number.
How to adjust volume
Press the V+ / V- button on the remote control or the side of the TV to adjust the volume level.
CH.LIST function
Press the CH.LIST button on the remote control to display the Channel List menu, then press the ▼ button to enter. Press the ▲/▼ buttons to select a channel, and then press the OK button to enter.
ADJUSTING PICTURE SETTINGS
Changing the Picture Setting
Press the MENU button.
Press the ▼ button to select the Picture menu, then press the ► button to enter. Press the ▼/▲ buttons to select the item you want to adjust. Press the ◄/► buttons to adjust the selected item. When you are satisfied with your choice, press the EXIT button to return to normal viewing or press the MENU button to return to the previous menu.
Contrast
This adjusts the intensity of bright parts in the picture while keeping the dark parts unchanged.
Brightness
This adjusts the light output of the entire picture, which mainly affects the darker areas of the picture.
Colour
This adjusts the saturation level of the colours to suit your personal preference.
Sharpness
This adjusts the sharpness of fine details in the picture.
Tint
Allows you to select the colour mix (Tint) of the picture.
Note
The Tint function is only available in NTSC mode.
Mode
This will select the picture mode. Select Standard/Mild/User/Vivid according to the program. You can quickly select the desired mode by pressing the P.MODE button on the remote control.
Colour temperature
This will increase or decrease Warm (red) and Cool (blue) colours to suit personal preferences. Select Cool to give the white colour a blue tint, Normal to give the white colour a neutral tint, Warm to give the white colour a red tint.
Noise Reduction
Automatically filters out and reduces the image noise and improves picture quality when receiving weak video signals. Select Off/Low/Standard/High according to the image noise.
Reset
To recover to the default value.
ADJUSTING SOUND
SETTINGS
Changing the Sound Setting
Press the MENU button.
Press the button to select the Sound menu, then press the button to enter.
Press the button to select the item that requires adjustment. Press the button to adjust the selected item. When you are satisfied with your choice, press the EXIT button to return to normal viewing or press the MENU button to return to the previous menu.
Balance
This adjusts the output of the right and left speakers to obtain the best stereo reproduction for your listening position.
Mode
This selects the sound mode.
Press the button to select Standard/Music/
Theater/User according to the program. You can quickly select the desired mode by pressing the S.MODE button on the remote control.
AVL (Automatic Volume Control)
This reduces the differences in volume level among broadcasters.
SRS TS XT
This controls the Woofer output.
Press the button to select SRS TS XT.
Press the button to set SRS TS XT to OFF or ON.
Digital Audio Output
This will control the Digital Audio Output.
Press button to select Digital Audio Output.
Press button to set Digital Audio Output as OFF, PCM, RAW.
Equalizer
This sound setting can be adjusted to suit your personal preference.
Audio Languages
Press the left button to select Primary/Secondary item, and then press the right button to select the languages you need.
Press the down button to select Close item, press OK button to close it.
The Audio Language function is only available in DTV mode.
Reset
To recover to the default menu setting.
FUNCTION SETTINGS
MENU button.
Press the right button to select Sound menu, press the right button to enter.
Press the ◀ button to select the item that requires adjustment. Press the ▶ button to adjust the selected item. When you are satisfied with your choice, press the EXIT button to return to normal viewing or press the MENU button to return to the previous menu.
Language
To select the menu language.
Subtitle Language
To select the Subtitle language.
Display Mode
To set the picture proportion, press the ▶ button to select 4:3/Zoom1/Zoom2/Wide/16:9/Auto. You can quickly select the desired mode by pressing the SCREEN button on the remote control.
4:3 mode
Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with gray bars appearing at both the left and right sides.
16:9 mode
Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.
Zoom1.
Choose Zoom1 when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.
Zoom2
Choose Zoom2 when you want the picture to be altered, both vertically extended and cropped. The picture taking a halfway trade off between alteration and screen coverage.
Wide
Choose Wide when you want to adjust the picture in a non-linear proportion, that is, more enlarged
at top sides and no alteration, at bottom side.
Blue Screen
This will select the character background colour.
Note
The Blue Screen function is only available for ATV mode.
Recorder
To record the DTV program. Details of Recorder are described on pages 29-31.
The item is not able to be selected for 32" / 40" model and does not display for 19" / 22" / 24" model.
OSD Time Out
To set how long you want the menus to appear on-screen. Each press of the down arrow button repeatedly to select the number of preset minutes, the Time will be set in sequence: off, 10sec, 15sec, 30sec, 45sec, 60sec.
OSD Transparency
To set the transparency background of OSD, the transparency will be set in sequence: Off, 25%, 50%, 75%, 100%.
Reset
To recover to the default value.
TIME SETTINGS
Clock
Press MENU button.
Press the ▼ button to select the Time menu, then press the ▼ button to enter.
Press the button to select the Clock item, then press the button to enter setting. Press the ◀ button to select hour or minute, and press the ◀ button to adjust the value.
Date
Press the MENU button.
Press the ▼ button to select the Time menu, then press the ▼ button to enter.
Press the ◀ button to select the Date item, then press the ▶ button to enter setting. Press the ◀ button to select the option, and then press the ▶ button to adjust the value.
Note
In DTV mode, because the time information is from the signal, the Clock and Date are not able to be changed. If you want to change the time, turn off the TV in ATV mode, then turn on the TV.
Off Time
Press the MENU button.
Press the ▼ button to select the Time menu, then press the ▼ button to enter.
Press the ◀ button to select the Off Time item, then press the button to enter the setting. Press the ◀ button to select the Repeat option, and then press the button to set it on. Press the ◀ button to select hour or minute, then press the ◀ button to adjust the value. When the off time has arrived, the TV set will enter into standby mode.
On Time
Press the MENU button.
Press the ▼ button to select the Time menu, then press the ▼ button to enter.
Press the ◀ button to select the On Time item, then press the ▶ button to enter the setting. Press the ◀ button to select the activate option, and then press the ▶ button to set it On. Press the ◀ button to select hour or minute, then press the ▶ button to adjust the value. When the on time has arrived, the TV set will switch on automatically.
The On Time function is only for 19'' / 22'' models.
Sleep
The sleep timer automatically shuts off the TV after a preset time (from 5 to 240 minutes).
Press the MENU button and then use the ◀ ▶ buttons to select the Time menu.
Press the button and then use the ◀ button to select the Sleep. Press the button and then use the ▼ button to select the number of minutes. Select Off, 5Min, 10Min, 15Min, 30Min, 45Min, 60Min, 90Min, 120Min, 180Min, 240Min. When you are satisfied with your choice, press the MENU button to return to the previous menu or press the EXIT button to return to TV viewing. And the time begins to count down from the number of minutes selected.
Time Zone
Press the MENU button.
Press the ▼ button to select the Time menu, then press the ▼ button to enter. Press the button to select the Time Zone item. Press the button to select the correct time zone. Press the MENU button to save and exit.
Using this function can control the tuner, program, source volume, and so on. Pressing MENU on the remote control, press the down arrow button to select the Lock menu, press the down arrow button to enter the sub-menu, and you will be required
to enter the password. The initial password of the television is 0000. If you forget your password, you can always input 9443 to regain control.
CHANGE PASSWORD
Press the left arrow button to select the Change Password item. Press the right arrow button to enter the submenu.
When you have inputted the four digits, you will be prompted to enter it again.
Your new password will then be automatically saved.
CHILD LOCK
Press the left arrow button to select Child Lock.
Press the right arrow button to set On or Off mode. If lock on mode is set, Child Lock is activated automatically. In such case, if the Child Lock button (button on the television) is pressed, the screen will display Child Lock, which can be erased by pressing the MENU button. 5 seconds later after the latest press, the screen display will disappear automatically. The Child Lock mode can be resumed by entering the Lock Set menu, set Child Lock On or Off.
Tuning Lock
Press the left arrow to select Tuner Lock and the left arrow to set On/Off. (To set On, some operations such as search will not be available. When entering the Tuning menu, Tuner Lock will be on the screen. If you want to operate the Tuning menu, you need to enter the Lock menu to set Tuner Lock Off or operate unlock.)
Channel NO.
Channel NO. is opted for setting up preset channel.
Press the left arrow button to select preset Channel. Press the right arrow button to select channel number.
Source set
Channel set is opted for setting up start source.
Press the down button to select Off, DTV, TV, AV, SCART,
S-Video, Component1, Component2, PC, HDMI1,
HDMI2, HDMI3, USB in turn. DVD is available for some models.
Source Lock
Source Lock will control the On or Off of hinder external input modes.
Press the button to set as on or off.
When the source lock is set as on, TV source will display, at this time, when press SOURCE button,
the TV can switch to corresponding source and will display the Source is locked.
Max Volume
Press the left button to select Max Volume. Press the down
button for adjustment between 0-100. If a certain
value is set, when volume is being adjusted, the sound value cannot exceed maximum volume value.
If current volume is over Max Volume, when lock set menu is set, current volume will become set maximum volume, if current volume is below maximum volume, customer set volume will stay unchanged.
Initial Volume
The TV will remember it after your setting, that will be the volume when turn on the TV next time.
Parental Lock
Press the left button to select parental lock. Press the left button to select OFF or 4-18 to limit the age of children who will watch TV.
Clear Lock
Press the left button to select Unlock mode. Press the right button to unlock all set modes, setting all lock options to off, and the maximum volume returns to 100.
DISPLAY
Subtitle Function
Press SUBTITLE button on the remote control will display Subtitle languages menu, press the down button to enter.
Press the left button to select the item and press OK button to enter. You can press the EXIT button to cancel the changes at anytime.
Note
Press SUBTITLE button on the remote, it will display subtitle languages menu only in the DTV mode.
CH.LIST Function
Press CH.LIST button on the remote control, will display Channel List menu.
Press the left button to select the channel and press OK button to enter. You can press the EXIT button to cancel the changes at anytime.
GUIDE Function
Press GUIDE button on the remote control, will display Program Guide menu, press
You can press the EXIT button to cancel the changes at anytime.
Available only in the DTV mode.
FAV Function
Press FAV button on the remote control, will display Favourite List menu.
Press the left button to select program and press OK button to enter. You can press the EXIT button to cancel the changes at anytime.
INFO
Press INFO button on the remote control, will display the current channel information.
You can press the EXIT button to cancel the changes at anytime.
AUDIO/I/II
Press AUDIO button on the remote control, will display Audio Languages menu.
Press the left button to select the desired settings and press OK button to enter.
You can press the EXIT button to cancel the changes at anytime.
Press AUDIO button on the remote, it will display Audio Languages menu only in the DTV mode.
Eliminate Sound
When you need to pay attention to surrounding sounds, or there is a telephone call or guests visiting, the sound elimination (mute) function is very convenient.
Press the MUTE button on the remote control and "Mute" will be displayed at the bottom of the screen. At this time, the TV sound is turned off. To recover the sound, press the button again or directly press the V+ button.
Quick program view
This function enables quick swap to the last watched program. Press the Q.view button, and the TV will return to the TV source, except in USB and DVD sources.
Suppose the channel number you used just now is 8 and the channel number you are using is 18 (as shown in the figure).
If you want to return to the last watched program channel 8, you can simply press the Q.View button.
If you want to return to channel 18, press the button again. Using this function, you can easily switch between the channel you are using and the channel you used last time.
Using the features
Teletext functions
Teletext is an information system broadcast by certain channels, which can be read like a newspaper. It also provides subtitles for people with hearing difficulties or those who are unfamiliar with the language in which a particular program is being broadcast (cable networks, satellite channels, etc.).
Note
The teletext buttons may work even if there is no teletext signal, but there will be no teletext display.
Teletext
Teletext functions
To select "teletext" press the button on the handset. To switch off teletext, press the button again. Note: all menu functions are not available in teletext mode. Only a few direct button control functions are available in teletext mode, they are:
Volume adjustment
Mute function
Page up/down
Use the P+ / P- buttons to browse next or previous page.
Page number entering
To select a Teletext page, enter the page number using the numeric keypad on the remote control, or use the P+ or P- buttons, or the coloured Fast text buttons.
Mix mode
To view the TV picture while in Text mode press the button, this will superimpose the Teletext data on top of the TV picture. Press this button again to return to Full text.
INDEX
Press the INDEX button to go to the index page of teletext.
Language change
Pressing the button will change the Teletext characters between Eastern and Western.
Hold
Pressing the button will stop the teletext page automatically updating. This feature is very useful where there are several teletext pages or data on the same page number.
Size
Pressing the + button changes between full screen, top half, bottom half, and full screen. This feature is very useful as it magnifies the image, making the characters easier to read.
Reveal
Pressing the ? button will reveal hidden text. This feature is used to reveal information such as answers to Teletext on-line interactive puzzles.
Time
While in normal TV mode only, pressing the ⊕ button will display the teletext time in the top right hand corner for a few seconds.
Fast text coloured buttons
Fast text automatically displays the four most commonly used pages that the broadcaster thinks that you may want to choose next. Press the same coloured button on the remote control as the coloured link at the bottom of the teletext page to go directly to that page.
Subcode
Pressing the button by entering its 4-digit number to enter a secondary page.
USB MODE
Note
The diagrams in the following section are schematic and only for your reference. Please see the actual product if necessary.
The OSD of the USB function may be somewhat different from your product because it is just an example to help the instruction.
TO USE THE USB DEVICE
Supported file formats:
Photo: *.jpg
Music: *.mp3 files;
Movie: *.avi files;
Text: *.txt
Note
Due to the particularity of file coding, some files may be unable to read.
Supported equipment:
Supports equipment that supports Mass Storage Protocol and whose file system is FAT32, such as some USB disks, mobile hard disks, and MP3 players. If USB equipment could not be identified due to unsupported file system, please format the equipment to the above-mentioned file system.
To achieve smooth playing, ensure the following:
The file code rate should be lower than 300KB/S; - Due to the limitation of USB signal transmission distance, it is recommended not to use USB patch cord, in case of using the cord, make sure that its length is not over 1m; - Use high-speed USB equipment in conformity with USB2.0 full speed Interface Standard; if USB equipment in conformity with USB1.1 full speed Interface Standard is used, the playing may be unsmooth.
When connecting/removing the USB device
Press "SOURCE" on the remote control unit to select USB option. Insert USB equipment into corresponding USB interface 2s after starting the system. After entering the system menu, press < / > on the remote control unit to select the required USB files, press "OK" button to confirm the selection and enter the file list relative to the selection. Press < / > on the remote control unit to select the required file, press "OK" button to enter the selected file. To exit the streaming media playing system and watch a TV program, you must press "BACK" button to return to the streaming media main menu at first (to protect equipment), and then press "SOURCE" to select "TV" to return to the TV mode.
Note
Under source of USB, when press button MENU, screen goes black, except when images or movies are being played. While playing the USB, press "BACK" button repeatedly, the screen picture will return to USB main interface, and only at this time you can switch corresponding signal sources by pressing "SOURCE" again.
Please do not unplug the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.
Operating the USB device
Press "▲/▼" to scroll through main menu or submenu and select your desired option. Press "OK" to confirm your selection. Press "◀/▶" to achieve the FWD (fast forward) and REV (fast back) of the option being played. Press "PLAY/PAUSE" to play, and press it again to pause playing. Press "ZOOM" to magnify pictures; when the picture is enlarged, press "▲/▼" and "◀/▶" to move the picture. Press "STOP" to stop playing, or return to the previous menu, and press "BACK" repeatedly to return to the main menu.
Note
You can choose the photos or music in different files to play together.
Playing a Picture
After entering USB main interface, press "◀/▶" to select "PHOTO" item. Press "OK" to confirm the selection and enter the picture file list.
Press "▲/▼" to select the picture you want to play, press "OK" to confirm, and then press "PLAY/PAUSE" button to play the pictures.
If you want to pause the picture which is being played, press the PLAY/PAUSE button again. Press "ZOOM" to magnify the picture. When the picture is enlarged, press "◀/▶" and "▲/▼" to move the picture. Press "PREV/NEXT" to select the last or next picture. Press "▲/▼" to rotate the picture. Press "STOP" to stop the picture being played. To exit playing, just press "BACK" repeatedly.
Note
The menu display varies with the photo name and pixel in your equipment.
Playing Music
After entering USB main interface, press "◀/▶" to select "MUSIC". Press "OK" to confirm the selection and enter the music file list.
Press "▲/▼" and OK button to select the music you want to play, then press PLAY/PAUSE button to play the music. Press "◀/▶" to achieve the REV (fast back) and FWD (fast forward) of the music being played. Press "PREV/NEXT" to select the last or next music. Press "STOP" to stop the music being played, when the current interface is the music being played. To return to the main menu, just press "BACK" repeatedly.
Note
You can enjoy the music and the picture at the same time.
Playing a Movie
1. After entering USB main interface, press "< / >" to select "Movie". Press "OK" to confirm the selection and enter the movie file list.
Press "▲/▼" and OK button to select the movie you want to play, and then press "PLAY/PAUSE" button to play the movie.
Press "ZOOM" to magnify the picture. Press "PREV/NEXT" to select the last or next movie. Press "STOP" to stop the movie being played.
Text
After entering USB main interface, press "< / >" to select "Text". Press "OK" to confirm the selection and enter the text file list.
Press "▲/▼" and OK button to select the text you want to play, and then press "PLAY/PAUSE" button to play the text.
Press "PREV/NEXT" to select the last or next text.
To exit the "Text" mode, just press "BACK" repeatedly.
Note
You can enjoy the music and the text at the same time.
Using External USB
Disk For Recording
Insert the USB device with FAT32 format into the USB1 connector. Then, press MENU button.
Note
Only USB1 is available for recording.
Press the MENU button to select FUNCTION menu, press the MENU button to enter. Press the LEFT button to select Recorder. Press OK button to enter the submenu. Press the LEFT button to select Disk and press the RIGHT or OK button to enter. Press the RIGHT button to select disk if your device has several disks. Press the LEFT button to select Format and press to enter. Press the LEFT button to select the size you want to format. Press OK button to format the USB Disk.
Note
The system will format the whole device and if your device size is bigger than 1GB, you can set the size which is used for time shift.
6 Format may take several minutes and the time is depending on the memory size. Press the MENU button to select the Time Shift Disk Size. The max device size for Time Shift is 8GB. Then, press OK button to save.
Note
If you select all the size format for time shift, you can not do any recording.
7 Waiting for the system checking. And you can see the speed data after the success checking.
Note
Only have to format when you use the device for record for the first time.
The minimum device size for record is 1GB. Provide device formatting function is up to 2TB. The max Multi-Partition is 16 partitions and one is active at a time.
Bit rate:
Device bit-rate >4.5 MB/s REC is safe at HD stream. Device bit-rate >1.5 MB/s REC is safe at SD stream.
Device bit-rate < 600 KB/s is bad for REC
The system cannot work normally if the USB device has the listing problems below:
The device has a bug.
The device has error blocks.
The device reports an unfaithful size.
IMPORTANT
USB device should be formatted as FAT32 by your PC before inserting it into the USB connector.
TIME SHIFT
Time Shift function is only available in DTV mode. Press PLAY/PAUSE to pause the program, and press PLAY/PAUSE again to play the time shift program. If you want to stop the time shift function, press the STOP button.
You can stop the time shift program being played by pressing the STOP button.
RECORDING
Press D.MENU button to record the program being played, and press D.MENU or EXIT button to minimize the recording interface.
Press STOP button to stop recording the program being played. To play back the recorded program, press INDEX button to open the recorded list.
Press the left button to select the content you recorded. Press the right button to display the program information.
Press the down button to cancel.
Press OK or PLAY/PAUSE button to play the recorded program, and press STOP button to stop it.
Note
Changing the channel will not influence the recording in the same frequency, but will influence the time shift. When the recorded program is being played, you cannot delete it.
Press the INDEX button repeatedly, the program will be displayed in the order of program name, channel name, program time, file name and file length.
USING YOUR DVD
PLAYER
(certain models only)
PLAYING A DVD
Press the SOURCE button on the remote control to enter DVD mode.
Place the DVD in the disc slot with the DVD label facing away from you and the screen. The disc slot will only take standard-sized DVD. 3 The DVD will automatically load; most begin with a disc menu. Use the down, up, right, and left buttons to navigate around the DVD menu to highlight the play option and then press PLAY/PAUSE.
PAUSING A DVD
Press PLAY/PAUSE to pause playback. The sound will also be muted. 2 PLAY/PAUSE to resume normal playback.
STOPPING A DVD
Press the button to stop playback of a DVD. The TV screen will show the DVD start-up logo. Some discs will remember the moment at which the DVD was stopped, so press PLAY/PAUSE to recall the moment and continue playback. 3 Press the button twice to stop completely and clear the memory.
USING FAST FORWARD OR REWIND
To move forward through a disc more quickly, press the >> button. To rewind through the disc, press the << button. Press the >> or << button repeatedly to cycle through the available speeds, which appear in the top left corner of the screen: 2X, 4X, 8X, 16X, 32X and normal playback speed. Press PLAY/PAUSE to resume normal playback.
SKIP TO THE NEXT OR PREVIOUS SCENE
During playback press the >> button to skip to the next scene on the disc, or press << to skip to the previous one.
PASSWORD
Parental control can be activated by setting the Password Mode to On. The default password is 1234. If you forget the password, you can always input 1369 to regain control.
USING THE ZOOM FUNCTION
Press the ZOOM button to zoom into the image on screen. You can press it repeatedly to further enlarge the picture. In zoom mode use the up, down, right and left buttons to display a different section of the enlarged picture on the screen.
SWITCHING ON SUBTITLES
Press the SUBTITLE button during playback. The available languages will appear in the top left corner of the screen. Press repeatedly until your desired subtitle language is shown. Press SUBTITLE repeatedly until SUBTITLE OFF is shown to switch the subtitles off.
USING REPEAT MODE
Press REPEAT once to repeat the chapter on a DVD, twice to repeat the currently playing title or three times to repeat the whole contents of the disc.
CHANGING THE CAMERA ANGLE
Some DVDs have multiple camera angles for some or all scenes. Press the ANGLE button to change the camera angle. Different camera angles may include: front, side, whole view or exterior.
ADDITIONAL DVD
FUNCTIONS
Press this button to return to the previous menu item.
AUDIO
Many DVDs have multiple soundtracks. To change between them, press the AUDIO button. Wait three seconds before pressing the button again to cycle through the options.
TITLE
Press this button to return to the title menu on some DVDs. Use the down, up, up, and down buttons to navigate around the menu.
SEARCH
Press SEARCH and use the numerical keys to enter the chapter number you wish to go to, then press PLAY/PAUSE.
PROGRAM
During playback, press PROGRAM to move directly to a section or programme on the DVD. Press the digit buttons to select the programme number you want. When finished, move the cursor to select START. The DVD will jump directly to that section and begin to play. If you want to cancel this function, press PROGRAM and move to STOP, then press PLAY/PAUSE.
A-B
Use A-B to set a section of a DVD to repeat. Press A-B to mark the start point and again to mark the end. The section will begin to be repeated immediately. Press A-B to cancel the repetition.
ANGLE
When enjoying sports, concerts, or theatre, press this key to watch the same actions from different angles. (Valid for discs possessing this function. Using a disc recorded in multi-angle, you can view the scene from different angles, for example, front, side, whole view, and exterior scene.)
D.CALL
When pressing the D.CALL button repeatedly, different OSD indicators will be displayed for different types of discs (DVD, CD, etc.).
PLAYING A JPEG CD
Insert a JPEG CD in the same way as you would a DVD or Audio CD, with the label facing away from you. The CD will load and a menu of the disc's contents will appear on screen. Use the triangle and right arrow buttons to highlight the folder and picture you wish to view and press PLAY/PAUSE. Each image on the disc will show consecutively, like a slide show. Press PLAY/PAUSE during the slide show to pause on one image. Press the left or right button to skip to the next image or return to the previous one.
PLAYING AN AUDIO CD
Insert a CD in the same way as you would a DVD, with the label facing away from you.
The CD will load and a menu of the disc's contents will appear on screen. Use the down and up arrow buttons to highlight the track you wish to play and press PLAY/PAUSE, or just press PLAY/PAUSE to listen to the whole CD from the beginning.
You can stop, pause, fast forward or fast rewind a CD in the same way as a DVD. You can also use the REPEAT button to repeat a track, folder, album, or the contents of the whole disc. Press repeatedly to select what you would like to repeat. You can also use the A-B function to repeat a certain section of a track or CD.
Reference Sections
TROUBLESHOOTING
To assist in location of possible faults, use the help guide below:
| No picture, no sound | Verify if the television is properly plugged in. Verify if the television has a proper supplied power source. Verify if electricity is available. |
| Blank screen | Verify if correct signals are input. Operate the remote to change signal input to correct input. Restart the television if power supply is interrupted. |
| No sound | Press MUTE button and verify if Mute mode is set. Switch to other channel and verify if the same problem happens. Press VOL+ button to see if the problem can be solved. |
| Poor sound | Verify if sound system is correct. Refer to user's manual for adjustment. |
| No picture in some channel | Verify if correct channel is selected. Adjust the antenna. |
| No color for some channel program (black and white) | Verify if the same problem exists in other channels. Check out of picture and sound systems. Refer to relative instructions in the Manual for color adjustment. |
| Spots with some or all pictures | Verify if the antenna is correctly connected. Verify if the antenna is in good condition. Make fine adjustment of channel. |
| Television out of control | Disconnect the television from power supply and 10 seconds later, connect the television to the power supply. If the problem still exists, contact authorized after-sales service for technical assistance. |
Note
If the fault cannot be repaired using the above guide, consult your local authorized service centre.
The TV set must only be repaired by a qualified registered service person. Never attempt to remove the back cover as the TV set has dangerous voltages inside that may cause fatality or fire.
Specifications
Specifications of the television that you have just purchased may vary from the information in this table due to technical innovations.
| Model | 19" | 22" | 24" 32" | | 40" |
| Picture, sound system | PAL/SECAM-B/G,I,D/K,L,L' |
| Audio output | ≥ 3W+3W | ≥ 8W+8W |
| External input port | COMPONENT input ,PC input ,PC Audio input, SCART Antenna input ,HDMI input USB, AV (AV is only for 19"/22"/24" LED LCD model) S-VIDEO input (only for LCD model) |
| Power requirements | See rating plate |
| Power consumption | See rating plate |
| Temperature | Working:5°C~35°C Storage:-15°C~45°C |
| Humidity | Working:20%~80% Storage:5%~90% |
| Accessories | Remote control , AAA battery x2 , Instruction Manual , Warranty , TV Stand 5XScrews for TV stand(only for 32"/40" model) Component adapter,Component audio adapter,SCART adapter (only for 32"/40" model) Cover bottom (only for 32"/40" model) Power Adapter (only for 19"/ 22"/24" model) |
NOTE
The part specifications of this TV set provided here are for reference only. Differences may occur as product technology is updated. Design and specifications are subject to change without notice.
Table of Contents
IMPORTANT INFORMATION. 2
INSTALLING THE BATTERIES. 13
BATTERY PRECAUTIONS. 13
Getting Started 13
Configuration. 13
LOCATION 13
CONNECTION 13
TURNING ON THE TELEVISION. 13
COMMON INTERFACE. 16
RISK OF ELECTRIC SHOCK,
DO NOT OPEN
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE BACK COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Smart card information
Language
Software Download
Press OK to select, or Exit to quit
EXIT
OK
Brightness (Luminosity)
Music/Theater/User (Standard/Music/Theater/
Initial Volume
Format Do not unplug USB device Formatting....
Just take one TV with DVD for example, please see the real)
Press OK to select, or Exit to quit EXIT OK
Sharpness
OSD Transparency
Format Do not unplug USB device Formatting....
Time Shift Size
Time Shift Size SD 14Min
All HD4Min
OK
CANCEL
Note
TIME SHIFT (TIMESHIFT) 32 RECORDING 32
USING THE DVD PLAYER (certain models only) 32 ADDITIONAL DVD FUNCTIONS. 33
Reference 35
TROUBLESHOOTING. 35 Specifications. 36
Only LED LCD MODEL 19/22/24 inch
Brightness
Initial Volume (Beginvolume)
Select Disk OK USB1 C:
Check File System Ok start
USB Disk
Format
Time Shift Size
Speed
Note
Format Do not unplug USB device Formatting....
Time Shift Size
Time Shift Size SD 14Min
All HD4Min
OK
CANCEL
Note
TIME SHIFT (TIMESHIFTEN)
