USER MANUAL VDC455V0910S BOSCH

Bosch Security Systems | 2005-11 | V1.0

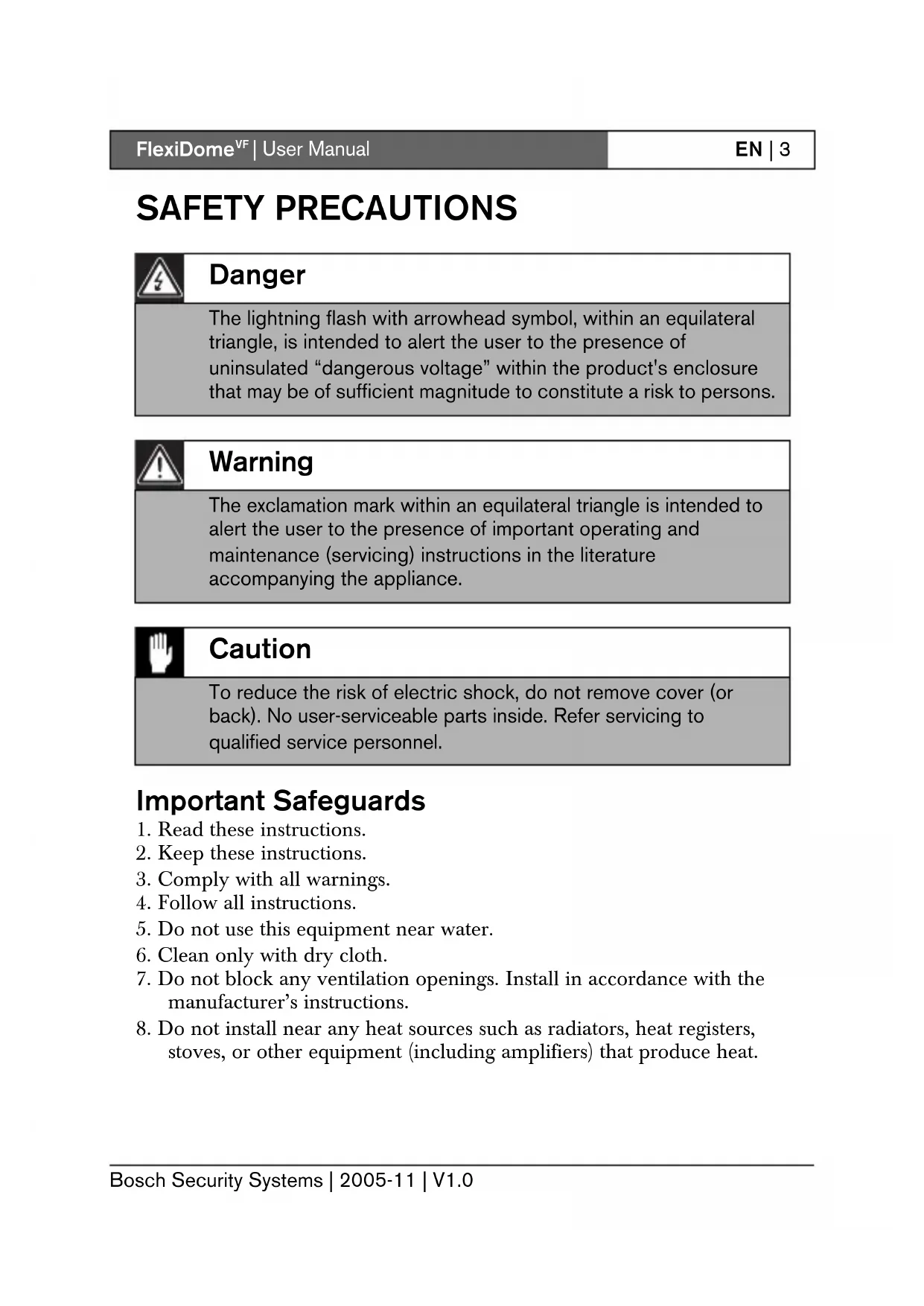

SAFETY PRECAUTIONS Important Safeguards

1. Read these instructions.

2. Keep these instructions.

3. Comply with all warnings.

4. Follow all instructions.

5. Do not use this equipment near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other equipment (including amplifiers) that produce heat.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product's enclosure

that may be of sufficient magnitude to constitute a risk to persons.

The exclamation mark within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

To reduce the risk of electric shock, do not remove cover (or

back). No user-serviceable parts inside. Refer servicing to

qualified service personnel.FlexiDome

Bosch Security Systems | 2005-11 | V1.0

9. Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other. A

grounding type plug has two blades and a third grounding prong. Both

the wide blade and the third prong are provided for your safety. If the

supplied plug does not fit into your outlet, consult an electrician for

10. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this equipment during lightning storms or when unused for

long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required

when the equipment has been damaged in any way, such as when

power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the equipment, the equipment has been

exposed to rain or moisture, does not operate normally, or has been

14. An all-pole mains switch with a contact separation of at least 3mm in

each pole shall be incorporated in the electrical installation of the

To reduce the risk of fire or electric shock, this apparatus should

not be exposed to rain or moisture and objects filled with liquids,

such as vases, should not be placed on this apparatus.

The Low Voltage power supply unit must comply with EN/UL

Bosch Security Systems | 2005-11 | V1.0

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

Any change or modification of the equipment not expressly approved by

Bosch could void the user's authority to operate the equipment. For

additional information or to speak to a representative, please contact the

Bosch Security Systems location nearest to you or visit our web site at

www.boschsecuritysystems.comFlexiDome

Bosch Security Systems | 2005-11 | V1.0

camera is a small, discreet, surveillance dome camera

containing a high-performance 1/3-inch CCD camera with integral

varifocal lens. The integrated unit is mounted to an electrical box or to a

wall or ceiling. The sturdy construction of the enclosure and polycarbon

dome protect the camera module from damage.

The camera incorporates advanced digital signal processing for

outstanding picture performance under all lighting conditions. The

camera is easy to install and ready to use, and offers the best

solution for demanding indoor scene conditions.

• Polycarbonate dome

• 540 TVL resolution for color cameras

• On-screen setup menu

• Bilinx™ bi-directional coaxial communications

camera is available in color and monochrome versions.FlexiDome

| Installation Manual

Bosch Security Systems | 2005-11 | V1.0

Unpack carefully and handle the equipment with care. The packaging

• Integrated FlexiDome camera

• Mounting hardware kit

• Installation manual

If equipment appears to have been damaged during shipment, repack it in

the original packaging and notify the shipping agent or supplier.

Bosch Security Systems | 2005-11 | V1.0

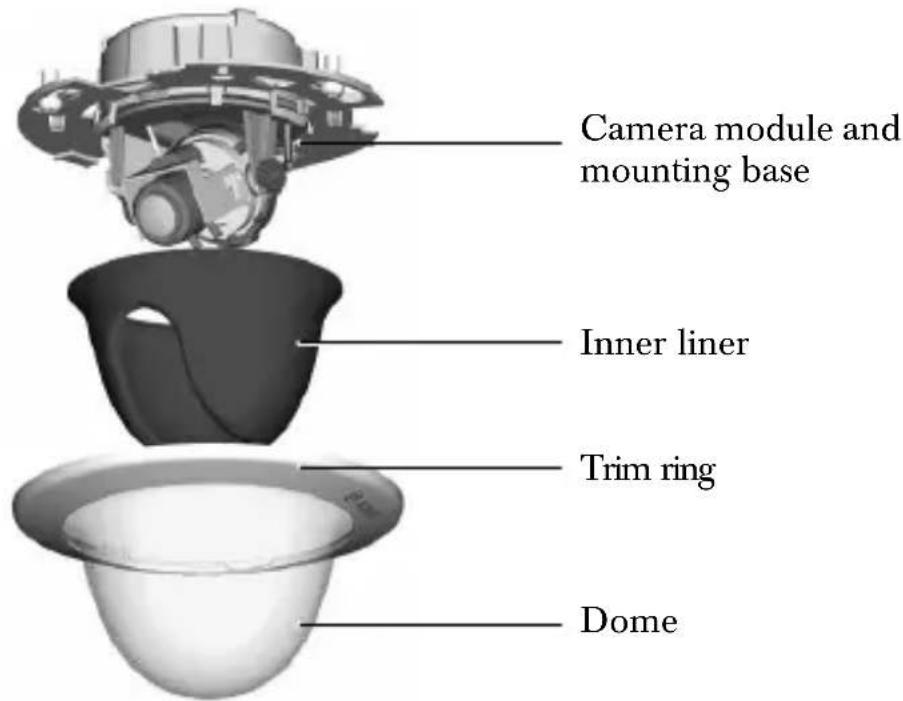

The camera/housing unit consists of the following parts:

To disasemble the unit proceed as follows:

• Rotate the trim ring counterclockwise to release it from its bayonet on

• Remove the trim ring with dome.

• Remove the inner liner by pulling it off of the base.

Installation should only be performed by qualified service

personnel in accordance with the National Electrical Code or

applicable local codes.

The camera module is a sensitive device and must be handled

carefully. Do not drop when disassembling the unit.

Bosch Security Systems | 2005-11 | V1.0

The unit may be mounted in several different ways depending on the type

of surface, whether an electrical box is used and whether the connection is

via the rear or the side (surface mounted).

If the unit is surface mounted, use the separately available surface

mounting box (VDA-445SMB) and mount the unit onto this base.

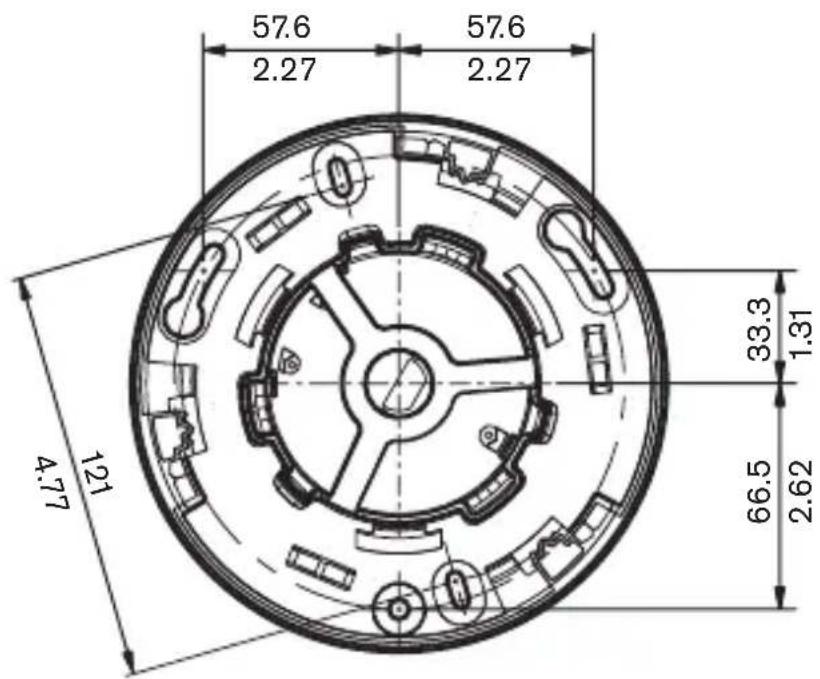

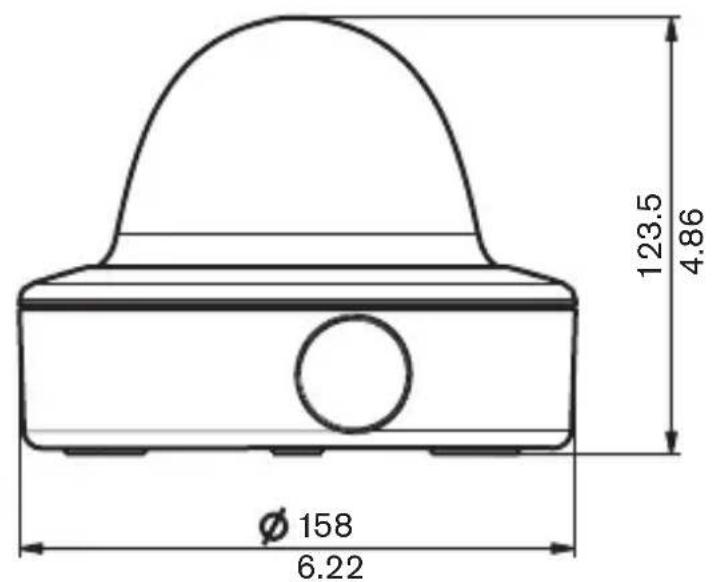

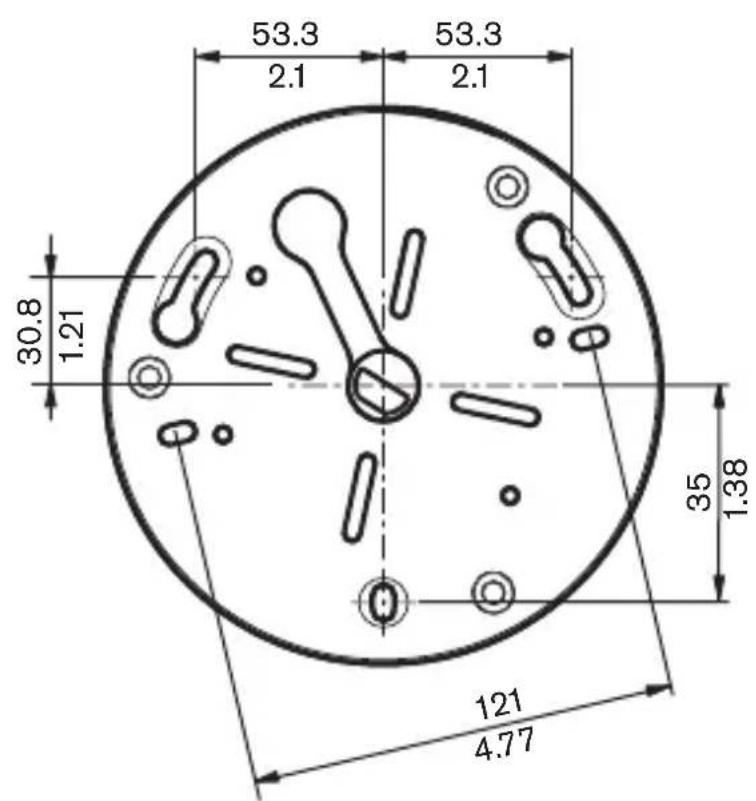

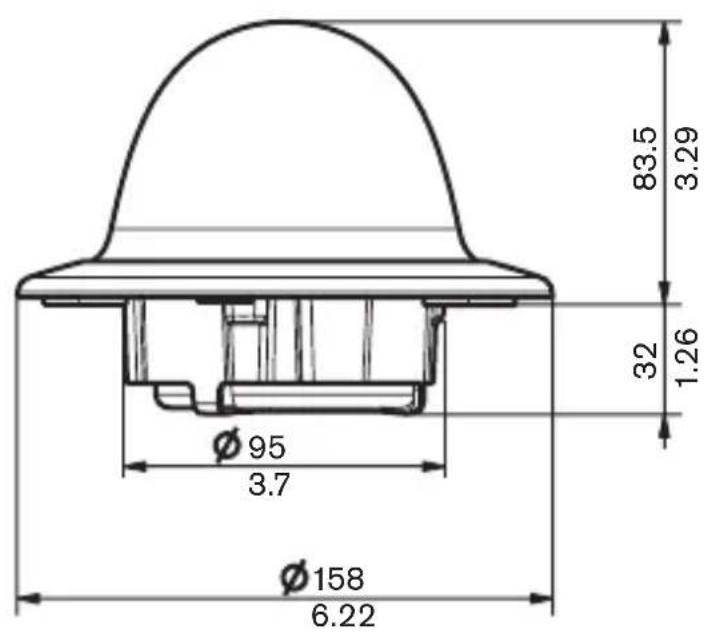

• Refer to the dimensions drawing to find the exact position of the screw

holes and the entry hole for the wires.

• Partially screw in two screws for the keyholes and use them to

temporarily hang the camera while the connections are made.

The following figures show the different ways of mounting the unit.

Figure 1 Rear connection - hollow surface

Installation should only be performed by qualified service

personnel in accordance with the National Electrical Code or

applicable local codes.

Bosch Security Systems | 2005-11 | V1.0

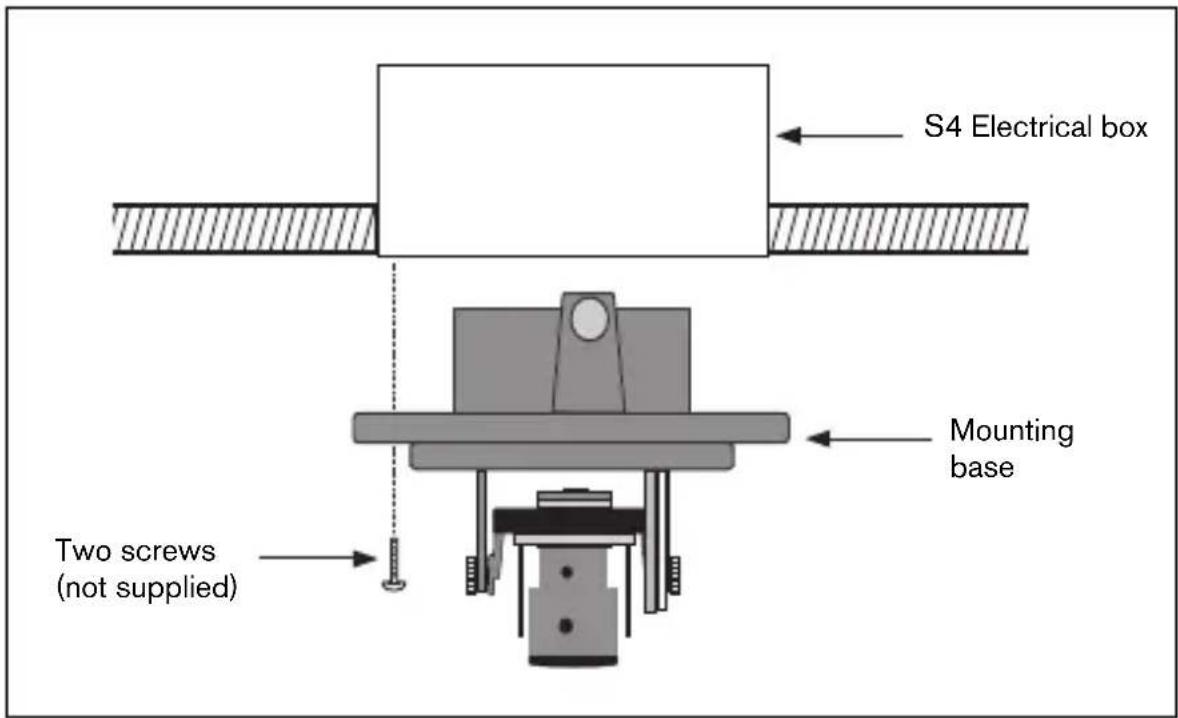

Figure 2 Connection to an electrical box (4S)

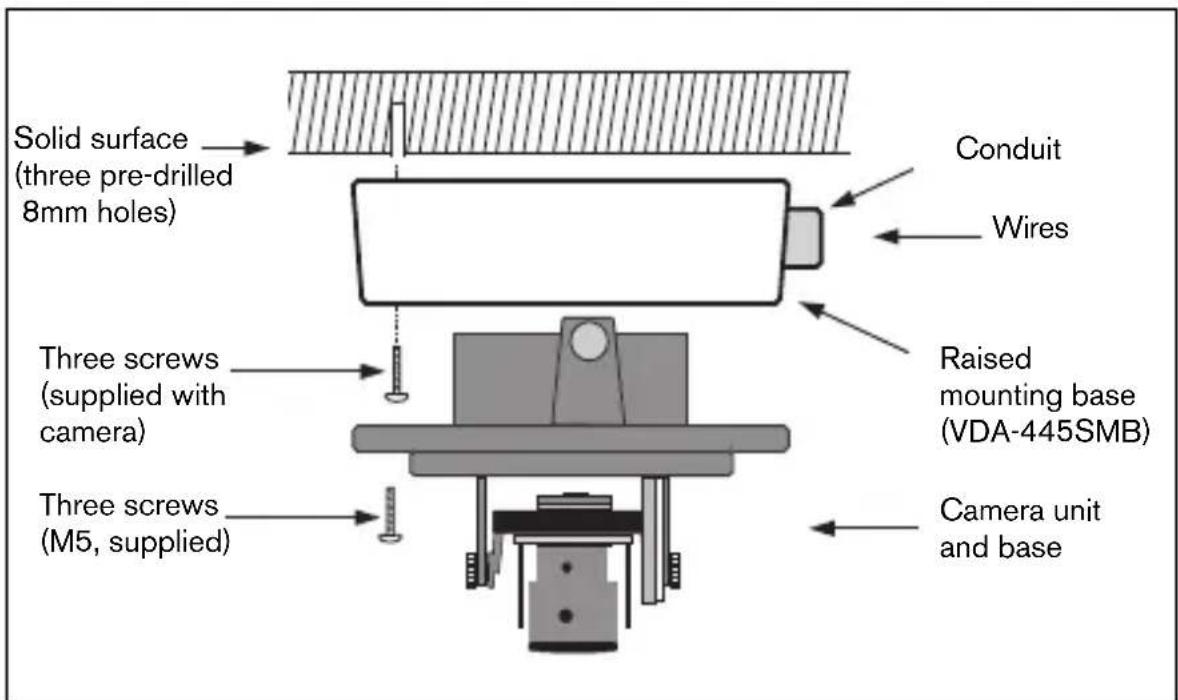

Figure 3 Surface mounting - side connection

Bosch Security Systems | 2005-11 | V1.0

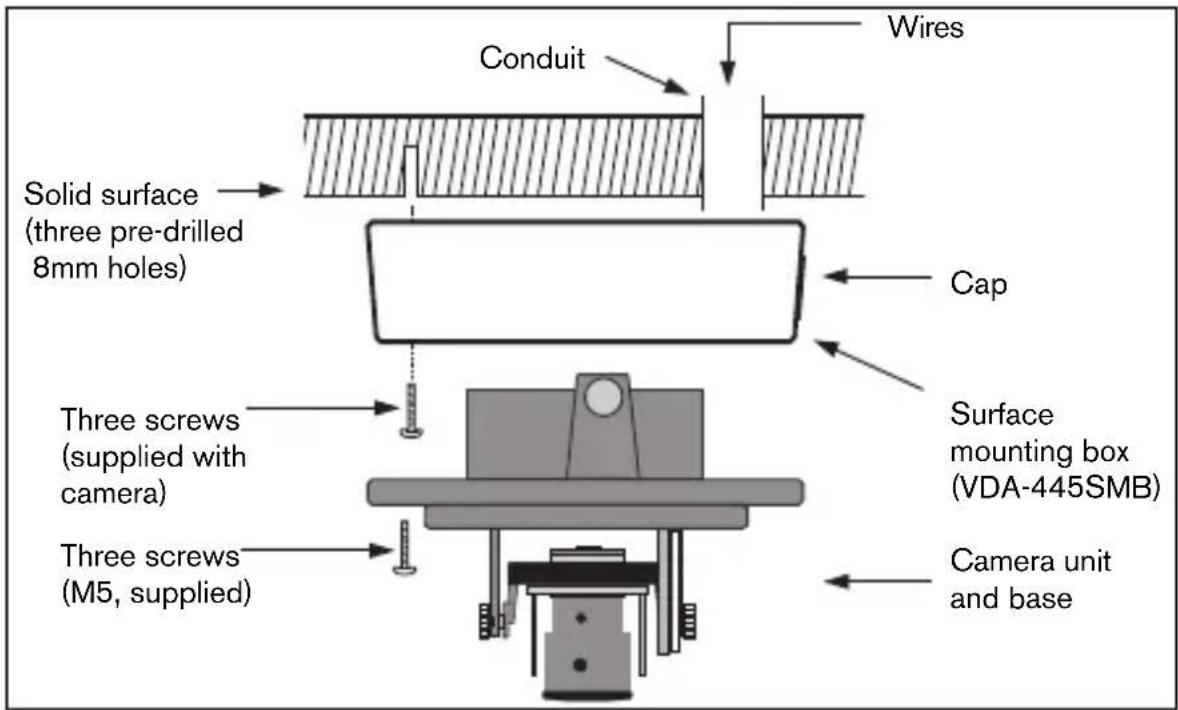

Figure 4 Surface mounting - rear connection

When using the surface mounting box:

• With a side connection, remove the cap covering the side entrance.

With a rear connection, leave the cap in place.

• Attach the conduit to the mounting base.

• Make the connection inside the mounting case.

Bosch Security Systems | 2005-11 | V1.0

Connection and set-up

Power and video connections

The wiring harness has a BNC connector to accept the video coax cable

(with male BNC connector) and two stripped low voltage power wires for

connection to a power connector. (A UTP adapter is available as an

accessory to allow a UTP video cable to be connected to the BNC

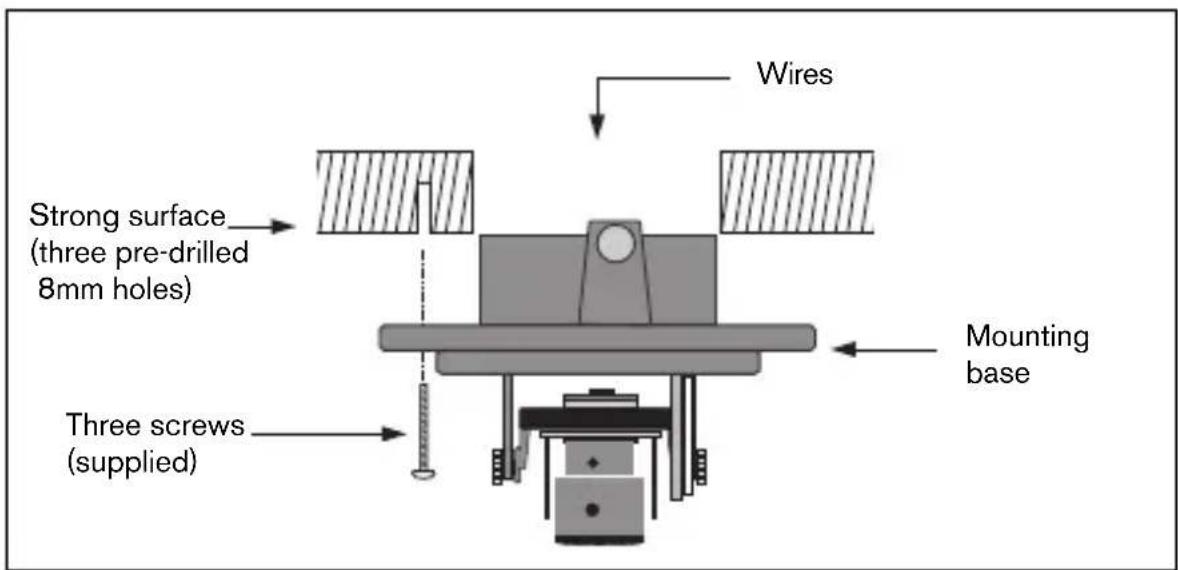

The easiest way to connect the low voltage power lines and the video

connection is as follows:

• Bring the building connections through the surface wire hole so that

• Partially insert two screws into the pre-drilled holes.

• Using the keyholes, hang the mounting base on one screw temporarily

and tilt the base slightly to gain access to the cable connections.

• Connect the BNC connector of the camera module to the video coax

• Connect the stripped power wires to the power supply connector.

For a DC supply the polarity is not important. For an AC supply try to

maintain a consistent wiring polarity in multiple camera systems to help

avoid rolling when switching.

• Push the connections back through the surface wire hole.

• Secure the mounting base to the surface with three screws.

Before proceeding, be sure to disconnect the power from the

cable to be installed into the unit. Be sure that the unit is of the

proper voltage type for the line power being used.FlexiDome

| Installation Manual

Bosch Security Systems | 2005-11 | V1.0

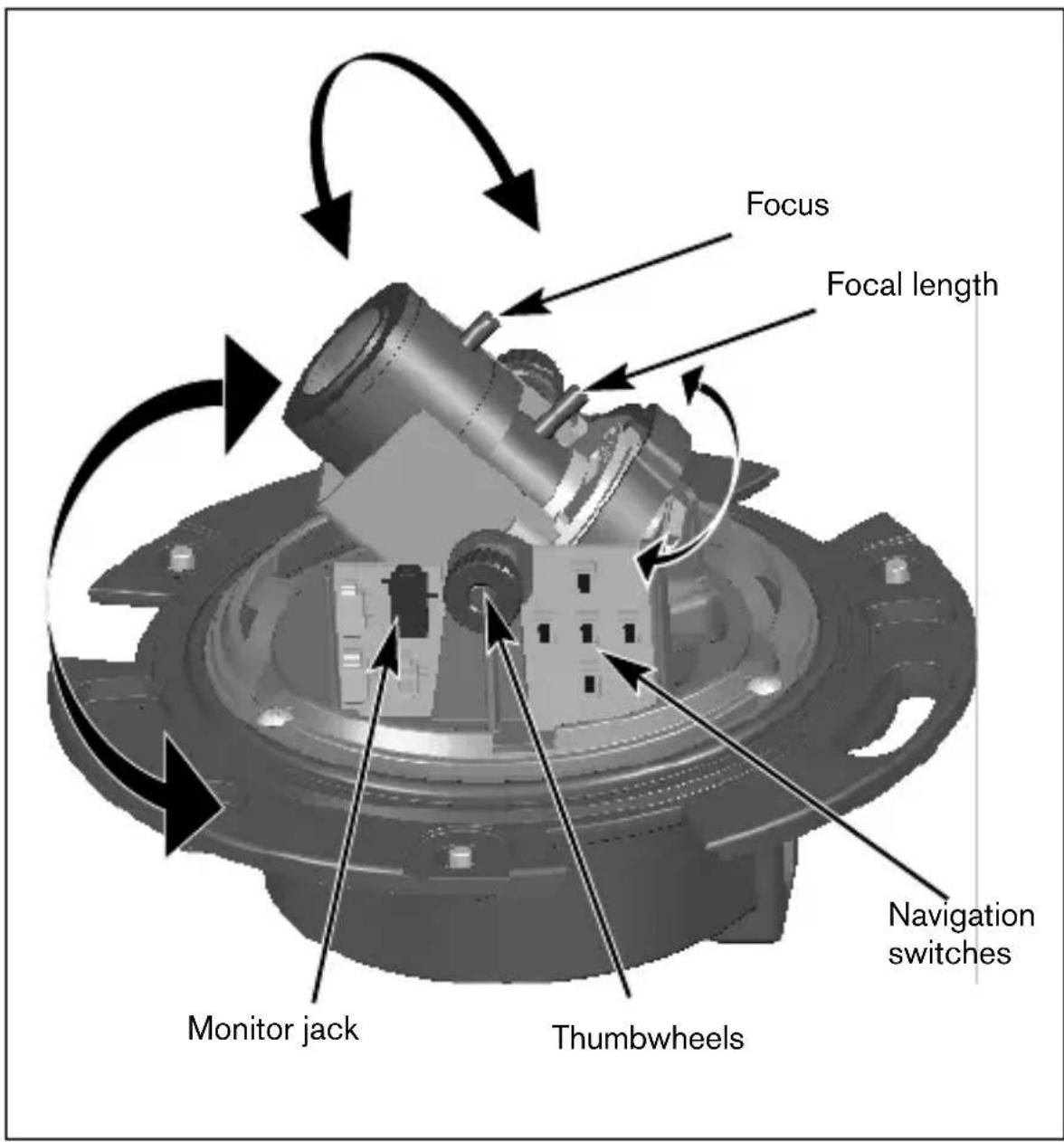

Setting up the camera

You can connect a monitor to the miniature 2.5mm jack socket on the

printed circuit board to help set up the camera. This socket provides a

composite video signal (with sync). An optional cable (code number

S1460) is available for making this connection.

Bosch Security Systems | 2005-11 | V1.0

The physical default position of the camera is that the top of the image

corresponds to the indication TOP.

The camera module position can be adjusted along three axes. When

adjusting the camera position ensure that the picture display on the

monitor is level. Set the camera to the desired position by performing the

• For horizontal adjustment (pan), rotate the camera module in the base.

Do not rotate more than 360°.

• For vertical adjustment (tilt), loosen thumbscrews, position camera,

then gently tighten thumbscrews to secure camera.

• To obtain a horizontal horizon (for tilted ceilings or sidewall

mounting), rotate the base of the lens as necessary to align the picture

shown on the monitor. Do not rotate more than 340°.

Focal length and focus

• To set the field of view of the varifocal lens, loosen the focal length

screw and turn the mechanism until the required view is displayed on

the monitor. (Image goes out of focus.)

• Focus the image on the monitor by loosening the focus screw and

turning the mechanism until the image is in focus.

• Readjust the focal length if necessary.

• Repeat these two adjustments until the desired view is in focus.

• Tighten both screws.

Verify that the image stays in focus when the dome is held in place.

Refocus if necessary.

The CCD image sensors are highly sensitive and require special

care for proper performance and extended lifetime. Do not expose

them to direct sunlight or bright spotlights in operating and non-

operating conditions. Avoid bright lights in the field of view of the

Bosch Security Systems | 2005-11 | V1.0

When the camera position is set and all adjustments have been made, close

• Place the inner liner in position aligning its fin with the bracket on the

• Place the trim ring with dome onto the base. (If necessary clean its

surface with a soft cloth.)

• Fix the trim ring onto the camera base by rotating clockwise.FlexiDome

| Installation Manual

Bosch Security Systems | 2005-11 | V1.0

normally provides an optimal picture without the need

for further adjustments. However, advanced set-up options are available for

getting the best results from the camera under special circumstances. There

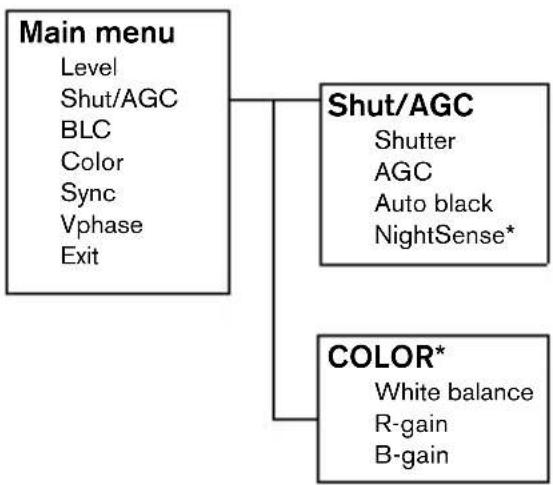

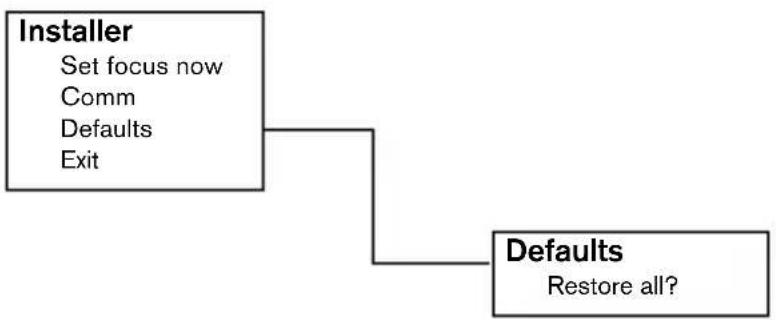

are two menus; a Main menu and an Installer menu.

The Main menu allows you to select and set-up the picture enhancement

functions for each mode. If you are not happy with your changes, you can

always recall the default values for the mode.

The camera also has an Installer menu in which the installation settings

The Main and Installer menus have functions that can be selected directly

or submenus for more detailed set-up.

Accessing and navigating menus

Five keys are used for navigating through the various menus. To access the

set-up menus, press the menu/select key (center). The main menu appears

on the OSD. Use the arrow keys for navigation.

When the Bilinx™ communications link is active, the buttons on the

camera are disabled. You can also set up Bilinx™ so that the camera

buttons remain disabled even when Bilinx™ is not actively controlling the

camera. This prevents unauthorized change of the camera settings.FlexiDome

| Installation Manual

Bosch Security Systems | 2005-11 | V1.0

* Only for the Color version of the camera.

Bosch Security Systems | 2005-11 | V1.0

Hints for menu navigation

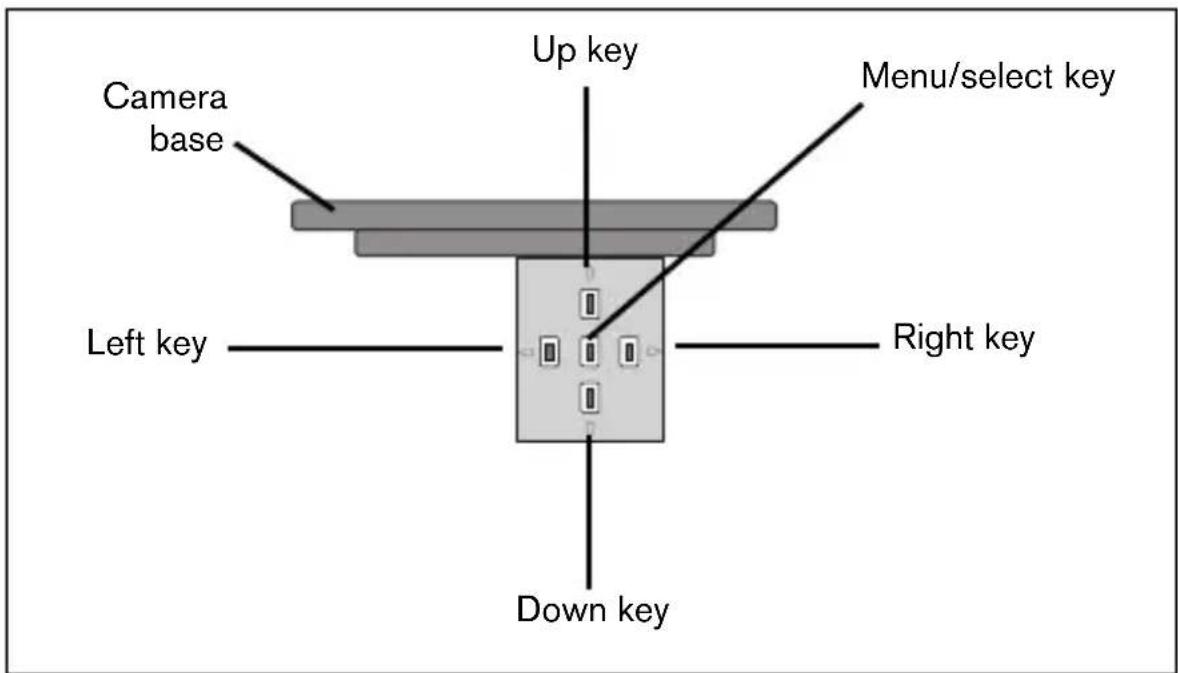

How to use the 5 keys

• Press the menu/select key to access the menus or to move to the next

• Press the menu/select key for approximately 1.5 seconds to open the

• Use the up or down keys to scroll up or down through a menu.

• Use the left or right keys to move through options or to set parameters.

• When in a menu, quickly pressing the menu/select key twice restores

the selected item to its factory default.

• To close all menus at once from any menu, select the Exit item and

hold down the menu/select key until the menu display disappears.

Bosch Security Systems | 2005-11 | V1.0

* Only in color version of camera. If a color camera is in monochrome

mode, all color related menu items are disabled and cannot be accessed.

Function Selection Description

LEVEL -15 - 0 - +15 Adjusts the video output level

SHUT/AGC Select submenu Select to access the Shutter / Automatic Gain

BLC ON, OFF When ON, the video level is optimized for the

selected area of the image. Parts outside this area

may be underexposed or overexposed (this is

COLOR* ATW ATB HOLD Select submenu

Select to access the color menu.

SYNC LINE LOCK INTERNAL Select LINE LOCK to synchronize with the power

supply frequency. Select INTERNAL for use with

internal synchronization (automatically selected

VPHASE 0, 2, … 358° Adjusts the vertical phase offset (when in LINE LOCK mode and a valid power supply frequency

Function Selection Description

SHUTTER AES, FL • AES - auto-shutter - the camera automatically

sets the optimum shutter speed

•FL - flickerless mode avoids interference from

light sources (recommended for use with video

iris or DC iris lenses only)

AGC ON/OFF Automatic gain control

AUTOBLACK ON/OFF Autoblack automatically increases the visibility of

Bosch Security Systems | 2005-11 | V1.0

* Only in color version of camera.

If NightSense™ is active, some noise or spots may appear in the picture.

This is normal camera behavior.

If a color camera is in monochrome mode, all color related menu items are

disabled and cannot be accessed.

* Only in color version of camera.

** It is only necessary to change the white point offset for special scene

AUTO FORCED OFF Nightsense™ extends the low-light performance

•In AUTO mode, the camera automatically inches

to monochrome in low-light conditions.

•In FORCED mode, the camera remains in high-

sensitivity monochrome operation.

Function Selection Description

WHITE BALANCE ATW AWB HOLD

•ATW: Auto tracking white balance allows the

camera to constantly adjust for optimal color

•AWB HOLD: Puts the ATW on hold and saves

RED gain** -5 - 0 - +5 Offset factory white point alignment (reducing red

introduces more cyan).

BLUE gain** -5 - 0 - +5 Offset factory white point alignment (reducing

Bosch Security Systems | 2005-11 | V1.0

Adjustment procedure DC-iris Lens:

1. Unlock the focus locking screw.

2. SET BACK FOCUS NOW is highlighted in the menu.

3. Turn the focus adjustment as required.

4. Lock the focus locking screw.

5. Exit the menu selection.

Camera control communication

This camera is equipped with a coaxial communications transceiver. In

combination with VP-CFGSFT, the camera can be adjusted from the head-

end side of the coaxial cable. All menus can be accessed remotely giving

full control of the camera. With this communication it is also possible to

disable the local keys on the camera. To avoid loss of communication on

an installed camera, the Communication ON/OFF selection is not

available while using remote control. This function can only be accessed

with the camera buttons.

Function Selection Description

SET FOCUS NOW Forces the lens to fully open the iris. Adjust the lens

COMM ON, OFF Bilinx communication ON/OFF DEFAULTS Select submenu Return all settings for all modes to factory defaults

Function Selection Description

ALL DEFAULTS Select to restore the factory defaults. A confirmation

screen appears. Allow 5 seconds for the camera to

optimize the picture after a mode reset.

EXIT Exit the menuFlexiDome

Bosch Security Systems | 2005-11 | V1.0

Resolution 540 TVL 570 TVL Rated supply

Shutter AES (1/60 (1/50 ) to 1/100000), Flickerless selectable

Auto black On, Off selectable

AGC AGC On (20 dB) or Off selectable

Contour Sharpness enhancement

BLC BLC On or Off selectable

White balance* Automatic 2500 - 9000K (with AWB hold mode)

Lens Integrated Varifocal with DC iris

-10° to 45° C Controls OSD with softkey operationFlexiDome

| Installation Manual

Bosch Security Systems | 2005-11 | V1.0

Dimensions (mm/inches)

Bosch Security Systems | 2005-11 | V1.0

Dimensions with surface mount box (mm/inch)FlexiDome

| Installation Manual

Bosch Security Systems | 2005-11 | V1.0

WHITE BALANCE ATW AWB HOLD

| Installationshandbuch

WHITE BALANCE ATW AWB HOLD

| Installationshandbuch

Bosch Security Systems | 2005-10 | V1.0

WHITE BALANCE ATW AWB HOLD

Bosch Security Systems | 2005-10 | V1.0

monochrome in low-light conditions.

Functie Selectie Beschrijving

WHITE BALANCE ATW AWB HOLD

•ATW: in de ATW-stand (ATW = Auto Tracking

White balance) wordt de witbalans voortdurend

Bosch Security Systems | 2005-10 | V1.0

Standard PAL Colore NTSC Colore

Bosch Security Systems | 2005-10 | V1.0

WHITE BALANCE ATW AWB HOLD

Bosch Security Systems | 2005-10 | V1.0

WHITE BALANCE ATW AWB HOLD

brancos permite à câmara regular continuamente a

•AWB HOLD: suspende o ATW e guarda as

Bosch Security Systems | 2005-10 | V1.0

www.bosch-sicherheitssysteme.de

Subject to change. Printed in Portugal.
