USER MANUAL WITXL 109 INDESIT

Instructions for use

Unpacking and levelling, 2

Electric and water connections, 2-3

The first wash cycle, 3

Technical details, 3

Washing machine description, 4-5

How to open and shut the drum, 5

Starting and Programmes, 6

Briefly: how to start a programme, 6

Setting the spin cycle, 7

Detergents and laundry, 8

Detergent dispenser, 8

Preparing your laundry, 8

Precautions and advice, 9

Saving energy and respecting the environment, 9

Care and maintenance, 10

Cutting off the water or electricity supply, 10

Cleaning your appliance, 10

Caring for your appliance door and drum, 10

Cleaning the pump, 10

Checking the water inlet hose, 10

Cleaning the detergent dispenser, 10

Before calling for Assistance, 12

I I HU ES Magyar,492

 Keep this instruction manual in a safe place for future

reference. Should the appliance be sold, transferred or

moved, make sure the instruction manual accompanies

the washing machine to inform the new owner as to its

operation and features.

 Read these instructions carefully: they contain vital

information on installation, use and safety.

Unpacking and levelling Unpacking 1. Unpack the washing

transport. If this is the

case, do not install it and

contact your retailer.

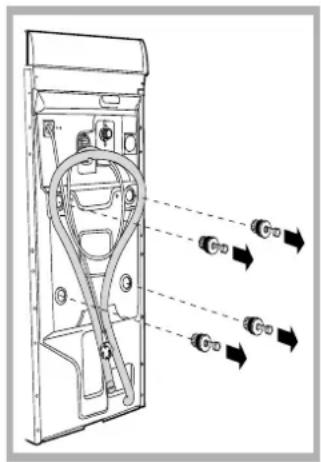

protective screws and the

rubber washer with the

respective spacer, situated

appliance (see figure).

4. Seal the gaps using the

plastic plugs provided.

5. Keep all the parts: you will need them again if the

washing machine needs to be moved to another location.

Warning: should the screws be re-used, make sure you

fasten the shorter ones at the top.

 Packaging materials are not children's toys. Levelling Your machine may make a considerable amount of noise if

the two front feet have not been adjusted correctly.

1. Install the washing

machine on a flat sturdy

floor, without resting it up

against walls, furniture

2. If the floor is not perfectly

level, compensate for any

unevenness by tightening or

loosening the adjustable front

feet (see figure); the angle of

inclination, measured according to the worktop, must not

Levelling your appliance correctly will provide it with

stability and avoid any vibrations, noise and shifting during

operation. If it is placed on a fitted or loose carpet,

adjust the feet in such a way as to allow enough

room for ventilation beneath the washing machine.

Putting your appliance in place and moving it.

with a special set of

retractable wheels you

can easy move it. To

lower the wheels and

appliance effortlessly,

just pull the lever,

situated on the left-

hand side beneath the

base. Once the appliance is in the required position,

put the lever back in place. The washing machine is

now firmly in place (see figure).

Electric and water connections Connecting the water inlet hose 1. Insert seal A into the

end of the inlet hose

and screw the latter

onto a cold water tap

connection, allow the

water to run freely until

it is perfectly clear.

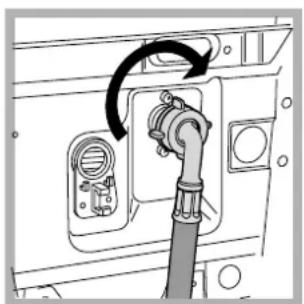

2. Connect the other end

of the water inlet hose to

the washing machine,

screwing it onto the

appliance's cold water

inlet, situated on the top

right-hand side on the

rear of the appliance

3. Make sure there are no kinks or bends in the

 The water pressure at the tap must be within the

values indicated in the Technical details table

 If the water inlet hose is not long enough, contact

a specialist store or an authorised serviceman.

 Never use hoses that have already been used.

GB ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description Connecting the drain hoseConnect the drain hose,without bending it, to adraining duct or a walldrain situated between65 and 100 cm fromthe floor;alternatively, place itover the edge of abasin, sink or tub,fastening the ductsupplied to the tap (seefigure). The free end ofthe hose should not beunderwater.  We advise against the use of hose extensions; in case of absolute need, the extension must have thesame diameter as the original hose and must notexceed 150 cm in length.Electric connectionBefore plugging the appliance into the mainssocket, make sure that: the socket is earthed and in compliance with theapplicable law; the socket is able to sustain the appliance'smaximum power load indicated in the Technicaldetails table (on the right); the supply voltage is included within the values indicated on the Technical details table(on the right); the socket is compatible with the washingmachine's plug. If this is not the case, replacethe socket or the plug.  The washing machine should not be installed in an outdoor environment, not even when the area issheltered, because it may be very dangerous toleave it exposed to rain and thunderstorms.  When the washing machine is installed, the mains socket must be within easy reach.  Do not use extensions or multiple sockets.

 The power supply cable must never be bent or dangerously compressed.  The power supply cable must only be replaced by an authorised serviceman.Warning! The company denies all liability if and whenthese norms are not respected. The first wash cycle Once the appliance has been installed, and beforeyou use it for the first time, run a wash cycle withdetergent and no laundry, setting the 90°Cprogramme without a pre-wash cycle. 65 - 100 cm

Technical details ModelWITXL 109Dimensions40 cm wide85 cm high60 cm deepCapacityfrom 1 to 6 kgElectricconnectionsPlease refer to the technical data platefixed to the machineWaterconnectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 42 litresSpin speedup to 1000 rpmControlprogrammesaccording to EN60456 directiveprogramme 3; temperature 60°C;run with a load of 6 kg.This appliance is compliant with thefollowing European CommunityDirectives:- 89/336/CEE of 03/05/89(Electromagnetic Compatibility) andsubsequent amendments- 2006/95/CE (Low Voltage)- 2002/96/CE4

GB ON-OFF/LID LOCK led:

If this LED is on, the appliance Lid is locked to prevent it from being opened accidentally; to avoid any

damages, you must wait for the lamp to flash before you open the Lid.

 The rapid flashing of the ON-OFF/LID LOCK Led together with the flashing of at least one other LED indicates

there is an abnormality (see page 11).

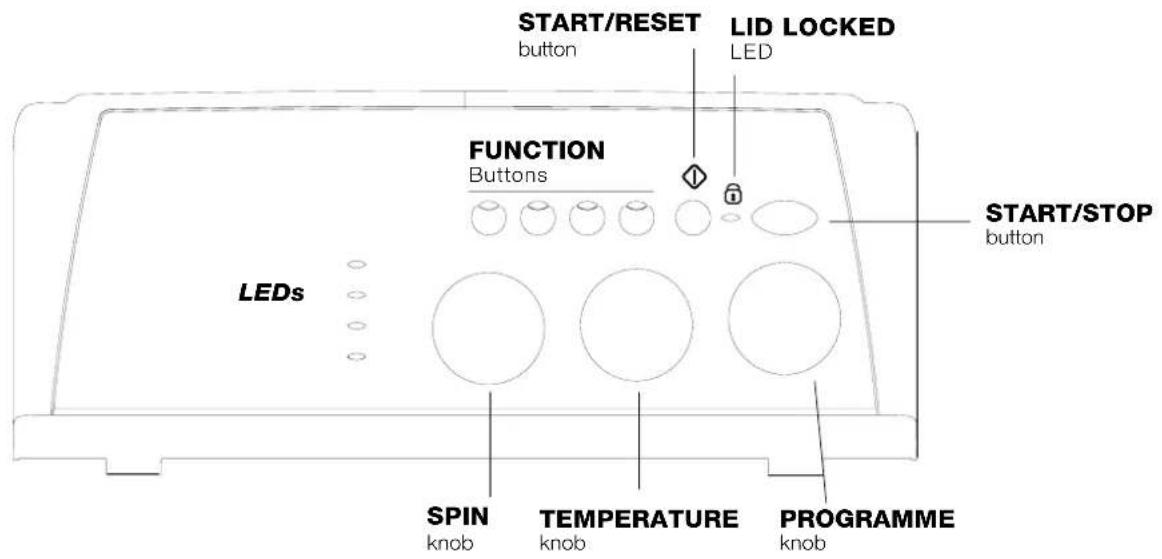

Washing machine description

Detergent dispenser to add detergent and fabric

softener (see page 8).

LEDs to find out which wash cycle phase is under way.

If the Delay Timer function has been set, the time left

until the programme starts will be indicated (see page 5).

FUNCTION keys to select the functions available.

The button corresponding to the function selected will

SPIN SPEED knob to set the spin speed or exclude the

spin cycle completely (see page 7).

TEMPERATURE knob to set the temperature or the cold

wash cycle (see page 7).

ON/OFF key to turn the washing machine on and

START/RESET key to start the programmes or

cancel incorrect settings.

ON-OFF/LID LOCK led, to find out whether the

washing machine is on (flashing) and if the lid may be

opened (see page 5).

PROGRAMME knob to set the programmes

The knob stays still during the cycle.

GB ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Cycle phase under way:

During the wash cycle, the LEDs gradually illumi-

nate on to indicate the cycle phase under way:

Note: during draining, the LED corresponding to

the Spin cycle phase will be turned on.

The FUNCTION BUTTONS also act like LEDS.

When a function is selected, the corresponding button

If the function selected is incompatible with the

programme set, the button will flash and the function

will not be enabled.

If you set a function that is incompatible with another

function you selected previously, only the last one

selected will be enabled.

The LEDS provide important information.

This is what they can tell you:

If the Delay Timer function has been enabled (see

page. 7), once you have started the programme,

the LED corresponding to the delay set will begin to

As time passes, the remaining delay will be

displayed, and the corresponding LED will flash:

Once the set delay is complete, the flashing LED will

turn off and the programme set will start.

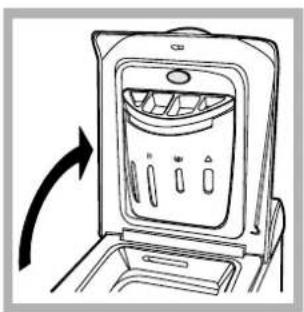

A) Opening (Fig. 1).

Lift the external lid and open it completely.

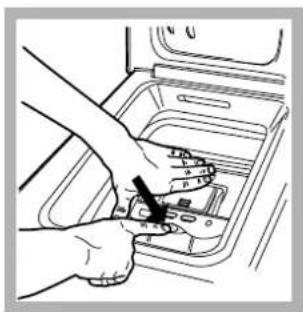

B) Then open the drum using both hands as

- press the button indicated by the arrow in Fig. 2

lightly downwards, with one hand firmly resting on

the doors to prevent them from suddenly opening

and hurting your fingers;

- therefore follow the appliance doors along as these

unhook and open easily.

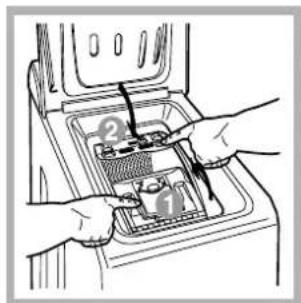

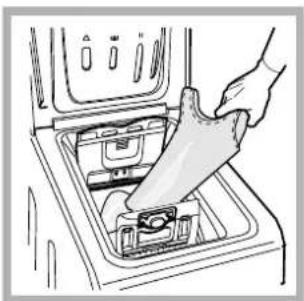

C) Loading the washing machine. (Fig. 3).

D) Shutting (Fig. 4).

- close the drum fully by first shutting the front door

followed by the rear one;

- then ensure the hooks on the front door are perfectly

housed within the seat of the rear door;

- after the hooks have clicked into position, press both

doors lightly downwards to make sure they do not

- finally shut the external lid.

How to open and to close the drum6

GB Type of fabric anddegree of soilProgrammesTem pe -ratureDetergentFabricsoftenerStain removaloption/bleachCyclelength(minutes)Description of wash cycle Pre-

Wash StandardCotton: Extremely soiled whites(sheets, tablecloths, etc.) 1 90°C    175 Pre-wash, wash cycle, rinse cycles,intermediate and final spin cyclesCotton: Extremely soiled whites(sheets, tablecloths, etc.) 2 90°C  Delicate/Traditional 160 Wash cycle, rinse cycles,intermediate and final spin cyclesCotton: Heavily soiled whites andfast colours 2 60°C  Delicate/Traditional 150 Wash cycle, rinse cycles,intermediate and final spin cyclesCotton: Heavily soiled whites anddelicate colours 2 40°C  Delicate/Traditional 143 Wash cycle, rinse cycles,intermediate and final spin cyclesCotton: Slightly soiled whites anddelicate colours (shirts, jumpers,etc.) 3 40°C  Delicate/Traditional 99 Wash cycle, rinse cycles,intermediate and final spin cyclesSynthetics: Heavily soiled fastcolours (baby linen, etc.) 4

and delicate spin cycle Very delicate fabrics (curtains,silk, viscose, etc.) 7 30°C   52 Wash cycle, rinse cycles, anti-crease or draining cycleTime 4 youCotton: Heavily soiled whites andfast colours 8 60°C   60 Wash cycle, rinse cycles,intermediate and final spin cyclesCotton: Slightly soiled whites anddelicate colours (shirts, jumpers,etc.) 9 40°C   50 Wash cycle, rinse cycles,intermediate and final spin cyclesSynthetics: Delicate colours (alltypes of slightly soiled garments) 10

40 Wash cycle, rinse cycles,delicate spin cycleSynthetics: Delicate colours (alltypes of slightly soiled garments) 11 30°C   30 Wash cycle, rinse cycles anddelicate spin cycleSportSports shoes (MAX. 2 pairs) 12

50 Cold wash (without detergents),wash cycle, rinse cycles, anddelicate spin cycleFabrics for sportswear (Tracksuits,shorts, etc.) 13 30°C   63 Wash cycle, rinse cycles,intermediate and final spin cyclesPARTIAL PROGRAMMESRinse Delicate/TraditionalRinse cycles and spin cycleSpin Draining and spin cycleDrain Draining Starting and Programmes

-For programmes 8 and 9, we advise against exceeding a wash load of 3.5 kg.

-For programme 13 we advise against exceeding a wash load of 2 kg.

-For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.

Daily Refresh (programme 11 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it

only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (11 at 30°C), you

can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.

We recommend the use of liquid detergent.

Briefly: starting a programme 1. Switch the washing machine on by pressing button .All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.

2. Load your laundry into the washing machine, add the detergent and any fabric softener (see page 8) and shut the appliance door. 3. Set the PROGRAMME knob to the programme required. 4. Set the wash temperature (see page 7). 5. Set the spin speed (see page 7). 6. Start he programme by pressing the START/RESET button. To cancel it, keep the START/RESET button pressed for at least 2 seconds. 7. When the programme is finished, the ON-OFF/ DOOR LOCK Led will flash to indicate that theappliance door can be opened. Take out yourlaundry and leave the appliance door ajar to allowthe drum to dry thoroughly. Turn the washingmachine off by pressing button .7

GB ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6).

The temperature can be lowered, or even set to a cold wash ( ).

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the programme selected.

The maximum spin speeds for each programme are as follows:

Programmes Maximum spin speed

The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol .

The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed for

Note. To avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner

by continuously rotating the drum at a speed which is slightly faster than the normal washing speed.

When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than the set

If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning.

The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes.

To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the

C OptionEffect CommentsEnabled with programmes: Delay TimerDelays the startof the wash byup to 9 hours. Pess the button repeatedly until the LED corresponding to the

desired delay is turned on. The fifth time the button is pressed, the function will be disabled.N.B.: Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it. AllBleachingBleaching cycledesigned toremove thetoughest stains.Please remember to pour the bleach into extra compartment 4 (se e page 8) . This option is incompatible with the EASY IRON option.2, 3, 4, 5,Rinse cycles.Easy ironThis optionreduces theamount ofcreasing onfabrics, makingthem easier toiron. If you set this option, programmes 4, 5, 7 and Delicate Rinse will be suspended, leaving the laundry to soak (Anti-crease) andicon will flash:- to conclude the cycle, press the START/RESET button; - to run the draining cycle alone, set the knob to the relative

symbol and press the START/RESET button.

This option is incompatible with the BLEACHING option.

3, 4, 5, 7, 8, 9, 10 andRinse cyclesExtra RinseIncreases theefficiency of therinse. Recommended when the appliance has a full load or with large

quantities of detergent. 1, 2, 3, 4, 5,8, 9, 10, 12,13 and Rinsecycles.8

GB Detergent dispenser

Good washing results also depend on the correct

dose of detergent: adding too much detergent won't

necessarily make for a more efficient wash, and may

in fact cause build up on the interior of your

appliance and even pollute the environment.

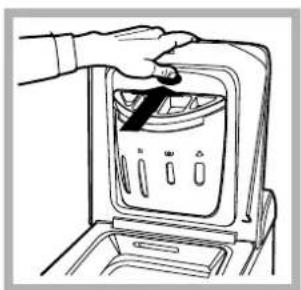

detergent and fabric

softener, as follows.

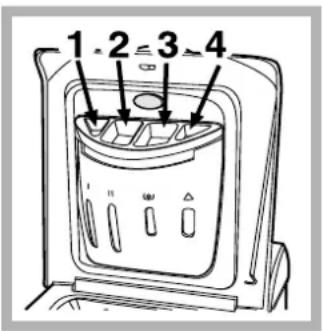

compartment 1: Detergent for pre-wash

compartment 2: Detergent for the wash cycle

Liquid detergent should only be poured in

immediately prior to the wash cycle start.

 Do not use hand wash detergent because it may

compartment 3: Additives (fabric softeners, etc.)

When pouring the softener in compartment 3, avoid

exceeding the "max" level indicated.

The softener is added automatically into the machine

during the last wash. At the end of the wash

programme, some water will be left in compartment 3.

This is used for the inlet of denser fabric softeners into

the machine, i.e. to dilute the more concentrated

softeners. Should more than a normal amount of water

remain in compartment 3, this means the emptying

device is blocked. For cleaning instructions, see page

The fabric softener should not overflow from the grid.

compartment 4: Bleach

Traditional bleach should be used on sturdy white

fabrics, and delicate bleach for coloured fabrics,

synthetics and for wool.

When pouring in the bleach, be careful not to exceed

the "max" level indicated on compartment 4 (see

To run the bleach cycle alone, pour the bleach into

compartment 4 and set the Rinse programme (for

cotton fabrics) and push the button

Preparing your laundry

 Divide your laundry according to:

- the type of fabric/the symbol on the label.

- the colours: separate coloured garments from

 Empty all pockets and check for loose buttons.

 Do not exceed the weight limits stated below,

which refer to the weight when dry:

- Sturdy fabrics: max 6 kg

- Synthetic fabrics: max 2.5 kg

- Wool: max 1 kg How much does your laundry weigh? 1 sheet 400-500 g

Curtains: fold curtains and place them in a pillow

case or mesh bag. Wash them separately without

exceeding half the appliance load. Use programme 7

which excludes the spin cycle automatically.

Quilted coats and windbreakers: if they are

padded with goose or duck down, they can be

machine-washed. Turn the garments inside out and

load a maximum of 2-3 kg, repeating the rinse cycle

once or twice and using the delicate spin cycle.

Wool: for best results, use a specific detergent,

taking care not to exceed a load of 1 kg.

Detergents and laundry9

GB Precautions and advice

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

 The washing machine was designed and built in

compliance with the applicable international safety

regulations. The following information is provided for

your safety and should consequently be read

 This appliance has been designed for non-

professional, household use and its functions must

 This washing machine should only be used by

adults and in accordance with the instructions

provided in this manual.

 Never touch the washing machine when barefoot

or with wet or damp hands or feet.

 Do not pull on the power supply cable to unplug

the appliance from the electricity socket. Pull the

 Do not open the detergent dispenser while the

appliance is in operation.

 Do not touch the drain water as it could reach

very high temperatures.

 Never force the washing machine door: this could

damage the safety lock mechanism designed to

prevent any accidental openings.

 In the event of a malfunction, do not under any

circumstances touch internal parts in order to

 Always keep children well away from the

appliance while in operation.

 The appliance door tends to get quite hot during

 Should it have to be moved, proceed with the

help of two or three people and handle it with the

utmost care. Never try to do this alone, because

the appliance is very heavy.

 Before loading your laundry into the washing

machine, make sure the drum is empty.

 Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE), requires

that old household electrical appliances must not be

disposed of in the normal unsorted municipal waste

stream. Old appliances must be collected separately

in order to optimise the recovery and recycling of the

materials they contain and reduce the impact on

human health and the environment.

The crossed out "wheeled bin" symbol on the

product reminds you of your obligation, that when

you dispose of the appliance it must be separately

Consumers should contact their local authority or

retailer for information concerning the correct

disposal of their old appliance.

 Disposing of an old washing machine:

before scrapping your appliance, cut the power

supply cable and remove the appliance door.

Saving energy and respecting the

Environmentally-friendly technology

If you only see a little water through your appliance

door, this is because thanks to the latest technology,

your washing machine only needs less than half the

amount of water to get the best results: an objective

reached to respect the environment.

Saving on detergent, water,

 To avoid wasting resources, the washing machine

should be used with a full load. A full load instead

of two half loads allows you to save up to 50% on

 The pre-wash cycle is only necessary on

extremely soiled garments. Avoiding it will save on

detergent, time, water and between 5 and 15%

 Treating stains with a stain remover or leaving

them to soak before washing will cut down the

need to wash them at high temperatures. A

programme at 60°C instead of 90°C or one at

40°C instead of 60°C will save up to 50% on

 Use the correct quantity of detergent depending

on the water hardness, how soiled the garments

are and the amount of laundry you have, to avoid

wastage and to protect the environment: despite

being biodegradable, detergents do contain

ingredients that alter the natural balance of the

environment. In addition, avoid using fabric

softener as much as possible.

 If you use your washing machine from late in the

afternoon until the early hours of the morning, you

will help reduce the electricity board's peak load.

The Delay Timer option (see page 7) helps to

organise your wash cycles accordingly.

 If your laundry has to be dried in a tumble dryer,

select a high spin speed. Having the least water

possible in your laundry will save you time and

energy in the drying process.10

GB Care and maintenance

Cutting off the water or electricity

supply  Turn off the water tap after every wash. This willlimit the wear of your appliance's water systemand also prevent leaks. Unplug your appliance when cleaning it andduring all maintenance operations. Cleaning your appliance The exterior and rubber parts of your appliance canbe cleaned with a soft cloth soaked in lukewarmsoapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser Remove the dispenser by raising it and pulling it out(see figure).Wash it under running water; this operation shouldbe repeatedfrequently. Caring for your appliance door and

drum  Always leave the appliance door ajar to preventunpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaningpump that does not require any maintenance.Sometimes, small items (such as coins or buttons)may fall into the pre-chamber that protects thepump, situated in the lower part of the same.To recover any objects that have fallen into the pre-chamber:1. remove the plinth atthe bottom on thefront side of thewashing machine bypulling from the sidewith your hands (seefigure);2. unscrew the lidrotating it anticlock-wise (see figure): alittle water may trickleout. This is perfectlynormal;3. clean the interiorthoroughly;4. screw the lid back on; 5. reposition thepanel, making surethe hooks aresecurely in placebefore you push itonto the appliance. Checking the water inlet hose Check the water inlet hose at least once a year. Ifyou see any cracks, replace it immediately: duringthe wash cycles, water pressure is very strong anda cracked hose could easily split open.  Never use hoses that have already been used.

 Make sure the wash cycle has ended and unplug the appliance. How to clean the detergent dispenser

Then clean the dispenser under a tap (fig. 3) using an old

toothbrush and, once the pair of siphons inserted in the

top of compartments 1 and 2 (fig. 4) have been pulled

out, check whether the same are not clogged and then

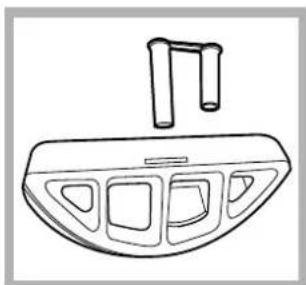

Do not forget to reinsert the

pair of siphons into the

special housings and then to

replace the dispenser into its

seat, clicking it into place

Press lightly on the large

button on the front of the

detergent dispenser and pull

it upwards (fig. 1).

GB Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem

can't easily be solved by consulting the following list.

The washing machine won't

The wash cycle won't start.

The washing machine fails to

continuously loads and unloads

The washing machine does not

The washing machine vibrates

too much during the spin cycle.

The washing machine leaks.

The ON-OFF/DOOR LOCK Led

flashes rapidly at the same

time as at least one other LED.

There is too much foam.

Possible causes/Solution:

 The appliance is not plugged into the socket, or not enough to

 There has been a power failure.

 The appliance door is not shut properly. The Lid locked Led flashes.

 The button has not been pressed.

 The START/RESET button has not been pressed.

 The water tap is not turned on.

 A delayed start has been set (using the Delay Timer, see page 7).

 The water inlet hose is not connected to the tap.

 The water tap is not turned on.

 There is a water shortage.

 The water pressure is insufficient.

 The START/RESET button has not been pressed.

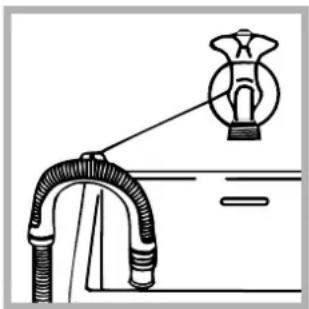

 The drain hose is not fitted between 65 and 100 cm from the floor

 The free end of the hose is underwater (see page 3).

 The wall drainage system doesn't have a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch

the appliance off and call for Assistance. If the dwelling is on one of the upper

floors of a building, there may be drain trap problems causing the washing

machine to load and unload water continuously. In order to avoid such an

inconvenience, special anti-drain trap valves are available in shops.

 The programme does not foresee the draining: some programmes

require enabling the draining manually (see page 6).

 The Easy iron option is enabled: to complete the programme, press

the START/RESET button (see page 7).

 The drain hose is bent (see page 3).

 The drain duct is clogged.

 When the machine is installed, the locking screws for the oscillating

assembly are still in place. Remove the screws (see page 2).

 The washing machine is not level (see page 2).

 The washing machine is closed in between furniture cabinets and

the wall (see page 2).

 The water inlet hose is not screwed on correctly (see page 2).

 The detergent dispenser is obstructed (to clean it, see page 10).

 The drain hose is not secured properly (see page 3).

 Switch off the machine and unplug the appliance; wait for

approximately 1 minute then switch it on again.

If the problem persists, contact Assistance.

 The detergent is not suitable for machine washing (it should bear

the definition "for washing machines" or "hand and machine wash",

 You used too much detergent.

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description12

GB Before calling for Assistance:

 Check whether you can solve the problem on your own (see page 11);

 Restart the programme to check whether the problem has been solved;

 If this is not the case, contact an authorised Technical Service Centre on the telephone number

provided on the guarantee certificate.

 If the machine has been installed or used incorrectly, you may be charged for the maintenance callout

 Always request the assistance of authorised servicemen.

Notify the operator of:

 the type of problem;

 the appliance model (Mod.);

 the serial number (S/N).

This information can be found on the data plate situated on the rear of the washing machine.

ÖÜóç óå åîÝëéîç (LEDs):
