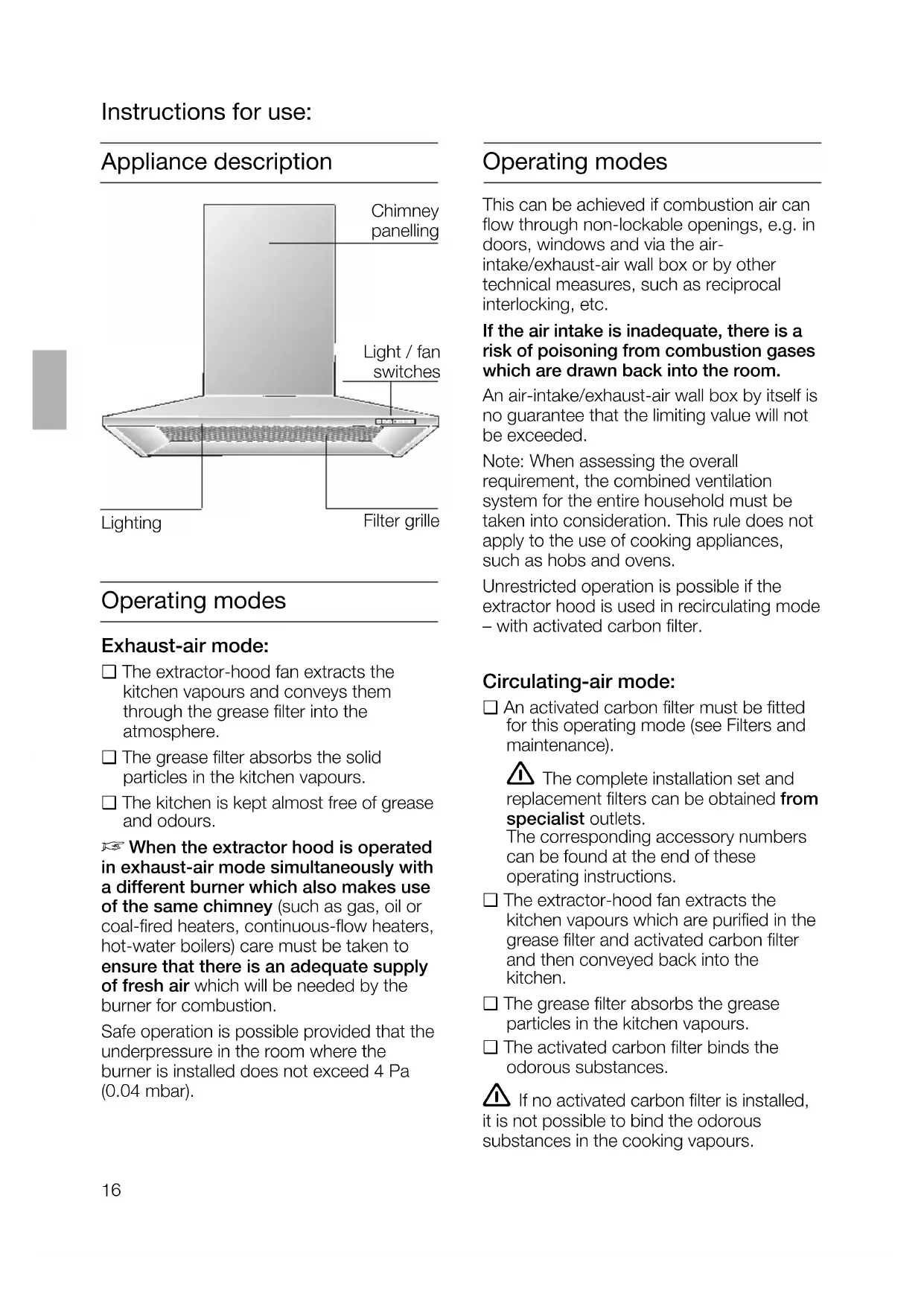

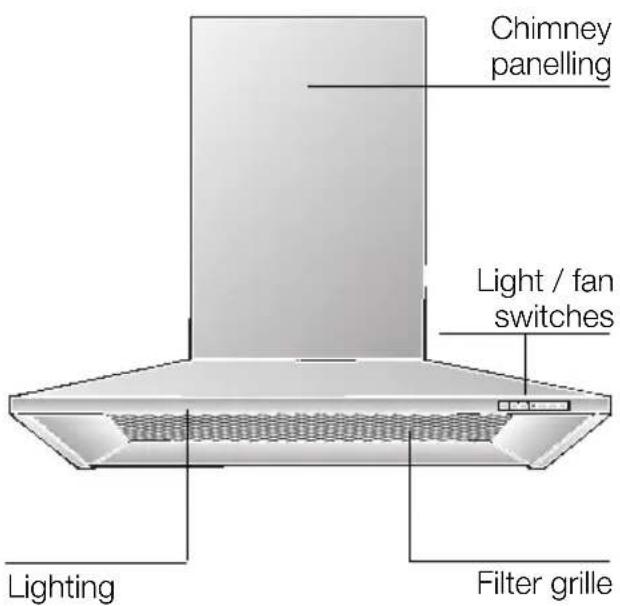

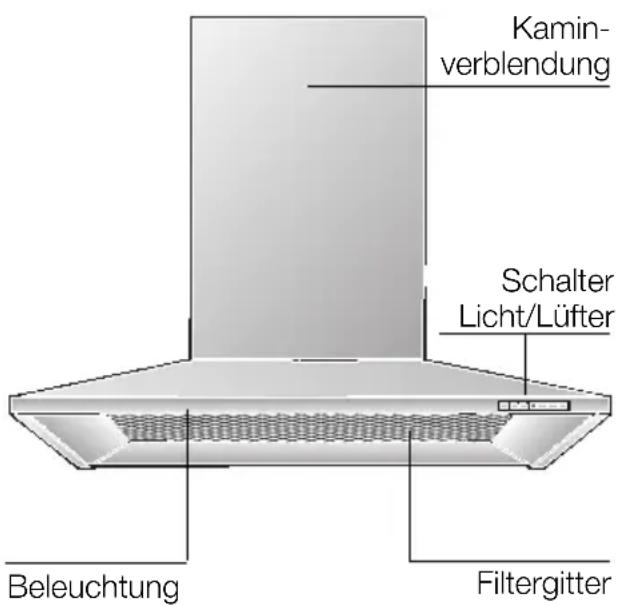

2 Schrauben seitlich an den Haltewinkel schrauben.16 Appliance description Instructions for use: Lighting Light / fan switches Filter grille Chimney panelling Operating modes Exhaust-air mode: ❑ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere. ❑ The grease filter absorbs the solid particles in the kitchen vapours. ❑ The kitchen is kept almost free of grease and odours.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion. Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar). Operating modes This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air- intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc. If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded. Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens. Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter. Circulating-air mode: ❑ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance). The complete installation set and replacement filters can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these operating instructions. ❑ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen. ❑ The grease filter absorbs the grease particles in the kitchen vapours. ❑ The activated carbon filter binds the odorous substances. If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.17 Before using for the first time Important notes: ❑ The Instructions for Use apply to severalversions of this appliance. Accordingly,you may find descriptions of individualfeatures that do not apply to your specific appliance.❑ This extractor hood complies with all relevant safety regulations.Repairs should be carried out by qualified technicians only.Improper repairs may put the user atconsiderable risk. Do not flambé food directly under the extractor hood.Risk of grease filter catching fire due ! to flames. The hotplates must always be covered with a utensil. Restrictions apply to the use of the extractor hood over a solid-fuel burner(coal, wood, etc.). (See Installation instructions).Gas hobs / Gas cookers Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermalload, otherwise there is a risk of burns if thehousing surfaces are touched or a risk ofdamage to the extractor hood. If the extractor hood is situated over a gas hob,operate the hood at maximum setting ifthree or more gas hotplates are operatedsimultaneously.❑ Before using your appliance for the firsttime, please read these Instructions forUse carefully. They contain importantinformation concerning your personalsafety as well as on use and care of theappliance.❑ Please retain the operating and installation instructions for a subsequentowner. Do not use the appliance if damaged. The appliance is not intended for use by young children or infirmed persons without supervision.Young children should be supervised toensure they do not play with the appliance. If the connecting cable for this appliance is damaged, the cable must bereplaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury tothe user. The appliance may be connected to the mains by a qualified technician only. Dispose of packaging materials properly (see Installation instructions). This extractor hood is designed for domestic use only. Light bulbs must always be fitted when the extractor hood is in use. Defective bulbs should be replaced immediately to prevent the remaining bulbsfrom overloading. Never operate the extractor hood without a grease filter. Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips,etc., never leave the cooker unattended.18 Intensive setting: Maximum power is obtained at the intensive setting. It is only required for short intervals. ❑ Keep pressing the + button until a

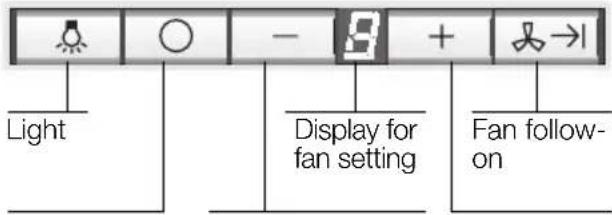

appears in the display. ❑ If the intensive setting is not cancelled by hand, the fan will automatically switch back to step } after 10 minutes. Fan follow-on: ❑ Press the button. The fan continues to run at step | for 10 minutes, and at the same time a dot flashes in the display. After this period the fan switches off automatically. Lighting: ❑ Briefly press the a button to switch the light on and off. ❑ The light can be switched on at any time, even though the fan is switched off. ❑ Adjusting the brightness: Hold down the a button until the desired brightness is obtained. Switching on the light automatically, e.g. via a timer: ❑ Fan and light must be switched off. Switching on: Simultaneously press the – and

buttons. ❑ After approx. 3 seconds the light switches on to acknowledge the setting. Switching off: Repeat the process with the light switched on. ❑ After approx. 3 seconds the light switches off to acknowledge the setting. Light Fan OFF Reduce fan speed Fan ON and increase speed Display for fan setting Fan follow-

Operating procedure Acoustic signal: ❑ When a button is pressed, this is verified by an acoustic signal. Switching off the acoustic signal: ❑ Simultaneously press buttons 0 and + until a signal is emitted after approx. 3 seconds. Switching on the acoustic signal: ❑ Repeat the process. Switching the fan ON ❑ Press the + button. Setting the required fan speed: ❑ Press the + button. The fan speed is increased by one step. ❑ Press the – button. The fan speed is reduced by one step. Switching the fan OFF: ❑ Press the 0 button. The displayed { goes out shortly afterwards. Or: ❑ Keep pressing the – button until the fan switches off. The displayed { goes out shortly afterwards. The most effective method of removing vapours produced during cooking is to: ❑ Switch the ventilator ON as soon as you begin cooking. ❑ Switch the ventilator OFF a few minutes after you have finished cooking.19 Grease filters: Metal filters are used to trap the greasy element of the vapours that develop during cooking. The filter mats are made from non- combustible metal. Caution: As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected. Important: By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced. Saturation indicator: When the grease filters reach saturation point, an acoustic signal is sounded for 10 seconds after the fan has switched off, and

appears in the display. The grease filters should be cleaned straight away. Cleaning the metal grease filters: ❑ The filters can be cleaned in a dishwasher. It is however possible that they will become slightly discoloured. Important: Metal filters that are saturated with grease should not be washed together with other dishes etc. ❑ When cleaning the filters by hand, soak them in hot soapy water first of all. Then brush the filters clean, rinse them thoroughly and leave the water to drain off. Removing and inserting the metal grease filters:

Warning: The halogen bulbs must be

switched off and cool.

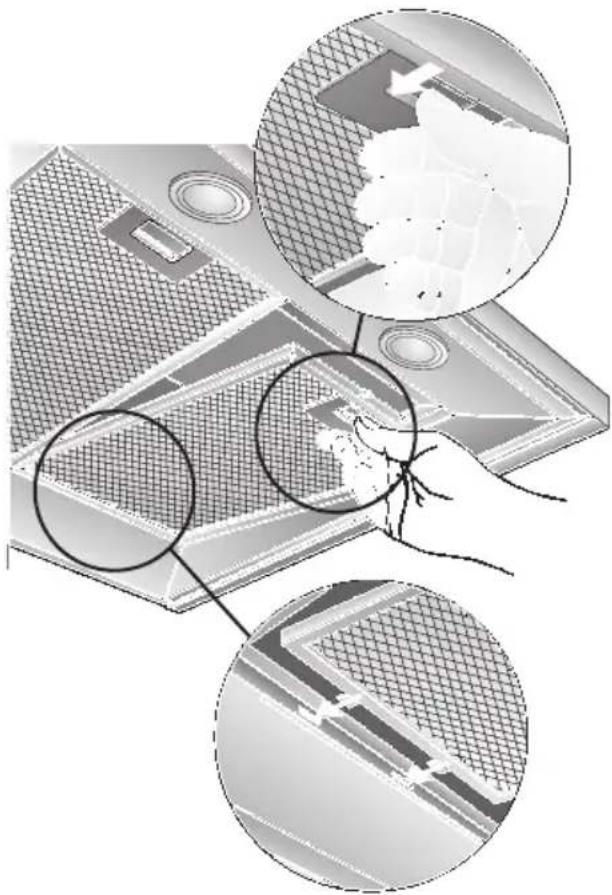

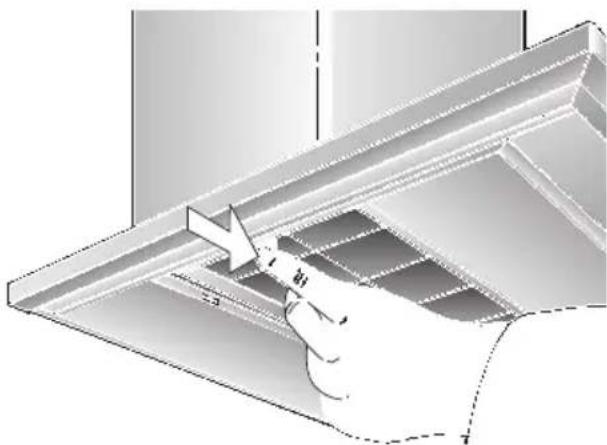

1. Press the catch on the grease filters

inwards and fold the filters down. Filters and maintenance

2. Clean the filters.

3. Insert the clean filters back into the

in the display. ❑ Press the 0 button.20 Saturation indicator: When the activated carbon filter reaches saturation point, an acoustic signal is sounded for 10 seconds after the fan has switched off, and a

appears in the display. The activated carbon filter should be replaced straight away. Removing the filter:

Warning: The halogen bulbs must be

switched off and cool.

1. Remove the metal filters.

2. Press the catches at both sides of the

filter inwards and lift the carbon filter down and out. Filters and maintenance

3. Engage the catches at both sides.

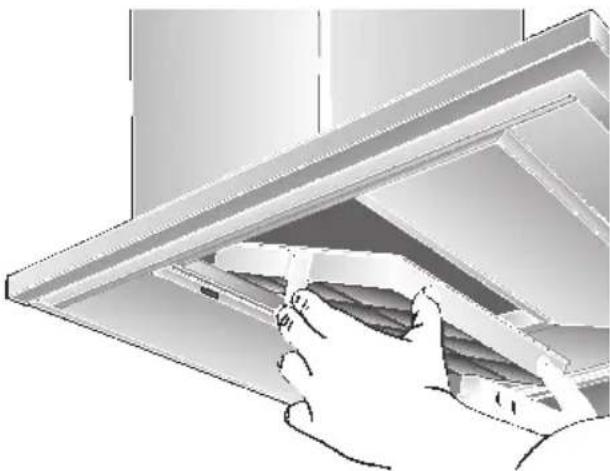

4. Insert the metal grease filters (see

"Removing and inserting the metal grease filters").

in the display. ❑ Press the 0 button.

3. Insert the metal grease filters.

Replacing the activated carbon filter: ❑ A replacement filter can be obtained from any authorized dealer (see optional accessories). ❑ Use original filters only. By doing so you will obtain maximum performance from your extractor hood. Disposing of the old activated carbon filter: ❑ There are no pollutants in the activated carbon filters. They can therefore be disposed of as part of your normal domestic refuse. Activated carbon filter: For neutralizing odours in recirculating mode. Caution: As the filter becomes more and more saturated with grease, there is an increased risk of fire and the function of the extractor hood may be impaired. Important: Change the activated carbon filter promptly to prevent the risk of fire from the accumulation of heat when deep-fat frying or roasting. Inserting the filter:

Warning: The halogen bulbs must be

switched off and cool.

1. Remove the metal filters

(see "Removing and inserting the metal grease filters").

2. Insert the activated carbon filter.21

Cleaning and care Disconnect the extractor hood from the electricity supply by pulling out the mains plug or switching it off at the fuse box. ❑ At the same time as you clean the grease filters, clean off any grease from all accessible parts of the housing. This significantly reduces the fire hazard and ensures that the extractor hood performs as effectively as possible. ❑ Use a hot detergent solution or a mild window cleaner to clean the canopy of the extractor hood. ❑ Do not scrape off any dirt that has dried on but loosen it up with a damp cloth. ❑ Do not use abrasive cleaning agents or sponges that could cause scratches. ❑ Note: Do not use alcohol (spirit) on plastic parts, otherwise the surface may become matt in appearance. Caution: Ensure that the kitchen is ade- quately ventilated. Avoid naked flames! Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons. Stainless steel surfaces: ❑ Use a mild non-abrasive stainless steel cleaner. ❑ Clean the surface in the same direction as it has been ground and polished. Do not use any of the following to clean stainless steel surfaces: abrasive sponges, cleaning agents containing sand, soda, acid or chloride! Aluminium and plastic surfaces: ❑ Use a soft, non-linting window cloth or micro-fibre cloth. ❑ Do not use dry cloths. ❑ Use a mild window cleaning agent. ❑ Do not use aggressive, acidic or caustic cleaners. ❑ Do not use abrasive agents.

4. Re-insert the bulb ring.

5. Plug the appliance into the mains or

switch it on at the fuse box. Note: If the light does not function, check that the bulbs have been inserted correctly. Replacing the light bulbs

1. Switch off the extractor hood and pull

out the mains plug or switch off the electricity supply at the fuse box. When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.

2. Remove the bulb ring with a screwdriver

appears in the display: ❑ See "Filters and maintenance" Section. If is not possible to operate the extractor hood: ❑ Disconnect the extractor hood from the mains electricity supply by pulling out the plug or switching it off at the main fuse box. Wait for approx. 1 minute and then switch it on again. If you have any questions or if a fault occurs, please call Customer Service. (See list of Customer Service representatives). When you call, please quote the following: Setting the saturation indicator If it becomes necessary to change the operating mode (exhaust-air/recirculating mode), the saturation indicator for the filters must also be altered (see Installation Instructions). E-Nr. FD Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.23 Important information Installation Instructions: Additional information concerning gas cookers: When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI). Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer. Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm. Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm, Fig. 1. Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable. You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner. Please ask your dealer or inquire at your local authority about current means of disposal. The extractor hood can be used in exhaust air or circulating air mode. Always mount the extractor hood over the centre of the hob. Minimum distance between electric hob and bottom edge of extractor hood: 550 mm, Fig. 1. The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed. The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.24 Prior to installation The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located. Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations). Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion. Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar). This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air- intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc. If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded. Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens. Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter. If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall. Exhaust-air mode

Prior to installation For optimum extractor hood efficiency:

Short, smooth air exhaust pipe.

As few bends in the pipe as possible.

Diameter of pipe to be as large as possible and no tight bends in pipe. If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

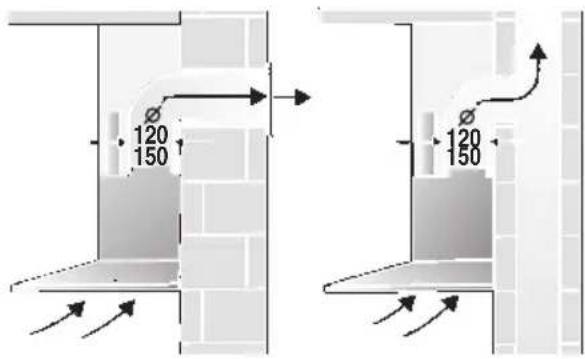

Round pipes: We recommend Internal diameter: 150 mm (at least 120 mm).

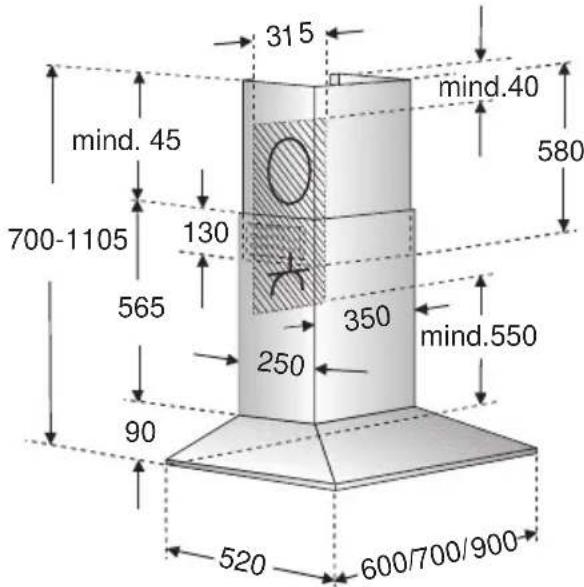

Flat ducts must have an internal cross- section that equates to that of round pipes. There should be no sharp bends. l 120 mm approx. 113 cm

If pipes have different diameters: Insert sealing strip.

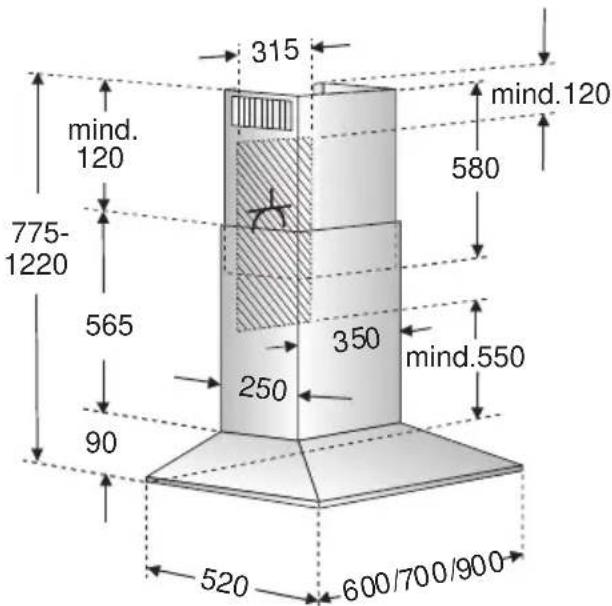

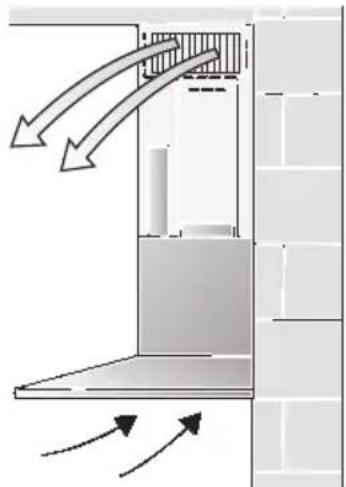

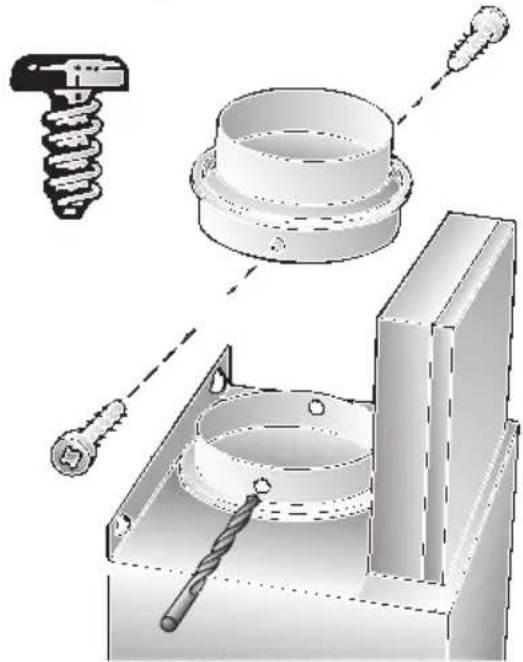

For exhaust-air mode, ensure that there is an adequate supply of fresh air. Circulating-air mode ❑ With activated carbon filter if exhaust-air mode is not possible. ❑ Attach the exhaust-air pipe to the reducing connector. Connecting a l 150 mm exhaust-air pipe:

Mount the pipe directly onto the air outlet on the hood. Connecting a l 120 mm exhaust-air pipe: ❑ Insert the reducing connector into the air connector, drill 2x l 3 mm holes and screw together. The complete installation set can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these opera- ting instructions.

The wall must be flat and perpendicular.

Ensure that the wall is capable of providing a firm hold for mounting screws and plugs. Weight in kg: Changing over from exhaust- air to recirculating mode Changing the electronic control system to recirculating mode:

The standard factory setting is for operation in exhaust-air mode.

To change the mode, the extractor hood must have been connected up and should be switched off.

{ is displayed, press the button until ã is displayed. When this has taken place, release the buttons.

ã goes out shortly afterwards. The electronic control system will then have been set to recirculating mode.

By repeating steps 1 and 2, you can change the electronic control system back to exhaust-air mode ( # in display).

Electrical connection

WARNING: THIS APPLIANCE MUST BE

EARTHED IMPORTANT: Fitting a Different Plug: The wires in the mains lead are coloured in accordance with the following code: Green and Yellow – Earth Blue – Neutral Brown – Live If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals. This is what you have to do:

1. Connect the green and yellow (Earth)

wire to the terminal in the plug marked ‘E’ or with the symbol ( ), or coloured green or green and yellow.

2. Connect the blue (Neutral) wire to the

terminal in the plug marked ‘N’ or coloured black.

3. Connect the brown (Live) wire to the

terminal marked ‘L’, or coloured red. The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations. If possible, site the earthed socket directly behind the chimney panelling. Electrical data: Are to be found on the name plate inside the appliance after removal of the filter frame. Before undertaking any repairs, always disconnect the extractor hood from the electricity supply. Length of the connecting cable: 1.30 m. If it is necessary to wire the extractor hood directly into the mains: The extractor hood should only be connected to the electricity supply by a properly qualified electrician. A separator must be installed in the house- hold circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors. If the connecting cable for this applian- ce is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user. This extractor hood corresponds to EC regulations concerning RF interference suppression.27 Installation Note: Take into account any special accessories that are going to be fitted.

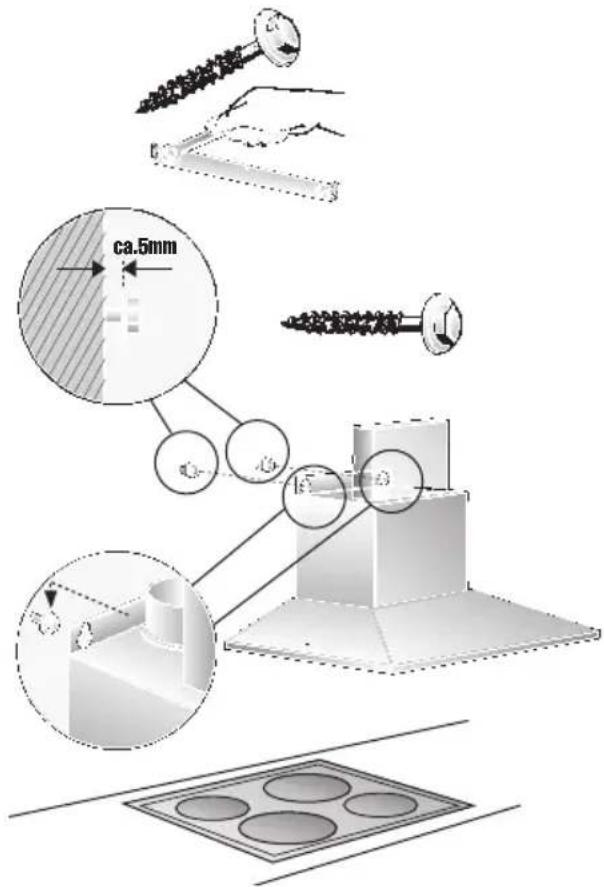

5. Attach the fixing bracket for the

chimney panelling using two hexagon head cap screws.

6. Screw in the two upper hexagon head

cap screws leaving them extended by approx. 5 mm.

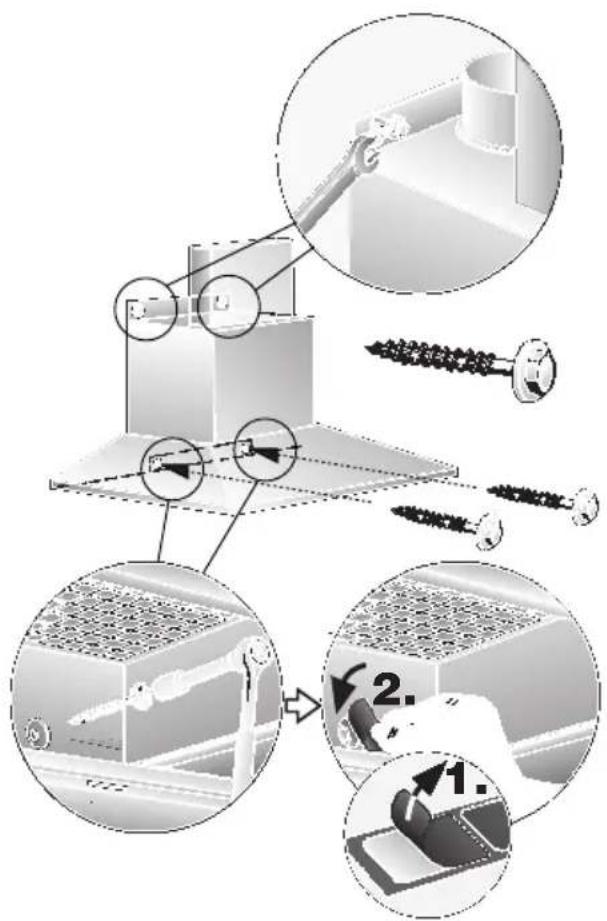

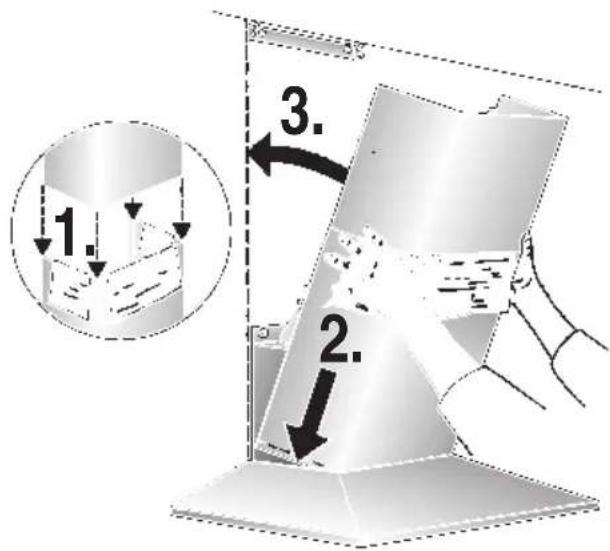

7. Attach the extractor hood to the

screws. ca.5mm This extractor hood is intended to be mounted onto the kitchen wall.

1. Remove the grease filter (refer to

Operating Instructions).

2. Draw a line on the wall from the ceiling

to the lower edge of the hood at the centre of the location where the hood is going to be mounted.

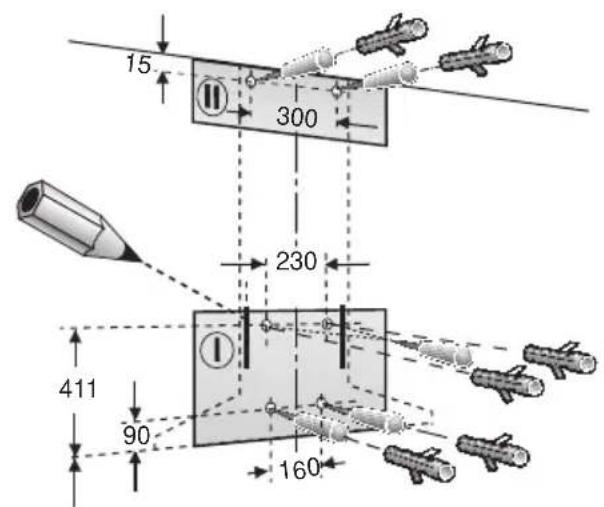

3. Use the template to mark the points on

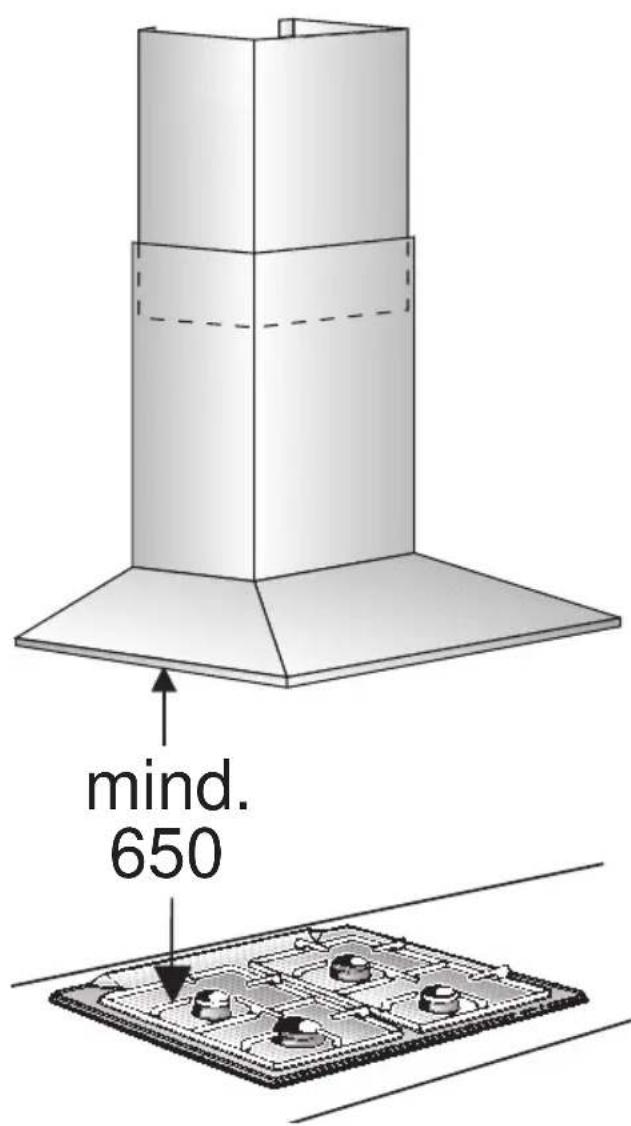

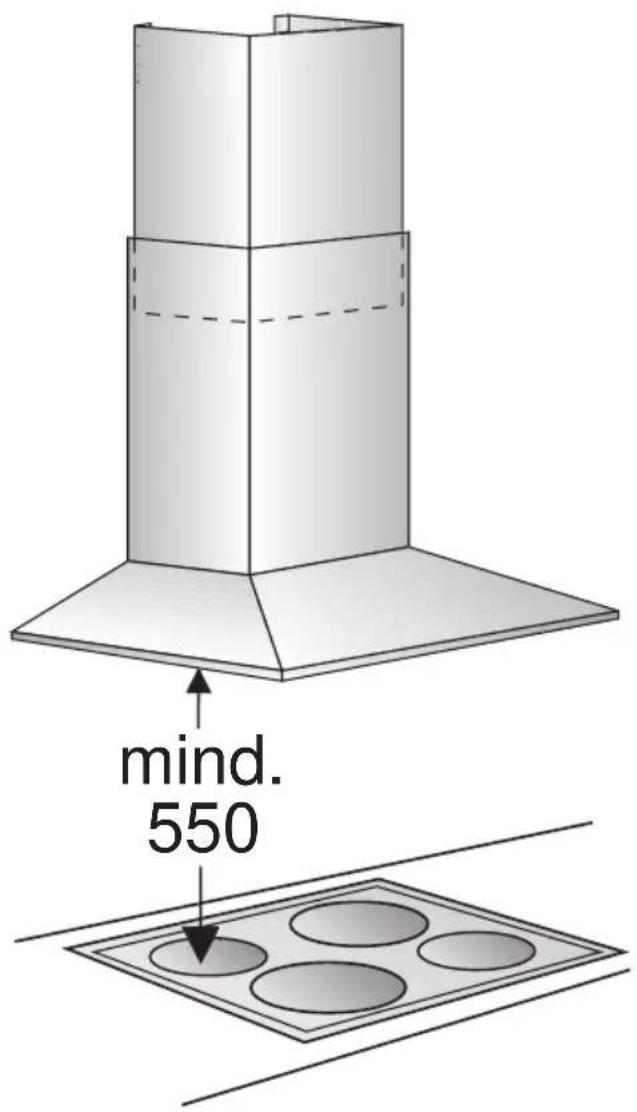

the wall where the screws will be moun- ted. In order to make it easier to hook the hood onto the screws, draw the out- line of the area where the hood will be attached. Ensure that the minimum distance between the hob and the extractor hood is maintained – 550 mm for an electric hob and 650 mm for a gas hob. The bottom edge of the template equates to the lower edge of the extractor hood.

4. Drill 4 x l 8 mm holes for the extractor

hood and 2 x l 8 mm holes for the chimney panelling. Insert plugs into the holes so that they are flush with the wall.

08. Screw in the two lower hexagon head

cap screws. Before the 4 screws are tightened down, align the extractor hood properly.

09. Stick protective film over the holes of

the 2 lower mounting bolts in the protective grid.

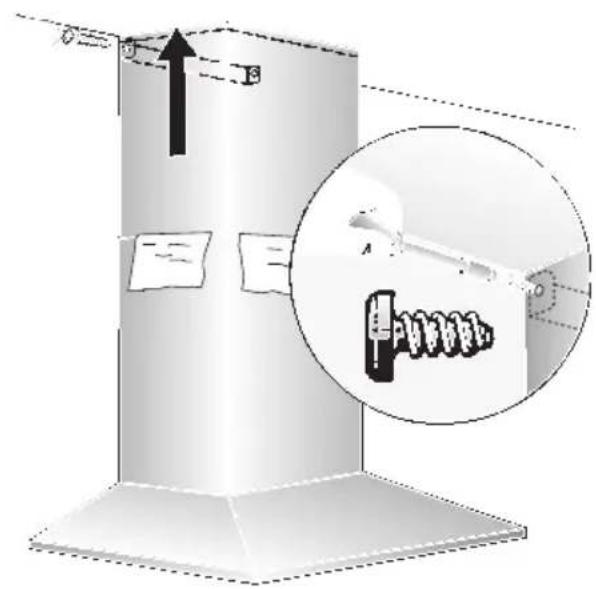

13. Push both sections of the flue panelling

together (slots in the upper section must be pointing downwards) and insert into the opening in the extractor hood. Protect the cover panels from scratches, for example by laying the template used for marking the wall over the top edge of the lower section.

10. Connect up the air outlet pipe.

11. Connect the hood to the electricity

12. Remove the protective film from the

two flue ducts. Take care not to damage the stainless steel surfaces which are susceptible to scratches etc.

15. Insert the grease filter (refer to
