USER MANUAL Media Titan CONCEPTRONIC

Conceptronic Media Titan User Manual Congratulations on the purchase of your Conceptronic Media Recorder & Player. This User Manual gives you a step-by-step explanation how to install and use the Conceptronic Media Recorder & Player. When problems occur, we advise you to go to our support-site (go to www.conceptronic.net and click ‘Support’). Here you will find the Frequently Asked Questions Database. When you have other questions about your product and you cannot find it at our website, you can contact us by e-mail: [e-mail]

For more information about Conceptronic products, please visit the Conceptronic Web Site: www.conceptronic.net

Tip : The Conceptronic Media Titan is firmware upgradable. To upgrade your Media Titan with the latest firmware version, you can visit the Conceptronic Web Site. Tip : Please check www.conceptronic.net for the latest codec list of supported files.

The following items should be present in the package of the Conceptronic Media Recorder & Player:

• Conceptronic Media Titan (described as ‘unit’ or ‘Media Titan’ in the manual). ** The device in the package is 1 of the 2 models listed below: CMT2D [C08-140]: Media Titan with 10/100Mbit ethernet only. CMT2DW [C08-141]: Media Titan with 802.11n wireless and 10/100Mbit ethernet.

• Power supply (12V, 5A).

• 2 AAA batteries for remote control.

• Warranty card & CE declaration booklet. ** In this manual, some features are explained which are only valid for the CMT2DW (with 802.11n wireless). These features are marked with **.ENGLISH

• Leave a space of at least 10 cm around the product’s air intakes in order to allow free circulation of air. Poor ventilation risks damaging the product.

• Do not put your product on a soft surface where it might sink in (bed, sofa, carpet or any other similar surface).

• In order to ensure the stability and correct functioning of your unit, please put it on a rigid and flat surface.

• Environments shut off to the flow of air such as cabinets and closed bookcases are not suitable unless they have appropriate ventilation installed.

• So that each of your devices is suitably ventilated, do not stack them or place them too close to one another, otherwise the devices will mutually transmit heat. Moisture:

• Do not put your unit near any source of water such as a water container, bath, basin, tap, swimming pool, etc., in order to prevent electric shocks or damage to the product.

• In the event that water is accidentally splashed onto the unit, unplug it and contact an approved dealer.

• Do not expose the unit to any conditions of extreme humidity. Sunshine / Heat:

• Do not put your product near any source of heat: direct sun, radiator, fireplace or any other similar source of heat. Do not put any source of heat on or near the unit (candle, ashtray, incense, etc.).

• The unit has been designed to function in environments where the temperature is not extreme. Excessively high or low temperatures are to be avoided. Connecting to the electricity supply:

• Put the unit near an easily accessible A/C electrical socket. The rear of the product should be clear in order to have easy access for connections.

• The unit must only be powered by the external power supply provided. You must not under any circumstances try to operate the unit using another power supply.

• Using an external power supply other than the one supplied with the product might damage or cause the latter to malfunction.

• To turn off the power supply, unplug the unit from the wall socket.

• Please connect the unit’s cables and the power supply with care. Position the cables so they do not obstruct movement to avoid them being trodden on or tripped over.

• Please ensure that nothing is put on the cables.

• Please make a regular visual check of the cables to make sure that they are in good condition.

• During a storm, or when you are away or not using your unit for a long period of time, unplug the power supply, antenna and network cables. Taking this precaution, will prevent the unit from being damaged by lightning or surges. General Recommendations:

• Do not insert any metallic object into the unit’s openings.

• Only a qualified technician is authorised to open the unit’s housing.

• To maintain the product, clean any dust which has settled on the air vents using a dry, clean cloth, having first unplugged the product.

• If the unit is not working normally, particularly if it is giving off a smell or making strange sounds, unplug it immediately and contact a dealer or approved repair centre.ENGLISH

= Off Status description LED 1 LED 2 LED 3 Connected to the computer Formatting / Installation in progress

Unit is in standby or unit is starting up Remote control activity

Recording in progress The unit is turned on

During the reinitialisation of the Media Titan, the blue indicator will be continuously lit whilst holding down the “reset” button, then will remain continuous during starting up. If the “reset” button is held down for at least 5 seconds, the 3 indicator lights will flash rapidly and simultaneously. Warning! If you keep the “reset” button held down for 5 seconds more (being 10 seconds in total), the product will be totally reformatted. All your data on the Harddisk will be erased!

• Blue light: lit when pressing RESET

• After 5 seconds of holding down RESET: the green, blue and red lights will flash.

• After 10 seconds. The green light will flash during the installation process.ENGLISH

The remote control is used to control the unit. On the inside cover of this manual you will find a picture of the remote control. The numbers of the buttons correspond with the table below, to explain each function of the remote control. Nr Button Description

1. WHEEL Navigate through the menus

6. VOLUME - Decrease the volume

7. STANDBY Turn the unit on or to standby mode

8. VOLUME + Increase the volume

9. MUTE Mute / unmute the sound

10. STOP Stop playback / Stop recording

11. HAND Display the action menu

12. NAVIGATOR Switch between ‘Player’ mode and ‘Navigator’ mode

The ‘Wheel’ is the most important key of the remote control and has multiple usage functions:

• You can rotate the wheel to navigate through the menus or adjust playback settings.

• You can press the wheel to confirm a selection, start playback or pause playback.

• You can press the corners of the wheel ( , , , ) to go left, right, up or down.ENGLISH

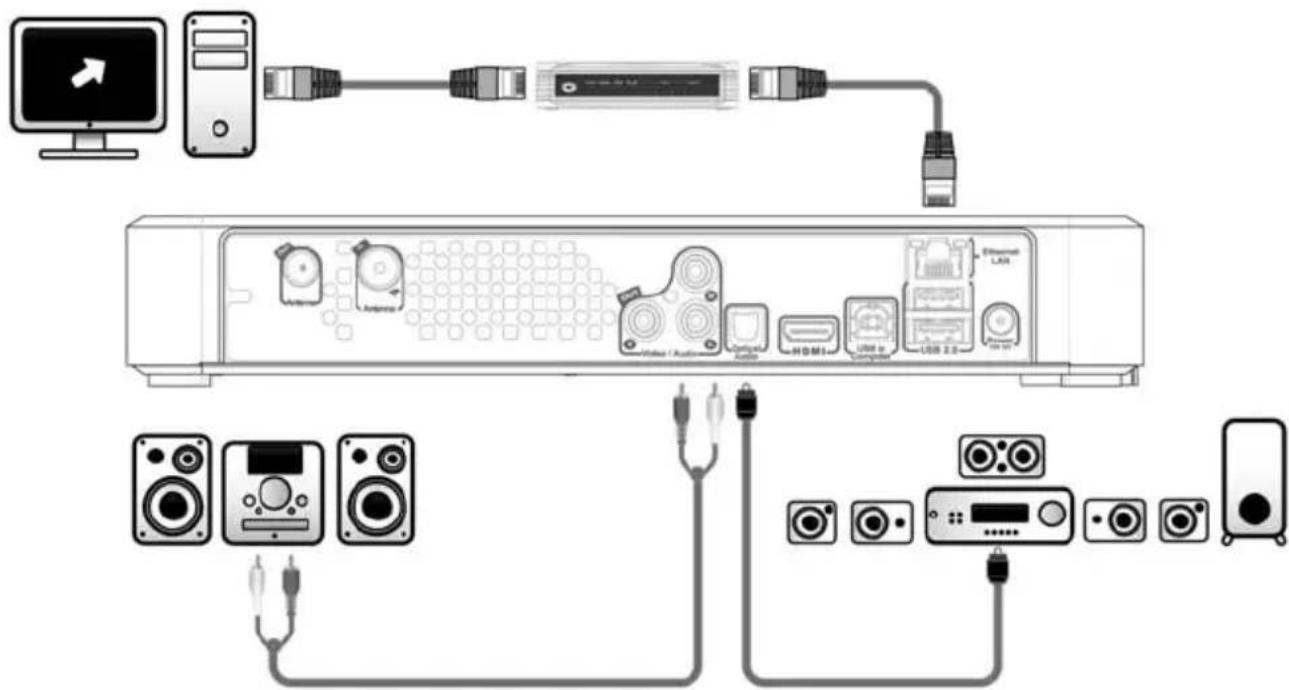

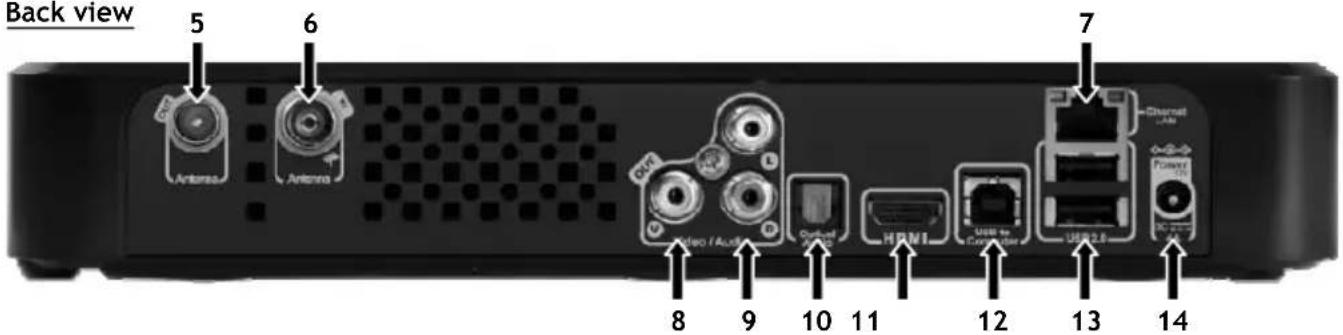

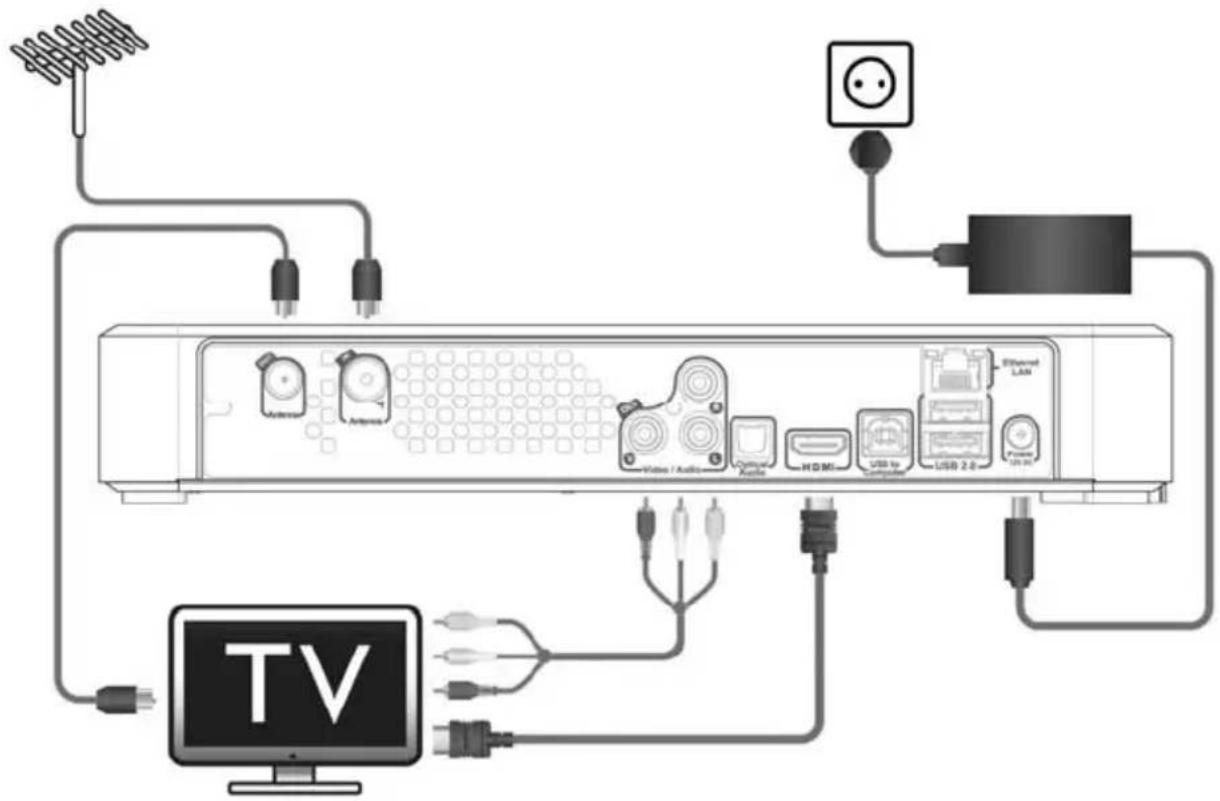

5. Connecting the Media Titan

In order to use the Media Titan, you need to connect it to your TV and DVB-T antenna. Antenna: - Connect your DVB-T antenna to the ‘Antenna in’ [6] of the Media Titan. - In case your TV is equipped with a DVB-T tuner, connect a RF antenna cable to the ‘Antenna out’ [5] of the Media Titan and to the Antenna in of your TV. TV: You can connect the Media Titan to your TV by HDMI or composite. In order to experience HD quality, you need to use the HDMI output of the Media Titan. - Connect the HDMI cable to the ‘HDMI output’ [11] of the Media Titan and to the HDMI input of your TV. When your TV is not equipped with HDMI, you can use the composite output of the Media Titan. - Connect the composite cable to the ‘Composite video output’ [8] and the ‘Stereo audio output’ [9] of the Media Titan and to the composite input of your TV. Power supply: When the Media Titan is connected to your antenna and your TV, you can connect the power supply. - Connect the power cable to the power supply and to a free wall outlet. - Connect the power supply to the ‘DC input’ [14] of the Media Titan. The Media Titan will automatically startup.ENGLISH

Analog audio: You can connect the Media Titan to your receiver to hear the sound of the Media Titan through your speaker system. - Connect the red and white connectors of the composite cable to the ‘Stereo audio output’ [9] of the Media Titan and to the audio input of your receiver.

Digital audio: To experience digital surround sound, you can connect the Media Titan digitally to your receiver. - Connect an optical cable to the ‘Digital optical audio output’ [10] of the Media Titan and to the optical input of your receiver.

Network: In order to use the network functions of the Media Titan, you need to connect it to your switch or router. - Connect a RJ45 network cable to the ‘Network connection’ [7] of the Media Titan and to a free RJ45 LAN port on your router or switch. ** When you have the Media Titan with 802.11n wireless, you can also connect to your wireless network. See chapter 14 how you can connect to your wireless network.ENGLISH

6. First-Time Configuration

The Media Titan needs to be configured when you turn it on the first time.

• Select the correct input channel on your TV where the unit is connected to. (HDMI, or Composite). Note: From this point, the manual is based on the fact that your TV is set to the input channel of the Media Titan. All steps described are related to the operation of the Media Titan. Connect the power supply to the Media Titan if you have not connected it in chapter 5.1. The Media Titan will now startup. Note : During the startup procedure of the Media Titan, the screen can stay black. During this procedure, the blue LED on the front of the Media Titan will burn. When the LED turns off, the loading screen will appear on the Media Titan.

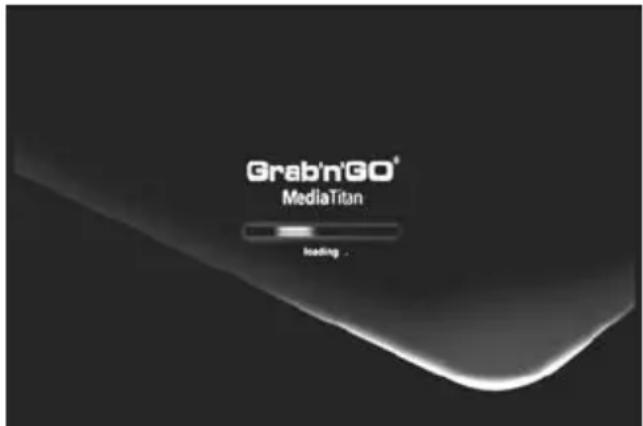

[ Loading ] [ Setup Wizard ] Note : The total loading process can take up to 90 seconds. When the loading screen disappears, the initial setup wizard will be shown on your screen. You can make selections in the setup wizard by scrolling the wheel or by pressing up or down on the navigation wheel. You can confirm your selection by pressing the wheel.

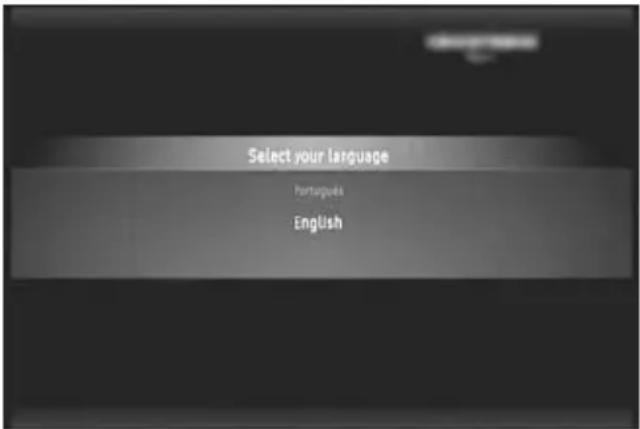

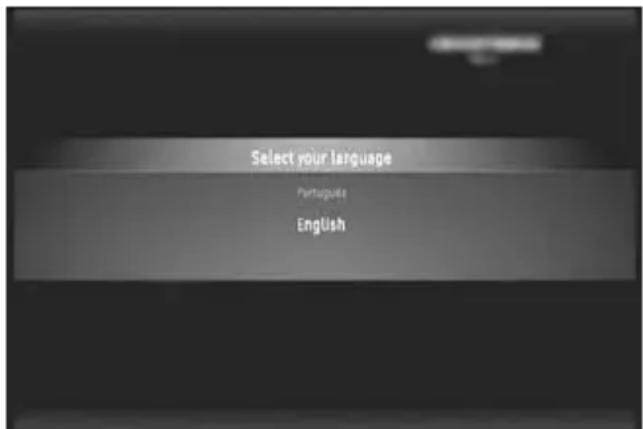

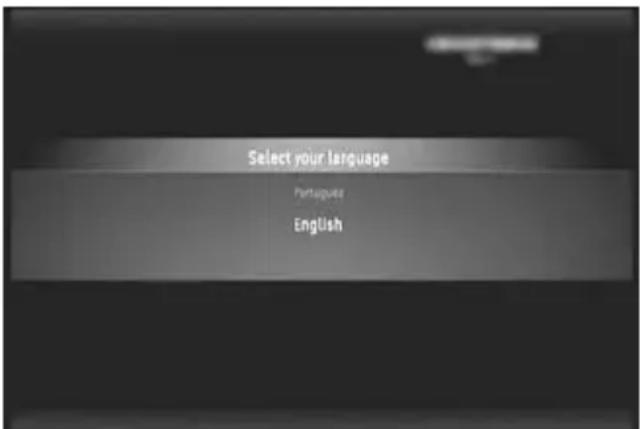

• Select your language.

• Select your country.

• Select your timezone.

• Enter the current date and time. You can switch between the fields on your screen by pressing left and right on the wheel.

• Select your TV aspect ratio.

• Enable or disable parental control.

• If you have enabled parental control, select your parental rating.

• Set a secret access code.

• Enter a secret question, in case you have forgotten the secret access code.

• Enter the answer to your secret question. The initial setup is now complete and the Media Titan will show the Main Menu on your screen. You can now proceed with chapter 7 for the basic Media Titan operation.ENGLISH

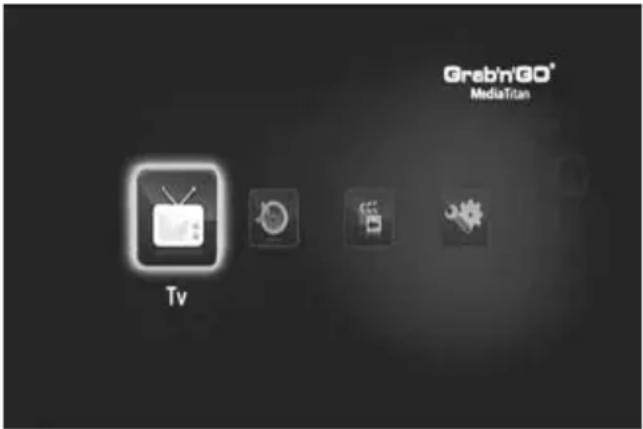

When the Media Titan is turned on and the initial setup wizard is completed, the Main Menu will appear on your screen. [ Main Menu ] The Main Menu is separated in 4 sections: TV Watch TV, organise recordings and view the electronic program guide.

Go to chapter 8 for more details on this section. Music Listen to music and make playlists. This section brings together all the audio files.

Go to chapter 9 for more details on this section. Video/Photo Watch your TV program recordings, create a photos slide show, watch your video camera recordings, etc. Access all image or video files in this section.

Go to chapter 10 for more details on this section. Setup View or modify the settings of the Media Titan.

Go to chapter 11 for more details on this section. Note : A section always includes a navigator mode and a player mode:

• The Navigator is used to select the media or the TV Channel.

• The player lets you watch/listen to the selected media. You can access the navigator mode during playback by pressing the ‘Navigator’ button on the remote control. Generic buttons The following buttons have generic functions, no matter which section of the Media Titan is selected: Button Description Return to Main Menu In Player mode, displays the Navigator In Navigator mode, displays the Player if running Displays available options / actions Mute Decrease volume Increase volume Turn the unit on or to standby mode If you do not use the Media Titan for a period of time, a screen saver will start. To exit screen saver mode, press any button on the remote control.ENGLISH

In the TV section of the Media Titan, you can watch TV, organise recordings and view the EPG guide.

8.1 TV channel setup

The first time you select the ‘TV’ section, the Media Titan will scan for available DVB-T channels in your area. In the top of the screen, you will see a progress bar indicating the scan progress. Below the progress bar, the found channels are listed.

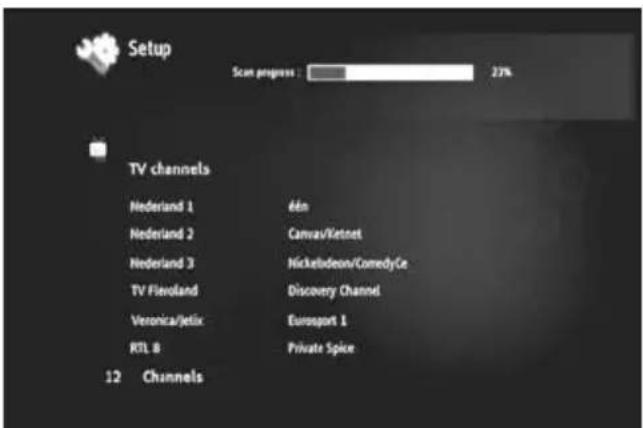

[ TV – Channel Scan in progress ]

Note : If no channels are found, check that your antenna is plugged in. When the scan is complete, you will receive a notification popup. Click the navigation wheel to continue.

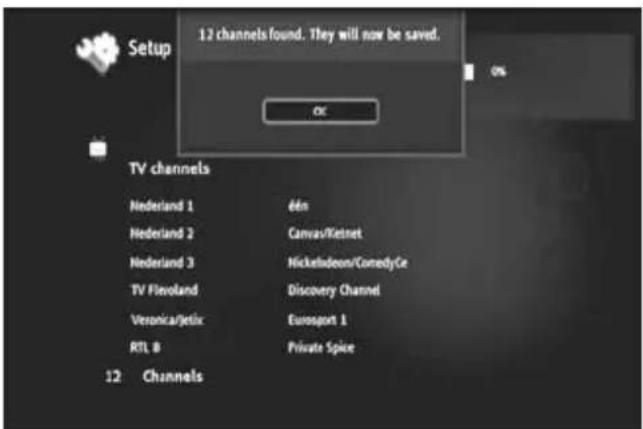

[ TV – Channel Scan complete ]

Tip : If you want to scan again for channels, use the channel scan option in the Setup section, explained in chapter 11.ENGLISH

8.2 The TV section explained

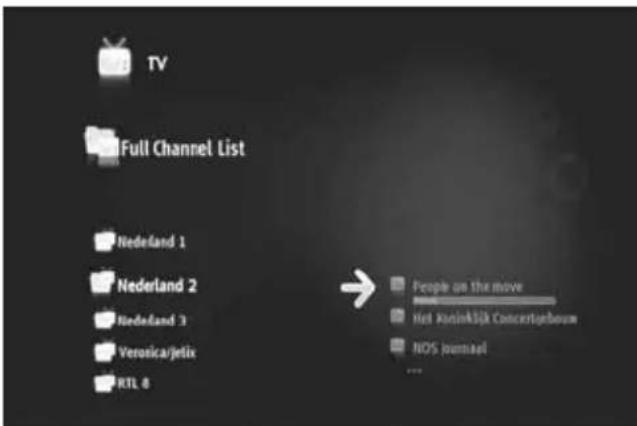

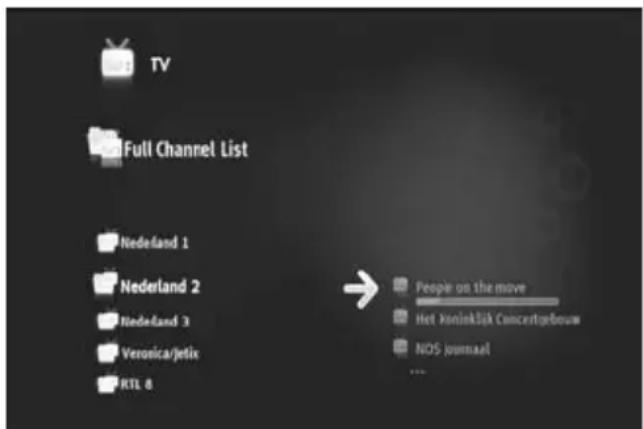

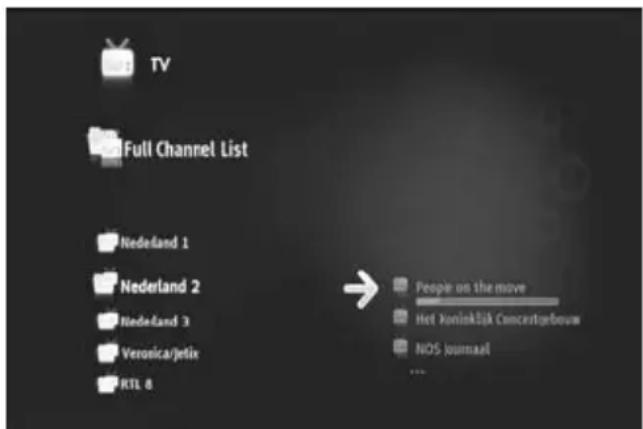

The TV section is organised in 2 parts: the TV player and the TV navigator. You can switch between the 2 parts with the Navigator button ( ) on the remote control.

• access the Electronic Program Guide (EPG) guide Use the TV Navigator to:

• display the list of available channels

• obtain information on programs present or future

• display programs on other channels without zapping

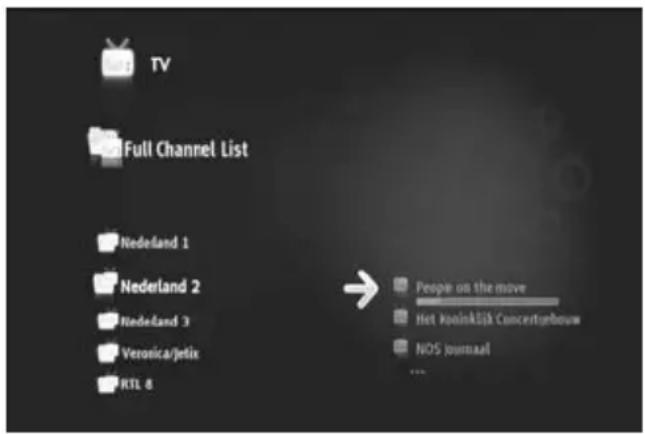

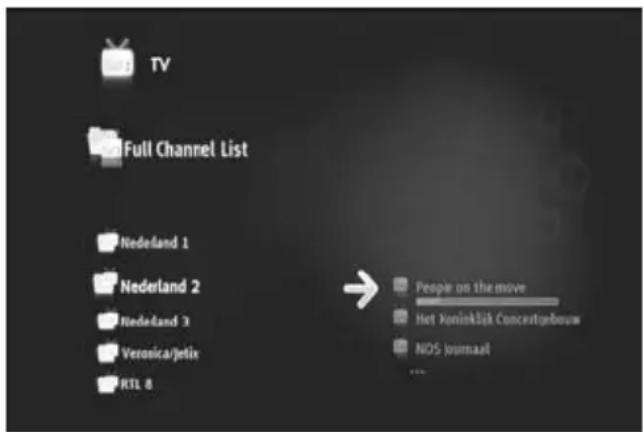

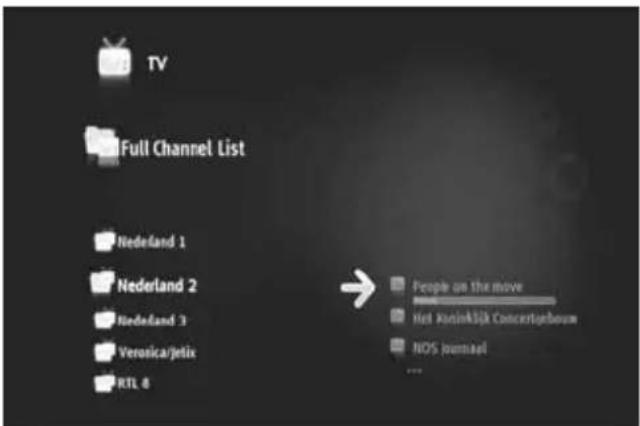

• Display the directory including: o the list of all scanned channels o the user list of favorite channels o the folder « My programd recordings » Press up or down on the wheel ( , ) of the remote control to zap from channel to channel Direct access to a specific channel o Switch to the TV navigator o Select the channel by navigating in the list of channels and press the wheel on the remote control. The remote control has specific buttons for the TV section. Button Player Mode Navigator Mode

Previous/ Following Channel Previous/Following Item Return/Forward Exit/Enter Selected File Play/ Pause Fast Rewind/ Fast Forward Previous/Following Item No Action Program a recording/change recording time Program a recording from the Program Guide Stop Recording No Action Display Information Box Display details of selected ItemENGLISH

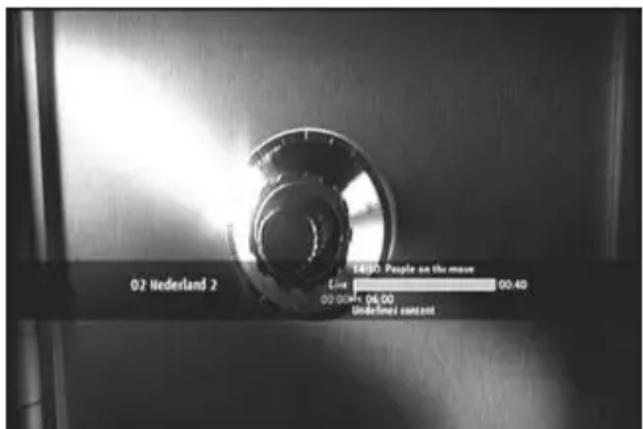

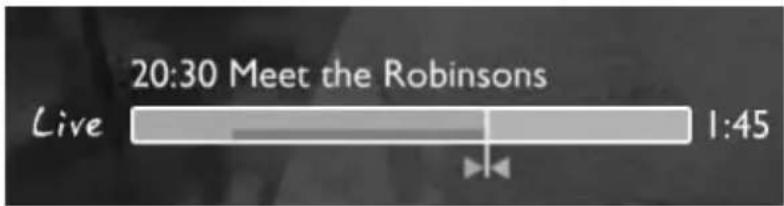

When you switch channels, the TV info bar is shown on your screen for 5 seconds and gives you the following information:

The options available for the TV info bar are displayed as icons in front of the info bar. The following options are possible: Icon Description You are watching live TV You are watching a TV program at a later time You are recording Fast forward/fast rewind during a program Program broadcasted in High Definition Program broadcasted in 16/9 format Encoded Channel. A subscription is necessary Several soundtrack languages are available. Press the button to choose Several subtitle languages are available. Press the button to choose The program has Deaf and Hard of Hearing subtitles. Audiovision : soundtrack for the Blind and Partially Sighted. Subtitles adapted for the Deaf and Hard of Hearing Each program has been examined by the TV Channel so that if you respect the notification you will protect your children. The soundtrack is in Home Cinema format. Tip : To see the info bar again, press the button on the remote control. In the TV info bar, you will see the EPG (COLOUR) and timeshift (COLOUR) progress bar. The EPG bar shows when a program is started and how long the program is already being broadcasted on the TV (elapsed time, pending time). The timeshift bar starts at the point you changed to the current channel and shows the recorded timeshift buffer. The timeshift buffer allows you to ‘pauze’ the channel and continue on a later time. When a channel is ‘pauzed’, the Media Titan will continue recording in the timeshift buffer on the background. Note : If you change channels, the timeshift buffer is erased and starts over on the new channel.ENGLISH

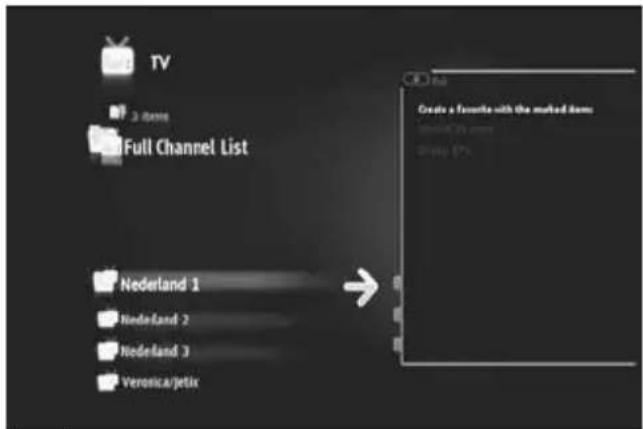

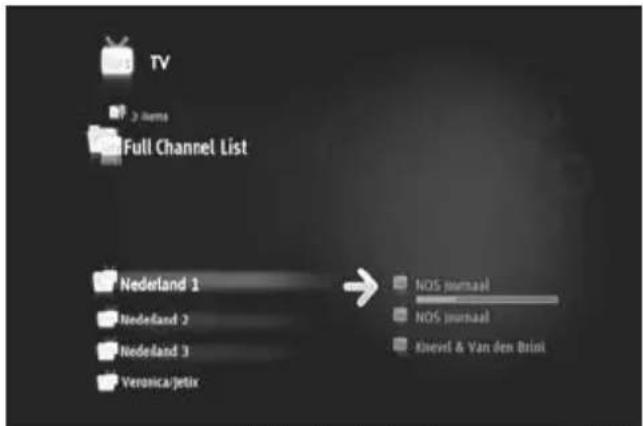

8.4 Creating a favorite channels list

You can create a favorite channels list in the memory of the Media Titan. This feature is added to:

• Organise the channels after a scan

• Decide in which order the channels should appear

• Group together channels by themes (sports, children, news, etc.)

• Avoid channels not covered by the subscription To create a list of favorite channels, follow the next steps:

• Press the (navigator) button on the remote control.

• Use the (marker) button to mark your favorite channels in the list.

• Press the (hand) button to open the options menu and select “Create a favorite channels with marked items”.

• Give your favorite list a name.ENGLISH

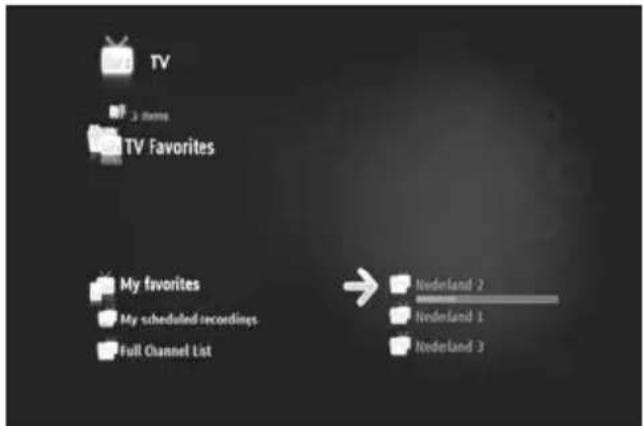

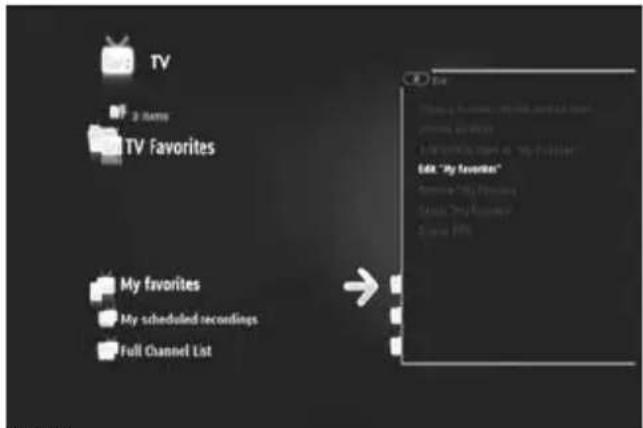

8.5 Modifying a favorite channel list

To modify a list with favorite channels, follow the next steps:

• Select the list you want to modify.

• modify the order of channels in the list: o Press to shift the selected channel to the right in order to move it. o Press or to move the selected channel in the list. o Press to put the channel in the desired location in the list. To delete channels from a list with favorite channels, select the channel to be deleted from this list and press

Note : When you delete a favorite channels list, the channels included in the list are not deleted. They are always available in the « full channel list » The « full channel list » and its channels cannot be deleted. To add channels to a existing list of favourite channels, follow the next steps:

• Select the channels you wish to add with the (marker) button.

• Go to the favourite list where you want to add the channels.

• Press the (hand) button to open the options menu and select “add marked items to...”.ENGLISH

The Media Titan receives the EPG guide through the built-in DVB-T tuner. You can use the EPG guide to:

• Get all the information concerning present and future programs.

• Organise recordings 7 days in advance by simply pressing a button. The EPG information is displayed in various forms depending on where you are in the TV section:

• In TV Player mode: the TV info bar contains information on the program being shown.

• In Navigator mode: when you select a channel, the current and next programm on that channel are displayed.

• In the EPG guide, the next 7 days’ TV programs are displayed. To display the EPG guide, press the (hand) button to open the options menu and select “Display EPG”. The EPG guide will be shown on your screen.

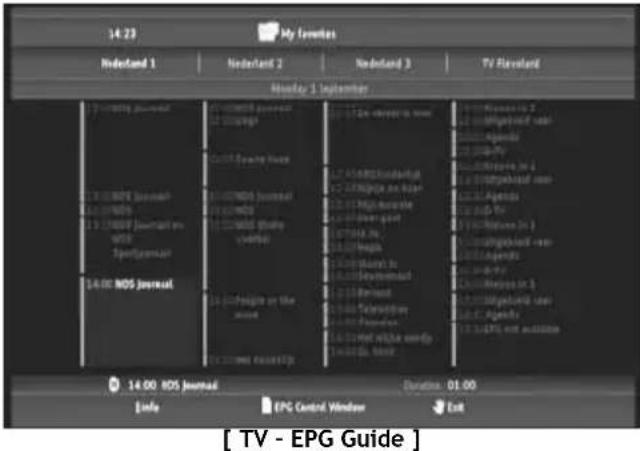

[ TV – EPG Guide ] You can navigate through the EPG guide with the , , , buttons on the remote control. Press the (info) button to see detailed program information. Press the (navigator) button to select search criteria. Press the (record) button to set the selected program for recording. Press the (hand) button to exit the EPG guide.ENGLISH

8.7 Recording your favorite TV programs

You can record TV programs on the Media Titan in 3 different ways:

• Schedule a recording in the EPG Guide.

• Manually schedule a recording. Note : You cannot make two recordings at the same time. This feature will be available in a later firmware version. Note : A scheduled recording has priority to an instant recording. The instant recording will be automatically stopped when the scheduled recording starts.

You are watching TV and you want to record the program you are watching.

• Press the (record) button on the remote control. The Media Titan starts recording. In the upper right corner of the screen, the Media Titan shows the default recording length (3:00h).

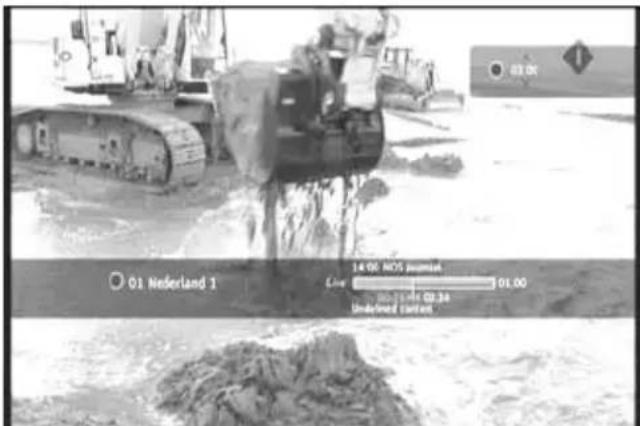

[ TV – Instant Recording ]

• Press the , buttons to increase or decrease the default recording time with steps of 30 minutes. After a few seconds, the recording indicator on the screen will disappear. If you want to modify the recording length while the recording is already in progress, you can press the (record) button again. The remaining recording time will be displayed in the upper right corner and can be adjusted with the , buttons.ENGLISH

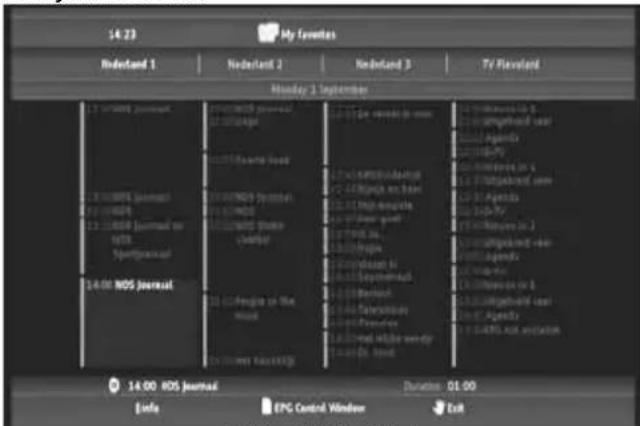

Schedule a recording in the EPG Guide

Scheduling a recording in the EPG guide allows you to schedule recordings for the next 7 days. Note : The availability of the EPG guide depends on your country.

• Press the (hand) button to open the options menu and select “Display EPG”. The EPG guide will be shown on your screen. [ TV – EPG Guide ]

• Select the program you want to record in the EPG guide and press the (record) button to set the selected program for recording.

• Press the (hand) button to exit the EPG guide.

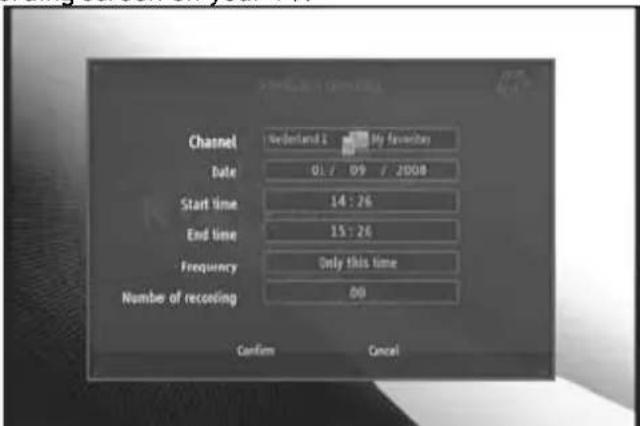

Manually schedule a recording

The option to manually schedule a recording is very usefull if you want to schedule programs which are shown every day, every week, etc.

• Press the (hand) button to open the options menu and select “Program a recording”. You will see the manual recording screen on your TV: [ TV – Manual Recording ]

• Select from which list you want to select a channel.

• Select from which channel you want to record.

• Set the Recording Date.

• Set the Start and End times.

• Set the recording frequency: daily, weekly or monthly.

• Set how many times you want to record this program.ENGLISH

• Confirm the recording by selecting ‘Confirm’.

• Enter a name for the scheduled recording and select ‘OK’ to confirm. The scheduled recording will be stored in the ‘My scheduled recordings’ list.

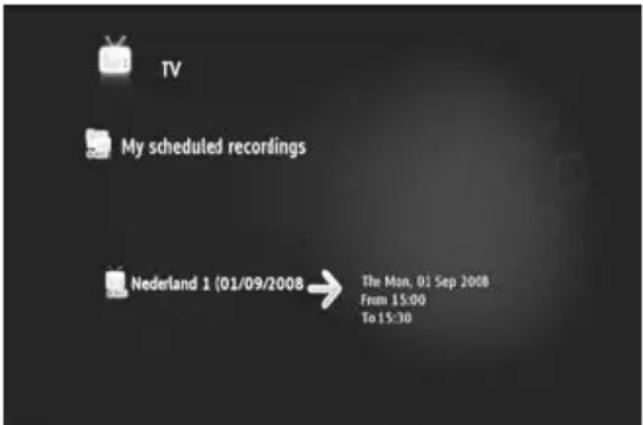

[ TV – My Scheduled Recordings ] To view your scheduled recordings, press the (navigator) button to open the TV Nagivator. Press the button to exit the full channel list and select “My Scheduled Recordings”. Here you can find your scheduled records. Tip : If you have set a scheduled recording to be repeated several times, you can deactivate it to prevent the next automatic recording. Select the scheduled record from the ‘My Scheduled Recordings’ list, press the and set the ‘Activation’ option to ‘Inactive’.

All recordings (instant or programmed) are stored in the ‘My Recordings’ folder on the Harddisk, which can be accessed through the Video/Photo section of the Media Titan, described in chapter 10 of this manual.ENGLISH

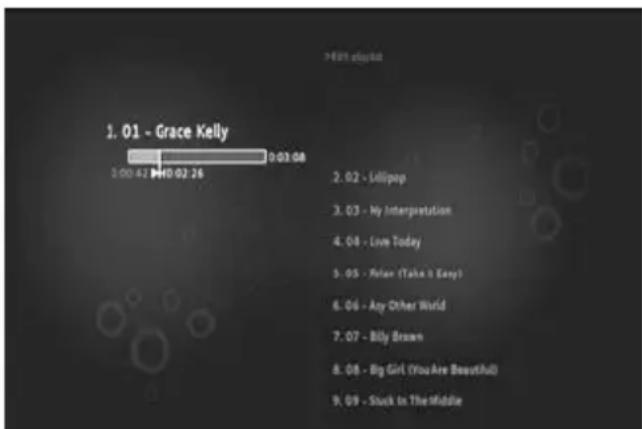

In the Music section of the Media Titan, you can listen to your music and create your own playlists. Note : In the Music section, you can only see music files on your Harddisk, USB drive or UPnP AV network share. The Music section is organised in 2 parts: the Music player and the Music navigator. You can switch between the 2 parts with the Navigator button ( ) on the remote control.

You can use the Music Player to listen to music files You can use the Music Navigator to:

• display the list of music available

• List / view playlists

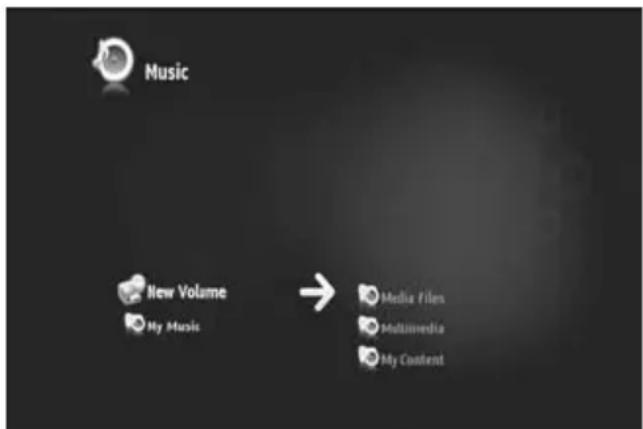

• List / view different directories : o external USB devices o UPnP o My Music The remote control has specific buttons for the Music section. Button Player Mode Navigator Mode

Previous/Next track Previous/Next item Display or hide the list of tracks being played Exit/Enter selected item Play/ Pause Read selected item Fast Rewind/ Fast Forward Previous/Next item No Action Add/ Remove marked item to Marker List No Action Stop Play and Return to Navigator No Action No action Display details of selected ItemENGLISH

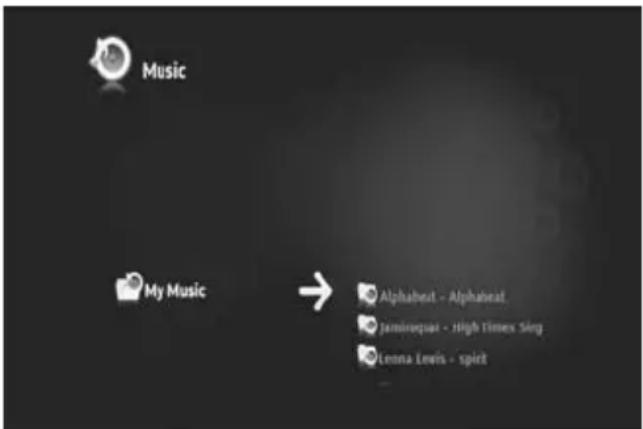

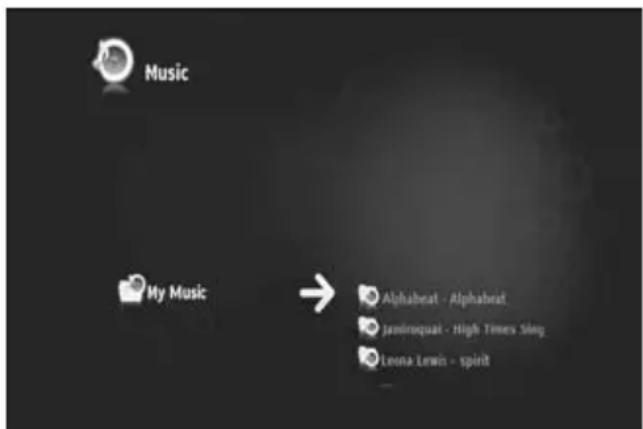

When you select the Music section in the Main Menu, the Music Navigator is shown on your screen. In the left row, you can see the source or folder list. In the right row, you will see a preview of the files or folders in the currently highlighted source.

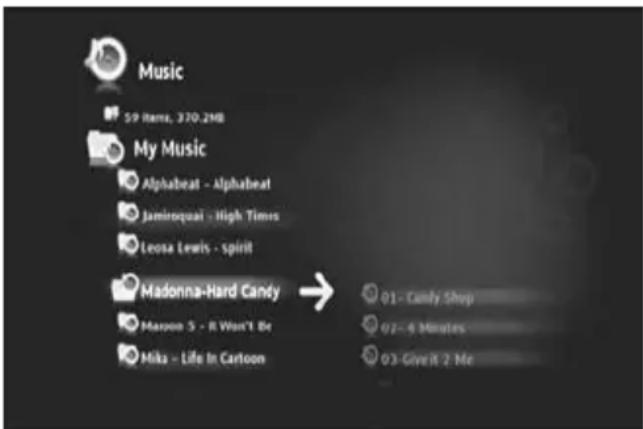

[ Music - Navigator ] You can browse through the files or folders with the , , , buttons on the remote control, or by scrolling the wheel. To open a folder and browse its contents, press the button. To return to the previous folder, press the button. To play a music file, select it in the file list and press the wheel to start the playback of the current file.

9.2 Create a playlist

Creating a Playlist allows you to make your own compilation for each situation. To create a playlist, follow the steps below:

• Mark the tracks you want to add to your playlist with the (marker) button. The Navigator will show the amount of marked files in the upper left corner of the screen.

• Press the (hand) button to open the options menu and select “Create a playlist with the marked items”.

• Give your playlist a name and select ‘OK’ to save the playlist. Your Playlist is now created and saved in the root of the folder where you started creating the playlist.

Note : The files in the playlist are added in the order in which they were selected. Tip : You can even add files to your playlist which are stored on your external USB device.ENGLISH

9.3 Modify your playlist

Adding a file to the playlist

To add a song to an existing playlist, follow the steps below:

• Mark the tracks you want to add to your playlist with the (marker) button.

• Select the playlist where you want to add the songs to.

• Press the (hand) button to open the options menu and select “Add marked items to the playlist”.

Changing the playback order of the playlist

You can change the playback order of the playlist.

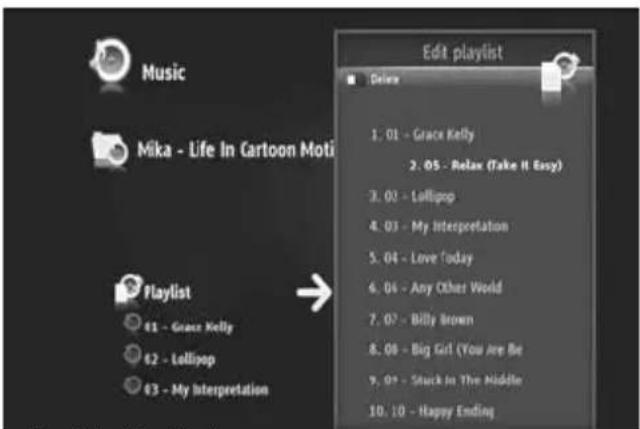

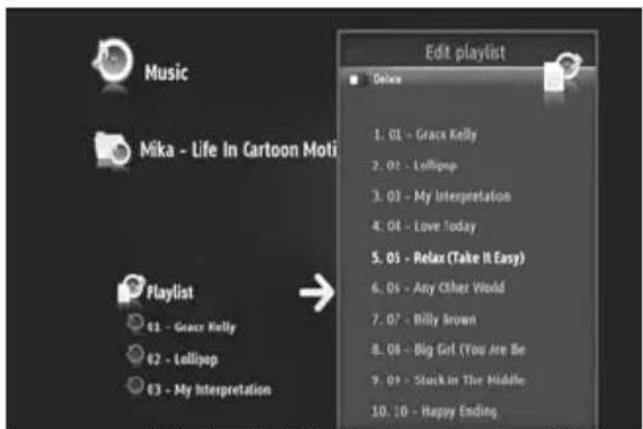

[ Music – Edit Playlist ] [ Music – Move Track In Playlist ]

• Select the playlist where you want to change the order of.

• Press the button to edit the playlist order. o Select the track you want to assign a different location in the playlist. o Press to shift the selected track to the right in order to move it. o Press or to move the selected track in the list. o Press to put the track in the desired location in the list.

• Press to exit the playlist. The modifications are automatically saved.ENGLISH

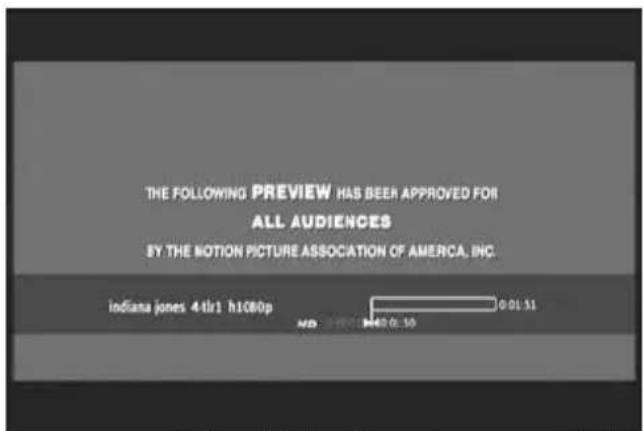

In the Video/Photo section of the Media Titan, you can watch (High Definition) movies, watch your recordings of TV programs, show your family and friends your holiday photos, etc. Note : In the Video/Photo section, you can only see video and photo files on your Harddisk, USB drive or UPnP AV network share. The Video/Photo section is organised in 2 parts: the Video/Photo player and the Video/Photo navigator. You can switch between the 2 parts with the Navigator button ( ) on the remote control.

[ Video/Photo - Player ] [ Video/Photo - Navigator ] You can use the Video/photo Player to look at your photos and watch your videos. You can use the Video/photo Navigator to:

• access the library of all your photos and videos, stored on the Media Titan or on external peripherals

• consult different directories : o external USB devices o UPnP o My photos o My recordings o My videos The remote control has specific buttons for the Music section. Button Player Mode Navigator Mode

Previous/Next file Previous/Next item Video : Skip Back/Forward Exit/Enter selected item Play/ Pause Read selected item Fast Rewind/ Fast Forward Previous/Next item No Action Add/ Remove marked item to Marker List No Action Stop Play and Return to Navigator No Action Display Information Box Display details of selected ItemENGLISH

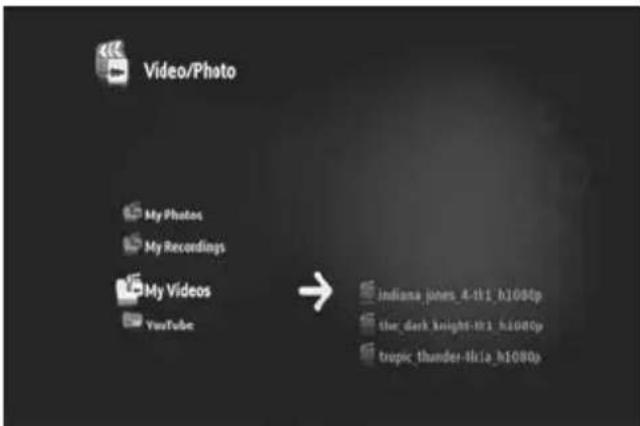

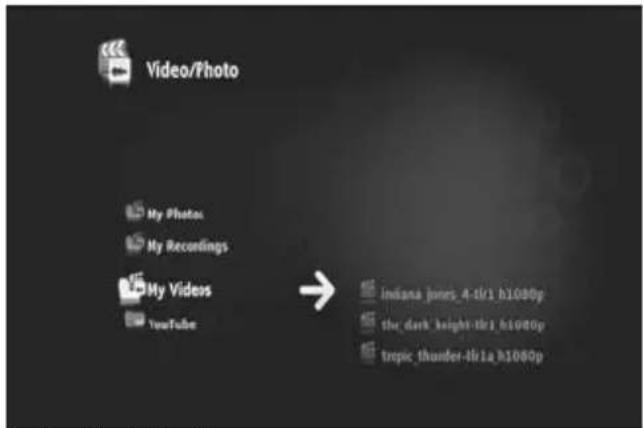

When you select the Video/Photo section in the Main Menu, the Video/Photo Navigator is shown on your screen. In the left row, you can see the source or folder list. In the right row, you will see a preview of the files or folders in the currently highlighted source.

[ Video/Photo - Navigator ] You can browse through the files or folders with the , , , buttons on the remote control, or by scrolling the wheel. To open a folder and browse its contents, press the button. To return to the previous folder, press the button. To play a video or photo file, select it in the file list and press the wheel to start the playback of the current file.

10.2 Watching your TV recordings

In the Video/Photo Navigator, your TV recordings are stored in the ‘My Recordings’. From that folder, you can play your recordings.

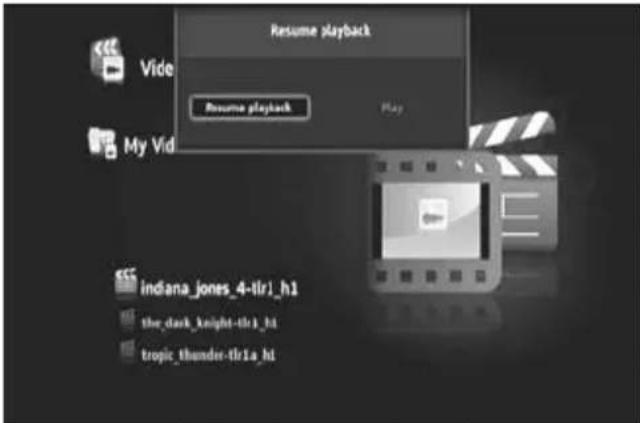

When you press the (stop) button on the remote control, the video playback is stopped. The Media Titan will remember where you stopped the video and stores this in the database. When you want to watch the movie again and start the playback, the Media Titan will ask you “Resume Playback” or “Play”. [ Video/Photo - Navigator ]ENGLISH

The Setup section of the Media Titan allows you to change the configuration options of the unit. The Setup section is splitted into different sections: Top section: Showing the date and time, free Harddisk space, type of network connection and TV output resolution of the Media Titan. Group section: Showing the different setup groups of the Media Titan. Settings section: Showing the different configuration options and the chosen settings.

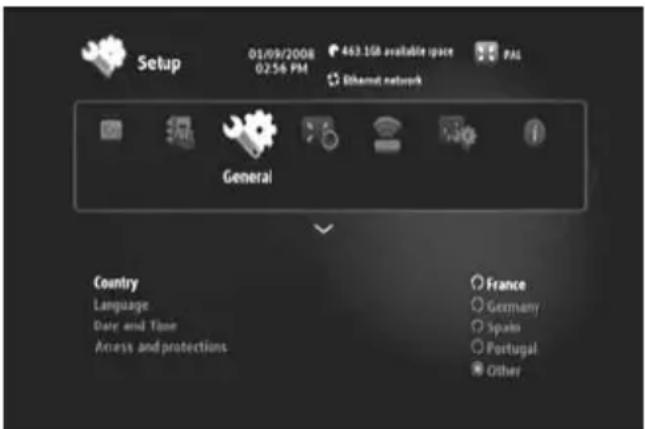

[ Setup Section ] To adjust a setting in the Setup section, you first need to select the group in the group section.

• Use the and buttons on the remote control to select a group. The settings bar will change automatically, according to the active group.

• Press the button to switch to the settings section.

• Press the , buttons to select a setting in the settings section.

• Press the button to list the available options for the selected setting.

• Press the , buttons to choose an option for the selected setting and press the wheel to confirm the setting.

Each group has its own settings. Below you will find the group list with the available settings for each group.ENGLISH

• Time record margins Set the amount of extra recording time just before and just after the program so that you do not miss the beginning or the end.

• Channel search Choose between scanning only free channels, or free and pay channels and start a new channel scan.

• External antenna When an internal antenna is used, the Media Titan will boost the reception of the antenna to find more channels.

• Country Set your country.

• Language Set your language.

• Date and Time Set the correct date and time, or set it to automatic to receive the correct date and time through the DVB-T signal.

• Access and protections Enable or disable parental protection.

• HDMI sound Enable or disable sound through HDMI.

• Automatic Framerate Enable or disable Automatic Framerate for video playback.

• SPDIF sound Set SPDIF sound to 5.1 or stereo output.

• Aspect ratio Set the aspect ratio of your TV.

• Configure connection Configure your Ethernet or Wifi connection.

• Connection Show the network connection details.

• Box reset Reset the Media Titan to the factory default settings. Note : When you reset the Media Titan to the factory default settings, only the settings are erased. The data on the Harddisk will not be deleted. Version : Media Titan version info

The Marker button can be used to select files or folders for specific tasks. For example: - Mark photos on your USB stick to copy them to the internal Harddisk. - Mark video files you have already seen so they can be deleted. - Mark music files to add them to a playlist. To mark an item, select it in the file / folder list and press the (marker) button. Note : When a folder is marked, all its contents are marked as well. Once an item is marked, the marker list indicator is displayed in the upper left corner of the screen, showing:

• The number of marked items (folders or files).

• The total size of the marked items.

[ Marked items in the Navigator ] When files are marked, you can use them for specific tasks, which can differ for each section of the Media Titan. You can see the available tasks by pressing the (hand) button: the options menu with the available tasks is shown on your screen. Note : For more information on the (hand) / options menu, see chapter 12.2. Note : The marker list is not emptied when a task is completed. You can unmark items by selecting the item and press the (marker) button: the file or folder will be removed from the marker list. You can clear the complete marker list by pressing the (hand) button to open the options menu and select “unmark all items”.ENGLISH

Use the (hand) button to:

• Move, copy, rename or delete folders or files

• Create a playlist, etc. Whether you are in navigator or player mode, the (hand) button displays the options menu with tasks for the section currently in use. These tasks will differ for each section of the Media Titan.

You can configure Parental Protection on the Media Titan. There are 2 modes: the ‘Parents’ mode and the ‘Children’ mode. In ‘Parents’ Mode, all features of the Media Titan can be used and all files and channels are visible. In ‘Children’ mode, only the files and TV programs which are available in this mode are visible. Parental Control can be activated when booting up for the first time or through the Setup section Æ General Æ Access and protections Æ Parental Control. When activating Parental Control you should:

• Indicate an age for restricting access to certain TV programs and files. The default age limit is 12 years and this can be modified in the Setup section.

• Enter a secret code to move from ‘Children’ mode to ‘Parents’ mode. When Parental Control is activated and the Media Titan is in ‘Children’ mode, the Media Titan will ask for the secret code when an unauthorized channel is selected:

[ Parental Control – Secret Code ] When the secret code is entered, the channel will be displayed on your screen.ENGLISH

You can transfer files from your PC to your Media Titan by connecting it to your computer. Connect the power supply to the Media Titan. The device will boot. Connect the USB Cable to the ‘USB connector’ [12] on the back of the Media Titan and to a free USB port on your computer. Your computer will recognize new hardware and will show the Media Titan as an external device in ‘My Computer’.

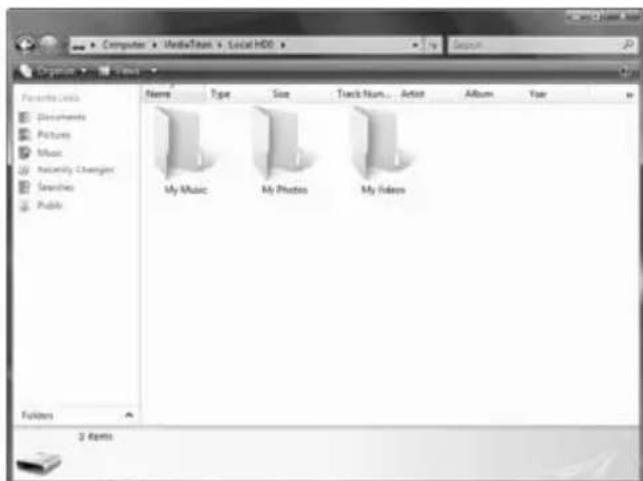

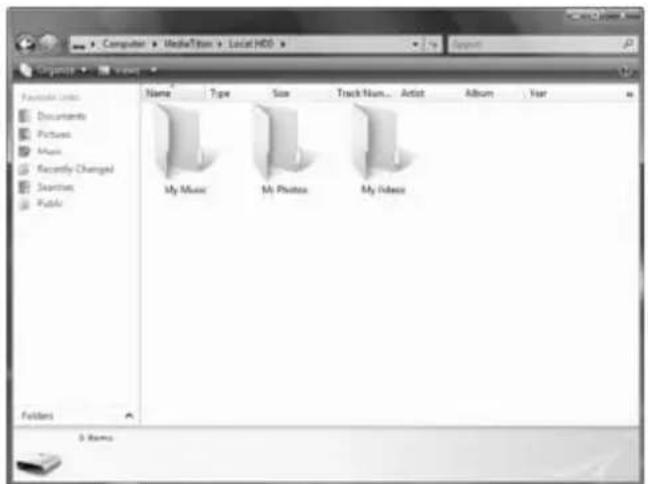

[ My Computer ] [ Media Titan – Folder Structure ] When you open the ‘Media Titan’ in the ‘My Computer’ window, you will see 3 predefined folders:

• My Music Folder for music files

• My Photos Folder for pictures and photos

• My Videos Folder for video files These folders are related to the sections in the Media Titan menu:

• The Music section can only browse the files in the ‘My Music’ folder.

• The Video/Photo section can only browse the files in the ‘My Photos’ and ‘My Videos’ folder. You can copy your media files to the corresponding folders on the Media Titan in order to view or listen them through your TV.ENGLISH

13.2 USB Host connectivity

The Media Titan is equipped with 3 USB host ports: 1 on the front panel and 2 on the back panel. You can connect USB storage devices to these USB host ports to browse, play, or copy the files. When you connect an USB storage device to any of the USB host ports of the Media Titan, the Media Titan will quickly index the USB storage device and show a popup message that a new device is plugged. Note : If the USB storage device contains many files, it can take a little while before the Media Titan has indexed the files. Note : If you connect a USB Harddisk without powersupply to the Media Titan, it is possible that the Harddisk is not detected. In that case, connect an external power supply to the USB Harddisk to provide extra power. When the Media Titan has showed the recognition popup, your USB storage device will be listed in the Music section and Video/Photo section. Through these sections, you can browse, play or copy the files to the Media Titan.

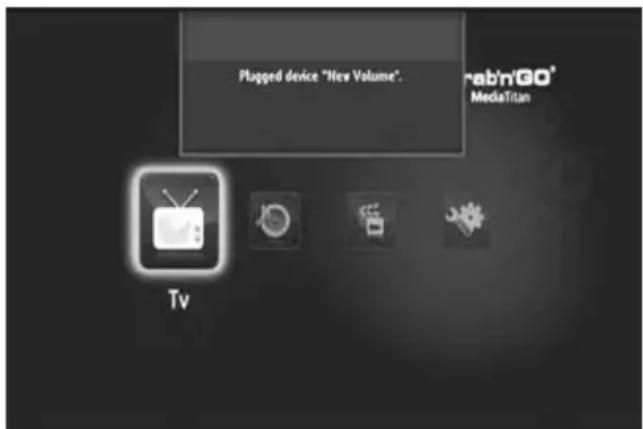

[ USB Connection Popup ] [ USB Device in Navigator ]

Copy files to your Media Titan

To copy files from your USB storage device to your Media Titan, follow the steps below:

• Mark the files on your USB storage device with the (marker) button.

• Go to the location on your Media Titan where you want to store the files.

• Press the (hand) button to open the options menu and select “duplicate marked items”. The files are now being copied to the Harddisk of the Media Titan. Tip : With the steps above, you can also copy data from your Media Titan to an USB storage device.ENGLISH

The network features of the Media Titan allow you to play media files from UPnP AV servers in your network. Note : It is not possible to be connected to Ethernet and Wifi at the same time.

If you plugged in the Ethernet cable before turning on the Media Titan, the Ethernet connection will be activated automatically. If you plug in the cable after turning on the Media Titan, you will have to configure the Ethernet connection.

• Select the Setup section in the Main Menu

• Select the group ‘Network’.

• Select the setting ‘Configure connection’. The Network Wizard will be shown on your screen.

• Choose your connection type : Ethernet.

• Choose ‘Automatic’ or ‘Manual’ IP address configuration. If you are not a network expert, select ‘Automatic’ to have the Media Titan to obtain an IP address from your network DHCP Server (router) automatically. If you select ‘Manual’, you can enter the IP address, Subnet Mask, Gateway and DNS server manually. The Media Titan will show a “Connecting to Ethernet” popup. When the popup disappears, the connection is made successfully.

• Select the Setup section in the Main Menu

• Select the group ‘Network’.

• Select the setting ‘Configure connection’. The Network Wizard will be shown on your screen.

• Choose your connection type : Wireless. The Media Titan will search for available wireless networks and shows a list of found networks.

• Select the wireless network you want to connect to. If the network is protected with an encryption key (indicated with a key in the network list), the Media Titan will ask you for the encryption key.

• Enter the encryption key and select ‘OK’ to continue.

• Choose ‘Automatic’ or ‘Manual’ IP address configuration. If you are not a network expert, select ‘Automatic’ to have the Media Titan to obtain an IP address from your network DHCP Server (router) automatically. If you select ‘Manual’, you can enter the IP address, Subnet Mask, Gateway and DNS server manually. The Media Titan will show a “Connecting to …” popup. When the popup disappears, the connection is made successfully.ENGLISH

In order to browse the media files on your computer through the Media Titan, you need to setup an UPnP Media Server on your computer, or use a NAS storage box with built-in UPnP Media Server, like the Conceptronic CH3SNAS. Microsoft Windows XP and Windows Vista

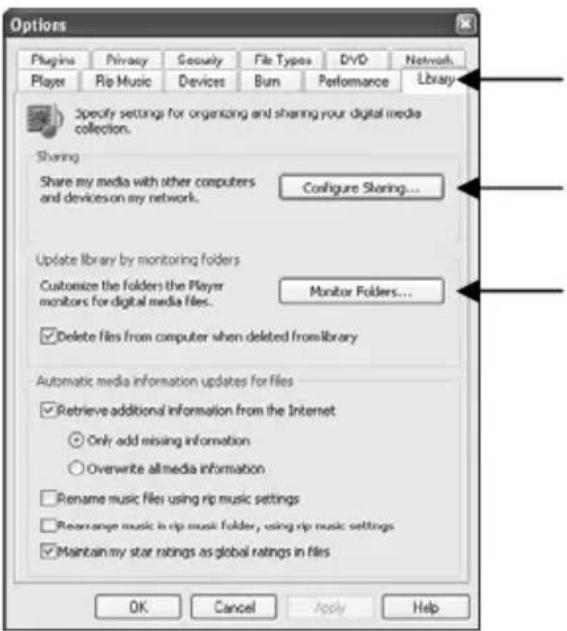

Microsoft Windows XP and Windows Vista offer a Media Server through the Windows Media Player. Start the Media Player, select Tools, and library than configure Sharing. You can allow and customize the settings for the Conceptronic Media Titan. Through the option Monitor Folders you can add or remove content you want to share.

Note: For Windows XP, you need at least Media Player 11 for this option.

Note: If a Media Server device or software package cannot be detected by the Conceptronic Media Titan, please check the capabilities and setup of that particular device/software package. When the device is compatible and setup correctly our Media Titan will show the device as selectable device on your TV system.ESPAÑOL
