Before the installation and use of the appliance, carefully read the

supplied instructions. The manufacturer is not responsible if an

incorrect installation and use causes injuries and damages.

Always keep the instructions with the appliance for future

• Do not change the specification of this appliance.

• If the tumble dryer is put on top of a washing machine, use the

stacking kit. The stacking kit, available from your authorized

vendor, can be used only with the appliance specified in the

instructions, supplied with the accessory. Read it carefully

before installation (Refer to the Installation leaflet).

• The appliance can be installed as freestanding or below the

kitchen counter with correct space (Refer to the Installation

• Do not install the appliance behind a lockable door, a sliding

door or a door with a hinge on the opposite side, where the

appliance door can not be fully opened.

• The ventilation openings in the base (if applicable) must not be

obstructed by a carpet.

• Connect the mains plug to the mains socket only at the end of

the installation. Make sure that there is access to the mains

plug after the installation.

• Ensure you have good ventilation in the installation room to

avoid the back flow of gases into the room from appliances

burning other fuels, including open fires.

www.zanussi.com 15• Exhaust air must not be discharged into a flue which is used for

exhausting fumes from appliances burning gas or other fuels. (if

• If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly

qualified persons in order to avoid a hazard.

• Obey the maximum load volume of 7kg (refer to the

“Programme chart” chapter).

• Do not use the appliance if industrial chemicals have been used

• Wipe away lint that has accumulated around the appliance.

• Do not run the appliance without a filter. Clean the lint filter

before or after each use.

• Do not dry unwashed items in the tumble dryer.

• Items that have been soiled with substances such as cooking

oil, acetone, alcohol, petrol, kerosene, spot removers,

turpentine, waxes and wax removers should be washed in hot

water with an extra amount of detergent before being dried in

• Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes or

pillows fitted with foam rubber pads should not be dried in the

• Fabric softeners, or similar products, should be used as

specified by the fabric softener instructions.

• Remove all objects from pockets such as lighters and matches.

• Never stop a tumble dryer before the end of the drying cycle

unless all items are quickly removed and spread out so that the

• The final part of a tumble dryer cycle occurs without heat (cool

down cycle) to ensure that the items are left at a temperature

that ensures that the items will not be damaged.

• Before maintenance, deactivate the appliance and disconnect

the mains plug from the mains socket.

16 www.zanussi.comChildren and vulnerable people safety

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

• Do not let children play with the appliance.

• Children of less than 3 years should be kept away unless

continuously supervised.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door when it is

• If the appliance has a child safety device, we recommend you

• Cleaning and user maintenance shall not be made by children

without supervision.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Obey the installation instruction supplied

• Always be careful when you move the

appliance because it is heavy. Always wear

• Do not install or use the appliance where the

temperature is less than 5°C or higher than

• Make sure that the floor where you install the

appliance is flat, stable, heat resistant and

• Make sure that there is air circulation

between the appliance and the floor.

• Always move the appliance vertically.

• The rear surface of the appliance must be

put against the wall.

• When the appliance is put in its permanent

position, check if it is fully level with the aid

of a spirit level. If it is not, adjust the feet until

Electrical connection

Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information on

the rating plate agrees with the power

supply. If not, contact an electrician.

• Always use a correctly installed shockproof

• Do not use multi-plug adapters and

• Do not pull the mains cable to disconnect

the appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains

plug with wet hands.

• Only for UK and Ireland. The appliance has a

13 amp mains plug. If it is necessary to

change the fuse in the mains plug, use a 13

amp ASTA (BS 1362) fuse.

www.zanussi.com 17• This appliance complies with the E.E.C.

Risk of injury, electrical shock, fire,

burns or damage to the appliance.

• Use this appliance in a household only.

• Do not dry the damaged items which contain

padding or fillings.

• Only dry fabrics which are applicable to dry

in the tumble dryer. Follow the instructions

on the fabric label.

• If you have washed your laundry with a stain

remover start an extra rinse cycle before you

• Do not drink or prepare food with the

condensed water/distilled water. It can

cause health problems to people and pets.

• Do not sit or stand on the open door.

• Do not dry dripping wet clothes in the

Risk of injury or damage to the

• Do not use water spray and steam to clean

• Clean the appliance with a moist soft cloth.

Only use neutral detergents. Do not use

abrasive products, abrasive cleaning pads,

solvents or metal objects.

Risk of injury or suffocation.

• Disconnect the appliance from the mains

• Cut off the mains cable and discard it.

• Remove the door catch to prevent children

and pets to get closed in the appliance.

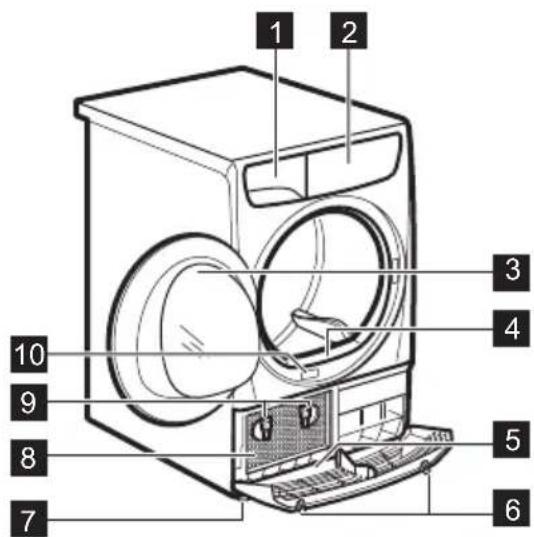

Bottom cover with the airflow slots

Do not put any object on the

Buttons to open the bottom cover

Locks for condenser door

The load door can be installed by

the user in the opposite side. It can

help to easily put and remove the

laundry or if there is a limit to install

the appliance (see separate leaflet).

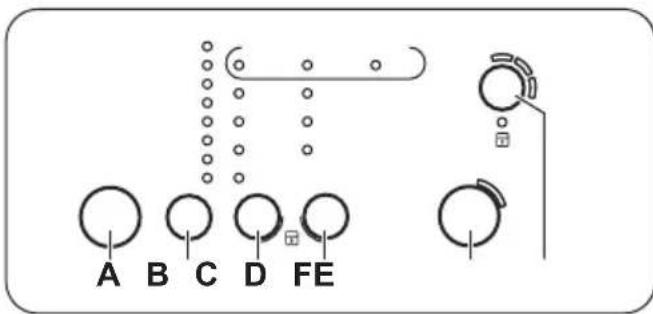

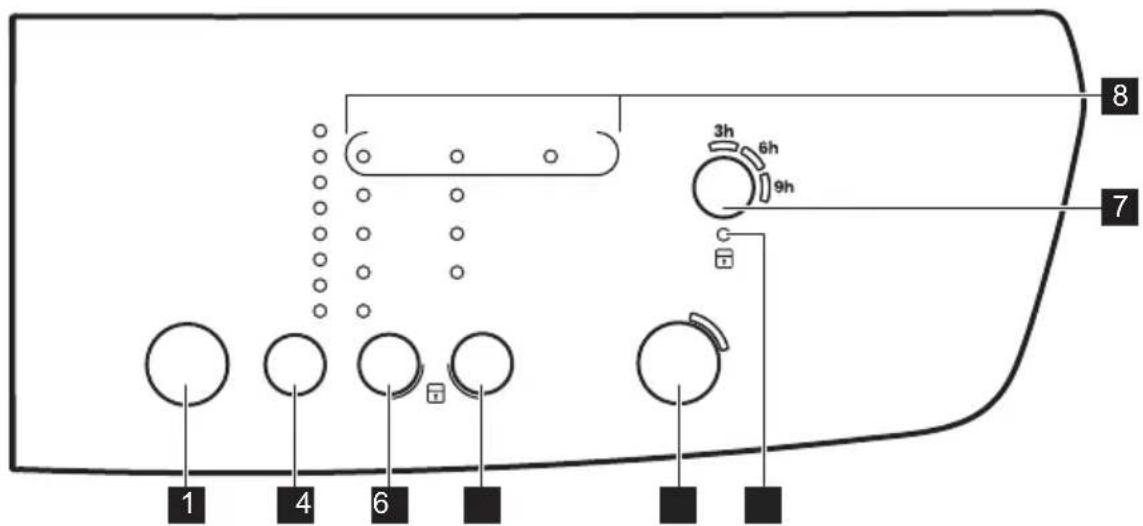

18 www.zanussi.comControl Panel

Indicators: Filter , Condenser , Tank

Touch the touchpads with your

finger in the area with the symbol or

name of the option. Do not wear

gloves when you operate with the

control panel. Make sure that the

control panel is always clean and

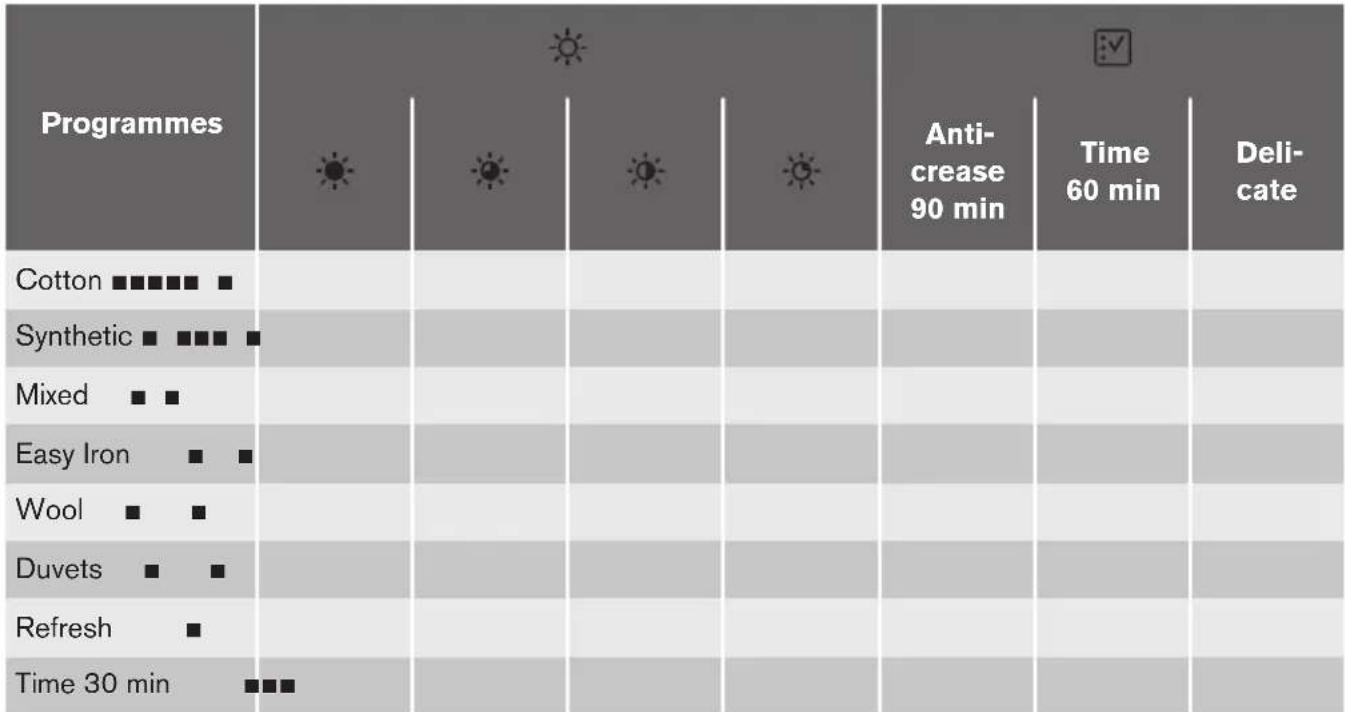

Drying level: Extra Dry, Strong Dry, Cupboard

Drying level: Extra Dry, Cupboard Dry

Delicate programme with warm air.

Easy care fabrics for which a minimum of ironing is necessary.

The drying results can be different from one type of fabric to

the other. Shake the items before you put them in the appli-

ance. When the programme is completed, Immediately re-

move the items and put them on a hanger.

Wool fabrics. Gentle drying washable woollens. Remove im-

mediately the items when the programme is completed.

To dry one or two duvet and pillows (with feather, down or

synthetic fillings).

Refresh Refreshing a textiles that were in storage. 1kg

Time 30 min Time programme to dry individual items of laundry.

1) The maximum weight refers to dry items.

2) The Cotton Cupboard Dry programme is the “Standard cotton programme” and it is suitable to dry normal wet cotton laundry and it

is the most efficient programme in terms of energy consumption for drying wet cotton laundry.

3) For test institutes only: Standard programmes for tests are specified in the EN 61121 document.

4) The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine washable wool products

provided that the products are washed and dried according to the instructions on the garment label and those issued by the manufacturer of

this machine. M1221. In UK, Eire, Hong Kong and India the Woolmark symbol is a certification trademark.

This function helps to get the laundry more

dried. There are 4 possible selections:

• Strong Dry (for Cotton only)

Extends of 60 minutes the standard anticrease

phase (30 minutes) at the end of the drying

cycle. This function prevents the laundry from

creases. The laundry can be removed during the

With this option you can set a delicate drying

programme that has a low temperature. Use this

option with a fabrics that have the symbol on

the fabric label (e.g. acrylic, viscose).

This option prevents children to play with the

appliance while a programme operates. The

programme knob and the touchpads are locked.

Only the on/off button is unlocked.

Activating the child lock option:

1. Press the on/off button to activate the

2. Wait approximately 8 seconds.

3. Press and hold touchpads (C) and (D) at

the same time. The child lock indicator

The child lock indicator comes on.

It is possible to deactivate the child

lock option while a programme

operates. Press and hold the same

touchpads until the child lock

To deactivate or activate the acoustic signals,

press and hold for approximately 2 seconds

touchpads (B) and (C) at the same time.

www.zanussi.com 21Stand-by function

To decrease the energy consumption, this

• After 5 minutes from the end of the

Preparing the laundry

• Close the zippers.

• Close the fasteners of the duvet covers.

• Do not keep ties or ribbons loose (e.g. apron

ribbons). Tie them before you start a

• Remove all items from the pockets.

• If an item has the internal layer made of

cotton, turn it inside out. Make sure that the

cotton layer is always external

• We recommend that you set the correct

programme applicable for the type of fabrics

that are in the appliance.

• Do not put fabrics with strong colours

together with fabrics with light colours.

Strong colours can bleed.

• Use an applicable programme for cotton

jersey and knitwear to prevent the items to

• Make sure that the laundry weight is not

more than the maximum weight that is in the

• Dry only the laundry that is applicable for

tumble dryer. Refer to the fabric label on the

Fabric label Description

Laundry that is applicable for tumble dryer.

Laundry that is applicable for tumble dryer. Set the programme with standard tem-

Laundry that is applicable for tumble dryer. Set the programme with low tempera-

Laundry that is not applicable for tumble dryer.

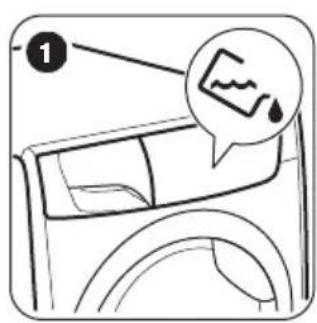

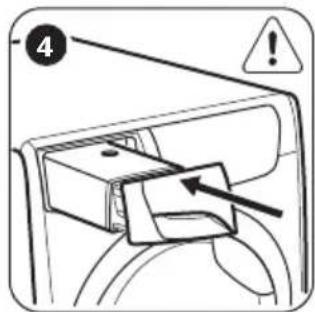

Draining the water container

You can use the water from the

water container as an alternative to

distilled water (e.g. for steam

ironing). Before you use the water,

remove dirt residues with a filter.

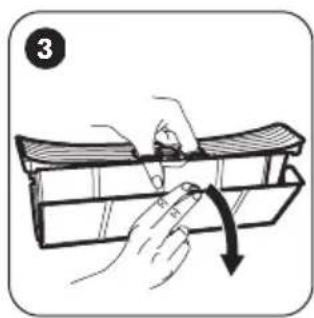

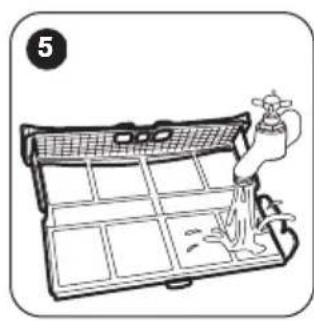

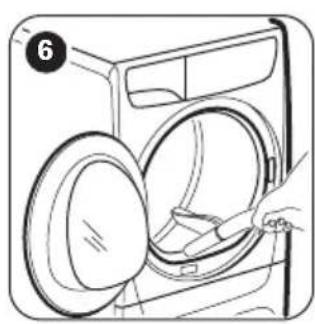

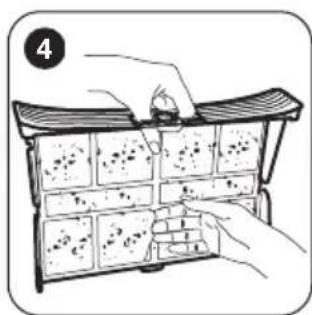

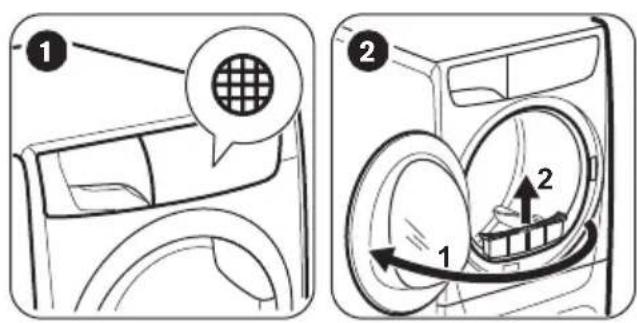

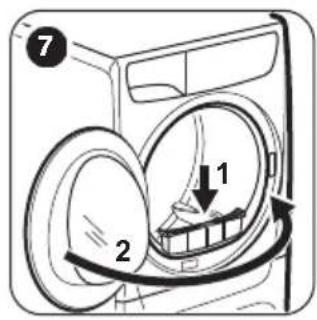

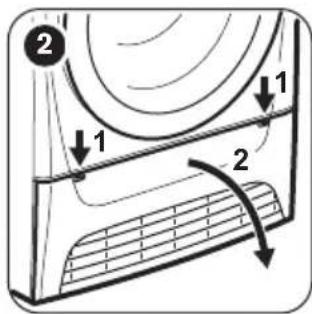

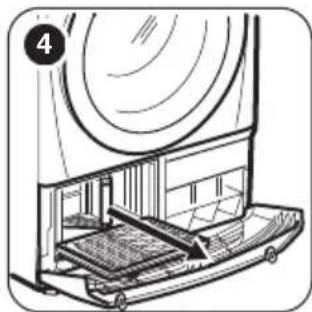

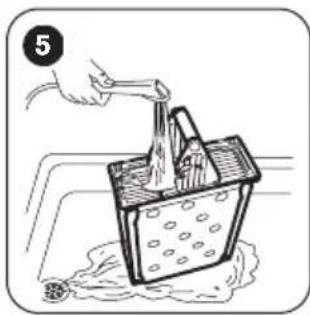

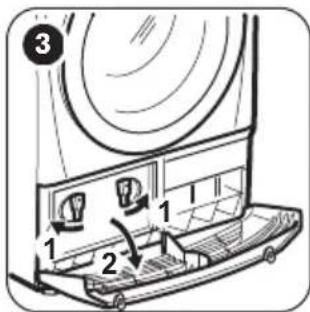

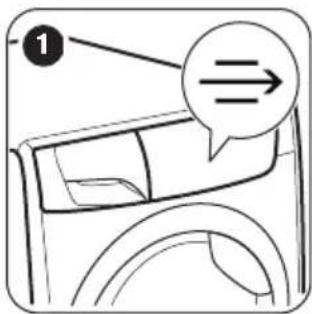

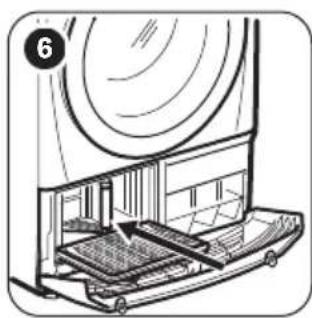

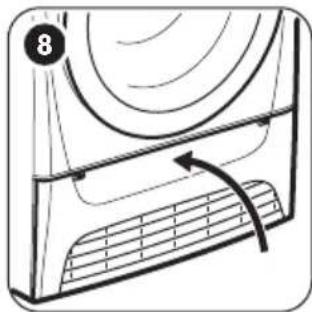

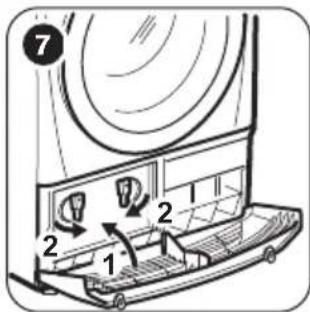

Cleaning the condenser

Disconnect the appliance before you

Use a standard neutral soap detergent to clean

the inner surface of the drum and drum ribs. Dry

the cleaned surfaces with a soft cloth.

Do not use abrasive materials or

steel wool to clean the drum.

24 www.zanussi.comCleaning the control panel and housing

Use a standard neutral soap detergent to clean

the control panel and housing.

Use a moist cloth to clean. Dry the cleaned

surfaces with a soft cloth.

Do not use furniture cleaning agents

or cleaning agents which can cause

corrosion to clean the appliance.

Cleaning the airflow slots

Use a vacuum cleaner to remove the fluff from

You cannot activate the appliance. Make sure that the mains plug is connected to the

Check fuse in fuse box (domestic installation).

The programme does not start. Press Start/Pause.

Make sure that the appliance door is closed.

The appliance door does not close. Make sure that the installation of the filter is cor-

Make sure that the laundry does not catch between

the appliance door and the rubber seal.

The appliance stops during operation. Make sure that the water container is empty. Press

Start/Pause to start the programme again.

Drying cycle lasts an unusually long time.

Make sure that the weight of the laundry is applica-

ble to the duration of the programme.

Make sure that the filter is clean.

The laundry is too wet. Spin the laundry in the

washing machine again.

Make sure that the room temperature is not too

Drying cycle ends shortly after programme starts. Set the Time Drying or the Extra Dry programme.

1) After maximum 5 hours, the programme ends automatically

If the drying results are not satisfactory

• The set programme was incorrect.

• The filter is clogged.

• The condenser is clogged.

• There was too much laundry in the

• The drum is dirty.

• Incorrect setting of the conductivity sensor.

• The airflow slots are clogged.

www.zanussi.com 25Technical Data

Height x Width x Depth 850 x 600 x 540 mm (maximal 610 mm)

Max. depth with the appliance door open 1030 mm

Max. width with the appliance door open 950 mm

Adjustable height 850 mm (+ 15 mm - feet regulation)

Necessary fuse 16 A Total power 2800 W Energy efficiency class B Energy consumption

Annual energy consumption

Left—on mode power absorption 0,41 W Off mode power absorption 0,41 W Type of use Household

Permitted ambient temperature + 5°C to + 35°C Level of protection against ingress of solid particles

and moisture ensured by the protective cover, ex-

cept where the low voltage equipment has no pro-

tection against moisture

1) With reference to EN 61121. 7kg of cotton centrifuged at 1000 rpm.

2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the con-

sumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No

Programme Spun at / residual humidity Drying time

ENVIRONMENTAL CONCERNS Recycle the materials with the symbol . Put

the packaging in applicable containers to

recycle it. Help protect the environment and

human health and to recycle waste of electrical

and electronic appliances. Do not dispose

appliances marked with the symbol with the

household waste. Return the product to your

local recycling facility or contact your municipal
