USER MANUAL TCES 7000 ZANUSSI

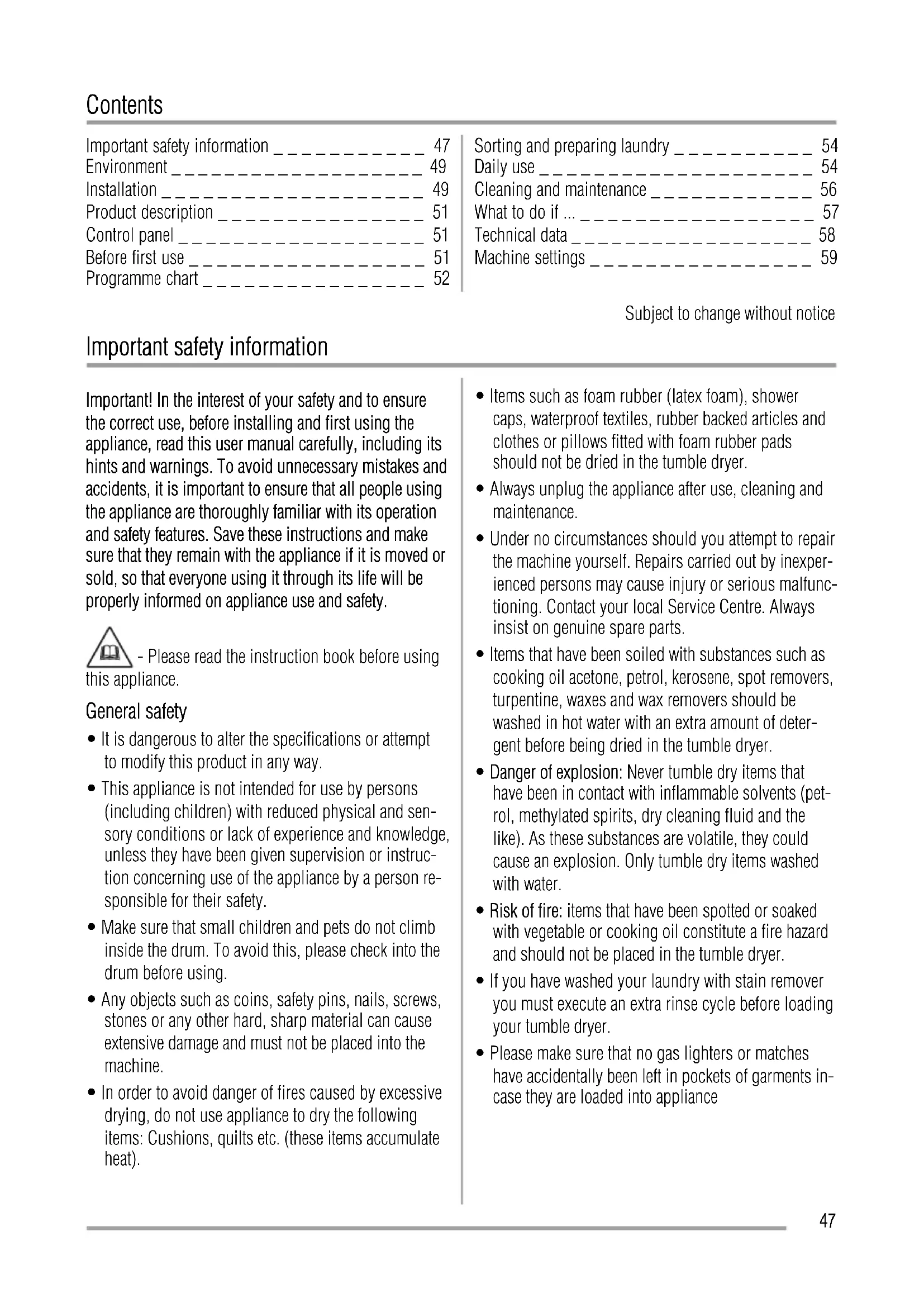

46Contents Important safety information _ _ _ _ _ _ _ _ _ _ _ 47 Environment _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 49 Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 49 Product description _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 51 Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 51 Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 51 Programme chart _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 52 Sorting and preparing laundry _ _ _ _ _ _ _ _ _ _ 54 Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 54 Cleaning and maintenance _ _ _ _ _ _ _ _ _ _ _ _ 56 What to do if ... _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 57 Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 58 Machine settings _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 59 Subject to change without notice Important safety information Important! In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. - Please read the instruction book before using this appliance. General safety

• It is dangerous to alter the specifications or attempt to modify this product in any way.

• This appliance is not intended for use by persons (including children) with reduced physical and sen- sory conditions or lack of experience and knowledge, unless they have been given supervision or instruc- tion concerning use of the appliance by a person re- sponsible for their safety.

• Make sure that small children and pets do not climb inside the drum. To avoid this, please check into the drum before using.

• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.

• In order to avoid danger of fires caused by excessive drying, do not use appliance to dry the following items: Cushions, quilts etc. (these items accumulate heat).

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

• Always unplug the appliance after use, cleaning and maintenance.

• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexper- ienced persons may cause injury or serious malfunc- tioning. Contact your local Service Centre. Always insist on genuine spare parts.

• Items that have been soiled with substances such as cooking oil acetone, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of deter- gent before being dried in the tumble dryer.

• Danger of explosion: Never tumble dry items that have been in contact with inflammable solvents (pet- rol, methylated spirits, dry cleaning fluid and the like). As these substances are volatile, they could cause an explosion. Only tumble dry items washed with water.

• Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer.

• If you have washed your laundry with stain remover you must execute an extra rinse cycle before loading your tumble dryer.

• Please make sure that no gas lighters or matches have accidentally been left in pockets of garments in- case they are loaded into appliance 47Warning!

Risk of fire! Never stop a tumble dry before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipa- ted.

• Lint must not be allowed to accumulate around the tumble dryer.

• Risk of electric shock! Do not spray down the appli- ance with jets of water.

• The final part of a tumble dryer cycle occurs without heat ( cool down cycle ) to ensure that the items are left at a temperature that ensures that items will not be damaged.

• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

• Ensure you have good ventilation in the installation room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires. Installation

• This appliance is heavy. Care should be taken when moving it.

• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

• All packaging must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.

• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance.

• After having installed the appliance, check that it is not pressing or standing on its electrical supply ca- ble.

• If the tumble dryer is placed on top of a washing ma- chine, it is compulsory to use the stacking kit (op- tional accessory). Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.

• Only wash fabrics which are designed to be machine dried. Follow the instructions on each garment label.

• Do not dry unwashed items in the tumble dryer.

• Do not overload the appliance. See the relevant sec- tion in the user manual.

• Clothes which are dripping wet should not be placed in the dryer.

• Garments which have been in contact with volatile petroleum products should not be machine dried. If volatile cleaning fluids are used, care should be tak- en to ensure that the fluid is removed from the gar- ment before placing in the machine.

• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug it- self.

• Never use the tumble dryer if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the tumble dryer is ac- cessible.

• Fabric softeners, or similar products should be used as specified by the fabric softener instructions.

• Caution - hot surface : Do not touch the door light cover surface when the light is switched on. (Only dryers equipped with internal drum light) Child safety

• This machine is not intended for use by young chil- dren or infirm persons without supervision.

• Children often do not recognise the hazards associ- ated with electrical appliances. Children should be supervised to ensure that they do not play with the appliance. Warning!

Danger of suffocation! The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s reach.

• Make sure that children or pets do not climb inside the drum. 48Environment The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. Old appliance Warning! Remove mains plug from socket when you have no fur- ther use for the machine. Cut off mains cable and dis- pose of together with plug. Destroy loading door hook. Children cannot then lock themselves in the machine and put their lives at risk. Packaging material The packaging materials are environmentally friendly and can be recycled. The plastic components are identi- fied by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Environmental tips

• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not therefore needed when washing.

• Your dryer will function most economically if you: – always keep the ventilation slots on the base of the dryer unobstructed; – use the loading volumes specified in the pro- gramme overview; – ensure you have good ventilation in the installa- tion room; – clean the micro-fine filter and fine strainer after each drying cycle; – spin the laundry well before drying. Energy consumption depends on spinning speed set in washing machine. Higher spinning speed - lower energy consumption. Installation Important! The appliance must be moved in vertical position for transport. Appliance positioning

• It is recommended that, for your convenience, the machine is positioned close to your washing ma- chine.

• The tumble dryer must be installed in a clean place, where dirt does not build up.

• Air must be able to circulate freely all round the ap- pliance. Do not obstruct the front ventilation grille or the air intake grilles at the back of the machine.

• To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface.

• Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, raise or lower the feet until it is.

• The feet must never be removed. Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appli- ance. 49Important!

• The hot air emitted by the tumble dryer can reach temperatures of up to 60°C. The appliance must therefore not be installed on floors which are not re- sistant to high temperatures.

• When operating the tumble dryer, the room tempera- ture must not be lower than +5°C and higher than +35°C, as it may affect the performance of the appli- ance.

• Should the appliance be moved, it must be transpor- ted vertically.

• The appliance must not be installed behind the lock- able door, a sliding door a door with a hinge on the opposite side to that of the appliance in such a way that a full opening of the dryer is restricted. Removing transport safety packaging Caution! Before use all parts of the transport packaging must be removed.

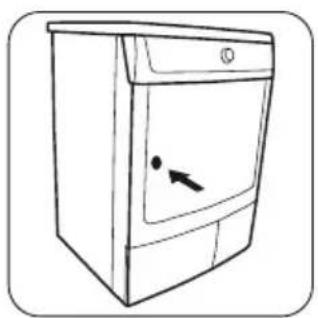

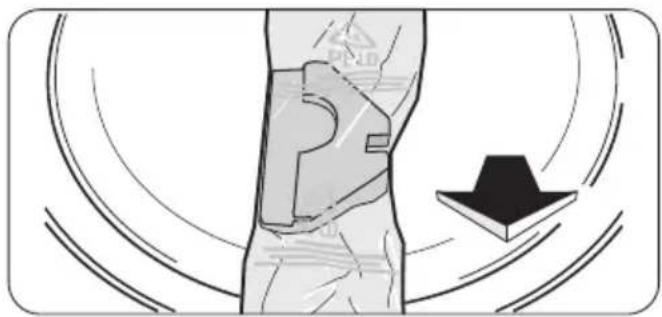

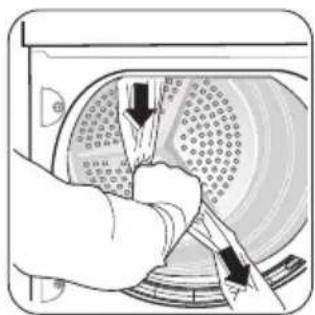

1. Open loading door 2. Pull off adhesive strips

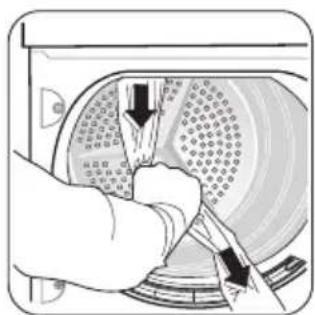

from inside machine on top of drum.

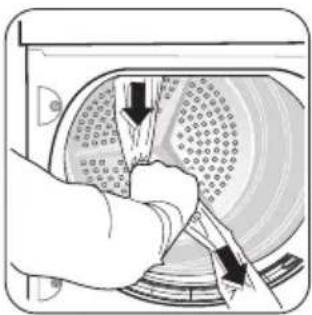

3. Remove foil hose and polystyrene padding from the

machine. Electrical connection Details on mains voltage, type of current and the fuses required should be taken from the type plate. The type plate is fitted near the loading aperture (see “Product description” chapter). Warning! The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precautions. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Center. Warning! The power supply cable must be accessible after installing the machine. Door reversal To make it easier to load or unload the laundry, the door can be reversed. Warning! The door must only be reversed by an authorised service engineer. Please contact your local Service Force Centre. The en- gineer will carry out the door reversal at your cost. Special accessories

• stack kit Available from your Service Force Centre or your specialist dealer These intermediate installation kits can be used to arrange the dryer and an washing machine (60 cm wide, front loaded) as a space-saving washer/dryer stack. The washing machine is at the bottom and the dryer is at the top. Read carefully the instructions supplied with the kit.

• drain kit Available from your Service Force Centre or your specialist dealer Installation kit for direct draining of condensate into a basin, siphon, gully, etc. The condensate tank then no longer has to be drained, it must however remain in its intended position in the machine. Read carefully the instructions supplied with the kit.

• pedestal with the drawer Available from your Service Force Centre or your specialist dealer To situate the dryer in optimal high and have some additional space to store (e.g. laundry). 50Read carefully the instructions supplied with the kit. Product description Description of the appliance

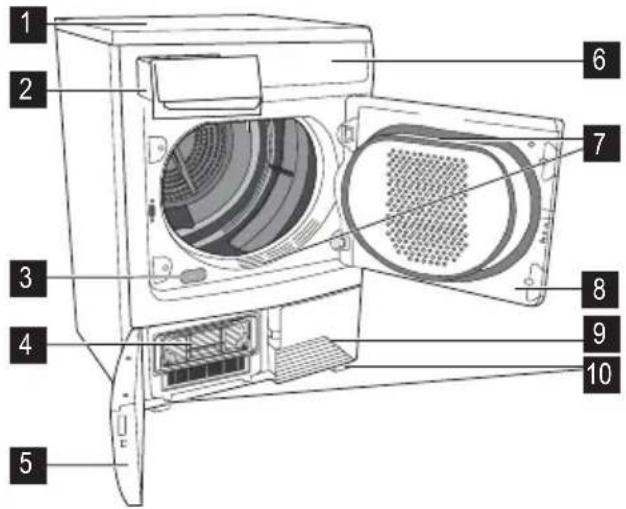

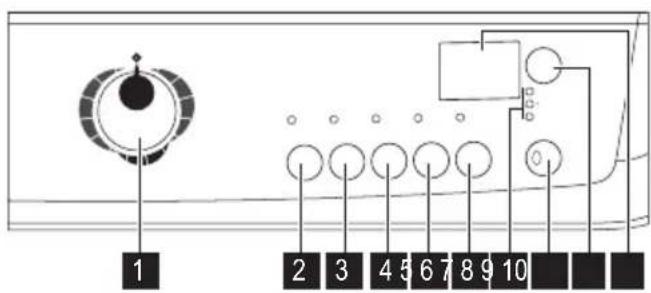

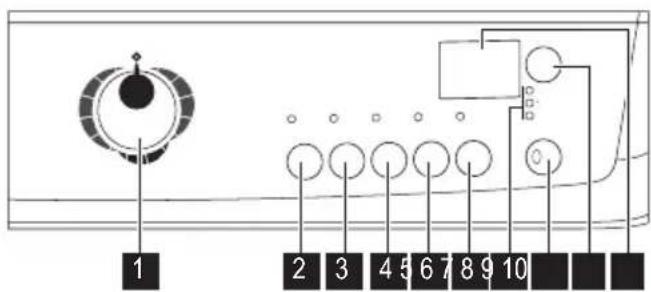

1 Worktop 2 Water reservoir 3 Rating Plate 4 Heat exchanger 5 Heat exchanger door 6 Control panel 7 Fluff filters 8 Loading door 9 Ventilation grille 10 Adjustable feet Control panel

Time button 7 Function status led

Water Reservoir light

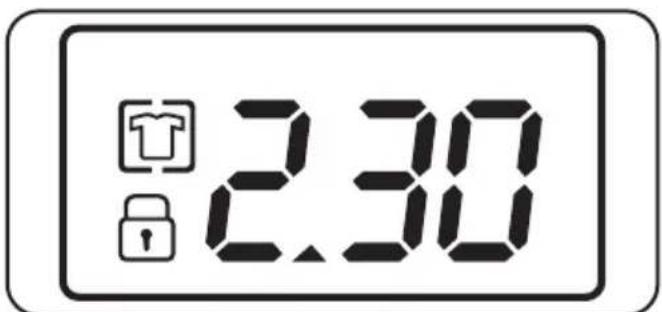

DELAY START button 10 Display What is shown in the display SYMBOL DESCRIPTION Time to end (time of time pro- gramm, time of start delay) Child lock Anticrease guard phase Error, wrong selection Before first use In order to remove any residues which may have been produced during production, wipe the dryer drum with a damp cloth or carry out a brief drying cycle (30 MIN) with damp cloths in the machine.

except TIME Thorough drying of thick or multi- layered fabrics, e.g. terry towelling items, bathrobes. COTTON STRONG DRY 7 kg all except TIME Thorough drying of thick or multi- layered fabrics, e.g. terry towelling items, bathrobes. COTTON STORAGE DRY

7 kg all except TIME Thorough drying of fabrics of even thicknesses, e.g. terry tow- elling items, knitwear, towels. COTTON DAMP

7 kg all except TIME For thin textiles which are still to be ironed, e.g. knitted items, cotton shirts. COTTON IRON DRY

7 kg all except TIME For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts. SYNTHETICS EXTRA DRY 3 kg all except TIME Thorough drying of thick or multi-layered fabrics, e.g. pull- overs, bedding, table linen.

3 kg all except TIME For thin fabrics which are not ir- oned, e.g. easy care shirts, table linen, baby clothes, socks, lin- gerie with bones or wires.

SYNTHETICS IRON DRY 3 kg all except TIME For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts.

CREASE , BUZZER , DE- LAY TIME For further drying of individual items of laundry. JEANS 7 kg

DELICATE , LONG ANTI-

CREASE , BUZZER , DE- LAY For leisure clothing, such as jeans, sweat-shirts, etc., of dif- ferent material thicknesses (e.g. at the neck, cuffs and seams). EASY IRON 1 kg (or 5 shirts)

DELICATE , LONG ANTI-

CREASE , BUZZER , DE- LAY Special program with anti- crease mechanism for easy care fabrics such shirts and blouses; for minimum ironing effort. The results depends on the type of fabric and its finish. Place fab- rics in the dryer straight after spinning; once dried, immedi- ately remove fabrics and place on a clothes hanger. BABY 2 kg

DELICATE , LONG ANTI-

CREASE , BUZZER , DE- LAY Baby cycle is a special pro- gramme for jumpers to be dried “ready to wear”. COOLING 1 kg BUZZER Special programme, lasting around 10 minutes, for refresh- ing or gently cleaning textiles with commercially available dry cleaning sets. (Only use those products which are declared as suitable for the drier by the man- ufacturer; please observe the manufacturer’s instructions for use.)

1) The DELICATE cannot be selected with QUICK

2) In accordance with IEC61121

Sorting and preparing laundry Sorting laundry

• Sort by fabric type: – Cotton/linen for programmes in COTTONS pro- gramme group. – Mixtures and synthetics for programmes in SYN- THETICS programme group.

• Sort by care label: The care labels mean: Drying in the tumble dryer possible in principle Drying at normal temperature Drying at reduced temperature Drying in the tumble dryer not possible Important! Do not place in the appliance any wet laun- dry which is not specified on the care label as being suitable for tumble-drying. This appliance can be used for all wet laundry items which are labelled as suitable for tumble-drying.

• Do not dry new, coloured textiles together with light- coloured laundry items. Textile colours may bleed.

• Do not dry cotton jersey and knitwear with the EX- TRA DRY programme. Items may shrink! Preparing laundry

• To avoid laundry becoming tangled: close zips, but- ton up duvet covers and tie loose ties or ribbons (e.g. of aprons).

• Empty pockets. Remove metal items (paper clips, safety pins, etc).

• Turn items with double-layered fabrics inside out (e.g. with cotton-lined anoraks, the cotton layer should be outermost). These fabrics will then dry better. Important! Do not overload the appliance. Observe max. loading volume. Laundry weights Type of laundry Weight Bathrobe 1200 g Napkin 100 g Quilt cover 700 g Sheet 500 g Pillow case 200 g Tablecloth 250 g Towelling towel 200 g Tea cloth 100 g Night dress 200 g Ladies' briefs 100 g Man's work shirt 600 g Man's work shirt 200 g Man's pyjamas 500 g Blouse 100 g Men's underpants 100 g Daily use Switching machine on Turn the programme selector to any programme. The machine switches on. 54Operating

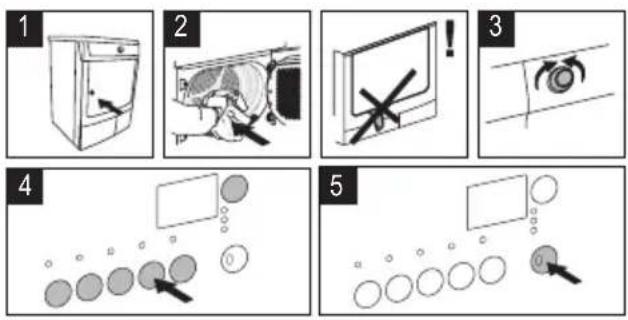

DELICATE gentle drying with reduced heat of sensitive fabrics and temperature-sensitive textiles (e.g. acrylic, vis- cose) marked on care label with: LONG ANTI-CREASE prolongs the anti-crease phase to 90 mins in total. The laundry remains relaxed and free of creases. QUICK By pressing this button the drying time is reduced in all COTTON and SYNTHETICS programmes. BUZZER audible confirmation of:

• anti-crease phase start and end

• error TIME after setting the Time programme. You can select a programme duration from 10 mins to 2 hrs in 10- minute steps. DELAY START allows to delay the start of a drying programme from minimum of 30 min. to maximum of 20 hours. Press the Delay Start button repeatedly until the desired de- lay start is shown on the display Setting child lock The child lock can be set to prevent a programme being accidentally started or a programme in operation being accidentally changed. The child lock function locks all buttons and the programme selector. The child lock can be activated or deactivated by holding down the DELICATE and LONG ANTI-CREASE buttons simul- taneously for 5 seconds. – Before programme is started: Appliance cannot be used – After programme is started: Programme in operation cannot be changed The icon appears in the display to indicate that the child safety device is activated. The child safety device is not deactivated once the pro- gramme comes to an end. If you want to set a new programme, you must first de- activate the child safety device. Starting the programme Press the Start/Pause button. The programme starts. The programme progress is shown by elapsing dry time on the LCD. Changing programme To change a programme which is running, first cancel it by turning the programme selector dial to OFF. Se- lect the new programme and press the START/ PAUSE button. The programme can no longer be changed direct- ly once the programme has started. If nevertheless there is an attempt to change the programme on the programme knob, the programme progress display and the maintenance indicators flash. If an option button (excluding the BUZZER button) is pressed, appears on the display. The drying programme is not however affected by this (laundry protection). Drying cycle complete / removing laundry Once the drying cycle is complete, the display shows the anti-crease icon and flashing as well as warning lamps: FILTER and FULL TANK . If the BUZ- ZER button has been pressed, an acoustic signal sounds intermittently for about one minute. 55The drying cycles are automatically followed by an anti-crease phase which lasts around 30 mi- nutes. The drum rotates at intervals during this phase. This keeps the laundry loose and free of creases. The laundry can be removed at any time during the anti- crease phase. (The laundry should be taken out towards the end of the anti-crease phase at the latest to prevent creases from forming.)

2. Before removing the laundry, remove fluff from the

micro-fine filter. It is best to use a damp hand for this purpose. (See “Cleaning and maintenance” chapter.)

Turn the programme selector to off.

• Empty the water reservoir. Cleaning and maintenance Cleaning fluff filters The filters collect all the fluff which accumulates during drying. To ensure that the dryer works perfectly, the fluff filters (fine filters and fluff filters) must be cleaned after each drying cycle. Caution! Never operate the dryer without fluff filters or with damaged or blocked fluff filters.

Clean the door seal Wipe the door seal with a damp cloth immediately after the drying cycle has finished. Emptying the water reservoir Empty the water reservoir after every drying cycle. Caution! The condensed water is not suitable for drinking or for preparing foodstuffs. If the programme has been interrupted as a result of the water reservoir being full: Press the START/ PAUSE button to continue the drying cycle. 56Cleaning condenser Important!

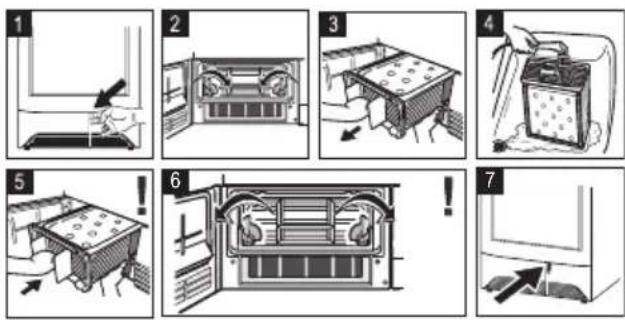

• Never operate the dryer without condenser.

• Clogged condenser cause higher energy consump- tion (drying cycle elongation) and dryer damage.

• Do not use sharp objects to clean.

Cleaning the drum Caution! Do not use abrasives or steel wool to clean the drum. Lime in the water or cleaning agents may form a barely visible lining on the inside of the drum. The degree to which the laundry has been dried is then no longer detected reliably. The laundry is damper than expected when removed from the appliance. Use a standard domestic cleaner (e.g. vinegar-based cleaner) to wipe down the inside of the drum and drum ribs. Clean control panel and housing Caution! Do not use furniture cleaners or aggressive cleaning agents to clean the machine. Use a damp cloth to wipe down the control panel and housing. What to do if ... Troubleshooting by yourself Problem

Possible cause Remedy Dryer does not work. Dryer not connected to mains supply. Plug in at mains socket. Check fuse in fuse box (domestic installation). Loading door opened. Close loading door The START PAUSE button not pressed. Press the START PAUSE button. Unsatisfactory drying results. Incorrect programme set. Set suitable programme.

Fluff filters clogged. Clean fluff filters.

Heat exchanger clogged. Clean heat exchanger.

Max. loading exceeded. Respect max. loading volume. Covered ventilation grill. Uncover ventilation grill in base area. Residue inside the drum. Clean the drum inside. High water hardness. Set suitable water hardness

Loading door does not close Filters not locked in place. Install fine filter and/or snap course filter into place. 57Err

Attempt to change parameters after start of the programme. Turn the dryer off and on. Set requested pa- rameters. No drum light Programme selector in OFF position. Turn it to DRUM LIGHT (if available) or to any programme. Defective light bulb. Replace light bulb (see next section). Abnormally elapsing time on the LCD

Time to end is calculated on the basis of: type, volume and dampness of laundry. Automatic process; this is not a machine fault. Programme in- active Full water reservoir. Empty water reservoir

Fluff filters clogged. Clean fluff filters. To high loading volume. Respect max. loading volume. Laundry insufficiently spun. Spun adequately the laundry. Particularly high room temperature - no ma- chine fault. Lower the room temperature if possible.

1) In case of error message on the LCD (e.g.

E51 - only dryers with the LCD): Switch the dryer off and on. Set programme. Press the START PAUSE button. Does not work? - inform local service and quote the error code.

2) follow program recommendation - see

Care and cleaning chapter

5) only dryers with the LCD

6) Note: After around 5 hours the drying cycle ends automatically (see

max. 7 kg Voltage 220-230 V Required fuse 10 A Total power 2350 W Energy efficiency class B 58Parameter Value Energy consumption (7 kg of cotton, pre-drained at 1000 rpm)

Average annual energy consumption 284.1 kWh Use Domestic Permissible ambient temperature + 5°C to + 35°C Consumption values The consumption values have been established under standard conditions. They may deviate when the machine is operated in domestic circumstances. Programme Energy consumption in kWh / average drying time in min.

(7 kg load pre-drained at 1000 rpm) 3,75 (7 kg load pre-drained at 1200 rpm) 3,60 (7 kg load pre-drained at 1400 rpm) 3,20 (7 kg load pre-drained at 1800 rpm)

(7 kg load pre-drained at 1000 rpm)

(3 kg load pre-drained at 1200 rpm)

1) Different loading volume data may be needed in some countries as a result of different measuring methods.

2) In accordance with EN 61121.

3) Hints for test institutes: cycle has to be checked in accordance with EN 61121.

Press simultaneously the QUICK and LONG ANTICREASE but- tons and hold down for approx. 5 seconds.

3. The buzzer is by default always off.

59Water hardness Water contains, a variable quanti- ty of limestone and mineral salts of which quantities vary accord- ing to geographical locations thus varying its conductivity val- ues. Relevant variations of the con- ductivity of the water compared to those prefixed by the factory could slightly influence the resid- ual humidity of the laundry at the end of the cycle. Your dryer al- lows you to regulate the sensitivi- ty of the drying sensor based on conductivity values of the water.

Press simultaneously the QUICK and START/PAUSE buttons and hold down for approx. 5 seconds. The current setting is on the dis- play:

Press the START/PAUSE button sequentially until you set desired level.
