USER MANUAL TCE 7126 ZANUSSI

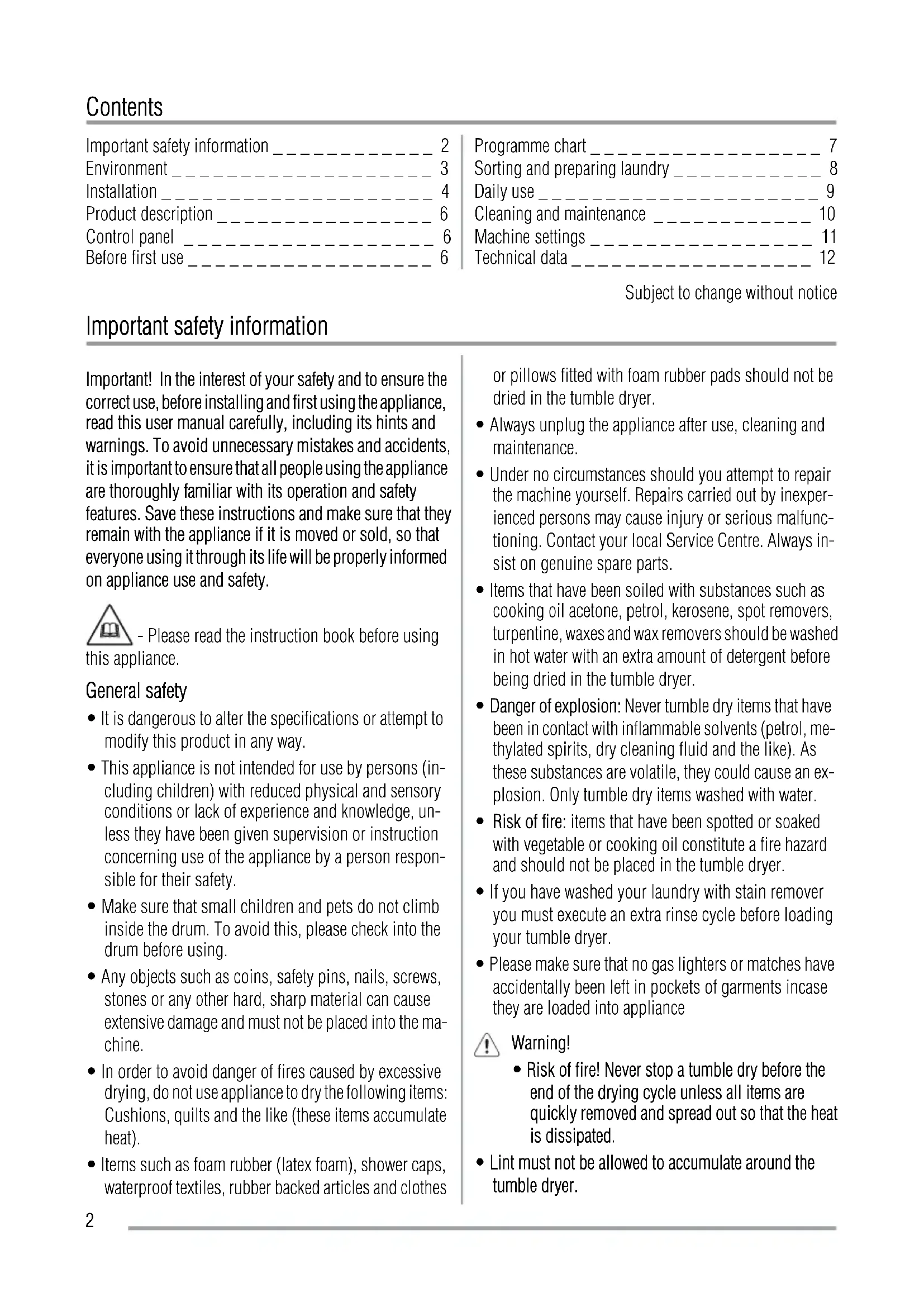

Important safety information	2
Environment	3
Installation	4
Product description	6
Control panel	6
Before first use	6

Programme chart	7
Sorting and preparing laundry	8
Daily use	9
Cleaning and maintenance	10
Machine settings	11
Technical data	12

Subject to change without notice

Important safety information

Important! In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

- Please read the instruction book before using this appliance.

General safety

• It is dangerous to alter the specifications or attempt to modify this product in any way.
• This appliance is not intended for use by persons (including children) with reduced physical and sensory conditions or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Make sure that small children and pets do not climb inside the drum. To avoid this, please check into the drum before using.
• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.
• In order to avoid danger of fires caused by excessive drying, do not use appliance to dry the following items: Cushions, quilts and the like (these items accumulate heat).
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes

or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

• Always unplug the appliance after use, cleaning and maintenance.
• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.
• Items that have been soiled with substances such as cooking oil acetone, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Danger of explosion: Never tumble dry items that have been in contact with inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like). As these substances are volatile, they could cause an explosion. Only tumble dry items washed with water.
• Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer.
• If you have washed your laundry with stain remover you must execute an extra rinse cycle before loading your tumble dryer.
• Please make sure that no gas lighters or matches have accidentally been left in pockets of garments incase they are loaded into appliance

Warning!

- Risk of fire! Never stop a tumble dry before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

- Lint must not be allowed to accumulate around the tumble dryer.

• Risk of electric shock! Do not spray down the appliance with jets of water.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that items will not be damaged.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Ensure you have good ventilation in the installation room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

Installation

• This appliance is heavy. Care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.
• All packaging must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance.
• After having installed the appliance, check that it is not pressing or standing on its electrical supply cable.
• If the tumble dryer is placed on top of a washing machine, it is compulsory to use the stacking kit (optional accessory).

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash fabrics which are designed to be machine dried. Follow the instructions on each garment label.

Environment

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the

• Do not dry unwashed items in the tumble dryer.
• Do not overload the appliance. See the relevant section in the user manual.
• Clothes which are dripping wet should not be placed in the dryer.
• Garments which have been in contact with volatile petroleum products should not be machine dried. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• Never use the tumble dryer if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the tumble dryer is accessible.
• Fabric softeners, or similar products should be used as specified by the fabric softener instructions.
• Caution - hot surface : Do not touch the door light cover surface when the light is switched on. (Only dryers equipped with internal drum light)

Child safety

• This machine is not intended for use by young children or infirm persons without supervision.
• Children often do not recognise the hazards associated with electrical appliances. Children should be supervised to ensure that they do not play with the appliance.

Warning!

- Danger of suffocation! The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - Keep them out of children's reach.

• Keep all detergents in a safe place out of children's reach.
• Make sure that children or pets do not climb inside the drum.

appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential

negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Old appliance

Warning!

Remove mains plug from socket when you have no further use for the machine. Cut off mains cable and dispose of together with plug. Destroy loading door hook. Children cannot then lock themselves in the machine and put their lives at risk.

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the

Installation

Important! The appliance must be moved in vertical position for transport.

Appliance positioning

• It is recommended that, for your convenience, the machine is positioned close to your washing machine.
• The tumble dryer must be installed in a clean place, where dirt does not build up.
• Air must be able to circulate freely all round the appliance. Do not obstruct the front ventilation grille or the air intake grilles at the back of the machine.
• To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface.
• Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, raise or lower the feet until it is.
• The feet must never be removed. Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

Important!

- The hot air emitted by the tumble dryer can reach temperatures of up to 60°C. The appliance must therefore

packaging materials in the appropriate container at the community waste disposal facilities.

Environmental tips

• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not therefore needed when washing.
• Your dryer will function most economically if you:
  – always keep the ventilation slots on the base of the dryer unobstructed;
• use the loading volumes specified in the programme overview;
  — ensure you have good ventilation in the installation room;
  – clean the micro-fine filter and fine strainer after each drying cycle;
• spin the laundry well before drying.

Energy consumption depends on spinning speed set in washing machine. Higher spinning speed -er energy consumption.

not be installed on floors which are not resistant to high temperatures.

• When operating the tumble dryer, the room temperature must not be lower than +5°C and higher than +35°C, as it may affect the performance of the appliance.
• Should the appliance be moved, it must be transported vertically.
• The appliance must not be installed behind the lockable door, a sliding door a door with a hinge on the opposite side to that of the appliance in such a way that a full opening of the dryer is restricted.

Removing transport safety packaging

Caution! Before use all parts of the transport packaging must be removed.

Line drawing of a washing machine with a door and arrow indicator (no text or symbols)

Illustration of a hand using a tool to clean or store contents on a circular object (no text or symbols visible)

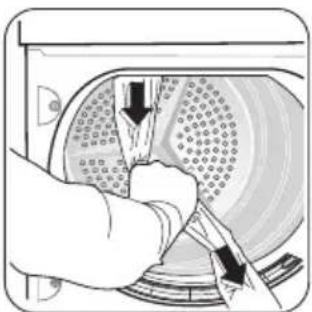

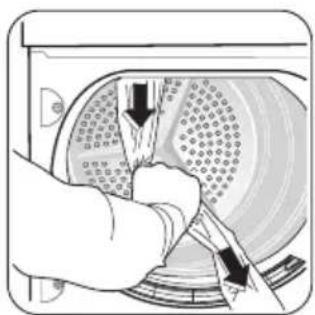

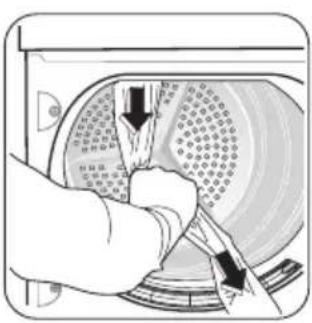

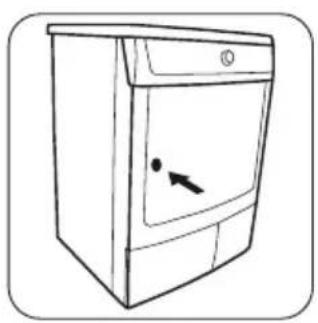

1. Open loading door 2. Pull off adhesive strips from inside machine on top of drum.

Medical illustration showing a joint with an arrow indicating direction (no text or symbols present)

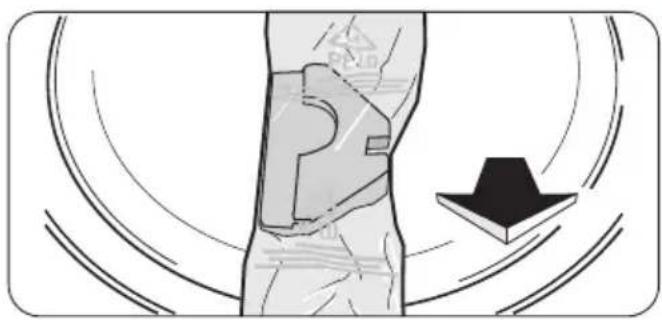

1. Remove foil hose and polystyrene padding from the machine.

Electrical connection

Details on mains voltage, type of current and the fuses required should be taken from the type plate. The type plate is fitted near the loading aperture (see "Product description" chapter).

Warning! The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precautions. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Center.

Warning! The power supply cable must be accessible after installing the machine.

Door reversal

To make it easier to load or unload the laundry, the door can be reversed.

Warning! The door must only be reversed by an authorised service engineer.

Please contact your local Service Force Centre. The engineer will carry out the door reversal at your cost.

Special accessories

- stack kit

Available from your Service Force Centre or your specialist dealer

These intermediate installation kits can be used to arrange the dryer and an washing machine (60 cm wide, front loaded) as a space-saving washer/dryer stack.

The washing machine is at the bottom and the dryer is at the top.

Read carefully the instructions supplied with the kit.

- drain kit

Available from your Service Force Centre or your specialist dealer

Installation kit for direct draining of condensate into a basin, siphon, gully, etc. The condensate tank then no longer has to be drained, it must however remain in its intended position in the machine.

Read carefully the instructions supplied with the kit.

- pedestal with the drawer

Available from your Service Force Centre or your specialist dealer

To situate the dryer in optimal high and have some additional space to store (e.g. laundry).

Read carefully the instructions supplied with the kit.

Product description

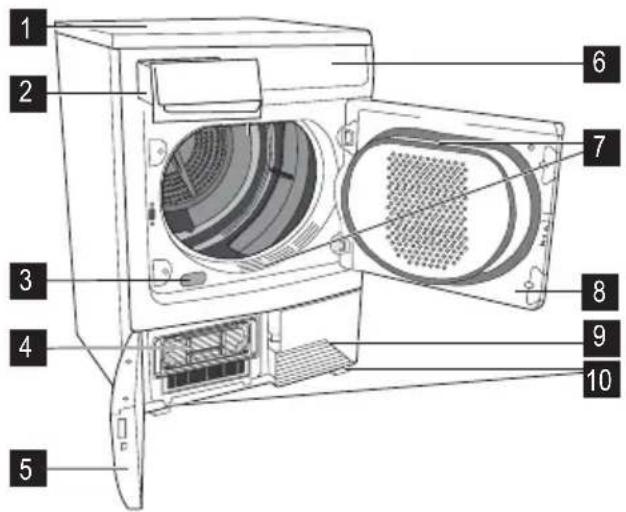

Description of the appliance

Labeled diagram of a microwave oven with numbered parts for identification

1 Worktop
2 Vater reservoir
3 Rating Plate
4 Heat exchanger
5 Heat exchanger door
6 Control panel
7 fluff filters
8 Loading door
9 ventilation grille
10 Adjustable feet

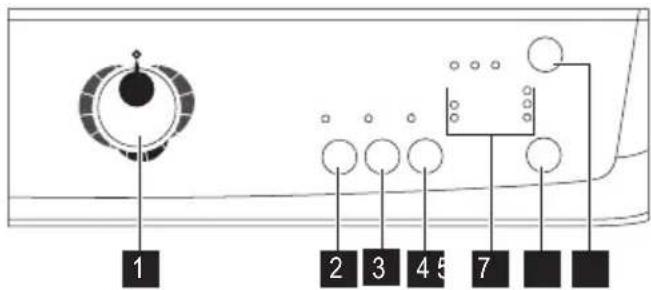

Control panel

1 2 3 4 5 7

1 Programme knob and ○ OFF switch
2 Delicate button
3 Long anticrease button
4 Buzzer button

Before first use

In order to remove any residues which may have been produced during production, wipe the dryer drum with a

5 Function status led
- Delay time lights
- Drying light
- → Anticrease/End light
- Condenser light
- Filters light
- Water Reservoir light

6 ▷|| START/PAUSEbutton
7 DELAY STARTbutton

damp cloth or carry out a brief drying cycle (ca. 30 min.) with damp cloths in the machine.

Programme chart

Programmes	max. load (weight when dry)	Additional functions/options Application/properties		Care mark
COTTON EXTRA DRY	7 kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY		Thorough drying of thick or multi- lay-ered fabrics, e.g. terry towelling items, bathrobes.
COTTON STRONG DRY	7 kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY		Thorough drying of thick or multi- lay-ered fabrics, e.g. terry towelling items, bathrobes.
COTTON STORAGE DRY 1)	7 kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY		Thorough drying of fabrics of even thicknesses, e.g. terry towelling items, knitwear, towels.
COTTON DAMP1)	7 kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY		For thin textiles which are still to be ironed, e.g. knitted items, cotton shirts.
COTTON IRON DRY1)	7 kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY		For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts.
SYNTHETICS EXTRA DRY	3 kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY		Thorough drying of thick or multi- lay-ered fabrics, e.g. pullovers, bedding, table linen.
SYNTHETICS STORAGE DRY 1)	3 kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY		For thin fabrics which are not ironed, e.g. easy care shirts, table linen, baby clothes, socks, lingerie with bones or wires.
SYNTHETICS IRON DRY	3 kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY		For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts.
30'60'	1kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY		For further drying of individual items of laundry or for small volumes of less than 1 kg.
Programmes	max. load (weight when dry)	Additional functions/options Application/properties		Care mark
MIX MIXED	3 kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY	For drying cotton and synthetic fabrics, uses low temperature.
BABY	2 kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY	Baby cycle is a special programme for jumpers to be dried “ready to wear”.
JEANS	7 kg	DELICATE, LONG AN-TICREASE, BUZZER, DELAY	For leisure clothing, such as jeans, sweat-shirts, etc., of different material thicknesses (e.g. at the neck, cuffs and seams).
COOLING	7 kg	BUZZER	Special programme, lasting around 10 minutes, for refreshing or gently cleaning textiles with commercially available dry cleaning sets. (Only use those products which are declared as suitable for the drier by the manufacturer; please observe the manufacturer's instructions for use.)

1) In accordance with IEC61121
2) select ◆ DELICATE option

Sorting and preparing laundry

Sorting laundry

- Sort by fabric type:

- Cotton/linen for programmes in COTTONS programme group.

- Mixtures and synthetics for programmes in SYNTHETICS programme group.

- Sort by care label: The care labels mean:

Drying in the tumble dryer possible in principle

Drying at normal temperature

Drying at reduced temperature

Drying in the tumble dryer not possible

Important! Do not place in the appliance any wet laundry which is not specified on the care label as being suitable for tumble-drying.

This appliance can be used for all wet laundry items which are labelled as suitable for tumble-drying.

• Do not dry new, coloured textiles together with light-coloured laundry items. Textile colours may bleed.
• Do not dry cotton jersey and knitwear with the EXTRA DRY programme. Items may shrink!

Preparing laundry

• To avoid laundry becoming tangled: close zips, button up duvet covers and tie loose ties or ribbons (e.g. of aprons).
• Empty pockets. Remove metal items (paper clips, safety pins, etc).
• Turn items with double-layered fabrics inside out (e.g. with cotton-lined anoraks, the cotton layer should be outermost). These fabrics will then dry better.

Important! Do not overload the appliance. Observe max. loading volume.

Laundry weights

Type of laundry Weight
Bathrobe 1200 g
Napkin 100 g

Type of laundry Weight
Quilt cover 700 g
Sheet 500 g
Pillow case 200 g
Tablecloth 250 g
Towelling towel 200 g
Tea cloth 100 g
Night dress 200 g
Ladies' briefs 100 g
Man's work shirt 600 g
Man's work shirt 200 g
Man's pyjamas 500 g
Blouse	100 g
Men's underpants	100 g

Daily use

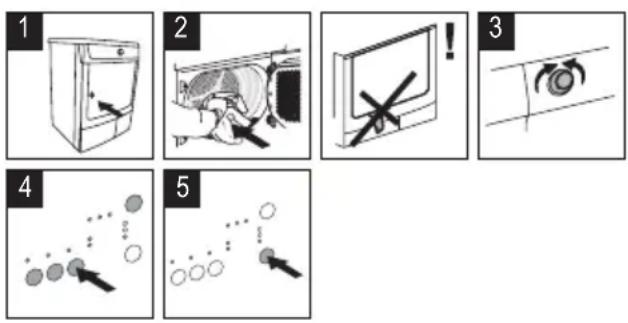

Switching machine on

Turn the programme selector to any programme. The machine switches on.

Operating

DELICATE

gentle drying with reduced heat of sensitive fabrics and temperature-sensitive textiles (e.g. acrylic, viscose) marked on care label with:

LONG ANTI-CREASE

prolongs the anti-crease phase to 90 mins in total. The laundry remains relaxed and free of creases.

BUZZER

audible confirmation of:

• cycle end
• anti-crease phase start and end
• cycle interruption
• error

DELAY START

allows to delay the start of a drying programme from minimum of 30 min. to maximum of 20 hours. Press the Delay Start button repeatedly until the desired delay start is shown on the display

Starting the programme

Press ▷ Start/Pausebutton to start the dryer after having selected the programme and the options. The relevant light will stop flashing. If the programme selector dial is turned to another position, when the machine is running, the buzzer will sound and the programme phase indicator lights will flash. The drum turns alternately in both directions during drying.

All drying programmes end with a 10 minute cooling phase. You may remove the laundry after this phase. If the door of the appliance or the small door at the bottom is opened while the programme is running, this button

must be pressed again after closing the door in order to restart the programme from the point at which it was interrupted. This button must be depressed also after a power failure and after having reinserted the water reservoir, if it has been emptied in the middle of a programme after lighting up of light 🙏 Water reservoir.

In both cases the light of the ▷ Start/Pause button flashes to remind you that the start button needs to be pressed again.

Indicator lights

These lights indicate the following functions:

• Drying light: This light indicates that the appliance is in the drying phase.
• →|End of programme light: This light is on at the end of the cooling phase, during the anticreasing phase and at the end of the programme.

- Water reservoir light: This light indicates that the appliance is in the drying phase. This light comes on at the end of the programme to remind you that the water reservoir must be emptied out. If this light illuminates during a programme this means that the water reservoir is full. The buzzer sounds, the programme stops, the light of the Start/Pause button flashes. This light comes on also when the water reservoir is not inserted correctly.

- Filter light: This light illuminates at the end of the programme to remind you that the filters must be cleaned.

- Condenser light: It comes on every 80 cycles to remind you that the condenser must be cleaned.

Changing programme

To change a programme which has been selected by mistake once the programme has started, first turn the pro-

Cleaning and maintenance

Cleaning fluff filters

The filters collect all the fluff which accumulates during drying. To ensure that the dryer works perfectly, the fluff filters (fine filters and fluff filters) must be cleaned after each drying cycle.

Caution! Never operate the dryer without fluff filters or with damaged or blocked fluff filters.

gramme selector to -OFF position. The programme is cancelled.

The programme can no longer be changed directly once the programme has started. If nevertheless there is an attempt to change the programme on the programme knob or if an function button (excluding the BUZZER button ^1) ) is pressed, led on the ▶TART/PAUSE button starts flashing temporarily in red. The drying programme is not however affected by this (laundry protection).

At the end of the programme

If the laundry is not removed at the end of the cycle, the dryer performs an anticreasing phase (duration: 30 minutes maximum).

If you do not remove the laundry, the dryer will stop automatically at the end of the anticreasing phase. Lights → End of programme, and Water reservoir remain lit and the buzzer sounds for 2 minutes.

Turn the programme selector dial to ○ to switch the machine off. Remove the laundry from the drum and carefully check that the drum is empty.

If you do not intend to carry out another wash, close the water tap. Leave the door open to prevent the formation of mildew and unpleasant smells.

If you open and then close the door before turning the selector dial to ○ all the lights corresponding to the phases making up the performed programme come on.

After each use

• Clean the filters.
• Empty the water reservoir.

Pure technical line drawing of a mechanical component with a circular inset showing a grid pattern (no text or symbols)

Diagram of a washing machine with labeled parts I and II, showing front and back views.

Diagram of a fan or vent system with directional arrows indicating airflow or movement (no text or symbols present)

Diagram of a mechanical component with an arrow indicating direction, no visible text or symbols

Illustration of a hand holding a small object with a funnel and two rectangular objects, no text or symbols present.

Diagram of a mechanical component with a circular top and arrow indicating direction (no text or symbols)

Diagram of a fan or vent with a mounted device and fan blade (no text or symbols)

Illustration of two hands using a tool to cut or mark a rectangular object, with no visible text or symbols.

Diagram of a mounted air vent or fan device with a label '7' and circled number 'II' (no text or symbols on the device itself)

Clean the door seal

Wipe the door seal with a damp cloth immediately after the drying cycle has finished.

Emptying the water reservoir

Empty the water reservoir after every drying cycle.

Simple line drawing of a tool or bracket with a water droplet icon (no text or symbols)

Caution! The condensed water is not suitable for drinking or for preparing foodstuffs.
If the programme has been interrupted as a result of the water reservoir being full: Press the START/PAUSE button to continue the drying cycle.

Machine settings

Setting Implementation

Cleaning condenser

Simple line drawing of a mechanical component with a circular arrow symbol pointing to it (no text or labels)

Important!

• Never operate the dryer without condenser.
• Clogged condenser cause higher energy consumption (drying cycle elongation) and dryer damage.
• Do not use sharp objects to clean.

Architectural diagram of a double door with two doors on the side and an open door opening, showing structural details (no text or symbols)

Cleaning the drum

Caution! Do not use abrasives or steel wool to clean the drum.
i Lime in the water or cleaning agents may form a barely visible lining on the inside of the drum. The degree to which the laundry has been dried is then no longer detected reliably. The laundry is damper than expected when removed from the appliance.

Use a standard domestic cleaner (e.g. vinegar-based cleaner) to wipe down the inside of the drum and drum ribs.

Clean control panel and housing

Caution! Do not use furniture cleaners or aggressive cleaning agents to clean the machine.

Use a damp cloth to wipe down the control panel and housing.

BUZZER permanent off

1. Turn the programme selector to any programme.2. Press simultaneously the DELICATE and LONG ANTICREASE buttons and hold down for approx. 5 seconds.3. The buzzer is by default always off.

Water hardnessWater contains, a variable quantity of limestone and mineral salts of which quantities vary according to geographical locations thus varying its conductivity values.Relevant variations of the conductivity of the water compared to those prefixed by the factory could slightly influence the residual humidity of the laundry at the end of the cycle. Your dryer allows you to regulate the sensitivity of the drying sensor based on conductivity values of the water.

1. Turn the programme selector to any programme.2. Press simultaneously the LONG ANTICREASE and ▷START/PAUSE buttons and hold down for approx. 5 seconds. Lights show the current setting:- Water Reservoir - low conductivity <300 micro S/cm- Filter - medium conductivity 300-600 micro S/cm- ⇒ Condenser - high conductivity >600 micro S/cm3. Press the ▷START/PAUSE button sequentially until you set desired level.4. To memorize setting press simultaneously the the LONG ANTICREASE and ▷START/PAUSE buttons or turn knob to ○OFF position

Technical data

1) Different loading volume data may be needed in some countries as a result of different measuring methods.

Parameter Value
Height x width x depth 85 x 60 x 58 cm
Drum volume 108 l
Depth with loading door open 109 cm
Height can be adjusted by 1.5 cm
Weight when empty approx. 40 kg
Loading volume (depends on programme)1)	max. 7 kg
Voltage 220-230 V
Required fuse 10 A
Total power 2350 W
Energy efficiency class B
Energy consumption (7 kg of cotton, pre-drained at 1000 rpm) 2)	3.92 kWh
Average annual energy consumption	284.1 kWh
Use	Domestic
Permissible ambient temperature	+ 5°C to + 35°C
Consumption valuesThe consumption values have been established under standard conditions. They may deviate when the machine is operated in domestic circumstances.
Programme Energy consumption in kWh / average drying time in min.
COTTON CUPBOARD DRY3)	3.92 / 125 (7 kg load pre-drained at 1000 rpm)3,75 (7 kg load pre-drained at 1200 rpm)3,60 (7 kg load pre-drained at 1400 rpm)3,20 (7 kg load pre-drained at 1800 rpm)
COTTON IRON DRY3)	3.34 / 107 (7 kg load pre-drained at 1000 rpm)
SYNTHETICS CUPBOARD DRY3)	1.33 / 48 (3 kg load pre-drained at 1200 rpm)

2) In accordance with EN 61121.
3) Hints for test institutes: cycle has to be checked in accordance with EN 61121.

Sommaire

Line drawing of a simple kitchen sink with a door and toilet (no text or symbols)

Illustration of a hand using a tool to clean or store contents inside a machine (no text or symbols visible)

Diagram of a mechanical joint or bracket with directional arrows indicating movement (no text or symbols)

Labeled diagram of a washing machine with numbered parts for identification

Simple line drawing of a mechanical component with a circular inset showing a grid pattern (no text or symbols)

Diagram of a washing machine with labeled parts I and II, showing front and back views

Diagram of a fan or vent system with labeled components (no readable text or symbols)

Close-up of a mechanical component with a highlighted section and arrow indicator (no text or symbols)

Illustration of hands using a tool to interact with a mechanical device (no text or symbols visible)

Close-up of a circular mechanical component with a downward arrow indicating a feature, no visible text or symbols.

Diagram of a mechanical or electrical component with a grid pattern and an upward arrow, no visible text or symbols.

Illustration of two hands using a tool to lift a block, with no visible text or symbols

Diagram of a device with a grid pattern and a labeled section (II), no readable text or symbols present.

Simple line drawing of a mechanical component with a water droplet icon (no text or symbols)

Simple line drawing of a mechanical component with a circular arrow symbol pointing to it (no text or labels)

Important

Diagram of a refrigerator interior with doors open and a warning symbol (no text or labels)

Line drawing of a washing machine with a door and arrow symbol (no text or labels)

Illustration of a hand using a tool to clean or inspect a circular object with a perforated pattern (no text or symbols visible)

Diagram of a mechanical joint or connector with directional arrows indicating movement (no text or symbols)

Labeled diagram of a washing machine with numbered parts for identification

Pure technical line drawing of a mechanical component with a circular inset showing a grid pattern (no text or symbols)

Diagram of a washing machine with labeled parts I and II, showing front and back views

Diagram of a fan or vent system with labeled components (no text or symbols present)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a laboratory glassware with a funnel and tubing (no text or symbols)

Close-up of a mechanical component with a circular feature and an arrow indicating direction (no text or symbols)

Diagram of a fan or vent with a mounted component and fan blade, no text or symbols present

Illustration of two mechanical components with a diagonal line and a person holding a tool, no text or symbols present.

Illustration of a mounted air vent or fan device with a label '7' and circled number 'II' (no text or symbols on the device itself)

Simple line drawing of a tool or bracket with a water droplet symbol (no text or labels)

Simple line drawing of a mechanical component with a circular arrow symbol pointing right (no text or labels)

Wichtig!

Line drawing of a washing machine with a door and arrow symbol (no text or labels)

Illustration of a hand using a tool to cut a circular component with arrows indicating direction (no text or symbols)

Diagram of a mechanical joint or clamping mechanism with directional arrows and a warning symbol (no readable text or labels)

Labeled diagram of a washing machine with numbered parts for identification

THIS IS NOT A WASHING MACHINE!!! THIS IS NOT A WASHING MACHINE!!!

Simple line drawing of a mechanical component with a circular inset showing a grid pattern (no text or symbols)

Diagram of a washing machine with labeled parts I and II, showing internal components and housing layout.

Diagram of a fan or vent system with labeled components (no text or symbols present)

Diagram of a mechanical component with an arrow indicating direction, no visible text or symbols

Illustration of a laboratory procedure showing hand positioning and tubing (no text or symbols)

Diagram of a mechanical component with a circular top and arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a textured center and mounting bracket (no text or symbols)

Illustration of two hands using a tool to lift a block, with no text or symbols present

Illustration of a mounted air vent or fan device with a label '7' and circled number 'II' (no text or symbols on the device itself)

Simple line drawing of a mechanical component with a water droplet symbol (no text or labels)

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Importante

Diagram of a cabinet with doors open and doors closed, showing internal compartments and two hanging objects (no text or symbols)
