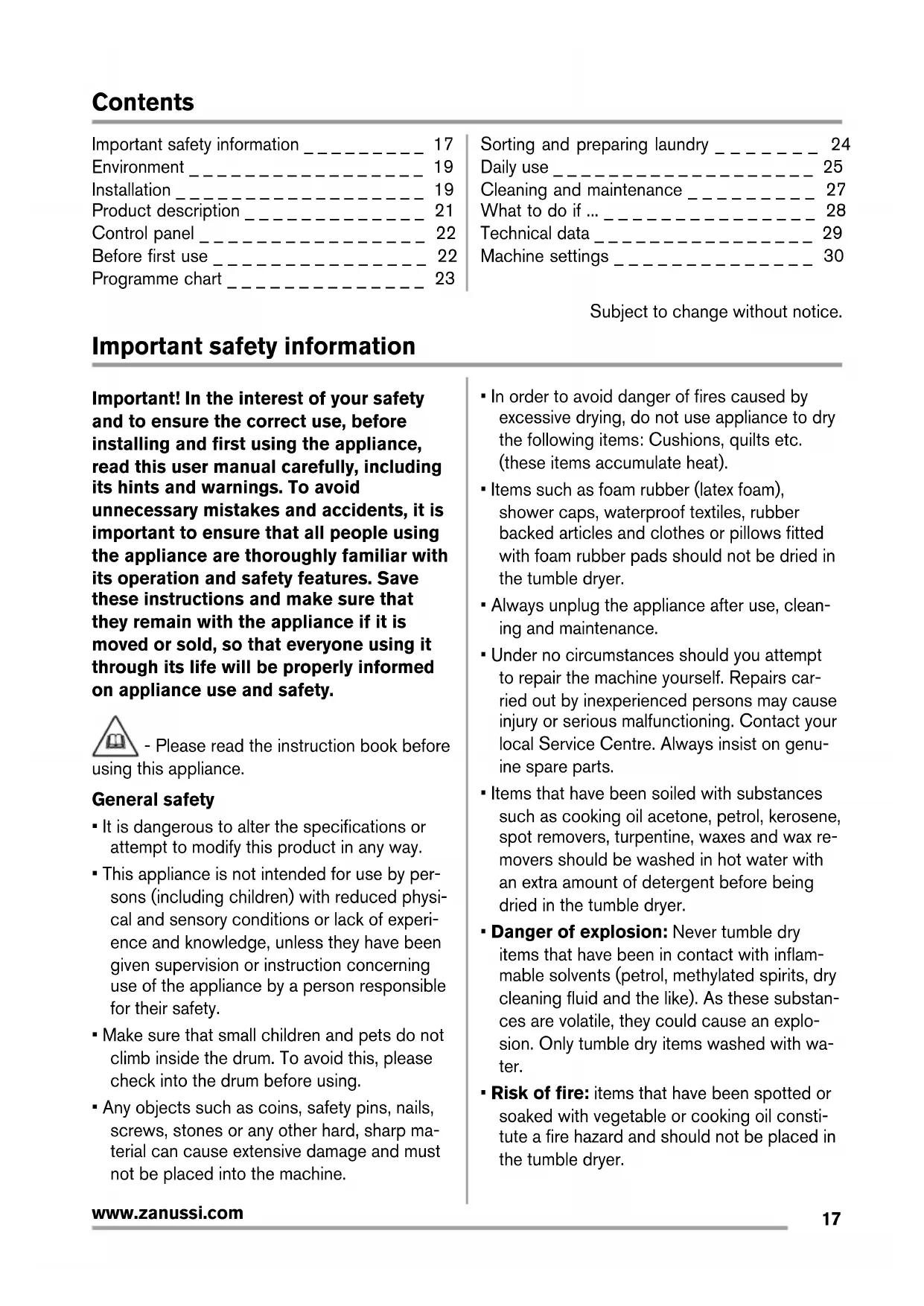

Important safety information ____ 17
Environment 19
Installation 19
Product description 21
Control panel 22
Before first use 22
Programme chart ____ 23

Sorting and preparing laundry 24
Daily use 25
Cleaning and maintenance 27
What to do if ... 28
Technical data 29
Machine settings 30

Subject to change without notice.

Important safety information

Important! In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

- Please read the instruction book before this appliance.

General safety

• It is dangerous to alter the specifications or attempt to modify this product in any way.
• This appliance is not intended for use by persons (including children) with reduced physical and sensory conditions or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Make sure that small children and pets do not climb inside the drum. To avoid this, please check into the drum before using.

• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.

• In order to avoid danger of fires caused by excessive drying, do not use appliance to dry the following items: Cushions, quilts etc. (these items accumulate heat).

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Always unplug the appliance after use, cleaning and maintenance.
  ■ Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.
• Items that have been soiled with substances such as cooking oil acetone, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Danger of explosion: Never tumble dry items that have been in contact with inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like). As these substances are volatile, they could cause an explosion. Only tumble dry items washed with water.

• Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer.

• If you have washed your laundry with stain remover you must execute an extra rinse cycle before loading your tumble dryer.

• Please make sure that no gas lighters or matches have accidentally been left in pockets of garments incase they are loaded into appliance

Warning!

- Risk of fire! Never stop a tumble dry before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

- Lint must not be allowed to accumulate around the tumble dryer.

• Risk of electric shock! Do not spray down the appliance with jets of water.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that items will not be damaged.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Ensure you have good ventilation in the installation room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

Installation

• This appliance is heavy. Care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.
• All packaging must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance.

• After having installed the appliance, check that it is not pressing or standing on its electrical supply cable.

• If the tumble dryer is placed on top of a washing machine, it is compulsory to use the stacking kit (optional accessory).

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash fabrics which are designed to be machine dried. Follow the instructions on each garment label.
• Do not dry unwashed items in the tumble dryer.
• Do not overload the appliance. See the relevant section in the user manual.
• Clothes which are dripping wet should not be placed in the dryer.
• Garments which have been in contact with volatile petroleum products should not be machine dried. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• Never use the tumble dryer if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the tumble dryer is accessible.
• Fabric softeners, or similar products should be used as specified by the fabric softener instructions.
• Caution - hot surface : Do not touch the door light cover surface when the light is switched on.

(Only dryers equipped with internal drum light)

Child safety

• This machine is not intended for use by young children or infirm persons without supervision.
• Children often do not recognise the hazards associated with electrical appliances. Chil-

dren should be supervised to ensure that they do not play with the appliance.

Warning!

- Danger of suffocation! The packaging components (e.g. plastic film, polystyr-

ene) can be dangerous to children - Keep them out of children's reach.

• Keep all detergents in a safe place out of children's reach.
• Make sure that children or pets do not climb inside the drum.

Environment

Recycle the materials with the symbol ⚙ Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol ✗ with the household waste. Return the product to your local recycling facility or contact your municipal office.

Old appliance

Warning!

Remove mains plug from socket when you have no further use for the machine. Cut off mains cable and dispose of together with plug. Destroy loading door hook. Children cannot then lock themselves in the machine and put their lives at risk.

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,

Installation

Important! The appliance must be moved in vertical position for transport.

Appliance positioning

• It is recommended that, for your convenience, the machine is positioned close to your washing machine.
• The tumble dryer must be installed in a clean place, where dirt does not build up.
• Air must be able to circulate freely all round the appliance. Do not obstruct the front ventilation grille or the air intake grilles at the back of the machine.

PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Environmental tips

• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not therefore needed when washing.
• Your dryer will function most economically if you:
  – always keep the ventilation slots on the base of the dryer unobstructed;
• use the loading volumes specified in the programme overview;
• ensure you have good ventilation in the installation room;
  – clean the micro-fine filter and fine strainer after each drying cycle;
  – spin the laundry well before drying.

Energy consumption depends on spinning speed set in washing machine. Higher spinning speed - lower energy consumption.

• To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface.
• Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, raise or lower the feet until it is.
• The feet must never be removed. Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

Important!

• The hot air emitted by the tumble dryer can reach temperatures of up to 60°C. The appliance must therefore not be installed on floors which are not resistant to high temperatures.
• When operating the tumble dryer, the room temperature must not be lower than +5°C and higher than +35°C, as it may affect the performance of the appliance.
• Should the appliance be moved, it must be transported vertically.
• The appliance must not be installed behind the lockable door, a sliding door a door with a hinge on the opposite side to that of the appliance in such a way that a full opening of the dryer is restricted.

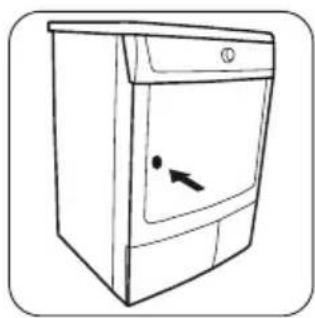

Removing transport safety packaging

Caution! Before use all parts of the transport packaging must be removed.

Line drawing of a front-loading washing machine with a door and arrow indicator (no text or symbols)

Hand operating a circular device with a grid pattern and directional arrows (no text or symbols visible)

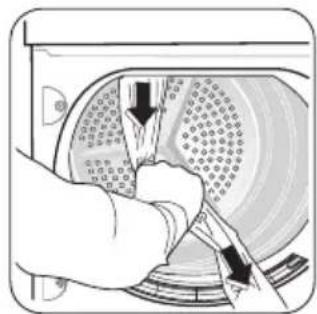

1. Open loading door 2. Pull off adhesive strips from inside machine on top of drum.

Diagram of a human knee joint with a highlighted ligament and directional arrow (no text or labels)

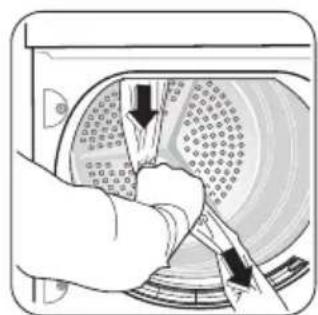

1. Remove foil hose and polystyrene padding from the machine.

Electrical connection

Details on mains voltage, type of current and the fuses required should be taken from the type plate. The type plate is fitted near the loading aperture (see "Product description" chapter).

Warning! The manufacturer declines any responsibility for damage or injury through re to comply with the above safety sautions.

Should the appliance power supply cable need to be replaced, this must be carried out by our Service Center.

Warning! The power supply cable must be accessible after installing the machine.

Door reversal

To make it easier to load or unload the laundry, the door can be reversed.

Warning! The door must only be reversed by an authorised service engineer.

Please contact your local Service Force Centre. The engineer will carry out the door reversal at your cost.

Special accessories

- stack kit

Available from your Service Force Centre or your specialist dealer

These intermediate installation kits can be used to arrange the dryer and an washing machine (60 cm wide, front loaded) as a space-saving washer/dryer stack. The washing machine is at the bottom and the dryer is at the top.

Read carefully the instructions supplied with the kit.

- drain kit

Available from your Service Force Centre or your specialist dealer

Installation kit for direct draining of condensate into a basin, siphon, gully, etc. The condensate tank then no longer has to be drained, it must however remain in its intended position in the machine.

Read carefully the instructions supplied with the kit.

- pedestal with the drawer

Available from your Service Force Centre or your specialist dealer

To situate the dryer in optimal high and have some additional space to store (e.g. laundry).

Read carefully the instructions supplied with the kit.

Product description

Description of the appliance

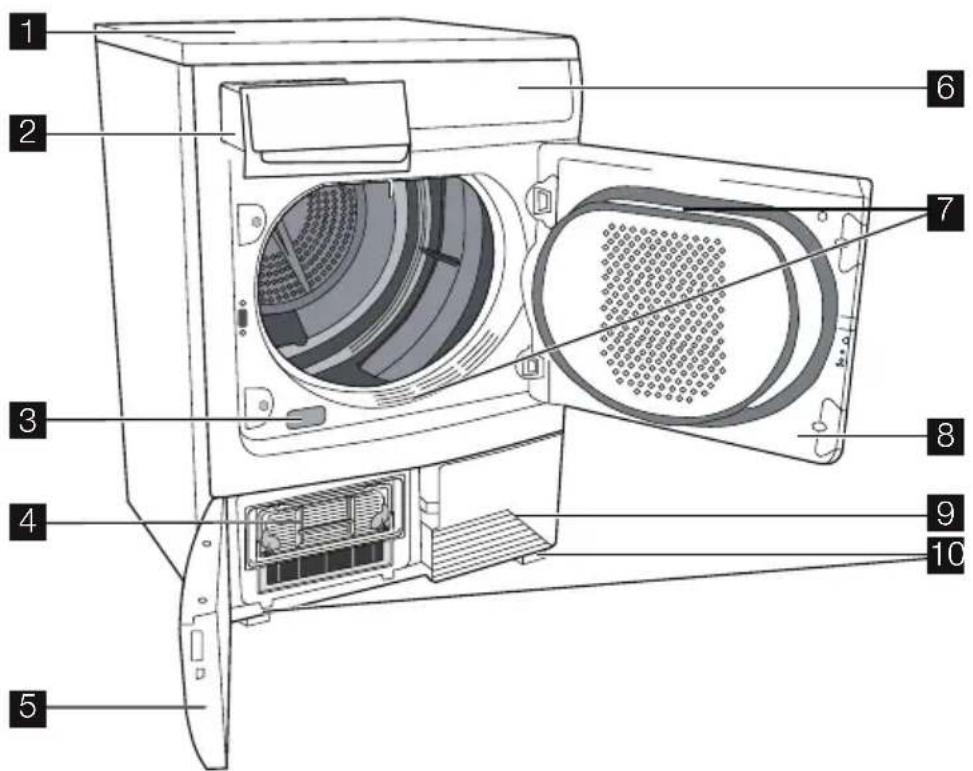

Labeled diagram of a washing machine with numbered parts for identification

1 Worktop
2 Water reservoir
3 Rating Plate
4 Heat exchanger
5 Heat exchanger door

6 Control panel
7 Fluff filters
8 Loading door
9 Ventilation grille
10 Adjustable feet

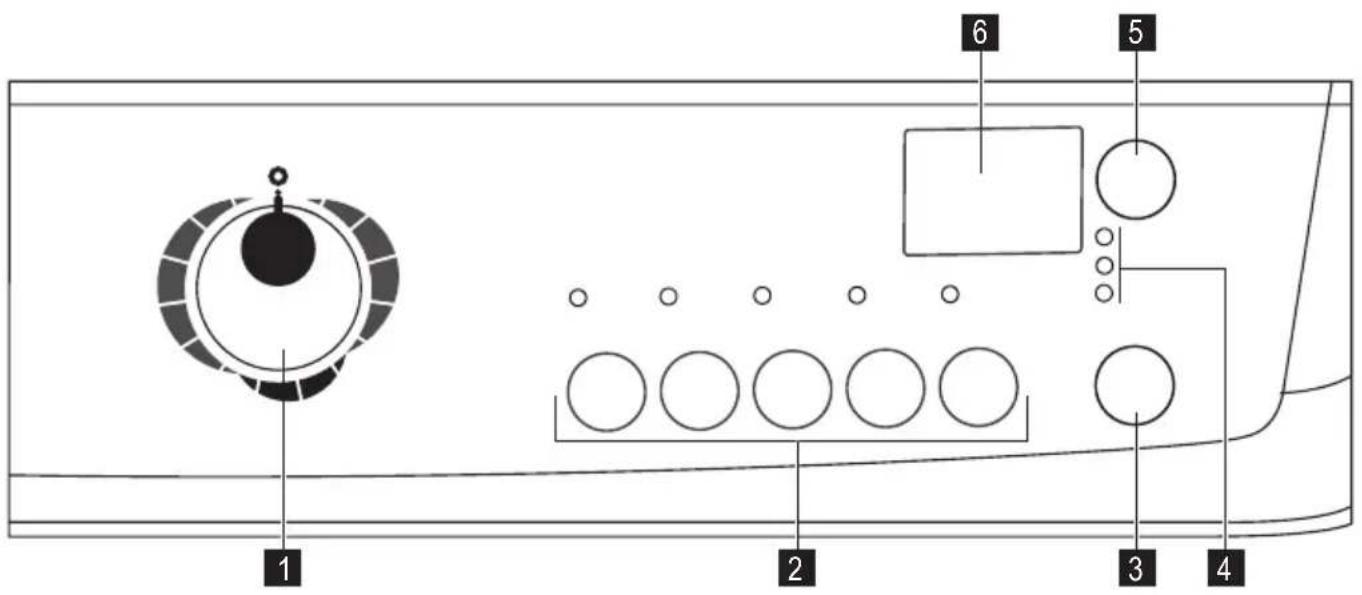

1 2 3 4 5 6

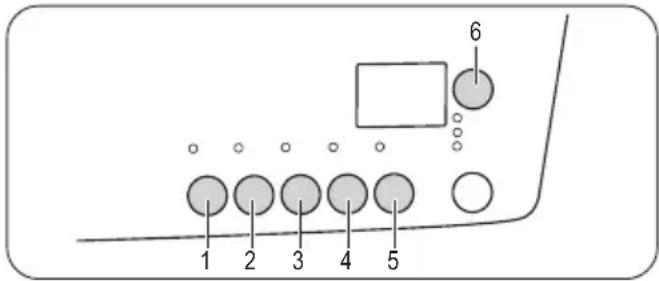

1 Programme knob and ○ OFF switch
2 Function buttons
3 Start/Pauze (Start/Pause) button
4 Function status led

• Condensor (Condenser) light
• ● Filter light
• Waterreservoir (Tank) light

5 Startuitstel (Delay Start) button

6 Display

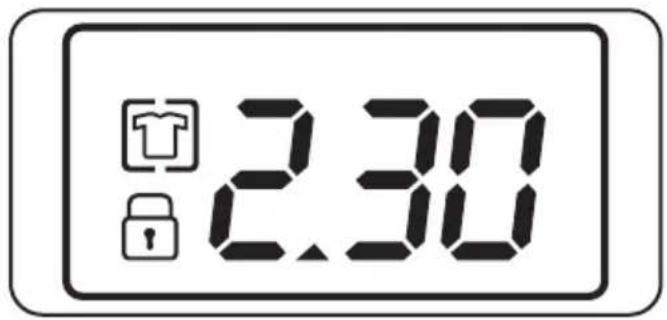

What is shown in the display

2.30

Before first use

In order to remove any residues which may have been produced during production, wipe the dry-er drum with a damp cloth or carry out a brief

SYMBOL DESCRIPTION
2.30	Time to end (time of time pro-gramm, time of start delay)
	Child lock
	Anticrease guard phase
Err	Error, wrong selection

drying cycle (ca. 30 min.) with damp cloths in the machine.

Programme	max. load (dry clothes)	Additional functions/ options	Application/properties	Care label
Katoen (Cottons)
Extra droog (Extra Dry) 1)	8 kg	all except Tijd (Time)	Thorough drying of thick or multi- layered fabrics, e.g. terry towelling items, bathrobes.
Sterkdroog (Strong Dry)	8 kg	all except Tijd (Time)	Thorough drying of thick or multi- layered fabrics, e.g. terry towelling items, bathrobes.
Kastdroog (Cupboard Dry) 2)	8 kg	all except Tijd (Time)	Thorough drying of fabrics of even thicknesses, e.g. terry towelling items, knitwear, towels.
Strijkdroog+ (Damp) 2)	8 kg	all except Tijd (Time)	For thin textiles which are still to be ironed, e.g. knitted items, cotton shirts.
Strijkdroog (Iron Dry) 2)	8 kg	all except Tijd (Time)	For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts.
Synthetisch (Synthetics)
Extra droog (Extra Dry)	3 kg	all except Tijd (Time)	Thorough drying of thick or multi-layered fabrics, e.g. pull-overs, bedding, table linen.
Kastdroog (Cupboard Dry) 2)	3 kg	all except Tijd (Time)	For thin fabrics which are not ironed, e.g. easy care shirts, ta-ble linen, baby clothes, socks, lingerie with bones or wires.
Strijkdroog (Iron Dry)	3 kg	all except Tijd (Time)	For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts.
Speciaal (Special)
Mix 3 kg		all except Tijd (Time)	For drying cotton and synthetic fabrics, uses low tempera-ture.
Tijd (Time) 8 kg		Lage temp. (Delicate), Lange anti-kreuk (Long anti-crease), Zoemer (Buzzer), Tijd (Time), Startuitstel (Delay Start)	For further drying of individual items of laundry.
Jeans 8 kg		all except Tijd (Time)	For leisure clothing, such as jeans, sweat-shirts, etc., of different material thicknesses (e.g. at the neck, cuffs and seams).
Anti-kreuk (Easy Iron)	1 kg (or 5 shirts)	all except Tijd (Time)	Special program with anti-crease mechanism for easy care fabrics such shirts and blouses; for minimum ironing effort. The results depends on the type of fabric and its finish. Place fabrics in the dryer straight after spinning; once dried, immediately remove fabrics and place on a clothes hanger.
Baby	2 kg (or 5 shirts)	all except Tijd (Time)	Baby cycle is a special programme for jumpers to be dried “ready to wear”.
Wol (Wool) 1 kg		Lage temp. (Delicate) ^3) , Intensief (Intensive), Zoemer (Buzzer), Startuitstel (Delay Start)	For drying woollen fabrics after they have been washed, using warm air at minimum mechanical load (Follow section “Sorting and preparing washing”). Recommendation: Remove fabrics immediately after drying, as no anti-crease programme follows.

1) To dry with the cotton programmes it is applicable to install direct drain kit.
2) In accordance with IEC61121
3) Auto

Sorting and preparing laundry

Sorting laundry

- Sort by fabric type:

• Cotton/linen for programmes in COTTONS programme group.
• Mixtures and synthetics for programmes in SYNTHETICS programme group.

- Sort by care label: The care labels mean:

Drying in the tumble dryer possible in principle

Drying at normal temperature

Drying at reduced temperature (press Lage temp. (Delicate) button!)

Drying in the tumble dryer not possible

Important! Do not place in the appliance any wet laundry which is not specified on the care label as being suitable for tumble-drying.

This appliance can be used for all wet laundry items which are labelled as suitable for tumble-drying.

• Do not dry new, coloured textiles together with light-coloured laundry items. Textile colours may bleed.
• Do not dry cotton jersey and knitwear with the EXTRA programme. Items may shrink!
• Wool and wool-like textiles can be dried using the WOOL programme.

Preparing laundry

- To avoid laundry becoming tangled: close zips, button up duvet covers and tie loose ties or ribbons (e.g. of aprons).

• Empty pockets. Remove metal items (paper clips, safety pins, etc).
• Turn items with double-layered fabrics inside out (e.g. with cotton-lined anoraks, the cotton layer should be outermost). These fabrics will then dry better.

Important! Do not overload the appliance.

Observe max. loading volume.

Laundry weights

Type of laundry Weight
Bathrobe 1200 g
Napkin 100 g
Quilt cover 700 g

Type of laundry Weight
Sheet 500 g
Pillow case 200 g
Tablecloth 250 g
Towelling towel 200 g
Tea cloth 100 g
Night dress 200 g
Ladies' briefs 100 g
Man's work shirt 600 g
Man's work shirt 200 g
Man's pyjamas 500 g
Blouse 100 g
Men's underpants	100 g

Daily use

Switching machine on

Turn the programme selector to any programme. The machine switches on.

Line drawing of a washing machine with a door and arrow indicator (no text or symbols)

Abstract circular diagram with concentric rings and radial arrows, no text or symbols present

Door opening and laundry loading

1. Open the door.
2. Load your laundry (do not force it in).

Caution! Do not jam laundry in between the loading door and rubber seal.

1. Close loading door securely. Lock must audibly lock.

Selecting the pro- gramme

Turn the programme selector dial to the required programme. The light Start/Pauze (Start/Pause) starts to flash.

1 2 3 4 5 6

Selecting additional functions

You can choose from the additional functions:

button 1 - Lage temp. (Delicate)

button 2 - Intensief (Intensive)

button 3 - Lange anti-kreuk (Long Anti-crease)

button 4 - Zoemer (Buzzer)

gentle drying with reduced heat of sensitive fabrics and temperature-sensitive textiles (e.g. acrylic, viscose) marked on care label with:

If the laundry is still damp after a standard drying programme, you can increase the drying result by using the Intensive function.

Lange anti-kreuk (Long Anti-crease)

prolongs the anti-crease phase to 90 mins in total. The laundry remains relaxed and free of creases.

Zoemer (Buzzer)

audible confirmation of:

• cycle end
• anti-crease phase start and end
• cycle interruption
• error

Tijd (Time)

after setting the Tijd (Time) programme. You can select a programme duration from 10 mins to 2 hrs in 10-minute steps.

Startuitstel (Delay Start)

allows to delay the start of a drying programme from minimum of 30 min. to maximum of 20 hours. Press the Startuitstel (Delay Start) button repeatedly until the desired delay start is shown on the display

Setting child lock

The child lock can be set to prevent a programme being accidentally started or a programme in operation being accidentally changed. The child lock function locks all buttons and the programme selector. The child lock can be activated or deactivated by holding down the Intensief (Intensive) and Lage temp. (Delicate) buttons simultaneously for 5 seconds.

• Before programme is started: Appliance cannot be used
• After programme is started: Programme in operation cannot be changed

The icon 📋 appears in the display to indicate that the child safety device is activated.

The child safety device is not deactivated once the programme comes to an end.

If you want to set a new programme, you must first deactivate the child safety device.

Starting the programme

Press the Start/Pauze (Start/Pause) button. The programme starts.

The programme progress is shown by elapsing dry time on the LCD.

Changing programme

To change a programme which is running, first cancel it by turning the programme selector dial to ○. Select the new programme and press the Start/Pauze (Start/Pause) button.

The programme can no longer be changed directly once the programme has started. If nevertheless there is an attempt to change the programme on the programme knob, the programme progress display and the maintenance indicators flash. If an option button (excluding the Zoemer (Buzzer) button) is pressed, Err appears on the display. The drying programme is not however affected by this (laundry protection).

Drying cycle complete / removing laundry

Once the drying cycle is complete, the display shows the anti-crease icon and flashing as well as warning lamps: Filter and Water-reservoir (Tank). If the Zoemer (Buzzer) button has been pressed, an acoustic signal sounds intermittently for about one minute.
The drying cycles (except from the Wol (Wool) programme) are automatically followed by an anti-crease phase which lasts around 30 minutes. The drum rotates at intervals during this phase. This keeps the laundry loose and free of creases. The laundry can be removed at any time during the anti-crease phase. (The laundry should be taken out towards the end of the anti-crease phase at the latest to prevent creases from forming.)

1. Open door.

2. Before removing the laundry, remove fluff from the micro-fine filter. It is best to use a damp hand for this purpose. (See "Maintenance and cleaning" chapter.)

3. Remove laundry.

4. Turn the programme selector to ○ off.

Important! After each drying cycle:

• Clean the micro-fine filter and fine filter

• Drain the condensed water container (See chapter "Maintenance and cleaning")

• Close the door.

Cleaning lint filters

To ensure that the appliance works perfectly, the lint filters in the door and in front of the drum must be cleaned after every drying cycle.

Caution! Important. Never operate the dryer without the lint filter or with a damaged or blocked lint filter.

Line drawing of a washing machine with a door and arrow symbol (no text or labels)

Diagram of a hand pressing down on a circular component with an arrow indicating force (no text or symbols present)

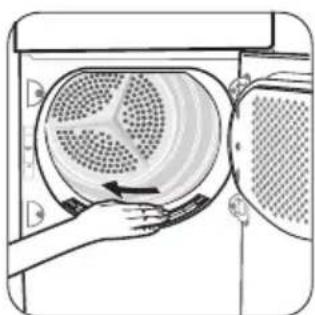

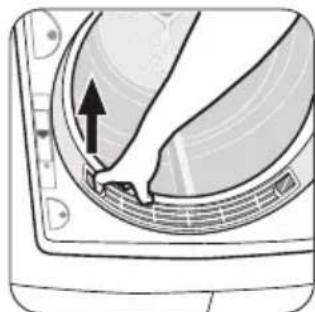

1. Open loading door 2. After a period of time, a patina due to detergent residue on laundry forms on the filters. Then clean the filters with warm water using a brush. Remove the filter from the door pulling it out.

Illustration of a hand pressing down on a circular device with a mesh pattern, no text or symbols present

Diagram of a hand pressing down on a device with a circular vent and mesh grille (no text or symbols)

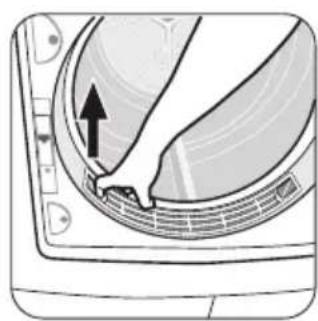

1. Use a damp hand to clean the micro-fine filter, which is built into the lower part of the loading aperture.

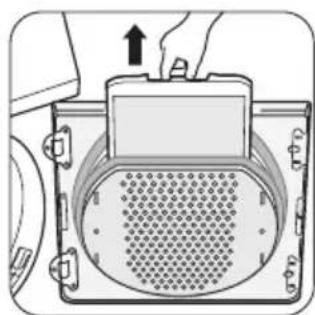

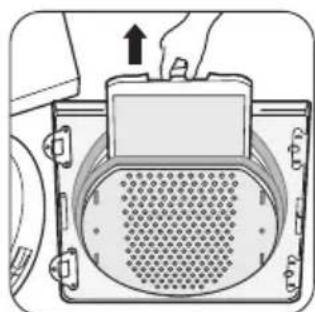

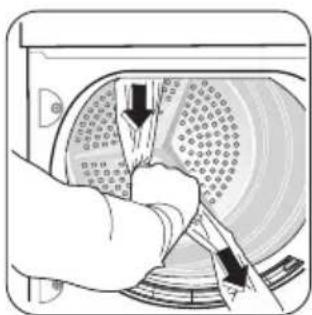

2. Remove fluff from lint filter, preferably using a damp hand for this purpose. Replace the filter.

Cleaning heat exchanger

Clean the condenser when light Condensor (Condenser) comes on.

The condenser is situated at the lower part of the cabinet behind a small door.

www.zanussi.com

Illustration of a hand pressing down on a laptop screen (no text or symbols visible)

1. To open the door, push the catch as per picture. During the drying cycle or at the end, it is normal for water to be present on the surface of the condenser insertion.

Line drawing of a front view of an air conditioner unit with cooling fans and ventilation grilles (no text or symbols)

1. Turn the two red stops downwards.

Illustration of a hand pressing down on a wall-mounted air conditioner unit (no text or symbols visible)

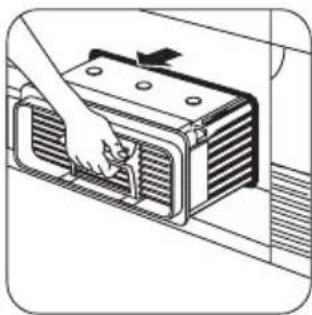

1. Pull out the condenser unit holding it at the handle.

Illustration of a hand cleaning a small electric stove with a handle (no text or symbols)

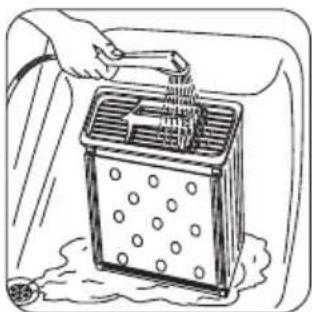

1. Clean it with a brush and rinse it under the shower if necessary. Also clean the outside, removing all fluff. Clean the rubber seal round the condenser cabinet and in the inner part of the small door with a damp cloth.

Important! Do not use pointed objects or utensils to clean the spaces between the plates, as this could damage the condenser and make it permeable. Re-fit the condenser, turn the red stops upwards and close the door.

Important! Do not use this appliance if the condenser has not been fitted.

Emptying the water reservoir

Water extracted from the laundry condenses inside the machine and is collected in a reservoir. The reservoir must be emptied after each drying cycle to ensure efficient operation when the machine is next used. The Water reservoir light reminds you to perform this operation.

Illustration of a hand inserting a device into a drawer with an arrow indicating direction (no text or symbols)

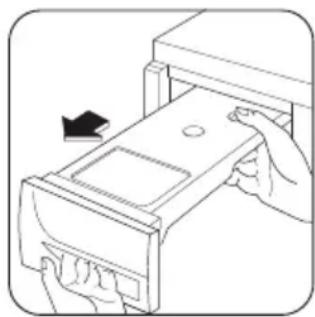

1. Pull out the reservoir

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

1. Turn it upside down and let water empty
2. Re-fit the reservoir

Important! The reservoir must be re-inserted correctly.

If this is not done the pilot light Water reservoir comes on during next drying and the programme stops, leaving the laundry damp. The buzzer will sound.

After inserting the reservoir press the Start/Pauze (Start/Pause) button again to allow the programme to continue.

What to do if ...

The condensed water may be used in a steam iron or to top up a battery, etc. In this case it must be filtered (e.g. through a coffee filter).

Cleaning the drum

Caution! Do not use abrasives or steel wool to clean the drum.

i Lime in the water or cleaning agents may form a barely visible lining on the inside of the drum. The degree to which the laundry has been dried is then no longer detected reliably. The laundry is damper than expected when removed from the appliance.

Use a standard domestic cleaner (e.g. vinegar-based cleaner) to wipe down the inside of the drum and drum ribs.

Clean control panel and housing

Caution! Do not use furniture cleaners or aggressive cleaning agents to clean the machine.

Use a damp cloth to wipe down the control panel and housing.

1) In case of error message on the LCD (e.g. E51- only dryers with the LCD): Switch the dryer off and on. Set programme. Press the Start/Pauze (Start/Pause) button. Does not work? - inform local service and quote the error code.
2) follow program recommendation - see Programme overview chapter
3) see Care and cleaningchapter
4) see Machine settings chapter
5) only dryers with the LCD
6) Note: After around 5 hours the drying cycle ends automatically (see Drying cycle complete section).
Troubleshooting by yourself

Problem1)	Possible cause Remedy
Dryer does not work.	Dryer not connected to mains supply.	Plug in at mains socket. Check fuse in fuse box (domestic installation).
	Loading door opened. Close loading door
	The Start/Pauze (Start/Pause) button not pressed.	Press the Start/Pauze (Start/Pause) button.
Unsatisfactory drying results.	Incorrect programme set.	Set suitable programme.2)
	Fluff filters clogged.	Clean fluff filters.3)
	Heat exchanger clogged.	Clean heat exchanger.3)
	Max. loading exceeded. Respect max. loading volume.
	Covered ventilation grill. Uncover ventilation grill in base area.
	Residue inside the drum. Clean the drum inside.
	High water hardness.	Set suitable water hardness^4) .
Loading door does not close	Filters not locked in place.	Install fine filter and/or snap course filter into place.
Err (Error) on the LCD. ^5)	Attempt to change parameters after start of the programme.	Turn the dryer off and on. Set requested pa-rameters.
No drum light	Programme selector in OFF position.	Turn it to DRUM LIGHT (if available) or to any programme.
	Defective light bulb. Replace light bulb (see next section).
Abnormally elapsing time on the LCD ^5)	Time to end is calculated on the basis of: type, volume and dampness of laundry.	Automatic process; this is not a machine fault.
Programme in-active	Full water reservoir.	Empty water reservoir^3) , press Start/Pauze (Start/Pause) button.
Drying cycle to short	Small laundry volume./Too dry laundry for selected programme.	Select time programme or higher drying level (e.g. Extra droog (Extra Dry)).
Drying cycle to long ^6)	Fluff filters clogged. Clean fluff filters.
	To high loading volume. Respect max. loading volume.
	Laundry insufficiently spun. Spun adequately the laundry.
	Particularly high room temperature - no ma-chine fault.	Lower the room temperature if possible.

Technical data

Dimensions (mm) Width / Height / Depth 85 x 60 x 58 cm
Max. depth(with the appliance door open)	1090 mm
Max. width(with the appliance door open)	950 mm
Electrical connection Voltage 230 V
Frequency 50 Hz
Fuse 16 A
Total power 2350 W
Drum volume 108 l
Weight of the appliance	39,5 kg
Laundry: max. weight 8 kg
Type of use Household
Ambient temperature Min. 5 °C
Max. 35 °C
Energy consumption1)	kWh/cycle 4,76 kWh
Annual energy consumption2)	560 kWh
Energy efficiency class B
Power consumption Left-on mode 0,40 W
Off-mode 0,40 W

1) With reference to EN 61121. 8 kg of cotton and a spin speed at 1000 rpm.

2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No 392/2012).

Machine settings

Setting Implementation
BUZZER permanent off 1. Turn the programme selector to any programme.2. Press simultaneously the Intensief (Intensive) and Lange anti-kreuk (Long Anti-crease) buttons and hold down for approx. 5 seconds.3. The buzzer is by default always off.
Water hardnessWater contains, a variable quantity of limestone and mineral salts of which quantities vary according to geographical locations thus varying its conductivity values.Relevant variations of the conductivity of the water compared to those prefixed by the factory could slightly influence the residual humidity of the laundry at the end of the cycle. Your dryer allows you to regulate the sensitivity of the drying sensor based on conductivity values of the water.	1. Turn the programme selector to any programme.2. Press simultaneously the Lange anti-kreuk (Long Anti-crease) and Start/Pauze (Start/Pause) buttons and hold down for approx. 5 seconds. The current setting is on the display:- [0] low conductivity <300 micro S/cm- [0] medium conductivity 300-600 micro S/cm- [0] high conductivity >600 micro S/cm3. Press the Start/Pauze (Start/Pause) button sequentially until you set desired level.4. To memorize setting press simultaneously the the Lange anti-kreuk (Long Anti-crease) and Start/Pauze (Start/Pause) buttons or turn knob to O off position

Sommaire

Line drawing of a washing machine with a door and pushpin (no text or symbols)

Close-up of hands operating a circular device with a grid pattern and directional arrows (no text or symbols visible)

Diagram of a mechanical joint or bracket with motion lines and a black arrow indicating direction (no text or symbols)

Labeled diagram of a washing machine with numbered parts for identification

Plan de travail

Line drawing of a washing machine with a door and handle (no text or symbols)

Abstract circular diagram with concentric rings and radial arrows, no text or symbols present

Line drawing of a washing machine with a door and side panel (no text or symbols)

Diagram of a hand pressing down on a circular component with an arrow indicating force (no text or symbols present)

Illustration of a hand pressing down on a circular fan component (no text or symbols visible)

Diagram of a device with a perforated grille and handle, showing a hand pressing a button (no text or symbols)

Illustration of a hand pressing down on a computer monitor with a scroll arrow (no text or symbols)

Line drawing of a car air conditioner unit with cooling fans and ventilation grilles (no text or symbols)

Illustration of a hand pressing down on a car air vent (no text or symbols)

Illustration of a hand cleaning a rectangular appliance with a handle and water nearby (no text or symbols)

Illustration of hands inserting a device into a drawer with an arrow indicating direction (no text or symbols)

1. Sortez le bac

Illustration of a person using a tool to lift a device (no text or symbols present)

Line drawing of a simple kitchen sink with a door and handle (no text or symbols)

Close-up of a hand operating a circular device with a handle and arrow indicator (no text or symbols visible)

Diagram of a mechanical joint or connector with directional arrows and a warning symbol (no readable text or labels)

Labeled diagram of a washing machine with numbered parts for identification

1 Arbeitsplatte

2 Wasserbehälter

Line drawing of a washing machine with a door and handle (no text or symbols)

Abstract circular diagram with concentric rings and radial arrows, no text or symbols present

Line drawing of a washing machine with a door and handle (no text or symbols)

Illustration of a hand pressing down on a circular device with a black arrow indicating the process (no text or symbols present)

Diagram of a hand pressing down on a circular device with a star pattern, showing no text or symbols.

Diagram of a device with a speaker grille and hand pointing to the top panel (no text or symbols)

Illustration of a hand using a tool to press or install a device on a flat surface (no text or symbols visible)

Line drawing of a car air conditioner unit with cooling fans and ventilation grilles (no text or symbols)

Line drawing of a hand pressing down on a car air vent (no text or symbols)

Illustration of a hand using a tool to clean or wash a rectangular device with circular components (no text or symbols visible)

Illustration of hands inserting a device into a drawer (no text or symbols)

Illustration of hands holding a smartphone with a cable being inserted (no text or symbols)

www.zanussi.com/shop
