INSTRUCTIONS FOR USE BEFORE USING THE APPLIANCE SAFEGUARDING THE ENVIRONMENT PRECAUTIONS AND GENERAL RECOMMENDATIONS HOW TO OPERATE THE REFRIGERATOR COMPARTMENT HOW TO OPERATE THE FREEZER COMPARTMENT HOW TO DEFROST AND CLEAN THE FREEZER HOW TO CLEAN THE REFRIGERATOR COMPARTMENT CLEANING AND MAINTENANCE TROUBLESHOOTING GUIDE AFTER-SALES SERVICE INSTALLATION DOOR REVERSIBILITY ELECTRICAL CONNECTION

63602068GB.fm Page 14 Monday, June 8, 2009 6:42 PM15

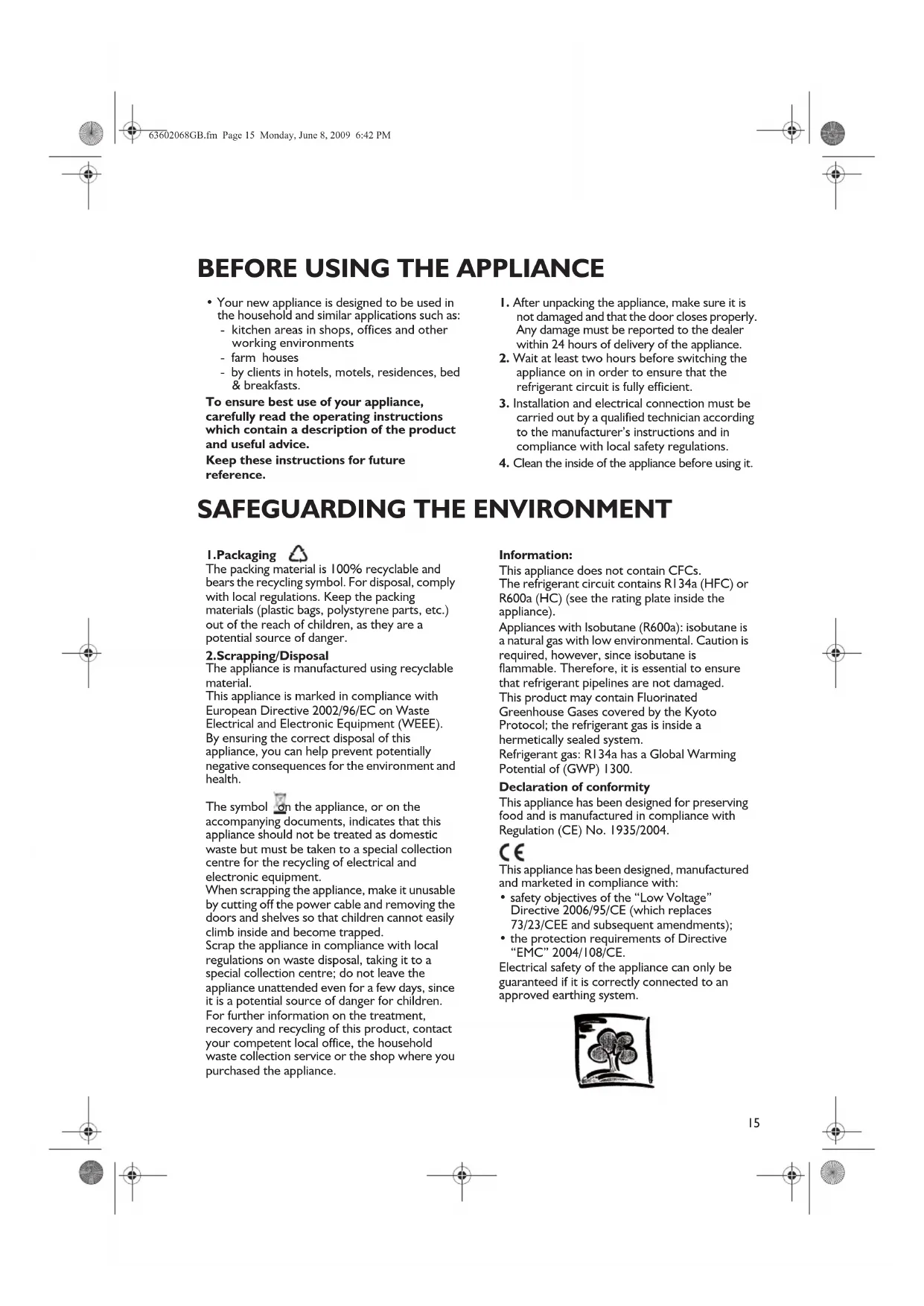

BEFORE USING THE APPLIANCE SAFEGUARDING THE ENVIRONMENT

• Your new appliance is designed to be used in

the household and similar applications such as:

- kitchen areas in shops, offices and other

working environments

- by clients in hotels, motels, residences, bed

To ensure best use of your appliance,

carefully read the operating instructions

which contain a description of the product

Keep these instructions for future

1. After unpacking the appliance, make sure it is

not damaged and that the door closes properly.

Any damage must be reported to the dealer

within 24 hours of delivery of the appliance.

2. Wait at least two hours before switching the

appliance on in order to ensure that the

refrigerant circuit is fully efficient.

3. Installation and electrical connection must be

carried out by a qualified technician according

to the manufacturer’s instructions and in

compliance with local safety regulations.

4. Clean the inside of the appliance before using it.

The packing material is 100% recyclable and

bears the recycling symbol. For disposal, comply

with local regulations. Keep the packing

materials (plastic bags, polystyrene parts, etc.)

out of the reach of children, as they are a

potential source of danger.

2.Scrapping/Disposal

The appliance is manufactured using recyclable

This appliance is marked in compliance with

European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE).

By ensuring the correct disposal of this

appliance, you can help prevent potentially

negative consequences for the environment and

The symbol on the appliance, or on the

accompanying documents, indicates that this

appliance should not be treated as domestic

waste but must be taken to a special collection

centre for the recycling of electrical and

electronic equipment.

When scrapping the appliance, make it unusable

by cutting off the power cable and removing the

doors and shelves so that children cannot easily

climb inside and become trapped.

Scrap the appliance in compliance with local

regulations on waste disposal, taking it to a

special collection centre; do not leave the

appliance unattended even for a few days, since

it is a potential source of danger for children.

For further information on the treatment,

recovery and recycling of this product, contact

your competent local office, the household

waste collection service or the shop where you

purchased the appliance.

This appliance does not contain CFCs.

The refrigerant circuit contains R134a (HFC) or

R600a (HC) (see the rating plate inside the

Appliances with Isobutane (R600a): isobutane is

a natural gas with low environmental. Caution is

required, however, since isobutane is

flammable. Therefore, it is essential to ensure

that refrigerant pipelines are not damaged.

This product may contain Fluorinated

Greenhouse Gases covered by the Kyoto

Protocol; the refrigerant gas is inside a

hermetically sealed system.

Refrigerant gas: R134a has a Global Warming

Potential of (GWP) 1300.

Declaration of conformity

This appliance has been designed for preserving

food and is manufactured in compliance with

Regulation (CE) No. 1935/2004.

This appliance has been designed, manufactured

and marketed in compliance with:

• safety objectives of the “Low Voltage”

Directive 2006/95/CE (which replaces

73/23/CEE and subsequent amendments);

• the protection requirements of Directive

Electrical safety of the appliance can only be

guaranteed if it is correctly connected to an

approved earthing system.

63602068GB.fm Page 15 Monday, June 8, 2009 6:42 PM16

PRECAUTIONS AND GENERAL RECOMMENDATIONS INSTALLATION

• The appliance must be handled and installed

by two or more persons.

• Be careful not to damage the floors (e.g.

parquet) when moving the appliance.

• During installation, make sure the appliance

does not damage the power cable.

• Make sure the appliance is not installed near a

• To guarantee adequate ventilation, leave a

space on both sides and above the appliance

and follow the installation instructions.

• Keep the appliance ventilation openings free.

• Do not damage the appliance refrigerant

• Install and level the appliance on a floor strong

enough to take its weight and in a place

suitable for its size and use.

• Install the appliance in a dry, well ventilated

place. The appliance is designed to operate in

areas where the temperature comes within

the following ranges, according to the climatic

class given on the rating plate.

The appliance may not work properly if it is

left for a long time at a temperature outside

the specified range.

• Make sure the voltage specified on the rating

plate corresponds to that of your home.

• Do not use single/multi adapters or extension

• For the water connection, use the pipe

supplied with the new appliance; do not reuse

that of the previous appliance.

• Power cable modification or replacement

must only be carried out by qualified

personnel or After-sales Service.

• It must be possible to disconnect the

appliance from the power supply by

unplugging it or by means of a mains two-pole

switch installed upline of the socket.

• Do not use the appliance to store aerosol cans

flammable substances.

• Do not store or use petrol, flammable liquids

or gas in the vicinity of this or other electrical

appliances. The fumes can cause fires or

• Do not use mechanical, electric or chemical

means other than those recommended by the

Manufacturer to speed up the defrost process.

• Do not use or place electrical devices inside

the appliance compartments if they are not of

the type expressly authorised by the

• This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities or lack

of experience and knowledge, unless they

have been given supervision or instruction

concerning use of the appliance by a person

responsible for their safety.

• To avoid the risk of children becoming

trapped and suffocating, do not allow them to

play or hide inside the appliance.

• Do not swallow the contents (non-toxic) of

the ice packs (in some models).

• Do not eat ice cubes or ice lollies immediately

after taking them out of the freezer since they

may cause cold burns.

• Before carrying out any maintenance or

cleaning operation, unplug the appliance or

disconnect it from the power supply.

• All appliances equipped with an automatic

icemaker and water dispenser must be

connected to a water supply that only delivers

drinking water (with mains water pressure of

between 0.17 and 0.81 Mpa (1.7 and 8.1 bar)).

Automatic ice-makers and/or water dispensers

not directly connected to the water supply must

be filled with drinking water only.

• Use the refrigerator compartment only for

storing fresh food and the freezer

compartment only for storing frozen food,

freezing fresh food and making ice cubes.

• Do not store glass containers with liquids in

the freezer since they may burst.

The Manufacturer declines any liability if

the above advice and precautions are not

Climatic Class Amb. temp.

SN From 10 to 32 From 50 to 90

N From 16 to 32 From 61 to 90

ST From 16 to 38 From 61 to 100

T From 16 to 43 From 61 to 110

63602068GB.fm Page 16 Monday, June 8, 2009 6:42 PM17

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT This appliance is a refrigerator with a star freezer

Defrosting of the refrigerator compartment is completely

Switching on the refrigerator for the first time

Insert the plug into the mains socket.

The thermostat is used to adjust the temperature of both

compartments: refrigerator and freezer.

How to adjust the temperature of the compartments:

1. For correct operation and optimum storage of food, follow

instructions given in the enclosed product sheet for

thermostat adjustment.

2. To adjust the temperature in the refrigerator compartment,

set the thermostat control knob to:

•lowest/MIN numbers for the LEAST COLD internal

•highest/MAX numbers for the COLDEST internal

Thermostat set to 0: no operation, no light.

3. Press the corresponding button (fig. G) to activate the anti-

condensation device.

The ambient air temperature, frequency of door opening and the

position of the appliance can affect internal temperatures. These

factors must be taken into account when setting the thermostat.

How to use the refrigerator compartment

Position the food as illustrated in the figure.

C. Fruit and vegetables

F. Butter, cheese and dairy products

• The space between the shelves and the rear wall of the

refrigerator compartment must be unobstructed to allow

• Do not place food in direct contact with the rear wall of the

refrigerator compartment.

• Do not place hot food in the refrigerator or freezer.

• Store liquids in closed containers.

• Storing vegetables with a high water content can result in

condensation in the crisper drawer: this will not affect the

correct operation of the appliance.

Fig. G On models with

63602068GB.fm Page 17 Monday, June 8, 2009 6:42 PM18

HOW TO OPERATE THE FREEZER COMPARTMENT The freezer is a star compartment.

This compartment can be used to store frozen foods for the

period of time indicated on packaging. The freezer can also

be used to freeze fresh food by positioning it on the rack;

place frozen food in the lower part of the compartment so

that there is no contact with fresh food that has yet to be

The quantity of fresh food that can be frozen in 24 hours is

shown on the rating plate.

Before freezing, wrap and seal fresh food in:

• aluminium foil, cling film, air and water-tight plastic bags,

polythene containers with lids or freezer containers suitable

for freezing fresh food.

• In the event of a power cut, the freezer compartment will

maintain a sufficiently low temperature for food storage.

However, it is advisable to avoid opening the compartment

door during such periods.

The table alongside shows the recommended maximum

storage time for frozen fresh foods.

When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in

damaged packaging may have deteriorated). If the package is

swollen or has damp patches, it may not have been stored

under optimal conditions and defrosting may have already

• When shopping, leave frozen food purchases until last and

transport the products in a thermally insulated cool bag.

• Place the items in the freezer compartment as soon as you get

• If food has defrosted even partially, do not re-freeze it.

Consume within 24 hours.

• Avoid, or reduce temperature variations to the minimum.

Respect the best-before date on the package.

• Always observe the storage information on the package.

• Fill the ice cube tray 3/4 with water and place it at the bottom

of the freezer compartment.

If the tray sticks to the bottom of the compartment, do not use

pointed or sharp instruments to detach it.

63602068GB.fm Page 18 Monday, June 8, 2009 6:42 PM19

HOW TO DEFROST AND CLEAN THE FREEZER HOW TO CLEAN THE REFRIGERATOR COMPARTMENT Defrost the freezer compartment once or twice a year,

or when the ice on the walls reaches a thickness of

about 3 mm. If possible, defrost the freezer when it is

1. Remove the food from the freezer, wrap in newspaper

and group together in a cool place or in a portable cooler.

2. Disconnect the appliance from the mains power

3. Leave the door open to allow the frost to melt.

4. Remove the defrost water from the compartment

5. Clean the interior with a sponge dampened in lukewarm

water and neutral detergent.

Do not use abrasive products.

6. Rinse the interior and dry thoroughly.

Note: Do not use sharp or pointed metal instruments

to scrape off ice; do not heat the freezer compartment

Periodically clean the inside of the refrigerator

Defrosting of the refrigerator compartment is

completely automatic.

Droplets of water on the rear wall of the refrigerator

compartment indicate that the periodic automatic defrost

cycle is in progress.

The defrost water is automatically routed to a drain outlet

and into a container from which it evaporates.

Before carrying out any cleaning operations, disconnect the

appliance from the power supply.

• Use a sponge dampened in lukewarm water and/or

• Rinse and dry with a soft cloth.

Do not use abrasive substances.

63602068GB.fm Page 19 Monday, June 8, 2009 6:42 PM20

CLEANING AND MAINTENANCE TROUBLESHOOTING GUIDE

1. The appliance is not working.

• Is there a power failure?

• Is the plug properly inserted in the socket?

• Is the double-pole switch on?

• Has the fuse blown?

• Is the power cord damaged?

• Is the thermostat set to 0 (Stop)?

2. Temperature inside the compartments is

• Is the door shut properly?

• Is the appliance installed near a heat source?

• Is the thermostat setting correct?

• Are the air circulation grilles blocked?

3. Temperature inside the refrigerator

compartment is too low.

• Is the thermostat setting correct?

4. Water collects at the bottom of the

refrigerator compartment.

• Is the defrost water drain blocked?

5. The inside light is not working.

Perform the checks for problem 1, and then:

• Disconnect the appliance from the power

To inspect the bulb, refer to the instructions

and illustration on the attached table.

• Check the bulb and replace it, if necessary, with

a new one. Replace using maximum 15W bulb.

6. Excessive frost build-up in the freezer

• Is the door shut properly?

• Is food obstructing proper door closure?

• The front edge of the appliance may be

hot. This prevents the formation of

condensation and is not a defect.

• Gurgling and hissing noises due to

expansion in the refrigerant circuit are

For built-in appliances

• Periodically clean air vents with a vacuum cleaner or a

brush (see figure A).

• Clean the outside using a soft cloth.

1. Empty the refrigerator and freezer compartments.

2. Disconnect the appliance from the power supply.

3. Defrost the freezer compartment, and clean and dry both

4. Leave the doors open to prevent formation of unpleasant

63602068GB.fm Page 20 Monday, June 8, 2009 6:42 PM21

AFTER-SALES SERVICE Before contacting the After-Sales Service:

1. See if you can solve the problem yourself (see

“Troubleshooting guide”).

2. Switch the appliance on again to see if the

problem has been solved.

If it has not, switch off the appliance again and

repeat the operation after one hour.

3. If the problem persists after this course of

action, contact After-Sales Service.

• the nature of the problem,

• the appliance model,

• the Service number (the number after the word

SERVICE on the rating plate inside the

• your full address,

• Your telephone number and area code.

Note: The direction of door opening can be

changed. If this operation is performed by

After-sales Service it is not covered by the

• Install the appliance away from heat sources.

• Install the appliance in a dry, well-ventilated

• Do not obstruct the top and bottom vent

• Clean the inside (see chapter “How to clean the

refrigerator compartment”).

Electrical connection

• Electrical connections must be made in

accordance with local regulations.

• Voltage and power consumption are indicated

on the rating plate (at the side of the crispers).

Freestanding appliances (not built-in)

• To optimize appliance efficiency, leave a 5 cm

gap above the appliance and make sure that

adjacent kitchen units are sufficiently distanced

to allow air circulation.

• Ensure that the appliance is level, using the

front adjustment feet if necessary.

• Regulations require that the appliance be

earthed. The manufacturer declines all

liability for injury to persons or animals

and for damage to property resulting from

failure to observe the above procedures

• If the plug and socket are not of the same type,

have the socket replaced by a qualified

• Do not use extension leads or adapters.

Disconnecting the appliance

• It must be possible to disconnect the appliance

by unplugging it or by means of a two-pole

switch fitted upline of the socket.

63602068GB.fm Page 21 Monday, June 8, 2009 6:42 PM22

DOOR REVERSIBILITY The doors of your Fridge Freezer can be reversed.

• Ensure the Frdge Freezer is unpugged and empty.

• We recommend you have someone to assist you.

• Phillips style screwdriver

• Flat bladed screwdriver

• 8mm and 10mm Socket or spanner.

When laying the Frdge Freezer on it's back in order to gain

access to the base, you should never tip it back by more than

45º and must rest it on soft foam packaging or similar material

to avoid damaging the cooling pipes at the rear of the Frdge

Remove the two screws at the rear of the Fridge Freezer.

Lift the top off the Fridge Freezer.

Use the 8 mm socket or spanner to remove the 3 hinge bolts.

Remove the 3 bolts from the opposite side.

Remove bracket and plastic surround. Remove and replace

the pin in the bracket. Replace on opposite side of the Fridge

Lift the top door off middle hinge bracket and pull away from

the body of the Fridge Freezer. Remove retaining screw from

the top of the cabinet and replace on the other side.

Remove the middle hinge using an 8 mm socket/spanner.

Take care not to lose the white spacer. Put hinge to one side.

Lift door off the bottom bracket.

Remove blanking plates from the middle of the cabinet and

replace in opposite side. Remove the blanking plates from the

doors and replace the hinge bushes on the other side.

63602068GB.fm Page 22 Monday, June 8, 2009 6:42 PM23

Remove the levelling feet by unscrewing.

Remove bottom bracket using an 8 mm socket or spanner.

Remove and replace pin using a 10 mm spanner to undo the

nut and a flat bladed screwdriver to remove the pin. You may

need to push the pin through from the underside to remove

Remove screw on base and replace on other side.

Remove blanking plates from unused side of the Fridge

Freezer and replace in holes left by the brackets.

Replace doors and brackets in reverse order.

When replacing feet take care to ensure the larger foot is on

the side without the bracket.

Check both doors are aligned horizontally and vertically, and

that the seals are closed on all sides before finally tightening

63602068GB.fm Page 23 Monday, June 8, 2009 6:42 PM24

ELECTRICAL CONNECTION

1) For Great Britain only

Warning - this appliance must be earthed

If the mains lead of this appliance is fitted with a BS 1363A

13amp fused plug, to change a fuse in this type of plug use an

A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

1.Remove the fuse cover (A) and fuse (B).

2.Fit replacement 13A fuse into fuse cover.

3.Refit both into plug.

The fuse cover must be refitted when changing a fuse and if the

fuse cover is lost the plug must not be used until a correct

replacement is fitted.

Correct replacement are identified by the colour insert or the

colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently

apply, but a third type of plug and socket is also used, the

2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please

contact Whirlpool Service for further instruction. Please do not

attempt to change plug yourself. This procedure needs to be

carried out by a qualified Whirlpool technician in compliance

with the manufactures instructions and current standard safety

63602068GB.fm Page 24 Monday, June 8, 2009 6:42 PM25

MODE D’EMPLOI AVANT D’UTILISER L’APPAREIL CONSEILS POUR LA PROTECTION DE L’ENVIRONNEMENT PRÉCAUTIONS ET RECOMMANDATIONS GÉNÉRALES COMMENT FAIRE FONCTIONNER LE COMPARTIMENT RÉFRIGÉRATEUR COMMENT FAIRE FONCTIONNER LE COMPARTIMENT CONGÉLATEUR COMMENT DÉGIVRER ET NETTOYER LE COMPARTIMENT CONGÉLATEUR COMMENT NETTOYER LE COMPARTIMENT RÉFRIGÉRATEUR NETTOYAGE ET ENTRETIEN DIAGNOSTIC RAPIDE SERVICE APRÈS-VENTE INSTALLATION CHANGEMENT DU SENS DE L’OUVERTURE DES PORTES

63602068F.fm Page 25 Monday, June 8, 2009 6:51 PM26

de la Directive “EMC” 2004/108/CE.

63602068F.fm Page 26 Monday, June 8, 2009 6:51 PM27

63602068F.fm Page 27 Monday, June 8, 2009 6:51 PM28

63602068F.fm Page 28 Monday, June 8, 2009 6:51 PM29

63602068F.fm Page 29 Monday, June 8, 2009 6:51 PM30

63602068F.fm Page 30 Monday, June 8, 2009 6:51 PM31

63602068F.fm Page 31 Monday, June 8, 2009 6:51 PM32

63602068F.fm Page 32 Monday, June 8, 2009 6:51 PM33

“Comment nettoyer le compartiment

63602068F.fm Page 33 Monday, June 8, 2009 6:51 PM34

63602068F.fm Page 34 Monday, June 8, 2009 6:51 PM35

63602068F.fm Page 35 Monday, June 8, 2009 6:51 PM36

GEBRUIKSAANWIJZING ALVORENS HET PRODUCT TE GEBRUIKEN MILIEUTIPS ALGEMENE VOORZORGSMAATREGELEN EN ADVIEZEN GEBRUIK VAN HET KOELVAK GEBRUIK VAN HET VRIESVAK DE VRIEZER ONTDOOIEN EN REINIGEN REINIGEN VAN HET KOELVAK REINIGING EN ONDERHOUD STORINGEN OPSPOREN KLANTENSERVICE INSTALLATIE OMKEREN VAN DE DEUREN

63602068NL.fm Page 36 Monday, June 8, 2009 6:40 PM37

63602068NL.fm Page 37 Monday, June 8, 2009 6:40 PM38

apparaat vrij van obstakels.

63602068NL.fm Page 38 Monday, June 8, 2009 6:40 PM39

63602068NL.fm Page 39 Monday, June 8, 2009 6:40 PM40

63602068NL.fm Page 40 Monday, June 8, 2009 6:40 PM41

63602068NL.fm Page 41 Monday, June 8, 2009 6:40 PM42

63602068NL.fm Page 42 Monday, June 8, 2009 6:40 PM43

63602068NL.fm Page 43 Monday, June 8, 2009 6:40 PM44

63602068NL.fm Page 44 Monday, June 8, 2009 6:40 PM45

63602068NL.fm Page 45 Monday, June 8, 2009 6:40 PM46

INSTRUCCIONES DE USO ANTES DE USAR EL APARATO CONSEJOS PARA PRESERVAR EL MEDIO AMBIENTE PRECAUCIONES Y SUGERENCIAS GENERALES PUESTA EN MARCHA DEL COMPARTIMENTO FRIGORÍFICO PUESTA EN MARCHA DEL COMPARTIMENTO DE BAJA TEMPERATURA CÓMO DESCONGELAR Y LIMPIAR EL COMPARTIMENTO CONGELADOR CÓMO LIMPIAR EL COMPARTIMENTO FRIGORÍFICO LIMPIEZA Y MANTENIMIENTO GUÍA PARA LA SOLUCIÓN DE PROBLEMAS SERVICIO DE ASISTENCIA TÉCNICA INSTALACIÓN PUERTAS REVERSIBLES

63602068E.fm Page 46 Monday, June 8, 2009 6:47 PM47

63602068E.fm Page 47 Monday, June 8, 2009 6:47 PM48

63602068E.fm Page 48 Monday, June 8, 2009 6:47 PM49

63602068E.fm Page 49 Monday, June 8, 2009 6:47 PM50

63602068E.fm Page 50 Monday, June 8, 2009 6:47 PM51

63602068E.fm Page 51 Monday, June 8, 2009 6:47 PM52

63602068E.fm Page 52 Monday, June 8, 2009 6:47 PM53

63602068E.fm Page 53 Monday, June 8, 2009 6:47 PM54

63602068E.fm Page 54 Monday, June 8, 2009 6:47 PM55

63602068E.fm Page 55 Monday, June 8, 2009 6:47 PM56

MANUAL DE INSTRUÇÕES ANTES DE USAR O APARELHO CONSELHOS PARA A PROTECÇÃO DO AMBIENTE PRECAUÇÕES E SUGESTÕES GERAIS COMO USAR O COMPARTIMENTO FRIGORÍFICO COMO USAR O CONGELADOR COMO DESCONGELAR E LIMPAR O COMPARTIMENTO DO CONGELADOR COMO LIMPAR O COMPARTIMENTO FRIGORÍFICO LIMPEZA E MANUTENÇÃO GUIA PARA RESOLUÇÃO DE AVARIAS SERVIÇO PÓS-VENDA INSTALAÇÃO ALTERAÇÃO DAS PORTAS

63602068P.fm Page 56 Monday, June 8, 2009 6:44 PM57

63602068P.fm Page 57 Monday, June 8, 2009 6:44 PM58

63602068P.fm Page 58 Monday, June 8, 2009 6:44 PM59

63602068P.fm Page 59 Monday, June 8, 2009 6:44 PM60

63602068P.fm Page 60 Monday, June 8, 2009 6:44 PM61

63602068P.fm Page 61 Monday, June 8, 2009 6:44 PM62

63602068P.fm Page 62 Monday, June 8, 2009 6:44 PM63

63602068P.fm Page 63 Monday, June 8, 2009 6:44 PM64

63602068P.fm Page 64 Monday, June 8, 2009 6:44 PM65

63602068P.fm Page 65 Monday, June 8, 2009 6:44 PM66

ISTRUZIONI PER L’USO PRIMA DI USARE L’APPARECCHIO CONSIGLI PER LA SALVAGUARDIA DELL’AMBIENTE PRECAUZIONI E SUGGERIMENTI GENERALI COME FAR FUNZIONARE IL COMPARTO FRIGORIFERO COME FAR FUNZIONARE IL COMPARTO CONGELATORE COME SBRINARE E PULIRE IL COMPARTO CONGELATORE COME PULIRE IL COMPARTO FRIGORIFERO PULIZIA E MANUTENZIONE GUIDA RICERCA GUASTI SERVIZIO ASSISTENZA TECNICA INSTALLAZIONE REVERSIBILITA’ DELLE PORTE

63602068I.fm Page 66 Monday, June 8, 2009 6:46 PM67

- in hotels, motels, residences, bed &

Waste Electrical and Electronic Equipment

63602068I.fm Page 67 Monday, June 8, 2009 6:46 PM68

63602068I.fm Page 68 Monday, June 8, 2009 6:46 PM69

63602068I.fm Page 69 Monday, June 8, 2009 6:46 PM70

63602068I.fm Page 70 Monday, June 8, 2009 6:46 PM71

63602068I.fm Page 71 Monday, June 8, 2009 6:46 PM72

63602068I.fm Page 72 Monday, June 8, 2009 6:46 PM73

63602068I.fm Page 73 Monday, June 8, 2009 6:46 PM74

63602068I.fm Page 74 Monday, June 8, 2009 6:46 PM75

63602068I.fm Page 75 Monday, June 8, 2009 6:46 PM76

63602068GR.fm Page 48 Monday, June 8, 2009 6:41 PM77

, Waste Electrical and Electronic Equipment

63602068GR.fm Page 49 Monday, June 8, 2009 6:41 PM78

63602068GR.fm Page 50 Monday, June 8, 2009 6:41 PM79

63602068GR.fm Page 51 Monday, June 8, 2009 6:41 PM80

63602068GR.fm Page 52 Monday, June 8, 2009 6:41 PM81

%  # #  

63602068GR.fm Page 53 Monday, June 8, 2009 6:41 PM82

63602068GR.fm Page 54 Monday, June 8, 2009 6:41 PM83

63602068GR.fm Page 55 Monday, June 8, 2009 6:41 PM84

63602068GR.fm Page 56 Monday, June 8, 2009 6:41 PM85

63602068GR.fm Page 57 Monday, June 8, 2009 6:41 PM86

BRUKSANVISNING INNAN APPARATEN ANVÄNDS MILJÖRÅD FÖRSIKTIGHETSÅTGÄRDER OCH ALLMÄNNA FÖRSLAG ANVÄNDNING AV KYLDELEN OCH DESS FUNKTIONER ANVÄNDNING AV FRYSDELEN OCH DESS FUNKTIONER AVFROSTNING OCH RENGÖRING AV FRYSDELEN RENGÖRING AV KYLDELEN RENGÖRING OCH UNDERHÅLL FELSÖKNING SERVICE INSTALLATION OMHÄNGNING AV DÖRRARNA

63602068S.fm Page 86 Monday, June 8, 2009 6:46 PM87

INNAN APPARATEN ANVÄNDS MILJÖRÅD

• Den produkt som du har förvärvat har

63602068S.fm Page 87 Monday, June 8, 2009 6:46 PM88

63602068S.fm Page 88 Monday, June 8, 2009 6:46 PM89

63602068S.fm Page 89 Monday, June 8, 2009 6:46 PM90

63602068S.fm Page 90 Monday, June 8, 2009 6:46 PM91

63602068S.fm Page 91 Monday, June 8, 2009 6:46 PM92

63602068S.fm Page 92 Monday, June 8, 2009 6:46 PM93

63602068S.fm Page 93 Monday, June 8, 2009 6:46 PM94

63602068S.fm Page 94 Monday, June 8, 2009 6:46 PM95

63602068S.fm Page 95 Monday, June 8, 2009 6:46 PM96

BRUKSANVISNING FØR APPARATET TAS I BRUK MILJØVENNLIG BRUK GENERELLE RÅD BRUK AV KJØLESEKSJONEN BRUK AV FRYSESEKSJONEN AVRIMING OG RENGJØRING AV FRYSESEKSJONEN RENGJØRING AV KJØLESEKSJONEN RENGJØRING OG VEDLIKEHOLD FEILSØKINGSLISTE SERVICE INSTALLASJON OMHENGSLING AV DØRENE

63602068N.fm Page 96 Monday, June 8, 2009 6:45 PM97

- i hoteller, moteller, residencer, bed &

and Electronic Equipment - WEEE).

63602068N.fm Page 97 Monday, June 8, 2009 6:45 PM98

63602068N.fm Page 98 Monday, June 8, 2009 6:45 PM99

63602068N.fm Page 99 Monday, June 8, 2009 6:45 PM100

63602068N.fm Page 100 Monday, June 8, 2009 6:45 PM101

63602068N.fm Page 101 Monday, June 8, 2009 6:45 PM102

63602068N.fm Page 102 Monday, June 8, 2009 6:45 PM103

63602068N.fm Page 103 Monday, June 8, 2009 6:45 PM104

63602068N.fm Page 104 Monday, June 8, 2009 6:45 PM105

63602068N.fm Page 105 Monday, June 8, 2009 6:45 PM106

BRUGERVEJLEDNING FØR APPARATET TAGES I BRUG OPLYSNINGER OM MILJØHENSYN ADVARSLER OG GENERELLE RÅD BRUG AF KØLESKABET BRUG AF FRYSEREN AFRIMNING OG RENGØRING AF FRYSEREN RENGØRING AF KØLESKABET RENGØRING OG VEDLIGEHOLDELSE FEJLFINDINGSOVERSIGT SERVICE OPSTILLING VENDING AF DØRENE

63602068DK.fm Page 106 Monday, June 8, 2009 6:27 PM107

63602068DK.fm Page 107 Monday, June 8, 2009 6:27 PM108

63602068DK.fm Page 108 Monday, June 8, 2009 6:27 PM109

63602068DK.fm Page 109 Monday, June 8, 2009 6:27 PM110

63602068DK.fm Page 110 Monday, June 8, 2009 6:27 PM111

63602068DK.fm Page 111 Monday, June 8, 2009 6:27 PM112

63602068DK.fm Page 112 Monday, June 8, 2009 6:27 PM113

63602068DK.fm Page 113 Monday, June 8, 2009 6:27 PM114

63602068DK.fm Page 114 Monday, June 8, 2009 6:27 PM115

63602068DK.fm Page 115 Monday, June 8, 2009 6:27 PM116

63602068FIN.fm Page 116 Monday, June 8, 2009 6:42 PM117

63602068FIN.fm Page 117 Monday, June 8, 2009 6:42 PM118

63602068FIN.fm Page 118 Monday, June 8, 2009 6:42 PM119

63602068FIN.fm Page 119 Monday, June 8, 2009 6:42 PM120

63602068FIN.fm Page 120 Monday, June 8, 2009 6:42 PM121

63602068FIN.fm Page 121 Monday, June 8, 2009 6:42 PM122

63602068FIN.fm Page 122 Monday, June 8, 2009 6:42 PM123

63602068FIN.fm Page 123 Monday, June 8, 2009 6:42 PM124

63602068FIN.fm Page 124 Monday, June 8, 2009 6:42 PM125

63602068FIN.fm Page 125 Monday, June 8, 2009 6:42 PM126

63602068PL.fm Page 126 Monday, June 8, 2009 6:35 PM127

63602068PL.fm Page 127 Monday, June 8, 2009 6:35 PM128

63602068PL.fm Page 128 Monday, June 8, 2009 6:35 PM129

63602068PL.fm Page 129 Monday, June 8, 2009 6:35 PM130

63602068PL.fm Page 130 Monday, June 8, 2009 6:35 PM131

63602068PL.fm Page 131 Monday, June 8, 2009 6:35 PM132

63602068PL.fm Page 132 Monday, June 8, 2009 6:35 PM133

63602068PL.fm Page 133 Monday, June 8, 2009 6:35 PM134

63602068PL.fm Page 134 Monday, June 8, 2009 6:35 PM135

63602068PL.fm Page 135 Monday, June 8, 2009 6:35 PM136

63602068CZ.fm Page 136 Monday, June 8, 2009 6:59 PM137

63602068CZ.fm Page 137 Monday, June 8, 2009 6:59 PM138

s tekutinami, protože by mohly prasknout.

63602068CZ.fm Page 138 Monday, June 8, 2009 6:59 PM139

63602068CZ.fm Page 139 Monday, June 8, 2009 6:59 PM140

63602068CZ.fm Page 140 Monday, June 8, 2009 6:59 PM141

63602068CZ.fm Page 141 Monday, June 8, 2009 6:59 PM142

63602068CZ.fm Page 142 Monday, June 8, 2009 6:59 PM143

63602068CZ.fm Page 143 Monday, June 8, 2009 6:59 PM144

63602068CZ.fm Page 144 Monday, June 8, 2009 6:59 PM145

63602068CZ.fm Page 145 Monday, June 8, 2009 6:59 PM146

NÁVOD NA POUŽITIE PRED UVEDENÍM SPOTREBIČA DO

ČINNOSTI OCHRANA ŽIVOTNÉHO PROSTREDIA RADY A BEZPEČNOSTNÉ POKYNY AKO POUŽÍVAŤ CHLADIACI PRIESTOR AKO POUŽÍVAŤ MRAZIACI PRIESTOR AKO ROZMRAZOVAŤ A ČISTIŤ MRAZIACI PRIESTOR AKO ČISTIŤ CHLADIACI PRIESTOR STAROSTLIVOSŤ A ÚDRŽBA PRÍRUČKA NA ODSTRAŇOVANIE PROBLÉMOV SERVIS INŠTALÁCIA MOŽNOSŤ OBRÁTENIA SMERU OTVÁRANIA DVERÍ

63602068SK.fm Page 146 Monday, June 8, 2009 6:31 PM147

63602068SK.fm Page 147 Monday, June 8, 2009 6:31 PM148

s tekutinami, protože by mohly prasknout.

63602068SK.fm Page 148 Monday, June 8, 2009 6:31 PM149

63602068SK.fm Page 149 Monday, June 8, 2009 6:31 PM150

63602068SK.fm Page 150 Monday, June 8, 2009 6:31 PM151

63602068SK.fm Page 151 Monday, June 8, 2009 6:31 PM152

63602068SK.fm Page 152 Monday, June 8, 2009 6:31 PM153

63602068SK.fm Page 153 Monday, June 8, 2009 6:31 PM154

63602068SK.fm Page 154 Monday, June 8, 2009 6:31 PM155

63602068SK.fm Page 155 Monday, June 8, 2009 6:31 PM156

63602068H.fm Page 156 Monday, June 8, 2009 7:01 PM157

63602068H.fm Page 157 Monday, June 8, 2009 7:01 PM158

63602068H.fm Page 158 Monday, June 8, 2009 7:01 PM159

63602068H.fm Page 159 Monday, June 8, 2009 7:01 PM160

63602068H.fm Page 160 Monday, June 8, 2009 7:01 PM161

63602068H.fm Page 161 Monday, June 8, 2009 7:01 PM162

63602068H.fm Page 162 Monday, June 8, 2009 7:01 PM163

63602068H.fm Page 163 Monday, June 8, 2009 7:01 PM164

63602068H.fm Page 164 Monday, June 8, 2009 7:01 PM165

63602068H.fm Page 165 Monday, June 8, 2009 7:01 PM166

63602068RUS.fm Page 166 Monday, June 8, 2009 6:24 PM167

2002/96/EC, Waste Electrical and Electronic

63602068RUS.fm Page 167 Monday, June 8, 2009 6:24 PM168

63602068RUS.fm Page 168 Monday, June 8, 2009 6:24 PM169

63602068RUS.fm Page 169 Monday, June 8, 2009 6:24 PM170

63602068RUS.fm Page 170 Monday, June 8, 2009 6:24 PM171

63602068RUS.fm Page 171 Monday, June 8, 2009 6:24 PM172

63602068RUS.fm Page 172 Monday, June 8, 2009 6:24 PM173

63602068RUS.fm Page 173 Monday, June 8, 2009 6:24 PM174

63602068RUS.fm Page 174 Monday, June 8, 2009 6:24 PM175

63602068RUS.fm Page 175 Monday, June 8, 2009 6:24 PM176

63602068BG.fm Page 176 Monday, June 8, 2009 6:20 PM177

63602068BG.fm Page 177 Monday, June 8, 2009 6:20 PM178

63602068BG.fm Page 178 Monday, June 8, 2009 6:20 PM179

63602068BG.fm Page 179 Monday, June 8, 2009 6:20 PM180

63602068BG.fm Page 180 Monday, June 8, 2009 6:20 PM181

63602068BG.fm Page 181 Monday, June 8, 2009 6:20 PM182

63602068BG.fm Page 182 Monday, June 8, 2009 6:20 PM183

63602068BG.fm Page 183 Monday, June 8, 2009 6:20 PM184

63602068BG.fm Page 184 Monday, June 8, 2009 6:20 PM185

63602068BG.fm Page 185 Monday, June 8, 2009 6:20 PM186

63602068RO.fm Page 186 Monday, June 8, 2009 6:34 PM187

Electrical and Electronic Equipment

63602068RO.fm Page 187 Monday, June 8, 2009 6:34 PM188

63602068RO.fm Page 188 Monday, June 8, 2009 6:34 PM189

63602068RO.fm Page 189 Monday, June 8, 2009 6:34 PM190

63602068RO.fm Page 190 Monday, June 8, 2009 6:34 PM191

63602068RO.fm Page 191 Monday, June 8, 2009 6:34 PM192

63602068RO.fm Page 192 Monday, June 8, 2009 6:34 PM193

63602068RO.fm Page 193 Monday, June 8, 2009 6:34 PM194

63602068RO.fm Page 194 Monday, June 8, 2009 6:34 PM195

63602068RO.fm Page 195 Monday, June 8, 2009 6:34 PM
