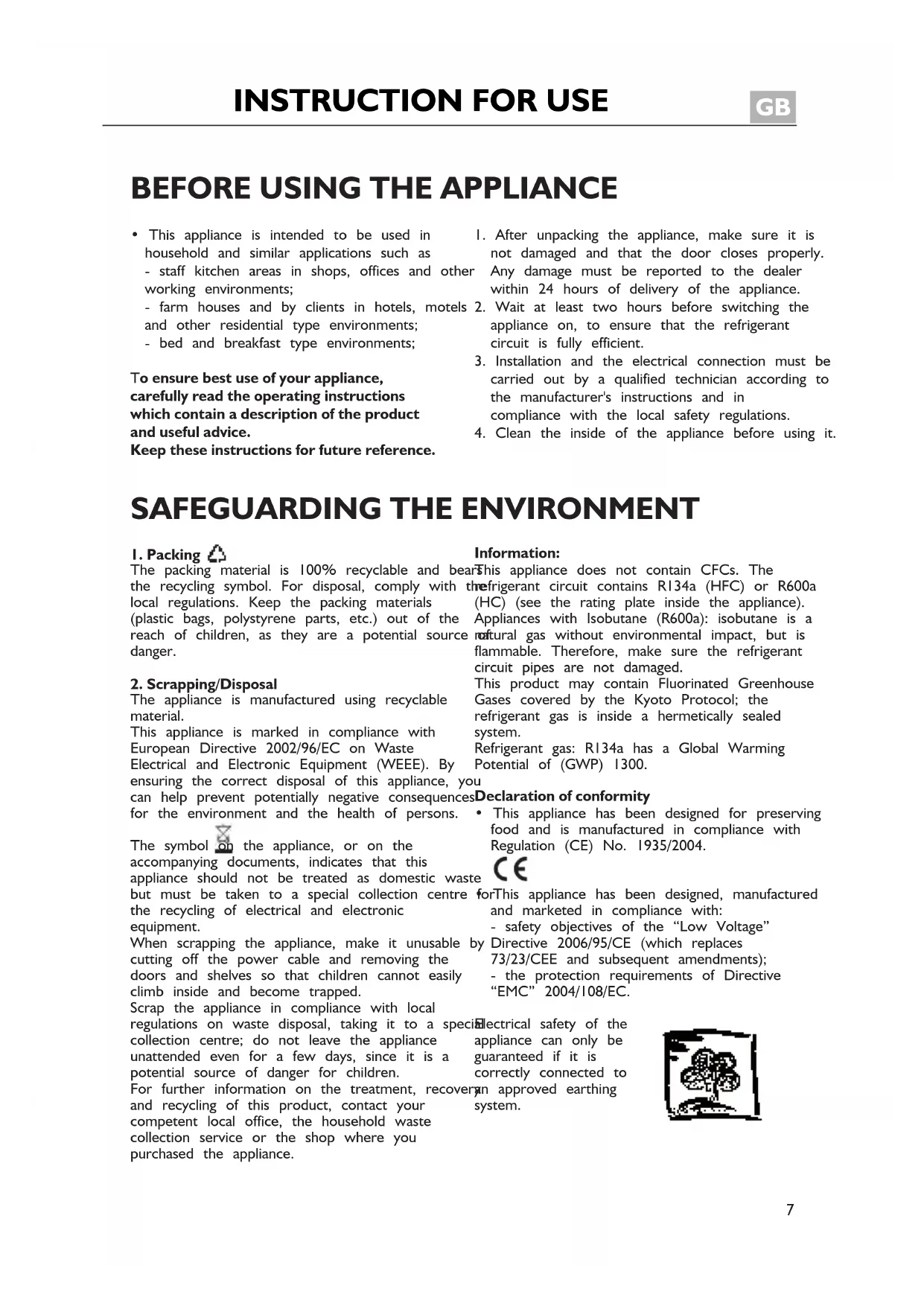

BEFORE USING THE APPLIANCE • This appliance is intended to be used inhousehold and similar applications such as- staff kitchen areas in shops, offices and otherworking environments;- farm houses and by clients in hotels, motelsand other residential type environments;- bed and breakfast type environments;To ensure best use of your appliance,carefully read the operating instructionswhich contain a description of the productand useful advice.Keep these instructions for future reference.1. After unpacking the appliance, make sure it isnot damaged and that the door closes properly.Any damage must be reported to the dealerwithin 24 hours of delivery of the appliance.2. Wait at least two hours before switching theappliance on, to ensure that the refrigerantcircuit is fully efficient.3. Installation and the electrical connection must becarried out by a qualified technician according tothe manufacturer's instructions and incompliance with the local safety regulations.4. Clean the inside of the appliance before using it.1. PackingThe packing material is 100% recyclable and bearsthe recycling symbol. For disposal, comply with thelocal regulations. Keep the packing materials(plastic bags, polystyrene parts, etc.) out of thereach of children, as they are a potential source ofdanger.2. Scrapping/DisposalThe appliance is manufactured using recyclablematerial.This appliance is marked in compliance withEuropean Directive 2002/96/EC on WasteElectrical and Electronic Equipment (WEEE). Byensuring the correct disposal of this appliance, youcan help prevent potentially negative consequencesfor the environment and the health of persons.The symbol on the appliance, or on theaccompanying documents, indicates that thisappliance should not be treated as domestic wastebut must be taken to a special collection centre forthe recycling of electrical and electronicequipment.When scrapping the appliance, make it unusable bycutting off the power cable and removing thedoors and shelves so that children cannot easilyclimb inside and become trapped.Scrap the appliance in compliance with localregulations on waste disposal, taking it to a specialcollection centre; do not leave the applianceunattended even for a few days, since it is apotential source of danger for children.For further information on the treatment, recoveryand recycling of this product, contact yourcompetent local office, the household wastecollection service or the shop where youpurchased the appliance.Information:This appliance does not contain CFCs. Therefrigerant circuit contains R134a (HFC) or R600a(HC) (see the rating plate inside the appliance).Appliances with Isobutane (R600a): isobutane is anatural gas without environmental impact, but isflammable. Therefore, make sure the refrigerantcircuit pipes are not damaged.This product may contain Fluorinated GreenhouseGases covered by the Kyoto Protocol; therefrigerant gas is inside a hermetically sealedsystem.Refrigerant gas: R134a has a Global WarmingPotential of (GWP) 1300.Declaration of conformity• This appliance has been designed for preservingfood and is manufactured in compliance withRegulation (CE) No. 1935/2004.• This appliance has been designed, manufacturedand marketed in compliance with:- safety objectives of the “Low Voltage”Directive 2006/95/CE (which replaces73/23/CEE and subsequent amendments);- the protection requirements of Directive“EMC” 2004/108/EC.Electrical safety of theappliance can only beguaranteed if it iscorrectly connected toan approved earthingsystem.

• Your new appliance is designed exclusively for

To ensure best use of your appliance, carefully

read the operating instructions which contain

a description of the product and useful advice.

Keep these instructions for future reference.

1.After unpacking the appliance, make sure it is not

damaged and that the door closes properly.

Any damage must be reported to the dealer within

24 hours of delivery of the appliance.

2.Wait at least two hours before switching the

appliance on, to ensure that the refrigerant circuit

3.Installation and the electrical connection must be

carried out by a qualified technician according to

the manufacturer’s instructions and in compliance

with the local safety regulations.

4.Clean the inside of the appliance before using it.

SAFEGUARDING THE ENVIRONMENT

The packing material is 100% recyclable and bears

the recycling symbol. For disposal, comply with the

local regulations. Keep the packing materials

(plastic bags, polystyrene parts, etc.) out of the

reach of children, as they are a potential source of

2.Scrapping/Disposal

The appliance is manufactured using recyclable

This appliance is marked in compliance with

European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE). By

ensuring the correct disposal of this appliance, you

can help prevent potentially negative consequences

for the environment and the health of persons.

The symbol on the appliance, or on the

accompanying documents, indicates that this

appliance should not be treated as domestic waste

but must be taken to a special collection centre for

the recycling of electrical and electronic equipment.

When scrapping the appliance, make it unusable by

cutting off the power cable and removing the doors

and shelves so that children cannot easily climb

inside and become trapped.

Scrap the appliance in compliance with local

regulations on waste disposal, taking it to a special

collection centre; do not leave the appliance

unattended even for a few days, since it is a

potential source of danger for children.

For further information on the treatment, recovery

and recycling of this product, contact your

competent local office, the household waste

collection service or the shop where you purchased

This appliance does not contain CFCs.

The refrigerant circuit contains R134a (HFC) or

R600a (HC) (see the rating plate inside the

Appliances with Isobutane (R600a): isobutane is a

natural gas without environmental impact, but is

flammable. Therefore, make sure the refrigerant

circuit pipes are not damaged.

This product may contain Fluorinated Greenhouse

Gases covered by the Kyoto Protocol; the

refrigerant gas is inside a hermetically sealed

Refrigerant gas: R134a has a Global Warming

Potential of (GWP) 1300.

Declaration of conformity

This appliance has been designed for preserving

food and is manufactured in compliance with

Regulation (CE) No. 1935/2004.

This appliance has been designed, manufactured

and marketed in compliance with:

• safety objectives of the “Low Voltage” Directive

2006/95/CE (which replaces 73/23/CEE and

subsequent amendments);

• the protection requirements of Directive “EMC”

89/336/EEC amended by Directive 93/68/EEC.

Electrical safety of the appliance can only be

guaranteed if it is correctly connected to an

approved earthing system.8

The appliance must be handled and installed by

two or more persons.

Be careful not to damage the floors (e.g.

parquet) when moving the appliance.

During installation, make sure the appliance

does not damage the power cable.

Make sure the appliance is not near a heat

To guarantee adequate ventilation, leave a space

on both sides and above the appliance and

follow the installation instructions.

Keep the appliance ventilation openings free.

Do not damage the appliance refrigerant circuit

Install and level the appliance on a floor strong

enough to take its weight and in a place suitable

for its size and use.

Install the appliance in a dry and well-ventilated

place. The appliance is arranged for operation in

places where the temperature comes within the

following ranges, according to the climatic class

given on the rating plate. The appliance may not

work properly if it is left for a long time at a

temperature outside the specified range.

• Make sure the voltage specified on the rating

plate corresponds to that of your home.

• Do not use single/multi adapters or extension

• For the water connection, use the pipe supplied

with the new appliance; do not reuse that of the

• Power cable modification or replacement must

only be carried out by qualified personnel or by

After-sales Service.

• It must be possible to disconnect the appliance

from the power supply by unplugging it or by

means of a mains two-pole switch installed

upstream of the socket.

• Do not store explosive substances such as

aerosol cans with a flammable propellant in this

• Do not store or use petrol, flammable liquids or

gas in the vicinity of this or other electrical

appliances. The fumes can cause fires or

• Do not use mechanical, electric or chemical

means other than those recommended by the

Manufacturer to speed up the defrost process.

• Do not use or place electrical devices inside the

appliance compartments if they are not of the

type expressly authorised by the Manufacturer.

• This appliance is not intended for use by persons

(including children) with reduced physical,

sensory or mental capabilities, or lack of

experience and knowledge, unless they have

been given supervision or instruction concerning

use of the appliance by a person responsible for

• To avoid the risk of children becoming trapped

and suffocating, do not allow them to play or hide

inside the appliance.

• Do not swallow the contents (non-toxic) of the

ice packs (in some models).

• Do not eat ice cubes or ice lollies immediately

after taking them out of the freezer since they

may cause cold burns.

Before carrying out any maintenance or cleaning

operation, unplug the appliance or disconnect it

from the power supply.

All appliances equipped with an automatic ice-

maker and water dispenser must be connected

to a water supply that only delivers drinking

water (with mains water pressure of between

0.17 and 0.81 Mpa (1.7 and 8.1 bar)). Automatic

ice-makers and/or water dispensers not directly

connected to the water supply must be filled

with drinking water only.

Use the refrigerator compartment only for

storing fresh food and the freezer compartment

only for storing frozen food, freezing fresh food

and making ice cubes.

Do not store glass containers with liquids in the

freezer since they may burst.

The Manufacturer declines any liability if the

above advice and precautions are not

PRECAUTIONS AND GENERAL RECOMMENDATIONS Climatic Class

Amb. T. (°C) Amb. T. (°F)

SN From 10 to 32 From 50 to 90

N From 16 to 32 From 61 to 90

ST From 16 to 38 From 61 to 100

T From 16 to 43 From 61 to 110

Standard_pages_GB_m:Layout 1 6/1/09 12:26 PM Page 29

RECOMANDATION IN CASE OF NO USE OF THE APPLIANCE Short vacation

There is no need to disconnect the appliance from the

power supply if you will be away for less than three

weeks. Use up perishable food, freeze other food.

If your appliance has an automatic ice maker:

2.Shut off the water supply to the automatic ice

3.Empty the ice bucket.

Remove all the food if you are going away for three

weeks or more. If your appliance has an automatic

2.Shut off the water supply to the automatic

icemaker at least a day before.

3. Empty the ice bucket.

Fix some wooden or plastic wedges to the upper

part of both doors with adhesive tape and leave the

doors open enough for air to circulate inside both

compartments. This will prevent odour and mould

1.Take out all internal parts.

2.Wrap them well, and fix them together with

adhesive tape so that they do not bang together

3.Screw the adjustable feet so that they do not

touch the support surface.

4.Close and fix both doors with adhesive tape and,

again using adhesive tape, fix the power cable to

In the event of a power failure, call the local office of

your electricity supply company and ask how long it is

going to last. Note: Bear in mind that a full appliance

will stay cold longer than a partially filled one.

If ice crystals are still visible on the food, it may be

frozen again, although flavour and aroma may be

If food is found to be in a poor condition, it is best

For power failures lasting up to 24 hours.

1.Keep both doors of the appliance closed. This

will allow the stored food to stay cold as long as

For power failures lasting more than 24 hours.

1.Empty the freezer compartment and arrange the

food in a portable freezer. If this type of freezer

is not available and, likewise, no artificial ice packs

are available, try to use up the food, which is

more easily perishable.

2.Empty the ice bucket.

MAINTENANCE AND CLEANING Before any cleaning or maintenance operation,

unplug the appliance from the mains or disconnect

the electrical power supply.

Periodically clean the appliance with a cloth and a

solution of lukewarm water and neutral detergent

specifically for refrigerator interiors.

Never use detergents or abrasives. Never clean

refrigerator parts with flammable fluids. The fumes

can create a fire hazard or explosion.

Clean the outside of the appliance and the door seal

with a damp cloth and dry with a soft cloth.

Do not use steam cleaners.

Clean the condenser using a vacuum cleaner,

proceeding as follows: remove the front plinth (see

installation manual) and proceed to clean the

- The buttons and control panel display must

not be cleaned with alcohol or alcohol-derived

substances, but with a dry cloth.

- The refrigeration system pipes are located

near the defrost pan and can become hot.

Periodically clean them with a vacuum cleaner.

REPLACING THE BULB Always disconnect the appliance from the

power supply before replacing any light bulbs.

How to replace the refrigerator compartment bulb.

1.In some models a special bulb is used

2.The bulb should not exceed 15W

3.Bulb change instruction is put in the chart

TROUBLESHOOTING GUIDE Before contacting After-sales Service....

Performance problems often result from little

things you can find and fix yourself without tools of

Noises coming from your appliances are

normal since it has a number of fans and

engines to regulate performances that switch

on and off automatically.

Some of the functional noises can be reduced

- Levelling the appliance and installing it on an

- Separating and avoiding contact between the

appliance and furniture.

- Checking if the internal components are

- Checking if bottles and containers are not in

contact with each other.

Some of the functional noises you might hear:

A hissing sound when switching on the

appliance for the first time or after a long

A gurgling sound when refrigerant fluid enters

A cracking sound when compressor starts or

when ready ice drops into ice box Abrupt

clicks when compressor switches on and off.

Automatic Ice maker noises (on some

- Since your appliance has an automatic ice

maker, you may hear buzzing (from the water

valve), trickling water and the clatter of the ice

falling into the bucket.

The appliance is not working:

• Is the power cable plugged into a live socket with

• Have you checked the protection devices and

fuses of the electrical system in your home?

If your automatic ice maker does not work (on

• Has the freezer had enough time to become cold?

With a new appliance this may take overnight.10

• Is the automatic ice maker ON/OFF button set

• Make sure the lever of the automatic ice maker,

inside the freezer compartment, is not turned to

OFF, i.e. in the horizontal position (on some

• Is the water turned on? Is water getting to the

automatic ice maker?

• Is there a water filter installed on the appliance

(on some models)? This filter may be clogged or

installed incorrectly. First, check the filter

installation instructions to ensure that the filter

was installed correctly and is not clogged. If

installation or clogging is not a problem, call a

qualified person or a technician.

If there is water in the defrost pan:

• This is normal in hot, damp weather. The pan can

even be half full. Make sure the appliance is level

so that the water does not overflow

If the edges of the appliance cabinet, which

come in contact with the door seal, are warm

• This is normal in hot weather and when the

compressor is running.

If the light does not work:

• Have you checked the protection devices and

fuses of the electrical system in your home?

• Is the power cable plugged into a live socket with

• Has the light bulb burnt out?

In the case of burnt-out bulbs:

1. Always unplug the appliance from the mains.

2. See chapter “Maintenance and Cleaning”.

If the motor seems to run too much:

• Is the condenser free of dust and fluff?

• Are the doors properly closed?

• Are the door seals properly fitted?

• On hot days or if the room is warm, the motor

naturally runs longer.

• If the appliance door has been left open for a

while or if large amounts of food have been

stored, the motor will run longer in order to cool

down the interior of the appliance.

• Motor running time depends on different things:

number of door openings, amount of food

stored, temperature of the room, setting of the

temperature controls.

If the appliance temperature is too high:

• Are the appliance controls correctly set?

• Has a large amount of food been added to the

• Check that the doors are not opened too often.

• Check that the doors close properly.

• Make sure that air flow vents inside the

compartment are not blocked, as this prevents

the circulation of cold air.

If there is moisture build-up:

• Make sure that air flow vents inside the

compartment are not blocked, as this prevents

the circulation of air.

• Make sure that the food is properly packaged.

Dry any dampness on food containers before

placing them in the appliance.

• Check that the doors are not opened too often.

When the door is opened, humidity from the

room air enters the appliance. The more often

the door is opened, the faster humidity builds up,

especially when the room itself is very humid.

• If the room is very humid, it is normal for

moisture to build up inside the refrigerator.

If the doors do not open and close properly:

• Check that food packages are not blocking the

• Check that the internal parts or automatic ice

maker are not out of position.

• Check that the door seals are not dirty or sticky.

• Ensure the appliance is level.

AFTER-SALES SERVICE Before contacting After-Sales Service:

Switch the appliance on again to see if the problem

has been solved. If it has not, disconnect the

appliance from the power supply and wait for about

an hour before switching on again.

If, after performing the checks described in the

Troubleshooting Guide and switching the appliance

on again, your appliance still does not work properly,

contact the After-sales Service, explain the problem.

• the model and appliance serial number (stated on

• the nature of the problem,

• the Service number (the number after the word

SERVICE on the data plate on the inside of the

• your full address,

• your telephone number and area code.

The direction of door opening can be changed.

If this operation is performed by After-sales

Service it is not covered by the warranty.

ELECTRICAL CONNECTION

1) For Great Britain only

Warning - this appliance must be earthed

If the mains lead of this appliance is fitted with a BS

1363A 13amp fused plug, to change a fuse in this

type of plug use an A.S.T.A. approved fuse to BS

1362 type and proceed as follows:

1.Remove the fuse cover (A) and

2.Fit replacement 13A fuse into

3.Refit both into plug.

The fuse cover must be refitted

when changing a fuse and if the fuse

cover is lost the plug must not be

used until a correct replacement is fitted.

Correct replacement are identified by the colour

insert or the colour embossed in words on the base

Replacement fuse covers are available from your

local electrical store.

2) For the Republic of Ireland only

The information given in respect of Great Britain

will frequently apply, but a third type of plug and

socket is also used, the 2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket

outlet, please contact Whirlpool Service for further

instruction. Please do not attempt to change plug

yourself. This procedure needs to be carried out by

a qualified Whirlpool technician in compliance with

the manufactures instructions and current standard

safety regulations.11
