Product type	Multimedia car stereo with touchscreen
Brand	AUDIOVOX
Model	VME 9415
Dimensions (chassis)	1 DIN (ISO standard)
Power supply	11-16 V DC, negative ground
Output power	4 x 40 W max
Display	7 inch (17.8 cm) TFT LCD high definition, 1440 x 234 pixels
Supported audio formats (disc)	CD-DA, MP3, WMA, DVD-Audio
Supported video formats (disc)	DVD, VCD, SVCD, DivX, Xvid, AVI, MPEG1/2
Supported audio formats (USB)	MP3, WMA
FM tuner	87.5 - 107.9 MHz, 18 presets
AM tuner	522 - 1620 kHz, 12 presets
Bluetooth	Built-in (HFP, A2DP, AVRCP) with external microphone
Connectivity	Front USB, front AUX AV input, RCA audio outputs (front/rear/sub), composite video output, rear camera input
Equalizer	3 bands (bass, mid, treble) with 8 preset curves
Radio functions	RDS, TA, TP, PTY, local/distance search, auto memory
Steering wheel controls	Compatible with Dietz, PAC, Metra adapters (SWC input 3.5 mm)
Navigation	Ready for Audiovox NAV104 module (optional)
Rear view camera	Dedicated input, automatic switching in reverse
Maintenance and cleaning	Clean silicone cloth and mild detergent; do not use alcohol or liquids
Safety	Parking brake required for video display; do not watch video while driving
Warranty	2 years for the first owner (parts and labor)
Repairability	Reset via RESET button; fuse replacement; repair by authorized professional

Frequently Asked Questions - VME 9415 AUDIOVOX

How to reset the VME 9415 car stereo?

Use the tip of a pen to press the RESET button located above the rotary encoder. This restores factory settings (except the password).

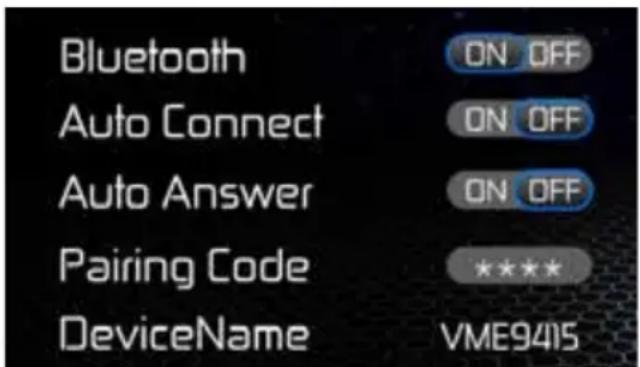

How to connect my phone via Bluetooth?

Go to the Source menu, select BT, enable Bluetooth and auto connection in Options. Press Pair, then search for 'VME 9415' on your phone. The default code is 0000.

How to adjust the equalizer?

From the screen, press the EQ button. Use the +/- buttons to adjust bass, mid, and treble (from -14 to +14). You can also choose from 8 preset curves (Rock, Pop, etc.).

Can I watch videos while driving?

No, video playback is automatically disabled when the parking brake is not engaged. A warning message is displayed. Never watch video while driving.

How to use the rear view camera?

You must first install a compatible rear camera. When you shift into reverse, the screen automatically displays the camera image. You can mirror the image in the Setup > Video menu.

What disc formats are supported?

The player supports DVD, DVD+R/RW, DVD-R/RW, CD, CD-R/RW. For files, it reads MP3, WMA, DivX, Xvid, AVI, JPEG (on certain media). Discs must be finalized.

How to automatically store radio stations?

In radio mode, press the AS (Auto Store) button on the screen. The unit searches for the 6 strongest stations on the active band and saves them to presets P1 to P6.

What to do if the screen does not open?

Check that TFT Open is not set to 'Manual' or 'Auto Off' in the Setup menu. If the path is blocked, press OPEN to reset the mechanism.

How to clean the TFT screen?

Use a clean, dry silicone cloth. Never use water, alcohol, or chemicals. Avoid scratching the surface.

How to connect an iPod or iPhone?

Connect your iPod/iPhone via the provided USB cable (30-pin or Lightning connector as appropriate). The unit automatically switches to iPod mode. You can browse by playlists, artists, albums, and songs.

USER MANUAL VME 9415 AUDIOVOX

"Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

iPhone,iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Bluetooth® is a trademark of Bluetooth Special Interest Group (SIG) Inc.

iGo Primo is a trademark of NNG Kft.

DIVX

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivXvideo. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

Sigma-Delta Modulator

Video

Format: NTSC, PAL (auto-detection)

Thank you for choosing an Audiovox product. We hope you will find the instructions in this owner's manual clear and easy to follow. If you take a few minutes to look through it, you'll learn how to use all the features of your new Audiovox VME 9415 Mobile Multimedia Receiver for maximum enjoyment.

CONTENTS

Features 73
Warnings 75
Controls and Indicators 76
Using the TFT Monitor 78
Operating Instructions 80
Steering Wheel Controls 87
Settings Menu 88

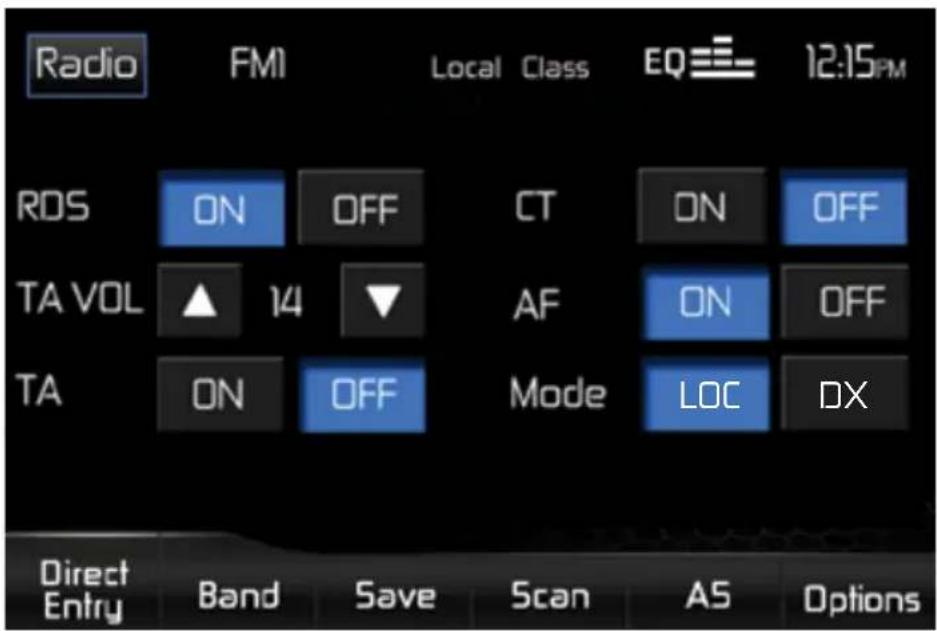

Tuner Operation 94

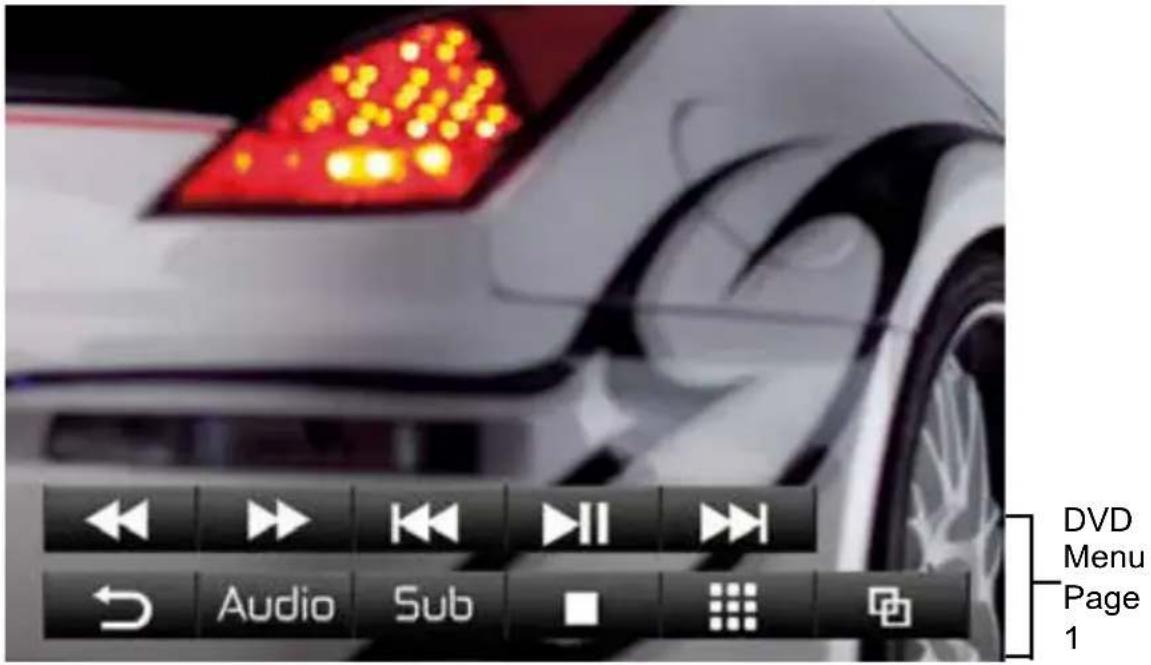

DVD/VCD Video Operation 100

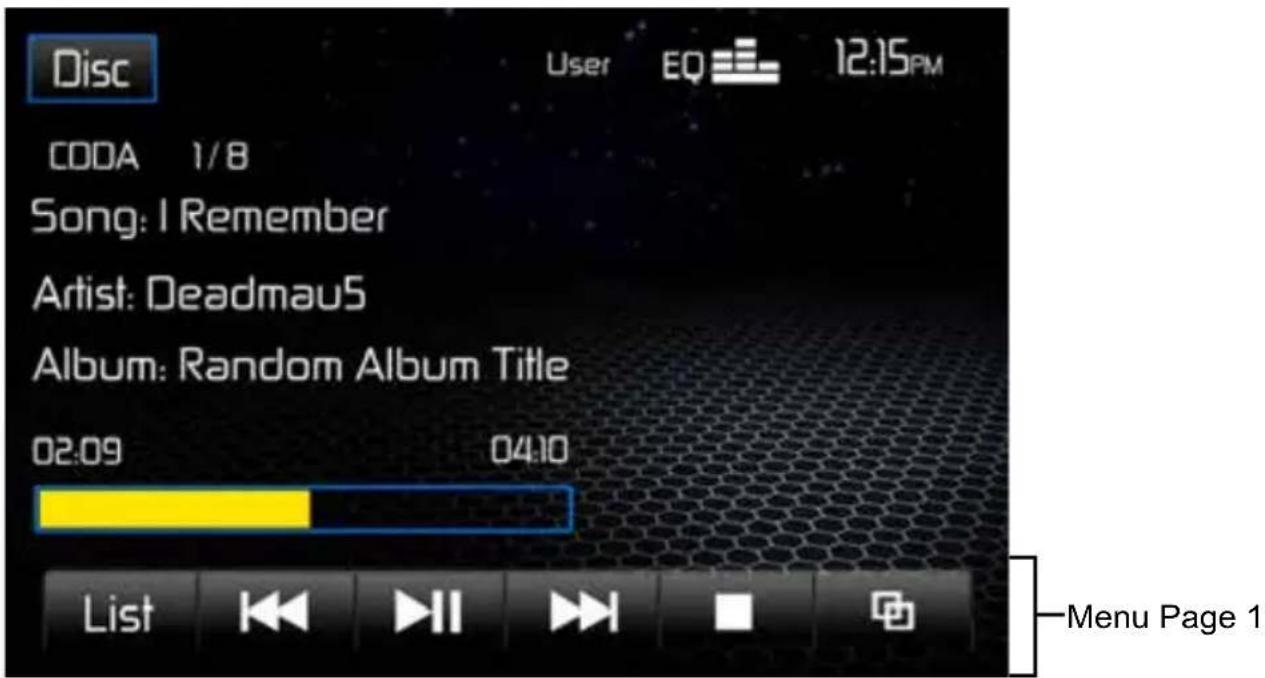

DVD/CD Audio Operation 106
MP3/WMA/Xvid/DivX Operation 110

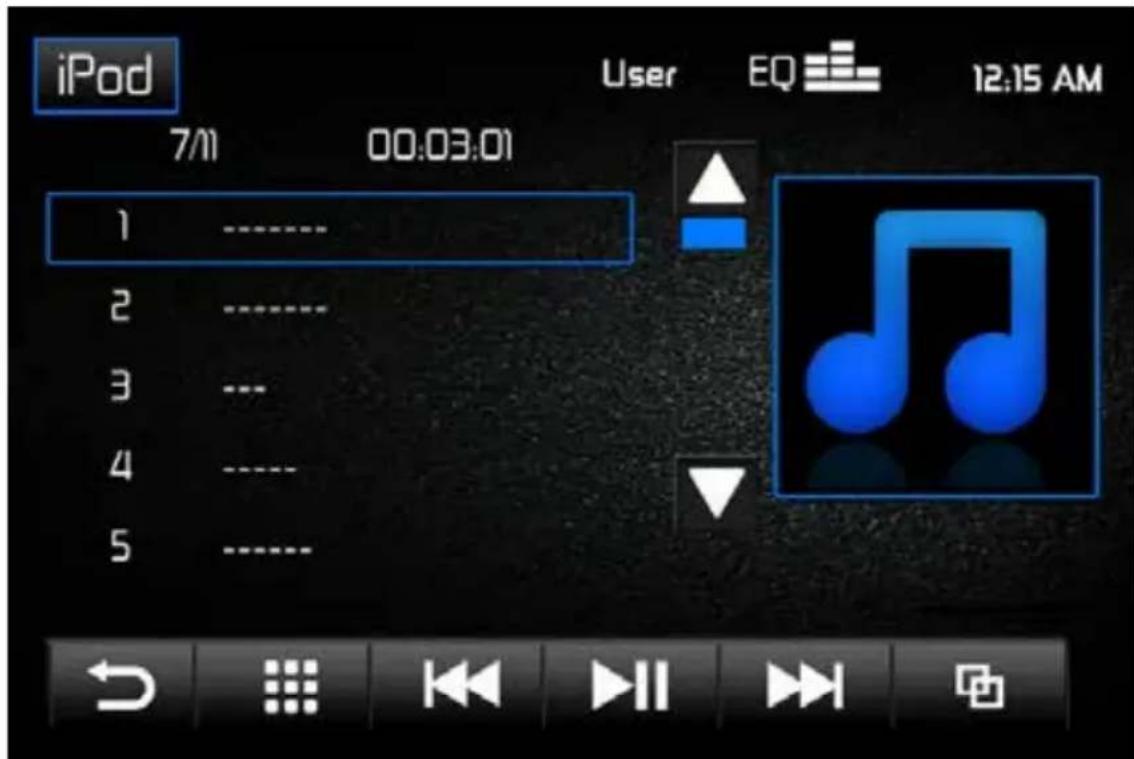

iPod/iPhone Operation 118

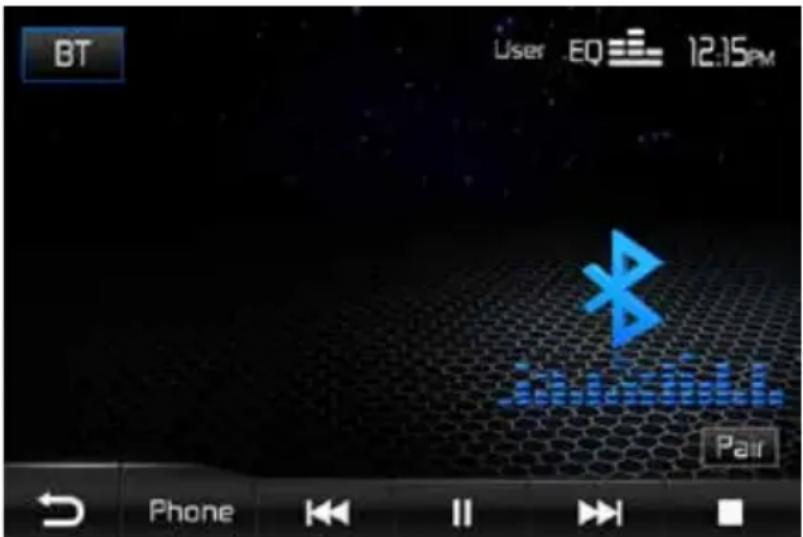

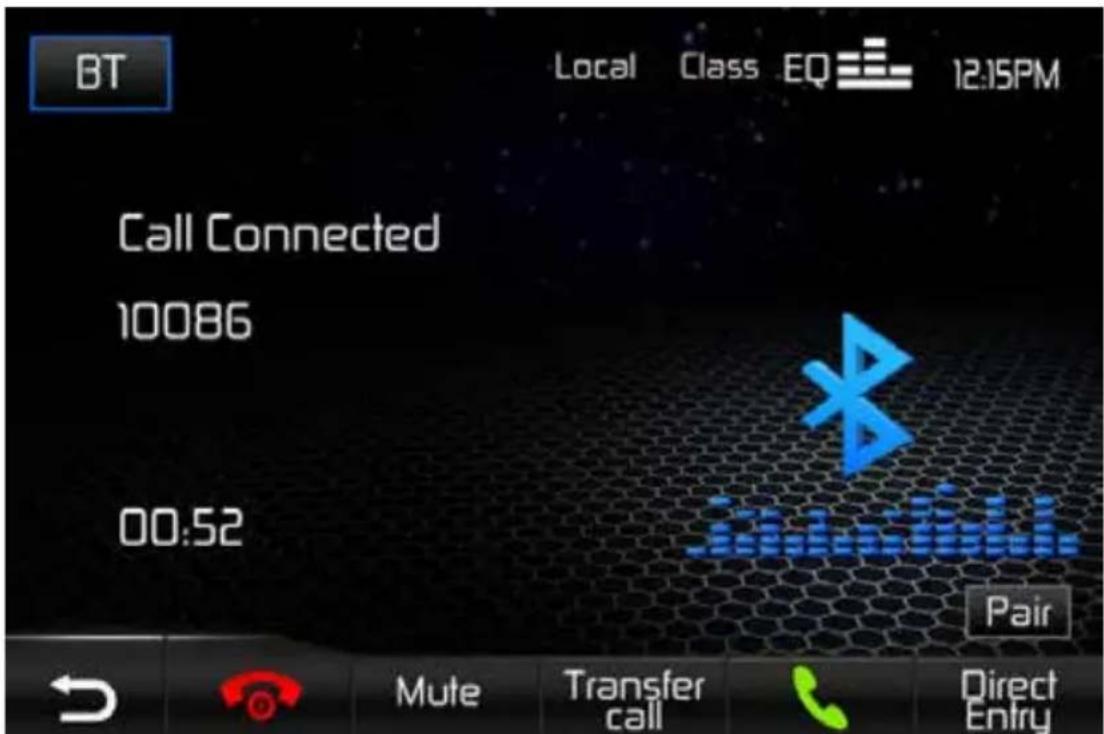

Bluetooth Operation 122
Rear Camera Operation 130
Troubleshooting 131
Care and Maintenance 134
Specifications 135

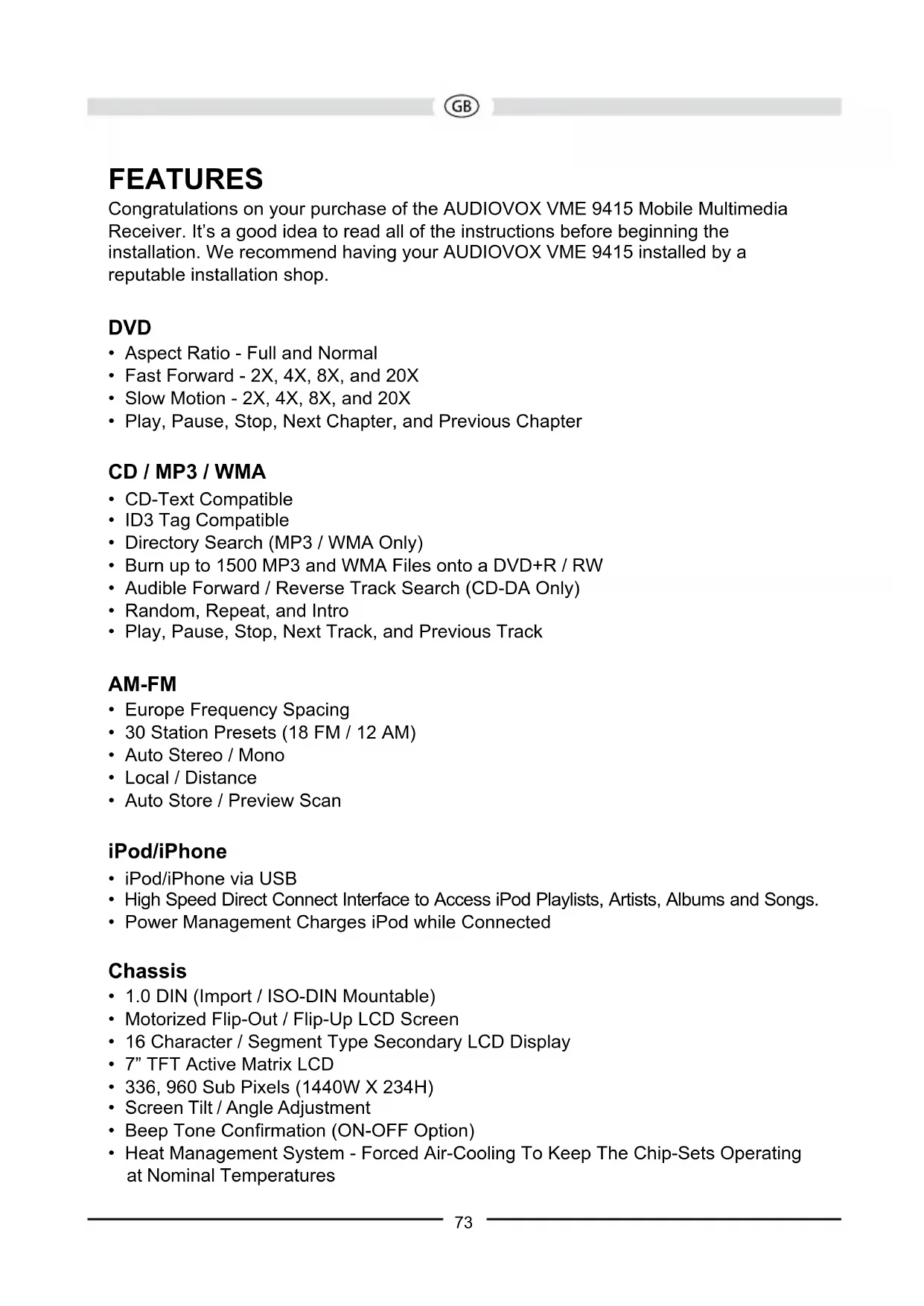

FEATURES

Congratulations on your purchase of the AUDIOVOX VME 9415 Mobile Multimedia Receiver. It's a good idea to read all of the instructions before beginning the installation. We recommend having your AUDIOVOX VME 9415 installed by a reputable installation shop.

DVD

• Aspect Ratio - Full and Normal
• Fast Forward - 2X, 4X, 8X, and 20X
• Slow Motion - 2X, 4X, 8X, and 20X
• Play, Pause, Stop, Next Chapter, and Previous Chapter

CD / MP3 / WMA

• CD-Text Compatible
• ID3 Tag Compatible
• Directory Search (MP3 / WMA Only)
• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW
• Audible Forward / Reverse Track Search (CD-DA Only)
• Random, Repeat, and Intro
• Play, Pause, Stop, Next Track, and Previous Track

AM-FM

• Europe Frequency Spacing
  30 Station Presets (18 FM / 12 AM)
• Auto Stereo / Mono
• Local / Distance
• Auto Store / Preview Scan

iPod/iPhone

• iPod/iPhone via USB
  High Speed Direct Connect Interface to Access iPod Playlists, Artists, Albums and Songs.
• Power Management Charges iPod while Connected

Chassis

1.0 DIN (Import / ISO-DIN Mountable)
- Motorized Flip-Out / Flip-Up LCD Screen
16 Character / Segment Type Secondary LCD Display
7" TFT Active Matrix LCD
336, 960 Sub Pixels (1440W X 234H)
- Screen Tilt / Angle Adjustment
- Beep Tone Confirmation (ON-OFF Option)
- Heat Management System - Forced Air-Cooling To Keep The Chip-Sets Operating at Nominal Temperatures

General

• Navigation Ready (Audiovox NAV104)
• Built-In Bluetooth with external microphone, providing hands-free operation for safety and convenience and A2DP/AVRCP for streaming music from your smartphone or other Bluetooth device.
  One Composite Video Output for Additional Screens
• Front Panel Audio/Video Input
• Three-Band Tone control (Bass, Mid and Treble) with Eight Preset EQ Curves
• Front Panel A/V Aux Input for Portable Media Devices
• Front, Rear, and Subwoofer Line Output
  Programmable Volume Control
• Rear Camera Input (Normal and Mirror Image View)
• Touch Screen Calibration Mode
  4 VRMS Line Output - All Channels
• Rotary Encoder Audio Control
• SWC Interface - Compatible with the steering wheel control adapters: Dietz UNICO DUAL PLUS + cable, PAC (Pacific Accessory Corporation) SWI-PS and Metra ASWC (sold separately)

Optional Equipment

- NAV104

The VME 9415 is "navigation ready." Before accessing any navigation features, you must purchase and install the navigation module (Audiovox NAV104). All installation and operating instructions will be included with the navigation module.

Once the navigation module is connected and operating properly, the NAV source mode will become active. While the navigation module is not installed, the NAV option appears gray, indicating the function is not available.

Rear Camera

The VME 9415 is "camera ready." Before accessing any camera features, you must purchase and install a rear video camera. Once the rear camera is connected and operating properly, the CAMERA source mode will become active. While the camera is not installed, the CAMERA option appears gray, indicating the function is not available.

WARNING!

Never install this unit where operation and viewing could interfere with safe driving conditions.

WARNING!

To reduce the risk of a traffic accident (except when using for rear view video camera) never use the video display function while driving the vehicle. This is a violation of federal law.

WARNING!

To prevent injury from shock or fire, never expose this unit to moisture or water.

WARNING!

Never disassemble the unit.

WARNING!

Never use irregular discs.

WARNING!

To prevent damage to the mechanism inside this unit, avoid impact to the unit's monitor.

WARNING!

Using an improper fuse may cause damage to the unit and result in a fire.

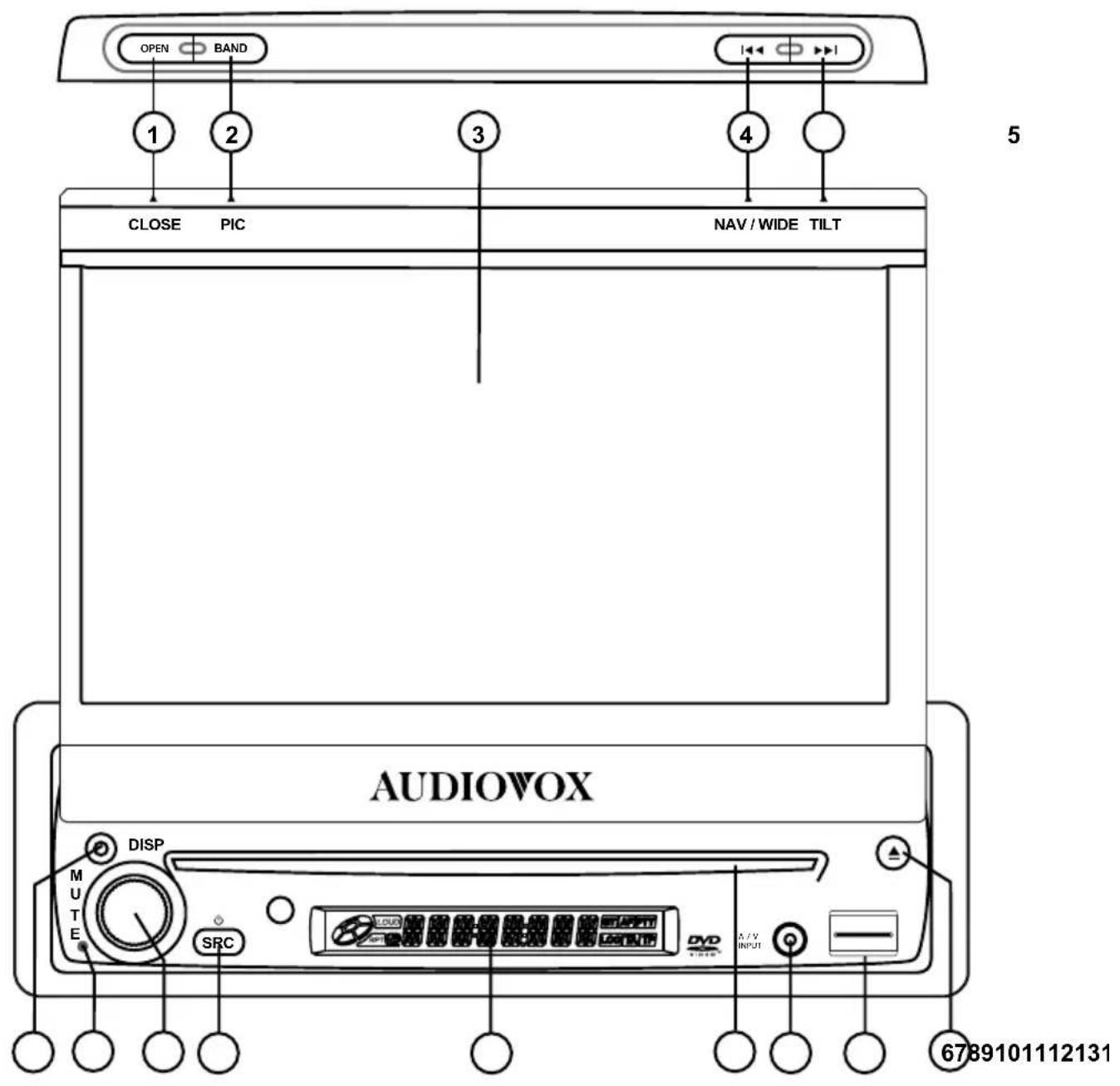

CONTROLS AND INDICATORS

1. CLOSE/OPEN

Press to activate the automatic mechanical system and move the TFT monitor into the viewing position. Press again to close the TFT.

2. PIC/BAND

With the monitor open, press PIC to adjust the Brightness and Contrast (see "Image/Display Settings").

With the monitor closed, press BAND to change between three FM and two AM bands.

3. TFTDisplay

4. WIDE/

With the monitor open, press WIDE to adjust the display aspect of the picture to one of two settings: Full or STANDBY.

With the monitor closed, press to seek backward.

5. TILT/

With the monitor open, press TILT to activate the tilt function. Use the rotary encoder to make adjustments while the blue tilt icon is flashing.

With the monitor closed, press seek forward.

6. EJECT

Press to eject a disc. Press and hold to reset the core mechanism position.

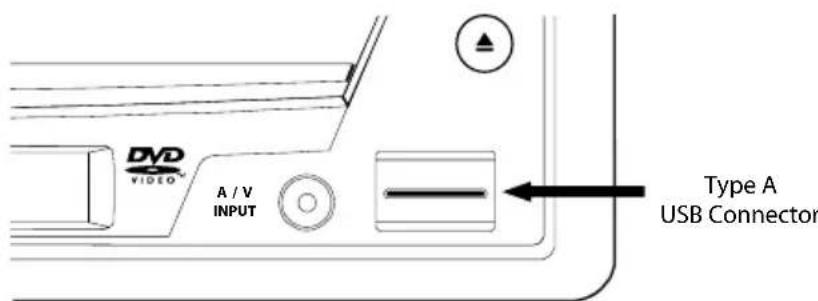

7. USB Interface Connector

Insert a USB device for playback of music/video files.

8. A/VI input

Attach a compatible A/V device.

9.DISCSLOT

10. LCDDisplay

11. /

Press to turn the unit on. Once the unit is on, momentarily pressing the SRC button will display the Main Source Menu.

Press and hold to turn the unit off.

12. RotaryEncoder

Rotate to adjust the volume. Press to activate the MUTE function and silence the receiver. Press again to resume sound.

While in tune mode, press and hold to activate the LOC feature. Repeat to deactivate.

13. RESET

Press to reset the system settings to factory default (except the password setting).

14. DISP

With the monitor open, during DVD playback, press once to view Time, Title, Chapter info or twice for Audio, Subtitle, Angle, and Bit Rate info.

With the monitor closed, press to view alternate LCD display information.

USING THE TFT MONITOR

Opening/Closing the TFT Monitor

Open TFT Monitor

Press the OPEN button on the front panel to activate the mechanism that moves the display panel into the viewing position.

Close TFT Monitor

Press the OPEN button on the front panel to load the display panel back into the compartment.

TFT Monitor Auto Open

• If "TFT Auto Open" is "on" when the unit is turned on, the monitor automatically moves to the viewing position.
• If "TFT Auto Open" is "off" when the unit is turned on, press the OPEN button on the front panel to move the monitor into the viewing position.
• If "TFT Auto Open" is set to "Manual", the TFT will not close when the key is turned off.

Monitor Tilt Angle Adjustment

A known characteristic of LCD panels is the quality of the display in relationship to the viewing angle. The monitor angle can be adjusted for optimum viewing using by pressing the TILT button on the unit. While the blue tilt icon is flashing, turn the rotary encoder to adjust the screen angle.

TFT Aspect Ratio

With the monitor open, press and hold the WIDE button on the monitor to adjust the aspect ratio as follows:

FULL

The entire screen is extended horizontally to the aspect ratio of 16 to 9. The extension ratio is the same at any point.

STANDBY

The screen becomes black. Touch the screen to resume.

OPERATING INSTRUCTIONS

Power On / Off

Press the / button on the front panel to turn the unit on. You can also turn on the unit by pressing the OPEN button and opening the TFT screen.

Press and hold the / button on the front panel to power off the unit. The monitor is drawn back into the main compartment.

Audible Beep Confirmation

An audible beep tone confirms each function selection. The Beep tone can be disabled through the Setup menu.

Mute/Line Mute

Press the rotary encoder MUTE button on the front panel to mute the volume. The mute symbol is displayed on the TFT screen.

Press the rotary encoder button again to restore the volume. Adjusting the volume or using any of the audio setup features cancels the mute function.

If the "MUTE" wire is connected, audio output mutes when a telephone call is received by a mobile phone.

Playing Source Selection

When the monitor is closed, press the SRC button on the front panel to change between available audio playing sources in the following order: RADIO, DISC, USB1, USB2, BT, NAV, AUX, and CAMERA. The source is displayed on the LCD screen.

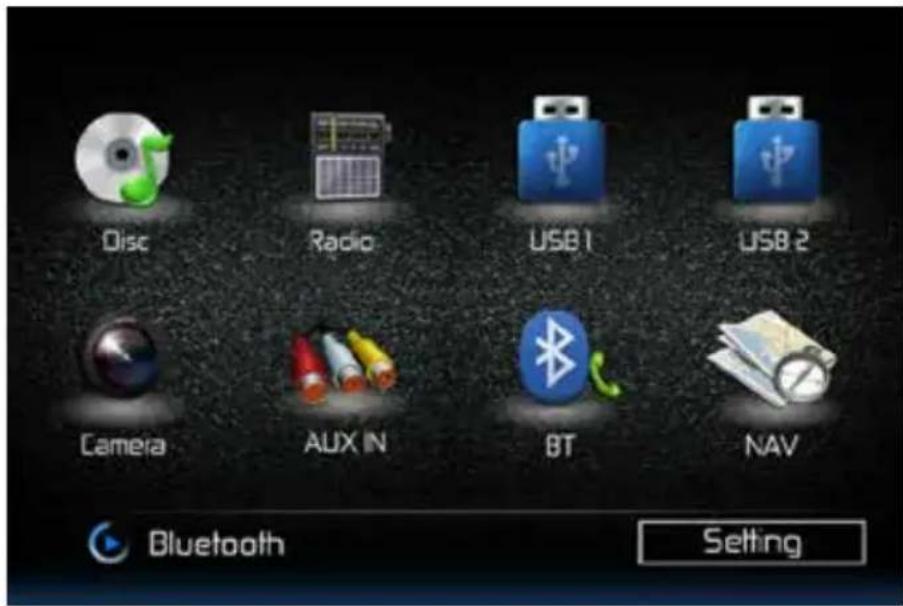

Source Menu

You can also use the touch screen to change the source through the SOURCE MENU page. To access the SOURCE MENU, touch the top left corner of the screen or press the SRC button on the front panel.

Touch the DISC, RADIO, USB, USB2, BT (Bluetooth), NAV, AUX IN, CAMERA or SETTINGS icons to select the corresponding source.

NOTE: If an iPod or iPhone is attached to a USB port, "IPOD" appears instead of the text "USB."

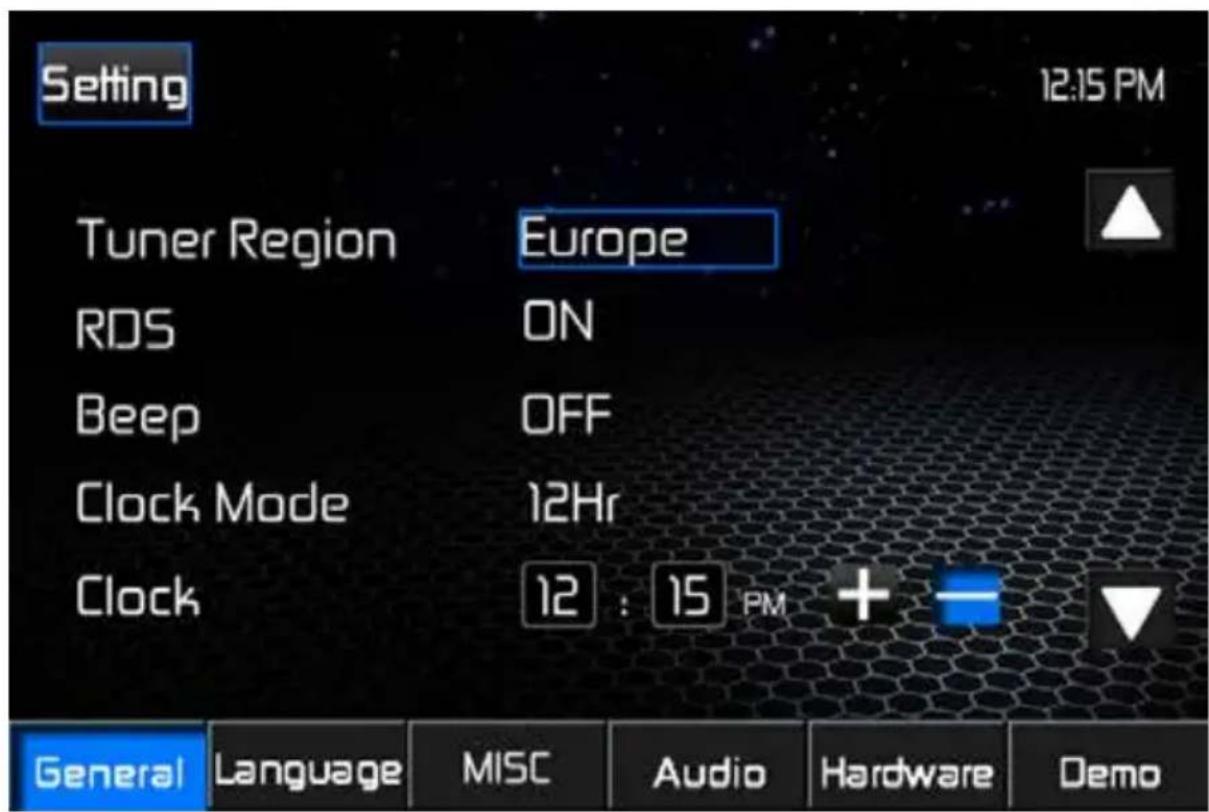

Touch the Setting icon to access the SETTING MENU.

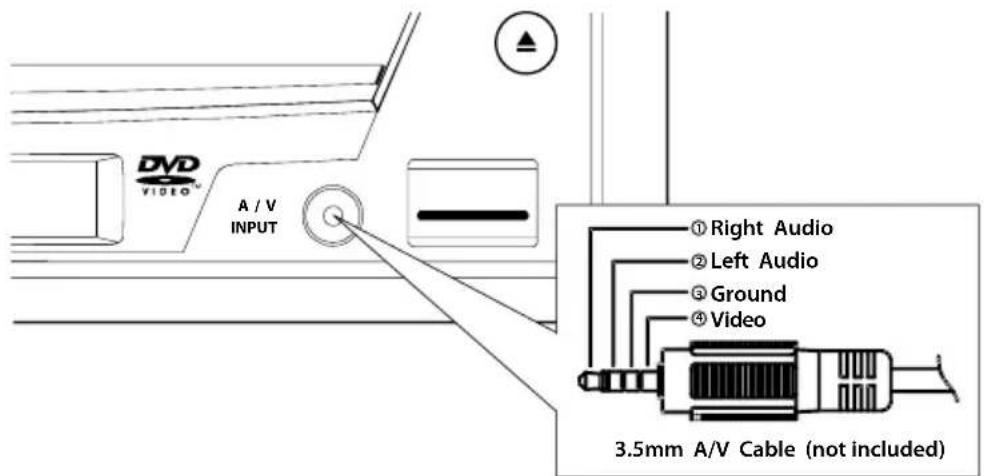

External Devices

External peripheral devices, including a game console, camcorder, navigation unit, iPod, Zune, etc. can be connected to this unit via RCA output using an A/V Media Adapter Cable (not included).

Connect the external device to the A/V Media Adapter Cable and then plug the cable into the A/V INPUT connector on the front of the radio. Select "AUX IN" on the SOURCE MENU to access auxiliary devices. You cannot directly control external devices connected to the A/V INPUT.

For information regarding the use of USB devices, see "Inserting a USB Device."

Volume Adjustment

Volume Increase/Decrease

To increase or decrease the volume level, turn the rotary encoder on the front panel. When the volume level reaches "0" or "40", a beep sounds, indicating that the adjustment limit has been reached. The LCD or TFT screen displays the volume level for 3 seconds.

Programmable Turn-On Volume

This feature allows the user to select a turn-on volume setting regardless of the volume setting prior to turning the unit off.

To program a specific turn-on volume level, turn the rotary encoder to adjust the volume to the desired turn-on volume. Push and hold the rotary encoder while the blue speaker icon and level indication is displayed on the screen. The unit will beep to confirm your turn-on volume setting.

Audio Control Menu

The Audio Control feature allows you to easily adjust your audio system to meet the acoustical characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. Proper setting of the Fader and Balance boosts the effects of the cabin equalizer.

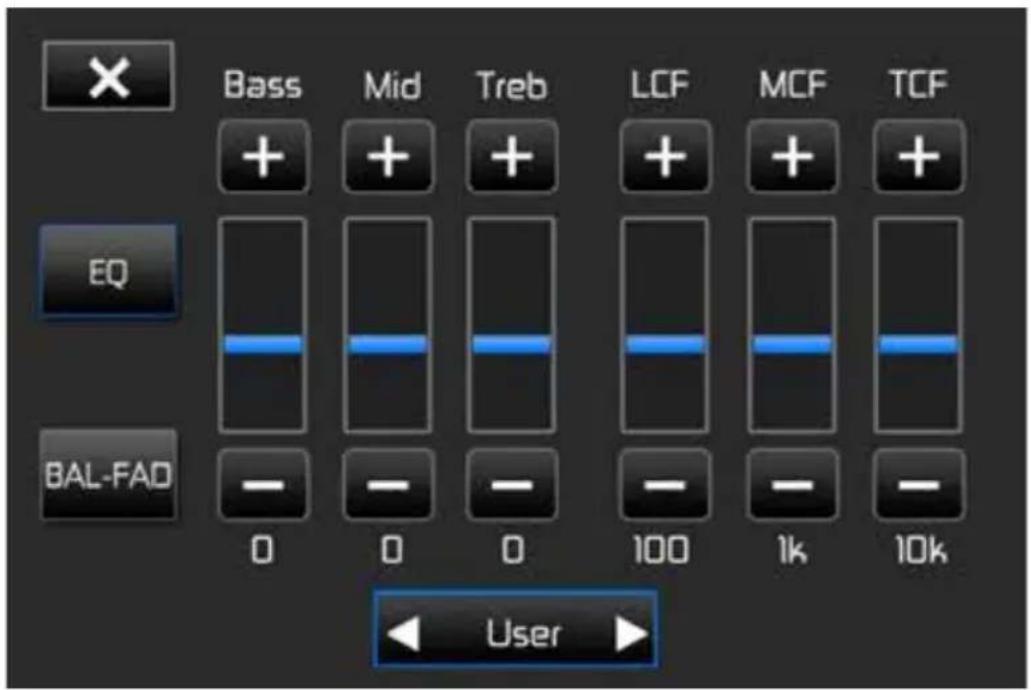

Equalizer

Touch the EQ on the right side of the touch screen to display the equalizer screen.

• Use the touch screen +/- icons to adjust the settings for an audio feature.

Equalizer Adjustments

Setting Adjustable	Range	Function
BASS -14 to +14 Reduces or increases the bass frequency sound level. Touch the + or - buttons to adjust the settings.
MID -14 to +14 Reduces or increases the mid-range frequency sound level. Touch the + or - buttons to adjust the settings.
TREB -14 to +14 Reduces or increases the high frequency sound levels. Touch the + or - buttons to adjust the settings.
LCF 60 Hz Selects the low pass filter center frequency. Touch the + or - buttons to adjust the settings.
80 Hz	Center frequency. Touch the + or - buttons to adjust the settings.
100 Hz
200 Hz
MCF 0.5 kHz Selects the mid pass filter center frequency. Touch the + or - buttons to adjust the settings.
1 kHz
1.5 kHz
2.5 kHz
TCF 10 kHz Selects the high pass filter center frequency. Touch the + or - buttons to adjust the settings.
12.5 kHz
15 kHz
17.5 kHz
Equalizer Presets User Applies a preset sound level to the unit's audio output signal. Touch the < or > button to change the setting. NOTE: The equalizer will automatically change to “USER” when individual audio functions are adjusted.
Acoustic
Urban
Rave
Latin
Dance
Hip Hop
Rock

To exit the equalizer:
- touch the X button on the top left corner of the screen or press and hold the rotary encoder to return to the previous screen.
- touch the BAL-FAD button on the left side of the screen to display the balance/fader screen.

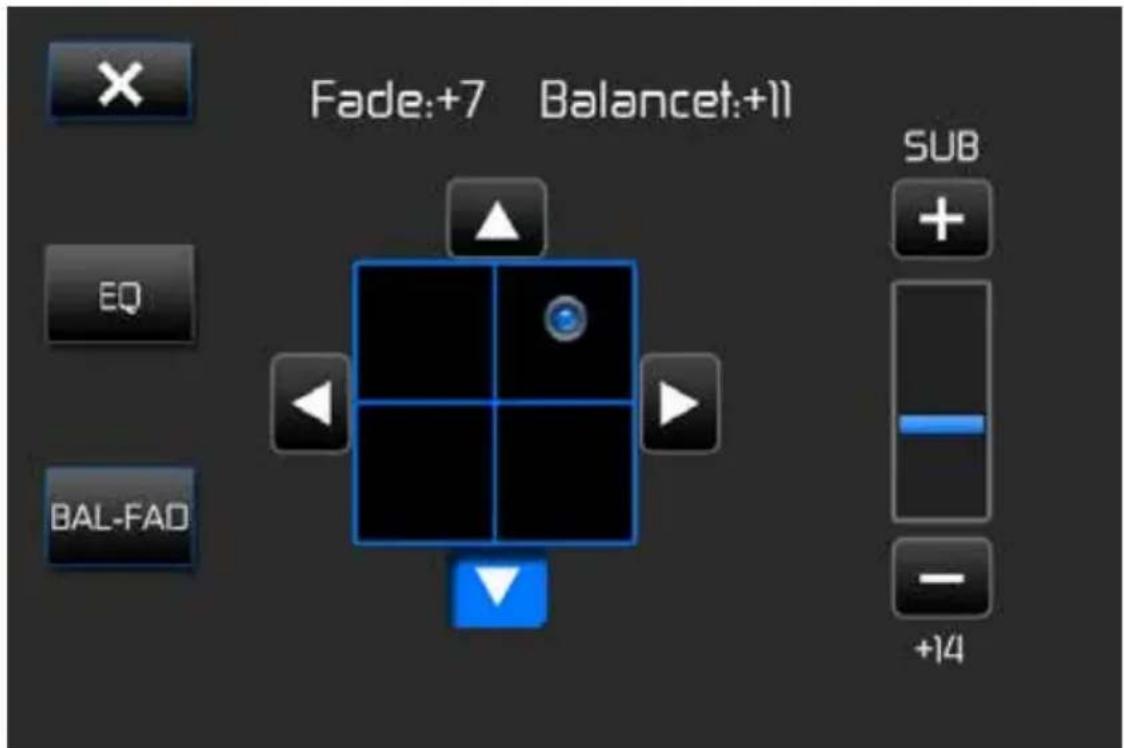

Balance-Fader

Touch the BAL-FAD button on the left side of the equalizer screen to display the balance/fader screen.

Balance-Fader Adjustments

Setting Adjustable Range Function
Balance -16	to +16 Balances the audio output levels between the left and right side of the vehicle. Touch the < or > button to change the setting.
Fade -16 to	+16 Balances the audio output levels between the front and back side of the vehicle. Touch the ▲ or ▼ button to change the setting.
Sub -14 to +14	Reduces or increases the subwoofer sound level. Touch the + or - buttons to adjust the settings.

To exit the balance-fader:

• touch the X button on the top left corner of the screen.
• touch the EQ button on the left side of the screen to display the equalizer screen.

System Reset

To correct a system halt or other illegal operation, use the tip of a pen to press the reset button located on the front bottom-left corner. After a system reset, the unit restores all factory default settings.

NOTE: If the unit is reset while a DVD is playing, the DVD resumes play once the reset is complete.

Image/Display Settings

Video Output Modes

The following table shows the video output mode for each playing source.

Video Output Modes

Playing Source Video Output Modes
AM/FM TUNER RGB Mode
DVD YCbCr Mode
AUX IN CVBS Mode

*CVBS - Composite Video Baseband Signal

Picture Adjustment

To adjust monitor display settings, perform the following steps:

1. Press the PIC button on the monitor to display the picture adjustment menu. The "BRIGHT" bar is highlighted in yellow.
2. Turn the rotary encoder to adjust the brightness setting level.
3. Press the PIC button again. The "CONTRAST" bar is highlighted in yellow.
4. Turn the rotary encoder to adjust the contrast setting level.
5. Press the PIC button again to exit the picture adjustment menu.

Parking Brake Inhibit

When the pink "Parking" wire is connected to the vehicle Parking Brake circuit, the front TFT monitor will display video when the Parking Brake is engaged. (When the pink wire is grounded via the Parking Brake circuit, video will be displayed.)

STEERING WHEEL CONTROLS (SWC)

(if equipped)

The VME 9415 is compatible with following steering wheel control adapters: Dietz UNICO DUAL PLUS + cable, PAC (Pacific Accessory Corporation) SWI-PS and Metra ASWC. A 3.5mm female connector (labeled "SWC Interface") on the back of the head unit allows connectivity to the adapters. Please refer to the instructions included with the adapters for detailed installation information.

SWC Functions

The following controls are available for most vehicles:

1. Volume Up
2. Volume Down
3. Mute
4. Seek Up
5. Seek Down
6. Source
7. Preset Up
8. Preset Down
9. Band

**If additional SWC buttons are available on the vehicle, these features may be supported. All SWC functions may not be available on some vehicles.

SETTINGSMENU

To access system settings, touch the Settings icon on the source menu to enter the SETTINGS MENU. The General Sub-menu appears on the bottom of the screen highlighted in blue.

Accessing Menu Items

Touch the sub-menu name on the bottom of the screen to select a sub-menu (General, Language, Misc, Audio, Hardware or Demo). The features available for adjustment under the highlighted sub-menu option will appear on the left of the screen.

Adjusting a Feature

1. Touch an item on the touchscreen to select the feature to be adjusted. Touch the or icon to view the previous or next feature page, if applicable. An options list appears on the right.
2. Touch the option field for the feature you want to adjust. The feature option is updated.

General Sub-menu Features

Setting Options	Function
Tuner Region Europe	• AM Frequency Spacing - 9 kHz • AM Frequency Band - 522 kHz ~ 1620 kHz • FM Frequency Spacing - 50 kHz • FM Frequency Band - 87.5 MHz ~ 107.9 MHz
RDS Off Turn On	Off the RDS feature.
	On
Beep Off No beep	sounds.
	On When turned on, an audible beep tone confirms each function selection.
Clock Mode 12Hz	Clock displays 12 hour time using AM and PM.
	24Hr Clock displays 24 hour time up to 23:59.
Clock (HH:MM)	Clock appears in the top right corner of the screen during certain operations. NOTE: The AM/PM indication will change as you continue to adjust the hour past 12.
TsCal Yes	Press to access the touch screen calibration function.
Wallpaper	Black	Allows the user to select a screen background. The Wallpaper will not appear on the Main Source Menu, Camera source or EQ settings page.
	Motorsport
	Space
	Havoc
	Sheet Metal

Language Sub-menu Features

If a DVD supports more than one Subtitle or Audio language, all the languages are available for selection during playback. If the selected language is not supported by the DVD, then the default language is used.

Setting Options Function
Language English On	Screen Dis	play appears in English.
	French On	Screen Display appears in French.
	German On	Screen Display appears in German.
Subtitle English DVD	subtitles automatically appear in English when available.
	French DVD	subtitles automatically appear in French when available.
	German DVD	subtitles automatically appear in German when available.
	Auto DVD	subtitles appear according to the default subtitle language specified on the disc.
	Off DVD	subtitles do not appear.
Audio English Audio	is heard in English when the option is available.
	French Audio	io is heard in French when the option is available.
	German Audio	io is heard in German when the option is available.
DVD Menu English DVD	DVD menu (if applicable) is displayed in English.
	French DVD	menu (if applicable) is displayed in French.
	German DVD	menu (if applicable) is displayed in German.

Misc Sub-menu Features:

Setting Options Function
Load Factory Reset	Select “Reset” to restore the factory default settings.
DivX Registration Shows DivX®	registration code.
DivX Deactivation Deactivates DivX®	registration.

Audio Sub-menu Features

Setting Options	Function
DRC Off Employ	the Dynamic Range Control (DRC) for better playback for low volumes.
	On
Loudness Off Select	low frequency	cy boost only or high and low frequency boost.
	LO
	HI/LO
Subwoofer Off Turn	Turns the subwoofer output on or off.
	On
Sub Filter 80 Hz Selects a crossover over frequency to set a cut-off frequency for the subwoofer's Low-Pass Filter (LPF).
BASS Q 1.0 Adjust the Q / Bandwidth of the bass response of the selected Bass Center Frequency (BCF).
MID Q 0.5 Adjust the Q / Bandwidth of the midrange response of the selected Midrange Center Frequency (MCF).
Source Radio Choose a source for which you would like to increase or decrease the relative volume (LEVEL).
Disc	USB1
USB2	AUX IN
Nav	BT
Level 0 to 6 The default level is 3 (0dB reference):0 = (-6dB)1 = (-4dB)2 = (-2dB)3 = (0dB)4 = (+2dB)5 = (+4dB)6 = (+6dB).

Hardware Sub-menu Features

If the rear-view video camera is connected, the unit is on, and the TFT monitor is retracted inside the unit, the TFT monitor automatically moves into the viewing position and Camera mode is selected upon shifting into REVERSE gear. When shifting into DRIVE gear, the TFT monitor is retracted back inside unit.

Setting Options Function
Color Select White This fea	ure allows the user to select eight pre-defined LED colors for the front panel button illumination.
	Red
	Blue
	Green
	Yellow
	Purple
	AquaBlue
	SkyBlue
	Custom
Color Scan On The unit will	“scan” the color spectrum to allow the user to select a color.
	Off
Color Custom Red This fea	ure allows the user to tune the RGB colors of the LEDs to obtain an exact match for their vehicle.
	Green
	Blue
Camera In Normal Reverse	the camera	image as if looking through a rear-view mirror.
	Mirror
Video Input (Input circuitry auto detects the video signal from the Aux In source).	NTSC The color signals are output in the standard NTSC format.
	PAL The color signals are output in the standard PAL format.
	Auto The color signal output is switched automatically based on the current video input signal - NTSC or PAL.
TFT Auto Open	On	The TFT panel automatically opens when the unit is turned on.
	Off	You must press the OPEN button to open the TFT panel.
	Manual	When the ignition is turned OFF, the TFT panel DOES NOT retract if it was previously out.

Camera In

If the monitor is in display mode, the monitor automatically switches to CAMERA mode upon reverse driving. When the reverse driving stops, the monitor returns to its original input mode.

Demo Sub-menu Features

The Demo mode is on and set to Auto run by default. The Demo mode will display various user interface TFT display pages such as the Radio, Disc, Aux In, and Camera sources. The Demo mode will also display the Equalizer and Settings menu pages. Touching any portion of the touch screen will pause the Demo mode temporarily. If the touch screen is not pressed again (within 30 seconds) the Demo mode will resume.

To turn the Demo mode off, access the Settings Menu and turn Auto run to OFF.

TS Cal (Screen Calibration)

To access the "Screen Calibration" function from the SETTINGS MENU, select the "TS CAL" option.

After entering calibration mode, a crosshair + appears in a corner quadrant of the screen. To begin calibration, touch and hold the crosshair for one second until it moves to the next quadrant. Continue for each quadrant until the calibration is completed.

Exiting the System Settings Menu

To exit setup mode and resume normal playback, touch the Setting icon on the screen.

TUNER OPERATION

Opening/Closing the TFT Monitor

Open TFT Monitor

Press the OPEN button on the front panel to activate the mechanism that moves the display panel into the viewing position.

Close TFT Monitor

Press the OPEN button on the front panel to load the display panel back into the compartment.

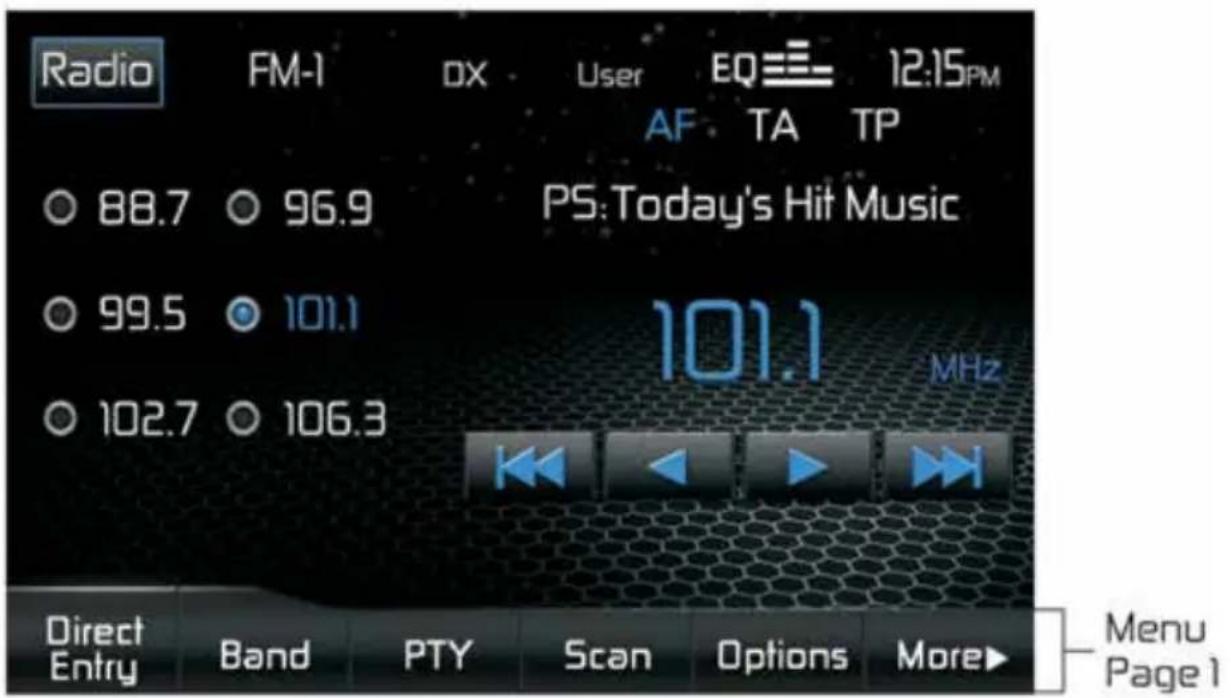

Tuner TFT Display

The on-screen indicators and touch key areas for the tuner functions are shown below.

• Radio icon: Touch to view the SOURCE MENU and select a new playback source.
• Current radio band indicator.
• Loc/Dx Indicator: Strong/Local signal broadcasting indicator.
• Equalizer setting indicator: Displays the current equalizer preset setting.
• EQ =icon: Touch for quick access to Equalizer level settings.
• Clock: Displays the time as entered by the user in the settings menu.
• AF: Indicates the AF function is activated.
• TA: Traffic Announcement indicator
• TP: Traffic Program indicator
• Program Information: This indicator provides three types of information: PS, RT, and PTY. PTY displays the program category of the current station such as category (news, sports, talk etc.) RT/PS provide the current song title, current song title, performing artist and station call letters.
• Radio frequency indicator
• iEeN: Touch to seek forward.
• Icon: Touch to tune forward one step.
• icon: Touch to tune backward one step.
• jean: Touch to seek backward.

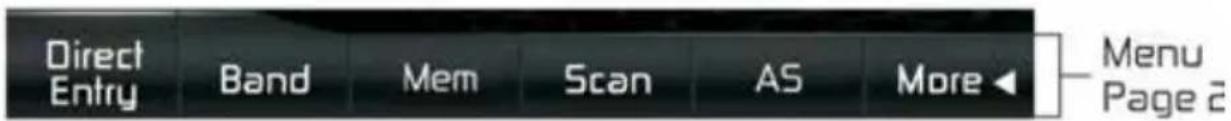

• More icon: Touch to toggle between menu page 1 and menu page 2.
• AS icon: Touch to automatically store stations.
• PTY icon: Touch to activate the program type related search function.
• Scan icon: Touch to scan all stations available, stopping for 5 seconds at each and continuing until a station is selected.
• Mem icon: Touch to display screen used to enter current channel into preset memory.
• Band icon: Touch to change between AM/FM bands.
• Direct Entry icon: Touch to access the direct entry screen.
• Presets: Provides a display of the preset frequencies. Touch to recall preset stations.
• Options icon: Touch to access the Options Screen.

Options Submenu

Touch the Options icon to display the Options Screen.

RDS ON/OFF:

Radio Data System (RDS) enables traffic reports to be received and provides many facilities, including enabling the radio station name to be displayed on the radio display.

TA Volume

In the OPTION menu, press the TA VOL button. Adjust the desired volume with the or button. Press the OPTION button. The radio menu is displayed again, the set volume is stored.

TA

Press the TA ON/OFF button to switch the priority for traffic announcements on or off. CT:

(Clock Time, RDS feature) When enabled the radio system clock is synchronized with broadcasters time signal setting the clock automatically. In some regions where daylight savings time is not adhered to, the system clock will be off by one hour. In these cases, set CT to OFF and manually set the clock.

AF

The receiver can automatically switch to an alternative frequency (AF) of the same station if the reception becomes poor. Press the OFF/ON touch-point to turn the automatic scanning for alternative frequencies of an RDS broad-cast station off and on.

MODE:

This allows the user to activate local station reception function. When the Local function is on, only radio stations with a strong local radio signal are played.

Switching to Radio Tuner Source

• Touch the top left corner of the screen (the radio box) to view the SOURCE MENU. Touch "Radio".
• Press the SRC button on the front panel to switch to the AM/FM or RADIO source.

Selecting FM/AM Band

Touch the Band icon on the screen to change between the following bands: FM1, FM2, FM3, AM1, and AM2.

NOTE: The BAND button on the front panel of the unit only works when the TFT is closed.

Seek Tuning

To seek the next higher station, touch the button.

To seek the next lower station, touch the button.

Manual Tuning

To increase or decrease the tuning frequency one step, touch the button.

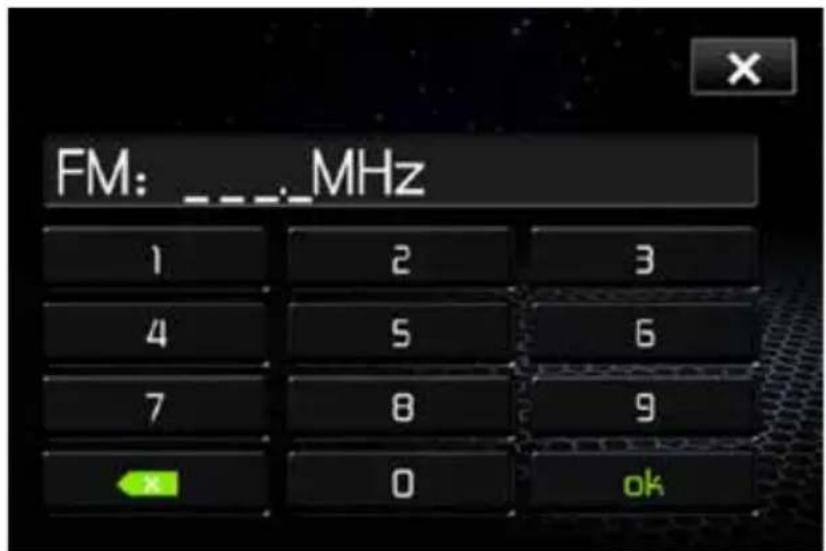

Direct Tuning

To enter a radio station directly:

1. Touch the Direct Entry icon to display the DIRECT ENTRY MENU.

1. Enter the desired radio station frequency using the on-screen number pad. If you wish to delete an entry number touch the icon. Press OK to tune to the selected station. To exit the screen without changing the station, touch X.

Using Preset Stations

Six numbered preset buttons store and recall stations for each band. All six stored stations (P1 - P6) for the current band appear on the screen.

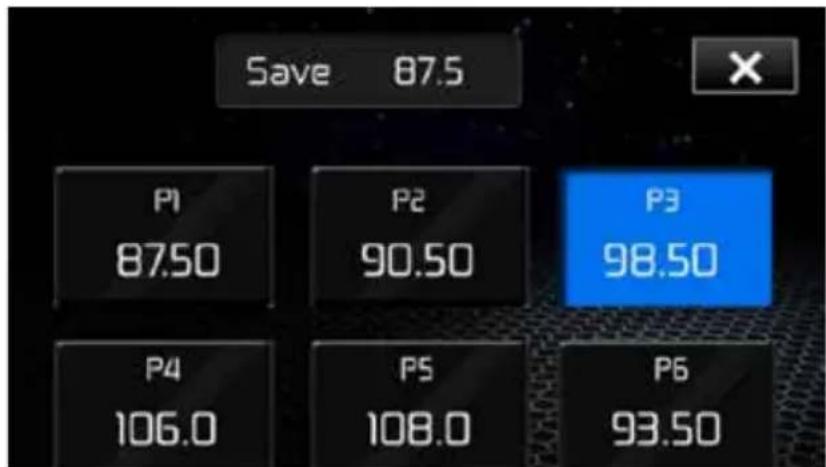

Storing a Station

1. Select a band (if needed), then select a station.

2. Touch the on-screen Mem icon to access the preset screen.

1. Touch the preset number in which you would like to store the current station (or touch X to cancel and close the menu). The station frequency is displayed at the top of the menu. The preset number will appear highlighted. The station frequency will be stored in the highlighted preset. The station will be displayed on the front panel of the tuner screen.

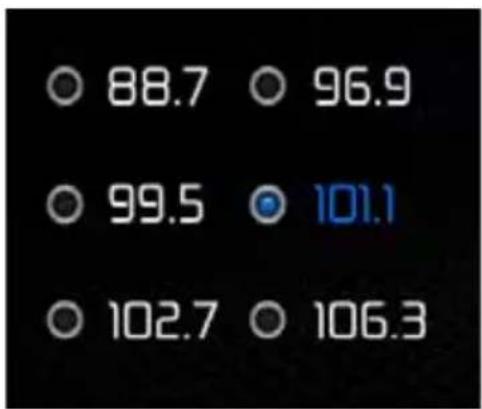

Recalling a Station

1. Select a band (if needed).

2. Touch an on-screen preset button to select the corresponding stored station.

Auto Store (AS)

To select six strong stations and store them in the current band:

1. Select a band (if needed).
2. Touch the AS icon on the on-screen controls to activate the Auto Store function. The new stations replace stations already stored in that band. If you have already set the preset memories to your favorite stations, activating the Auto Store feature will erase those stations and enter the new strong stations. This feature is most useful when travelling in an area where you are not familiar with the local stations.

Preview Scan (SCAN)

To scan the AM or FM band for a preview of available stations in your particular area, touch Scan. The scan function will play the first five seconds of each station. When a desired station is reached, touch Scan again. Play of the selected station will continue and the preview scan will stop.

Local Radio Station Seeking (LOC)

When the Local function is on, only radio stations with a strong local radio signal are played. To activate the Local function in the AM/FM tuner mode:

1. Touch the Options icon on the touch screen. A pop-up window appears.
2. Touch MODE LOC/DX to turn the local function on or off.

When the Local function is active, the LOC indicator at the top of the screen is illuminated. When the Distant function is active, the DX indicator at the top of the screen is illuminated.

NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless the parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the TFT screen display a parking brake notice. Rear video screens, if applicable, will operate normally.

Opening/Closing the TFT Monitor

Open TFT Monitor

Press the OPEN button on the front panel to activate the mechanism that moves the display panel into the viewing position.

Close TFT Monitor

Press the OPEN button on the front panel to load the display panel back into the compartment.

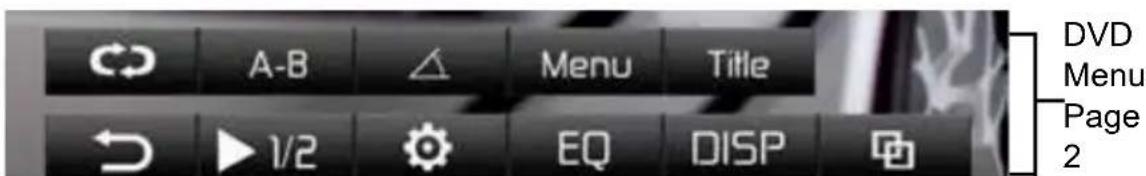

DVD/VCD TFT Display

Warning!!! It is illegal to view video while driving or operating a motor vehicle. Set parking brake to view video.

To access the on-screen controls, touch the bottom 1/3 of the screen while a DVD is playing. Touch to view a second page of controls.

1. Don: Touch to advance to the next chapter on the DVD.
2. on: Touch to see the second page of DVD controls.

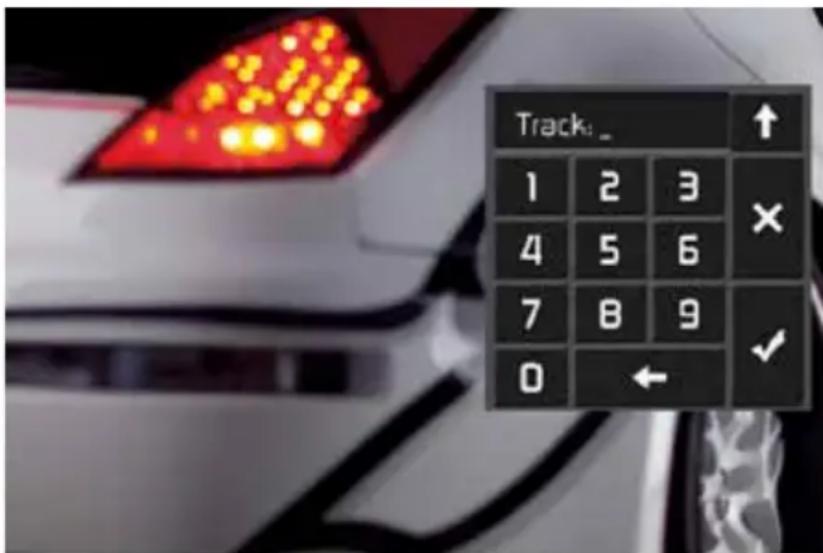

3. ■con: Touch to select a chapter/track directly using the on-screen display direct entry menu display
4. ■icon: Touch to stop DVD playback.
5. Sub icon: Touch during playback to select the subtitle language if the disc is recorded in multiple languages. Each time the icon is touched a different subtitle language is selected. The subtitle function can also be turned on or off.
6. Audio icon: Touch during playback to select to select the audio language. Each time the icon is touched a different audio language is selected if you are watching a disc recorded in multiple languages.
7. con: Touch to remove the DVD controls from the screen during DVD playback.
8. Icon: Touch to fast reverse. Keep touching and releasing the icon to increase the rate from "x2" to "x4", "x8", and "x20". Touch the icon again to resume normal play.
9. icon: Touch to fast forward. Keep touching and releasing the icon to increase the rate from "x2" to "x4", "x8", and "x20". Touch the icon again to resume normal play.
10. Kicon: Touch to move to previous chapter.
11. Icon: Touch to begin playback. Touch the icon again to pause playback.
12. Title icon: Touch to select a different title for playback. Select a title using the touch screen.
13. DISP icon: Touch to display playback information on the screen including the media playing and current playback time.
14. EQ: Touch for quick access to the Equalizer level settings.
15. icon: Touch to view the SETTINGS menu.
    16.▶1/2 icon: Touch to select and activate Slow Motion Playback (Forward and Reverse). Touch to play the current title in slow motion. Keep touching and releasing the icon to change the rate from forward 1/2, 1/4, 1/6 and 1/8 speed. Continue for slow motion backward at 1/2, 1/4, 1/6 and 1/8 speeds. Touch the on-screen play icon (▶)to resume normal play.
16. icon: Touch during playback to repeat the current chapter. Touch the icon a second time to repeat the current title. Touch the icon a third time to turn the repeat function off.
17. A-B icon: Touch to repeat a specific portion from point A to point B of the DVD disc.
18. icon: Touch to view angles if the DVD contains scenes shot from different angles.
19. Menu icon: Touch to display the DVD root menu.

ControllingPlayback

Inserting a Disc

Upon inserting a DVD disc, DVD mode is entered and disc play begins.

You cannot insert a disc if there is already a disc in the unit or if the power is off.

NOTE: DVD-R and DVD-RW will not play unless the recording session is finalized and the DVD is closed.

Ejecting a Disc

Press the button on the front of the unit to eject the disc. The unit automatically reverts to Tuner mode. You may eject a disc with the unit powered off. The unit will remain off after the disc is ejected.

Resetting the Loading Mechanism

If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the button to reset the loading mechanism. Normal operation resumes.

Accessing DVD Mode

To switch to DVD mode when a disc is already inserted, press the SRC button on the front panel to access the source menu. Touch the disc icon.

Repeat Playback

Touch the repeat button ( )to alter repeat mode according to the following:

DVD: Repeat Chapter, Repeat Title, Repeat Off
VCD (PBC Off): Repeat Single, Repeat Off

NOTE: For VCD play, the repeat function is not available if PBC is on.

Sectional Repeat Function (A-B)

Use the A-B function to define a specific area of a disc to repeat.

• Touch A-B on the second page of DVD on-screen controls to set the start point (A) of the repeated section.
• Touch A-B again once you reach the desired end point (B) of the repeated section. The selected portion of the DVD will now repeat continuously.
• Touch A-B a third time to cancel the A-B section setting and stop repeat play.

Accessing the DVD Source Menu

• Touch MENU on the second page of DVD on-screens controls to recall the DVD source menu. Touch to select a title from the menu.
• Touch TITLE on the second page of DVD on-screen controls to select a different title for playback.
• Select a title using the touch screen.

Moving Through Chapters

Touch advance to the next chapter on the DVD.

Touch button to move to the previous chapter.

Direct Chapter / Track Selection

To select a chapter/track directly:

1. Touch the on-screen to display the Direct Entry Menu.

1. Enter the desired chapter/track using the on-screen number pad.
2. Touch the check mark to enter your selection. To clear your entry and start over touch the back arrow. To exit the screen, touch X.

Viewing an Alternate Picture Angle (DVD Only)

Some DVDs contain scenes that have been shot simultaneously from different angles. For discs recorded with multiple angles, touch on the second page of DVD on-screen controls to toggle available angles of the on-screen image.

Multi-Language Discs (DVD Only)

Changing Audio Language

If you are watching a disc recorded in multiple languages, touch AUDIO on the first page of DVD on-screen controls to choose a language. Each time the icon is touched the language will change.

Changing Subtitle Language

If you are watching a disc recorded in multiple languages with subtitles, touch Sub on the first page of DVD on-screen controls to choose the language in which you would like the subtitles to appear.

NOTE: During VCD playback, touch the AUDIO on the first page of DVD on-screen controls to choose between Left Channel, Right Channel, and Stereo.

PBC - Play Back Control (VCD Only)

For VCDs with play back functionality, play back control (PBC) provides additional controls for VCD playback.

Touch PBC on the first page of DVD on-screen controls to toggle the PBC function "On"/"Off". Once PBC is on, playback starts from track one of the play list.

NOTE: When PBC is activated, fast forward, slow playback, and previous/next track are available. Repeat and direct track selection are not available.

When PBC is activated, selecting random, scan, or search playback automatically deactivates PBC.

Playback Information

During DVD and VCD playback, touch DISP on the second page of DVD on-screen controls to display playback information on the screen, including the media playing and current playback time.

DVDPlaybackInformation

DVD Video - Format of current disc.
- Time 00:01:30/00:36:10 - Indicates the playback time of the current track.
- Title 5/08 - Indicates the fifth of 8 titles on the DVD is currently playing.
- Chapter 2/16 – Indicates that the second of 16 chapters on the DVD is currently playing.

VCDPlayback Information

VCD2.0 - Format of current disc.
- Time 00:01:30/00:36:10 - Indicates the playback time of the current track.
PBC On/Off - Indicates whether Play Back Control is On or Off.

General Disc Information

Disc Properties

Symbol 12 cm Disc Properties Max Play Time
DVD VIDEO	Single side single layer (DVD-5)	(MPEG 2 Method)
	Single side double layer (DVD-9)	133 minutes
	Double side single layer (DVD-10)	242 minutes
	Double side double layer (DVD-18)	266 minutes
		484 minutes
COMPACT DISC	Single side single layer (VCD)	(MPEG 1 Method)
		74 minutes
COMPACT DISC TRANSMUTATION	Single side single layer 74 minutes

Disc Symbols

Symbol	Meaning
8)	Number of voice languages recorded. The number inside the icon indicates the number languages on the disc (maximum of 8).
32	Number of subtitle languages available on the disc (maximum of 32).
9	Number of angles provided (maximum of 9).
16:9 LB	Aspect ratios available. “LB” stands for Letter Box and “PS” stands for Pan/Scan. In the example on the left, the 16:9 video can be converted to Letter Box video.
	Indicates the region code where the disc can be played. • Region 1: USA, Canada, East Pacific Ocean Islands • Region 2: Japan, Western Europe, Northern Europe, Egypt, South Africa, Middle East • Region 3: Taiwan, Hong Kong, South Korea, Thailand, Indonesia, South-East Asia • Region 4: Australia, New Zealand, Middle and South America, South Pacific Ocean Islands/Oceania • Region 5: Russia, Mongolia, India, Middle Asia, Eastern Europe, North Korea, North Africa, North-West Asia • Region 6: Mainland China • ALL: All regions

Opening/Closing the TFT Monitor

Open TFT Monitor

Press the OPEN button on the front panel to activate the mechanism that moves the display panel into the viewing position.

Close TFT Monitor

Press the OPEN button on the front panel to load the display panel back into the compartment.

Media Requirements

The VME 9415 will play music or other audio files from the following disc media:

CD-DA
CD-R/RW
DVD
DVD+R/RW
DVD-R/RW

Upon inserting a disc with the TFT screen open, the disc and track title (if available), along with the track number and playing time appear on the screen.

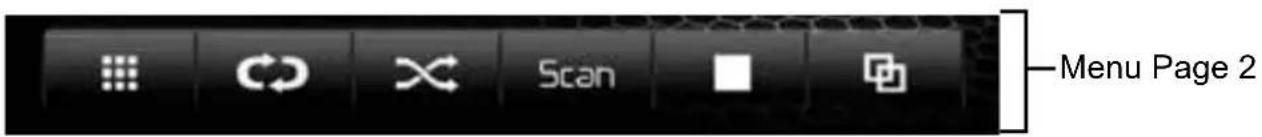

CD TFT Display

The on-screen indicators and touch key areas for CD playback are outlined below.

• Disc icon: Touch to view the SOURCE MENU and select a new playback source.
• Repeat Play Indicator ( ) This indicator is lit when the repeat mode is active.
• Random Play Indicator ( ) This indicator is lit when the random mode is active.
• Equalizer setting indicator: Displays the current equalizer preset setting.
• EQ = Touch for quick access to the Equalizer level settings menu.
• Clock: Displays the time as entered by the user in the settings menu.
  Preview Window: Displays album art, if available.
• Toggle ( ) icon: Touch to toggle between menu page 1 and menu page 2.
• Stop ( icon: Touch to stop playback.
• Next ( )on: Touch to play the next track.
• Pause/Play(▶II) icon: Touch to pause playback. Touch again to resume playback.
• Previous (icon: Touch to play the previous track.
• List icon: Touch to display the Playlist screen.
• Elapsed time Indicator: Displays the elapsed and total playing time of the current track playing.
• Track Indicator: Displays the current track number playing and total number of tracks on disc.
• EQ icon: Touch for quick access to the Equalizer level settings menu.
• icon: Touch to select a chapter/track directly using the on-screen display direct entry menu display.
• Repeat() icon: Touch to alter repeat mode as follows: Repeat Single > Repeat Folder > Repeat All > Repeat Off
• Random() icon: Touch to alter random mode as follows: Random On > Random Off
• SCAN: Plays the first ten seconds of each track. Press again to stop this function.

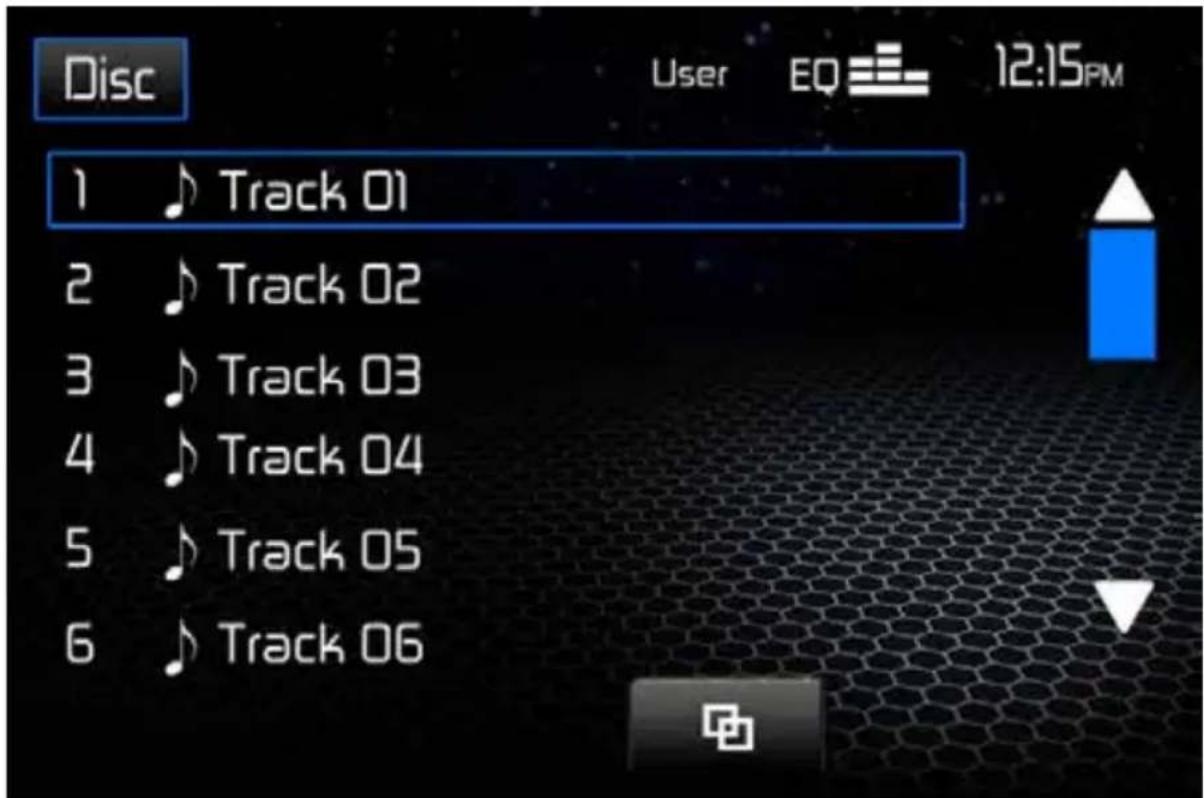

Playlist Screen

The Playlist screen allows you to directly search for music on your disc.

• Touch a track title (if available) or track number to begin playback of that track.
• Touch to view the previous playlist page. Touch to view the next playlist page.
• Touch to return to menu page 1.

ControllingPlayback

Inserting a Disc

Upon inserting a CD, disc play begins. You cannot insert a disc if there is already a disc in the unit or if the power is off.

Ejecting a Disc

Press the button on the front of the unit to eject the disc. The unit automatically reverts to Tuner mode.

You may eject a disc with the unit powered off. The unit will remain off after the disc is ejected.

Resetting the Loading Mechanism

If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the button to reset the loading mechanism. Normal operation resumes.

Stopping Playback

Touch the Stop (■) icon to stop disc play.

To resume playback, touch the Pause/Play (▶II) icon.

Pausing Playback

Touch the Pause/Play (▶)icon to suspend or resume disc play.

Moving Through Tracks

Touch the Next (▶) icon to advance to the next track on the disc.

Touch the Previous (▶) button to move to the previous track.

Repeat Playback

Touch the icon to alter repeat mode according to the following:

DVD: Repeat Single >Repeat Folder Repeat All Repeat Off
- CDDA: Repeat Single > Repeat Folder > Repeat All > Repeat Off
- CD-R/RW: Repeat Single > Repeat Folder > Repeat All > Repeat Off
DVD-R/RW: Repeat Single > Repeat Folder > Repeat All > Repeat Off

Random Play Select

Touch the Random (×) icon to play the tracks on the disc in a random, shuffled order.

Touch the Random (×) icon again to cancel Random Play mode.

NOTE: CD-R and CD-RW will not play unless the recording session is finalized.

Opening/Closing the TFT Monitor

Open TFT Monitor

Press the OPEN button on the front panel to activate the mechanism that moves the display panel into the viewing position.

Close TFT Monitor

Press the OPEN button on the front panel to load the display panel back into the compartment.

Media and File Requirements

This player allows you to play back MP3 and WMA files recorded onto CD-R/RWs, DVD+R/RWs, and DVD-R/RWs. For CD-RW discs, please make sure it is formatted using the full method and not the quick method to prevent illegal disc operation.

For the greatest file capacity, Dual Layer DVD's can be used when burning music to a disc.

MP3 Format Compatibility

The file naming formats listed below are compatible with this unit:

ISO 9660 - file name: 12 characters, file extension: 3 characters
- ISO 9660 - file name: 31 characters, file extension: 3 characters
Joliet-64 characters

If the file or folder name does not conform to ISO 9660 file system standards, it may not be displayed or played back correctly. Use the following settings when compressing audio data for your MP3 disc:

• Transfer Bit Rate: 128 kbps
• Sampling Frequency: 48 kHz

When recording MP3 up to the maximum disc capacity, disable additional writing. For recording on an empty disc up to maximum disc capacity, use the "Disc at once" setting.

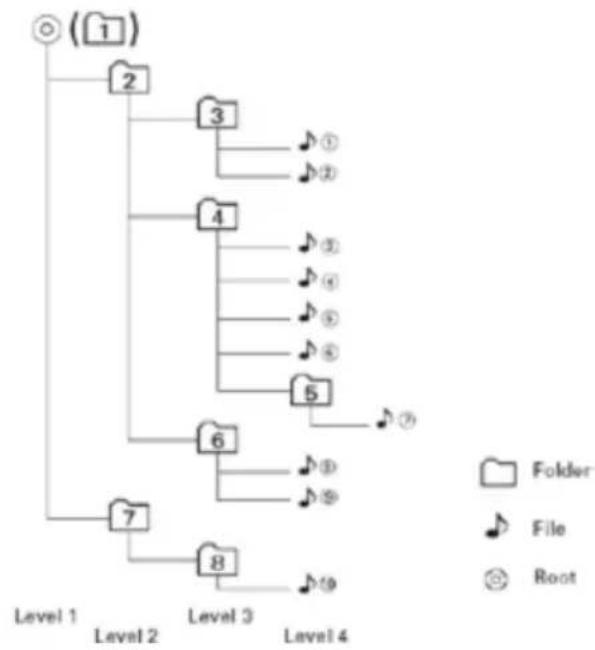

MP3 Playing Order

When selected for play, files and folders (Folder Search, File Search or Folder Select) are accessed in the order they were written by the CD writer. As a result, the order in which they are expected to be played may not match the order in which they are actually played. You may be able to set the order in which MP3/WMA files are to be played by writing them onto a medium such as a CD-R with their file names beginning with play sequence numbers such as "01" to "99".

For example, a medium with the following folder/file hierarchy is subject to Folder Search, File Search or Folder Select, as shown below.

The VME 9415 player will only recognize three folder levels and does not display folders containing only other folders. In the example above, the unit will display folders 3, 4, 6, and 8, but not 2 and 7 since they do not contain any tracks directly. Folder 5 is not recognized at all since it is at the fourth level.

Inserting a USB Device

NOTE: The USB ports will recognize most USB flash memory devices and portable hard drives (hard drives must be formatted to FAT32 and NTFS is not supported).

NOTE: Front and rear USB ports are for Apple devices, USB memory sticks or portable HDD.

1. Locate the USB interface cover on the front of the radio.

1. Insert the USB device into the USB connector. The unit will read the audio/video files on the USB device automatically.

Removing a USB Device

To remove the USB device, press the SRC button or use the SOURCE MENU to switch to another mode, and then remove the USB device from the connector.

DIVX

This device is certified in accordance with DivX® Home Theater Version 3.0.

DivX® is a digital video format which has been developed by DivX, Inc. to provide a high-quality viewing experience on various platforms, for example, on mobile phones and DVD players. DivX®, DivX Certified® and associated logos are registered trademarks of DivX, Inc. and are used under licence.

This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies.

Please note the online information www.divx.com/vod.

This device is able to play DivX® video files that have been recorded on CD-R/RW, DVD-R/RW and DVD+R/RW discs and USB sticks.

This device plays all versions of DivX® video (incl. DivX®8), with standard playback of DivX® media files.

Unauthorised DivX® files may not play properly. File extensions such as .avi or .divx must be used properly.

You can obtain further information on DivX® video files and software tools at

www.divx.com.

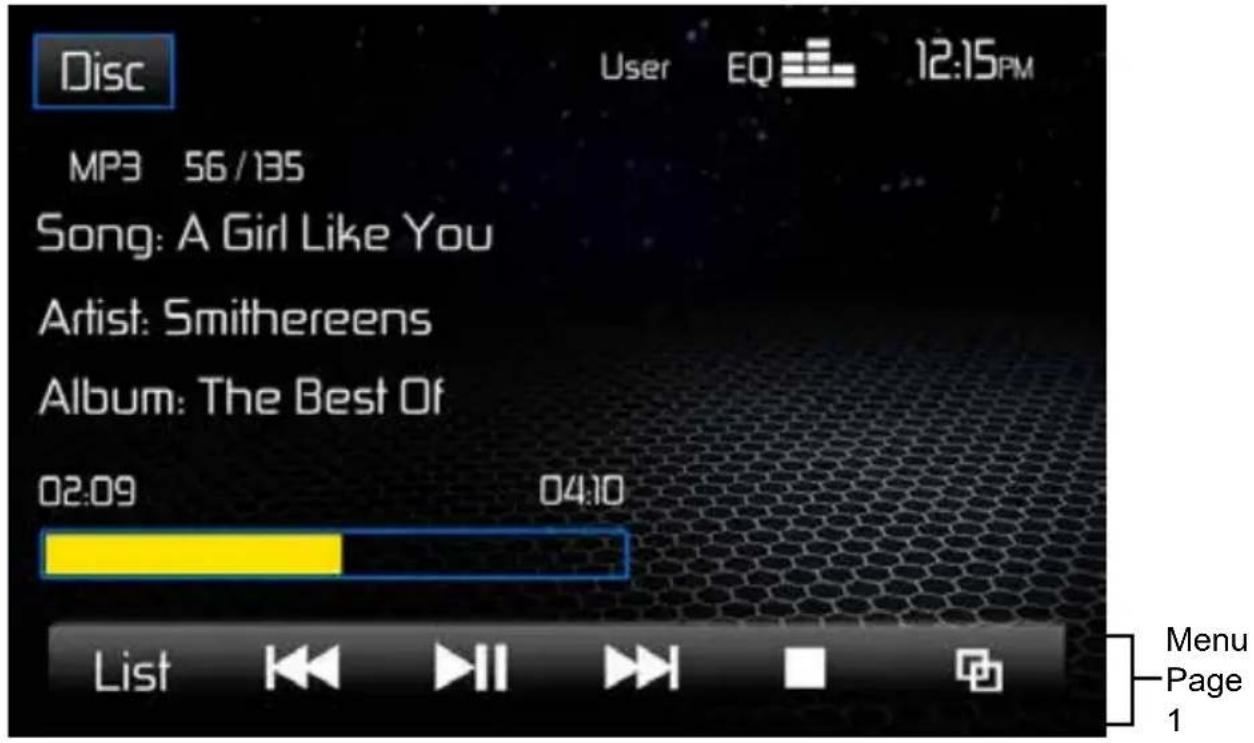

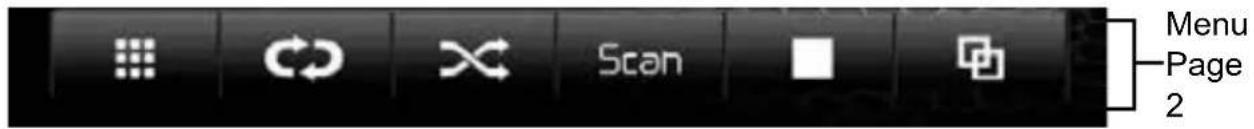

MP3/WMA/XVID/DIVX TFT Display

The on-screen indicators and touch key areas for MP3/WMA playback are outlined below.

• Disc icon: Touch to view the SOURCE MENU and select a new playback source.
• Repeat Play Indicator ( )@This indicator is lit when the repeat mode is active.
• Random Play Indicator ( ) This indicator is lit when the random mode is active.
• Equalizer setting indicator: Displays the current equalizer preset setting.
• EQ =: Touch for quick access to the Equalizer level settings menu.
• Clock: Displays the time as entered by the user in the settings menu.
  Preview Window: Displays album art, if available.
• Toggle ( ) icon: Touch to toggle between menu page 1 and menu page 2.
• Stop ( icon: Touch to stop playback.
• Next (icon: Touch to play the next track.
• Pause/Play(▶II) icon: Touch to pause playback. Touch again to resume playback.
• Previous ( ) icon: Touch to play the previous track.
• List icon: Touch to display the Playlist screen.
• Elapsed time Indicator: Displays the elapsed and total playing time of the current track playing.
• Track Indicator: Displays the current track number playing and total number of tracks on disc.
• EQ icon: Touch for quick access to the Equalizer level settings menu.
• icon: Touch to select a chapter/track directly using the on-screen display direct entry menu display.
• Repeat() icon: Touch to alter repeat mode as follows: Repeat Single > Repeat Folder > Repeat All > Repeat Off
• Random() icon: Touch to alter random mode as follows: Random On > Random Off
• SCAN: Plays the first ten seconds of each track. Press again to stop this function.

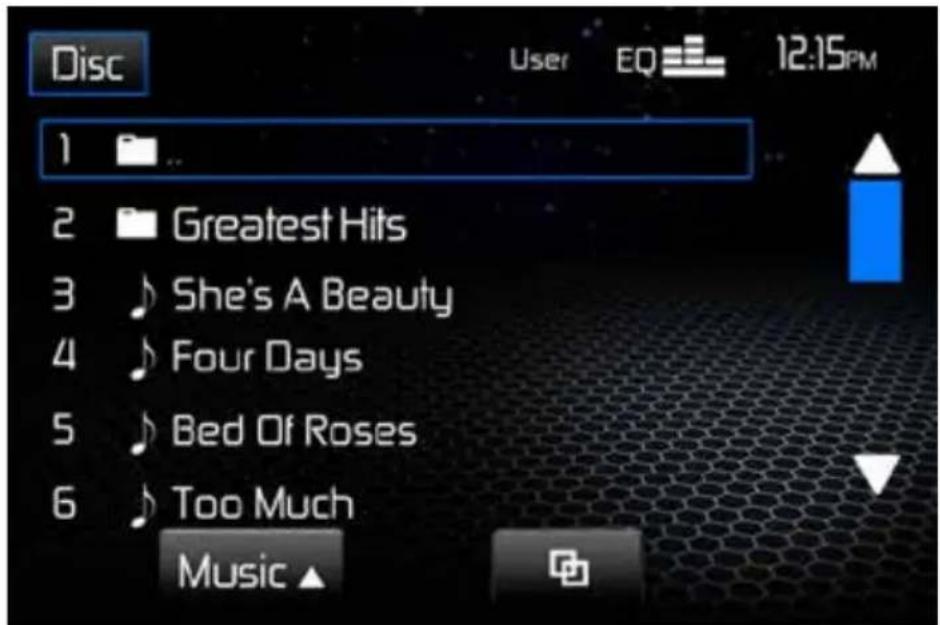

Playlist Screen

The Playlist screen allows you to directly search for music, video or photo files stored on your MP3 disc/USB device.

• Touch a folder to view the contents of the directory or touch a track title/file name to begin playback of that file.
• Touch to view the previous playlist page. Touch to view the next playlist page.
• Touch return to menu page 1.

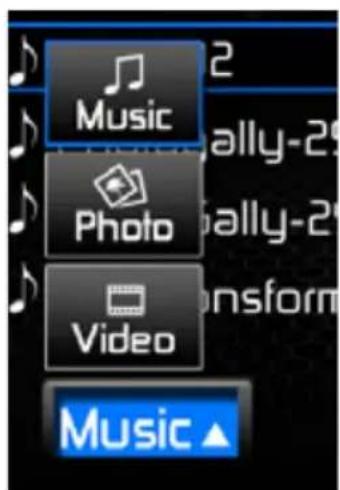

Search Playlist by File Type

1. Touch the MUSIC icon.

1. Touch "MUSIC," "PHOTO" or "VIDEO". The list of files that appear will be filtered by the type of file selected.

ControllingPlayback

Inserting a Disc

Upon inserting a MP3/WMA disc, disc play begins. You cannot insert a disc if there is already a disc in the unit or if the power is off.

Ejecting a Disc

Press the button on the front of the unit to eject the disc. The unit automatically reverts to Tuner mode.

You may eject a disc with the unit powered off. The unit will remain off after the disc is ejected.

Resetting the Loading Mechanism

If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the button to reset the loading mechanism. Normal operation resumes.

Playing MP3/WMA Files

After inserting a MP3/WMA disc, files will play in the sequence of the "Root" directory. NOTE: When burning MP3 / WMA files onto a DVD disc, use the 2X or 4X burning option, if available. This slower burning speed will help eliminate buffer errors and increase disc reading reliability. Also, use folders when burning large numbers of songs / files to a disc for easy music navigation. Select the "Disc at Once" option and close your disc.

Stopping Playback

Touch the Stop (■) icon to stop playback.

To resume playback, touch the Pause/Play (▶II) icon.

PausingPlayback

Touch the Pause/Play (▶)icon to suspend or resume playback.

Moving Through Tracks

Touch the Next (▶) icon to advance to the next track

Touch the Previous (▶) button to move to the previous track on the MP3 disc/USB device.

Repeat Playback

Touch the Repeat (icon to alter repeat mode as follows: Repeat Single > Repeat Folder > Repeat All > Repeat Off

NOTE: CD-R and CD-RW will not play unless the recording session is finalized.

Random Play Select

Touch the Random (必) icon to play the tracks on the MP3 disc/USB device in a random, shuffled order. Touch the Random (必) icon again to cancel Random Play mode.

This unit is Made for iPod and iPhone. You can control your iPod and iPhone via the touch screen to access Playlist, Artist, Albums, Songs, etc. Supported models include, but are not limited to the following:

iPhone 4S / 4 / 3GS /
- iPodtouch 5th and 4th Generation
- iPod nano 6th and 5th Generation
- iPod classic

NOTE: Be sure your iPod has the latest Apple firmware installed to avoid connectivity issues.

Opening/Closing the TFT Monitor

Open TFT Monitor

Press the OPEN button on the front panel to activate the mechanism that moves the display panel into the viewing position.

Close TFT Monitor

Press the OPEN button on the front panel to load the display panel back into the compartment.

Accessing iPod Mode

The unit will automatically switch to iPod mode when an iPod, iPod touch or iPhone is plugged into the front or rear USB connector.

NOTE: For basic iPod connectivity, you can use the white 30-pin to USB iPod cable that came with your Apple device.

To return to the iPod menu from any other source menu, touch SRC on the front panel until the iPod menu appears on the screen, or choose the iPod icon from the source menu (only available when an iPod or iPhone is connected to the USB connector).

Search Screen

The Search Screen allows you to search for music files stored in your iPod/iPhone. Touch the Music list box to search for music grouped by playlists, artists, albums, songs, genres, composer or podcast.

• iPod icon: Touch to view the SOURCE MENU and select a new playback source.
• /▶initiator: Indicates whether media is playing or paused.
  2/23 indicator: File number and total number of files on the disc.
• EQ icon: Touch for quick access to Equalizer level settings menu.
• Clock: Displays the time as entered by the user in the settings menu.
  Preview Window: Displays album art, if available.
• Toggle() icon: Touch to toggle between menu page 1 and menu page 2.
• Next (▶) icon: Touch to play the next track.
• Pause/Play(▶II) icon: Touch to pause playback. Touch again to resume playback.
• Previous (icon: Touch to play the previous track.
• icon: Touch to select a chapter/track directly using the on-screen display direct entry menu display.
• icon: Touch to return to a previous menu.

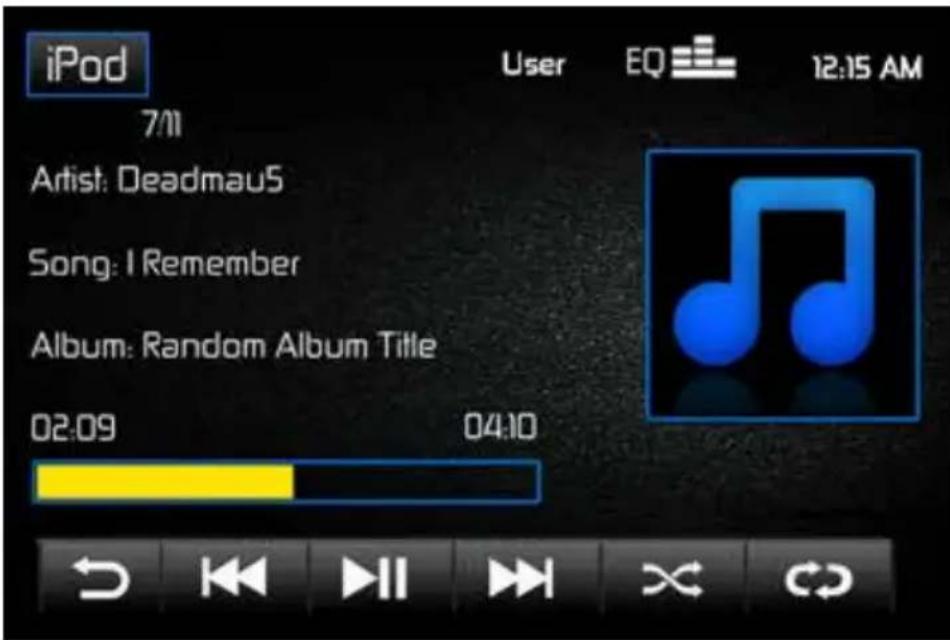

Controls and Indicators

The on-screen indicators and touch key areas for iPod playback are outlined below.

• iPod icon: Touch to view the SOURCE MENU and select a new playback source.
• />initiator: Indicates whether media is playing or paused.
• Equalizer setting indicator: Displays the current equalizer preset setting.
• EQ icon: Touch for quick access to Equalizer level settings menu.
• Clock: Displays the time as entered by the user in the settings menu.
• Repeat ( ) icon: Indicates the repeat function is enabled.
• Random() is: Indicates the random function is enabled.
  2/23: File number and total number of files on the disc.
• Song title, album, and performing artist.
  02.01: Elapsed playing time and playback progress bar for current file.
  04:20 Total playing time for current file.
  Preview Window: Displays album art, if available.
• Repeat() is: Touch to alter repeat mode as follows: Repeat Single > Repeat Folder > Repeat All > Repeat Off
• Random() icon: Touch to alter random mode as follows: Random On > Random Off
• Next ( 🌐on: Touch to play the next track.
• Pause/Play() iobh: Touch to pause playback. Touch again to resume playback.
• Previous (icon: Touch to play the previous track.
• icon: Touch to return to a previous menu.

Controlling Your iPod

Touch the MENU button to access the main iPod menu. Use the touchscreen to navigate the iPod menus.

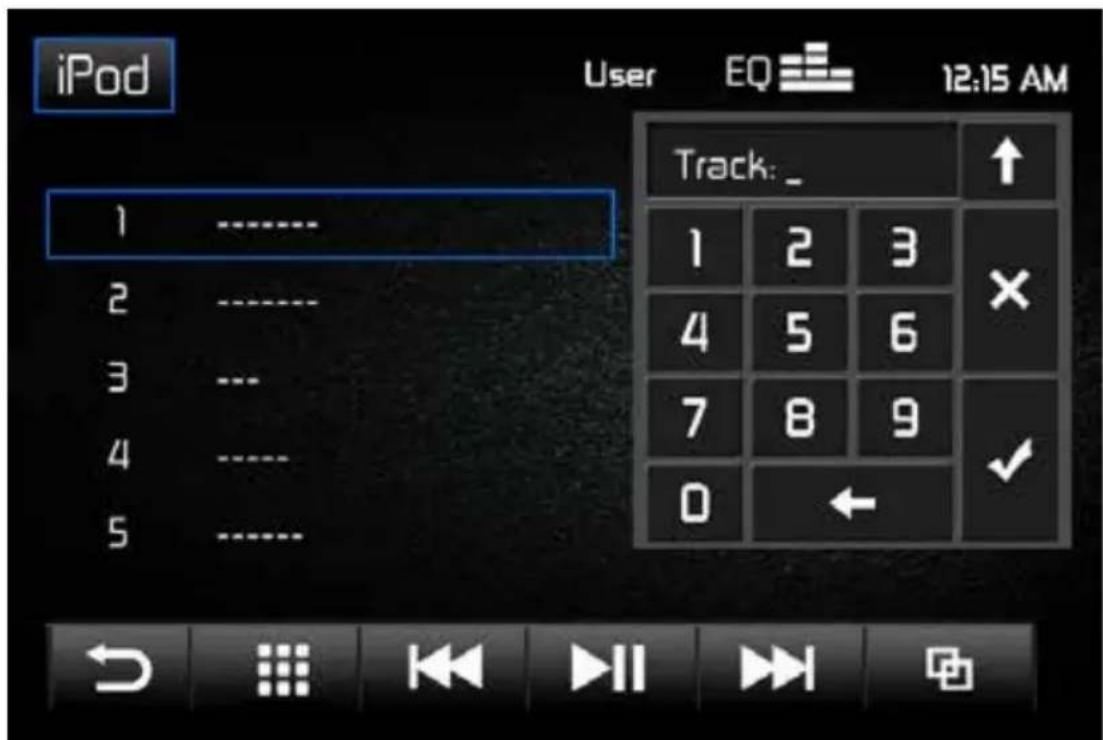

Direct Track Entry

To select a track directly:

1. Touchthe icon to display the Direct Entry Menu.

1. Touch to select a chapter/track directly using the direct entry menu by entering the desired track number.
2. Touch to play the selected file. To exit the screen without changing the file, touch the X. To clear your entry and start over, touch the icon.

NOTE: After disconnecting your iPod, the VME 9415 will always return to the last mode accessed when the iPod is plugged back into the unit.

BLUETOOTH OPERATION

Bluetooth® was launched by a special interest group (SIG) comprised of Ericsson Inc., Intel Corp., Nokia Corp., Toshiba and IBM in 1998, and it is currently developed by nearly 2,000 companies worldwide. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Audiovox Corporation is under license. Other trademarks and trade names are those of their respective owners.

Bluetooth® technology has the capability to wirelessly synchronize and transfer data among devices. The Bluetooth® audio capabilities can be used for mobile phones hands free applications. Bluetooth® has many profiles and the unit is compatible with most Bluetooth® enabled mobile phones. Before attempting to use the Bluetooth® functions on the unit, please make sure your mobile phone supports Bluetooth® functions.

NOTE: The line-of-sight distance between this unit and your mobile phone must be 8 feet (2.4 meters) or less for sending and receiving voice and data via Bluetooth® wireless technology.

Please make sure your mobile phone supports Bluetooth® functions (Headset or Handsfree profiles or both). Adhere to the following guidelines for successful operation:

• Before using Bluetooth® functions, you must pair your mobile phone to the VME 9415 head unit (see “Pairing the Bluetooth® System with Your Mobile Phone and Head Unit”). To ensure the best reception for pairing and reconnection, please make sure the phone battery is fully charged before you begin.
• Try to perform pairing within a few minutes of the phone being turned on.
• Once the unit has been paired with the phone, the unit's model number, "VME 9415", will be displayed on the mobile phone.
• To achieve the best performance, always keep the mobile phone within 3 meters of the head unit.
• Always keep a clear path between the mobile phone and the head unit. Never place a metal object or any other obstacle between the mobile phone and the head unit.
• Some mobile phones (like Sony Ericsson) may have a "Power Saving Mode" option. PLEASE DO NOT use the power saving mode with the VME 9415.
• Before accepting or making a call, make sure your mobile phone's "Bluetooth function" is turned on.
• To ensure the best conversation quality/performance, stay within one meter of the microphone when talking.
• To "disconnect" the mobile phone from the head unit, turn the Bluetooth® connectivity off on the mobile phone or touch the button.

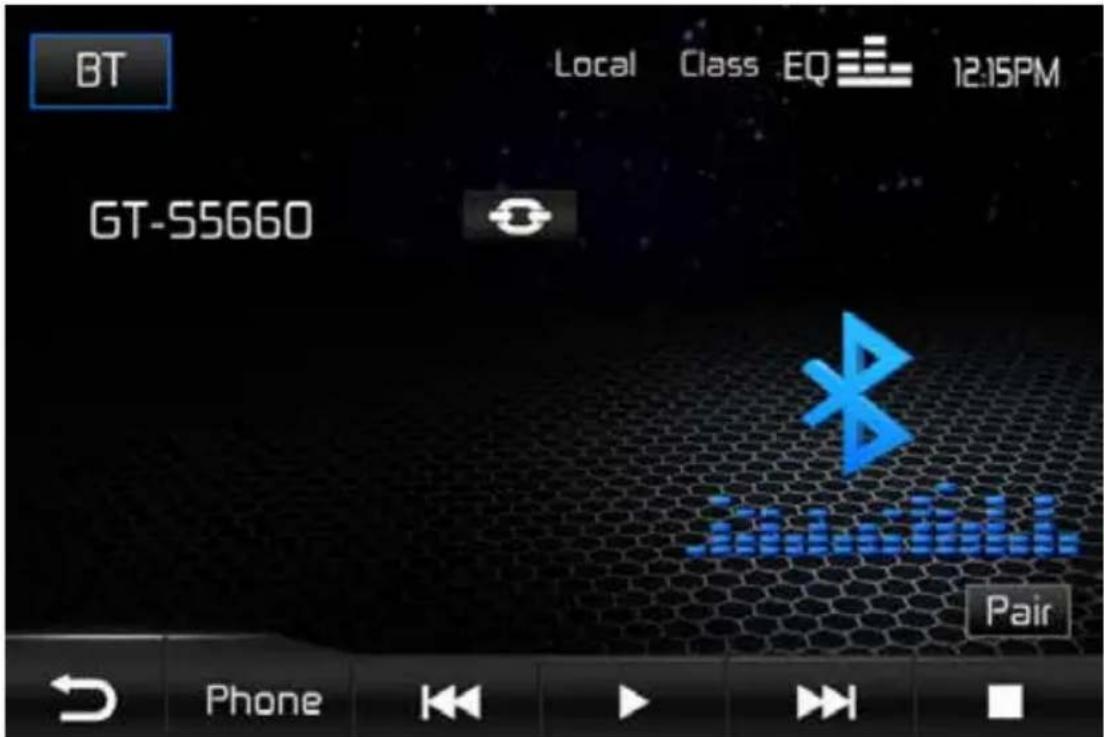

Bluetooth User Interface

The on-screen indicators and touch key areas for Bluetooth® functions are outlined below.

• BT icon: Touch to view the SOURCE MENU and select a new playback source.
• Equalizer setting indicator: Displays the current equalizer preset setting.
• EQ: Touch for quick access to Equalizer level settings.
• Clock: Displays the time as entered by the user in the settings menu.
• indicator: Indicates whether the unit is disconnected/connected with a Bluetooth® device.
• Pair icon: Touch to initiate the pairing process with a Bluetooth® device.
• Options icon: Touch to configure Bluetooth® parameters and options. Refer to the Options screen for further details.
• BT Audio icon: Touch to access the Bluetooth® music function.
• Phone icon: Touch to access the phone call menu.
• icon: Touch to return to a previous menu.

Hands Free Profile (HFP)

To use a mobile phone with this unit, it is necessary to first establish a connection using Bluetooth® wireless technology. The connection is normally established using Hands Free Profile (HFP), which gives you full control of functions available on the telephone source. However, depending on your phone, the connection may be made using Head Set Profile (HSP), making some functions unavailable. This is a limitation of your phone, not the VME 9415.

Since there are a number of Bluetooth® mobile phone implementations available on the market, operations with your Bluetooth® mobile phone using this unit vary greatly. Please refer to the instruction manual that came with your Bluetooth® mobile phone along with this manual while operating your phone with this unit.

Pairing Your Mobile Phone with the Head Unit

Your mobile phone can initiate a search for new devices and pair to the unit. The following procedure describes the pairing process.

NOTE: The following procedures are generic. Procedures for pairing mobile phones may vary slightly from phone manufacturer to phone manufacturer.

1. Press the SRC button on the front panel to access the source menu.
2. Touch the BT icon on the source menu and the Bluetooth® user interface screen will appear.
3. Touch the Options icon and the following screen will appear.

1. On the Options submenu set the Bluetooth function to ON.
2. On the Options submenu set the Connect function to ON.
3. Press the "Pair" button on the head unit's Bluetooth® user interface screen.
4. Access the mobile phone Bluetooth® function and set the function to ON.
5. Set the mobile phone Bluetooth® discover mode to ON.

NOTE: Some discovery modes have a time limit (usually a minute) before they are automatically turned off.

1. Use the mobile phone's add a new device feature. A device or devices will appear on your mobile phone display.

2. A prompt to pair or bond should appear on your mobile phone. Accept the request and initiate the process.

NOTE: Some mobile phones require a "pass key" or pairing code to connect. If your phone requires a pass key or pairing code, you will need to enter this number. The default pairing code for many wireless phones is "0000". The default code for the unit is "1234".

1. A prompt to enter a PIN number or passkey for the unit should appear. The default passkey for the unit is "1234".
2. At this point a prompt stating that pairing is successful should appear. Another prompt should appear asking connect to the unit, Yes or No. Press Yes. The mobile phone and the unit should connect. The mobile phone should display a message similar to "Device Connected." The mobile phone and the unit are now connected. VME 9415 will appear on the mobile phone list of devices.

Managing Incoming Calls

When connected to a Bluetooth® phone, the unit will mute audio output, pause CD play, and change to the Bluetooth screen below when a call is received. The incoming phone number or assigned name for that number will appear in the top of the screen. An audible tone will sound from the unit and a graphic display will appear on the front panel. If the incoming call has no caller ID, the unit will display "Private Caller".

• Direct Entry icon: Touch to access the direct dial screen. Refer to the Direct Entry screen for further detail.

• icon: Touch to answer an incoming call.

• Transfer Call icon: Touch to transfer a call back to the mobile phone.

• Mute icon: Touch to mute the microphone audio from the unit. Touch the icon again to restore the microphone and audio from the unit.
• Touch to end an in coming call.
• icon: Touch to return to a previous menu

Answering an Incoming Call

Touch the icon. For best reception, speak loudly and clearly into the microphone. To end the conversation, touch the icon.

Rejecting an Incoming Call

Press the Transfer Call icon to reject an incoming call. The call will revert to your mobile phone and be left for voice mail.

Volume Control

To increase or decrease the volume level of an incoming call, turn the rotary knob on the front panel.

Audio Mute

To mute the phone call audio from the unit when a call is received, press the front panel rotary knob. Press the front panel rotary knob again and phone call audio will be restored to the unit.

Making an Outgoing Call

Outgoing calls can be performed by touching the Direct Entry icon and using the unit's touch screen keypad.

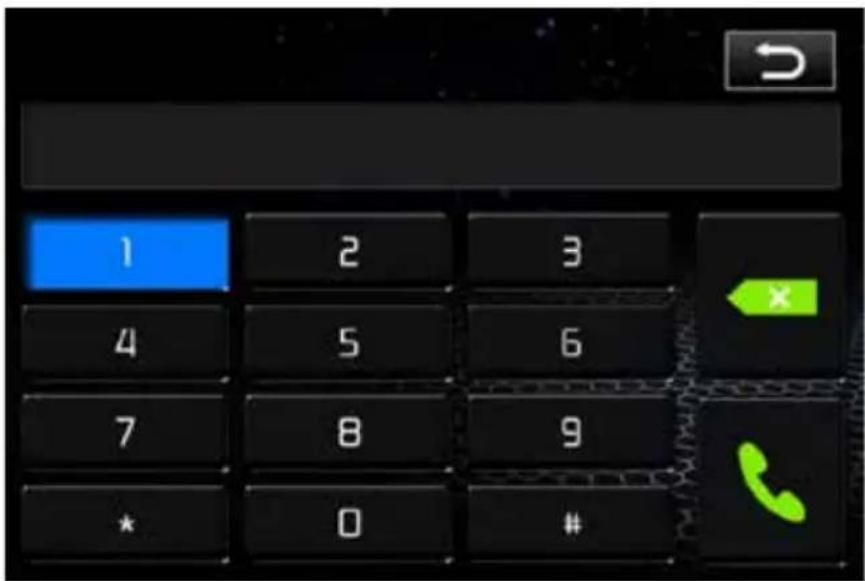

Direct Dialing

1. Touch the Direct Entry icon and the following screen will appear:

1. Using the keypad, touch 0-9,* or # to enter the phone number you wish to dial. If you enter an incorrect number touch the ←on to delete the incorrect number.
2. Once the correct number appears on the screen touch the icon. To exit the direct entry screen touch the X.
3. To end the call touch the icon on the previous screen.

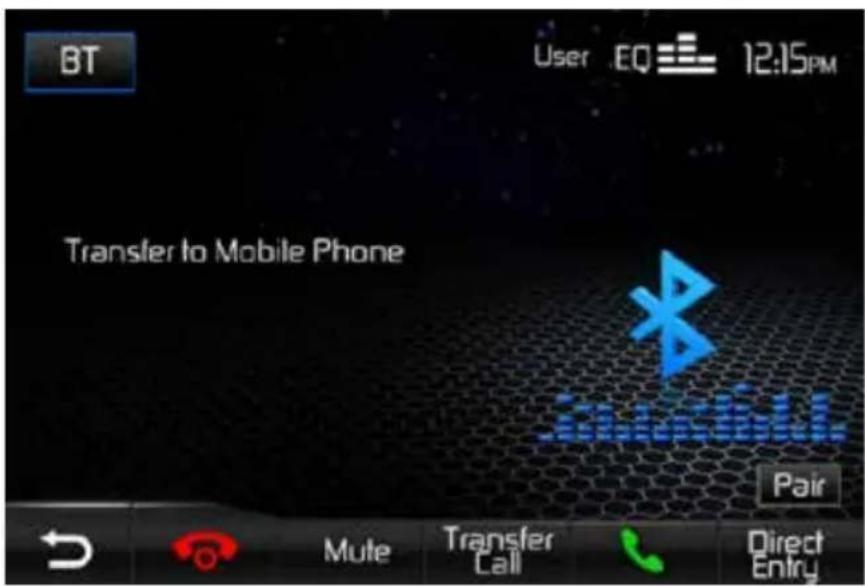

Call Transfer

While talking, to transfer audio from the unit back to the wireless phone, touch the Transfer Call icon. You can only transfer a call after it has been answered. Touching the Transfer Call icon again will return the audio from the mobile phone to the unit. Touch the Transfer Call icon and the following screen will appear:

Bluetooth Music Function (BT Audio/A2DP)

Bluetooth provides an Advanced Audio Distribution Profile (A2DP) profile for streaming music from a wireless phone or a portable multimedia player (PMP), sometimes referred to as a MP3 player. The unit allows you to play back audio files from your wireless phone or a PMP using a Bluetooth connection.

NOTE: Please quit A2DP mode before attempting to make a phone call, as unexpected results may occur depending on your wireless phone model.

The unit can control a Bluetooth audio player via Advanced Audio Distribution Profile (A2DP) or Audio/Video Remote Control Profile (AVRCP). Bluetooth audio players (or Bluetooth adapters) compatible with these profiles can be connected to this unit. Touch the BT Audio icon and the following screen will appear:

While listening to audio the following functions are available:

• Pause/Play(▶/II) icon: Touch to pause playback. Touch again to resume playback.
• Previous (Icon: Touch to play the previous track.
• Next (▶) icon: Touch to play the next track.
• Touch the Stop (■) icon to stop playback.

Functionality varies depending on the profile used:

• A2DP: Stream audio from your Bluetooth compatible audio player and listen to the music through the unit.
• AVRCP: Play back, pause, select songs, etc. while streaming audio from your Bluetooth compatible audio player to the unit.

NOTE: Song information (e.g. elapsed playing time, song title, song index, etc.) cannot be displayed on this unit. Since there are a number of Bluetooth audio players available on the market, operations with your Bluetooth audio player using this unit vary greatly. Please refer to the instruction manual that came with your Bluetooth audio player.

When there is an incoming call, the song will be paused. After the incoming call is finished, the screen will return to the music function screen and playback will continue.

This unit is "camera ready." Before accessing any camera features, you must install a rear video camera.

When the camera is not installed and the function is accessed by the gear selector being placed in reverse or by the unit's menu, the message "VIDEO NOT DETECTED" will appear, indicating the function is not available.

When the camera is installed, the rear view image of what is behind the vehicle will appear when the vehicle is placed in reverse gear. When leaving reverse gear, the unit displays the previous screen.

The rear camera image can be adjusted from Normal to Mirror using the "Setup" menu ("see Hardware Sub-menu Features").*

TROUBLESHOOTING

Troubleshooting

Problem Cause Corrective	ive Action
GENERAL
Unit will not power on Radio	Radio Fuse blown Install new	use with correct rating
	Car battery fuse blown Ins	all new fuse with correct rating
	Illegal operation Press the	RESET button located in the bottom right corner of the front panel
No/low audio output Impedance	oper audio output connection	Check wiring and correct
	Volume set too low Increase	volume level
	Improper “MUTE” connection	Review wiring diagram and check “MUTE” connection
	Speakers damaged Replace	speakers
	Heavily biased volume balance	Adjust the channel balance to the center position
	Speaker wiring is in contact with metal part of car	Insulate all speaker wiring connections
Poor sound quality or distortion	Pirated disc is in use Use	original copy
	Speaker power rating not compatible with unit	Connect proper speakers
	Speaker is shorted Check	speaker contact
Unit resets itself when engine is off	Incorrect connection between ACC and positive battery wire	Check wiring and correct
TFT MONITOR
Monitor does not open automatically	TFT Auto Open is turned off	Turn TFT Auto Open on
No image Incorrect connection	ction to parking brake wire	Check wiring and correct
	Parking brake is not engaged	Stop vehicle in safe place and apply parking brake
Problem Cause Corrective Action
Flashing image or interference appears on screen	DVD is not compatible with current TV system settings	Change setup to accommodate disc
	Improper video signal connections	Check wiring and correct
Prolonged image or improper height/width ratio display	Improper aspect ratio setup	Use correct aspect ratio setting
Monitor stops at incorrect position	Moving path is blocked Press Open key to restart monitor movement
TUNER
Weak station searching	Auto antenna is not fully extended	Connect the auto antenna control cable properly
	Auto antenna not properly connected	Connect the auto antenna control cable properly
	LOCAL function is activated	Turn LOCAL function off
DISC
Cannot insert disc Disc already inside unit Eject current		Connect the auto antenna control cable properly
Image blurred, distorted, or dark	Disc is illegally copied Use original disc
Disc does not play back	Disc is warped or scratched	Use disc in good condition
	Disc is dirty or wet Clean disc with soft cloth
	Laser pickup is dirty Clean laser pickup with cleaning disc
	Incompatible disc is used Use compatible disc
	Disc region code is not compatible with unit	Use disc with proper region code
	Disc is inserted upside down	Insert disc with label side up
Problem Cause Corrective	Active Action
PBC cannot be used during VCD playback	PBC is not available on the disc
No repeat or searching while playing VCD	PBC is on Turn PBC off
MP3
Interruption occurred during playback	Disc is dirty or scratched C	Clean disc or replace
	File is damaged/bad recording	Recreate disc with good files

Error Messages

Error Messages

Message Displayed Cause	Corrective Action
No Disc Disc is dirty Clean	disc with soft cloth
	Disc is upside down Insert disc with label side up
	Disc not present in inserting compartment	Insert disc
Bad Disc Disc is dirty Clean	disc with soft cloth
	Disc is upside down Insert disc with label side up
Unknown disc Disc format is	not compatible with this unit
Region Error DVD is not co	compatible with region code of unit
Error Illegal mechanism	operation	Press EJECT key for 5 seconds to reset loading mechanism

CARE AND MAINTENANCE

1. Use only a clean silicone cloth and neutral detergent to clean the front panel or monitor. A rough cloth and non-neutral detergent (such as alcohol) may result in scratching or discoloration.
2. Do not get water or cleaning fluids on the unit.
3. If the temperature inside the player gets too hot, a protective circuit automatically stops play of the disc. If this occurs, allow the unit to cool before operating the player again.
4. Never insert anything other than a 5" (12 cm) compact disc into the player as the mechanism can be damaged by foreign objects.
5. Do not attempt to use a 3'' (8 cm) CD-Single disc in this unit, either with or without an adaptor, as damage to the player and/or disc may occur. Such damage is not covered by the Warranty on this product.
6. The CD player may not operate properly in extreme hot or cold. If such conditions occur, allow the interior of the vehicle to reach a normal temperature before using player.
7. When the vehicle warms up during cold weather or under damp conditions, condensation may appear on the TFT panel. Should this occur, the screen will not operate properly until the moisture has evaporated.
8. We suggest you use a cleaning disc in this unit more frequently than in the unit in your home due to the environmental conditions of the vehicle.

SPECIFICATIONS

DVD/CD Player

Compatible Disc Media: DVD + R / RW (Single and Dual Layer) and CD-R / RW Compatible Media Formats: CD-DA, MP3, WMA, VCD, SVCD, Xvid, DviX, AVI, MPEG 1/2

Signal to Noise Ratio: >95dBA

Dynamic Range: >95dB

Frequency Response: 20Hz to 20 kHz, -3dB

Channel Separation: >60dB @ 1 kHz

D/A Converter: High performance 24-bit / 192 kHz sample rate, Multi-Bit Sigma-Delta Modulator

Video

Format: NTSC, PAL (auto-detection)

Output: 1Vp-p (75-ohm)

Input: 1Vp-p (75-ohm)

FM Tuner

Tuning Range: 87.5MHz - 107.9MHz

Mono Sensitivity (-30dB): 9dBf

Quieting Sensitivity (-50dB): 15dBf

Alternate Channel Selectivity: 70dB

Signal to Noise Ratio @ 1 kHz: 58dB

Image Rejection: 80dB

Stereo Separation @ 1 kHz: >30dB

Frequency Response: 30Hz - 15 kHz, -3d

AM Tuner

Tuning Range: 522 kHz - 1620 kHz

Sensitivity (-20dB): 15uV

Signal to Noise Ratio @ 1 kHz: 50dB

Image Rejection: 60dB

Frequency Response: 50Hz - 2kHz ,-3dB

Monitor

Screen Size: 17.8 cm / 7" (Measured diagonally), 16:9 Widescreen

Screen Type: TFT Liquid Crystal Display (LCD) active matrix

Resolution: 336,960 sub pixels, 1440 (W) X 234 (H)

General

Auxiliary Input impedance: 10k

Power Supply: 11 to 16VDC, negative ground

Power Antenna (Blue): 500mA max, current limited protection

Amplifier Remote (Blue/White): 500mA max, current limited protection

Operating Temperature: -20C 65C

Signal to Noise Ratio: 70dBA below reference (Reference: 1 Watt, 4-Ohms)

Frequency Response: 20Hz - 20kHz , -3dB. (Aux Input used as reference input)

Reference Supply Voltage: 14.4VDC

*Specifications subject to change without notice.

Commander la reproduction

Insérer un disque

Commander la reproduction

Insérer un disque

Entree: 1 Vp-p (75 ohms)

Congratulations! You have made a wise selection in becoming the owner of a AUDIOVOX Mobile Video equipment. Due to high quality AUDIOVOX Mobile Video products have earned an excellent reputation through the western world. And this high quality standard enables us to grant a 2-years warranty for AUDIOVOX Mobile Video products.

The equipments are checked and tested continuously during the entire production process. In case you have problems with your AUDIOVOX HiFi equipment, kindly observe the following:

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.
2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequent damages, are excluded. The guarantee period is not altered by the fact that we have carried out guarantee work.
3. Unauthorized tampering with the equipment will invalidate this guarantee.
4. Consult your authorized dealer first, if guarantee service is needed. Should it prove necessary to return the component to the factory, please insure that the component is packed in original factory packing in good condition • the quality control card has been filled out and enclosed with the component • your enclose your receipt as proof of purchase.

5. Excluded from the guarantee are: • Illuminates • Wear parts • Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). • Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) • Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or by external force

6. Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us.

7. Consequential damages to other equipments.
8. Reimbursement of cools, without our prior consent, when repairing damages by third parties. Batteries and battery packs.

F

Name and address of the dealer/stamp

Käufer/Customer

Name/Name

Straße/Street

PLZ, Ort/City

Land/Country

Kaufdatum/buying date

No warranty without receipt!

AUDIOVOX®
