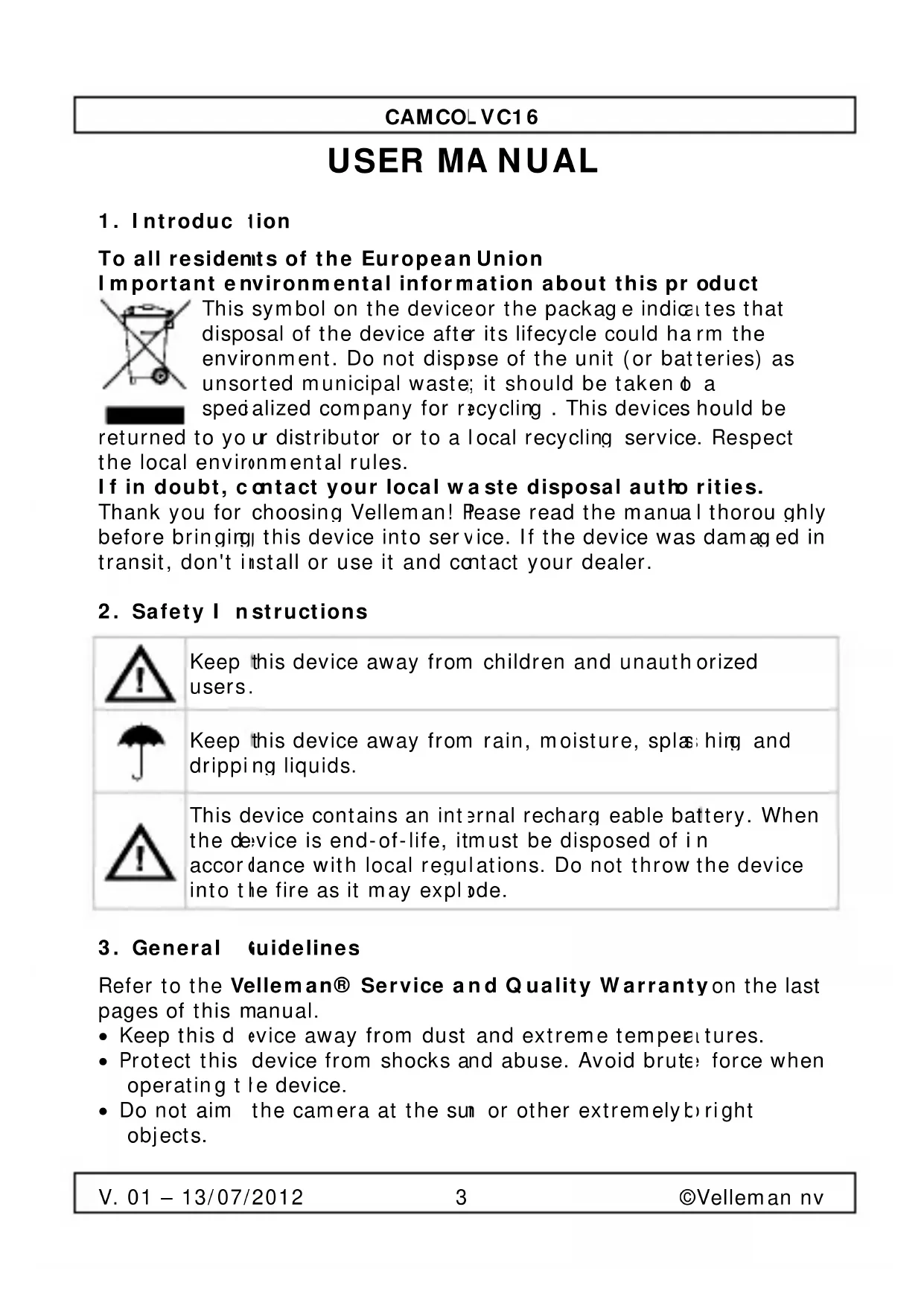

To all residents of the European Union Important environmental information about this pr oduct

This symbol on the deviceror the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken a specialized company for recycling. This devices should be

returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thorou ghly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

Keep this device away from rain, moisture, splashing and dripping liquids.

This device contains an internal rechargeable battery. When the device is end-of-life, it must be disposed of in accordance with local regulations. Do not throw the device into the fire as it may explode.

3. General guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Keep this device away from dust and extreme temperatures.
• Protect this device from shocks and abuse. Avoid brute force when operating t le device.
• Do not aim the camera at the sum or other extremely right objects.

CAMCOLVC16

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
• Do not use this product to violate privacy laws or perform illegal activities.

4. Features

• pen with integrated camera and recorder
• the video capture camera records images on micro SD card (not included)
• recording quality:
• video: 720P HD video - 30FPS
• picture: 1600 x 1200 pixels
• built-in high-sensitivity microphone
• easy and user-friendly setup
• comes with USB cable
  alloy housing.

5. Overview

Refer to the illustrations on page 2 of this manual.

1	power/recording button 6 reset button
2	lens 7 video/photo switch
3	microphone 8 USB plug
4	micro SD card slot 9 pen tip
5	LED indicator

CAMCOLVC16

6. Operation

Turning the camera on and off

• To switch on the camera, press the power/recording button [1] for 3-5 seconds.
• To switch off the camera, press the power/recording button [1] for 3-5 seconds.

If the camera is idle for more than 1 minute, it switches off automatically.

Inserting a micro SD card

1. Switch the camera off.
2. Unscrew the pen and insert a micro SD card (not included) in the card slot [4]. Push it in as far as it goes.
3. To remove the micro SD card again, pull it gently in order not to damage it.

Using the video function

1. Switch the camera on.
2. Unscrew the pen and set the switch [7] to 2. The LED lights orange continuously.
3. Close the pen.
4. To start recording, briefly press the power/recording button [1]. The LED flashes blue during recording.
5. To stop recording, press power/recording button [1] again. The camera saves the video file on the memory card.

Note: during long recording, the device saves a video file every 20 minutes.

Using the photo function

1. Switch the camera on.
2. Unscrew the pen and set the switch [7] to 1. The LED flashes orange.
3. Close the pen.
4. To take a photo, briefly press the power/recording button [1]. The camera saves the photo on the memory card. The blue LED lights while the photo is taken and saved.
5. Wait until the LED flashes orange before you take the next photo.

CAMCOLVC16

Connecting to a pc

1. Switch the camera off.
2. Unscrew the pen.
3. Plug the pen's USB plug [8] into the female connector of the included USB cable.
4. Plug the male connector into a USB port on your computer.
5. On the pc, open My Computer and look for the drive that represents the camera.

The photos are in the IMAGE folder; the recorded video files are in the VIDEO folder. You can copy, delete, or view the files from here.

Note: to disconnect the camera from the pc, use Windows' Safely Remove Hardware function to stop the device before you unplug the USB cable.

Setting the camera time

Setting the camera date and time ensures that your photos and video have a correct time stamp.

1. Make sure there is a micro SD card in the camera.
2. Switch the camera on.
3. Connect the camera to your computer with the included USB cable.
4. Insert the included CD in your computer's CD drive.

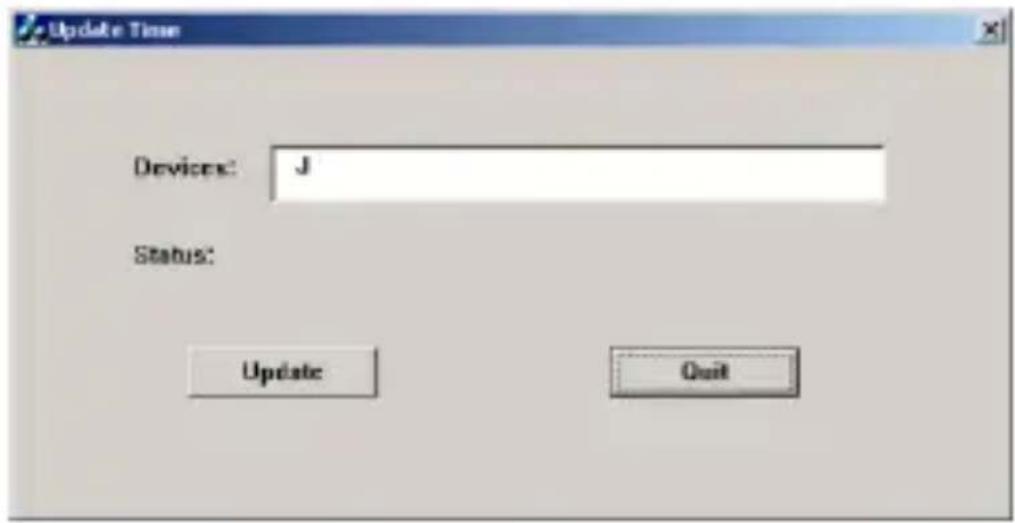

5. Locate and double-click the WriteTime.exe file on the CD-ROM. The screen below appears:

CAMCOLVC16

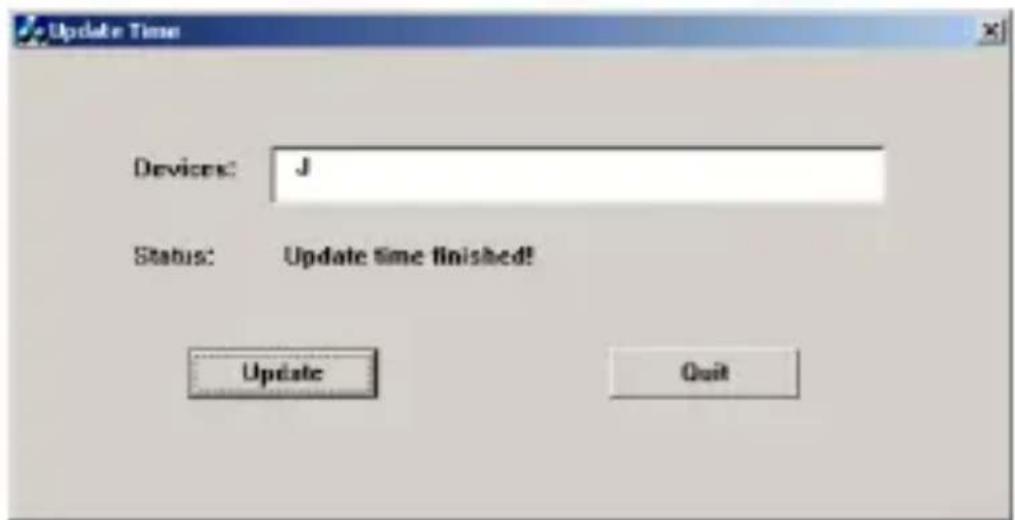

1. Click Update. The screen below appears:

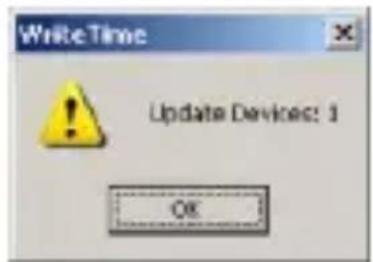

1. Click OK. The screen below appears:

1. Click Quit to exit.

Using the camera as a webcam

1. Switch the camera on.
2. Unscrew the pen.
3. Connect the camera to your computer with the included USB cable.
4. Briefly press the power/recording button [1].
5. On the pc, open My Computer and double-click USB Video Device to see the webcam images.

Resetting the camera

If you experience any problems, push the reset button [6] using a non metal point.

Using the pen

To use the pen for writing, turn the pen tip [9].

CAMCOLVC16

7. Battery

7.1 Charing

To charge the device, connect it to your computer with the included USB cable.

While charging, the LED flashes range.
- When fully charged, the LED light: s orange continuously.

7.2 Dispos al

This device contains an internal rechag eable battery. When the device is end-of-life, it must be disposed of in accordance with local regulations. Do not throb the device into the fire as it may explode.

8. Technica II Specifications

storage capacity	max. 16GB SD-HC card (not incl.)
pick-up element	2 gapkeel C MOS
viewing angle	62°
minimum illumination	1 lux
video recording	recordin g format	MJPEG i(caPcM)
	frame rate (fps)	30
	video resolution 1280 x 720 pixels
	recordin g cap acity	±100MB/min
image recording	recordin format	JPEG
	image resolution 1600 x 120 (0 pixels
charging time	2 hours
battery capacity	150mAh
operating time	±40 min
dimensions	142 x 15 x 15mm
weight	39g
working temperature	-10°C ~ 50°C

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damag eor injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual,

CAMCOLVC16

please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
