Trail Runner II - Flashlight Silva Schneider - Free user manual and instructions

Brand	Silva Schneider
Model	Trail Runner II
Product type	Headlamp
Weight	120 g (with headband)
Power	3 AAA batteries (alkaline, NiMH or Lithium)
Luminous flux	140 lumens
Lighting distance (max/min)	45 m / 20 m
Battery life (max/min/flash)	30 h / 90 h / 100 h
Waterproof rating	IPX6
Operating temperature range	-20 °C to +60 °C
Lighting technology	Intelligent Light (wide beam + long range)
Lighting modes	Max, Min, Flash
Battery level indicator	Front LED: green (good), orange (medium), red (low)
Maintenance	Clean with a damp cloth; headband machine washable at 40 °C
Warranty	2 years (parts and labor)

Frequently Asked Questions - Trail Runner II Silva Schneider

How to turn on and off the Silva Trail Runner II headlamp?

To turn on, briefly press the button on top of the lamp. The lamp starts in Max mode. Each successive press alternates between Min and back to Max. To turn off, press and hold the button for 1 second.

How to activate flash mode?

From the off state, press and hold the button for 1 second to start flash mode. To turn off, press and hold the button again for 1 second.

What type of batteries to use and how to insert them?

Use 3 AAA batteries (alkaline, NiMH or Lithium). Open the battery compartment, insert them respecting polarity (+/-). Do not mix batteries of different brands or charge levels.

Is the lamp waterproof?

Yes, it has a waterproof rating of IPX6, which means it resists powerful water jets. It can be used in the rain, but is not designed to be submerged.

How to interpret the battery level indicator?

When you turn off the lamp, a small LED at the front lights up for 5 seconds. Green = sufficient charge, Orange = medium charge, Red = batteries almost empty. This indicator is only valid for alkaline batteries.

What is the battery life of the lamp in each mode?

In Max mode: 30 hours, Min mode: 90 hours, Flash mode: 100 hours.

Can we use rechargeable batteries?

Yes, NiMH rechargeable batteries can be used. For temperatures below -10 °C, Lithium batteries offer better runtime.

How to clean the lamp and the headband?

The lamp can be cleaned with a damp cloth. The elastic headband can be machine washed at 40 °C. Make sure to remove the batteries before cleaning.

What to do if the lamp does not turn on?

First check that the batteries are correctly inserted respecting polarity. If they are worn out, replace them with new ones. Also make sure the compartment is properly closed.

How to recycle the lamp and used batteries?

The lamp and batteries must be recycled according to local regulations. Do not throw them with household waste. Drop them off at an appropriate collection point.

USER MANUAL Trail Runner II Silva Schneider

CHOOSE YOUR LANGUAGE:

FULL VERSION MANUAL TRAIL RUNNER II Art.no 37401

Thank you for choosing Silva Trail Runner ll headlamp. This ultracompact high power headlamp is designed for sportsmen who put performance and weight first.

The Trail. Runner II™ headlamp is equipped with Intelligent Light® which is a light distribution technology that combines a wide angle flood light with a long reach spot light. This unique light image gives the user peripheral and long distance vision at the same time. For a runner, cross country skier, mountain biker or night orienteer this translates into less head movement, increased control, better balance and more speed.

PRODUCT OVERVIEW

The Trail Runner ll headlamp consists of the following parts:

Headlampunit
Head band with battery case
3xAAA Batteries
Quickguide

BEFORE USE

ADJUST THE HEADBAND

The elastic headband with anti-slip rubber on the inside is designed to give a comfortable fit at speed activities such as running, XC skiing etc. Adjust the headband by moving the sliding buckle to fit it onto your head.

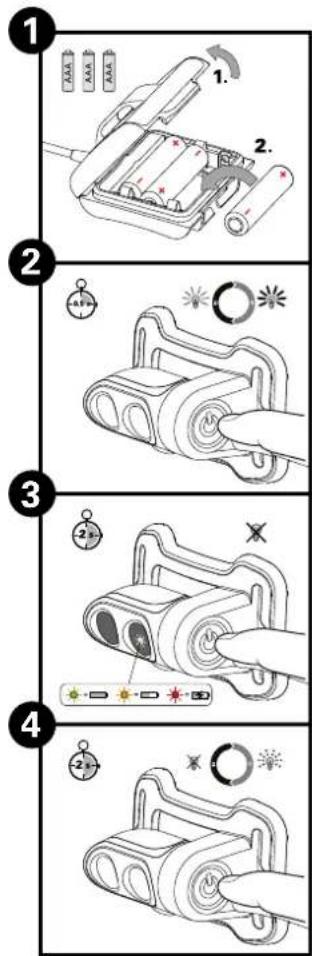

INSERT THE BATTERIES 1

Open the battery case and insert the three AAA batteries. Either Alkaline (Included), NiMH or Lithium batteries can be used. For operation in temperatures below -10^ , Lithium batteries will give significantly longer burn time. Please note the battery polarity. Do not mix different brands of batteries. Do not mix batteries with different levels of discharge.

If you don't intend to use the headlamp for several months, make sure you remove the batteries from the lamp.

DURING USE

SWITCH ON YOUR HEADLAMP

On the side of the headlamp body there is a push button which controls all light modes.

Each press on the button gives you the following light:

1. Turns the headlamp ON in max mode.
2. Switches to Min mode
3. Starts over from 1

To turn OFF the headlamp; press and hold the button for 1 second.

The flash function, which is used to attract attention, is started from OFF mode by pressing and holding the button for 1 second. To turn OFF: press and hold the button for 1 second.

BATTERY STATUS INDICATION

When the headlamp is turned off a small LED is turned on inside the front of the headlamp to indicate the status of the batteries. This indication will be on for 5 seconds. Please note that this indication is valid for Alkaline batteries only. Green light - Battery in good condition Orange - Medium Red - Battery in poor condition

AFTER USE

MAINTENANCE

To make sure you get maximum performance from your Trail Runner II headlamp, clean it regularly with a damp cloth.

Headset cleaning - wash in washing machine at 40^

TECHNICAL SPECIFICATIONS

Weight: headlamp (including head bracket): 120 grams Battery type: AAA Alkaline

Light distance (Max/Min): 45m/20m

Lumen: 140

Burn time:Max/Min/Flash:30hours/90 hours/100 hours Water resistance:IPX6

Operative temperature range: -20 - +60

PROTECT THE ENVIRONMENT

Headlamp and batteries should be recycled and must not be thrown in the regular trash. Disposethe items in accordance with applicable local regulations.

WARRANTY

Silva warrants that, for a period of two 21 years, your Silva Product will be substantially free of defects in materials and workmanship under normal use. Silva's liability under this warranty is limited to repairing or replacing the product. This limited warranty extends only to the original purchaser.

If the Product proves defective during the Warranty Period please contact the original place of purchase. Make sure to have your proof of purchase on hand when returning the product. Returns cannot be processed without the original proof of purchase. This warranty does not apply if the Product has been altered, not been installed, operated, repaired, or maintained in accordance with instructions supplied by Silva, or has been subjected to abnormal physical or electrical stress, misuse, negligence or accident. Neither does the warranty cover normal wear and tear. Silva is not responsible for any consequences, direct or indirect, or damage resultant from use of this product. In no event will Silva's liability exceed the amount paid by you for the product. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This Warranty is valid and may be processed only in the country of purchase.

For more information please visit www.silva.se

SILVA

FULLSTÄNDIG MANUAL TRAIL RUNNER II Art.no 37401

YUE D'ENSEMBLE DU PRODUIT

Rood-Batterij is in slechte conditie

NA GEBRUIK

ONDERHOUD

B komnneKT Hanoohoro fohapa Trail Runner ll BXoJat:

• TOnOBHn noBraKc 6NoKoM 6aTapeN
  BatapeH3XAAA
  KpatkoepykoBocTBO nonb3o8aTeHa

IPEEDNIOJIb3OBAHHEM

PEYIINPOBKA PA3MEPA TOIOBHONIOBRA3KN

H3a3n3hTnAHTNHOHNOBHOHOBKcHECKoJIb3RIMPe3HOBIM NOKpSbIeM HByTPenHeH CTOpOHeOBeCNHBAETNeKyIO nOroHcy K HxHKOyMaPaeMy, 40a yDioHOdFkckoCPCHsZAHITN, HApMPmepBerIOM JbKaAMnI T. CDAIgrrnaPpXkpy, OTepyrInpYte PaMeP NOBKnJDA HxHKOr pnpnerahAnK rONoe

BCTABTBATEBATAPEN

OTKPOTE OTECK 6batape N BCTABTe TPN 6batape AAA. MoKHO
NCNBOB30aBHTIeHHe (B KOMNKeTc) HKNBe- METAnOrnDpHHe HNNTOBBIE 6batape. PnH MCNOL3OBAHnn PnH Temnepatypax HXke-10°C,
MNTHEBE 6batape ObceCneuBAoT 3HaHTenBHe BO 6bOe Bpe mApToBt.
BCTABNITE 6batape, CoBDyA HyKHyIOIAPHOCT. He NCNO3AYte
ODHOBPemEHNO 6batape pa3hIX TINOB. He NCNO3AYte ODOHOpeMeHHO
6batape Cpa3hIMNpyOBHIMPApDk.

EcnBbHe cnoepaetce HcnoHcBaTbФoHpaB ToeHTHe HeckOKnHX Meecua, ybeDcTeB to TM, CTo BbNoNkNb TatapOn hOpaH.

BO BPEM NcNoJb30BAHNA

BKIOUCHHEHAI06HOFOOHA

HbokobostocoponeKoHaOpaHaoDontcKhoNkO,ynpablaouaapeKeKnoHeMepeKMOOBcSeHn

KaKaDaO HAKaTHKHOHNepeKNoeTfoHApBcNcDyUoH pexHM OCEbEHNB T A TOKM NOPAKe: 2

1. Bknoaet oohapb MaKCHMaHbHom peknme.
2. Npeeknoaet BmHmAbhBpexnM
3. NOBTOPNETUKNC HAYANA

TcBbI KIOHIOHTI OHIOH, HAKMNTE N YDCEKHNBAOT KHOKNY HAKSTOB T EYENHE 1 CEXUYN.

406blknoHTb mraioupeKMM, kotoep HcnoNobyeTcda npBnueHHBnMaHnO, Korgo fchoa BbKnOHeH, HAKMNTe N yedxKBAeIe KNKHy KaHAtOn BteUHe1 1 cekyHb. TbBbKnOHTb HAKMNTe N yedxKBAeIe KNKHy KaHAtOn BteUHe1 1 cekyHb.

HINKAUNCAOCTORHHBATAPEN

PnneBuknoHnnaoHn aHnA BkNoaetc MANeBhKn CBeTOnmC
BHyTpeHHHe CTOpOHb NtNCB NoCTH FoHAp, OToBpaKs CoCTOnHH
BatapR. 3to HNkAtop 6BytB TbeHHn5 CekyHn. NoxanyntA,
MeHTe BnHy, 40 To pndCyMOTepHO ToBkoD nIuEChNHbX Batapei.
Porptn eONHUM -3atopoeB XxpOouem COCTOHHN
Porptn opahKeBH- Batape R yDooBNTBpHtOBHm COCTOHHN
Porptn KpachHM-BatapeR nXPOM COCTOHHN

IIOCJIIEHIOJIb3OBAHNA

OBCLNYKBAHNE

Ytob6ObceHHTb MAKCNMBHyno pno3BDOJNTBHOCTb HANBOHOr
fOHPaTRailRrnnl II, perynpho OyMaate cro c nOMUHO BAAKHO
BETOIN

UHCTKa rONOBHNOBnK-MaunHHAa CTnPK 40°C.

TEXHNUECKNEXAPAKTEPHCTUKN

Bec: HAN6HbI ΦoHAp bKKnOuHa rONOBHe KpennneH)120yTuHnEerTc

TinbaTapeH:LcIouHa AAA

Далбоствocseшени(MAKC./MNH.):утунгетс СВERTОВЕТОК [JIM].140

BpemaPabOth:Maxc./MmH/Muraou:30acob/90acob/100acob

Visit: www.silva/environment for more information about the Waste Electrical and Electronic Equipment (WEEE) Directive.
