USER MANUAL IEO42LCR50 Ices
www.ices-electronics.com
Précautions ET INDICATIONS
France 0170480005 (appeal local)
EC-Declaration of Conformity
CE marking
We, Manufacturer/Importer
(full address)
STL Group BV
Ankerkade 20
5928PLVenloNL
declare that the product
(description of the apparatus, system, installation to which it refers)
Electric Oven
Lenco model IEO-42LCR50
Is in conformity with
Council Directive 2004/108/EC (EMC Directive)
Standards to which conformity is declared:
EN 55014-1:2006
+ A1 + A2
Electromagnetic compatibility - Requirements for household appliances, electric
tools and similar apparatus - Part 1: Emission
EN 55014-2:1997
+A1:2001+A2
Electromagnetic compatibility - Requirements for household appliances, electric
tools and similar apparatus - Part 2: Immunity
EN 61000-3-2:2006
+A1 + A2
Electromagnetic compatibility (EMC); Part 3: Limits; Section 2:
Limits for harmonic current emissions (equipment input current ≤16 Ampere
per phase)
EN 61000-3-3:2008
Electromagnetic compatibility (EMC); Part 3: Limits; Section 3:
Limitation of voltage fluctuation and flicker in low-voltage supply systems for
Equipment with rated current ≤ 16 Ampere.
EC-Declaration of Conformity
CE marking
We, Manufacturer/Importer
(full address)
STL Group BV
Ankerkade 20
5928PLVenloNL
declare that the product
(description of the apparatus, system, installation to which it refers)
Electric Oven
Ices model IEO-42LCR50
Is in conformity with
Council Directive 2006/95/EC (Low Voltage Directive)
Standards to which conformity is declared:
EN60335-1:2012+
EN 60335-2-9:2003
+A1+A2+A12+A13
EN62233:2008
Safety requirements for mains operated household and related products
Manufacturer/Importer STL-group BV
Date:
March 15, 2013
Signature:
Name:
iCES®
ELEKTRISCHE OVENELEKTRISCHE OVEN
www.ices-electronics.com
AANDACHT EN INDICATIES
EC-Declaration of Conformity
CE marking
We, Manufacturer/Importer
(full address)
STL Group BV
Ankerkade 20
5928 PL Venlo NL
declare that the product
(description of the apparatus, system, installation to which it refers)
Electric Oven
Lenco model IEO-42LCR50
Is in conformity with
Council Directive 2004/108/EC (EMC Directive)
Standards to which conformity is declared:
EN 55014-1:2006
+ A1 + A2
Electromagnetic compatibility - Requirements for household appliances, electric
tools and similar apparatus - Part 1: Emission
EN 55014-2:1997
+A1:2001+A2
Electromagnetic compatibility - Requirements for household appliances, electric
tools and similar apparatus - Part 2: Immunity
EN 61000-3-2:2006
+A1+A2
Electromagnetic compatibility (EMC); Part 3: Limits; Section 2:
Limits for harmonic current emissions (equipment input current ≤16 Ampere
per phase)
EN 61000-3-3:2008
Electromagnetic compatibility (EMC); Part 3: Limits; Section 3:
Limitation of voltage fluctuation and flicker in low-voltage supply systems for
Equipment with rated current ≤ 16 Ampere.
EC-Declaration of Conformity
CE marking
We, Manufacturer/Importer
(full address)
STL Group BV
Ankerkade 20
5928PLVenloNL
declare that the product
(description of the apparatus, system, installation to which it refers)
Electric Oven
Ices model IEO-42LCR50
Is in conformity with
Council Directive 2006/95/EC (Low Voltage Directive)
Standards to which conformity is declared:
EN60335-1:2012+
EN 60335-2-9:2003
+A1+A2+A12+A13
EN62233:2008
Safety requirements for mains operated household and related products
Manufacturer/Importer STL-group BV
Date:
March 15, 2013
Signature:
Name:
iCES®
ELEKTROBACKOFEN
Bedienungsanleitung
Modellnr.:
5IEO-42LCR 0
www.ices-electronics.com
EC-Declaration of Conformity
CE marking
We, Manufacturer/Importer
(full address)
STL Group BV
Ankerkade 20
5928PLVenloNL
declare that the product
(description of the apparatus, system, installation to which it refers)
Electric Oven
Lenco model IEO-42LCR50
Is in conformity with
Council Directive 2004/108/EC (EMC Directive)
Standards to which conformity is declared:
EN 55014-1:2006
+ A1 + A2
Electromagnetic compatibility - Requirements for household appliances, electric
tools and similar apparatus - Part 1: Emission
EN 55014-2:1997
+A1:2001+A2
Electromagnetic compatibility - Requirements for household appliances, electric
tools and similar apparatus - Part 2: Immunity
EN 61000-3-2:2006
+A1 + A2
Electromagnetic compatibility (EMC); Part 3: Limits; Section 2:
Limits for harmonic current emissions (equipment input current ≤16 Ampere
per phase)
EN 61000-3-3:2008
Electromagnetic compatibility (EMC); Part 3: Limits; Section 3:
Limitation of voltage fluctuation and flicker in low-voltage supply systems for
Equipment with rated current ≤ 16 Ampere.
EC-Declaration of Conformity
CE marking
We, Manufacturer/Importer
(full address)
STL Group BV
Ankerkade 20
5928PLVenloNL
declare that the product
(description of the apparatus, system, installation to which it refers)
Electric Oven
Ices model IEO-42LCR50
Is in conformity with
Council Directive 2006/95/EC (Low Voltage Directive)
Standards to which conformity is declared:
EN60335-1:2012+
EN 60335-2-9:2003
+A1+A2+A12+A13
EN62233:2008
Safety requirements for mains operated household and related products
Manufacturer/Importer STL-group BV
Date:
March 15-2013
Signature:
Name:
iCES®

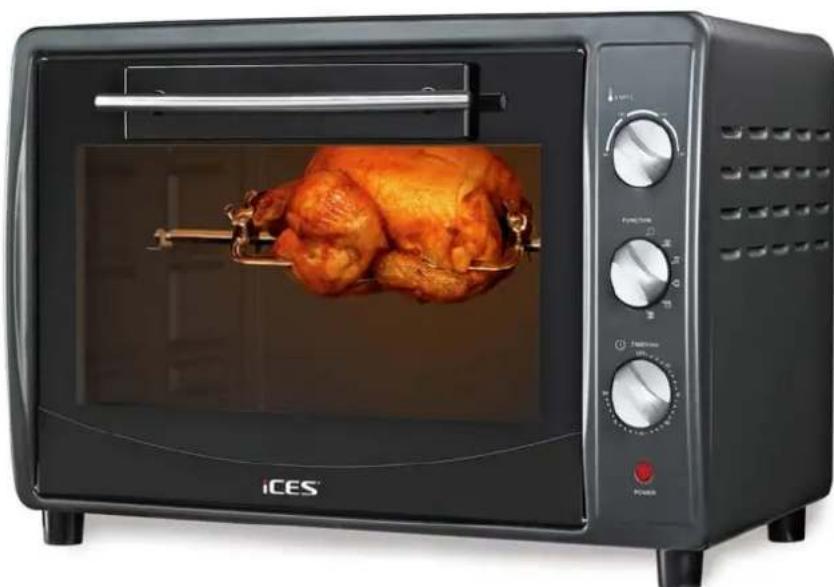

ELECTRIC OVEN ELECTRIC OVEN
Instruction Manual Instruction Manual
Model Model GEO-42LCR50
Thank you purchasing this electric oven. Please read this instruction manual carefully and follow the instructions. Please keep this instruction manual for future reference.
www.ices-electronics.com
ATTENTION AND INDICATION
※ Before using, please read and follow the indication carefully
| WARNING | |
| This is a domestic electrical product, which must only be used for its intended purpose, in accordance with these instructions. This product should never be used in a commercial environment. | |
| Domestic electrical products are not designed for use by children! Any child using a domestic electrical product should be closely supervised by a responsible adult to ensure all instructions and safety precautions are adhered to. | |
| Before use, please check that whether the utensils and foods are suitable for use in ovens, | |
| * DO NOT block oven air vents if the vents blocked during operation, the oven may overheat! | The oven must be placed on a flat stable surface. The oven must have sufficient air flow. Allow 30cm of space on the top of oven, 10cm at back and on both sides. |
| If the oven is positioned too close to a wall, the wall will be burned or stained. Be sure the curtain, etc., are not in contact with the appliance. | |
| Do not put anything between the bottom of the body and the surface on which it is placed. An object so placed could be burned | |
REMARKS
If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid power hazard
| WARNING | |
| AC power must be connected to a properly-wired outlet. Insert the plug completely into the socket; if it is not, it could become abnormally hot. Do not use an electric light outlet. Never connect multiple plugs to the same outlet. Do not immerse cord or plug in water. | |
| Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended. A malfunction could cause a fire while the plug is inserted into the outlet. | |
| When unplugging the cord, always take hold of the plug itself. Never pull on the cord. Doing so could break the wires inside the cord. | |
| Do not put anything on the oven while using it. The heat could cause deformation, cracking, etc. | |
| Do not place anything heavy on the open door. It may cause the falling of the appliance. | |
| Be careful! Not to burn yourself during use or immediately after use. The metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when opening and closing the door. | |
| WARNING |
| Always use the Tray Handle when inserting or removing the tray. Touching directly will cause severe burns. |
| Do not apply water to the Glass Door during hot. It may cause the breakage of the glass. |
| When cooking oil-splashing dishes such as roast chicken, it is recommended to put 2 sheets of aluminum foils on a tray in order to diminish oil splashing. Put one sheet on a tray. Then oil will drip to a gap between foils. |
| Do not put anything on top / close to the heating elements (Upper and Lower), the food will scorch. Always put the Bake Tray to the Fourth Rack support to avoid the juice or crumb dropping to the heating element. |
| Do not use any inflammable substance near an operating electrical appliance. Put the pressurized container and any other Flammable gases far away from the operating appliance. It may cause fire and explosion. |

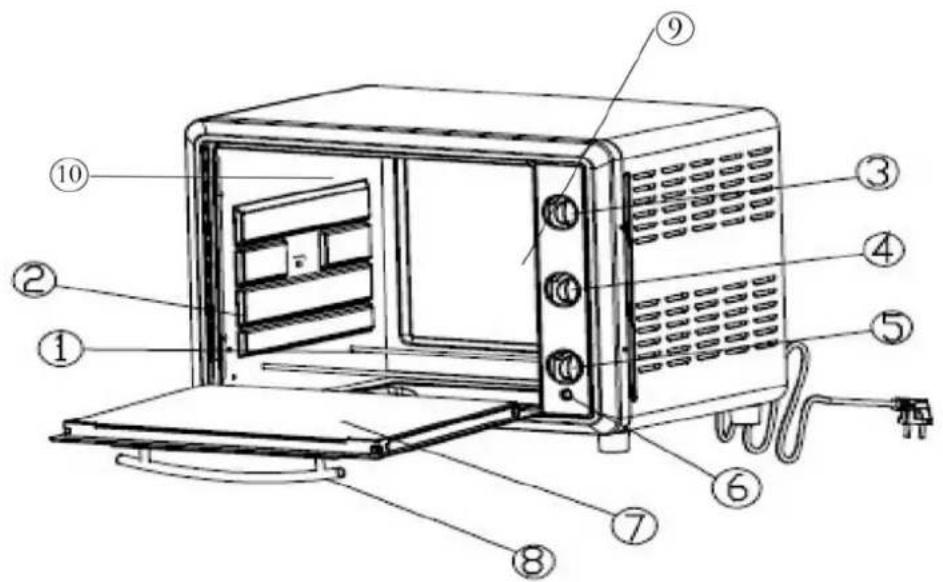

PARTS IDENTIFICATION
| 1.Heating Element | 5.Timer | 9.Lamp |
| 2.Shelf Position | 6.Glass Door | 10.self-deoming cavitg |
| 3.Temperature Control | 7.Door Handle | |
| 4. Function Selector | 8.Indicator Light |

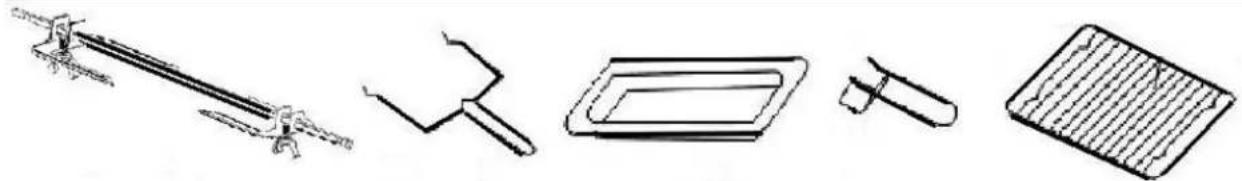

ACCESSIONS
| Rotisserie Forks | Rotisserie Handle | Bake Tray | Tray Handle | Wire Rack |

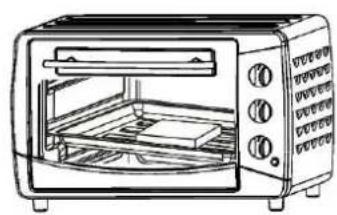

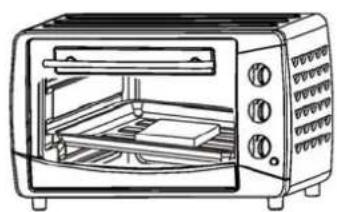

BRIEF INSTRUCTION
1 Well inserted the plug to the correct Socket.
2 Put the food on the Wire Rack or Bake Tray or Rotisserie Forks, and then close the glass door.

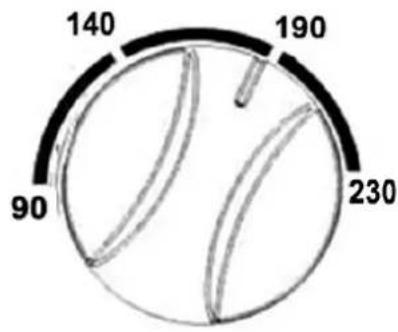

3 Set the "Temperature Control" by turning clockwise to select the suitable temperature according to the dishes you are going to cook.
Temperature Control

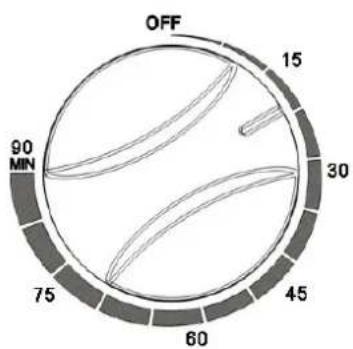

5 Set the "Timer" to the number which indicates the cooking time (minutes). Now, the oven is working, beware of the HOT surface, and DO NOT open the glass door during cooking!
Timer
6 The oven will turn off automatically at the end of the selected time and a bell will ring. Please take out the food carefully and enjoy your food.
4 Set the "Function Selector" by turning clockwise to select the suitable heating function. "indicated no function.
Function Selector
Upper & Lower Heating + Convection Function
Upper Heating Convection Function
Upper & Lower Heating
Upper Heating + Rotisserie Function
Upper & Lower Heating + Convection & Rotisserie Function
7 Take off the plug after use, or whenever the unit is to be left unattended. Cool down before cleaning.
| Bake Tray and Wire Rack | ||
| Food(For Ref. only) How to use Tray Handle | ||
| Bake Tray *Recommended to use it as crumb tray. | Roast Chicken Wings, Hamburg steak, Gratin, Cake, almost all other oven-cooked foods | |
| Wire Rack | Baked potatoes, Dry food | |
| Bake Tray and Wire Rack | For food which will drip, e.g. boiled fish, etc. | |
| WARNING |
| Be careful when removing the hot liquids. |
| Rotisserie Function | ||
| Use with Rotisserie Forks | Install Rotisserie Forks | |
| With this function, even baking will be provided. | Left | Right |
| Install Rotisserie Forks | Remove Rotisserie Forks | Rotisserie Handle |
Rack Support
You can adjust the Tray at 3 different positions according to the dishes you want to cook. For instance, when making macaroni gratin and you want to have the top part cooked the most, use the second or the second rack support.

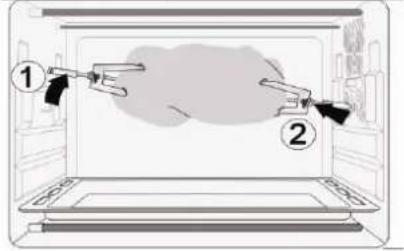

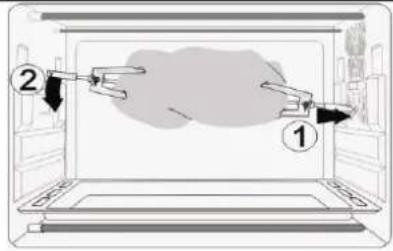

Install the Rotisserie Forks to the rotisserie hole, and then put it to the rotisserie tray.
Use Rotisserie Handle to take out the Rotisserie Forks from the rotisserie tray, and then remove it from the rotisserie hole. CAUTION: Beware of HOT dripping oil!
Please always use Rotisserie Handle to take out the Rotisserie Forks.

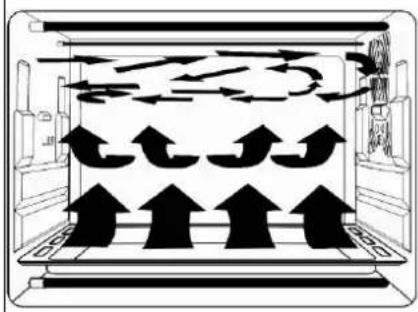

Convection Function
Featured with a special convection function, strong and absolute cycling airflow by making the heating more complete. Original flavor can be kept.
WARNING
Be careful when removing the hot liquids. There may be some smoke and burning smell at the first time, but this is not malfunction.
NOTE
If the inner cabinet is dirty, cooking may take slightly longer than usual.
BAKING REFERENCE OF COMMON FOOD (Reference Only)
| Type Of Food | Temperature(℃) | Rack Support | Time (MIN) |
| Bread 180 | Third 9-13 | ||
| Cake 180 | Second 25-35 | ||
| Fish 230 | Second 10-15 | ||
| Chicken/Duck | 220-230 | Second 30-45 | |
| Pancake | 160 | Top | 7-10 |
| Beef | 230 Second | 8- | 15 |
| Egg/Peanut | 125-150 | Second | 6-10 |
| Hot Dog | 200 Second | 6- | 10 |
| Hamburger | 230 Second | 10-14 |
METHOD OF CLEANING
| Take off the plug and all parts are totally cool down before cleaning. | |
| Wash the interior and exterior surface, tray, grid, and food fork with soft cotton (or sponge) with neutral cleaner when cleaning. Then wash with clean water. Do not use hard brush or any others to wash, so as not to scrape the interior surface of the oven, and to protect the tray, the net and the food fork. | |
| Do not use the toxic and abrasive cleaners such as gasoline, polishing powder, solvent. | |
| Take out the wire rack, put the mild cleaner or kitchen lotion to water, soak the wire rack into water, and then use the soft sponge for cleaning. Lastly, rinse thoroughly with clean water and dry it before storage. | |
| Take out the baking tray, put the mild cleaner or kitchen lotion to water, soak the baking tray into water, and then use the soft sponge for cleaning. Lastly, rinse thoroughly with clean water and dry it before storage. |
Put the cleaning cloth into the clean water, take out and dry the cloth, then begin to use it to clean the outer and inner (including the window and heating element) of the unit. Lastly, dry the unit with a clean cloth.7KHFDYLW LVFRDWHG Z LWK VHOI F0HDQLQJ P DWHULDO 7KLVP DWHULDOKDVD DVSHFLDHQ] \ PHZKLFKFDQ GHFRP SRVHOWKH RLOP R0HFXOHV7KXVWKUH LVQRQHHG WFOHDQLWZ LWKGXVWHU FORWK DIWHU FRRNLQJ
| WARNING |
| ·Use only recommended attachments. |
| ·If this product stops working unexpectedly, switch off and unplug the product immediately. Seek professional advice before attempting to re-use the product. |
| ·To avoid the risk of electrical shocks, DO NOT disassemble or attempt to repair appliance, but return it to your retailer or to one of our authorized service centres for examination and or repair. |
SPECIAL WARNING
The temperature of the accessible surface may be high when the appliance is operation.
Important precautions Please read carefully all these instructions
This appliance is not intended to be put in operation using an external timer or an external remote control system.
This appliance is not aimed to be used by persons (including children) whose physical, sensitive or mental abilities are reduced, or who don't have knowledge or experience of its use, unless they have been previously instructed about the use of this appliance, or are under surveillance of someone responsible for their safety.
This appliance can be used by children from 8 years old and the people with little experience or knowledge or whose physical, sensorial or mental abilities are reduced, if they have been trained and supervised regarding the safe use of this appliance and are aware of the risks. Children should not play with this appliance. The cleaning and maintenance by the user should not be made by children unless they are over 8 years old and under supervision.
Keep this appliance and the power cord away from children under 8 years old.
Your appliance was intended for domestic use only. It was not designed to be used in the following cases which are not covered by the warranty: -
- In kitchen spaces for the staff in shops, offices and other work environment,
In farm houses - By the guests in hotels, motels and other residential type environments,
- In environments such as Bed & Breakfasts.
If the power cable is damaged, it must be replaced by the producer, its support service center or persons with similar qualification so as to prevent any risk.
Service and support
For information: http://www.ices-electronics.com/
For support: http://icesupport.zendesk.com
ICES helpdesk:
Germany 0900-1520530 (Local charges)
The Netherlands 0900-23553626 (Local charges + 1ct P/min)
Belgium 02-6200115 (Local charges)
France 0170480005 (Local charges)
The helpdesk is accessible from Monday to Friday from 9 AM till 6 PM.
In case your device needs repair, our helpdesk will redirect you to your local dealer.
ICES offers service and warranty in accordance to European law, which means that in case of repair (both during and after the warranty period), you should contact your local dealer.
Please note: It is not possible to send products directly to ICES for repair.
Important note: If this unit will be opened, or accessed in any way by a non-official service center, the warranty expires immediately.
This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural
resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).
C E
Products with the CE marking comply with the EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community.
All rights reserved
EC-Declaration of Conformity
CE marking
We, Manufacturer/Importer
(full address)
STL Group BV
Ankerkade 20
5928 PL Venlo NL
declare that the product
(description of the apparatus, system, installation to which it refers)

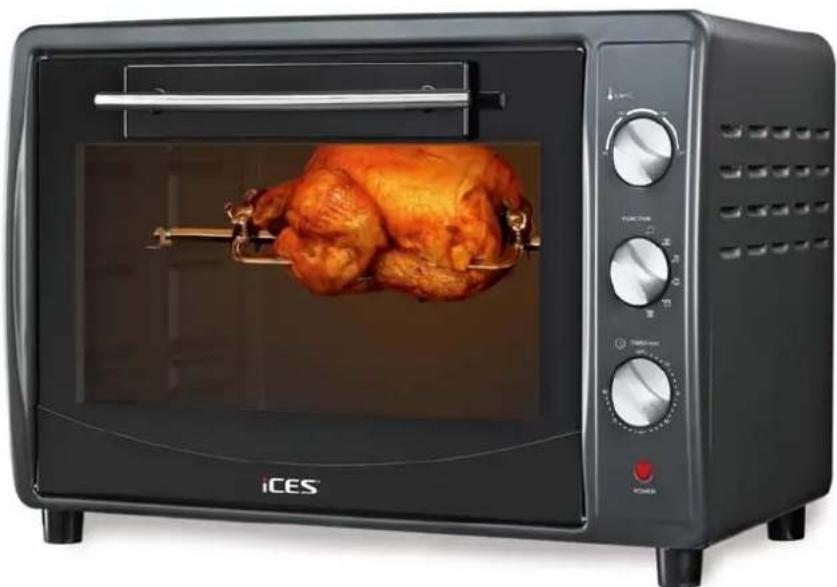

Electric Oven
Lenco model IEO-42LCR50
Is in conformity with
Council Directive 2004/108/EC (EMC Directive)
Standards to which conformity is declared:
EN 55014-1:2006
+ A1 + A2
Electromagnetic compatibility - Requirements for household appliances, electric
tools and similar apparatus - Part 1: Emission
EN 55014-2:1997
+A1:2001+A2
Electromagnetic compatibility - Requirements for household appliances, electric
tools and similar apparatus - Part 2: Immunity
EN 61000-3-2:2006
+A1+A2
Electromagnetic compatibility (EMC); Part 3: Limits; Section 2:
Limits for harmonic current emissions (equipment input current ≤16 Ampere
per phase)
EN 61000-3-3:2008
Electromagnetic compatibility (EMC); Part 3: Limits; Section 3:
Limitation of voltage fluctuation and flicker in low-voltage supply systems for
Equipment with rated current ≤ 16 Ampere.
EC-Declaration of Conformity
CE marking
We, Manufacturer/Importer
(full address)
STL Group BV
Ankerkade 20
5928PLVenloNL
declare that the product
(description of the apparatus, system, installation to which it refers)
Electric Oven
Ices model IEO-42LCR50
Is in conformity with
Council Directive 2006/95/EC (Low Voltage Directive)
Standards to which conformity is declared:
EN60335-1:2012+
EN 60335-2-9:2003
+A1+A2+A12+A13
EN62233:2008
Safety requirements for mains operated household and related products
Manufacturer/Importer STL-group BV
Date:
March 15-2013
Signature:
Name:
iCES®
HORNO ELECTRICOHORNO ELECTF
www.ices-electronics.com
ATENCIONES E INDICACIONES
Función especial de convecction, con la que una potente y total circulación de aireSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEOOEEOSEoo
ADVERTENCIA
EC-Declaration of Conformity
CE marking
We, Manufacturer/Importer
(full address)
STL Group BV
Ankerkade 20
5928PLVenloNL
declare that the product
(description of the apparatus, system, installation to which it refers)
Electric Oven
Lenco model IEO-42LCR50
Is in conformity with
Council Directive 2004/108/EC (EMC Directive)
Standards to which conformity is declared:
EN 55014-1:2006
+ A1 + A2
Electromagnetic compatibility - Requirements for household appliances, electric
tools and similar apparatus - Part 1: Emission
EN 55014-2:1997
+A1:2001+A2
Electromagnetic compatibility - Requirements for household appliances, electric
tools and similar apparatus - Part 2: Immunity
EN 61000-3-2:2006
+A1+A2
Electromagnetic compatibility (EMC); Part 3: Limits; Section 2:
Limits for harmonic current emissions (equipment input current ≤16 Ampere
per phase)
EN 61000-3-3:2008
Electromagnetic compatibility (EMC); Part 3: Limits; Section 3:
Limitation of voltage fluctuation and flicker in low-voltage supply systems for
Equipment with rated current ≤ 16 Ampere.
EC-Declaration of Conformity
CE marking
We, Manufacturer/Importer
(full address)
STL Group BV
Ankerkade 20
5928PLVenloNL
declare that the product
(description of the apparatus, system, installation to which it refers)
Electric Oven
Ices model IEO-42LCR50
Is in conformity with
Council Directive 2006/95/EC (Low Voltage Directive)
Standards to which conformity is declared:
EN 60335-1:2012+
EN 60335-2-9:2003
+A1+A2+A12+A13
EN62233:2008
Safety requirements for mains operated household and related products
Manufacturer/Importer STL-group BV
Date:
March 15-2013
Signature:
Name:
