USER MANUAL CitiZ & Milk TX 270 Turmix

Nespresso, an exclusive system creating the perfect Espresso, time after time.

All machines are equipped with a unique extraction system that guarantees up to 19 Bar pressure. Each parameter has been calculated with great precision to ensure that all the aromas from each Grand Cru can be extracted, to give the coffee body and create an exceptionally thick and smooth crema.

These instructions are part of the appliance. Read all instructions and all safety instructions before operating the appliance.

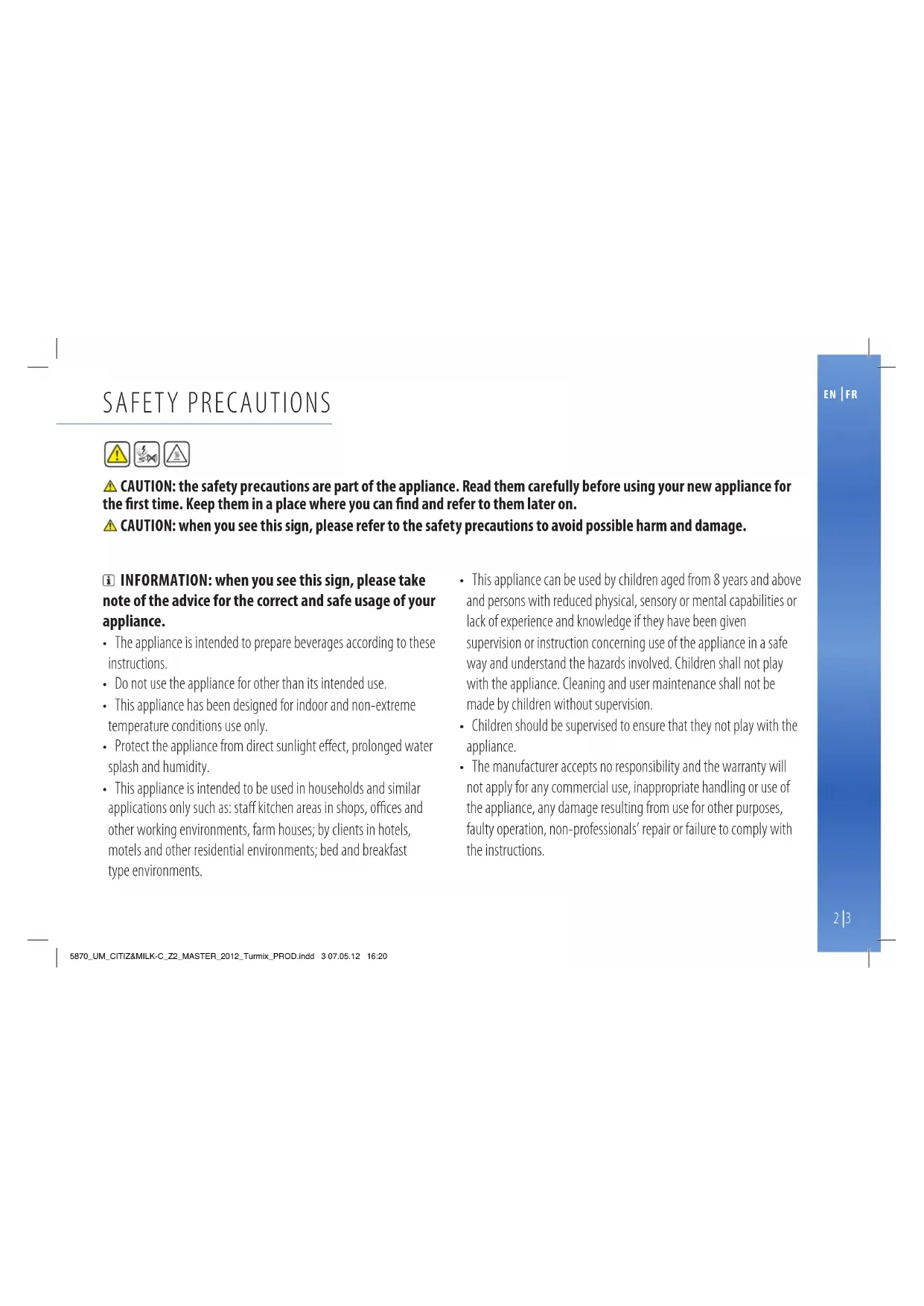

CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.
CAUTION: when you see this sign, please refer to the safety precautions to avoid possible harm and damage.

i INFORMATION: when you see this sign, please take note of the advice for the correct and safe usage of your appliance.

• The appliance is intended to prepare beverages according to these instructions.
• Do not use the appliance for other than its intended use.
• This appliance has been designed for indoor and non-extreme temperature conditions use only.
• Protect the appliance from direct sunlight effect, prolonged water splash and humidity.

• This appliance is intended to be used in households and similar applications only such as: staff kitchen areas in shops, offices and other working environments, farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Children should be supervised to ensure that they not play with the appliance.

• The manufacturer accepts no responsibility and the warranty will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operation, non-professionals' repair or failure to comply with the instructions.

SAFETY PRECAUTIONS

Avoid risk of fatal electric shock and fire.

• In case of an emergency: immediately remove the plug from the power socket.
• Only plug the appliance into suitable, easily accessible, earthed mains connections. Make sure that the voltage of the power source is the same as that specified on the rating plate. The use of an incorrect connection voids the warranty.

The appliance must only be connected after installation.

• Do not pull the cord over sharp edges, clamp it or allow it to hang down.
• Keep s the cord away from heat and damp.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons.
• If the cord is damaged, do not operate the appliance.
• Return the appliance to the Nespresso Club or to a Nespresso authorized representative.
• If an extension cord is required, use only an earthed cord with a conductor cross-section of at least 1.5mm^2 or matching input power.
• To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open flame, or similar.

• Always place it on a horizontal, stable and even surface. The surface must be resistant to heat and fluids, like water, coffee, descaler or similar.
- Disconnect the appliance from the mains when not in use for a long period. Disconnect by pulling out the plug and not by pulling the cord itself or the cord may become damaged.
- Before cleaning and servicing, remove the plug from the mains socket and let the appliance cool down.
- Never touch the cord with wet hands.
- Never immerse the appliance or part of it in water or other liquid.
- Never put the appliance or part of it in a dishwasher.
- Electricity and water together is dangerous and can lead to fatal electrical shocks.
- Do not open the appliance. Hazardous voltage inside!
- Do not put anything into any openings. Doing so may cause fire or electrical shock!

Avoid possible harm when operating the appliance.

• Never leave the appliance unattended during operation.
• Do not use the appliance if it is damaged or not operating perfectly. Immediately remove the plug from the power socket. Contact the Nespresso Club or Nespresso authorized representative for examination, repair or adjustment.

SAFETY PRECAUTIONS

• A damaged appliance can cause electrical shocks, burns and fire.
• Always completely close the lever and never lift it during operation. Scalding may occur.
- Do not put fingers under coffee outlet, risk of scalding.
- Do not put fingers into capsule compartment or the capsule shaft. Danger of injury!
• Water could flow around a capsule when not perforated by the blades and damage the appliance.
- Never use a damaged or deformed capsule. If a capsule is blocked in the capsule compartment, turn the machine off and unplug it before any operation. Call the Nespresso Club or Nespresso authorized representative.
• Always fill the water tank with cold, fresh drinking water.
- Empty water tank if the appliance will not be used for an extended time (holidays,etc.).
- Replace water in water tank when the appliance is not operated for a weekend or a similar period of time.
- Do not use the appliance without the drip tray and drip grid to avoid spilling any liquid on surrounding surfaces.
- Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the appliance.
- When unpacking the machine, remove the plastic film and dispose.

• This appliance is designed for Nespresso coffee capsules available exclusively through the Nespresso Club or your Nespresso authorized representative. Nespresso quality is only guaranteed when Nespresso capsules are used in Nespresso appliances.
• For your own safety, you should only use parts and appliance accessories from Nespresso that are designed for your appliance.
• All Nespresso appliances pass stringent controls. Reliability tests under practical conditions are performed randomly on selected units. This can show traces of any previous use.
• Nespresso reserves the right to change instructions without prior notice.

SAFETY PRECAUTIONS

Descaling

- Nespresso descaling agent, when used correctly, helps ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day. For the correct amount and procedure to follow, consult the user manual included in the Nespresso descaling kit.

SAVE THESE INSTRUCTIONS

Pass them on to any subsequent user.

This instruction manual is also available as a PDF at nespresso.com

CONSIGNES DE SECURITE

This machine is equipped with an energy saving feature. The machine will automatically enter power off mode after 9 minutes.

Simple line drawing of two circular icons with a crown, no text or symbols present

Two finger icons with circular buttons, no text or symbols present

To turn the machine off before automatic Power Off mode, press both the Espresso and Lungo button simultaneously. Pour éteindre la machine avant mise en veille automatique, appuyez simultanément sur les boutons Espresso et Lungo.

To change this setting: Pour modifier ce réglage:

Simple line drawing of a finger pressing a button with a circular button (no text or symbols)

1. With machine being turned off, press and hold the Espresso button for 3 seconds.

2. Avec la machine éteinte, appuyez et maintenez le bouton Espresso pendant 3 secondes.

Blue icon of a sun with a triangular symbol inside, no text or numbers present

Simple line drawing of a finger pressing a button with a small circular icon (no text or symbols)

Simple line drawing of a finger pressing a button with a small icon (no text or symbols)

Product photo of a black and gray handheld device with two cylindrical stands (no visible text or symbols)

1. Place a container (min. 1 L) under coffee outlet.
2. Placez un récipient (min. 1 L) sous la sortie café.

White flatbed surface with a blue arrow pointing to it, no text or symbols visible

1. Remove the plastic film from the drip grid.
2. Retirer le film plastique de la grille d'égouttage.

Simple line icon of a power plug with a square socket and two pins (no text or symbols)

Illustration of a hand pouring liquid into a container (no text or symbols)

Simple line drawing of a hand holding two circular objects with 'P' symbols (no text or labels)

Two identical blue circular icons with sun-like patterns, each containing a coffee cup symbol (no text or labels)

Simple line drawing of a finger holding a cup with the number 3X below (no text or symbols on the diagram itself)

Illustration of a hand pouring liquid into a container (no text or symbols)

Blue line icon of a finger holding two circular icons with '立' symbols (no text or numbers present)

Two blue circular icons with sun-like patterns, each containing a coffee cup icon, above two smaller circles (no text or symbols)

Close-up of a black mechanical component with blue motion indicators (no text or symbols visible)

⚠ caution: never lift lever during operation and refer to the safety precautions to avoid possible harm when operating the appliance.

Simple line drawing of a finger holding two circular buttons (no text or symbols)

Close-up of a black industrial machine with a brush applying liquid to a white cup (no visible text or symbols)

Close-up of a black mechanical component with blue directional arrows indicating motion or force (no text or symbols)

PROGRAMMING THE WATER VOLUME/ PROGRAMMATION DU VOLUME D'EAU

Simple line drawing of a hand holding two circular objects with a cup, no text or symbols present.

Close-up of a black mechanical component with blue tubing and a circular mark (no visible text or symbols)

Close-up of a black industrial machine with a blue brush applying white material (no visible text or symbols)

Simple line drawing of a finger holding two circular icons with 'P' and 'C' symbols (no text or labels)

3D rendering of a mechanical device with a blue arrow indicating a component (no text or symbols visible)

Illustration of a spray can pouring liquid into a cylindrical container (no text or symbols visible)

Milk frother's maximum level indicated:

Milk froth 2 Nespresso Cappuccino cups

1

Nespresso Recipe glass

Hot milk 2 Nespresso Recipe glasses

Milk frother's minimum level:

Make sure to cover the base of whisk/mixer

Close-up of a mechanical component with a blue arrow pointing to a cylindrical part (no visible text or symbols)

Press button to start. Lamp lights up. Milk frother stops automatically.

TIP: use cold and newly opened UHT, full-fat or semi-skimmed milk.

Prepare an Espresso in a Cappuccino cup and add hot milk froth. Add sugar and sprinkle with cocoa if desired.

Proportions:

√ hot milk froth

/Espresso

- Recommended with Ristretta, Arpeggio or Decaffeinato Intenso.

Fill a tall glass with hot milk froth. Prepare an Espresso and pour it slowly down the inside of the tall glass (350 ml) to produce a graduation of coffee colour through the milk and a three-layer effect (hot milk at the base, coffee, topped with milk froth).

Proportions:

2/ hot milk froth

1/3 Espresso

• Recommended with Ristretto, Arpeggio or Decaffeinato Intenso.

Prepare a Lungo in a tall glass (350 ml) and add hot milk. Add sugar if desired.

Proportions:

√ hot milk

V Lungo

- Recommended with Vivalto Lungo or Decaffeinato Lungo.

Iced Cappuccino Iced Cappuccino

Prepare a Lungo in a tall glass (350 ml) and add sugar if desired. Pour this into a tall glass together with four to five crushed ice cubes. Prepare cold milk froth using the milk frother. Carefully add three to four tablespoons of frothed milk to the top of the glass. Sprinkle with cinnamon, nutmeg or cocoa if desired.

Proportions:

12 cold milk froth

A Lungo

• Recommended with Vivalto Lungo or Decaffeinato Lungo.

Two blue line-drawn icons of fingers holding circular buttons (no text or symbols)

Close-up of a black mechanical component with a blue arrow indicating rotation (no text or symbols visible)

Two blue line-drawn icons of fingers holding circular buttons (no text or symbols)

1. Press both the Espresso and Lungo button for 3 seconds.
2. Appuyez simultanément sur la touche Espresso et Lungo pendant 3 secondes.

Four blue circular icons with sunburst or flame-like patterns, no text or symbols present.

Both LEDs blink alternatively. Les deux voyants clignotent alternativement.

Close-up of a black mechanical component with a blue arrow indicating a specific part (no text or symbols visible)

Simple line drawing of a finger pressing a circular button with a small symbol (no text or labels)

1. With machine being turned off, press and hold down the Lungo button for 5 seconds.

2. Avec la machine éteinte, appuyez et maintenez enfoncé le bouton Lungo pendant 5 secondes.

Two blue circular icons with sunburst lines, each containing a coffee cup and a lightbulb symbol, labeled '3X' below (no text or numbers on icons)

Four blue circular icons with sun and cup symbols, no text or labels present

Power Off mode: 9 min

This machine is equipped with a descaling alarm. When both LEDs blink during ready mode, your machine needs descaling.

NOTE: duration approximately 15 minutes.

Close-up of a black mechanical component with blue directional arrows indicating motion or force (no text or symbols)

1. Remove the capsule and close the lever.
2. Retirer la capsule et fermez le levier.

Two 3D-rendered mechanical components with metallic surfaces, no visible text or symbols

Illustration of a hand pouring liquid into a container with a barcode tag (no text or symbols)

3D rendered image of a handheld electronic device with black and white casing (no visible text or symbols)

1. Place a container (min. volume 1 L) under the coffee outlet.
2. Placez un récipient (min. 1 litre de volume) sous la sortie café.

Two finger icons with blue circular buttons, no text or symbols present

Two blue circular icons with radiating lines, resembling stylized suns or logos (no text or symbols)

Simple line drawing of a finger pressing a button with a small circular icon (no text or symbols)

Diagram of a mechanical component with a curved pipe and blue motion arrow (no text or symbols)

Illustration of a hand pouring liquid into a cylindrical container (no text or symbols)

Two finger icons with circular buttons, no text or symbols present

Risk of fatal elec trical shock and fire.

Never immerse the appliance or part of it in water.

Be sure to unplug the machine before cleaning.

Do not use any strong cleaning agent or solvent cleaner.

Do not use sharp objects, brushes or sharp abrasives.

Do not place in a dishwasher.

ATTENTION

Simple line drawing of a hand holding a triangular object (no text or symbols)

Clean the coffee outlet regularly

with a soft clamp cloth.

Close-up of a black and white electronic device with a grid-like top component (no visible text or symbols)

Maintenance unit can be

removed in separate pieces

for easy cleaning.

3D rendering of a mechanical device with a blue arrow indicating rotation (no text or symbols visible)

3D rendering of a cylindrical mechanical component with a blue arrow indicating rotation or force (no text or symbols)

No light indicator.	→ Check the mains, plug, voltage, and fuse. In case of problems, call the Nespresso Club.
No coffee, no water.	→ First use: fill water tank with warm water (max. 55°C) and run through machine according to instructions on page 13.→ Water tank is empty. Fill water tank.→ Descale if necessary; see Descaling section.
Coffee comes out very slowly.	→ Flow speed depends on the coffee variety.→ Descale if necessary; see Descaling section.
Coffee is not hot enough.	→ Preheat cup.→ Descale if necessary.
Capsule area is leaking(water in capsule container).	→ Position capsule correctly. If leakages occur, call the Nespresso Club.
Irregular blinking.	→ Send appliance to repair or call the Nespresso Club.
No coffee, just water runs out (despite inserted capsule).	→ In case of problems, call the Nespresso Club.
Both LEDs blink during ready mode.	→ Proceed to descaling.

As we may not have foreseen all uses of your appliance, should you need any additional information, in case of problems or simply to seek advice, call the Nespresso Club or your Nespresso authorized representative.

Contact details for your nearest Nespresso Club or your Nespresso authorized representative can be found in the «Welcome to Nespresso» folder in your machine box or at nespresso.com

This appliance complies with the EU Directive 2002/96/EC. Packaging materials and appliance contain recyclable materials.

Your appliance contains valuable materials that can be recovered or can be recyclable. Separation of the remaining waste materials into different types facilitates the recycling of valuable raw materials. Leave the appliance at a collection point. You can obtain information on disposal from your local authorities.

ECOLABORATION: ECOLABORATION.COM/ ECOLABORATION: WWW.ECOLABORATION.COM

WARRANTy and liability: Turmix Nespresso machines are guaranteed in Austria and Switzerland for two years (parts and labour). To claim under this guarantee you will require your store receipt showing the date of purchase. Guarantee claims cannot be accepted if the machine has not been descaled, or has been incorrectly descaled (infrequently, use of inappropriate products). Only the use of Nespresso capsules will guarantee the proper functioning and lifetime of your Nespresso machine. Any defect resulting from the usage of non-genuine Nespresso capsules will not be covered by this warranty.

43 ecolaboRation: ecolaboRation.com/

44 ecolaboRation: ecolaboRation.com 55

46 gaRantie/gaRanZia 56

48

SICHERHEITSHINWEISE

Simple line drawing of a finger holding two circular buttons with a crown symbol (no text or labels)

Two finger icons with circular buttons, no text or symbols present

Simple line drawing of a finger pressing a button with a circular button (no text or symbols)

Blue icon of a sun with a downward arrow inside, no text or symbols present

1. Die Espressotaste blinkt, um die derzeitige Einstellung anzuzeigen.
2. Il pulsante Espresso lampeggerà per indicare l'impostazione corrente.

Simple line drawing of a finger pressing a button with a small circular icon (no text or symbols)

1. Um die Einstellung zu ändern, Espressotaste drücken: Einmaliges Drücken aktiviert die Abschaltautomatik nach 9 Minuten Erneutes Drücken aktiviert die Abschaltautomatik nach 30 Minuten Erneutes Drücken deaktiviert die Abschaltautomatik.
2. Per cambiare l'impostazione premere il pulsante Espresso: Una volta per la modalità di spegnimento dopo 9 minuti Un'altra volta per la modalità di spegnimento dopo 30 minuti Un'ultima volta per disattivare la modalità di spegnimento.

Simple line drawing of a finger pointing to a circular button with a leaf symbol (no text or labels)

Illustration of a hand pouring liquid into a container (no text or symbols)

Product photo of a handheld electronic device with black and silver casing (no visible text or symbols)

White rectangular object with a textured surface and a blue arrow pointing upward (no text or symbols)

Simple line icon of a power plug with a square socket and two terminals (no text or symbols)

Simple line drawing of a hand holding two circular icons with 'P' symbols (no text or labels)

Three blue circular icons with sunburst and megaphone symbols, no text or labels present

Tasten Blinken: Aufheizphase (25 Sekunden) Luci intermittenti: riscaldamento (25 sec)

Simple line drawing of a finger holding a circular object with a handle, labeled '3X' (no text or symbols on the diagram itself)

Illustration of a hand pouring liquid into a container (no text or symbols)

Blue line icon of a finger pressing two circular buttons with icons (no text or symbols)

Two blue circular icons with sun-like patterns, each containing a coffee cup icon, above two smaller circles (no text or symbols)

Close-up of a black mechanical component with blue circular features and a white circular head (no text or symbols visible)

Simple line drawing of a finger holding two circular icons with a cup (no text or symbols)

1. Drücken Sie die Espresso- (40 ml) oder Lungotaste (110 ml). Die Zubereitung stoppt automatisch. Um den Kaffecfluss manuell zu stoppen oder die Kaffreemenge zu vergrößem, drücken Sie emeut.
2. Premere il pulsante Espresso (40 ml) o il pulsante Lungo (110 ml). La preparazione si fermerà automati camente. Per ferrmare l'erogazione di caffè o aumentare la quantità di caffè, premere nuovamente il pulsante.

Close-up of a black mechanical component with blue directional arrows indicating motion or force (no text or symbols)

Close-up of a black industrial device with a blue tool inserted, showing a white cup and a circular dial (no visible text or symbols)

Simple line drawing of a hand holding two circular objects with a cup (no text or symbols)

Close-up of a black mechanical component with blue circular features and a blue handle (no text or symbols visible)

Close-up of a black industrial device with a blue brush applying white material to its side (no visible text or symbols)

Simple line drawing of a finger holding two circular icons with 'P' and 'C' symbols (no text or labels)

3D rendering of a mechanical device with a blue arrow indicating a specific component (no text or symbols visible)

Illustration of a cylindrical container with a blue lid and a transparent box, alongside a circular tray (no text or symbols)

Close-up of a mechanical component with a blue arrow pointing to a cylindrical feature (no visible text or symbols)

Two blue circular icons with leaf symbols on finger tips, no text or numbers present

1. Um das System zu entleeren, drücken Sie gleichzeitig die Espresso- und Lungotaste um die Maschine auszuschalten.
2. Per entrare nella modalità di svuotamento, premere insieme i pulsanti Espresso e Lungo per spegnere la macchina.

Close-up of a black mechanical component with a blue arrow indicating rotation (no text or symbols visible)

Two blue line icons with crown symbols on finger tips, no text or numbers present

Four blue circular icons with sunburst patterns, each containing a stylized icon (no text or symbols)

Beide Tasten blinken abwechselnd. Entrambi i LED lampeggiano alternativamente.

Close-up of a black mechanical component with a blue arrow indicating a specific part (no text or symbols visible)

Simple line drawing of a finger holding a circular object with a small symbol (no text or labels)

Two blue circular icons with sunburst lines, each containing a coffee cup symbol (no text or numbers present)

1. Schnelles, dreimaliges Blinken der Tasten bestätigt das Rücksetzen auf die Werkseinstellung.
2. I LED lampeggeranno velocemente per 3 volte per confermare che la macchina è stata ripristinata con le impostazioni di fabbrica.

Four blue circular icons with sun-like light bulbs, each containing a coffee cup symbol (no text or labels)

Close-up of a black mechanical component with blue directional arrows indicating motion or force (no text or symbols)

Two 3D-rendered mechanical components with no visible text or symbols

Illustration showing a hand pouring liquid into a container with a barcode tag, symbolizing chemical extraction or detection.

1. Füllen Sie den Wassertank mit einem Beutel der Nespresso Entkalkungslösung und 0,5 L Leitungswasser auf.
2. Riempire il serbatoio dell'acqua con 500 ml di acqua potabile e aggiungere 1 soluzione decalcificante Nespresso.

3D rendered image of a handheld electronic device with black and white casing (no text or symbols visible)

Two blue line-drawn icons resembling stylized fingers or fingers with crown symbols, no text or labels present.

1. Um den Entkalkungsvorgang zu starten, drücken Sie im Bereit Modus 3 Sekunden lang gleichzeitig die Espresso- und Lungotaste.
2. Per entrare nella modalità di decalcificazione premere entrambi i pulsanti per 3 secondi, con la macchina accesa.

Two blue circular icons with radiating lines, resembling stylized lightbulbs or arrows, with no text or symbols.

Beide Tasten blinken. Entrambi i LED lampeggiano.

Simple line drawing of a finger pressing a button with a small circular icon (no text or symbols)

Close-up of a white cylindrical object with a blue arrow indicating flow or interaction (no text or symbols visible)

Illustration of a hand pouring liquid into a container (no text or symbols)

Two blue circular icons with 'P' symbols on fingers, no text or numbers present

Illustration of a hand holding a triangular object (no text or symbols)

Black and white photo of a computer mouse with a mesh head and a small inset showing a grid structure (no text or symbols visible)

3D rendering of a mechanical device with a blue arrow indicating a component (no text or symbols visible)

3D rendering of a cylindrical mechanical component with a blue arrow indicating direction (no text or symbols)

ECOLABORATION: WWW.NESPRESSO.COM/ECOLABORATION ECOLABORATION: WWW.ECOLABORATION.COM
