TLWA860RE - Wifi repeater TP-LINK - Free user manual and instructions

Product Type	WiFi Repeater
Brand	TP-Link
Model	TL-WA860RE
Dimensions	87 x 73 x 34 mm
Weight	110 g
Power Supply	100-240 V~, 50/60 Hz (direct mains plug)
WiFi Standard	IEEE 802.11 b/g/n (2.4 GHz)
Maximum Speed	300 Mbps
Ethernet Port	1 RJ45 10/100 Mbps port
Main Functions	WiFi Repeater, WiFi Client, Access Point Mode (via configuration)
Wireless Security	WEP, WPA/WPA2-PSK (TKIP/AES)
Management	Tether App (iOS/Android), Web Interface (http://tplinkrepeater.net)
Physical Button	WPS, Reset (press 5 s)
LED Indicators	Power, WiFi, Signal (3 levels), Ethernet
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% RH (non-condensing)
Care and Cleaning	Unplug the device, clean with a soft dry cloth
Safety	Do not expose to water, fire, or excessive humidity. Do not open the enclosure.
Spare Parts and Repairability	Not user repairable. No spare parts available.
Warranty	3 years (TP-Link)

Frequently Asked Questions - TLWA860RE TP-LINK

How to configure the repeater for the first time?

Plug the repeater near the router, connect your computer to its WiFi network (e.g., TP-Link_Extender), open a browser and go to http://tplinkrepeater.net. Create an admin password, then follow the wizard to select your WiFi network to extend and enter its password.

Why can't I access the configuration page?

Check that your computer is connected to the repeater's network (WiFi or Ethernet). Make sure the IP address is obtained automatically. Try http://192.168.0.254 instead. If the problem persists, reset the repeater (press Reset button for 5 seconds).

How to reset the repeater to factory settings?

Press and hold the Reset button (on the side) for about 5 seconds until the LEDs flash or briefly turn off. Release the button. The repeater will restart with default settings.

What to do if the signal LED is red or off?

A red LED indicates a weak signal. Move the repeater closer to the router. An off LED means there is no connection to the source network. Check that the router is on and the WiFi password entered is correct.

Can I use the repeater with any router?

Yes, the TL-WA860RE is compatible with most routers and WiFi access points operating at 2.4 GHz (802.11 b/g/n standards). It replicates the source network password.

How to optimize the repeater's range?

Place the repeater halfway between your router and the area to cover, in an open location, away from metal obstacles or household appliances. Avoid thick walls.

Can the repeater work in access point mode?

Yes, you can configure it in access point mode via the web interface. Connect it to the router with an Ethernet cable, then follow the instructions to switch to AP mode.

How to update the repeater's firmware?

Log into the web interface, go to System Tools > Firmware Update. Download the latest firmware from the TP-Link website, then select the file and start the update. Do not power off during the process.

What to do if the WiFi password has been changed on the router?

You need to reconfigure the repeater. Log into its web interface, repeat the setup wizard by entering the new source network password.

Is it possible to connect a wired device to the repeater?

Yes, the TL-WA860RE has an Ethernet port. Connect a device (TV, console, computer) to it to connect to the WiFi network via the repeater. This function is called WiFi client mode.

USER MANUAL TLWA860RE TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link France SARL 16-18 avenue Morane Saulnier 78140 Vélizy-Villacoublay France

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. 📄tp-link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2020 TP-Link Technologies Co., Ltd. All rights reserved.

For technical support, the user guide and other information, please visit https://www.tp-link.com/support/, or simply scan the QR code.

7106508577 REV3.0.0

Quick Installation Guide

Wi-Fi Range Extender

*Images may differ from actual products.

Contents

Deutsch----1

English 4

Español 7

Ελληνικά----10

Français----13

Italiano 16

Português 19

Suomi 22

Nederlands 25

Svenska----28

Norsk----31

Dansk 34

1 Einschalten

oder

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Methode 2: Per Webbrowser

Line drawing of five electronic devices: monitor, controller, desktop, WiFi, and router (no text or symbols)

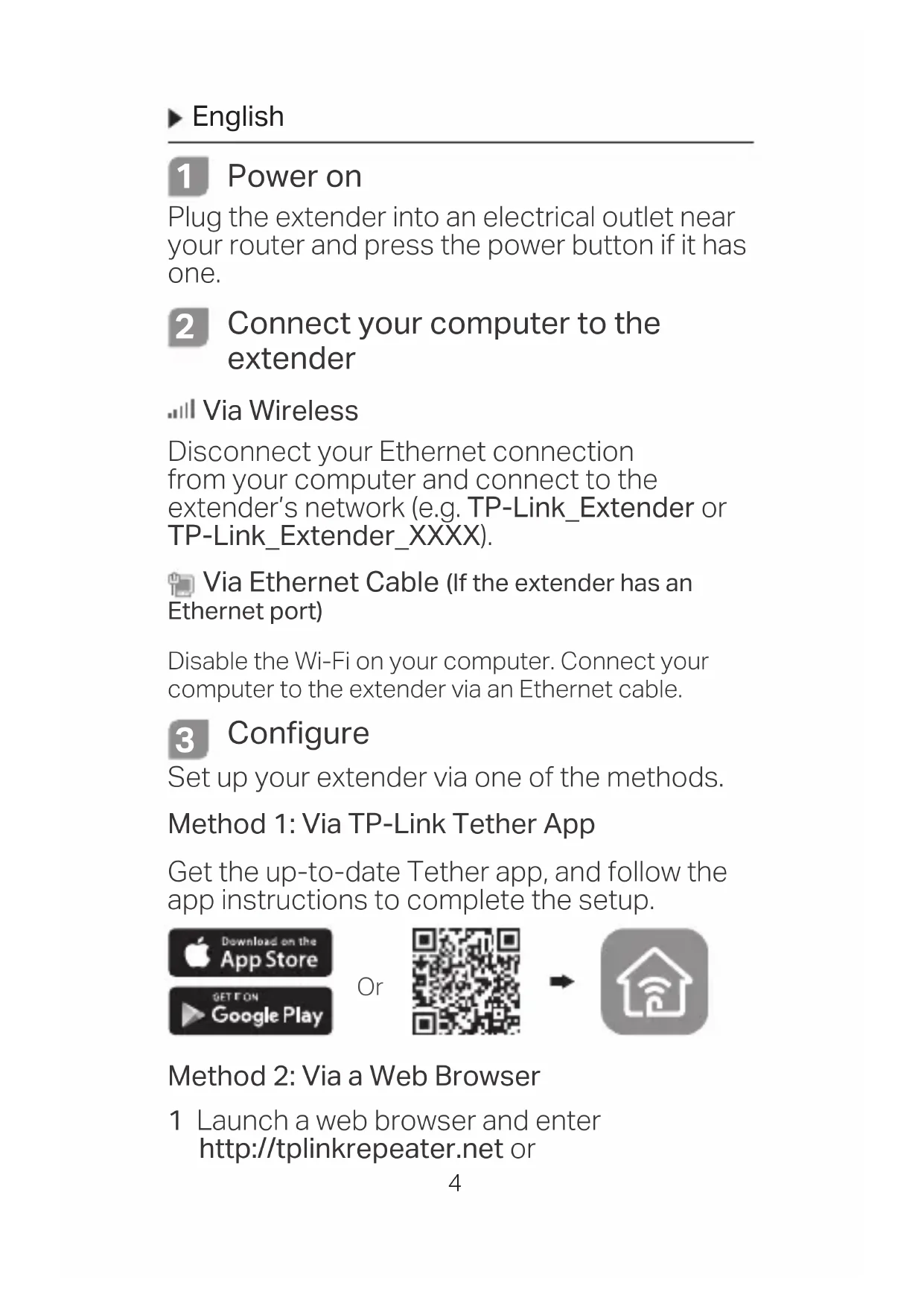

Plug the extender into an electrical outlet near your router and press the power button if it has one.

2 Connect your computer to the extender

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Configure

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Method 2: Via a Web Browser

1 Launch a web browser and enter http://tplinkrepeater.net or

http://192.168.0.254 in the address bar.

Create a password to log in.

2 Follow the instructions on the web page to complete the initial configuration.

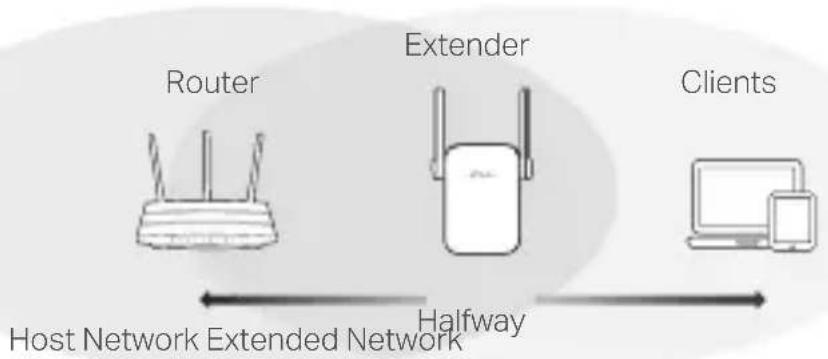

4 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

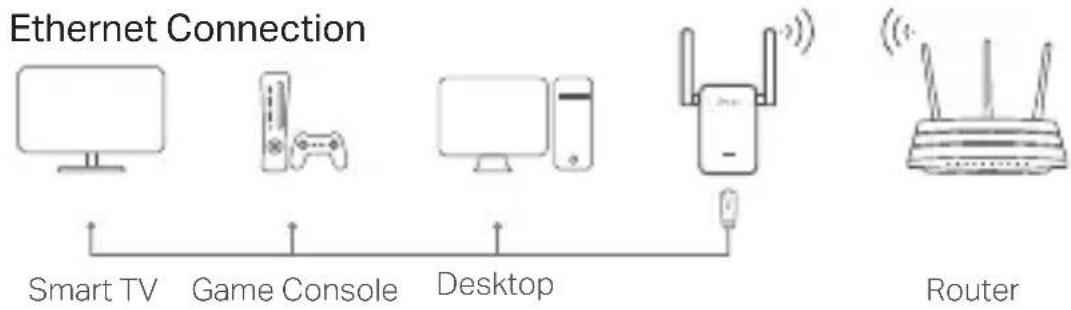

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Encender

Line drawing of five electronic devices connected by lines, including monitor, controller, tower, router, and network (no text or symbols)

Metodo 2: tramite Browser Web

Diagram showing five connected devices: monitor, controller, desktop, router, and network switch (no text or labels)

Ou

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Line drawing of five electronic devices: monitor, controller, desktop, router, and network switch (no text or symbols)

Eller

→

Icon of a house with Wi-Fi signal symbol inside, no text or numbers present

Metode 2: Via a nettleser

- Keep the device away from water, fire, humidity or hot environments.

- Do not attempt to disassemble, repair, or modify the device.

- Do not use the device where wireless devices are not allowed.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Español

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.
