| Product type | Portable Bluetooth radio |
| Brand | Trevi |
| Model | KB 308BT |
| Output power | 2 W (1 x 2 W) |
| Impedance | 4 ohms |
| Power supply | Rechargeable lithium battery via USB 5 V DC |
| Consumption | 2 W (standby < 0.5 W) |
| Charging time | Approximately 3 hours |
| Auxiliary input | 3.5 mm jack socket |
| Bluetooth connectivity | Yes, version unspecified |
| FM radio | Yes, with telescopic antenna |
| USB / Micro SD player | Yes, supports audio files |
| Built-in microphone | Yes, for hands-free calls |
| Display | Digital screen |
| Care and cleaning | Damp soft cloth, avoid solvents and abrasives |
| Safety | Do not expose to water, heat, dust, vibrations; use 5 V max charger; do not charge for more than 6 hours |
| Batteries and recycling | Lithium battery removable by a professional; do not dispose of with household waste |
Frequently Asked Questions - KB 308BT Trevi
User questions about KB 308BT Trevi
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Radio in PDF format for free! Find your manual KB 308BT - Trevi and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KB 308BT by Trevi.

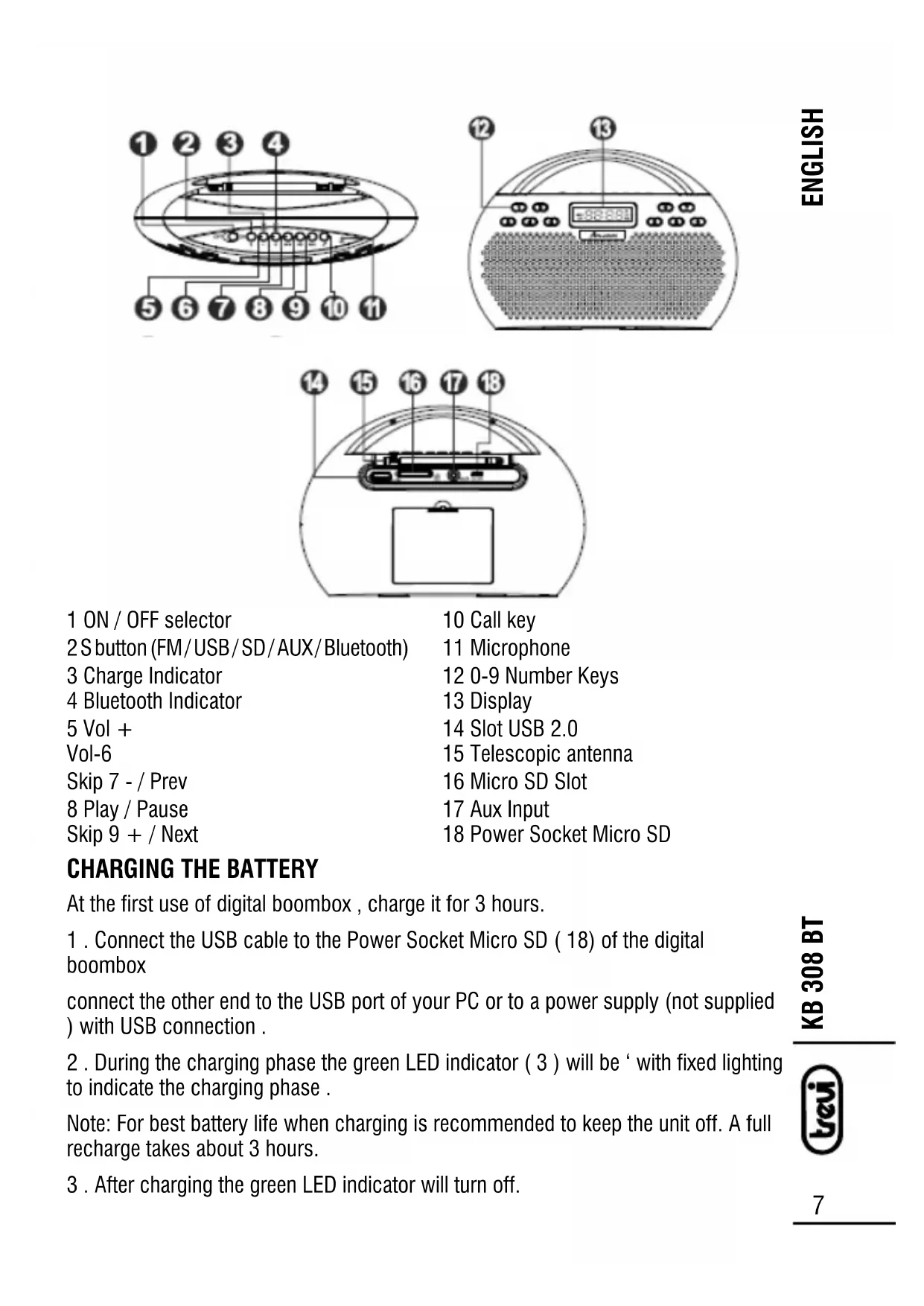

USER MANUAL KB 308BT Trevi
Line IN: ......Presa Jack 3.5mm
At the first use of digital boombox, charge it for 3 hours.
- Connect the USB cable to the Power Socket Micro SD ( 18) of the digital boombox
connect the other end to the USB port of your PC or to a power supply (not supplied) with USB connection .
2 . During the charging phase the green LED indicator ( 3 ) will be ‘ with fixed lighting to indicate the charging phase .
Note: For best battery life when charging is recommended to keep the unit off. A full recharge takes about 3 hours. - After charging the green LED indicator will turn off.
ON/OFF
Move the ON/OFF switch to ON (1), the display will show the last function selected. Move the ON/OFF switch to OFF (1), the device will turn off.
VOLUME ADJUSTMENT
You can adjust the volume of the unit with the volume adjustment buttons.
- Press the + button (5) to increase the volume of the device.
- Press the - key (6) to decrease the volume.
SOURCE SELECTION
First press the S key ( 2 ) to enter the mode USB / Micro SD / FM RADIO / BT / AUX / .
BLUETOOTH OPERATION
COUPLING DEVICES
- Put the machine near to the Bluetooth device to be coupled.
- First press the S key (2) to position BT (Bluetooth), the LED blue (4) will start flashing to indicate pairing mode.
3 . Follow the instructions of your external device to search for the digital boombox . - Search the speaker named " KB 308 BT" and enter the PIN "0000" if prompted.
- Coupled occurred on Blue LED (4) will remain steady.
- To answer a call, press the call button (10)
NOTE: If no device is found, the Blue LED (4) will continue to flash.
RADIO OPERATION
Press the S button (2) until the display shows the FM radio frequency.
Extend the telescopic antenna (15) for better reception of the stations.
SEARCH MANUAL
Press the buttons for a few seconds SKIP- ( 3 ) and SKIP + ( 4 ) to perform a manual search of radio frequencies , the search will stop when issuing a receipt will be stereo.
END SEARCH
Press the SKIP- ( 3 ) and SKIP + (4) to increase or decrease the frequency of 0.1 MHz
AUTOMATIC RECORDING OF STATIONS
To store stations automatically hold for 2 seconds, the PLAY / PAUSE button and automatically starts scanning.
STORAGE MANUAL STATIONS
- To save a radio station, press the PLAY / PAUSE button and then use the SKIP keys - (3) and SKIP + (4) to select the preset number you want. The radio station is now saved to the chosen location. You can save up to 40 radio stations.
- To recall a preset station number using the numeric keypad. Note: To get the best FM reception, extend the antenna (12). If the reception is not good otherwise try to adjust the length of the antenna, however the quality of FM reception depends on the place where the device is placed.
The proximity of TV sets , fluorescent lamps , or other appliances may cause interference in the reception of radio programs , in this case removed the radio player .
- Insert the USB memory into the USB port (14).
2 . First press the S button ( 2 ) until you see the heading USB , wait
few seconds for the external player loads all the files .
3. Playback will start automatically.
4. To insert a pause, press the key once the PLAY/PAUSE(8).
5. To release the pause, press a second time the PLAY / PAUSE button (8).
6. To reverse / forward quickly listening to a song, press and hold the SKIP - (7) and SKIP + (9).
7. To switch to the playback of the previous / next track, press the SKIP - (7) and SKIP + (9).
8. To select a track type in the number using the numeric keys (12).
OPERATION AUX
1 . Connect the cable jack adapter (not supplied ) into the audio output of your device : smartphones , tablets , multimedia players , inserting the other end into the AUX ( 17 ) of the player .
2. First press the S button (2) until you see the item AUX.
3. To enable playback of the external source, refer to the manual of the connected device.
IMPORTANT SAFETY INSTRUCTIONS
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
When the USB cable is used as the disconnect device, the disconnect device shall remain readily operable. To be completely disconnected the power input, the USB cable shall be disconnected from the power source completely.
No naked flame sources, such as lighted candles, should be placed on the apparatus. Minimum distances 2.0cm around the apparatus for sufficient ventilation. The ventilation should
not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
The use of apparatus is in tropical and/or moderate climates.
Attention should be drawn to the environmental aspects of battery disposal.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
The marking plate is located at the back or the bottom of the apparatus.
Precautions for correct disposal of the product.
The symbol shown on the equipment indicates that waste must be disposed of in "separate collection" and so the product must not be disposed of together with urban waste.
The user must take the product to special "separate waste collection centres" provided by local government, or deliver it to the retailer against the purchase of a new product.
Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.
Illegal disposal of the product leads to the enforcement of administrative penalties.
WARNING FOR A CORRECT USE OF RECHARGEABLE BATTERY
- Recharge the battery in an ambient temperature between 5^ and 35^ .
- Don't recharge more than the suitable period to prevent the risk of overheating and burst.
- Don't recharge the battery for more than 6 hours.
- Recharging the battery over the suitable period or an extended period of inactivity may reduce battery duration.
- Rechargeable battery is liable to wear and tear and its performance will reduce gradually.
- To extend the duration of the battery use it when is completely charged up to the complete discharging, then recharge it fully before use it again. Recharge a battery not completely consumed, will result a reduced duration. In this case, repeat the full charging/discharging cycle many times.
- Avoid recharge the battery for the whole night.
NOTES D'EMPLOI
Dimensions: 220x155x75mm
