CMP 576 DAB - Radio Trevi - Free user manual and instructions

Brand	Trevi
Model	CMP 576 DAB
Product type	Radio alarm clock with CD, cassette, USB and DAB+ player
Dimensions (W x H x D)	285 x 205 x 140 mm
Power supply	100-240 V ~ 50/60 Hz, 15 W (standby < 0.5 W); 6 D (UM-1) batteries not included
Audio power	1.5 W x 2 (stereo)
Radio reception	FM 87.5-108 MHz; DAB/DAB+ 174.928-239.200 MHz
Antenna	Telescopic antenna for FM
Radio presets	30 FM stations and 30 DAB/DAB+ stations
CD player	Audio CD and MP3 (20 programmable tracks for audio CD, 99 for MP3)
CD playback functions	Repeat (one track, all disc, folder for MP3), random, intro, programming
Cassette player	Playback and recording from CD, USB, radio
USB input	Playback of MP3 files from USB flash drive
Auxiliary input (AUX)	3.5 mm jack socket for external source
Headphone output	3.5 mm jack socket
Additional features	Clock, sleep timer, LCD display, DRC menu, factory reset
Cleaning and maintenance	Soft slightly damp cloth; avoid solvents and abrasives
Safety	Automatic shutdown after 15 min in CD/USB/AUX mode; keep away from children, do not expose to water or flames
Weight	Approximately 1.8 kg (estimated)

Frequently Asked Questions - CMP 576 DAB Trevi

How to turn the radio on and off?

Press the STANDBY/FUNC (19) button to turn on. Press and hold to turn off completely.

How to scan DAB stations?

In DAB mode, press and hold STOP/MENU/INFO (13), select Full Scan with TUN-/+, then confirm with PLAY/PAUSE/SELECT/SCAN (17).

How to memorize a radio station?

Tune to the station, then press and hold PROG/MEM/P-MODE (11). Use TUN-/+ to select a memory location (1-30) and confirm with PLAY/PAUSE/SELECT/SCAN.

How to set the clock?

The clock sets automatically when receiving DAB. In FM, you can set it manually via the system menu (press and hold STOP/MENU/INFO then choose System).

How to use the cassette player?

Select TAPE MODE with STANDBY/FUNC. Insert the cassette, full reel on the right. Use PLAY (8), PAUSE (4), REWIND (7), F.FWD (6), STOP/EJECT (5).

How to record from CD or radio onto cassette?

In CD, USB or radio mode, insert a cassette. Press RECORD (9) to start; the RECORD and PLAY keys will lock. Press STOP/EJECT to finish.

How to connect an external device via AUX?

Connect a 3.5 mm jack cable from the external device to the AUX IN (25) input. Select AUX MODE with STANDBY/FUNC. Playback is controlled from the external device.

What to do if the radio does not receive FM stations?

Fully extend the telescopic antenna (27). Move the radio away from televisions, neon lights or other electrical appliances. Try changing orientation and position.

How to reset the device to factory settings?

Press and hold STOP/MENU/INFO (13), go to System then Factory Reset. Confirm with PLAY/PAUSE/SELECT/SCAN. An automatic DAB scan will follow.

Why is the sound distorted or weak?

Check the volume with buttons VOLUME + (18) and - (20). Make sure the antenna is properly extended. In DAB, activate the DRC function via the menu to improve sound in noisy environments.

USER MANUAL CMP 576 DAB Trevi

WARNING: DO NOT OPEN THE SET. NEITHER CONTROLS OR SPARE PARTS TO BE USED BY THE USER ARE TO BE FOUND INSIDE IT. APPLY TO AUTHORISED TREVICENTERS FOR SERVICE OPERATIONS.

ACHTUNG

WIRES CONNECTIONS TO A UK THREE-PIN PLUG

The wires in this mains lead are coloured in accordance with the following wiring codes:

Blue: Neutral

Brown: Live

The wires in this mains lead must be connected to the terminals in the plug as follows:

Blue wire: N or Black

Brown wire: L or Red

Neither wire is to be connected to the earth (E or W) terminal of three-pin plug.

Should the fuse fail in the plug remove the plug form the wall socket and replace the fuse with a 3 Amp. ASTA approved BS 1362 fuse.

BLUE E N L FUSE BROWN CORD GRIP

Technical diagram of a spherical device with numbered components for identification

12 13 14 15 16 17 18 19 20 11 10 22 21

Technical diagram of a mechanical device with numbered components labeled 23, 24, 25, 26, and 27.

DESCRIZIONE COMANDI

This symbol on the back of the unit and in this manual indicate the presence on them of important instructions for safe use. Please read them carefully before using the appliance.

DANGEROUS VOLTAGE

This symbol on the back of the unit and in this manual indicates the presence in this equipment components operating at high voltage, do not open it to avoid the risk of electric shock.

WARNINGS ON THE LASER

This device is equipped with a laser beam reading system. Although the laser is of low power and with a safety device that prevents open door operation, scrupulously observe the following warnings:

Do not bring the eye to the laser lens with the device open, risk of retinal injury.

Do not attempt to disassemble or tamper with the laser unit, risk of radiation absorption.

NOTES OF USE

Listen at high volume for long periods of time, may damage your hearing.

• Avoid using it in the following cases:
• Near strong heat sources, such as central heating plants or stoves.
• In very humid places such as bathrooms, swimming pools, etc.
• In very dusty places.
• In places subject to strong vibrations.
• Position the appliance in such a way that there is always enough room for free air circulation (at least 5 cm).
• Do not block the air inlets.
• If any liquid enters the appliance, unplug it immediately from the socket and take it to the nearest TREVI authorised service centre.
• Before switching on the appliance, always check that the power cable and the connection cable are properly installed.
• No naked flame sources, such as lighted candles, should be placed on this.
• The apparatus shall not be exposed to dripping or splashing water and no object filled with water, such as vases, should be placed on the unit.
• If you notice excessive heat on the device, disconnect the plug from the main power socket immediately.
• Do not pull the power cord.
• Keep this manual for future reference.

CARE AND MAINTENANCE

For cleaning we recommend the use of a soft, slightly damp cloth. Avoid solvents or abrasives.

IMPORTANT

The good construction of this machine guarantees the perfect functioning for a long time. However, should any problem arise, you should consult your nearest authorized service center.

TREVI pursues a policy of continuous research and development. Therefore, the products may have different features from those described.

To avoid possible hearing damage, limit the time listening at high volumes

Technical diagram of a spherical device with numbered components for identification and assembly reference.

12 13 14 15 16 17 18 19 20 11 10 22 21

Technical diagram of a mechanical device with numbered components labeled 23, 24, 25, 26, and 27.

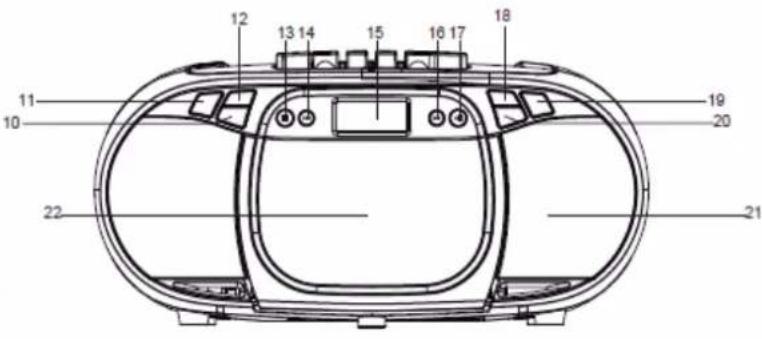

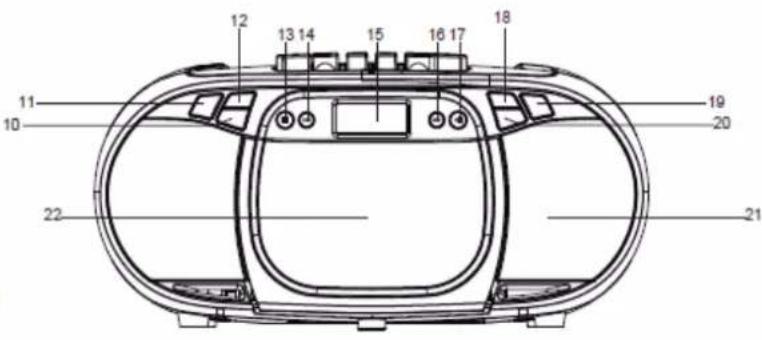

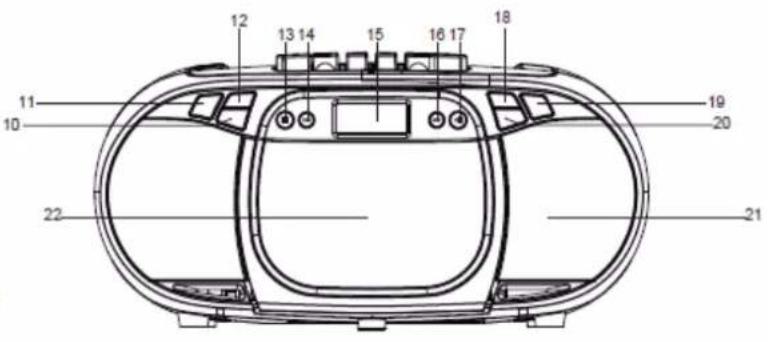

NAME OF CONTROLS

1. Folding Handle
2. USB port
3. CD compartment
4. Cassette PAUSE key
5. Cassette STOP/EJECT key
6. Cassette F.FWD key
7. Cassette REW key
8. Cassette PLAY key

9. Cassette RECORD key

10. 10/FOLD./MEM - button

11. PROG./MEM./P-MODE button
12. 10/FOLD./MEM + button
13. STOP/MENU/INFO button
14. SKIP/TUN.- button
15. LCD Display
16. SKIP/TUN.+ button
17. ▶ II PLAY/PAUSE/SELECT/SCAN button
18. VOLUME + button
19. ⏻ STANDBY/FUNC. button
20. VOLUME - button
21. Speakers
22. Cassette compartment

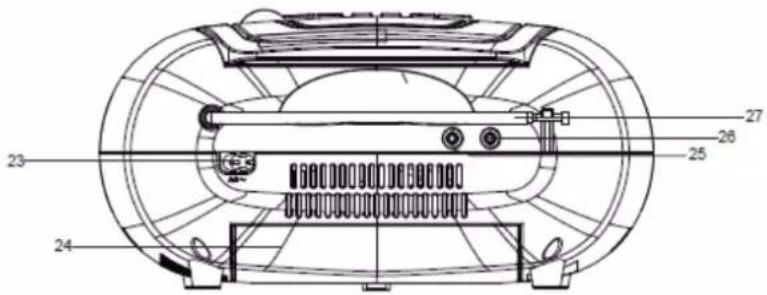

23. AC Socket
24. Battery compartment
25. AUX IN Jack
26. Phone Jack
27. FM Telescopic Antenna

POWER SOURCE

BATTERY

Open the battery compartment (24) and insert 6 "D" size batteries (UM-1) taking care to respect the indicated polarities carefully. Replace the exhausted batteries immediately and remove them if you do not plan to use the appliance for a long time.

AC OPERATION

Connect the power cord to the AC socket (16). Insert the plug into a 100-240V ∼ 50/60Hz mains socket.

Do not connect the appliance to electrical outlets other than those indicated.

ON/OFF

1. Press the \$ANDBY/FUNC. (19) button to turn the unit on.
2. Press the ⏻ STANDBY/FUNC. (19) button to select one of the DAB / DAB + radio sources, FM radio, TAPE mode, CD player, USB input and AUX input.
   NOTE
   In CD, USB or AUX source, if no operation is performed within 15 minutes, the unit will automatically enter STANDBY mode.
3. Hold down the ⏻ STANDBY/FUNC. (19) button for a long time to turn off the unit.

VOLUME CONTROL

1. Use the VOLUME + (18) and VOLUME - (20) buttons to increase or decrease the volume.

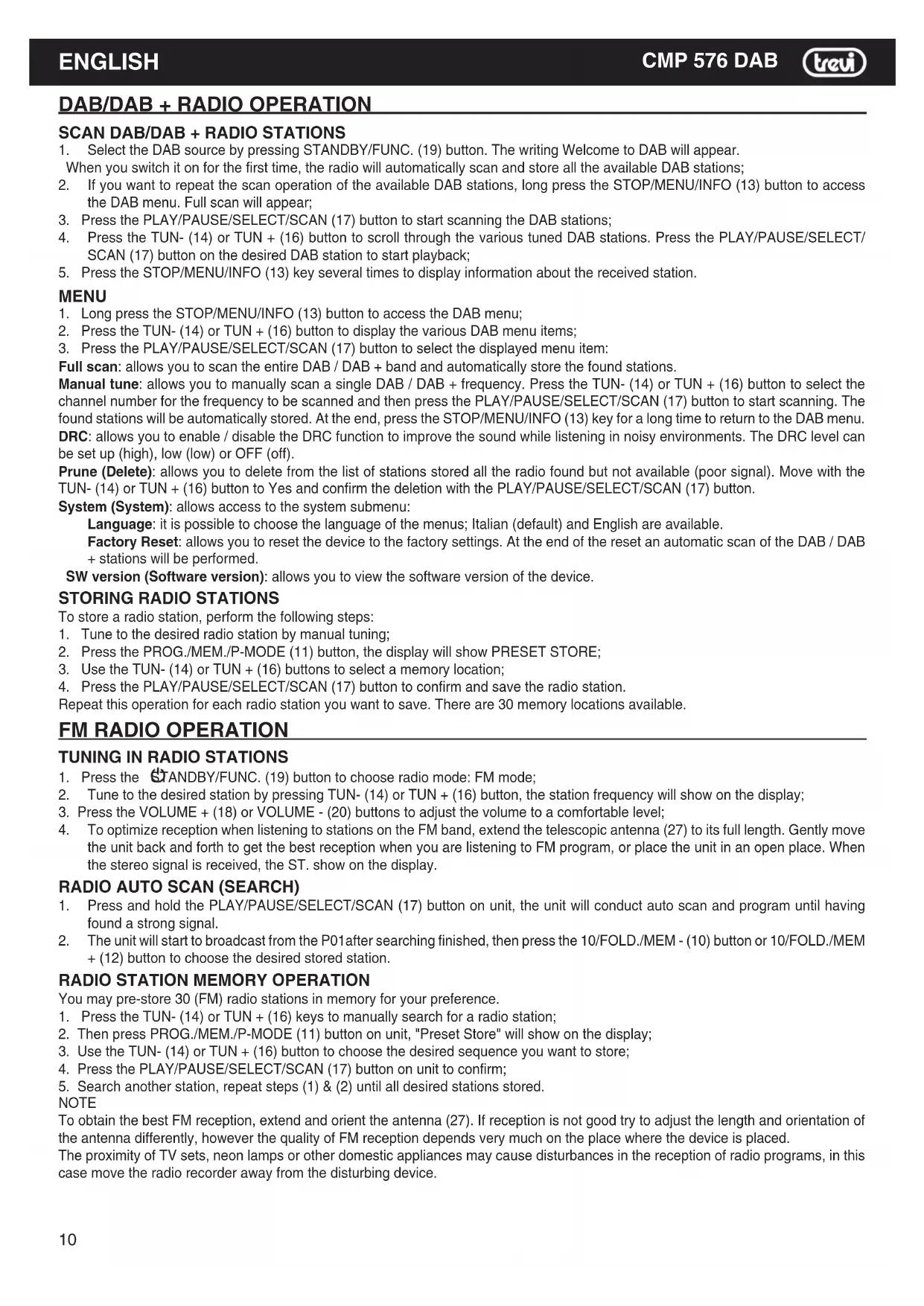

1. Select the DAB source by pressing STANDBY/FUNC. (19) button. The writing Welcome to DAB will appear.
   When you switch it on for the first time, the radio will automatically scan and store all the available DAB stations;
2. If you want to repeat the scan operation of the available DAB stations, long press the STOP/MENU/INFO (13) button to access the DAB menu. Full scan will appear;
3. Press the PLAY/PAUSE/SELECT/SCAN (17) button to start scanning the DAB stations;
4. Press the TUN- (14) or TUN + (16) button to scroll through the various tuned DAB stations. Press the PLAY/PAUSE/SELECT/SCAN (17) button on the desired DAB station to start playback;
5. Press the STOP/MENU/INFO (13) key several times to display information about the received station.

MENU

1. Long press the STOP/MENU/INFO (13) button to access the DAB menu;
2. Press the TUN- (14) or TUN + (16) button to display the various DAB menu items;
3. Press the PLAY/PAUSE/SELECT/SCAN (17) button to select the displayed menu item:

Full scan: allows you to scan the entire DAB / DAB + band and automatically store the found stations.

Manual tune: allows you to manually scan a single DAB / DAB + frequency. Press the TUN- (14) or TUN + (16) button to select the channel number for the frequency to be scanned and then press the PLAY/PAUSE/SELECT/SCAN (17) button to start scanning. The found stations will be automatically stored. At the end, press the STOP/MENU/INFO (13) key for a long time to return to the DAB menu.

DRC: allows you to enable / disable the DRC function to improve the sound while listening in noisy environments. The DRC level can be set up (high), low (low) or OFF (off).

Prune (Delete): allows you to delete from the list of stations stored all the radio found but not available (poor signal). Move with the TUN- (14) or TUN + (16) button to Yes and confirm the deletion with the PLAY/PAUSE/SELECT/SCAN (17) button.

System (System): allows access to the system submenu:

Language: it is possible to choose the language of the menus; Italian (default) and English are available.

Factory Reset: allows you to reset the device to the factory settings. At the end of the reset an automatic scan of the DAB / DAB + stations will be performed.

SW version (Software version): allows you to view the software version of the device.

STORING RADIO STATIONS

To store a radio station, perform the following steps:

1. Tune to the desired radio station by manual tuning;
2. Press the PROG./MEM./P-MODE (11) button, the display will show PRESET STORE;
3. Use the TUN- (14) or TUN + (16) buttons to select a memory location;
4. Press the PLAY/PAUSE/SELECT/SCAN (17) button to confirm and save the radio station.

Repeat this operation for each radio station you want to save. There are 30 memory locations available.

FM RADIO OPERATION

TUNING IN RADIO STATIONS

1. Press the STANDBY/FUNC. (19) button to choose radio mode: FM mode;
2. Tune to the desired station by pressing TUN- (14) or TUN + (16) button, the station frequency will show on the display;
3. Press the VOLUME + (18) or VOLUME - (20) buttons to adjust the volume to a comfortable level;
4. To optimize reception when listening to stations on the FM band, extend the telescopic antenna (27) to its full length. Gently move the unit back and forth to get the best reception when you are listening to FM program, or place the unit in an open place. When the stereo signal is received, the ST. show on the display.

RADIO AUTO SCAN (SEARCH)

1. Press and hold the PLAY/PAUSE/SELECT/SCAN (17) button on unit, the unit will conduct auto scan and program until having found a strong signal.
2. The unit will start to broadcast from the P01 after searching finished, then press the 10/FOLD./MEM - (10) button or 10/FOLD./MEM + (12) button to choose the desired stored station.

You may pre-store 30 (FM) radio stations in memory for your preference.

1. Press the TUN- (14) or TUN + (16) keys to manually search for a radio station;
2. Then press PROG./MEM./P-MODE (11) button on unit, "Preset Store" will show on the display;
3. Use the TUN- (14) or TUN + (16) button to choose the desired sequence you want to store;
4. Press the PLAY/PAUSE/SELECT/SCAN (17) button on unit to confirm;
5. Search another station, repeat steps (1) & (2) until all desired stations stored.

NOTE

To obtain the best FM reception, extend and orient the antenna (27). If reception is not good try to adjust the length and orientation of the antenna differently, however the quality of FM reception depends very much on the place where the device is placed.

The proximity of TV sets, neon lamps or other domestic appliances may cause disturbances in the reception of radio programs, in this case move the radio recorder away from the disturbing device.

MENU

1. Long press the STOP/MENU/INFO (13) button to enter the FM menu;
2. Press the TUN- (14) or TUN+ (16) button to display the various FM menu items;
3. Press the PLAY/PAUSE/SELECT/SCAN (17) button to select the displayed menu item:

Scan setting: allows you to set the search for radio stations on all stations found (All stations) or only on those with strong signal (Strong station).

Audio setting: allows you to set audio in stereo (Stereo allowed) or mono (Forced mono).

System: allows access to the system menu (see RADIO DAB/DAB+/MENU).

CD-MP3 PLAYER

PLAYING A DISC

1. Select the CD source. The CD MODE will appear;
2. Open the CD compartment (3) and insert the disc with the written side facing up. Close the door carefully;
3. After a few seconds the LCD display (15) will show the number of tracks on the disc. Playback will start automatically;
4. Press the PLAY/PAUSE/SELECT button (17) to activate the pause; the elapsed time of the track will begin to flash. Press it again to return to normal playback;
5. Press the STOP/MENU/INFO (13) button to stop playback permanently.

JUMP TRACE AND FORWARD/ FAST BACK

1. Press the TUN- (14) or TUN+ (16) button to move to the previous or next track;
2. Press and hold the TUN- (14) or TUN+ (16) button while listening to send the track back or forward quickly. Release the button to return to normal playback.

REPEAT OF A SINGLE TRACE

1. To play a single track continuously, press the PROG./MEM./P-MODE (11) button during playback until REP-1 appears on the display. The CD player will continuously play the track shown on the display.
2. To cancel uninterrupted playback of the single track, press the PROG./MEM./P-MODE (11) button several times until the DISC symbol appears.

REPEAT OF THE ENTIRE DISC

1. To continuously play all the tracks on the disc, press the PROG./MEM./P-MODE (11) button during playback until REP-ALL appears on the display. The CD player will continuously play all the tracks on the disc.
2. To cancel the uninterrupted playback of all tracks on the disc, press the PROG./MEM./P-MODE (11) button repeatedly until the DISC symbol appears.

REPEAT OF THE ENTIRE FOLDER

NOTE: function valid only for MP3 CDs.

1. To play all tracks in a folder continuously, press the PROG./MEM./P-MODE (11) button during playback until REP-ALBUM appears on the display. The CD player will continuously play all the tracks in the folder.
2. To cancel the uninterrupted playback of all the tracks in the folder, press the PROG./MEM./P-MODE (11) button several times until the DISC symbol appears.

RANDOM FUNCTION

1. To randomly play all the tracks on the disc, press the PROG./MEM./P-MODE (11) button during playback until RANDOM appears on the display. The CD player will randomly play all the tracks on the disc.
2. To cancel random playback of all tracks on the disc, press the PROG./MEM./P-MODE (11) button longer until the DISC symbol appears.

INTRO FUNCTION

1. To play the first 10 seconds of all the tracks on the disc, press the PROG./MEM./P-MODE (11) button during playback until INTRO appears on the display. The CD player will play the first 10 seconds of all the tracks on the disc.
2. To cancel playback of the first 10 seconds of all tracks on the disc, press the PROG./MEM./P-MODE (11) button repeatedly until the DISC symbol appears.

ALBUM FUNCTION

NOTE: function valid only for MP3 CDs containing folders.

1. While playing an MP3 CD, press and hold the 10/FOLD./MEM - (10) or 10/FOLD./MEM + (12) buttons to move to the next or previous folder (if any).
2. While playing an MP3 CD, press the 10/FOLD./MEM - (10) or 10/FOLD./MEM + (12) buttons to move to the next or previous 10th track.

PROGRAM

You can select the order in which the tracks are played.

1. Press the STOP/MENU/INFO (13) button to stop playback;
2. Press the PROG./MEM./P-MODE (11) button, the message P01 and T-000 appears on the display;
3. Select the track you want to play first with the TUN- (14) or TUN + (16) buttons;
4. Press the PROG./MEM./P-MODE (11) button to confirm;

5. Repeat steps 3 and 4 to store and play the tracks you want; for audio CDs a maximum of 20 tracks can be stored, while for MP3 CDs a maximum of 99 tracks can be stored.

6. Press the PLAY/PAUSE/SELECT/SCAN (17) button to start playback;

7. Press the STOP/MENU/INFO (13) button twice to cancel programming.

USB OPERATION

REPRODUCTION

1. Connect a USB device to the USB input (2);
2. Select the USB source. The USB MODE will appear;
3. After a few seconds the LCD display (15) will show the number of tracks on the disc. Playback will start automatically;
   NOTE: Refer to the CD-MP3 PLAYER OPERATION paragraph for the rest of the functions.

1. Press the STANDBY/FUNC. (19) button to choose TAPE MODE;
2. Insert cassette tape into the compartment (22) with the open edge facing up and the full reel on the right;
3. Press the PLAY (8) button to begin playing the tape;
4. Press PAUSE (4) button to interrupt tape play, press again to resume tape play;
5. Press REWIND (7) or F.FWD (6) to move tape to the desired starting point;
6. Press STOP/EJECT (5) to stop current tape activity, press again for open the cassette compartment door.

RECORDING FROM CD/USB/RADIO

1. Press the STANDBY/FUNC. (19) button to choose CD or USB or Radio;
2. Insert cassette tape into the compartment (22) with the open edge facing up and the full reel on the right;
3. Press RECORD (9) to begin recording. RECORD key and PLAY key go down simultaneously;
4. Press PAUSE (4) to interrupt or edit recording. Press it again to resume recording;
5. Press STOP/EJECT (5) to end recording, press again for open the cassette compartment door.

AUX-IN OPERATION

REPRODUCTION

1. Connect an external device to the AUX IN input (25);
2. Select the AUX source. The writing AUX MODE will appear;
3. Start playback of the external device. For all playback functions refer to the manual of the external device.

HEADPHONE

1. Insert the headphones into the headphone jack (26);
2. Start the desired playback and adjust the volume.

TECHNICAL FEATURES

GENERAL

Power and consumption: 100-240V \~ 50/60Hz(15W, Stand-by <0.5W)
8V "D" batteries (UM1) not included

Power Audio: 1,5W x2

FM band reception: 87.5 - 108 MHz

DAB / DAB + band reception: 174.928 - 239.200 MHz

Dimensions: 285 x 205 x 140 mm

Precautions for correct disposal of the product.

The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste.

The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.

Technical diagram of a spherical device with numbered components for identification

12 13 14 15 16 17 18 19 20 11 10 22 21

Technical diagram of a mechanical device with numbered components labeled 23, 24, 25, 26, and 27.

DESCRIPTION DES COMMANDES

1. Poignée pliable
2. Port USB
3. Compartment CD
4. PAUSE cassette, pausa cassetta
5. STOP/EJECT, Arreêt/Éjection de la cassette
6. F.FWD, Avance rapide cassette
7. REW, Retour de cassette
8. PLAY, cassette

9. RECORD, Enregistrement de cassette

10. 10/FOLD./MEM - Bouton

11. PROG./MEM./P-MODE Bouton
12. 10/FOLD./MEM + Bouton
13. STOP/MENU/INFO Bouton
14. SKIP/TUN.- Bouton
15. Affichage LCD
16. SKIP/TUN.+ Bouton
17. ▶ II PLAY/PAUSE/SELECT/SCAN Bouton
18. VOLUME + Bouton
19. ⏻ STANDBY/FUNC. Bouton
20. VOLUME - Bouton
21. Haut-parleurs
22. Compartiment cassette
23. Alimentation secteur
24. Compartiment de batteries
25. Entrée AUX IN
26. Prise casque
27. Antenne télescopique FM

SOURCE D'ÉNERGIE

BATTERIE

Technical diagram of a spherical device with numbered components for identification

12 13 14 15 16 17 18 19 20 11 10 22 21

Technical diagram of a mechanical device with numbered components labeled 23, 24, 25, 26, and 27.

SCAN DAB/DAB + RADIO-STATIONEN

WIEDERHOLEN EINER EINZELNEN SPUR

Technical diagram of a spherical device with numbered components for identification

12 13 14 15 16 17 18 19 10 20 21 22

Technical diagram of a mechanical device with numbered components labeled 23, 24, 25, 26, and 27.

DESCRIPCION DE LOS COMANDOS

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby TREVI Spa declares that the radio equipment type CMP 576 DAB is in compliance with directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address

https://www.trevi.it/dms/zidi/TREVI/DOCCMP576DAB.pdf

Grid of nine grayscale speech bubble icons with national flags, no text or symbols present

EN If you will not find your language on the instruction manual, please go on our website www.trevi.it to find it
FR Si vous ne trouverez pas votre langue sur le mode d'emploi, veuillez vous visiter sur notre site Web www.trevi.it de le trouver
DE Wenn Sie Ihre Sprache auf die Bedienungsanleitung nicht finden, gehen Sie bitte auf unsere Webseite www.trevi.it zu finden
ES Si no encuentras tu idioma en el manual de instrucciones, por favor vaya a nuestra página web www.trevi.it se encuentra
PT Se você não vai encontrar sua língua sobre o manual de instruções, por favor, vá em nosso site www.trevi.it para encontrá-lo
