Product type	Powerline adapter kit with Wi-Fi access point
Brand	TP-Link
Model	TL-WPA4226 KIT
Category	Powerline adapter
Dimensions (approx.)	10 x 6 x 3 cm (per unit)
Weight (approx.)	200 g (complete kit)
Power supply	100-240 V AC, 50/60 Hz, direct plug
Ethernet connectivity	1 Ethernet port 10/100/1000 Mbps
Wi-Fi connectivity	2.4 GHz (and 5 GHz depending on model)
Maximum powerline speed	600 Mbps
Main features	Powerline network, Wi-Fi extension, pairing via Pair button, WPS copy
Wi-Fi security	WPA/WPA2
Powerline security	128-bit AES encryption
Care and cleaning	Clean with a dry, soft cloth. Do not use liquid products.
Installation safety	Plug directly into wall outlet, avoid power strips.
Included accessories	2 powerline adapters, 1 Ethernet cable, installation guide
Repairability	Not user-serviceable. Contact customer service.
Warranty	3 years limited
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% non-condensing

Frequently Asked Questions - TLWPA4226KIT TP-LINK

How do I reset my powerline adapter?

Press and hold the Reset button (using a pointed object, e.g., a paperclip) for about 10 seconds until all LEDs turn off and then turn on again. You can then re-pair it.

How to troubleshoot no Internet access through my powerline network?

1. Check that all powerline adapters are on the same electrical circuit. 2. Make sure the powerline LEDs are solid (not blinking). 3. Check Ethernet connections. 4. Connect a computer directly to the router to confirm Internet connection works.

What to do if a paired extender does not reconnect after moving?

1. Ensure all adapters remain on the same electrical circuit. 2. Re-pair the extender with another adapter. 3. Move equipment away from interference sources (hair dryers, air conditioners, etc.).

How to pair powerline adapters?

Press the Pair button on the main adapter for 1 second until its power LED blinks. Within 2 minutes, press the Pair button on the extender for 1 second. When the extender's powerline LED remains solid, pairing is successful.

How to copy the router's Wi-Fi settings to the extender?

Place the extender near the router. Press the WPS button on your router, then within 2 minutes press the Wi-Fi button on the extender for 1 second. The Wi-Fi LEDs blink quickly and then remain solid on success.

What does a blinking or red powerline LED mean?

A blinking or red powerline LED indicates poor signal quality. Move the extender to another power outlet to improve the connection.

Can I use powerline adapters on a power strip?

It is not recommended to plug powerline adapters into a power strip. Plug them directly into a wall outlet. If the adapter has a passthrough outlet, you can plug a power strip into it, but do not connect another powerline adapter to it.

How to configure the Wi-Fi network via the web interface?

Connect to the extender's Wi-Fi network (default SSID on the label). Open a browser and enter the extender's IP address (usually 192.168.1.1). Log in with 'admin' as username and password (or as indicated). You can then change the SSID and Wi-Fi password.

What is the maximum range of the powerline network?

The range depends on the quality of the electrical wiring. On average, the powerline network works on the same electrical circuit in a home, up to about 300 meters. Beyond that, the signal may degrade.

Where to find the declaration of conformity for this device?

The CE declaration of conformity is available online at http://www.tp-link.com/en/ce. You can also find it in the legal section of the manual.

USER MANUAL TLWPA4226KIT TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as transition, transformation, or adaptation without permission from IP-Link Technologies Co. Ltd. Copyright © 2018 IP-Link Technologies Co. Ltd. All rights reserved.

MADE IN CHINA

7106507825 REV2.1.1

tp-link

Quick Installation Guide

Powerline Extender

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

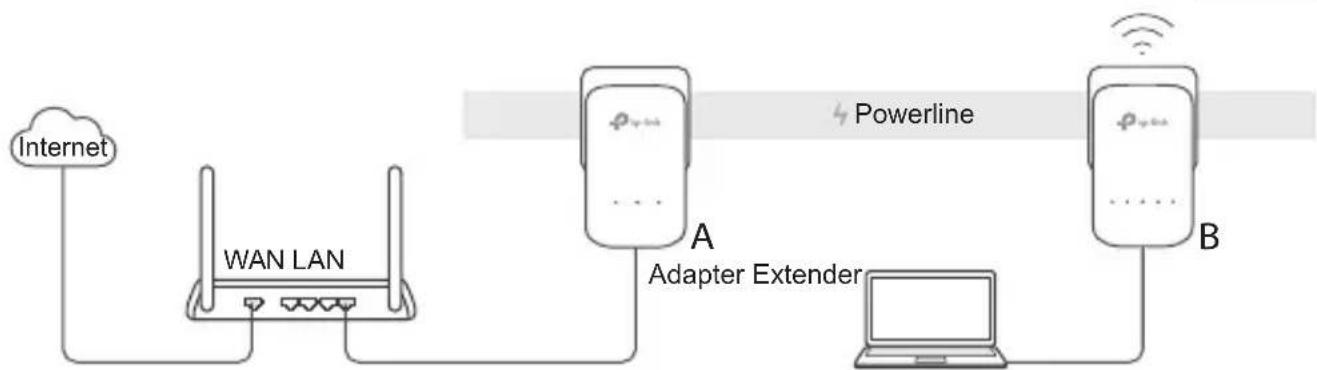


Deutsch

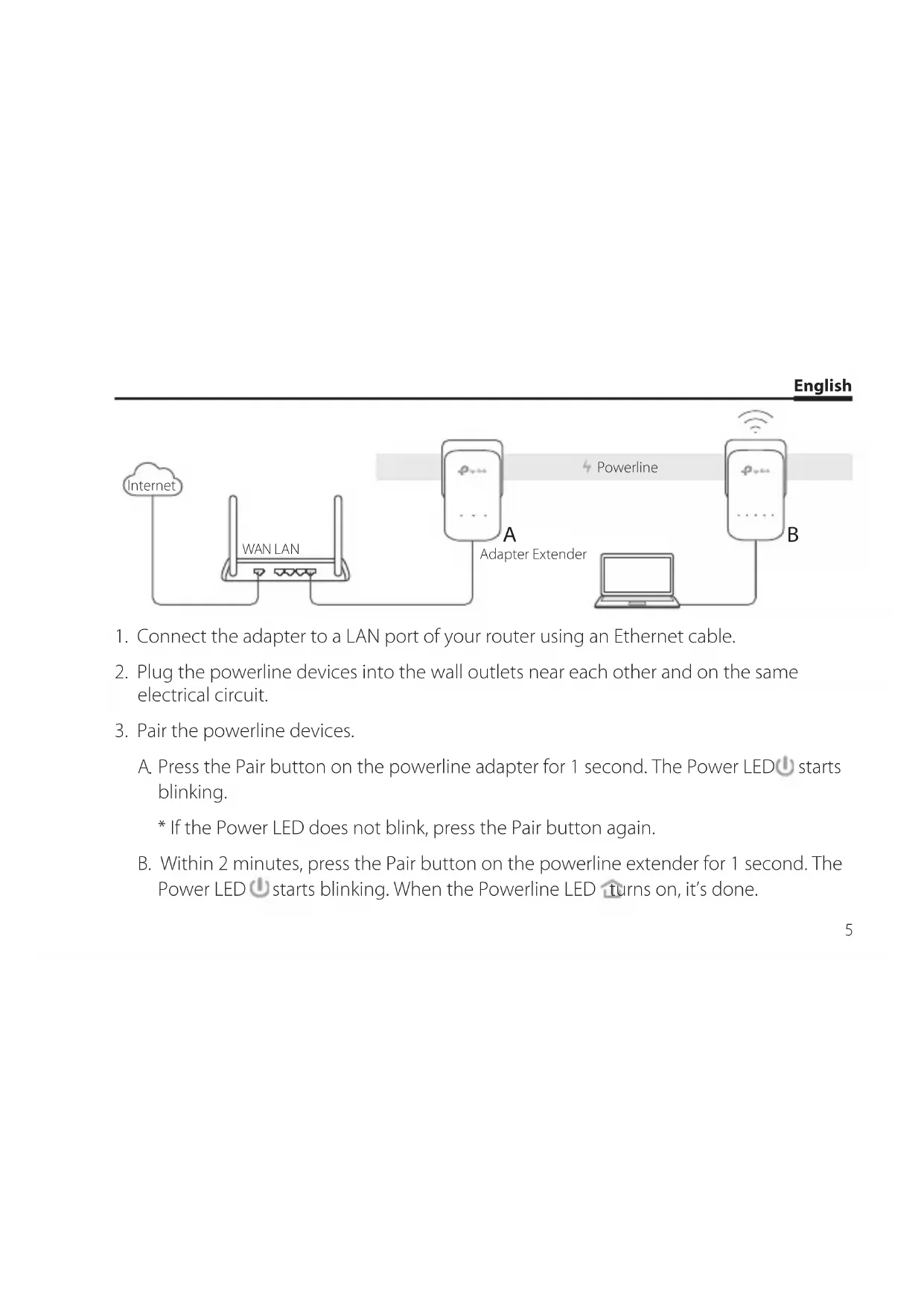

1. Connect the adapter to a LAN port of your router using an Ethernet cable.
2. Plug the powerline devices into the wall outlets near each other and on the same electrical circuit.
3. Pair the powerline devices.

A. Press the Pair button on the powerline adapter for 1 second. The Power LED starts blinking.

* If the Power LED does not blink, press the Pair button again.

B. Within 2 minutes, press the Pair button on the powerline extender for 1 second. The Power LED ⏻ starts blinking. When the Powerline LED turns on, it's done.

English

1. Relocate the powerline extender to a new location. Connect to the Wi-Fi using the SSID and password on the product label.

* A blinking or red Powerline LED 🔒 indicates poor signal strength. Move the extender to another location.

1. Enjoy!

Tips: You can add more powerline devices to the existing powerline network by pairing these devices.

Attention

- Plug the powerline devices directly into the wall outlets but not the power strips.

- For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Copy Wi-Fi Settings from Router to Extender

If your router supports WPS, you can follow the steps below to automatically copy the router's Wi-Fi settings (SSID and password) to the powerline extender.

1. Plug in the powerline extender near your router. Press the WPS button on your router.
2. Within 2 minutes, press the Wi-Fi button on the extender for 1 second.
3. When the 2.4GHz Wi-Fi LED and 5GHz Wi-Fi LED on the extender blink quickly for 3 seconds, and then stay on, it's done!

* 5GHz Wi-Fi is not available on single-band products. For multiple-band products, the powerline extender copies by default both 2.4GHz and 5GHz wireless settings at the same time. If it fails to copy both, your router may be only able to clone one band at a time. Please check your router's manual for support.

Note: The wireless settings can also be configured through the powerline extender's web interface or through the tpPLC app. You can download the app from the App Store or Google Play, or simply scan the QR code.

English

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline extender?

A. With the extender powered on, press and hold the Reset button (use a pin if it is a hole) until all LEDs turn off. When all LEDs turn on again, the reset process is complete.

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all adapters and extenders are on the same electrical circuit.

A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

Q3. What can I do if a successfully-paired extender does not reconnect after being relocated?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Pair it again with another adapter or extender, and make sure the Powerline LED is on before relocating it.

A3. Check for possible interference, such as washers, air conditioners or other household appliances that may be too close to one of the powerline adapters or extenders.

Español

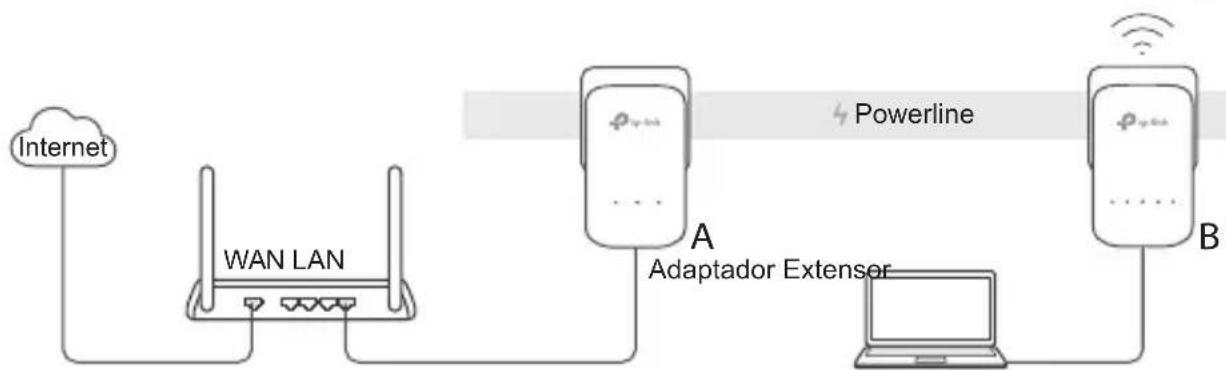


Español

Français

Italiano

Domande Frequenti

Português

FAQ (Perguntas Frequentes)

Suomi

Svenska

Norsk

Dansk

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.
