USER MANUAL D9970N1 NEFF

installation instructions

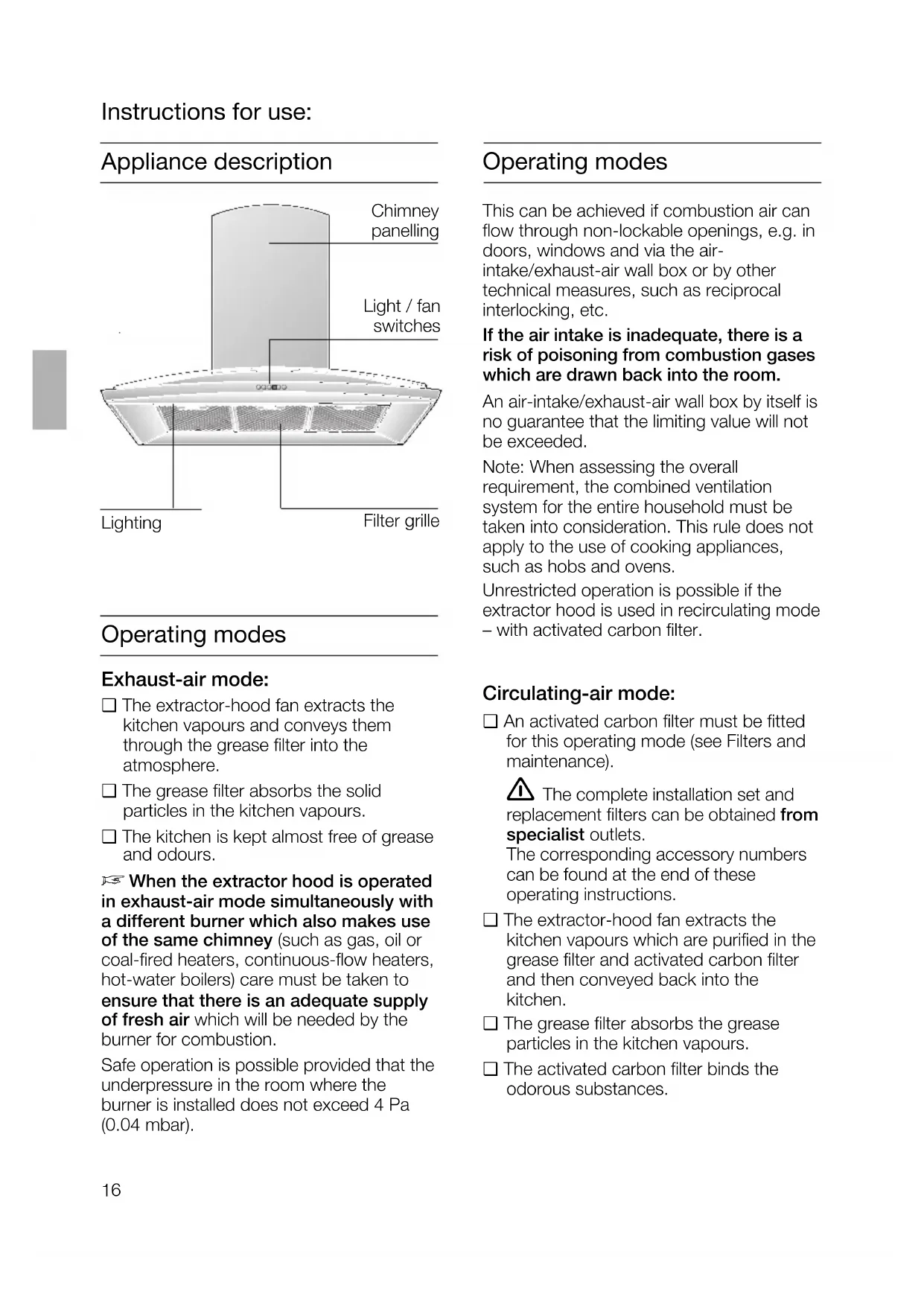

❑ The extractor-hood fan extracts the

kitchen vapours and conveys them

through the grease filter into the

❑ The grease filter absorbs the solid

particles in the kitchen vapours.

❑ The kitchen is kept almost free of grease

D When the extractor hood is operated

in exhaust-air mode simultaneously with

a different burner which also makes use

of the same chimney (such as gas, oil or

coal-fired heaters, continuous-flow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

This can be achieved if combustion air can

flow through non-lockable openings, e.g. in

doors, windows and via the air-

intake/exhaust-air wall box or by other

technical measures, such as reciprocal

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is

no guarantee that the limiting value will not

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Unrestricted operation is possible if the

extractor hood is used in recirculating mode

– with activated carbon filter.

Circulating-air mode:

❑ An activated carbon filter must be fitted

for this operating mode (see Filters and

 The complete installation set and

replacement filters can be obtained from

The corresponding accessory numbers

can be found at the end of these

operating instructions.

❑ The extractor-hood fan extracts the

kitchen vapours which are purified in the

grease filter and activated carbon filter

and then conveyed back into the

❑ The grease filter absorbs the grease

particles in the kitchen vapours.

❑ The activated carbon filter binds the

Instructions for use:

❑ The Instructions for Use apply to several

versions of this appliance. Accordingly,

you may find descriptions of individual

features that do not apply to your

❑ This extractor hood complies with all

relevant safety regulations.

Repairs should only be carried out by

qualified specialists.

Improperly executed repairs can give

rise to significant hazards for the user.

 Do not flambé food directly under the

Risk of grease filter catching fire due

 Restrictions apply to the use of the

extractor hood over a solid-fuel burner

(coal, wood, etc.). (See Installation

Gas hobs / gas cookers

 Always use gas hobs in a proper and

The flames from the gas hob must always

be covered by pots or pans.

The intense heat generated by the gas

flames could cause damage to the

❑ Before using your new appliance, please

read these Instructions for Use carefully.

They contain important information

concerning your personal safety as well

as on use and care of the appliance.

❑ Please keep the operating and

installation instructions in a safe place;

this important documentation may also

be of use to a possible subsequent

 Do not use the appliance if it is

 The appliance is not intended for use

by young children or infirmed persons

without supervision.

Young children should be supervised to

ensure they do not play with the appliance.

 The appliance should only be

connected up to the mains and taken into

use by a qualified specialist.

 Dispose of packaging materials

properly (see Installation instructions).

 Light bulbs must always be fitted when

the extractor hood is in use.

 Defective bulbs should be replaced

immediately to prevent the remaining bulbs

 Never operate the extractor hood

without a grease filter.

 Overheated fat or oil can easily catch

If you are cooking with fat or oil, e.g. chips,

etc., never leave the cooker unattended.18

❑ When a button is pressed, this is verified

by an acoustic signal.

Switching off the acoustic signal:

❑ Simultaneously press buttons 0 and +

until a signal is emitted after approx. 3

Switching on the acoustic signal:

❑ Repeat the process.

Switching the fan ON

The fan speed is increased by one step.

❑ Press the – button.

The fan speed is reduced by one step.

❑ Keep pressing the – button until the fan

 The most effective method of removing

vapours produced during cooking is to:

❑ Switch the ventilator ON

as soon as you begin cooking.

❑ Switch the ventilator OFF

a few minutes after you have finished

Maximum power is obtained at the

intensive setting. It is only required for short

❑ Keep pressing the + button until a

appears in the display.

❑ If the intensive setting is not cancelled by

hand, the fan will automatically switch

The fan continues to run at step

minutes, and at the same time a dot

flashes in the display. After this period

the fan switches off automatically.

a button to switch the

❑ The light can be switched on at any

time, even though the fan is switched off.

❑ Adjusting the brightness:

desired brightness is obtained.

Switching on the light automatically, e.g.

❑ Fan and light must be switched off.

Simultaneously press the – and

❑ After approx. 3 seconds the light

switches on to acknowledge the setting.

Repeat the process with the light switched

❑ After approx. 3 seconds the light

switches off to acknowledge the setting.19

Metal filters are used to trap the greasy

element of the vapours that develop

The filter mats are made from non-

As the filter becomes more and more

saturated with grease, not only does the

risk of it catching fire increase but the

efficiency of the extractor hood can also be

By cleaning the metal grease filters at

appropriate intervals, the possibility of them

catching fire as a result of a build-up of heat

such as occurs when deep-fat frying or

roasting is taking place, is reduced.

Saturation indicator:

When the grease filters reach saturation

point, an acoustic signal is sounded for 10

seconds after the fan has switched off, and

appears in the display. The grease

filters should be cleaned straight away.

Cleaning the metal grease filters:

❑ The filters can be cleaned in a

dishwasher. It is however possible that

they will become slightly discoloured.

Metal filters that are saturated with

grease should not be washed together

with other dishes etc.

❑ When cleaning the filters by hand, soak

them in hot soapy water first of all.

Then brush the filters clean, rinse them

thoroughly and leave the water to drain off.

Removing and inserting the metal grease

Warning: The halogen bulbs must be

switched off and cool.

1. Press the catch on the grease filters

inwards and fold the filters down.

Filters and maintenance

2. Clean the filters.

3. Insert the clean filters back into the

Activated carbon filter:

For neutralizing odours in recirculating

Saturation indicator:

When the activated carbon filter reaches

saturation point, an acoustic signal is

sounded for 10 seconds after the fan has

display. The activated carbon filter should

be replaced straight away.

Warning: The halogen bulbs must be

switched off and cool.

1. Remove the metal filters.

2. Press the catches at both sides of the

filter inwards and lift the carbon filter

Filters and maintenance

3. Engage the catches at both sides.

4. Insert the metal grease filters (see

"Removing and inserting the metal

3. Insert the metal grease filters.

Replacing the activated carbon filter:

❑ A replacement filter can be obtained

from any authorized dealer (see optional

❑ Use original filters only.

By doing so you will obtain maximum

performance from your extractor hood.

Disposing of the old activated carbon

❑ There are no pollutants in the activated

carbon filters. They can therefore be

disposed of as part of your normal

Inserting the filter:

Warning: The halogen bulbs must be

switched off and cool.

1. Remove the metal filters

(see "Removing and inserting the metal

2. Insert the activated carbon filter.21

Disconnect the extractor hood from the

electricity supply by pulling out the

mains plug or switching it off at the fuse

❑ At the same time as you clean the

grease filters, clean off any grease from

all accessible parts of the housing. This

significantly reduces the fire hazard and

ensures that the extractor hood

performs as effectively as possible.

❑ Use a hot detergent solution or a mild

window cleaner to clean the canopy of

❑ Do not scrape off any dirt that has dried

on but loosen it up with a damp cloth.

❑ Do not use abrasive cleaning agents or

sponges that could cause scratches.

❑ Note: Do not use alcohol (spirit) on

plastic parts, otherwise the surface may

become matt in appearance.

Caution: Ensure that the kitchen is ade-

quately ventilated. Avoid naked flames!

 Clean the operating buttons with a mild

soapy solution and a soft, damp cloth only.

Do not use stainless-steel cleaner to clean

the operating buttons.

Stainless steel surfaces:

❑ Use a mild non-abrasive stainless steel

❑ Clean the surface in the same direction

as it has been ground and polished.

 Do not use any of the following to clean

stainless steel surfaces: abrasive sponges,

cleaning agents containing sand, soda, acid

Aluminium and plastic surfaces:

❑ Use a soft, non-linting window cloth or

❑ Do not use dry cloths.

❑ Use a mild window cleaning agent.

❑ Do not use aggressive, acidic or caustic

❑ Do not use abrasive agents.

4. Re-insert the bulb ring.

5. Plug the appliance into the mains or

switch it on at the fuse box.

Note: If the light does not function, check

that the bulbs have been inserted correctly.

Replacing the light bulbs

1. Switch off the extractor hood and pull

out the mains plug or switch off the

electricity supply at the fuse box.

 When switched on, the halogen bulbs

become very hot. Even for some time after

the bulbs have been switched off there is

still a risk of burns.

2. Remove the bulb ring with a screwdriver

max. 20 Watt, G4 cap).

Caution: Refer for plug-in lampholder.

Take hold of the bulb with a clean cloth.22

If you encounter a problem

appears in the display:

❑ See "Filters and maintenance" Section.

If is not possible to operate the extractor

❑ Disconnect the extractor hood from the

mains electricity supply by pulling out the

plug or switching it off at the main fuse

Wait for approx. 1 minute and then

If you have any questions or if a fault

occurs, please call Customer Service.

(See list of Customer Service

When you call, please quote the following:

Setting the saturation indicator

If it becomes necessary to change the

operating mode (exhaust-air/recirculating

mode), the saturation indicator for the filters

must also be altered (see Installation

E-Nr. FD Enter the relevant numbers into the box

above. The E-Nr. (product no.) and FD

(production date) are shown on the

nameplate which can be seen inside the

extractor hood after the filter frame has

Important information

Installation Instructions:

 The installation of the extractor hood

above gas cooking devices, at a

minimum height of 650 mm – Fig. 1 – is

permitted provided that the following

nominal heat loads (Hs) are not exceeded:

Load of one hotplate max. 03.0 kW Load of all hotplates max. 08.3 kW Load of the oven max. 03.9 kW

Load of one hotplate max. 03.9 kW Load of all hotplates max. 11.3 kW

Gas glass-ceramic hotplate

The data on nominal heat loads do not

apply to gas glass-ceramic hotplates.

Be sure to observe the instructions

provided by the manufacturer of the

❑ Solid-fuel cookers

The maximum nominal heat loads and

the minimum distance are the same as

 Installation of the extractor hood over a

solid-fuel burner which could constitute a

potential fire hazard (e.g. due to flying

sparks) is only permitted if the burner is

equipped with an enclosed, non-

removable cover and all country-specific

regulations are observed. This restriction

does not apply to gas cookers and gas

 The smaller the gap between extractor

hood and hob, the greater the likelihood

that rising steam will cause condensation

to form on the hood.

 Old appliances are not worthless

rubbish. If they are disposed of in an

environment-friendly manner, valuable raw

materials can be recovered for use again.

Before you dispose of an old appliance,

make sure that it has been rendered

 Your new appliance was protected on

its way to you by the packaging. None of

the materials cause pollution to the envi-

ronment and all can be recycled for use

again. Please help to protect the

environment and dispose of the packaging

in an environment-friendly manner.

You can obtain information about the best

method disposing of old appliances and

packaging from your dealer or local

 The extractor hood can be used in

either exhaust-air or recirculating mode.

 Always mount the extractor hood over

the centre of the hob.

 Minimum distance between electric

hob and bottom edge of extractor hood:

Additional notes concerning gas

 When installing gas hotplates, comply

with the relevant national statutory

regulations (e.g. in Germany: Technische

Regeln Gasinstallation TRGI).

 The relevant regulations and installation

notes provided by the manufacturer of the

gas cooker must be observed in all cases.

 The extractor hood may be installed

next to only one full-height cupboard or

high wall. Gap to be at least 50 mm.24

Prior to installation

The exhaust air is discharged upwards

through a ventilation shaft or directly

through the outside wall into the open.

D Exhaust air should neither be directed

into a smoke or exhaust flue that is

currently used for other purposes, nor into

a shaft that is used for ventilating rooms in

which stoves or fireplaces are also located.

Exhaust air may be discharged in

accordance with official and statutory

regulations only (e.g. national building

Local authority regulations must be

observed when discharging air into smoke

or exhaust flues that are not otherwise in

D When the extractor hood is operated

in exhaust-air mode simultaneously with

a different burner which also makes use

of the same chimney (such as gas, oil or

coal-fired heaters, continuous-flow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

This can be achieved if combustion air can

flow through non-lockable openings, e.g. in

doors, windows and via the air-

intake/exhaust-air wall box or by other

technical measures, such as reciprocal

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself

is no guarantee that the limiting value will

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Unrestricted operation is possible if the

extractor hood is used in recirculating

mode – with activated carbon filter.

If the exhaust air is going to be

discharged into the open, a telescopic

wall box should be fitted into the outside

Mount the pipe directly onto the air

Connecting a l 120 mm exhaust-air

❑ Insert the reducing connector into the air

connector, drill 2x l 3 mm holes and

Prior to installation

For optimum extractor hood efficiency:

Short, smooth air exhaust pipe.

As few bends in the pipe as possible.

Diameter of pipe to be as large as

possible and no tight bends in pipe.

If long, rough exhaust-air pipes,

many pipe bends or smaller pipe

diameters are used, the air extraction

rate will no longer be at an optimum

level and there will be an increase in

Internal diameter: 150 mm (at least

Flat ducts must have an internal cross-

section that equates to that of round

There should be no sharp bends.

If pipes have different diameters:

Insert sealing strip.

For exhaust-air mode, ensure that

there is an adequate supply of fresh air.

Circulating-air mode

❑ With activated carbon filter if exhaust-air

mode is not possible.

installation set can be

end of these operating

❑ Attach the exhaust-air pipe to the

reducing connector.26

Prior to installation

The wall must be flat and perpendicular.

Ensure that the wall is capable of

providing a firm hold for mounting

25,0 26,5 We reserve the right to construction changes within the context of technical development.

WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in

accordance with the following code:

Green and Yellow – Earth

If you fit your own plug, the colours of

these wires may not correspond with the

identifying marks on the plug terminals.

This is what you have to do:

1. Connect the green and yellow (Earth)

wire to the terminal in the plug marked

‘E’ or with the symbol ( ), or

coloured green or green and yellow.

2. Connect the blue (Neutral) wire to the

terminal in the plug marked ‘N’ or

3. Connect the brown (Live) wire to the

terminal marked ‘L’, or coloured red.

The extractor hood should only be

connected to an earthed socket that has

been installed according to relevant

If possible, site the earthed socket directly

behind the chimney panelling.

Are to be found on the name plate inside

the appliance after removal of the filter

 Before undertaking any repairs,

always disconnect the extractor hood from

the electricity supply.

Length of the connecting cable: 1.30 m.

If it is necessary to wire the extractor

hood directly into the mains:

The extractor hood should only be

connected to the electricity supply by a

properly qualified electrician.

A separator must be installed in the

household circuit. A suitable separator is a

switch that has a contact gap of more than

3 mm and interrupts all poles. Such

devices include circuit breakers and

This extractor hood corresponds to EC

regulations concerning RF interference

Electrical connection

Changing over from exhaust-

air to recirculating mode

Changing the electronic control system

to recirculating mode:

The standard factory setting is for

operation in exhaust-air mode.

To change the mode, the extractor hood

must have been connected up and

should be switched off.

1. Press and hold the 0 button.

{ is displayed, press the

ã is displayed. When this

has taken place, release the buttons.

ã goes out shortly afterwards.

The electronic control system will then

have been set to recirculating mode.

By repeating steps 1 and 2, you can

change the electronic control system

back to exhaust-air mode (

This extractor hood is intended to be

mounted onto the kitchen wall.

1. Remove the grease filter (refer to

Operating Instructions).

2. Draw a line on the wall from the ceiling

to the lower edge of the hood at the

centre of the location where the hood is

going to be mounted.

3. Using the template, mark positions on

the wall for the screws.

 Ensure that the minimum distance

between the hob and the extractor hood is

maintained – 550 mm for an electric hob

and 650 mm for a gas hob. The bottom

edge of the template equates to the lower

edge of the extractor hood.

4. Drill 4 x l 8 mm holes for the extractor

hood and 2 x l 8 mm holes for the

chimney panelling. Insert plugs into the

holes so that they are flush with the wall.

Note: Take into account any special

accessories that are going to be fitted.

5. Attach the fixing bracket for the

chimney panelling using two hexagon

6. Screw in the two upper hexagon head

cap screws leaving them extended by

7. Attach the extractor hood to the

11. Connect the hood to the electricity

12. Remove the protective film from the

 Take care not to damage the

stainless steel surfaces which are

susceptible to scratches etc.

14. Slide out the upper section and attach

it to the mounting brackets at the sides

08. Screw in the two lower hexagon head

 Before the 4 screws are tightened

down, align the extractor hood properly.

09. Stick protective film over the holes of

the 2 lower mounting bolts in the

13. Push both sections of the flue panelling

together (slots in the upper section

must be pointing downwards) and

insert into the opening in the extractor

 Protect the cover panels from

scratches, for example by laying the

template used for marking the wall over

the top edge of the lower section.

15. Insert the grease filter (refer to

Operating Instructions).

16. Insert the bracket on the front into the

two drill holes from above.

Ventilation intensive:

Printed in Germany 0503 Es.
