USER MANUAL DAM 50 NEFF

installation instructions

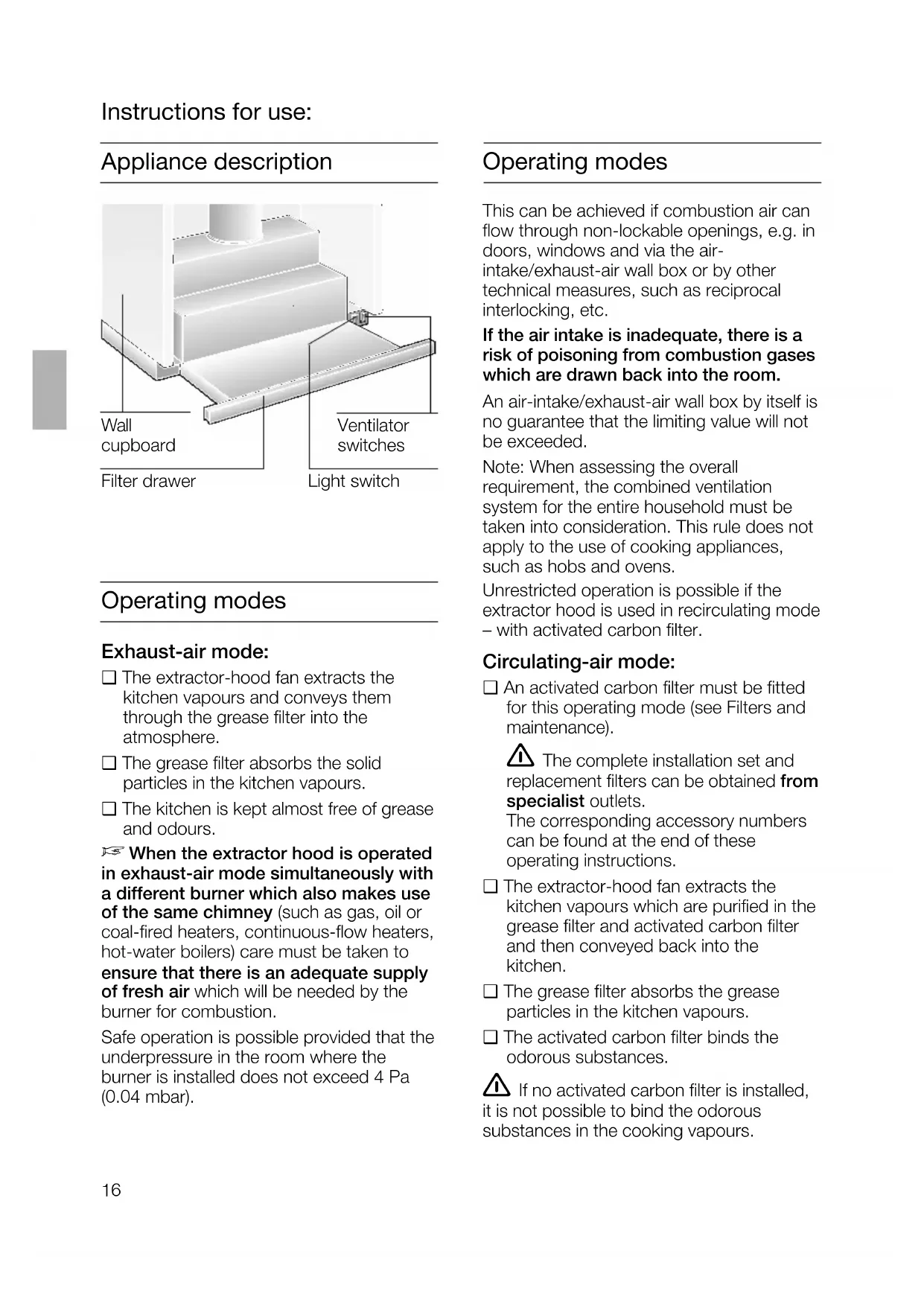

❑ The extractor-hood fan extracts the

kitchen vapours and conveys them

through the grease filter into the

❑ The grease filter absorbs the solid

particles in the kitchen vapours.

❑ The kitchen is kept almost free of grease

D When the extractor hood is operated

in exhaust-air mode simultaneously with

a different burner which also makes use

of the same chimney (such as gas, oil or

coal-fired heaters, continuous-flow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

This can be achieved if combustion air can

flow through non-lockable openings, e.g. in

doors, windows and via the air-

intake/exhaust-air wall box or by other

technical measures, such as reciprocal

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is

no guarantee that the limiting value will not

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Unrestricted operation is possible if the

extractor hood is used in recirculating mode

– with activated carbon filter.

Circulating-air mode:

❑ An activated carbon filter must be fitted

for this operating mode (see Filters and

 The complete installation set and

replacement filters can be obtained from

The corresponding accessory numbers

can be found at the end of these

operating instructions.

❑ The extractor-hood fan extracts the

kitchen vapours which are purified in the

grease filter and activated carbon filter

and then conveyed back into the

❑ The grease filter absorbs the grease

particles in the kitchen vapours.

❑ The activated carbon filter binds the

 If no activated carbon filter is installed,

it is not possible to bind the odorous

substances in the cooking vapours.

Instructions for use:

Before using for the first time

Important notes: ❑ The Instructions for Use apply to severalversions of this appliance. Accordingly,you may find descriptions of individualfeatures that do not apply to your specific appliance.❑ This extractor hood complies with all relevant safety regulations.Repairs should be carried out by qualified technicians only.Improper repairs may put the user atconsiderable risk.  Do not flambé food directly under the extractor hood.Risk of grease filter catching fire due ! to flames.

 Restrictions apply to the use of the extractor hood over a solid-fuel burner(coal, wood, etc.). (See Installation instructions).Gas hobs / gas cookers  Always use gas hobs in a proper and safe manner.Important:The flames from the gas hob must alwaysbe covered by pots or pans.The intense heat generated by the gas flames could cause damage to the ! extractor hood. ❑ Before using your appliance for the firsttime, please read these Instructions forUse carefully. They contain importantinformation concerning your personalsafety as well as on use and care of theappliance.❑ Please retain the operating and installation instructions for a subsequentowner.  Do not use the appliance if damaged.

 The appliance is not intended for use by young children or infirmed persons without supervision.Young children should be supervised toensure they do not play with the appliance.  If the connecting cable for this appliance is damaged, the cable must bereplaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury tothe user.  The appliance may be connected to the mains by a qualified technician only.  Dispose of packaging materials properly (see Installation instructions).  Light bulbs must always be fitted when the extractor hood is in use.  Defective bulbs should be replaced immediately to prevent the remaining bulbsfrom overloading.  Never operate the extractor hood without a grease filter.  Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips,etc., never leave the cooker unattended.18  Kitchen fumes are best eliminated by: ❑ Switching ON the fan when you start cooking. ❑ Switching OFF the fan several minutes after you finish cooking.Switching ON the fan: 1. Pull out the filter drawer by the handle.❑ The fan is now operating. 2. Select the desired fan setting.Controls on the various models:Operating the extractor hoodLight:Note: the light can be used at any time,even if the filter drawer has been pushed in.

Setting 3Setting 1Setting 2

OFF ON Setting 1Setting 2Setting 3Setting 1 OFF Setting 2Switching OFF the fan: ❑ Push in the filter drawer all the way.Note: If the filter drawer is pulled out again,the fan starts operating at the last selectedsetting.

If you encounter a problemIf you have any questions or if a faultoccurs, please call Customer Service. (See list of Customer Service representatives).When you call, please quote the following: E-Nr. FD Enter the relevant numbers into the boxabove. The E-Nr. (product no.) and FD(production date) are shown on the nameplate which can be seen inside theextractor hood after the filter frame hasbeen detached.Removing and installing the filter

1. Pull out the filter drawer all the way.

2. Press the detents on the filter frames all

the way in the direction of the arrow.

Filters and maintenance

Metal-mesh grease filters have been

installed to filter grease particles out of

The filter mats are made of incombustible

As grease accumulates in the filter, there is

an increased risk of the filter catching fire

and the extractor hood may malfunction.

By cleaning the metal grease filters at

appropriate intervals, the possibility of them

catching fire as a result of a build-up of heat

such as occurs when deep-fat frying or

roasting is taking place, is reduced.

Cleaning the metal-mesh grease filters:

During normal operation (1 to 2 hours daily),

the metal-mesh grease filters should be

cleaned every 8 – 10 weeks.

The filters can be cleaned in the

However, the filters may be slightly

If the metal-mesh grease filters are very

dirty, do NOT wash them in the

dishwasher with other pots and pans.

When cleaning by hand, soak the filter

mats for several hours in a hot soap

Then brush them off, rinse thoroughly

and allow to drip dry.

To ensure the best possible results,

use only original filters.

❑ If there are two grease filters, remove

3. Fold the filter frame down at the side and

1. Pull out the filter drawer all the way.

2. Insert the filter frame at an angle into the

holder, fold up and attach by pressing

the detent all the way.

❑ If there are two grease filters, first

insert the rear filter frame and then the

front filter frame (profiled edge) into the

 Ensure that the grease filters are

securely positioned on both sides.

Filters and maintenance

3. Insert the activated carbon filter from

below into the extractor-hood housing

and lock into position on both sides.

 Ensure that the edge of the

activated carbon filter is underneath.

4. Re-install the grease filter (see Filters and

The activated carbon filter is removed in

Press the locking hooks outwards.

Replacing the activated carbon filter:

During normal operation (1 to 2 hours daily),

the activated carbon filter should be

replaced approx. 1 x year. The activated

carbon filter can be obtained from

specialist retailers (see Optional

To ensure the best possible results,

use only original filters.

Disposal of the old activated carbon

Activated carbon filters do NOT contain

any pollutants, i.e. they can be disposed

of as household rubbish.

Activated carbon filter:

For filtering odours during circulating-air

The activated carbon filter is installed above

the grease filter(s) in the extractor hood.

1. Remove the grease filter(s) (see Filters

2. Insert the two enclosed plastic holders

into the right and left sides of the

extractor-hood housing and attach each

holder with a screw (required only if

installing an activated carbon filter for the

For appliances with a glass plate in the

pull-out vapour extractor:

The glass plate is easily removed and

can be cleaned in a dishwasher.

To remove the lugs, push outwards.21

Replacing the light bulb

1. Switch off the extractor hood and pull

out the mains plug or switch off the

electricity supply at the fuse box.

2. Pull out the filter drawer all the way.

3. Pull the lamp cover forwards.

4. Replace the light bulbs. Fig. 6. (Standard

candle bulbs, max. 40 W, E14 socket).

5. Re-insert the lamp cover.

6. Plug appliance into mains again or

switch on at the fuse box.

Disconnect the extractor hood from the

electricity supply by pulling out the mains

plug or switching it off at the fuse box.

❑ At the same time as you clean the

grease filters, clean off any grease from

all accessible parts of the housing. This

significantly reduces the fire hazard and

ensures that the extractor hood

performs as effectively as possible.

❑ Use a hot detergent solution or a mild

window cleaner to clean the canopy of

❑ Do not scrape off any dirt that has dried

on but loosen it up with a damp cloth.

❑ Do not use abrasive cleaning agents or

sponges that could cause scratches.

❑ Note: Do not use alcohol (spirit) on pla-

stic parts, otherwise the surface may

become matt in appearance.

Caution: Ensure that the kitchen is ade-

quately ventilated. Avoid naked flames!

 Clean the operating buttons with a mild

soapy solution and a soft, damp cloth only.

Do not use stainless-steel cleaner to clean

the operating buttons.

Stainless steel surfaces:

❑ Use a mild non-abrasive stainless steel

❑ Clean the surface in the same direction

as it has been ground and polished.

 Do not use any of the following to clean

stainless steel surfaces: abrasive sponges,

cleaning agents containing sand, soda, acid

Aluminium, painted and plastic surfaces:

❑ Use a soft, non-linting window cloth or

❑ Do not use dry cloths.

❑ Use a mild window cleaning agent.

❑ Do not use aggressive, acidic or caustic

❑ Do not use abrasive agents.22

Important information

Installation Instructions:

 The installation of the extractor hood

above gas cooking devices, at a

minimum height of 650 mm – Fig. 1 – is

permitted provided that the following

nominal heat loads (Hs) are not exceeded:

Load of one hotplate max. 03.0 kW Load of all hotplates max. 08.3 kW Load of the oven max. 03.9 kW

Load of one hotplate max. 03.9 kW Load of all hotplates max. 11.3 kW

Gas glass-ceramic hotplate

The data on nominal heat loads do not

apply to gas glass-ceramic hotplates.

Be sure to observe the instructions

provided by the manufacturer of the

❑ Solid-fuel cookers

The maximum nominal heat loads and

the minimum distance are the same as

 Installation of the extractor hood over a

solid-fuel burner which could constitute a

potential fire hazard (e.g. due to flying

sparks) is only permitted if the burner is

equipped with an enclosed, non-

removable cover and all country-specific

regulations are observed. This restriction

does not apply to gas cookers and gas

 The smaller the gap between extractor

hood and hob, the greater the likelihood

that rising steam will cause condensation

to form on the hood.

 Old appliances are not worthless

rubbish. If they are disposed of in an

environment-friendly manner, valuable raw

materials can be recovered for use again.

Before you dispose of an old appliance,

make sure that it has been rendered

 Your new appliance was protected on

its way to you by the packaging. None of

the materials cause pollution to the envi-

ronment and all can be recycled for use

again. Please help to protect the

environment and dispose of the packaging

in an environment-friendly manner.

You can obtain information about the best

method disposing of old appliances and

packaging from your dealer or local

 The extractor hood can be used in

either exhaust-air or recirculating mode.

 Always mount the extractor hood over

the centre of the hob.

 Minimum distance between electric

hob and bottom edge of extractor hood:

Additional notes concerning gas

 When installing gas hotplates, comply

with the relevant national statutory

regulations (e.g. in Germany: Technische

Regeln Gasinstallation TRGI).

 The relevant regulations and installation

notes provided by the manufacturer of the

gas cooker must be observed in all cases.

 The extractor hood may be installed

next to only one full-height cupboard or

high wall. Gap to be at least 50 mm.23

Prior to installation

The exhaust air is discharged upwards

through a ventilation shaft or directly

through the outside wall into the open.

D Exhaust air should neither be directed

into a smoke or exhaust flue that is

currently used for other purposes, nor into

a shaft that is used for ventilating rooms in

which stoves or fireplaces are also located.

Exhaust air may be discharged in

accordance with official and statutory

regulations only (e.g. national building

Local authority regulations must be

observed when discharging air into smoke

or exhaust flues that are not otherwise in

D When the extractor hood is operated

in exhaust-air mode simultaneously with

a different burner which also makes use

of the same chimney (such as gas, oil or

coal-fired heaters, continuous-flow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

This can be achieved if combustion air can

flow through non-lockable openings, e.g. in

doors, windows and via the air-

intake/exhaust-air wall box or by other

technical measures, such as reciprocal

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself

is no guarantee that the limiting value will

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Unrestricted operation is possible if the

extractor hood is used in recirculating

mode – with activated carbon filter.

Prior to installation

2. Insert the one-way flap into the bearing

apertures on the air-pipe connector.

If the exhaust air is going to be

discharged into the open, a telescopic

wall box should be fitted into the outside

For optimum extractor hood efficiency:

Short, smooth air exhaust pipe.

As few bends in the pipe as possible.

Diameter of pipe to be as large as

possible (ideal is l 120 mm ) and no

tight bends in pipe.

If long, rough exhaust-air pipes,

many pipe bends or smaller pipe

diameters are used, the air extraction

rate will no longer be at an optimum

level and there will be an increase in

Internal diameter at least. 120 mm.

Flact ducts must have an internal

cross-section that equates to that of

round pipes with a 100/120 mm internal

There should be no sharp bends.

If pipes have different diameters:

Insert sealing strip.

For exhaust-air mode, ensure that

there is an adequate supply of fresh air.

Exhaust air flows upwards:

Cut a hole in the top of the wall cupbo-

ard, including a groove for the mains

For operating in exhaust-air mode, a

one-way flap should be mounted inside the

extractor hood unless there is already one

fitted in the outlet duct or wall ventilation

If no one-way flap was enclosed with the

hood, it can be obtained from a specialist

retailer (see section on optional accessories

in the user instructions).

Installing the one-way flap:

1. Cut out the protective grid in the air-pipe

Prior to installation

Connecting the l 120 mm

Cut out the protective grid in the air

Circulating-air mode

mode is not possible.

installation set can

Exhaust flows straight out at the

– inside the wall cupboard –.

Cut a hole in the rear panel of the wall

cupboard, including a groove for the

Connecting the l 100 mm

Cut out the protective grid in the air

Attach the reducing connector (enclosed

or can be obtained from specialist

retailers) to the air outlet.

Electrical connection

This is what you have to do:

1.Connect the green and yellow (Earth)

wire to the terminal in the plug marked

‘E’ or with the symbol ( ), or

coloured green or green and yellow.

2.Connect the blue (Neutral) wire to the

terminal in the plug marked ‘N’ or

3.Connect the brown (Live) wire to the

terminal marked ‘L’, or coloured red.

The extractor hood may only be

connected to an earthed socket that has

been installed according to the relevant

regulations. If possible, site the earthed

socket directly above the wall cupboard or

in its immediate vicinity.

Are to be found on the name plate inside

the appliance after removal of the filter

 Before undertaking any repairs,

always disconnect the extractor hood from

the electricity supply.

Length of the connecting cable: 1.30 m.

If it is necessary to wire the extractor

hood directly into the mains:

The extractor hood should only be

connected to the electricity supply by a

properly qualified electrician.

A separator must be installed in the

household circuit. A suitable separator is a

switch that has a contact gap of more than

3 mm and interrupts all poles. Such

devices include circuit breakers and

This extractor hood corresponds to EC

regulations concerning RF interference

Preparing the wall cupboard

 Ensure that there is a minimum gap

between hob and extractor hood of 650

mm (for gas hobs) or 430 mm (for electric

This extractor hood has been designed

for installation inside a wall cupboard with

the following dimensions:

Depth: 280 bis 350 mm

Height: at least 300 mm.

1. Remove bottom panel of cupboard – if

 The stability of the cupboard must be

2. Mark two points – right and left – on the

inside of the cupboard where the hood

is to be mounted, and start the hole with

Details for drilling:

l 2 mm – max. 10 mm deep.

❑ Use enclosed template

O II for marking points where hood is to be

❑ The mounting points shown on the

template have been configured in such

a way as to allow a 20 mm thick handle

to be attached flush with the front edges

❑ A stop allows the handle (Dimension ∆)

to be positioned further forwards.

If the cupboard depth is greater than

280 mm, the hood can be mounted further

. . . if the light strip under the cupboard

. . . units is mounted further back,

. . . if the handle is more than 20 mm thick.

Position the template

O II further back.27

Preparing the wall cupboard

Installation inside the wall

3. Align and screw on the enclosed

 Note the thickness of the sides of the

cupboard (16 mm or 19 mm).

1. Remove the filter frames (see Operating

2. If the hinges are no longer accessible

when the extractor hood has been

installed, align the cupboard doors.

3. Lift and push the extractor hood from

below into the cupboard until the

installation aids on the left and right lock

 If the interior depth of the cupboard is

less than 280 mm, the 250 mm high rear

panel must be removed.

4. Pull out the filter drawer all the way.

5. Attach the extractor hood by screwing

in 2 screws on the left and right. Do

NOT tighten the screws. Raise the

6. Align the extractor hood in the

cupboard and tighten the screws.

Installation inside the wall cupboard

2. Align the handle and screw onto the

appliance with the two enclosed

7. Feed the mains connection cable

through the aperture into the upper

cupboard and connect the pipe.

8. Connect to the power supply.

9. If required, shorten the wall cover to the

required size (e.g. saw off) and screw to

A handle must be attached to the

This handle can either be a wooden strip

that matches the kitchen

cupboards or a the handle that is

available as an optional accessory (see

section on optional accessories in the

1. Mark two points on the handle with the

O III and make holes

If the holes are drilled:

l 2 mm – max. 10 mm deep.

Note: The extractor hood housing inside

the wall cupboard can be boarded up (e.g.

Please observe the following:

– The shelf must not be rest upon the

extractor hood housing.

– The board at the front should not be

attached to the housing.

–Provide access for customer service.

The extractor hood is removed in reverse

Note: In circulating-air mode the activated

carbon filter and plastic holder must be

removed in order to gain access to the

mounting screws and installation aids.

The manufacturer reserves the right to make design

alterations in the interests of technical development.

Exhaust air Re-circulating air

restriction.Avant le montage

O I is meegeleverd –.

Printed in Germany 0606 Es.
